Deutz-Fahr Agroplus 67 77 87 Workshop Standard Times Repair Manual

Description

Deutz-Fahr Agroplus 67 77 87 Workshop Standard Times Repair Manual

This is the Deutz-Fahr Workshop standard times reference for the Agroplus 67, Agroplus 77 and Agroplus 87 tractors, published under document number 307.6056.3.6 by SAME DEUTZ-FAHR ITALIA S.p.A. It is the labour-time companion to the workshop manual: for every listed operation it gives the flat-rate hours a trained mechanic should take, broken down into single-operation time, previous-operation time and total time, together with the operation code used for warranty and invoicing.

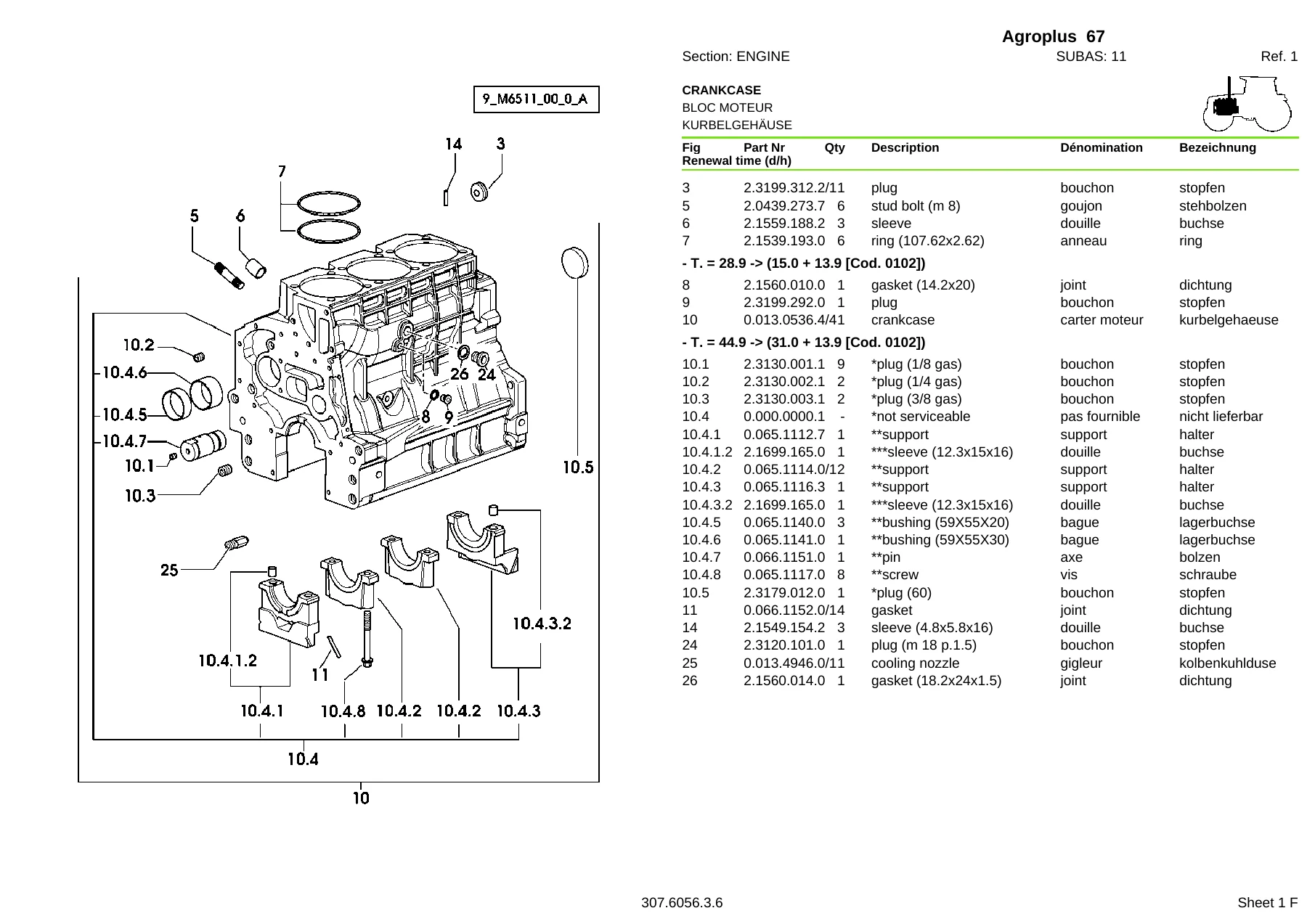

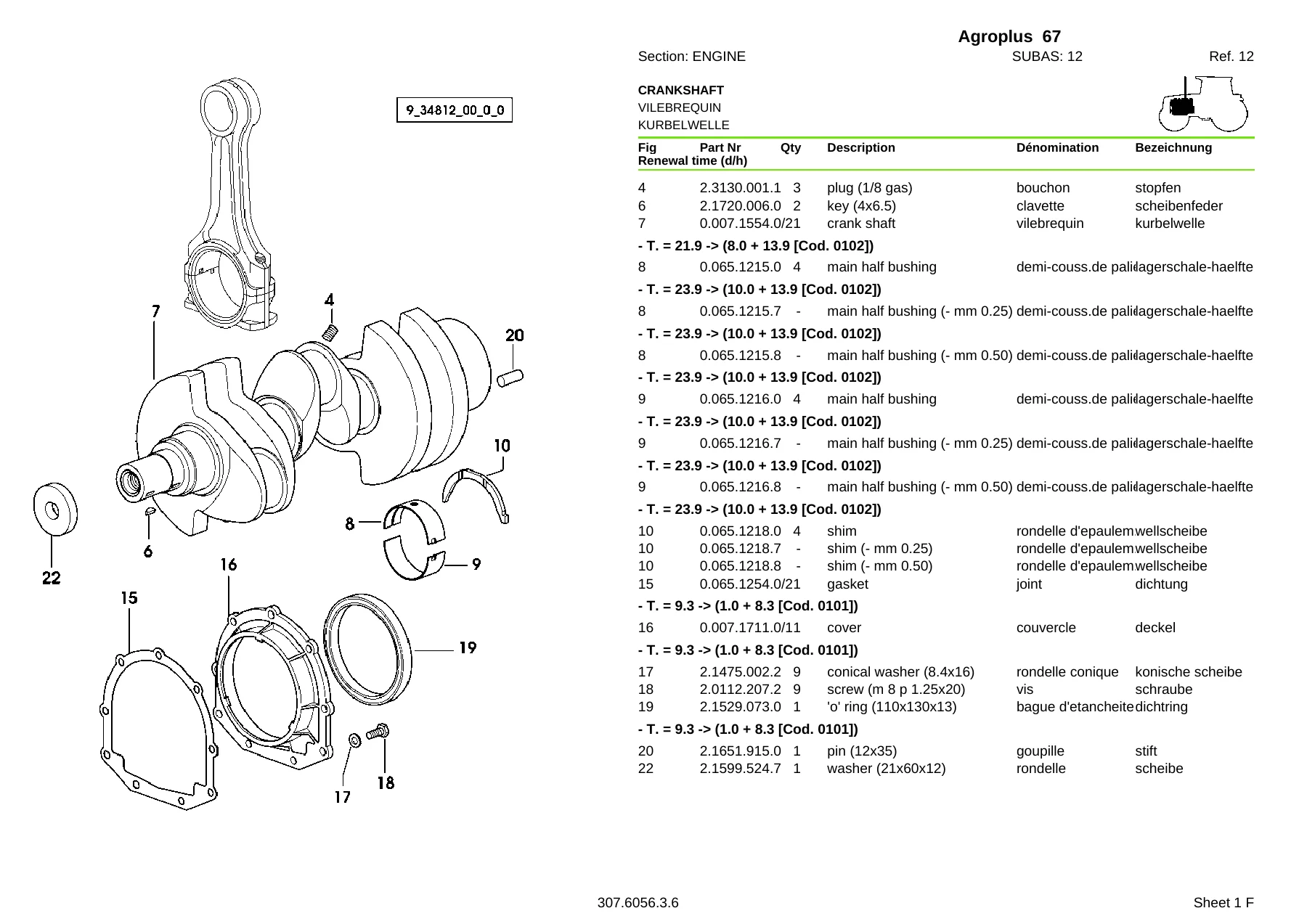

Because it also carries the full illustrated parts breakdown – exploded views with part numbers, quantities, renewal times and multi-language descriptions – it doubles as a fast visual teardown reference for the same three tractors.

File Details

• Manual type: Workshop standard times / repair-time catalogue with illustrated parts sections
• Brand: Deutz-Fahr (SAME Deutz-Fahr Group)
• Models covered: Agroplus 67, Agroplus 77, Agroplus 87
• Document number: 307.6056.3.6
• Publisher: SAME DEUTZ-FAHR ITALIA S.p.A. / Same Deutz-Fahr Agrarsysteme GmbH, Lauingen
• Languages: English, French, German, Italian, Spanish, Portuguese
• Format: PDF
• Length: 385 pages
• Quality system: ISO 9001:2000 certified documentation

Chapters Covered

The catalogue is organised into eight master sections, each with an operation-code system and a parts index. The principal groups covered are:

• Engine – crankcase, timing case, casing cover, monobloc-to-gearbox connecting flange, crankshaft, cylinder / piston / connecting rod, crankshaft pulley, pulley for accessories, pulse wheel, provision for front PTO (with and without air conditioning), flywheel, counterweights, camshaft, cylinder head, oil pan, lubricating oil intake line, lubricating oil filter, lubricating oil cooler, oil pump, lubrication circuits, oil pipes for turbocharger, injection pump and injector, fuel feed pump, fuel pipes, fuel filter, parts set for engine mounting, electronic motor controller, cooling water pump, V-grooved pulley, pulley for accessories, coolant pipe, coolant pump drivebelt, cooling system manifold, water manifold cover, water cooling and sealing, bleeding tube, air intake and exhaust manifolds with gaskets, exhaust silencer and exhaust systems (bottom and upwards)
• Gear / transmission – clutch control, gearbox front and rear casings, hydraulic shuttle, 5-speed gearbox with mini reduction, gear change box (H-M-L / Powershift), standard gearbox, transmission shaft for types without H-M-L, speed range reduction unit, 3-range box (40 km/h), gear shift, knobs for 5-speed gearbox, drive intermediate gears, differential and differential lock control, bevel wheel gear (40 km/h), rear axle, parts set for rear axle, rear reduction gears and axle shafts, rear brakes, brake controls, oil tank, brake control valve, brake sensors, independent hand brake and hand brake
• Front axle and 4WD – 4WD front support, 4WD front drive axle, flange, bevel wheel gear (z = 15 / z = 33), 4WD differential lock electro-hydraulic control, 4WD front reduction gearbox, 4WD standard sealing, 4WD axle shafts, 4WD front brakes, 4WD power steering cylinder, 4WD double cylinder steering, 4WD transmission shafts, 4WD electrohydraulic engagement control
• Front and rear P.T.O. – front PTO, PTO clutch transmission shaft, PTO hydraulic clutch, PTO pump control, 540/N versions with inserted end shafts, 540-750 versions, 2-speed and 3-speed PTO types (fixed end shaft and inserted end shaft), synchronised versions, PTO parts sets with standard seals, seal rings, cover for types without synchronised PTO, PTO shaft drive 2-speed and 2-speed + synchronised / 3-speed
• Power steering and hydraulics – steering wheel, steering control with adjustable steering wheel, 4WD power steering, pipes for hydrostatic steering, 4WD control pipes, lubricating oil cooler, oil flow control valve casing, solenoid valve (4WD), drive for types with H-M-L (Powershift), relay valve, gearbox oil feed pipes, accumulator, common hydraulic system, pump filter suction, hydraulic pumps (16 cc SX, 19 cc SX, 22.5 cc DX)
• Body work – hood support, water cooler, air ducting hood, dashboard, control pedal for electronic throttle, platform, supports, fenders for mechanical and electronic lifter, wing extensions (108 mm and 200 mm), 4WD front mudguards (265 / 310 / 355 mm), self-adjusting front fenders, sun guard roof for safety-frame types, rear-view mirror, second-operator seat, fuel tank, air cleaner hoses, dry air filter, air pre-cleaner, driver’s seats (mechanical, pneumatic), safety belt
• Lighting and electrical – electric lighting system for platform and cab types, worklights and worklight switches, warning beacon and pre-arrangement, licence-plate light, battery, starters, electric starting system, alternators (65 A without air conditioning, 85 A with air conditioning), electrical controls, digital instrument panel, front and rear electrical equipment and battery leads, cab electrical systems, speed sensors, electronic control units (engine H-M-L, hydraulic shuttle), power-lift electronic system
• Cab – rear-view mirrors (fixed and telescopic), glasses and seals, rear window (standard and High Visibility), dampers for rear window hatch, cab interior trim, cab roof High Visibility with and without air conditioning, sun blind, front and rear wiper systems, air-conditioning compressor, air-conditioning lines, ventilation and air-conditioning pipes, ventilation / heating and ventilation / air conditioning / heating groups
• Front hydraulic power-lift – front power lift control cylinder
• S.A.C. – power-lift case, lifting and lifting with electronic control, distributor with electronic lift, sensing elements with electronic control
• Accessory – 6-way auxiliary distributor with mechanical or electronic lift, auxiliary hydraulic distributor, 3-point hitch, 3-point linkage with automatic couplers and with floating lift rods, rear towing hitches in Cat. D, D2 and C
• Parts – lubricating oil cooler, fuel feed pump, fuel filter parts, pre-filter components, steering rod for mechanical steering with telescopic axle, condenser, fan parts, heater parts, air-conditioning / heating parts, engagement, tank parts, towing hitch

Alongside the time tables, the catalogue carries the numerical part-number index and the full illustrated parts breakdown for the covered assemblies, so a mechanic can look up an operation, see how many hours it is rated at, then drop straight into the exploded drawing for the bolts, gaskets, bearings and shafts involved in that job.

How the Time Tables Work

Each entry follows the same three-part structure used across the Deutz-Fahr standard times system: the code for the operation, a plain-language description of what is being done, and then the single-operation time, the previous-operation time and the total. Times are given in decimal hours, where 0.1 equals 6 minutes, so a 3.50 rating is three hours and thirty minutes. Because the previous-operation time is shown separately and cross-referenced by operation code, you can see exactly which other jobs have to be completed first – for example removing the platform before lifting the fuel tank, or dropping the engine from the clutch bellhousing before opening the crankcase.

The catalogue also makes clear that the quoted times assume a suitably trained mechanic of normal ability working in a typical service centre with standard workshop tools and the special tools recommended by Same Deutz-Fahr. Transfer time to and from the farm or site is not included, and the times already allow for the extra difficulty of working on a used machine.

Why This Reference Matters in the Workshop

Guessing how long a job should take is how quotes go wrong and how jobs get under-priced. With the Deutz-Fahr Agroplus 67 77 87 workshop standard times in front of you, every operation from a 0.20-hour front wheel removal to a 31.20-hour rear casing overhaul on the stand has a defined figure attached to it. That makes it possible to quote accurately, plan workshop loading realistically, and check whether a job is running away from the estimate.

The pairing of time data with the exploded parts views is what makes this particular catalogue more useful than a plain flat-rate book. When a job is opened up, the relevant drawing is on the adjacent page, and the part numbers needed for a gasket set, bearing, circlip or shaft are right there in the same group. There is no need to flip between two separate binders.
