Deutz SBV 8M-540 Diesel Engine Spare Parts List – Serial 6729695 PDF

Description

Deutz SBV 8M-540 Diesel Engine Spare Parts List

This Deutz SBV 8M-540 Diesel Engine Spare Parts List is the complete illustrated parts catalogue compiled for engine serial number 6 729 695, and it covers the wider R/S/BV 6/8/12/16 M 540 engine family. Every assembly group is presented as an exploded parts drawing keyed to a numbered parts table, so a part can be identified visually, matched to its KHD part number, and ordered with the correct description and quantity per assembly. The sheet layout follows the classic Klöckner-Humboldt-Deutz Ersatzteil- und Nummernliste format with German, English, French, and Spanish columns side by side — practical for workshops and vessels operating across different regions.

File Details

• Manual type: Illustrated spare parts catalogue / parts number list
• Brand: DEUTZ (Klöckner-Humboldt-Deutz AG / KHD)
• Engine model: SBV 8M-540 (covers R/S/BV 6/8/12/16 M 540)
• Engine serial number: 6 729 695
• Languages: German, English, French, Spanish
• Page count: 665 pages
• File format: PDF

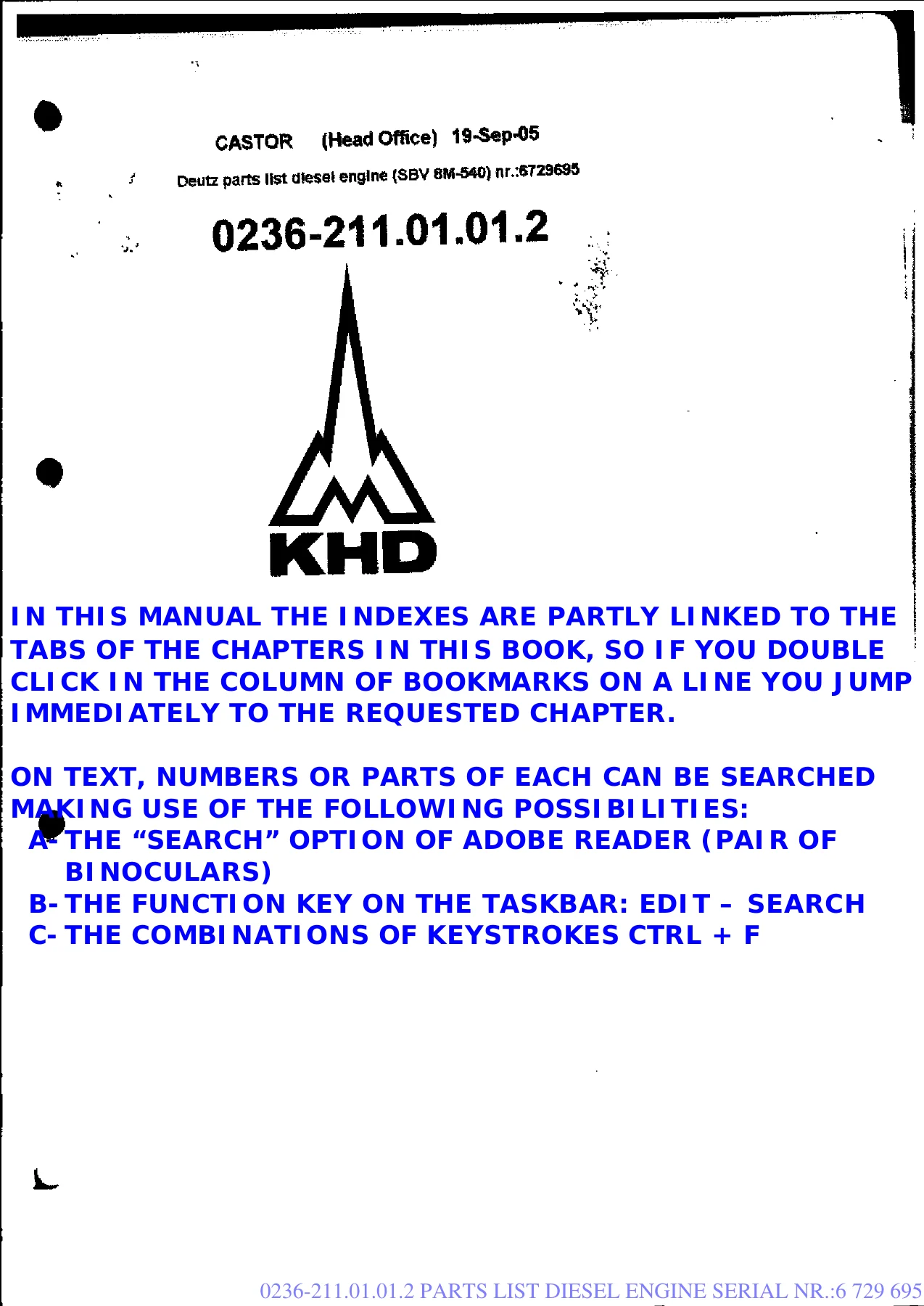

• Document references: cover sheet 0236-211.01.01.2; ordering example list no. 500 0184 UE 0125-99; individual parts sheets numbered in the 0125-XX-XXX XXXX series

Chapters Covered

The catalogue is organised by Baugruppen (assembly groups), and each group has its own exploded views and parts table:

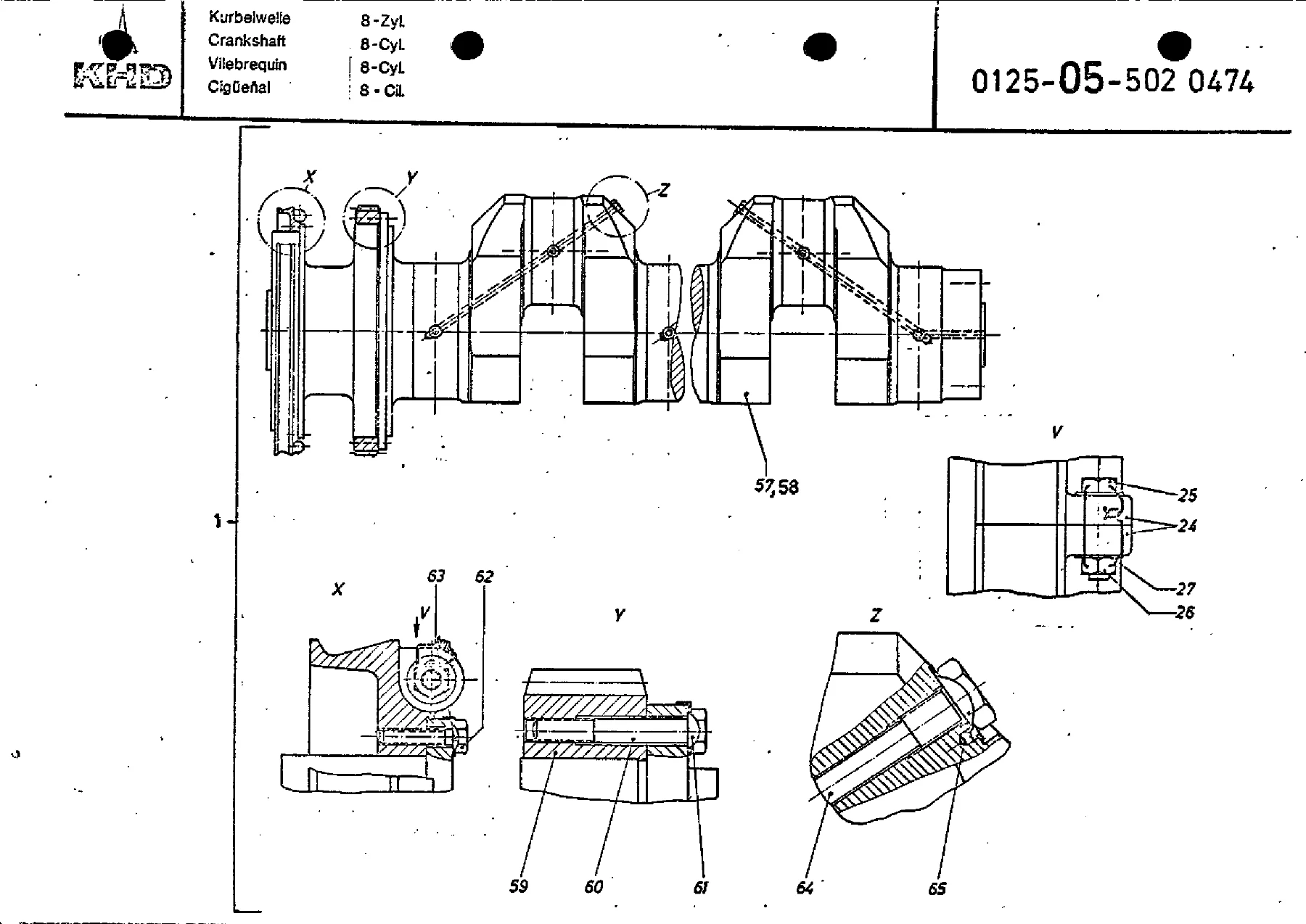

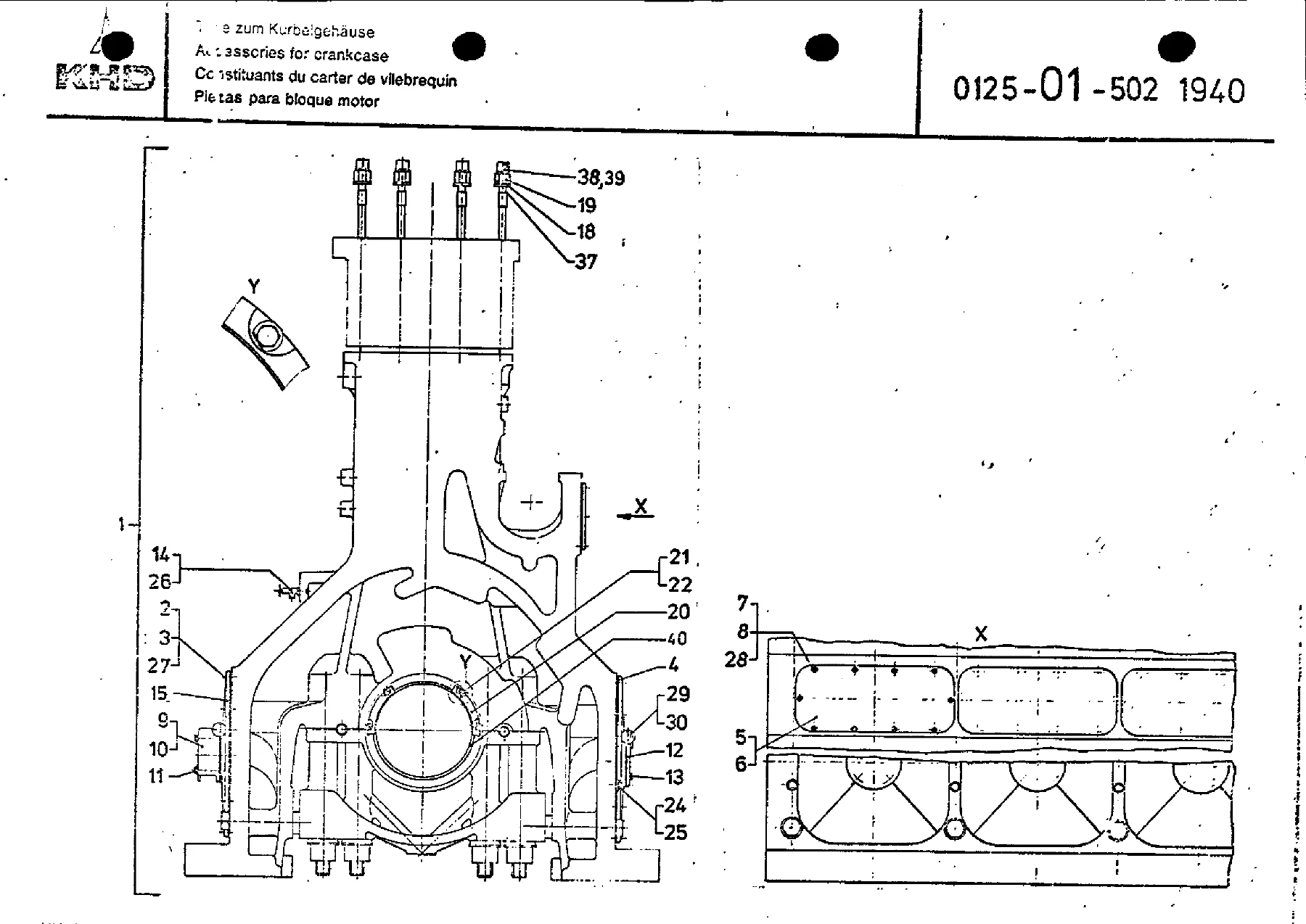

• 01 Crankcase
• 02 Bedplate / oil sump
• 04 Cylinder liner, cylinder block
• 05 Crankshaft, flywheel, intermediate shaft
• 06 Connecting rod
• 07 Piston
• 08 Cylinder head, inlet and exhaust valves
• 09 Timing gear train, auxiliary gear train
• 10 Camshaft, reversing assembly, locator
• 11 Inlet and exhaust valve drive
• 14 Circulating lube oil pump, fresh oil lubricator
• 15 Lube oil filter, lube oil cooler
• 16 Lube oil piping
• 17 Injection pump
• 19 Injector
• 20 Fuel filter, fuel lift pump
• 21 Fuel piping, coolant piping
• 22 Intake silencer with air cleaner
• 27 Governor, stabilizer
• 29 Governing linkage
• 30 Starting pilot air distributor
• 31 Starting valve, safety valve, indicator valve, backcharging valve, blank plug
• 32 Pneumatic piping, starting air master valve, air bottle, starting air control valve
• 34 Vibration damper, eccentric drive, auxiliary drive
• 35 Local control unit
• 36 Water cooler
• 37 Cooling water circulation pump
• 38 Cooling water piping
• 41 Exhaust manifold
• 43 Turbocharger mounting, charger cleaning attachment
• 48 Engine protective system
• 49 Fitting tools and devices
• 51 Instrumentation
• 56 Injection pump stopping device
• 58 Charge air cooler
• 59 Injection pump tools
• 84 Platform
• 86 Cylinder lubrication piping
• 87 Charge air piping

Because the catalogue is a parts document rather than a service manual, it does not contain repair procedures or torque specifications. What it does give you is a direct, illustrated line to every component on the SBV 8M-540 and its R/S/BV 6/8/12/16 M 540 relatives: main bearings, cylinder liners, pistons and ring sets, connecting rods, cylinder heads and valves, camshafts and reverse-gear hardware, timing gears, injection pumps and injectors, fuel and lube oil filtration hardware, cooling circuit components, turbo mounting parts, starting air and pilot air valves, instrumentation, and even the special tools listed in the 49-series sheets. This makes it the reference document for anyone rebuilding, overhauling, or simply maintaining one of these engines and needing the exact KHD part number rather than an aftermarket guess.

Why This Deutz SBV 8M-540 Parts List Matters

Deutz marine and industrial engines of the 540 series are long-life machines that get rebuilt rather than replaced, and that means part numbers matter. A wrong-suffix bearing or an incorrectly identified seal can mean a second teardown. This catalogue eliminates that guesswork by showing each component in its assembly context with the KHD number printed beside it. For workshops carrying out a top-end overhaul, a bottom-end inspection, or a turbocharger and charge-air cooler service, the exploded views cut diagnosis time because the position of every spring, seal, shim, and fastener is visible before disassembly begins.

What You Can Do With This Catalogue

• Identify the exact KHD part number for any SBV 8M-540 or R/S/BV 6/8/12/16 M 540 component
• Cross-reference descriptions in German, English, French, and Spanish when ordering from a distributor abroad
• Confirm quantities per assembly before placing a parts order for a rebuild or scheduled maintenance
• Use the exploded diagrams to plan disassembly sequence and understand how adjacent assemblies fit together
• Source alternative serial-number variants where the catalogue lists multiple part options for the same position
• Reference the tool chapter for the special fitting, tensioning, and removal tools specified for these engines
