Deutz TCD 2012 2V Workshop Manual 0312 1977 – Service & Repair PDF

Description

The Deutz TCD 2012 2V Workshop Manual 0312 1977 – Service & Repair PDF is a detailed workshop reference for maintenance, inspection, adjustment, dismantling and reassembly work on the TCD 2012 2V engine. Rather than presenting only basic maintenance information, the manual is organized around technical data and individual job cards that guide specific workshop operations, measurements and component procedures. It combines setting data, tightening information, illustrated work sequences and references to the tools required for many of the jobs.

Workshop Information Built Around Individual Job Cards

A major part of this Deutz TCD 2012 2V workshop manual is arranged as job cards. Each job card identifies the maintenance group and the individual operation, then presents the relevant tools, related job-card references, warnings, measurements and step-by-step work sequence. Photographs and technical illustrations are used extensively to show engine components, measuring points, installation positions and workshop procedures.

The job-card system covers operations ranging from checks and adjustments to substantial dismantling work. Examples visible throughout the manual include compression-pressure checking, engine mounting on an assembly block, valve-clearance adjustment, rocker-arm work, cylinder-head removal and installation, valve removal and inspection, crankshaft checking, crankshaft sealing-ring renewal, connecting-rod inspection, fuel-system component removal, cooling-system work and electrical-component servicing.

Technical Data, Measurements and Setting Information

Before the individual workshop procedures, the manual provides a substantial technical-data section for the TCD 2012 series. This area contains testing and setting values used during inspection and repair work, together with dimensional data, clearances, wear limits and other workshop reference values. Separate tightening-specification tables identify fasteners and tightening requirements for engine components and assemblies.

The manual also explains how workshop symbols are used for items such as danger notices, cautions, required tools, auxiliary materials, reference documents, testing data and tightening specifications. This makes it easier to follow the individual work cards and understand when a measurement, tightening sequence, special tool or related procedure must be consulted.

Component Inspection and Engine Repair Procedures

The TCD 2012 2V Workshop Manual provides practical procedures for checking major internal engine components. Cylinder-head work includes setting valve clearance, working with the rocker-arm assembly, removing and installing the cylinder head, selecting the cylinder-head gasket according to piston projection, removing and installing valves, measuring valve components and checking valve-guide and valve-seat related dimensions.

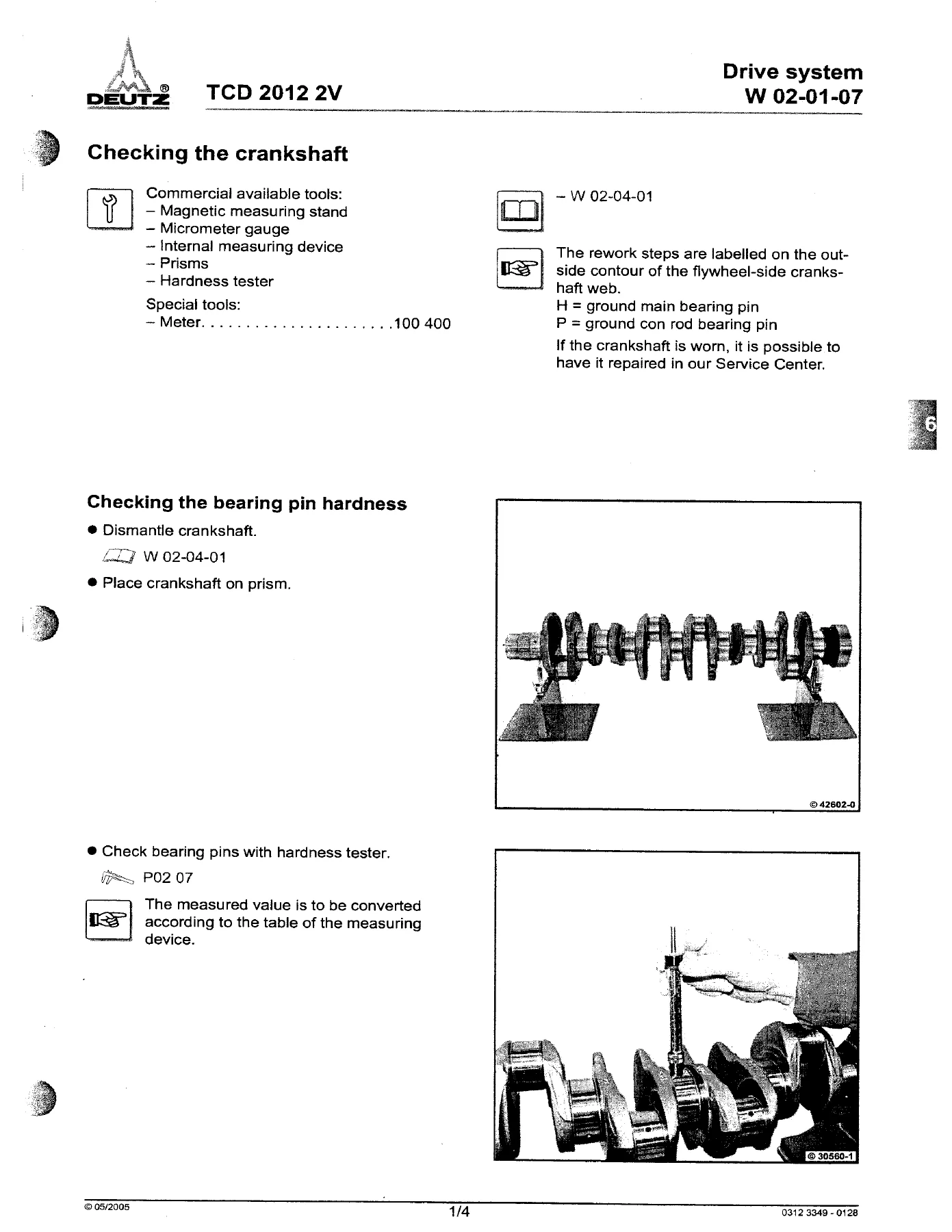

Drive-system procedures include crankshaft inspection and measurements, evaluation of bearing journals, axial-bearing clearance work and replacement of crankshaft sealing rings on both sides of the engine. Connecting-rod work covers measurement of the small-end bush, piston-bolt clearance, connecting-rod bearing bore inspection and bearing-shell related checks. These procedures are illustrated with measuring equipment and clearly marked measurement positions.

The workshop manual extends beyond the basic engine structure into the supporting systems used by the TCD 2012 2V. The job-card overview groups work into the cylinder head, drive system, crankcase, engine control, speed governing, exhaust and charging system, fuel system, lube-oil system, cooling system, other components and electrical system. This arrangement helps a technician locate the relevant operation according to the system being repaired.

File Details

• Manual type: Workshop Manual
• Brand: Deutz
• Model: TCD 2012 2V
• Language: English
• Page count: 392 pages
• File format: PDF
• Publication / order number: 0312 1977 en
• Edition: 1st Edition
• Publication date: 06/2005

Chapters Covered

• Foreword
• General
• User notes
  • General
  • Specifications
  • Safety regulations and rules for the prevention of accidents
  • Disposal regulations
  • Operating manual and workshop manual
  • Job cards
  • Explanation of symbols
• Technical data
  • Testing and setting data
  • Tightening specifications
• Job card overview
  • Sorted alphabetically
  • Sorted numerically
  • Job card references
• Job cards
  • General
  • Cylinder head
  • Drive system
  • Crankcase
  • Engine control
  • Speed governing
  • Exhaust system / Charging
  • Fuel system
  • Lube oil system
  • Cooling system
  • Other components
  • Electrical system
• Commercial tools
• Special tools

Taken together, these sections provide the workshop information needed to move from diagnosis and preliminary measurement through dismantling, component checking, adjustment and reassembly. Cross-references between job cards show where one operation depends on another, while the technical-data and tightening sections supply the values required to carry out the corresponding work correctly.

Examples of Workshop Operations Included

• Checking compression pressure
• Mounting and dismantling the engine on an assembly block
• Setting valve clearance with the exhaust-return module installed or removed
• Removing and installing rocker arms and rocker-arm brackets
• Disassembling, assembling and checking rocker-arm components
• Removing and installing the cylinder head
• Measuring piston projection and selecting the corresponding cylinder-head gasket
• Removing and installing valves
• Checking valve dimensions, valve guides and valve lag
• Checking crankshaft journals, bearing pins and axial bearing clearance
• Renewing crankshaft sealing rings on the flywheel side and opposite side
• Checking connecting rods, small-end bushes and bearing bores
• Removing and installing camshaft-related components
• Fuel-system component removal and installation
• High-pressure pump, rail, injector and pressure-sensor related job cards
• Lube-oil system servicing including oil cooler, filter housing and pressure-switch work
• Cooling-system work including water pump, coolant thermostat, temperature sensor and fan-drive procedures
• Turbocharger, charge-air and exhaust-system operations
• Starter, generator, heating-plug and pressure/temperature-sensor procedures

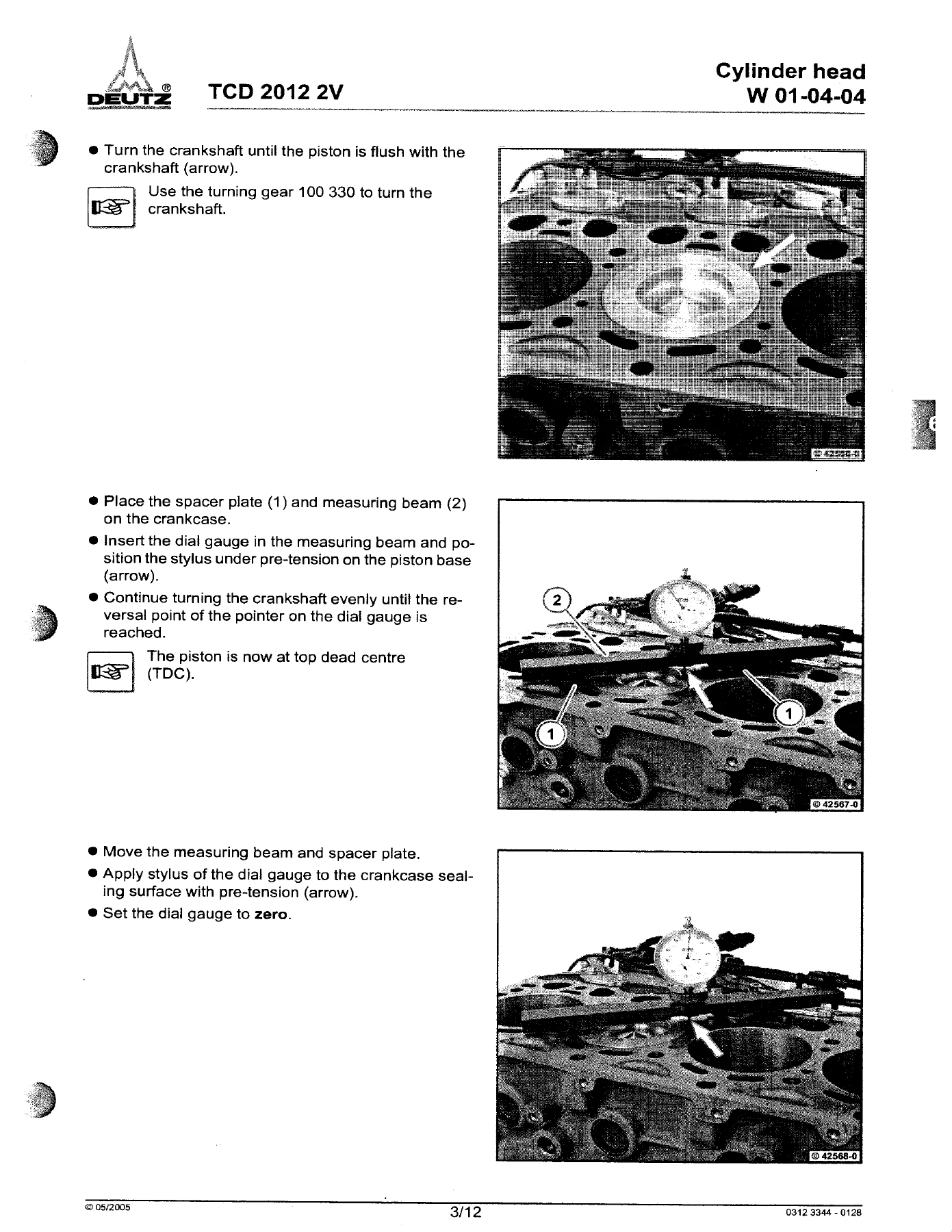

The illustrations are particularly useful during component work because they show actual engine assemblies, numbered fasteners, measuring tools, component orientation and critical installation details. Measurement procedures use micrometers, dial gauges and other workshop instruments to show how limits and clearances are established instead of providing values without context.

Safety, Tools and Workshop Preparation

The introductory sections include workshop safety requirements, accident-prevention information, handling guidance and explanations of the notation used throughout the manual. Tool references are integrated into the individual job cards, and dedicated commercial-tool and special-tool sections provide further workshop reference material. Related procedures are cross-referenced where one task requires another component or assembly to be removed first.

Use the Deutz TCD 2012 2V Workshop Manual for Accurate Engine Work

The Deutz TCD 2012 2V Workshop Manual 0312 1977 – Service & Repair PDF is suited to technicians, repair workshops and engine owners carrying out detailed service work on the TCD 2012 2V. It supports jobs such as valve adjustment, cylinder-head repair, crankshaft and connecting-rod inspection, sealing-ring replacement, fuel-system servicing, lubrication and cooling-system repairs, electrical-component work and other engine disassembly and assembly operations.

IMAGES PREVIEW

Having the correct procedures, dimensional checks, setting values, tightening information and job-card references in one manual helps reduce guesswork during repair and reassembly. After purchase, the manual is supplied as an instant PDF download with no physical shipping required. It can be viewed on compatible computers, tablets and mobile devices and pages can be printed when a paper reference is more convenient at the workbench.
