DEUTZ TCD 6.1 L6 Agri Diesel Engine Workshop Manual – 0312 3901 PDF Repair Guide

Description

DEUTZ TCD 6.1 L6 Agri Diesel Engine Workshop Manual – 0312 3901

This DEUTZ TCD 6.1 L6 Agri Diesel Engine Workshop Manual is the comprehensive service documentation for the DEUTZ TCD 6.1 L6 agricultural engine. Published under document number 0312 3901 en in March 2011 (1st edition), this workshop manual gives professional technicians and independent repair shops the job cards, specifications, and procedures needed for correct engine maintenance and repair.

Whether you are adjusting valve clearance, replacing an injector, renewing a crankshaft sealing ring, or working on the common rail fuel system, this DEUTZ TCD 6.1 L6 Agri repair guide provides the exact steps and values required. The manual is organized into clearly numbered job cards (W-cards) that document standard repairs to the engine and its components, with references to the special tools and conventional tools needed for each job.

File Details

• Manual Type: Workshop Manual (Job Cards)
• Brand: DEUTZ AG
• Model: TCD 6.1 L6 Agri
• Document Number: 0312 3901 en
• Edition: 1st Edition, 03/2011
• Language: English
• Page Count: 352 pages
• File Format: PDF

Chapters Covered

The DEUTZ TCD 6.1 L6 Agri workshop manual is structured into the following main sections:

• Foreword
• General
• Safety information / User information
• Job card overview (alphabetical and numerical)
• Job cards (the complete repair procedures)
• Commercial tools
• Special tools

The job cards cover every major engine system and component of the TCD 6.1 L6:

• Crankcase and crankcase breathing — removing/installing the crankcase bleeding, impulse transmitter (crankshaft)
• Crankshaft sealing rings — renewing front and flywheel-side sealing rings, shaft sleeve assembly and disassembly
• Front cover — removal, installation, and sealing
• Lubricating oil pan and oil filler neck — removal, installation, and sealing

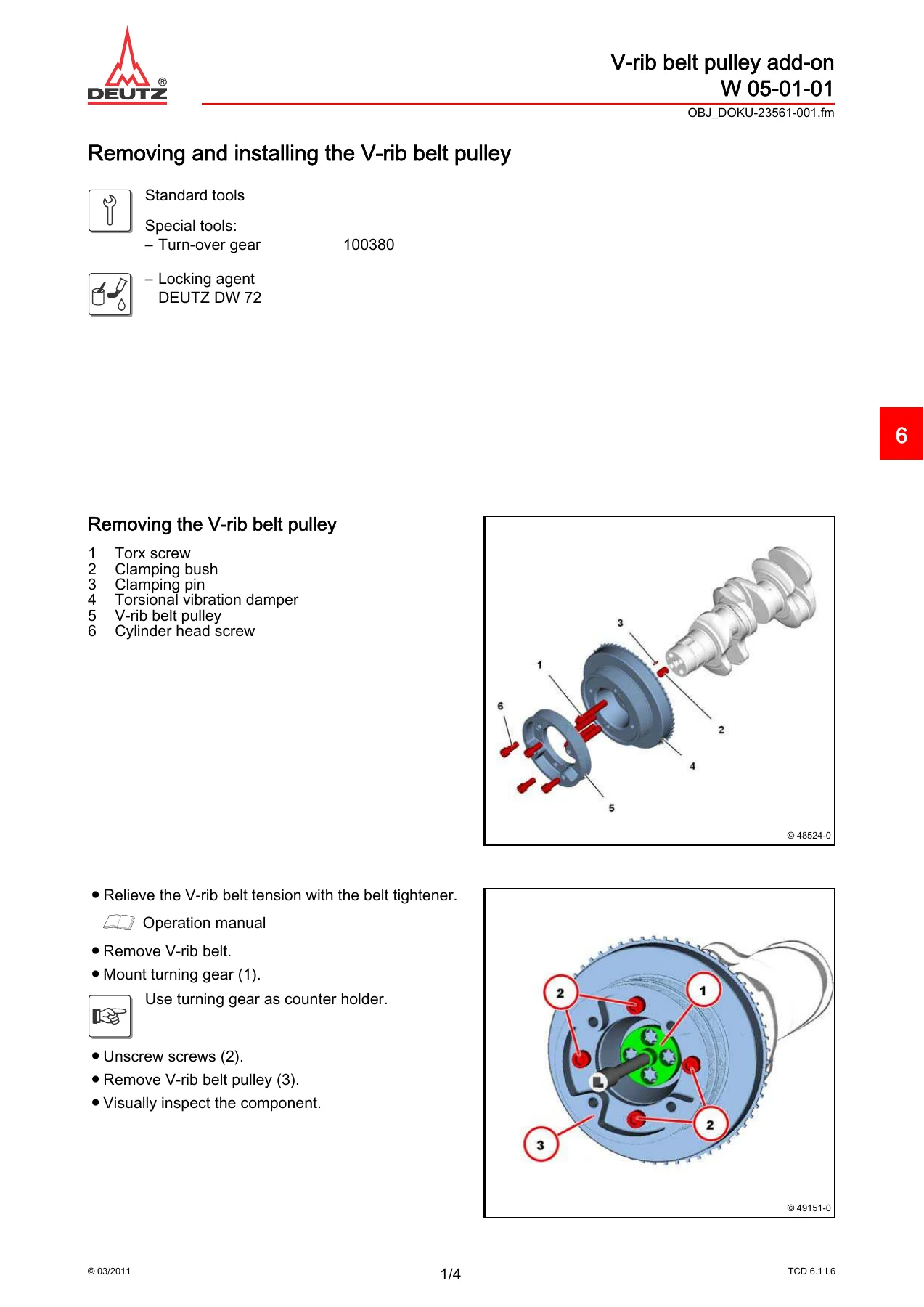

• V-rib belt pulley and torsional vibration damper — removal and installation
• Flywheel — removal and installation with tightening specifications
• Compression pressure testing — procedure and evaluation
• Cylinder head cover and valve clearance — removal, installation, checking and setting
• Lubricating oil cooler and housing — removal, installation, and sealing
• Control block — removal and installation
• High-pressure pump — removal and installation (installation positions A and B)

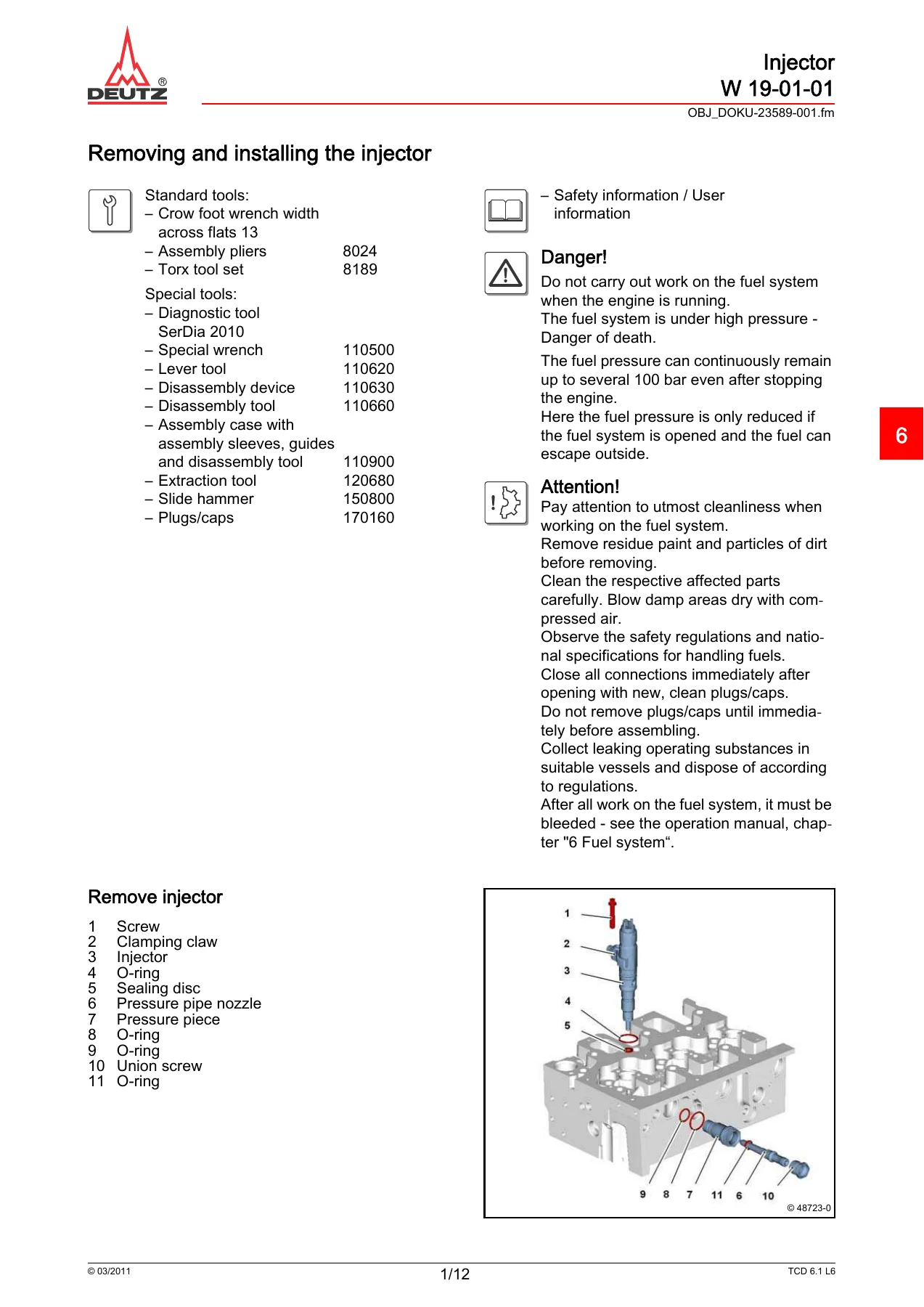

• Injector — removal and installation with IMA code assignment details
• Fuel filter console — removal and installation
• Fuel supply pump — removal and installation
• Fuel pipes and lines — all connections between fuel supply pump, control block, rail, cylinder head, and fuel filter
• Charge air line and manifold — removal and installation
• Heating flange — removal, installation, disassembly, and assembly
• Coolant pump — removal and installation
• Thermostat and thermostat housing — removal, installation, and testing
• Fan drive and mounting — belt tensioner, carrier plate, deflection pulley, air bearing
• Exhaust line and temperature transmitter — removal and installation
• Turbocharger — removal and installation
• Lubricating oil lines — feed and return lines for the turbocharger
• Generator — removal, installation, and V-rib belt pulley service
• Starter — removal and installation
• Impulse transmitters — camshaft and crankshaft
• Turning gear — installation and removal (flywheel side and torsional vibration damper)
• Engine mounting on assembly block — mounting and demounting procedures
• Coolant compressor — removal and installation

Technical Data and Specifications

Every job card in this DEUTZ TCD 6.1 L6 Agri service manual concludes with a Technical Data section listing the tightening specifications, testing and setting data relevant to that procedure. Torque values are provided in Newton-metres (Nm), with a permissible variation of ±10% for torque wrench procedures. The manual also references tightening sequences where multiple bolts or nuts must be tightened in a specific order.

The workshop manual includes testing and setting data for valve clearance (inlet 75°, exhaust 120° using rotation angle disc), compression pressure evaluation, thermostat opening temperature (86 °C), thermostat stroke (minimum 9.5 mm at 98 °C), and many component-specific torque values.

Safety and Cleanliness Requirements

The manual includes extensive safety information and user information (Chapter 3), covering accident prevention regulations, personal protective equipment, and specific hazards associated with the common rail fuel system. Because the TCD 6.1 L6 uses a common rail system operating at pressures up to approximately 2000 bar, the manual emphasizes strict cleanliness measures when working on the fuel system — including the use of new plugs and caps, lint-free cloths, and dedicated work areas.

Why This Manual Matters

The DEUTZ TCD 6.1 L6 Agri is a high-precision common rail diesel engine used in agricultural applications. Correct maintenance and repair procedures are essential to ensure reliability, longevity, and safety. Using the wrong torque values, omitting a tightening sequence, or introducing contamination into the fuel system can lead to expensive component failure. This DEUTZ TCD 6.1 L6 Agri workshop manual gives you the manufacturer’s exact procedures and specifications — the same information DEUTZ service technicians use.

IMAGES PREVIEW

Instant PDF Delivery

This workshop manual is delivered as an instant PDF download after purchase. There is no shipping, no waiting, and no physical book to damage in the workshop. You can view it on any device — laptop, tablet, or smartphone — and print only the job cards you need for a particular repair. Whether you are a professional DEUTZ technician, an independent workshop, or a technically minded owner, this manual provides the complete documentation for servicing the TCD 6.1 L6 Agri engine.
