Doosan D35S-5 to D55SC-5 Forklift Parts Catalogue – SB1111E10 PDF Download

Description

Doosan D35S-5 to D55SC-5 Forklift Parts Catalogue – SB1111E10

This Doosan D35S-5 to D55SC-5 Forklift Parts Catalogue is a complete 716-page illustrated parts book covering the full range of Doosan forklift trucks from the D35S-5 through to the D55SC-5. Published under document number SB1111E10 (SB1111), this Doosan forklift parts catalogue PDF provides exploded-view illustrations and detailed part listings for every serviceable component across these models. Whether you are ordering a single replacement part or rebuilding an entire assembly, this catalogue gives you the exact part numbers and assembly breakdowns you need.

File Details

• Manual Type: Illustrated Parts Catalogue
• Brand: Doosan
• Models Covered: D35S-5, D40S-5, D45S-5, D50C-5, D55C-5, D40SC-5, D45SC-5, D50SC-5, D55SC-5
• Engine: HMC Tier 3 (D439E)
• Language: English
• Page Count: 716
• File Format: PDF
• Document Number: SB1111E10 (SB1111)

Chapters Covered

• Chassis Component – Steer axle groups, power steering lines, top panel and hood assemblies, air cleaner, exhaust systems, cooling groups and modules, radiator covers, fuel lines and tank, floor plate, acceleration pedal, mast operating group, oil level gauge, tilt mounting, power train mounting, hydraulic pump mounting, battery group, and wiring groups for both shoe type and OCD type brakes
• Capacity Module – Counterweight group, head guard group, and location charts
• Engine – Cylinder block, front case, oil pan and rear plate, engine attachments, cylinder head and thermostat, rocker cover, crankshaft, flywheel and piston, timing system, water pump, pulley, oil pump and filter, oil cooler, oil level gauge and guide, oil lines, turbocharger, exhaust manifold, fuel injection pipes and nozzles, fuel hoses, fuel return hoses, injection pump, starter, glow plug, alternator, vacuum pump and gear case, sensors, and engine wiring
• Brake System – Parking groups, pedal groups for inching and brake (shoe type and OCD type), master cylinder sub-assemblies, control groups, and brake lines
• Power Train – Drive axle groups for single, double, and OCD type brakes, brake assemblies, transmission (parts 1 and 2), and valve assembly
• Option for Complete Truck – Tire and wheel groups for pneumatic single, wide, double, and solid configurations, seat groups (suspension, static, arm rest, retractable), seat belt indicators, and control valve arrangements
• Operator Station – Back mirror, tool group, front lights, option lights, ASC controller, rear grip bars, modular cabins (A, B, C, D types), engine shut down, high intake pre-cleaner, catalytic muffler, spark arrestor, wiper, sound suppression, auto tilt leveling, heater, air conditioning for engine and cabin, heavy duty OCD brake, rear lamps, car stereo, belly plate, exhaust tube, CD player, rear lamp groups, and monopedal switch
• Mast-Hydraulic – Mounting groups for STD, FFT, and FFL masts, primary and secondary attachment lines (3-way and 4-way), side shifter lines, mast mounting group, and tilt cylinders
• Mast-Implements – Mast groups, upright assemblies, relay groups for STD/FFT/FFL, lift cylinders (primary and secondary), carriage groups, side shifter groups, load backrests, fork positioners, mounting groups, line groups, and fork groups
• Part Number Index – Complete alphabetical and numerical index for fast part number lookup

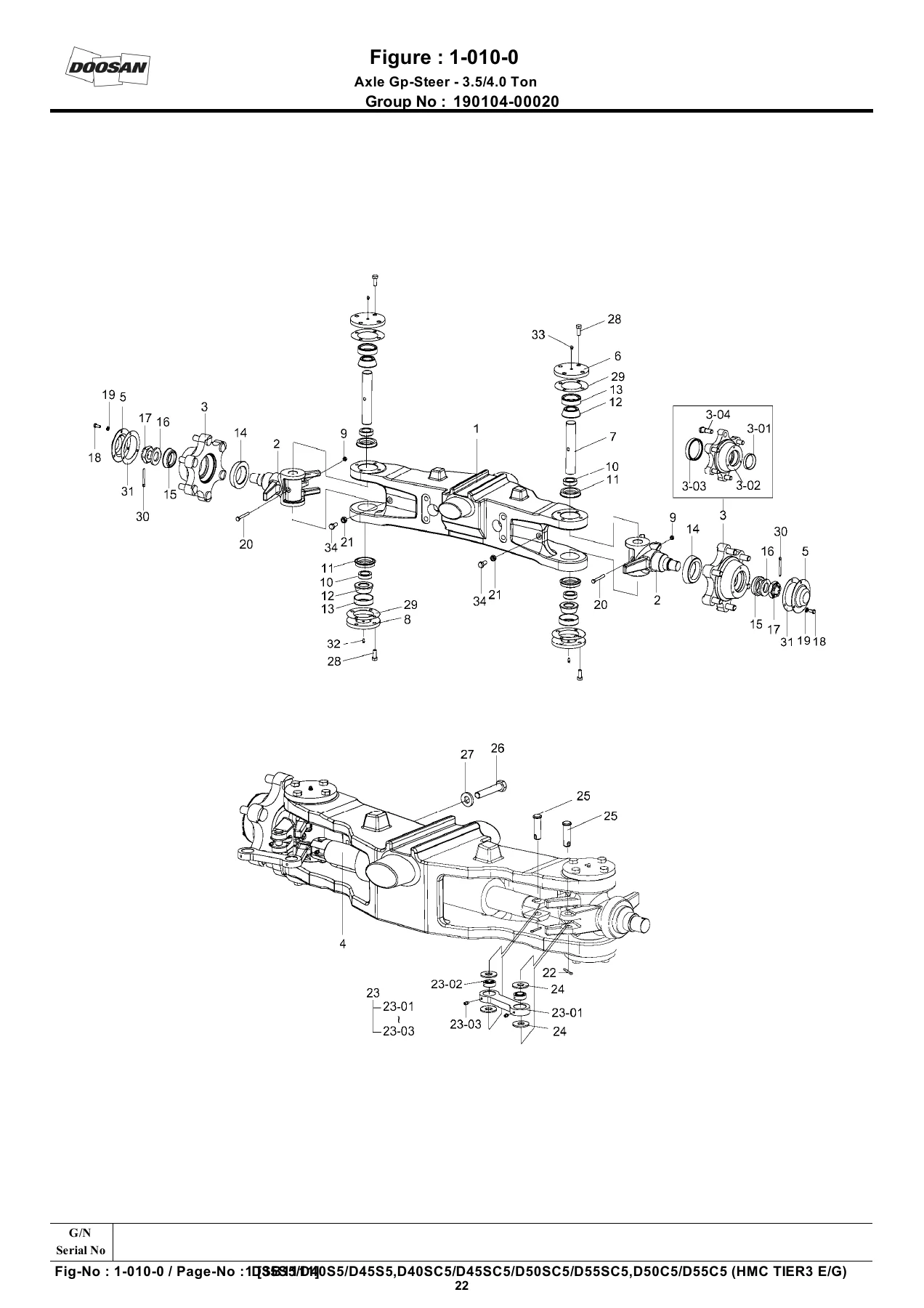

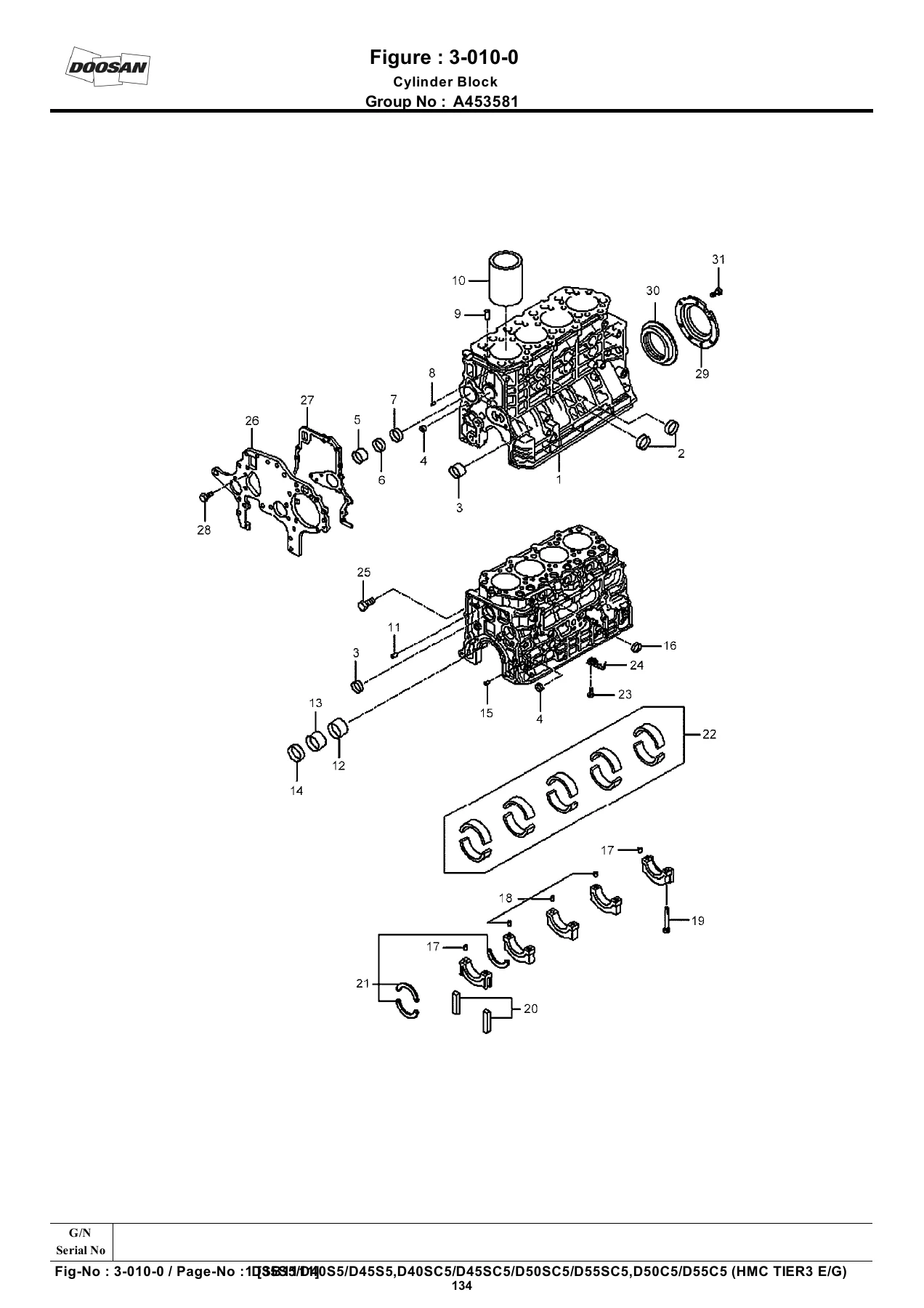

This Doosan D35S-5 to D55SC-5 forklift parts catalogue is organized into major assembly groups, each presented with a detailed exploded-view illustration on one page followed by a comprehensive parts list on the next. The parts lists include item numbers, part numbers, quantities, part names, descriptions, model codes, serial number applicability, and replacement part information where available. This structure makes it straightforward to identify the exact component you need, confirm it fits your specific model and serial range, and order with confidence.

What This Parts Catalogue Covers

The SB1111E10 parts catalogue spans the full scope of these Doosan forklift trucks. The chassis section alone covers the steer axle group, power steering lines, top panel, hood assembly, air cleaner group, exhaust group, cooling group, radiator cover group, fuel lines, floor plate, fuel tank, accel pedal, mast operating group, oil level gauge, tilt mounting group, power train mounting group, hydraulic pump mounting group, battery group, and complete wiring groups for both shoe type and OCD type brake configurations.

The engine section is particularly thorough, covering the HMC Tier 3 D439E engine from the cylinder block through to the engine wiring. You will find part numbers for the cylinder head and thermostat, rocker cover, crankshaft, flywheel and piston assemblies, timing system, water pump, pulley, oil pump and filter, oil cooler, turbocharger, exhaust manifold, fuel injection pipes and nozzles, injection pump, starter, glow plug, alternator, vacuum pump, sensors, and more.

The power train section provides exploded views and part listings for the drive axle in single, double, and OCD type brake configurations, along with the transmission assembly. The brake system section covers both shoe type and OCD type brake configurations, including master cylinder sub-assemblies, pedal groups, and brake lines.

The mast-hydraulic and mast-implements sections cover the complete mast assembly range, including mounting groups for STD, FFT, and FFL masts, primary and secondary attachment lines in both 3-way and 4-way configurations, side shifter lines, tilt cylinders, lift cylinders, carriage groups, load backrests, and fork positioners. The operator station section covers everything from the back mirror and tool group to the modular cabins, air conditioning, heater, wiper, and seat groups.

Model Coverage and Identification

Each part listing in this Doosan forklift parts catalogue includes model code and serial number applicability, allowing you to confirm that a part fits your specific machine. The catalogue covers the following model codes:

• D35S-5 – FDB01
• D40S-5 – FDB02
• D45S-5 – FDB03
• D50C-5 – FDB04
• D55C-5 – FDB05
• D40SC-5 – FDB06
• D45SC-5 – FDB07
• D50SC-5 – FDB08
• D55SC-5 – FDB09

The catalogue also covers various serial number ranges for each model code, ensuring that you can identify the correct part even when there have been running changes during production. The replacement part number column in the parts lists helps you identify current part numbers for superseded components.

How to Use This Parts Catalogue

The Doosan D35S-5 to D55SC-5 Forklift Parts Catalogue follows a logical structure that makes part identification straightforward. Each assembly group begins with an exploded-view illustration showing every component in its relative position. The accompanying parts list cross-references each numbered item to its part number, description, and quantity required.

When ordering parts, the catalogue instructs users to specify the model name, serial number of the machine, quantity, part number, and part name. This information ensures that the correct components are supplied. The catalogue also includes a comprehensive Part Number Index at the end, allowing you to search for a specific part number and immediately locate the figure and item number where it appears.

Get Your Doosan Forklift Parts Catalogue Today

Having the right parts catalogue for your Doosan forklift means you can identify and order the correct components the first time, avoiding costly downtime and incorrect orders. This Doosan D35S-5 to D55SC-5 forklift parts catalogue PDF covers all nine models in the range with the HMC Tier 3 D439E engine, giving you a complete reference for every serviceable part on these machines.

IMAGES PREVIEW

Delivered as an instant PDF download, this 716-page parts catalogue is available immediately after purchase. There is no shipping delay, no physical book to wait for. You can access it on any device – laptop, tablet, or smartphone – and print the pages you need for the workshop. Whether you are a Doosan dealer, a fleet maintenance manager, or an independent technician, this SB1111E10 parts catalogue is an essential reference for keeping these forklifts running.
