Doosan DX255LC Excavator Illustrated Parts Catalogue 2010 English-French PDF

Description

Doosan DX255LC Illustrated Parts Catalogue – English/French

This is the complete Doosan DX255LC Illustrated Parts Catalogue published in a bilingual English-French format. Every component group on the machine is broken down into exploded illustrations with keyed part numbers, allowing owners, workshops and parts departments to identify exactly the right component for a DX255LC excavator without ambiguity. This 4th Edition, dated June 01, 2010, is the reference parts document used to look up engine assemblies, hydraulic components, undercarriage parts, the front attachment, cab fittings and factory option groups.

File Details

• Manual type: Illustrated Parts Catalogue
• Brand: Doosan
• Model: DX255LC
• Language: English / French (bilingual)
• Edition: 4th Edition
• Date: June 01, 2010
• File format: PDF
• Page count: Approximately 866 pages
• Serial ranges referenced: 5001-5146 and related sub-ranges for individual assemblies

Chapters Covered in the Doosan DX255LC Parts Catalogue

The catalogue is divided into clearly indexed groups, each one keyed to exploded drawings of the corresponding machine section:

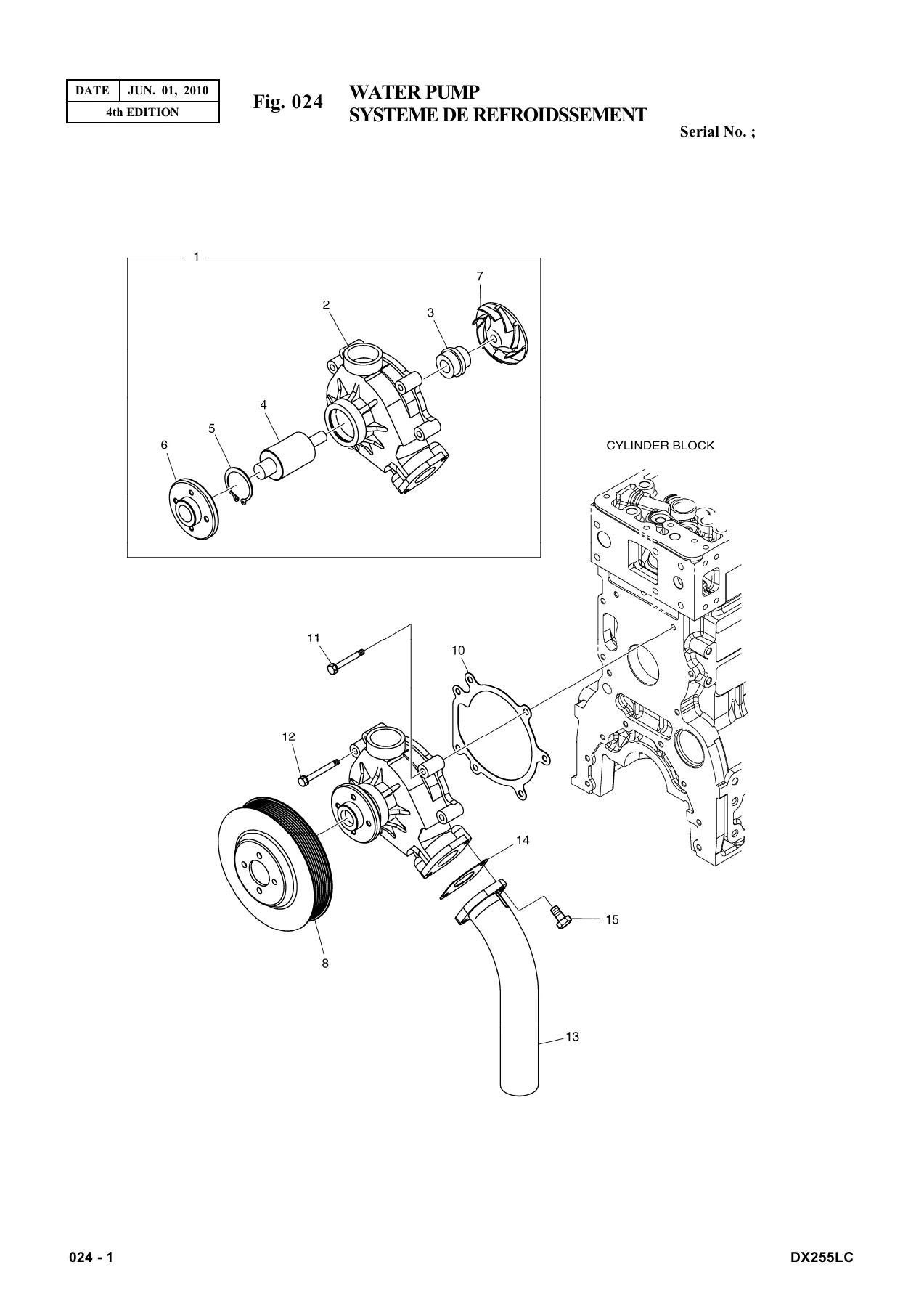

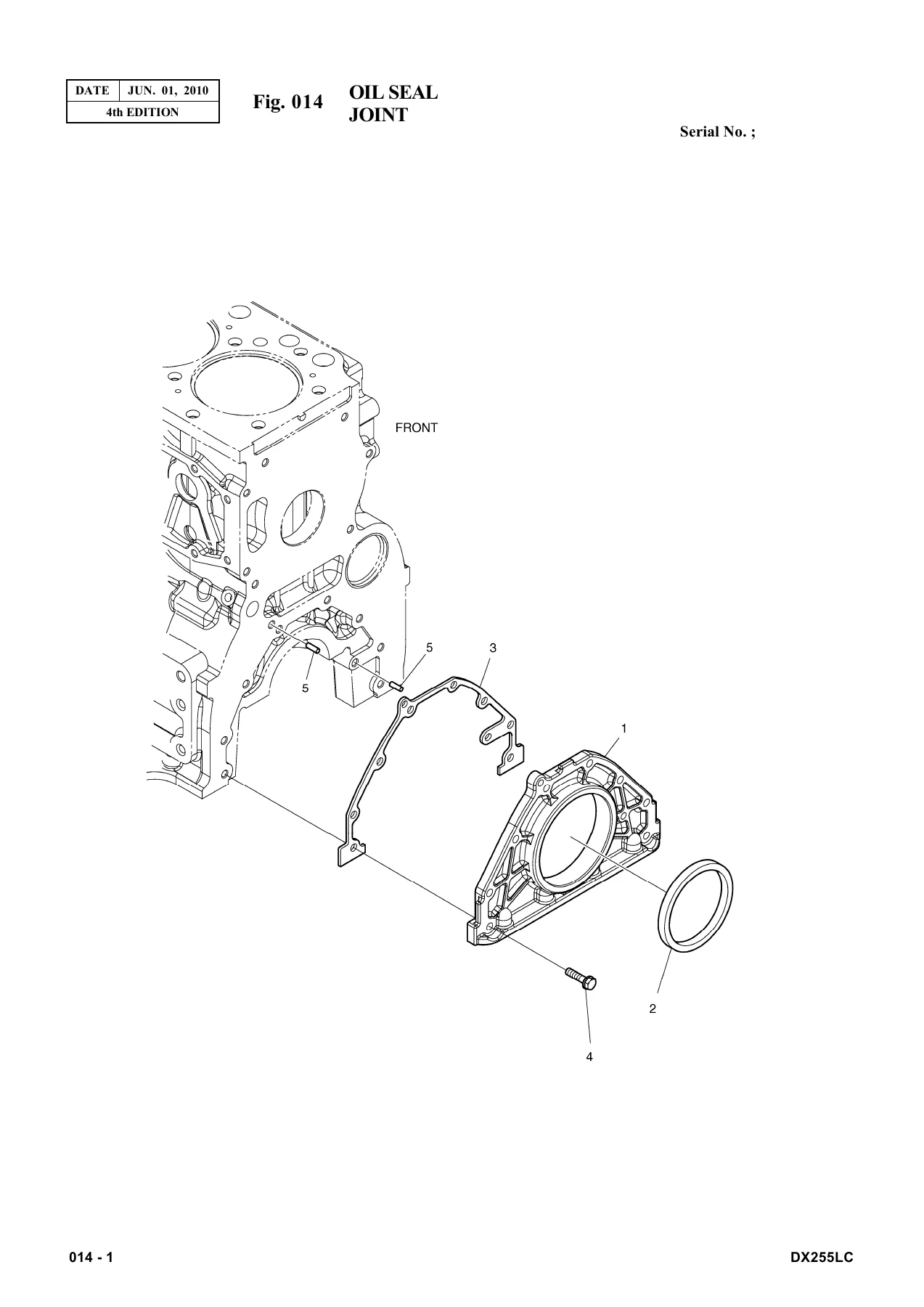

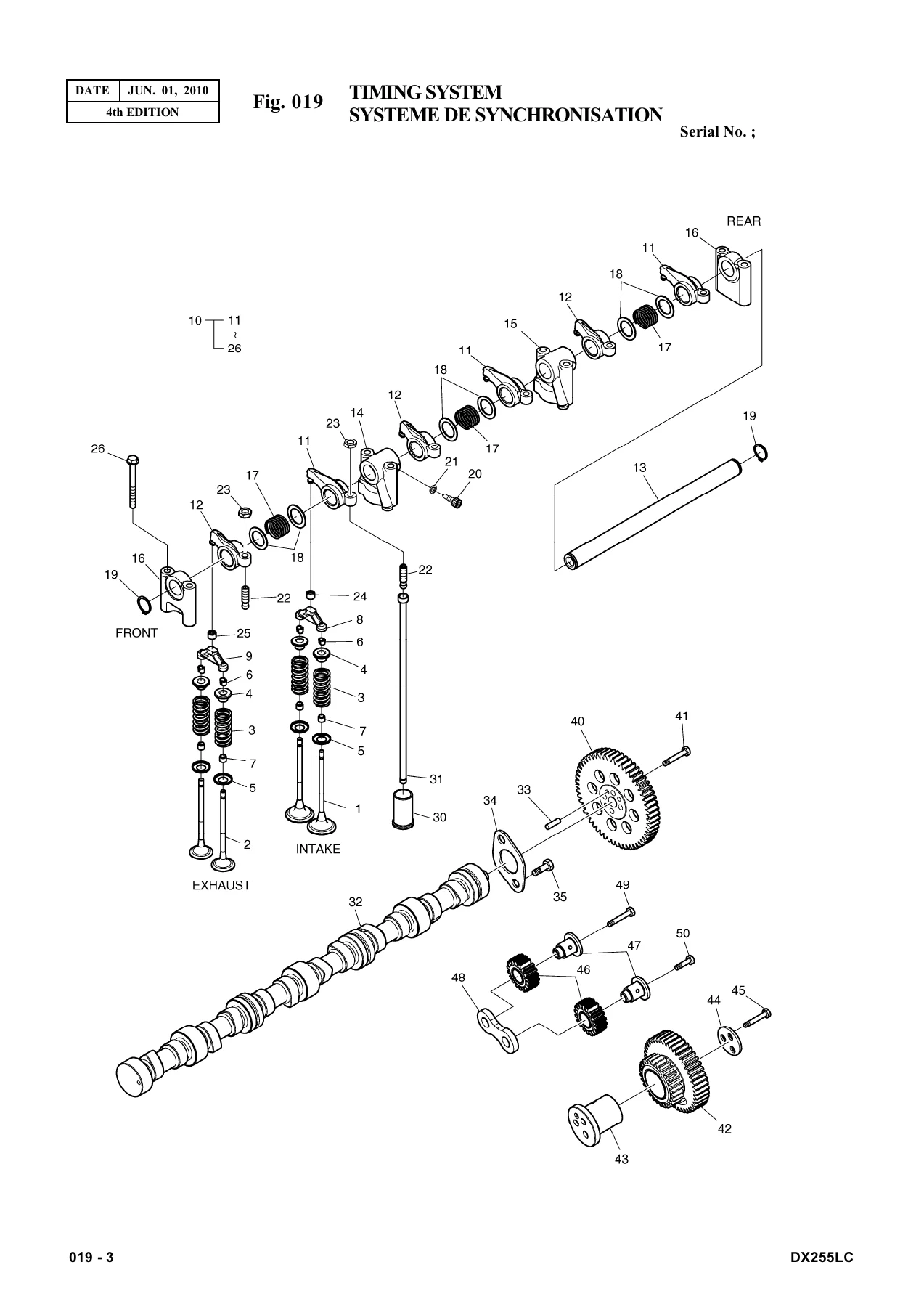

• Engine Parts – cylinder block, timing gear case, flywheel housing, oil seal, breather, driving system, cylinder head, cylinder head cover, timing system, oil pump, oil filter & oil cooler, oil pan, thermostat, water pump, cooling fan, intake & exhaust manifold, turbo charger, injector, injection pipe, injection pump, engine control, fuel system, alternator mounting, lifting hook, starter, sensor, wire harness, engine mounting, air compressor, overhaul gasket kit
• Body Parts – main frame, counter weight, engine mounting, radiator mounting, radiator, muffler, CAC piping, air cleaner, pump mounting, swing motor, fuel tank, fuel piping, oil tank, oil cooler piping, main piping, pilot piping, control stands, seat and seat sliding plate, seat mounting, cabin, cab fittings, duct and heater covers, battery cover, engine cover, acoustic foam, under cover, lubrication piping, electric box, electric parts for control stand, cab, related systems and engine, alternator mounting, working lamp, electric wiring, heater piping, air conditioner
• Track Parts – track frame, travel device, idler, track spring, upper roller, lower roller, center joint, sealed track shoe assemblies in 600G, 700G, 800G and 900G variants, travel piping
• Front Parts – boom 5.9 m, arm 3.0 m, bucket assembly 0.95 m³, boom piping, boom lubrication, arm piping, arm lubrication
• Hydraulic Parts – main pump, regulator, gear pump, swing motor, swing reduction gear, travel motor, travel reduction gear, control valves (1, 2 and 3), remote control valve, pedal and solenoid valves, boom and arm cylinders, bucket cylinders for each arm length, lock-valve cylinder variants, rotary gear pump
• Other Parts – tools, spare parts, name plates for export and Europe, decals and ROPS decal sets
• Option Parts – fuel filler pump, one-way and two-way main piping, filter-equipped piping, pilot piping, boom and arm piping for one-way, two-way, quick clamp, clamshell and rotating configurations, sun roof cover, rain shield, cabin and window guards, floor mats, narrow track frames, sealed track shoe assemblies, swing alarm, pattern change piping, lock valve piping, rotating pilot piping, quick clamp electrical parts, buckets from 0.47 m³ to 1.22 m³, alternator upgrades, CD player, fuel heater, travel alarm, working lamp kits, rotating beacons in standard, telescopic and ROPS-mounted versions, overload warning, lower wiper, tropical parts, radio, acoustic noise kit, articulated boom piping and cylinders

What this gives a technician is a single authoritative reference for every spare component on the DX255LC. Because the illustrations are keyed directly to part numbers in the accompanying tables, the catalogue removes the guesswork that usually surrounds ordering replacement parts – you match the figure, read the key number, and pull the exact part number from the description column. For anyone maintaining or rebuilding a DX255LC, this is the lookup tool that turns a machine serial number into the correct component.

How This Parts Catalogue Helps You

Anyone who has tried to order a hydraulic hose, a track link, a boom cylinder seal kit or a cab trim piece without a proper parts breakdown knows how quickly a simple job turns into a wrong-part return. The Doosan DX255LC illustrated parts catalogue eliminates that risk by showing exactly which keyed item goes where and by listing the Doosan part number that corresponds to it. Whether you are rebuilding a travel motor, replacing the bucket cylinder on a 3.0 m arm, sourcing a lock-valve for the articulated boom option, or simply chasing down a fastener for the counterweight, the figure-by-figure layout means you identify the part visually before you order.

The catalogue is also structured by machine system, so it doubles as an overview of how the DX255LC is assembled. Undercarriage, upper structure, front attachment and hydraulics are all separated into their own figure groups, making it straightforward to work through a specific area without wading through unrelated parts. Serial number references appear throughout, so you can confirm that the parts you need match your specific machine build rather than an earlier or later production run.

IMAGES PREVIEW

Why a Genuine Parts Lookup Matters for the DX255LC

Excavators like the DX255LC are built from thousands of precisely toleranced components. Fitting a substitute hydraulic seal, an incorrect pin diameter or a non-matching track shoe can cause premature wear, leaks, or worse, and the cost of a failure in the field far outweighs the cost of getting the right part first time. The parts catalogue reflects what Doosan actually fitted to the machine, including option-specific variations, so the component you order is the one that was designed to go into that position. That level of accuracy is what this document delivers.

Instant PDF Delivery

The Doosan DX255LC illustrated parts catalogue 2010 English-French PDF is delivered immediately after checkout – no shipping, no waiting for a physical book to arrive. It can be opened on any device that reads PDF files, from a workshop laptop or tablet to a phone on the jobsite, and pages can be printed for use in the workshop so the digital copy stays clean. Because the catalogue is bilingual, both English and French descriptions are available side by side for every part number, which is useful for international workshops and parts desks.

If you maintain, repair, or restore a DX255LC excavator, this is the parts reference to keep on hand – the tool that lets you move from symptom to part number without guesswork and get the machine back into service faster.
