Dresssta TD-7R TD-8R TD-9R TD-10R Crawler Tractor Service Manual

Description

Dresssta TD-7R TD-8R TD-9R TD-10R Crawler Tractor Service Manual

This is the complete service manual for the Dresssta TD-7R, TD-8R, TD-9R and TD-10R crawler tractors, identified by document number SMTD78910R11/1E. It is the English translation of the original manual and covers every major system on these machines in the kind of depth a working technician needs when a repair goes beyond routine maintenance. The manual is organised by section, each with its own contents page, diagnosis charts, specifications and step-by-step overhaul procedures.

File Details

• Manual type: Service Manual
• Brand: Dresssta (Dressta) Co. Ltd.
• Models covered: TD-7R, TD-8R, TD-9R, TD-10R
• Document number: SMTD78910R11/1E
• Language: English (translation of original manual)
• File format: PDF
• Coverage: All major machine systems – brakes, cooling, drive train, torque converter, transmission, steering drive, final drive, electrical, frame, hydraulics, engine, superstructure, suspension, tracks and mounted equipment

Serial Number Coverage

This Dresssta TD-7R TD-8R TD-9R TD-10R service manual applies to the following serial number ranges as printed on the cover:

• TD-7R – 28501 and up
• TD-8R – 38501 and up
• TD-9R – 48501 and up
• TD-10R – 58501 and up

Chapters Covered

• Section 1 – Introduction: safety precautions, work safety rules, service information, serial numbers, inspection and repair, Loctite usage, surface preparation, application, setting time, removal, low-temperature applications, standard torques, bolt identification chart, torque values for standard fasteners, split flange connections, hydraulic tubes and fittings, hose clamps, air conditioning torque values
• Section 4 – Brakes: service tools, general description, decelerator and brake pedal controls, brake lock, master brake pedal, brake valve, brake cylinder, mounting plate, apply/back-up shoes
• Section 6 – Cooling System: description, operation, specifications, service diagnosis, removal, disassembly, inspection and repair, reassembly, installation

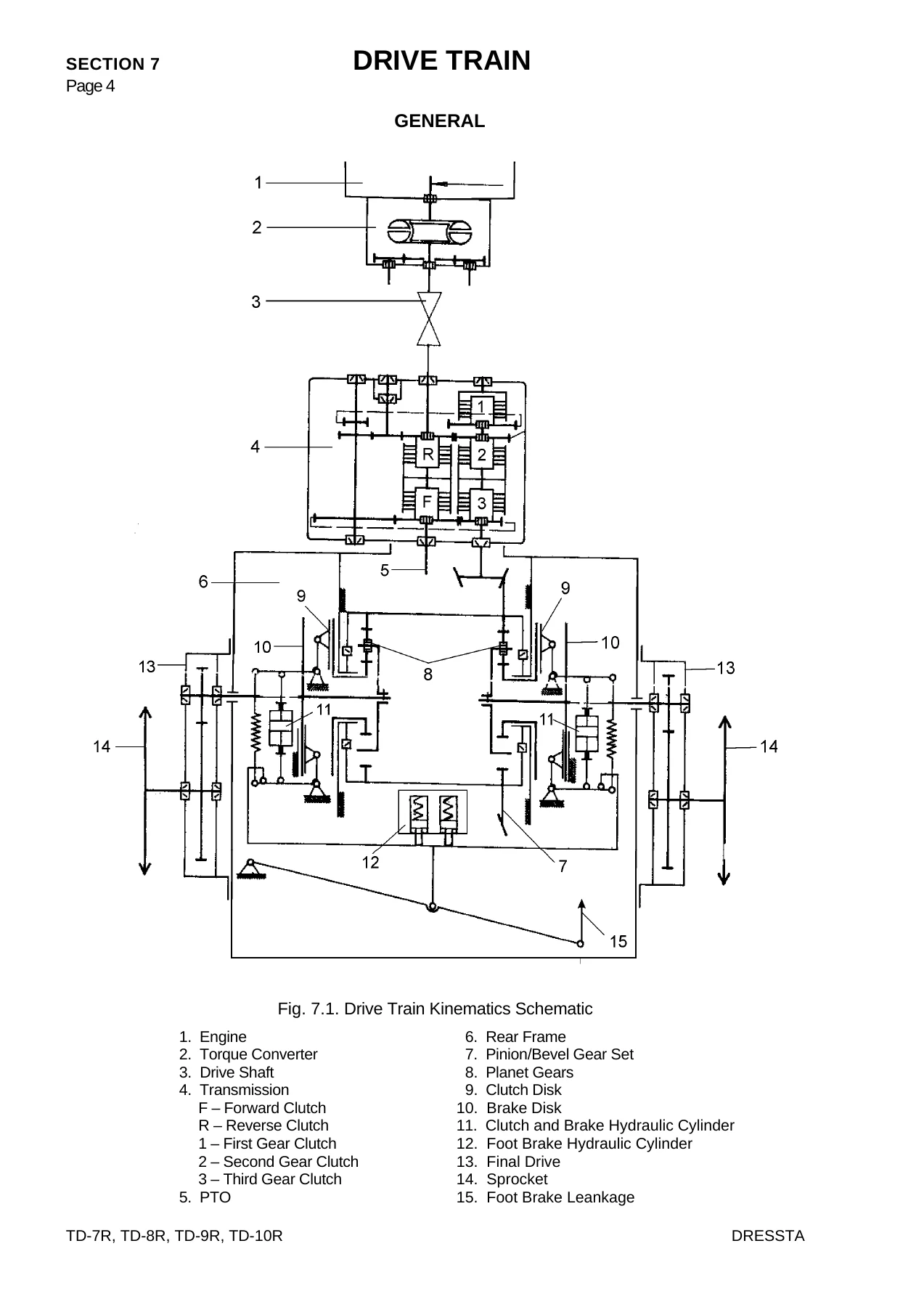

• Section 7 – Drive Train: general description, operation, specifications, service diagnosis, transmission and torque converter oil pressure test, torque converter stall speed check, drive train clutch test, steering system oil pressure check
• Section 7B – Torque Converter: description and operation, specifications, service diagnosis, internal leakage test, removal, disassembly, inspection and repair, reassembly, installation

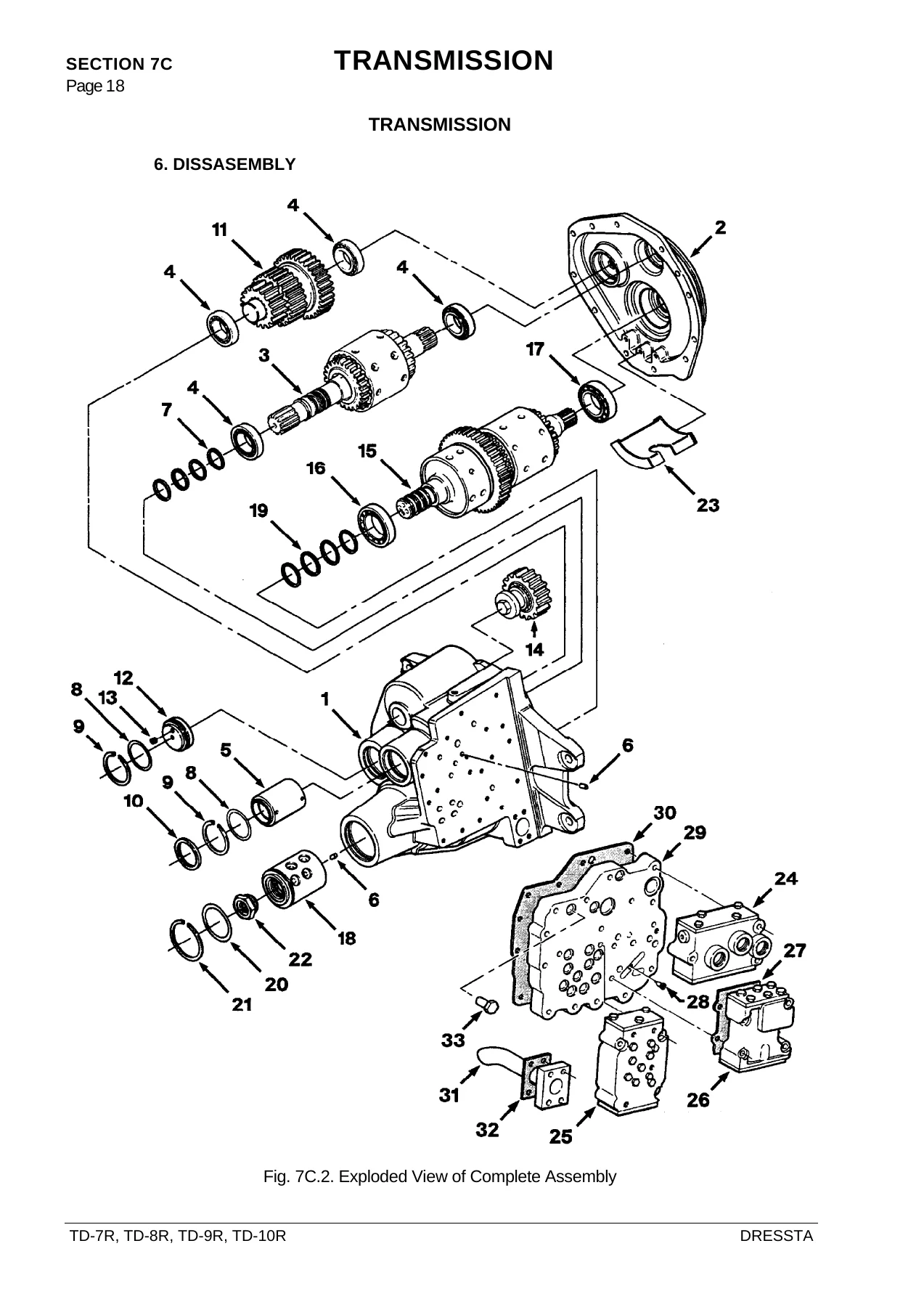

• Section 7C – Transmission: description, operation, specifications, removal, complete assembly disassembly and reassembly, directional (input) shaft, countershaft, range (output) shaft, reverse idler shaft, pressure regulator valve, range selector valve, rate of rise valve, installation, drive train control valve, gear shifting valve
• Section 7E – Steering Drive: description, operation, specifications, removal, disassembly, reassembly, installation, operating test, steering cylinder
• Section 7F – Final Drive: description, operation, specifications, service diagnosis, removal, disassembly, reassembly, installation
• Section 8 – Electrical: description, machine and cab electrical system wiring diagrams, service diagnosis, drive control system operation and diagnostics, cranking motor, battery
• Section 9 – Frame: description, welding, specifications, maintenance, disassembly, reassembly, engine crankcase guard, transmission case guard
• Section 10 – Hydraulics: description, operation, specifications, service diagnosis, relief valve pressure test, cylinder drift test, cylinder time cycle, piston packing test, pressure diagnostic chart
• Section 10A – Pumps and Motors: equipment pump description, operation, troubleshooting, removal, disassembly, inspection and repair, reassembly, installation
• Section 10B – Valves: control valve description, removal, installation, disassembly, reassembly, relief valve, blade lift section, blade tilt section, blade angle and ripper section
• Section 10C – Cylinders: blade cylinders, ripper cylinders, specifications, removal, disassembly, inspection and repair, reassembly, installation
• Section 10E – Reservoirs and Filters: hydraulic reservoir description and maintenance, removal, disassembly, inspection and repair, reassembly, installation
• Section 12 – Power: description, specifications, air induction system test, engine control adjustments, removal, engine repair, installation
• Section 13 – Superstructure: description, specifications, cab removal, inspection, cab reassembly
• Section 14 – Suspension: description, specifications, service diagnosis, checking undercarriage wear, front idler, track adjuster, top idler, track roller, metal type face seals, track frame, track spring, equalizer bar, pivot shaft, track frame alignment
• Section 15 – Tracks: description, specifications, maintenance, removal, installation, complete chain rebuild, single track chain joint rebuild
• Section 17 – Mounted Equipment: C frame bushings, C frame pin shims, C frame rub brackets, angling frame bushing and wear plate replacement, angling frame adjusting, blade bushings replacement

What This Service Manual Gives You

The Dresssta TD-7R TD-8R TD-9R TD-10R crawler tractor service manual is built around the reality that these machines share a common architecture but differ in engine and detail depending on the model. The manual walks through the mechanical decelerator and brake pedal system, the hydraulically actuated master brake valve and cylinder, and the disc-and-pad brake packs that sit inside the steering drive. On the drive train side it covers the torque converter, the three-speed forward and three-speed reverse power shift transmission, the steering drive planetary gear set and the final drive reduction gearing – all with removal, disassembly, measurement, adjustment and reassembly sequences.

Engine coverage splits by model: the TD-7R, TD-8R and TD-9R run the Cummins QSB3.3 series engine, while the TD-10R uses the Cummins QSB4.5. Engine control adjustments, air induction system testing, potentiometer checks and the removal and installation procedure are all covered in the Power section. The electrical section includes the full machine and cab wiring diagrams along with service diagnosis for the cranking motor, battery and drive control system.

Undercarriage work is covered in the Suspension and Tracks sections: front idler, track adjuster, top idler, track roller, track frame, track spring, equalizer bar, pivot shaft and track chain rebuild. The hydraulics section runs through the equipment pump, the three- or four-section control valve, blade lift, tilt and angle sections, ripper section, relief valve and the lift, tilt, angle and ripper cylinders. Mounted equipment coverage at the end deals with C frame bushings and shims, angling frame adjustment and blade bushings.

Throughout the manual, specifications are given in metric units with torque values in Nm, oil pressures in kPa and MPa, and clearances in millimetres – the same values the manufacturer published. Spring criteria, service limits and diagnostic charts are included where the original document provided them.

Who This Manual Is For

This Dresssta service manual is written for the technician who is overhauling or repairing a TD-7R, TD-8R, TD-9R or TD-10R rather than simply operating one. If you are pulling a transmission, resealing a brake cylinder, rebuilding a track chain joint, replacing a final drive bearing or chasing an electrical fault in the drive control system, the procedures and values in this manual are what you need in front of you. It is equally useful for a shop that maintains a mixed fleet of these four models and wants the factory procedures on hand rather than piecing together information from several sources.

Because the manual covers four models with different engines and some different component details, always confirm your machine’s serial number falls in the correct range before following a procedure. The serial number ranges are listed on the cover and repeated above so you can check quickly.

Why Correct Procedures and Specs Matter

These machines use hydraulically actuated clutch packs and spring-applied, hydraulically released brakes. Getting the adjustment, shimming or seal installation wrong does not just affect performance – it can cause overheating, slipping, dragging brakes or premature failure of the component you just rebuilt. The manual gives the end play values, torque figures, spring criteria and diagnostic pressure readings that let you confirm a repair is right before the machine goes back to work. Following the published procedures also protects the seals, bearings and machined surfaces during assembly, which is often where damage happens.

IMAGES PREVIEW

Instant PDF Delivery

The Dresssta TD-7R TD-8R TD-9R TD-10R service manual is delivered as an instant PDF download. There is no shipping, no waiting for a physical book and no restrictions on where you use it. Open it on a laptop in the shop, a tablet on the machine or a phone at the bench. Print the pages you need for the job in front of you and keep the full manual for later. Once you have it, it is yours to use for every TD-7R, TD-8R, TD-9R or TD-10R service job that comes through your shop.
