Description

Epiroc Atlas Copco Boltec MC Spare Parts List 8999014900

The Epiroc Atlas Copco Boltec MC Spare Parts List 8999014900 – Illustrated Parts Catalog PDF is the DocMine spare parts list for the Boltec MC underground rock bolting machine. Every illustrated group in this catalog pairs an exploded drawing with an item table that lists part number, name, and quantity so a workshop can identify the correct component before ordering. Headers throughout the file read DocMine / 8999014900 Boltec MC. A footer dated Wed May 06 19:38:17 UTC 2020 reminds readers that printed pages can lag the live DocMine record.

File Details

• Manual type: Spare parts list (illustrated parts catalog)
• Brand / model: Epiroc / Atlas Copco Boltec MC
• Document number: 8999014900
• Language: English
• Page count: 1623
• File format: PDF
• Source imprint: DocMine; footer date Wed May 06 19:38:17 UTC 2020

What This Catalog Is For

This is not a service procedure book. It does not walk through torque sequences, oil-change intervals, or diagnostic flowcharts. It is the parts identity document for the Boltec MC: rock drill assemblies, bolting equipment, boom and carrier structure, diesel engine unit pieces, 24 V electrical hardware, RCS cable sets, hose assemblies, seal kits, and repair kits. If a shank adapter, cup seal, direction valve coil, magazine jaw, or cabin lock set has to be replaced, this list is how you match the item on the drawing to the part number in the table.

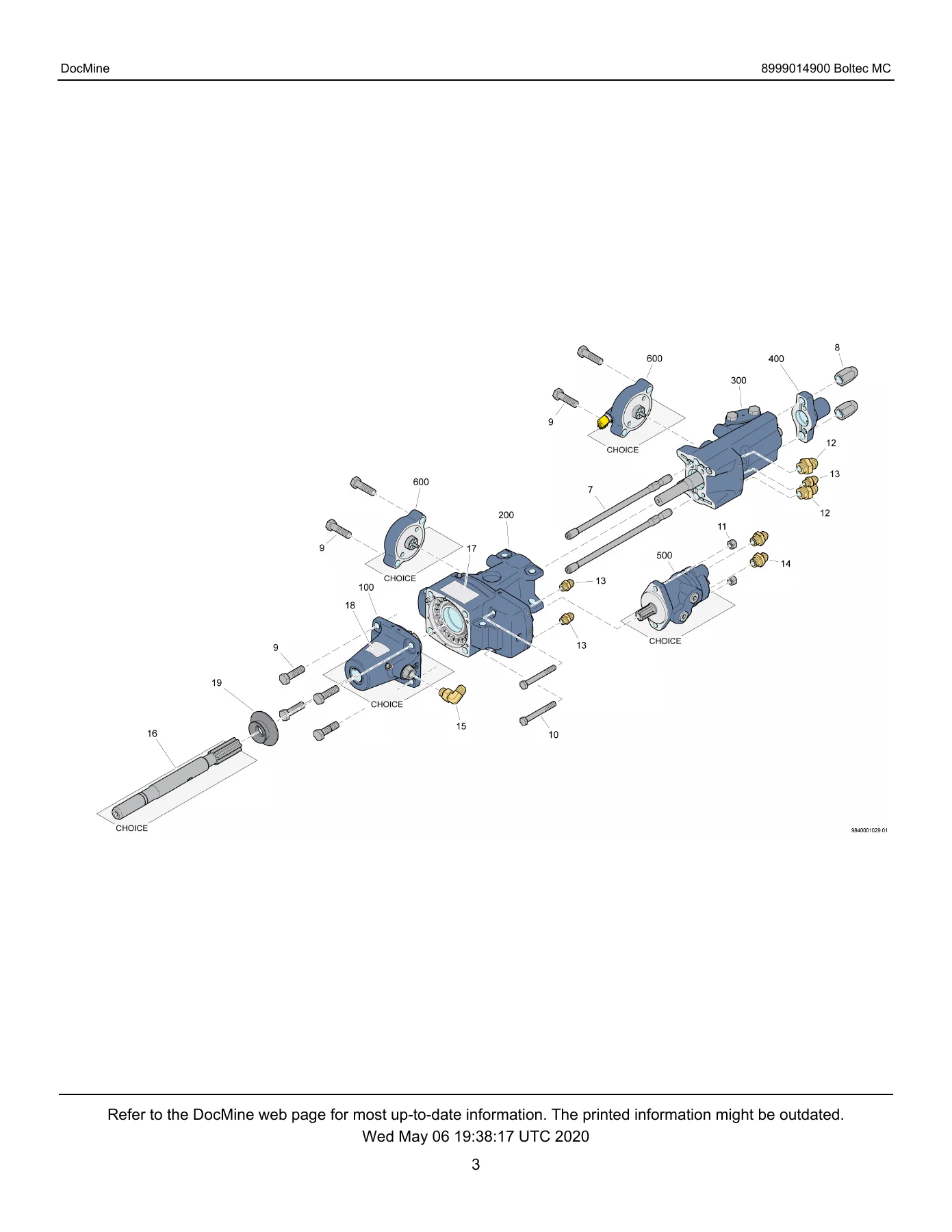

Choice rows appear where more than one component can occupy the same position. The rock drill table, for example, lists several shank adapter numbers under item 16 (7403157101, 7403157301, 7403157401, 7407157101, 7425157101, 7425157401, 7490516069, 7490516561, 7490516636, 7490516637) and three hydraulic motor numbers under item 500 (3115359680, 3115359681, 3115359682). Front part complete is listed as both 3115324682 and 3115520780. Those alternatives stay in the catalog so the buyer can pick the variant actually fitted on the machine.

Chapters Covered

• Rock drill — rock drill assembly, front part complete, seal kits
• Gear housing complete — gear housing, motor bracket complete
• Cylinder complete — cylinder, hydraulic motors, accumulator, accumulator assembly
• Optional set, charging device, label set
• Seal kits and repair kits for drill and related groups
• Bolting equipment — system kits, hydraulic sets, flow control valves, pressure reducing valves, double check valves, direction valves, cable set RCS
• Bolting unit and sign set
• Electric set — linear sensor, sensor set, control box, cable set RCS
• Feed beam — stay, guide, sliding piece
• Hose frame — bulkhead connectors, attachment sets
• Drive unit — hydraulic motor, hydraulic cylinder, holder sets, sprocket wheel, pressure reducing valve, hose set
• Pulley wheel, sprocket wheel, attachment set
• Basic part set, carriage, drill carriage
• Bolt cradle — hydraulic cylinder, hose set
• Drill steel support — choose bushing half, hydraulic cylinder, hose set
• Stinger — hydraulic cylinder, hose set
• Hose frame set, hose guide set, clamps
• Magazine unit — bracket complete
• Bolt handler — jaw, magazine, dividing disk, hose set
• Magazine — turning device, stop
• Hose feeder — hydraulic motor, joint fitting
• Drill holder, bolt rotator, intermediate support, bolt stand
• Boom — basic boom, boom part, boom attachment, boom link, cylinder link, expanding shafts, boom body, double check valves, telescope set, bearing housing
• EMC set, rotary unit, turning device, brake, drill setting, feed holder
• Hose holder sets, hydraulic system, hose set complete groups
• Sensor sets — angle sensor, linear sensor, inclinometer, assembly set
• Carrier, cover complete, laser, boom frame complete, boom bracket complete
• Support leg kit, motor frame, diesel engine unit, connection sets, cooling system, pump set
• Hydraulic transmission, oil filler, dip stick, fan drive, air filter set, fuel system, exhaust system, rear frame complete, battery box
• Hoods complete, driveline, drive shaft, planet gear kit, brake disc kit, crown wheel kit, differential kit, pendulum, cardan shafts, set of wheels, wheel complete, rim complete, tire set
• Warning signs, label list, drill bit box, fire suppression system, fire extinguishing sets
• Cabin complete — locks, windshield wiper, windscreen wash, floor carpet, air system, doors, windows, 24 V electrical system, junction boxes, drivers panel, chair, lamp attachment, air conditioner
• Camera, cable reels, torque unit kit, commutator kits, reel control, hose reel, water reel, swing arm
• Hydraulic pumps, oil tank, return filter, gear pump, coupling set, electric oil filler, valve units, inlet/valve/outlet sections
• Electrical cabinet, main switch, battery module, fuse box, light sets, headlights, control system, system kit RCS, operator unit, I/O module
• Air/water system, compressor, water pump set, cleaning unit, boot washer, water spray kit
• Lubrication system — automatic grease system, manual grease system, lubricator pump, lubrication valves
• Cement grout system — reservoir, agitator, scrapers, drive unit, platform complete
• Water mist system, form oil set, hose connection index

IMAGES PREVIEW

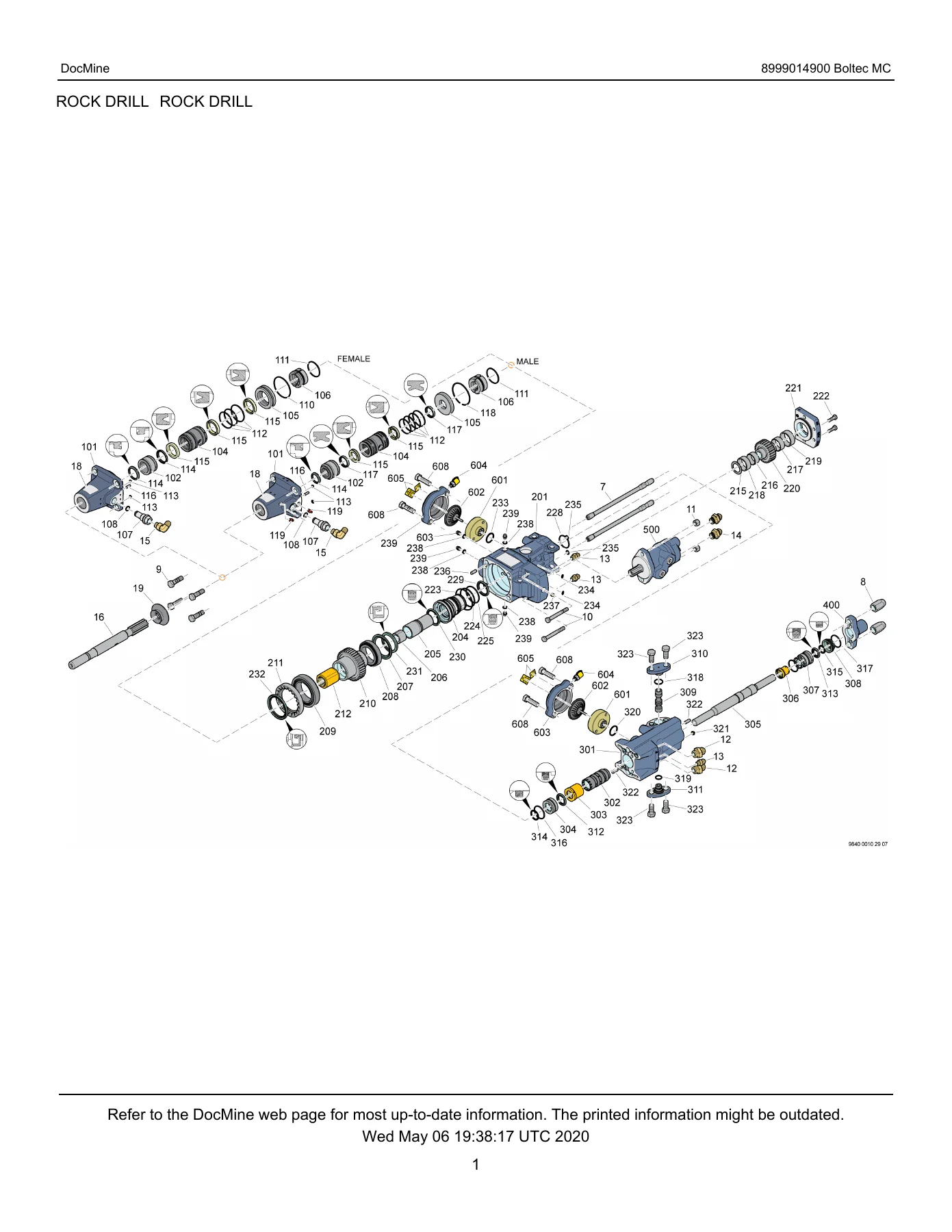

Taken together, those groups give a technician a machine-wide parts map rather than a single-assembly booklet. The opening rock drill pages show female and male shank sides, flushing parts, gear housing, cylinder, back head, hydraulic motor, and accumulators on one drawing, then break each sub-assembly onto its own plate. Later plates do the same for the magazine and bolt handler, the telescopic boom, the wheeled carrier and driveline, the diesel package and cooling circuit, the enclosed cabin, the cable and hose reels, and the RCS operator and I/O hardware.

Rock Drill and Front-End Hardware

The first illustrated section of the Epiroc Atlas Copco Boltec MC Spare Parts List 8999014900 is the rock drill. Item tables name side bolts 3115328100, dome nuts 3115331500, lock nuts, flushing nipples, drill collar 3115223100, back head 3115324900, and accumulators 3115359480 / accumulator assemblies 3115359481. Front part complete pages itemize the front part 3115324600, guide, seal holder, flushing head, washer, stop ring, flushing adapter, wipers 3115328202, cup seals 3115336500, and O-rings. Seal kit 3115926690 is called out as not shown on the front-part plate so the kit can be ordered as a package instead of piece by piece.

Gear housing and cylinder groups continue that pattern: housing and motor bracket pieces, then cylinder internals, hydraulic motors, and the charging device with its label set. Separate repair-kit and seal-kit plates exist so a rebuild can be staged from kit numbers rather than from a long list of individual rings and wipers.

Bolting Equipment, Magazine, and Feed

Bolting equipment begins with system kits and hydraulic sets that collect flow control valves, pressure reducing valves, double check valves, direction valves, holders, and RCS cables. A bolting unit group includes bolt stands 9106249016 and 9106246303. Feed-beam hardware covers stays, guides, and sliding pieces. The hose frame section lists multiple bulkhead connector variants with matching nipples so hose routes through the frame can be rebuilt with the correct pass-through.

Drive-unit plates cover the hydraulic motor and cylinder that move the feed, holder sets, sprocket wheel, pulley wheel, and hose sets. Carriage, drill carriage, and bolt cradle groups identify sliders, liners, guide spindles, and cradle cylinders. Drill steel support lists choose-bushing-half options and support halves. The stinger, hose guide clamps, magazine unit bracket, bolt handler, jaws, dividing disk, turning device, and magazine stop occupy their own drawings. Hose feeder, drill holder, bolt rotator, intermediate support, and bolt stand close the working-head cluster.

Boom, Carrier, and Power Package

Boom coverage runs from basic boom and boom body through boom attachment, boom link, cylinder link, expanding shafts, telescope set, bearing housing, EMC set, rotary unit, turning device with brake, drill setting, and feed holder. Double check valves sit on the boom body plates. Hose-holder sets and long hose-set-complete sequences follow the boom hydraulics out to the carrier.

Carrier pages include cover complete, laser units, boom frame complete, boom bracket complete, support legs, motor frame, cable tray, and step. The diesel engine unit is broken into connection sets, cooling system pieces (radiator, charge-air pipe, cooler pipe, expansion tank, level sensor), pump set, push-button box, hydraulic transmission items, oil filler, dip stick, fan drive, air filter set, fuel pipes and hoses, exhaust system with silencer and exhaust bend, rear frame, battery box, and lock device. Hoods complete and side hatches finish the engine enclosure.

Driveline tables list drive shaft, planet gear kit, brake disc kit, crown wheel kit, differential kit, pendulum, cardan shafts, wheel complete, rim complete, tire set, wheel bolts, and assembly hardware. Warning signs, label lists, and a drill bit box appear before the fire-suppression and fire-extinguishing sets, which include hose sets, pressure switches, triggers, and gas-cartridge related items as drawn.

Cabin, Electrics, and RCS

Cabin complete covers door stops, lock sets, windshield wiper, windscreen wash, floor carpet, cabin air system, doors, window panes, and the 24 V electrical system. Junction boxes, plinth modules, cable sets, drivers panels, drivers chair complete with safety belt, lamp attachments, cab attachment, stage, and air conditioner (air-cond unit, condenser unit, compressor unit, hydraulic motor, coupling, hose sets) are itemized. Camera and monitor-bracket hardware, multiple cable-reel constructions with commutator, brush/insulating kits, phase-rings kit, earth-ring kit, bushing set, pilot-ring kit, drum, limit switch, and torque-unit kits (gear housing, flange set, shaft set, chain kit) sit in the same electrical/reel area of the book.

Later electrical chapters list the electrical cabinet, fan set, main switch, emergency set, electric motor, apparatus panel, battery module, fuse boxes, light sets, headlights, spotlight set, driving lights, terminal relay, hour meter, mushroom pushbuttons, ignition lock, push buttons, and panel plates. Control-system and system-kit RCS pages name the operator unit, display, I/O module, address plugs, terminations, CAN-open cables, power cables, conduit entries, and long runs of cable set RCS. Sensor sets add angle sensors, linear sensors, inclinometers, resolver module, and related flags, protectors, and cables.

Hydraulics, Water, Lubrication, and Grout

Hydraulic-system plates cover pumps (including gear pump and pilot-valve pump units), suction connections, valve blocks, valve units with inlet, valve, and outlet sections, return block, hydraulic oil tank, return filter, coupling set, shaft coupling, and electric oil filler. Hose-set-complete chapters occupy many consecutive pages because each circuit — feed, boom, bolt handler, magazine, water, steering — has its own assembly numbers.

Air/water system groups include compressor and hydraulic motor, unloading valve, water intake set, water pump unit, coupling complete, solenoid valves, cleaning unit, boot washer, water spray kit, water reel, strainer, hose guide, and nipple set. Lubrication coverage splits into automatic grease system, lubrication pump kit, lubrication valves, electrical control kit, and a manual grease system with drum pump. Cement grout system pages show reservoir, seal retainer, agitator, scrapers, suction connection, hatch, wedge lock, drive unit, platform complete, ladder, lock device, safety chain, valve cabinet, and pump unit. Water mist system and form oil set appear near the end, followed by a hose-connection and hose-assembly index that cross-references circuit codes such as FM, CS, BIC, DS, SR, BHJ, MR, DH, and BRO.

How to Read the Plates

Each illustrated group uses callout balloons that match the Item column. Qty tells how many of that part belong on one assembly. Some rows are marked Not Shown when a kit or optional set is ordered as a package. Hose assemblies carry their own codes (for example CS01 0574027811, DS01 0574127711) so a damaged line can be replaced as a finished assembly. Seal kits and repair kits are repeated by reference (“See page …”) wherever the same kit serves more than one drawing, which keeps kit numbers consistent across the rock drill, valves, cylinders, and reels.

Because this document is a parts list, quantities and names are the authority for identification. They are not a substitute for the machine’s current configuration or for any later DocMine revision. The cover itself states that printed information might be outdated and points readers to the DocMine web page for the newest record.

Get the Catalog and Identify the Part

With the Epiroc Atlas Copco Boltec MC Spare Parts List 8999014900 – Illustrated Parts Catalog PDF on hand, a technician can open the rock drill, magazine, boom, carrier, cabin, or hydraulic group that matches the failed assembly, read the balloon on the exploded view, and copy the part number and quantity from the table. That is the practical job this catalog supports: correct identification of shank adapters, seal kits, valves, hose assemblies, sensors, RCS cables, driveline kits, cabin hardware, and grout-system pieces on the Boltec MC. Ordering the wrong adapter or mixing seal kits is what this list is meant to prevent. After payment the PDF is delivered instantly — no shipping delay — and can be opened on a workshop PC, tablet, or phone and printed for the bench or the parts counter.
