Epiroc Boomer S1 D Spare Parts Catalog 8999670700-001 PDF Download

Description

Epiroc Boomer S1 D Spare Parts Catalog 8999670700-001 PDF Download

This Epiroc Boomer S1 D Spare Parts Catalog 8999670700-001 PDF Download is the illustrated parts list for the Boomer S1 D face-drilling rig. Every listed assembly is broken into item numbers, Epiroc part numbers, names, quantities, and remarks so a workshop can match a worn component to the correct replacement instead of guessing from a chassis tag. Headers throughout the file carry the publication identity 8999670700-001 Boomer S1 D. The catalog was generated from DocMine and the page footers note that printed information may be outdated compared with the live DocMine listing.

File Details

• Manual type: Spare parts catalog
• Brand / model: Epiroc Boomer S1 D
• Document number: 8999670700-001
• Language: English (some assembly names retain Swedish workshop wording)
• Page count: 1102
• File format: PDF

What This Catalog Identifies on the Rig

The Boomer S1 D is treated as a modular machine. Service parts sit at the front of the book, then the COP MD20 rock drill, BMH 2749 feed, boom, front module, canopy, 95 kW power pack, MKIII middle module, and rear module. Within those modules the lists name engines, compressors, hydraulic pumps, 24 V electrics, water-mist hardware, wheels, support legs, cable-reel gear, and fire-suppression kits. PM-kit notes state that kit contents follow a standard machine without optional equipment, so extra options must be ordered separately.

Engine-hour kits in this Epiroc Boomer S1 D spare parts catalog are split by power unit. One line covers a Deutz TD 3.6 Stage V package. Separate 500-hour PM kits exist for a Deutz D914 55 kW Stage 3A engine and a Deutz BF4L 914 72 kW Stage 3A engine. Cabin-plus-compressor and canopy-plus-compressor sets appear for GAR 30 and for LE 5 / LE 7 / LE 10 compressors. Pre-maintenance sets are listed at 250 hours, 500 hours, 500 / 1000 / 2000 percussion hours, and 1000 / 2000 impact hours on the drill.

Chapters Covered

• Parts & Service — set, maintenance; PM-kits; engine-hour kits for Deutz TD 3.6 Stage V, Deutz 914 55 kW Stage 3A, and Deutz BF4L 914 72 kW Stage 3A; cabin / canopy + GAR 30 or LE compressor kits; 250-hour PM-kits; pre-maintenance sets at 500 / 1000 / 2000 percussion hours
• Rock drill COP MD20+ — rock drill COP MD20; front group; front part complete; flush head complete; guide complete; front part group with sleeve; gear housing group; gear housing complete; gear wheel complete; cylinder group; cylinder assembly; accumulator assemblies; valve; front and rear seal house complete; rotation motor MSYUF 100 / 125 / 160 / 200 / 250 / 315; label set; protect cap set
• Optional set COP MD20 — tools and accessories; front seal kit; seal kit; minor kit 1000 impact hours; major kit 2000 impact hours; overhaul fixture / mounting table; charging device; oversize kit 1 for renovated (inside machined) front part; oversize flush head and rear guide
• Feed module BMH 2749 — feed beam; drill steel supports; hydraulic cylinder DIM 63/40X2410; rock-drill cradle BBX288; cradle plates and holders; end piece set; hose reel cradle; hose fender L=1000; hose guide BMH 2000/6000 bulk head; hose holder sets; limit-switch sensor set; stop set; spacer set L=300; feed-cylinder nipple and hose sets; T/R38 rubber and steel bushing sets; hole-blow check-valve nipple set; hose nipple set BMH43 to 49
• Boom module (left) — boom rear part; boom attachment; boom link; cylinder link; shaft complete; expanding shafts; boom body; telescope set; hydraulic cylinders; bearing housing assembly; boom head left; turning device; boom-ride cylinder; check and overcenter valves; cylinder DIM 50/32/1250; cylinder protection kits; hose holders and bulkhead connections; BUT 29 hydraulic set, hose holder, and lubrication system
• Front module — front frame, counterweight, stage; mudguard complete; 24 V electrical system and cable set; hydraulic system with direction valves, inlet / valve / outlet sections, logic valve, 3/2 24 V solenoid, pressure-regulating valve block, sequence valve; support-leg and boom-frame hose sets; S1 front-module hydraulic set; boom-suspension and protection-roof hydraulic sets; air/water system with solenoid valve and water-mist tee; cleaning unit; boot washer; Nokian 9.00-20 offset -25 wheel set; drive unit with drive shaft, crown-wheel kit, differential kit, vane kit, planet-gear kit, brake, cardan shafts; support-leg kit BSJ-10-40; steering-cylinder set; front-module sign set
• Canopy module — steel platform complete; protection-roof cylinder; binder box; cab attachment; left/right hoods; 24 V canopy electrics; panels A71 / A72 / A74; hour meter; emergency and mushroom push-buttons; ignition locks; junction boxes A53 / A48; stair lighting; drill panel DCS with bore valve KA 18, control sections, lever holders, pressure-control valves, control levers; electric set A20; flow divider 50/50; reamer set; boom-suspension electric set Y802; air/water WM+EW+G30 with ECL lubrication pump and 5 L reservoir; chair complete; lamp attachment; reverse-camera display kit; accelerator pedal; canopy sign set
• Power module 95 kW — 24 V electrics; electric motor 001; attachment set; hydraulic system with B/RB S1 pump-control valve block and V-pump valve block; hydraulic reservoirs; return filter; 55 °C thermostat; pump set, shaft coupling, coupling-house cover; hydraulic pumps; gear pump 41+16+10 cc/rev; reamer / big-hole hydraulic option; electric hydraulic-oil filler; power-module sign set
• Middle module MKIII — intermediate frame; drive unit and internal drop-box axle; crown-wheel, vane, and planet-gear kits; drop box; trunnion; piston assembly; cardan shaft; fuel system; 1/2 in solenoid valve; manual lubrication system; battery box; cable and hose protection; cable ladder; hoods and mudguards; 24 V electrics, battery module, fuse kit, battery-charger set; hydraulic pump, filter, hydraulic motor, carrier pump, gear pump; mid-lock coupling set; Nokian 9.00-20 wheels; diesel engine unit turbo BF4L 914; fan grid; engine-to-pump coupling; engine-oil drainage; air-filter set; throttle control; exhaust and silencer; cooling system with air-oil cooler; support-leg kit BSJ10-40; lubrication-pump kit; middle-module sign set
• Rear module — rear frame; cable steering; valve protection; cable-reel kit, collector kit, ring pack with split insulators, casing, micro switch, hydraulic motor; air-oil-cooled rear hoods; swing-arm air-oil cooler; 24 V rear electrics; apparatus panel A50; electrical cabinets A50 / A10; main switch 160-200 A 36 kA; door limit-switch kit; plinth modules X40; cable complete 3X70+3G16+2X1; plug connector; wire-mesh hose; dual cable-reel control box A57; emergency set and push-button box A41; rear hydraulic valves and hose sets; air/water rear module with strainer, water-pump unit 4 kW, GAR 30 compressor set, gear box, valve set, air receiver / air tank; camera kit; Certiq 2.0 monitoring; Ansul and Checkfire fire-extinguishing set; fire-suppression hose list; hose connection list

Taken together, the lists give a technician a module-by-module map of every serviceable group on the Boomer S1 D: which PM kit belongs to which engine or compressor, which seal and oversize kits belong to the COP MD20, and which hose, nipple, bushing, and electrical sets belong to the feed, boom, carrier, and rear cable reel.

COP MD20 Rock Drill Parts

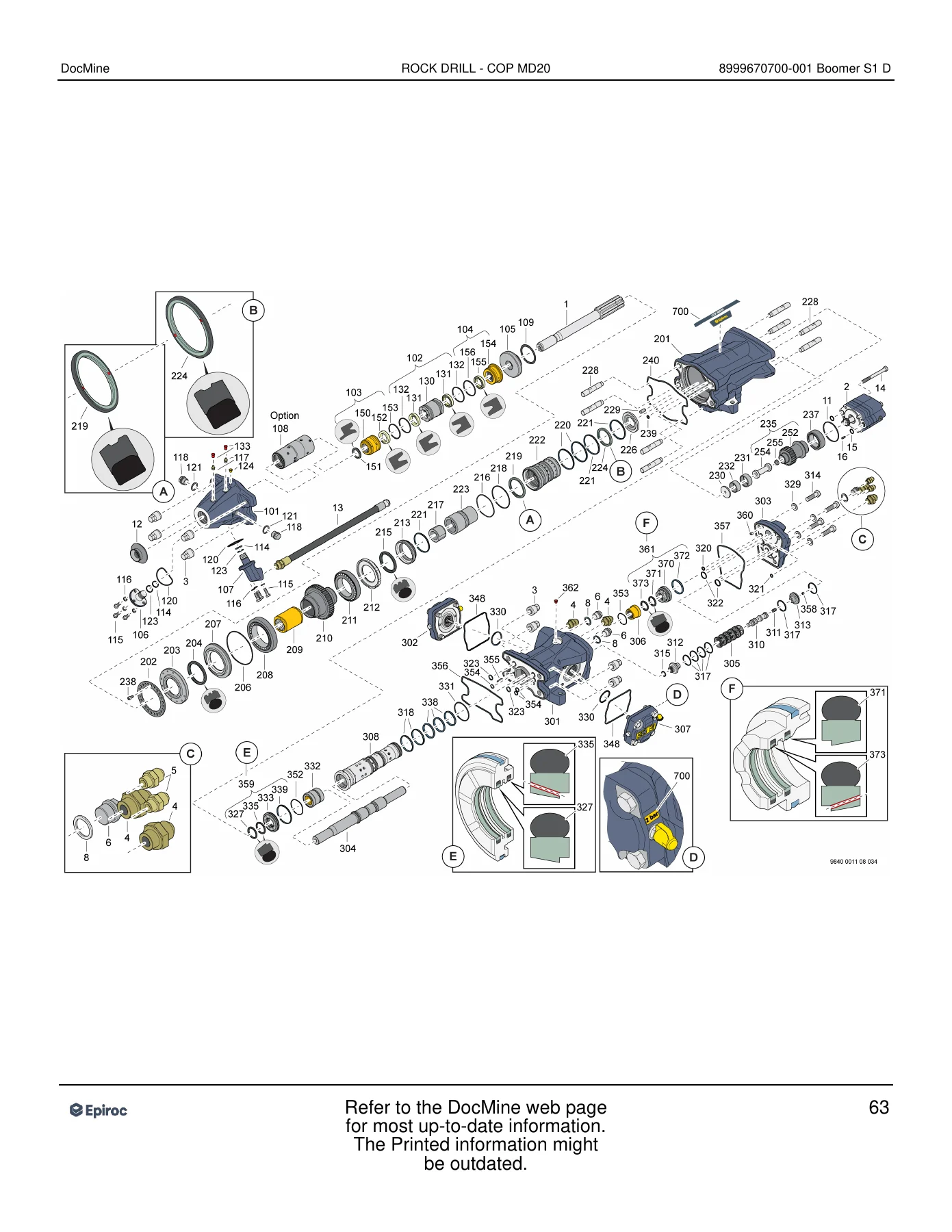

The rock-drill chapter of the Epiroc Boomer S1 D Spare Parts Catalog 8999670700-001 PDF Download is the most detailed exploded section. The complete COP MD20 assembly is drawn with callouts for the front group, gear housing, cylinder group, high and low accumulator assemblies, front and rear seal houses, and rotation motors. Shank adapters are listed as T38 L=470 straight, R38 L=470 straight, R38E L=560 straight, and a further T38 adapter, each cross-referenced to a Secoroc number. Rotation motors shown on the main list include MSYUF 125 and MSYUF 160; the dedicated motor pages also cover the MSYUF 100, 200, 250, and 315 sizes.

Seal kits are sold both as individual rings and as packaged sets: front seal kit 3115901183, separate seal kits for the rotation chuck and damping piston, and dimensional kits such as D=42,35 x 4,2 and D=32,5 x 4,2. A minor kit is specified at 1000 impact hours and a major kit at 2000 impact hours. An oversize kit 3115600859 is intended for a renovated, inside-machined front part and includes Helicoil M10 x 2 D inserts, M8 x 10 set screws, M8x8 D=1,7 nozzles, plus the oversize-1 flush head 3115600675 and rear guide 3115600706. Tools, an overhaul fixture / mounting table, and a charging device sit in the optional-set pages.

Feed, Boom, and Carrier Hardware

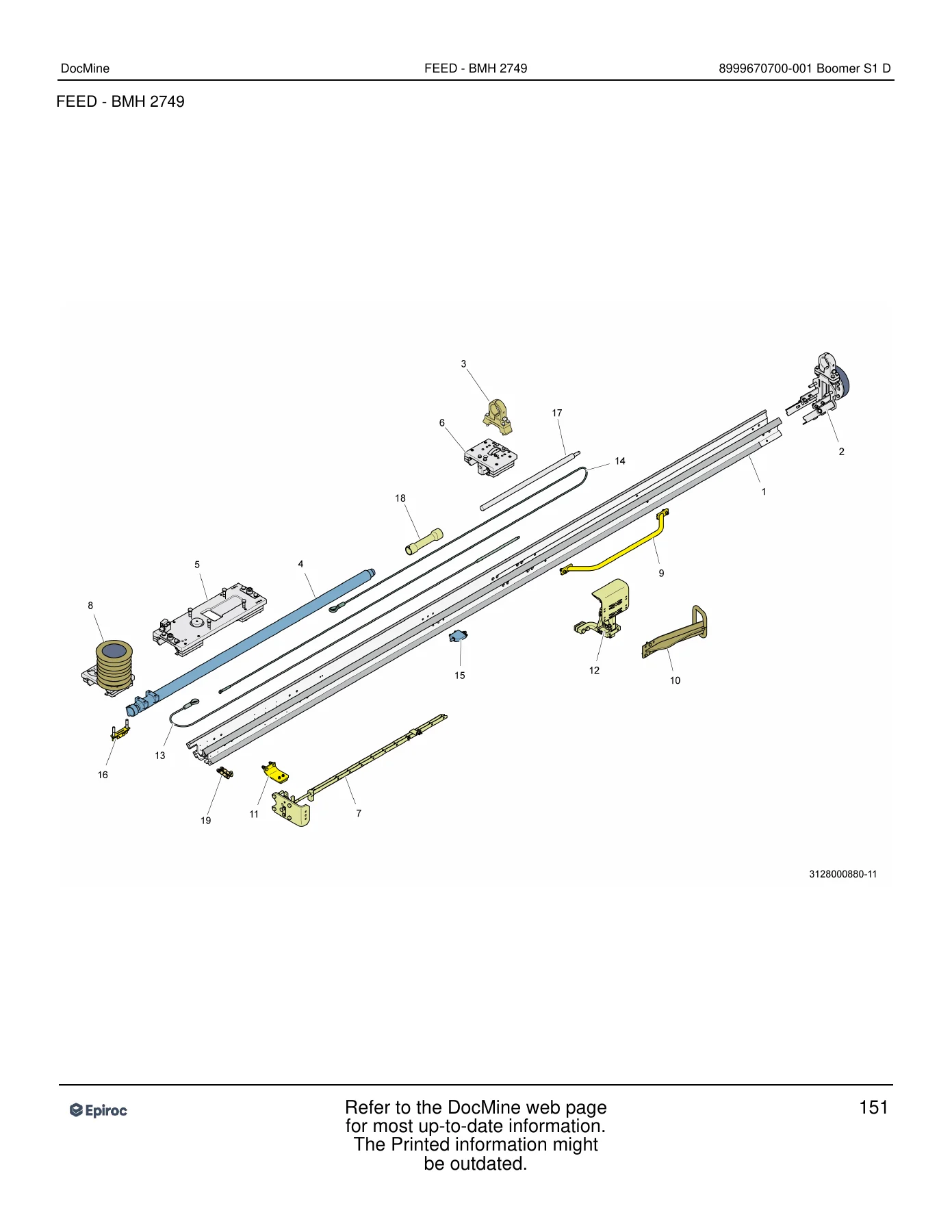

Feed BMH 2749 is built around feed beam 3128326225, hydraulic cylinder 3128259404 (DIM 63/40X2410), return and pull ropes, a BMH 2000 end-piece set, limit-switch sensor set 3128314772, and T/R38 rubber or steel bushing sets. Cradle BBX288, hose fenders L=1000, and BMH 2000/6000 bulk-head hose guides keep hoses and the rock-drill cradle on the beam.

IMAGES PREVIEW

The left boom chapter lists rear boom parts, boom attachment 3128280031, expanding shafts, telescope set, turning device, boom-ride cylinder, check and overcenter valves, and cylinder DIM 50/32/1250. BUT 29 hydraulic, hose-holder, and lubrication sets finish the boom plumbing. The front module adds the frame, 24 V cable set, multi-section hydraulic valve bank, water-mist solenoid and tee, Nokian 9.00-20 AG Mine TT tires on 7.5-20 rims with +25 mm offset, drive-axle kits (crown wheel, differential, vane, planet gear, brake), BSJ-10-40 support legs, and the apron-lift / steering cylinder HC20T-K80-40K-500.

Power, Middle, and Rear Modules

The 95 kW power module lists the electric motor, pump-control and V-pump valve blocks, reservoirs, return filter, 55 °C thermostat, shaft coupling, hydraulic pumps, and the 41+16+10 cc/rev gear pump. A reamer / big-hole hydraulic option and an electric oil-filling pump are separate sets.

The MKIII middle module carries the diesel package: turbo Deutz BF4L 914, fan grid, engine-to-pump coupling, air-filter set, throttle control, exhaust and silencer, and the air-oil cooler circuit. Drive hardware repeats the drop box, trunnion, crown-wheel and planet-gear kits, plus a mid-lock coupling set. Battery box, fuse kit, and battery-charger electrics sit beside a manual lubrication system and a dedicated lubrication-pump kit.

Rear-module pages cover the cable reel, collector ring pack with split insulators, A50 / A10 cabinets, 160-200 A 36 kA main switch, 3X70+3G16+2X1 trailing cable, dual reel control A57, GAR 30 compressor, 4 kW water pump, air receiver, Certiq 2.0 monitoring set, reverse-camera kit, and the Ansul & Checkfire fire-extinguishing tank with a separate fire-suppression hose list.

How the Parts Tables Are Organized

Illustrated pages show an exploded assembly with numbered balloons. The facing table uses columns for Item, Part No., Name, Qty, Remarks, Reman No., and L. Complete-assembly rows give the kit or group number first; child rows list every washer, O-ring, nozzle, and screw. Remarks carry sizes such as O-ring 82 x 3 / 70 shore, cup seal 38X55X10, or hydraulic cylinder DIM 63/40X2410. Some pump internals are marked not sold separately. Reman numbers appear as a column even when blank on many rows, so a buyer can see when a remanufactured alternative is contemplated.

Order With the Correct Part Number

The Epiroc Boomer S1 D Spare Parts Catalog 8999670700-001 PDF Download lets a stores clerk or field mechanic pull the exact number for a COP MD20 seal house, a 500-hour Deutz BF4L 914 filter set, a BMH 2749 feed-cylinder hose nipple, a Nokian 9.00-20 wheel assembly, or a GAR 30 compressor valve set. Matching the exploded callout to the table prevents mixed-up rotation motors, wrong-size bushings, and incomplete PM kits. Instant PDF delivery after payment means the file opens on a workshop PC, tablet, or phone and can be printed at the bench with no shipping wait.
