Epiroc Boomer 282 Spare Parts Catalog 8991865800 PDF

Description

File Details

• Manual type: Spare parts catalog
• Brand / model: Epiroc Boomer 282
• Document number: 8991865800
• Language: English
• Page count: 1004
• File format: PDF

Illustrated Parts Coverage for the Boomer 282

The Epiroc Boomer 282 Spare Parts Catalog 8991865800 PDF is the illustrated parts book for the Boomer 282 face drilling rig. Header pages throughout the file carry the publication number 8991865800 and the machine name Boomer 282. Drawings and item tables run from the hydraulic system and DCS 18-280 drill control panel through the carrier, diesel unit, dual BUT 28 booms, COP 1838 rock drill, feed beams, electrical cabinets, air/water mist equipment, cable reel and hose reel.

Each illustrated group is paired with a parts table that lists item callout, part number, name, quantity and remarks. Remarks on the opening hydraulic-system list identify the control panel as the DCS 18-280 DRILL PANEL, the boom hydraulic kit as BUT 28F,P70, a hose set marked BIG HOLE, and a telescope hydraulic set. Later groups name the diesel unit as DEUTZ D914L04, T12000 / DEUTZ D914 L04 2V, a Clark 12000 filler set on the hydraulic transmission, and rock-drill kits for COP 1838ME, COP 1838ME-T38, COP 1838ME-T45 and a conversion kit from COP 1838ME to COP 1838HD.

IMAGES PREVIEW

Chapters Covered

• HYDR. SYSTEM — control panel, direction valve, inlet section, control sets, lever holder, intermediate part, valve blocks, valve unit, throttle valve, panel frame, hose set, sequence valve, attachment, reamer set
• HYDRAULIC SET — direction valve, pressure-relief valve, sequence valve, hose set, boom hyd. kit, assembly valve, inlet / valve / outlet sections
• PR.CONTR.VALVE — lever joint, lever set, press.red.valve, hose set
• COUPLING SET — shaft coupling, cover set
• HYDR. SYSTEM (carrier circuits) — return block, direction valve, spool valve, suction connections
• HYDRAULIC PUMP — pilot valve, flow regulator, valve blocks, hose set, hyd.set reel, attachment set
• EL.OIL FILLER — hydraulic pump, hose set, electric set, push-button box, DSS set, thermostat
• CARRIER — frame motor P., fuel tank, drive shaft / drive axle, brake disc kit, crown wheel kit, planet gear kit, diff.kit
• HYDR. RESERVOIR — level-temp.ind., filter compl., hydr.oil tank, battery box
• EL.EQUIPMENT — junction boxes, switch panel, indication lamp, hour meter, mushroom pushbutton, ignition lock, push buttons, el.equipm.motor, cable complete, control box, lampswitch
• DRIVING LIGHT. — headlights, reverse alarm, brake light
• DIESEL ENG.UNIT — diesel engine, air filter set, air inlet, throttle contr., cable holder, drainage, cardan shaft, hydr.transmiss., filler set, level glass, fuel system, platform compl.
• LUBR. SYSTEM — lubr. valve, frame boom part, hydr. cylinder, check valve, drivers platform, chair compl., exhaust system, catalyser, silencer
• SET OF WHEELS — wheel compl., rim compl., assembly set
• GUIDE UNIT — control panel, steering system, angle pointer, prestart warning, motor cap catch, boombracket cpl.
• SUPPORT LEG — hydr. cylinder, protection roof, warning signs, label list
• FIRE SUPPR.SYST — fire exting.set, connection set, hose set, assembly set
• MAN.GREASE SYST — drum pump, hose set
• BOOM / BASIC BOOM — boom part, boom attachment, boom link, cylinder link, shaft compl., expanding shafts, double ch.valve, telescope set, bearing housing, turning device, hose nipple set, hose frame set, holders, cover set
• ROCK DRILL — front head comp, front part comp, accumulator, return accum., hydraulic motor, O-ring set, seal kit, overhaul kit, repair set, chargin device, conversion kit, gear housing, cover group
• FEED — basic part set, detail set, pulley/wheel, holder set, cylinder set, spray nozzle, limit switch, rock drill kit, cradle set, connection set, hose drum, feed beam, drill steel support, choose bushing, bushing set
• ELECTR. SYSTEM — elcabinet set, basic el.cab., electr.cabinet, door, main switch, emerg. stop box, volt kit, thermal relays, water pump, EMC-set, cable set, headlight set, flashing beacon
• AIR/WATERSYSTEM — water mist syst, strainer, pres. gauge set, lubricat.pump, pulse unit, oil reservoir, control valve, shut off valve, direction valve, water pump, rotation unit, waterflow guard, cleaning unit, ECL-set
• CABLE REEL — cable lug set, socket coupler, plug connector, drum, hydraulic unit, hydraulic motor, gear housing, swing arm, locking, hasp, cable steering, collector kit, commutator, brush/insul.kit, insulating set, phase rings kit, earth ring kit, braking chopper
• HOSE REEL — hydraulic unit, swivel, swing arm, nipple set, hose connection, hoses

Taken together, the Epiroc Boomer 282 Spare Parts Catalog 8991865800 PDF is a callout-driven parts identifier rather than a workshop procedure book. A technician uses the machine overview, then the exploded or schematic view for a group, then the matching table to read the exact part number, quantity and remark for a valve section, seal kit, hose assembly, boom shaft or rock-drill front head.

Hydraulic System, Drill Panel and Boom Hydraulics

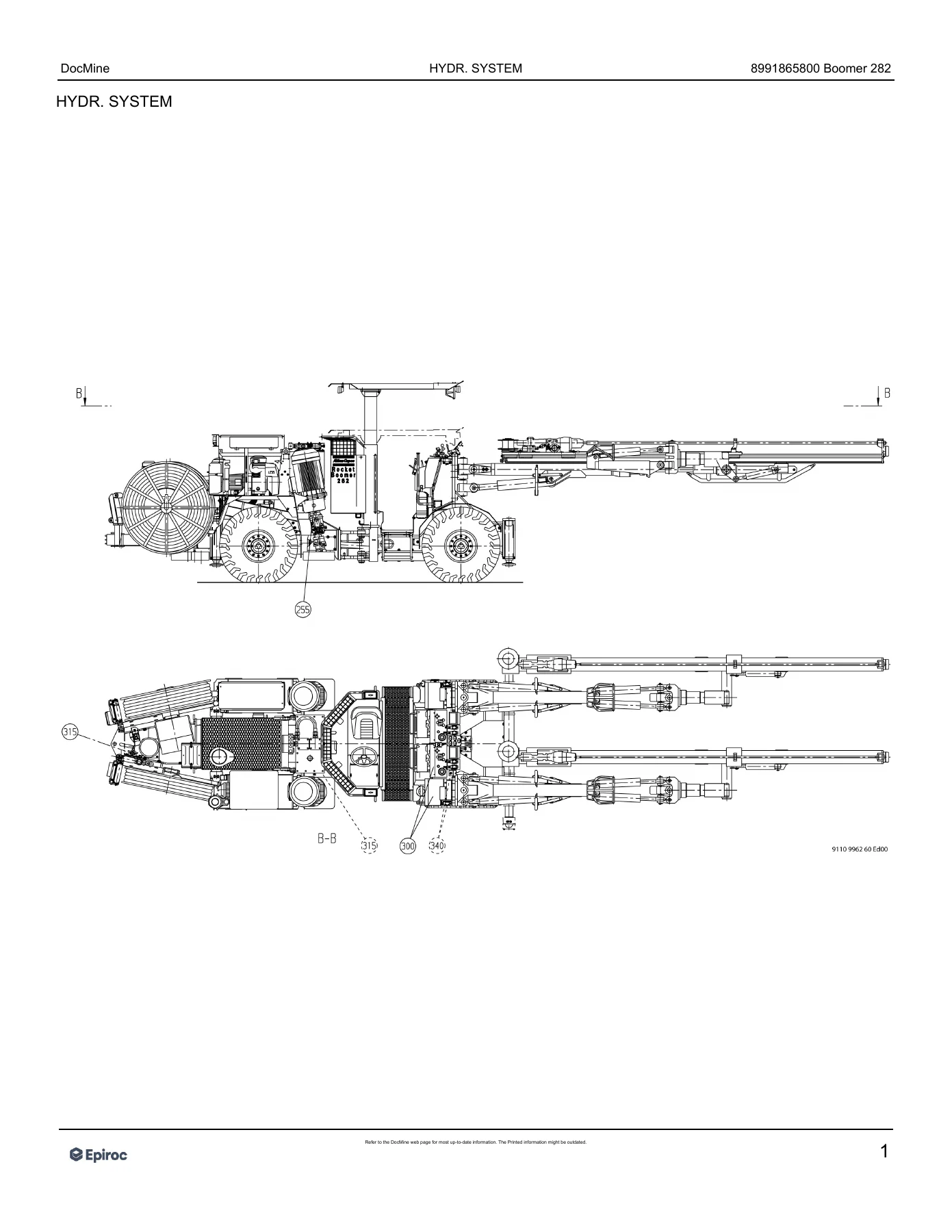

The catalog opens with a side and plan drawing of the complete rig, ballooned to the control panel, oil filler, DSS set and related hydraulic groups. The control-panel chapter breaks the DCS 18-280 station into direction valves, valve blocks, a valve unit, throttle valves, a distributor pipe, pressure switch 9056 40-400 bar, Wika gauges (0-250 bar and 0-400 bar), restrictions, trigger and mushroom-pushbutton contact blocks, panel frame, drainage and branch blocks, sequence valve, check valve and reamer set. Intersection seal kits and inlet-section seal kits are listed with the O-ring sizes printed in the remarks (for example 19,18X 2,46 90 SHORE and 15,6 X 1,78 90 SHORE).

Control-set pages explode the feed, drilling and rotation lever assemblies: seal holder, cover, check valve, lever holder, lever set, centering set, catch and the associated O-rings. Boom hyd. kit 3128209059 is called out twice and marked BUT 28F,P70. Separate hydraulic-set and direction-valve chapters continue through inlet, valve and outlet sections, pressure-reducing valves, coupling sets, hydraulic pumps with pilot valve and flow regulator, hyd.set reel, electric oil filler 5112315606, DSS set 9106130324 and the telescope hydraulic set.

Carrier, Deutz Diesel Unit and Electrical Groups

Carrier tables group the frame motor packages, fuel tank, drive axle, brake disc kit, crown wheel kit, planet gear kit and differential kit. The reservoir chapter covers the hydraulic oil tank, level-temperature indicator, complete filter and battery box. Electrical equipment on the carrier includes junction boxes, switch panel, indication lamp, hour meter, mushroom pushbutton, ignition lock, control box, lampswitch, driving lights, headlights (including Nordic 100 24V), reverse alarm and brake light.

The diesel-engine unit is listed as DEUTZ D914L04, T12000 on the carrier overview and as DEUTZ D914 L04 2V on the engine-unit and diesel-engine lines (part numbers 5112323054 and 5112323050). Related rows cover the air filter set, air inlet, throttle control, cardan shafts, hydraulic transmission, Clark 12000 filler set, level glass, fuel system (a fuel quantity of 30L DF DIESEL appears on the associated table), platform, lubrication system, exhaust system with catalyser and silencer, drivers platform and chair. Wheel and rim complete assemblies, guide unit, support-leg cylinder, protection roof, fire-suppression set and manual grease system with drum pump close the carrier half of the book.

BUT 28 Booms, Feed and COP 1838 Rock Drill

Boom coverage is split across basic boom, boom part, telescope set, turning device and hose hardware. Remarks identify BUT 28 LEFT VER G and BUT 28 RIGHT VER G basic booms, plus hose nipple sets for BUT 28F/BMHT 2800 COP 1838 and BUT 28F/BMH2400 COP 1838. Expanding shafts, cylinder links, bearing housings, double check valves, overcenter valve, hose frame set and holders are itemized with their own drawings.

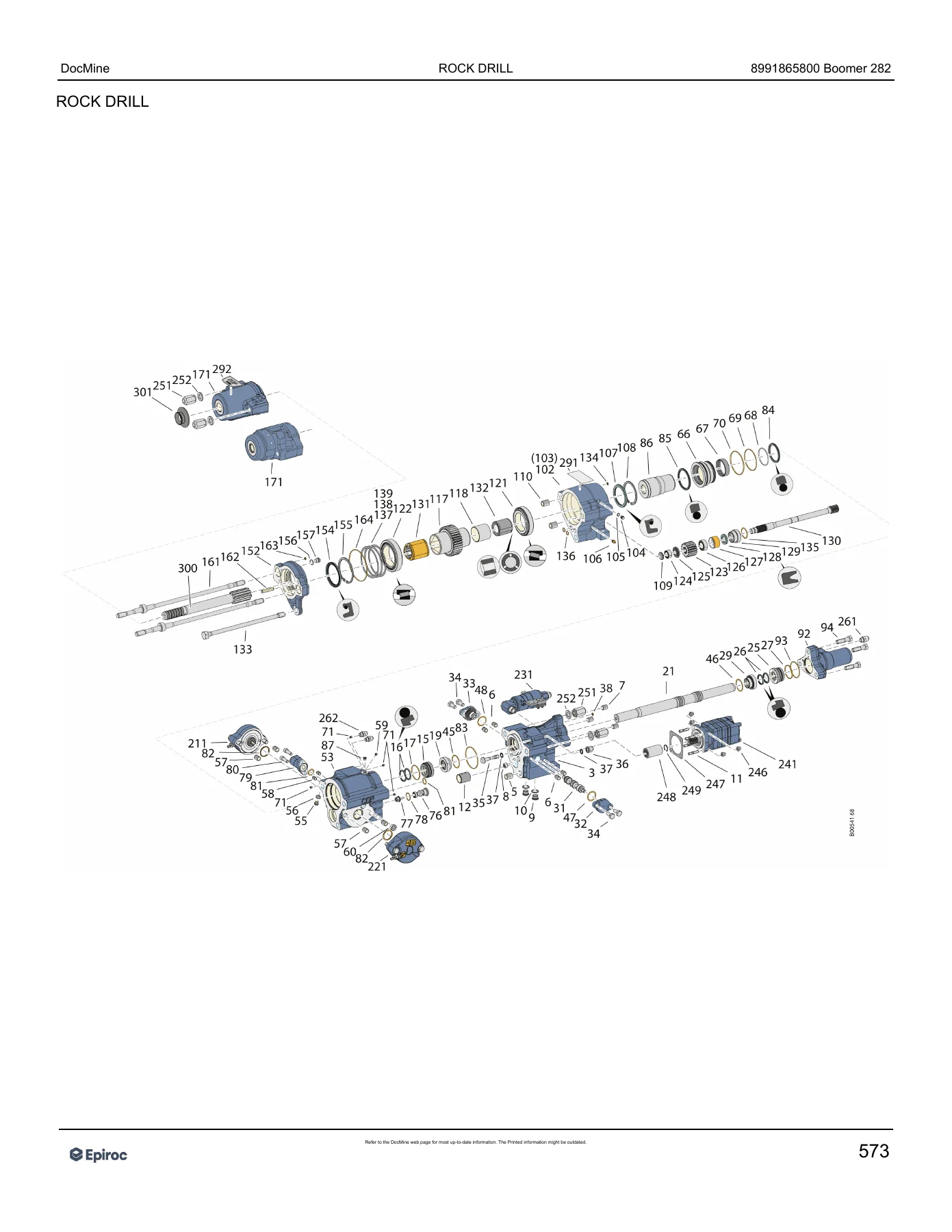

The rock-drill chapter is one of the densest illustrated sections. An exploded assembly and a cross-section drawing number every housing, piston-area, accumulator and rotation-motor piece. Front head complete options are listed for shank guides D=38, D=45 and D=52. Supporting kits include O-ring set COP 1638-2560, seal kit COP 1838ME, repair sets COP 1838ME-T38 and COP 1838ME-T45, overhaul kits, a charging device and conversion kit COP 1838ME TO COP 1838HD. Feed coverage continues with feed beams, cylinder sets, cradle set, hose drum, spray nozzle, limit-switch set, drill-steel support and bushing sets. Water-mist hose nipple sets marked BUT 28F/WATERMIST sit with the air/water system later in the file.

Electrical Cabinets, Water Mist, Cable Reel and Hose Reel

Electrical-system pages cover the cabinet set, cabinet doors, main switch, emergency-stop boxes, volt kit, thermal relays, EMC-set, cable set and headlight set. Air/water chapters list the water-mist system, strainer, pressure-gauge sets, lubrication pump, pulse unit, oil reservoir, control and shut-off valves, water pumps, rotation unit with hydraulic motor, waterflow guard and cleaning unit. Cable-reel and hose-reel sections finish the catalog with drum, hydraulic motor, gear housing, swing arm, locking, hasp, cable steering, collector kit, commutator, brush/insulation kit, phase-rings kit, earth-ring kit, braking chopper, swivel, nipple set, hose connection and the hose list.

How the Item Tables Work

Typical rows give Item, Part No., Name, Qty and Remarks. Where a part number is not sold separately the Part No. cell is a dash and the L / page-link column points to a child list (hose sets, seal kits, control sets). Many fasteners print thread, length and finish in remarks (for example M 12 X 100 – 8.8 FZB). Hose assemblies print dash size and length such as 12,5X 3100 R2AT or 19 X 3700 R2AT. Caps and ports use UNF thread sizes. Because the Epiroc Boomer 282 Spare Parts Catalog 8991865800 PDF is a parts identifier, those remark strings are the practical data a storeroom or field mechanic needs when matching a worn valve, shaft, seal kit or hose.

Identify the Correct Part Before You Order

This catalog supports locating and ordering the assemblies and service kits shown for the Boomer 282: control-panel valves and gauges, boom hydraulic kit BUT 28F,P70, Deutz D914 L04 2V engine-unit hardware, drive-axle kits, BUT 28 left/right boom parts, COP 1838ME seal / repair / conversion kits, feed-beam and cradle parts, water-mist fittings, and cable-reel or hose-reel wear items. Using the published item number and remark avoids mixing shank-guide front heads, boom-side hose nipple sets or intersection seal kits that look similar on the machine. After payment you receive the PDF immediately — no shipping wait — so you can open it on a shop computer, tablet or phone and print the exploded view and parts table for the group you are rebuilding.
