Fantuzzi Reggiane FDC 500 G5 Container Handler Forklift Operator and Maintenance Manual

Description

Fantuzzi Reggiane FDC 500 G5 Operator and Maintenance Manual

This PDF brings together the full documentation set for the FDC 500 G5 front fork-lift truck — the Fantuzzi Reggiane machine built to lift and handle full ISO containers with a telescopic spreader. It combines the Operator’s Manual and the Maintenance Manual in one file, plus the illustrated spare parts catalogue, so the same document serves the operator on shift and the technician in the workshop.

File Details

• Manual type: Operator and Maintenance Manual
• Brand: Fantuzzi Reggiane S.p.A.
• Model: FDC 500 G5
• Machine: Front fork-lift truck / container handler
• Language: English
• File format: PDF
• Operator’s Manual document no.: 21.0105.E0 (07/2005)
• Maintenance Manual document no.: 22.0001.E0 (03/2002)
• Machine serial reference: 102611

Chapters Covered

• Index and Introduction

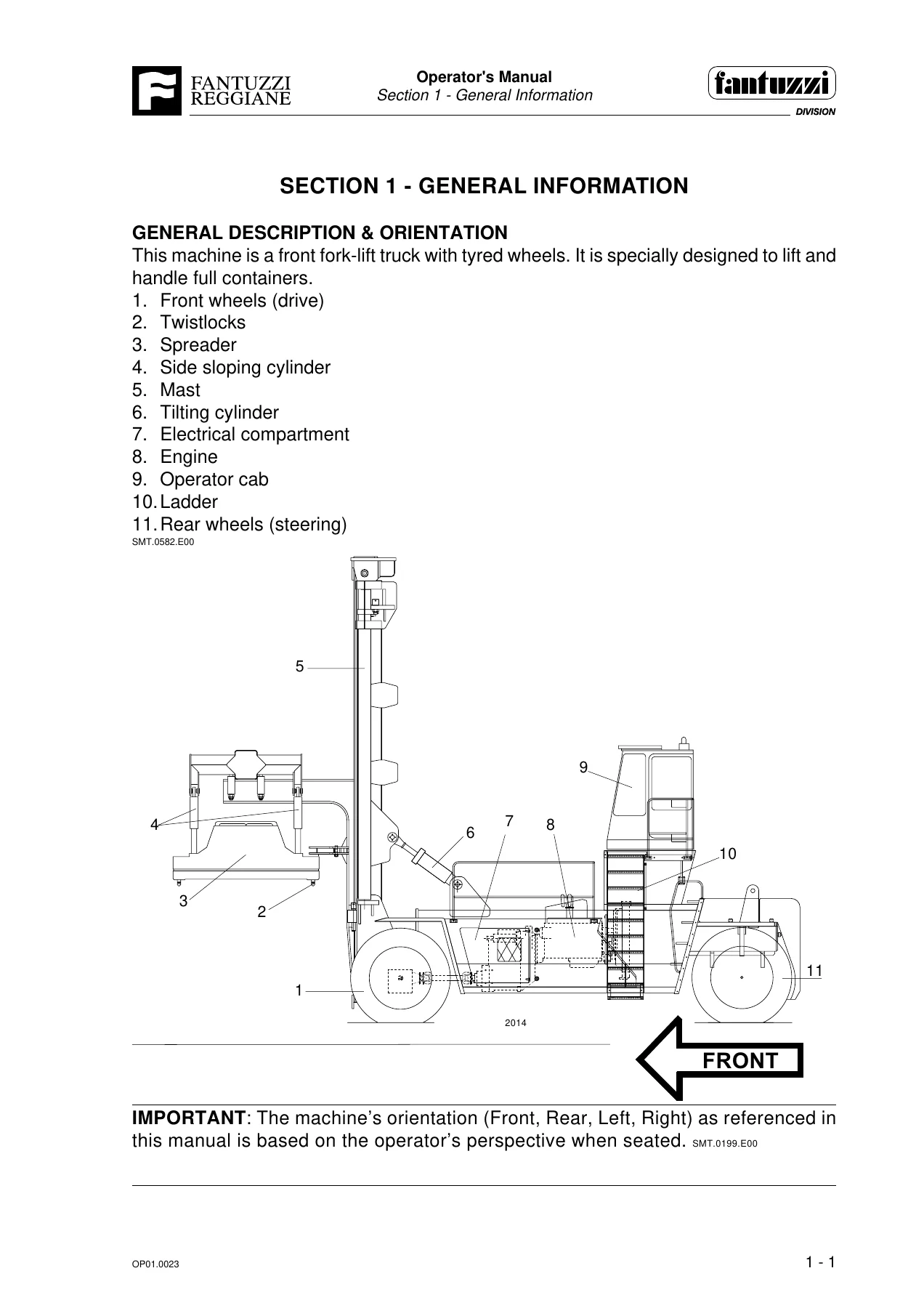

• Section 1 — General Information: general description and orientation, dimensions, maximum lifting capacity, technical specifications, motor table, braking notice
• Section 2 — General Safety: local laws, terminology, safety responsibility of the operator, general operating guidelines
• Section 3 — Groundcrew Safety Guidelines: communication between operator and groundcrew, recommended safety guidelines
• Section 4 — Operator’s Controls: instruments and control cab location and function, pedals, indicator lights, control switches, keys, gear selector, joystick control, twistlock rotation controls, spreader side-sloping function, seat adjustments
• Section 5 — Operating Procedures: pre-operational inspection, engine start-up, warm-up, driving and travelling, steering, load handling, stacking a container, parking, towing
• Section 6 — Warranty
• Maintenance Section 1 — General information, check register, reading the symbols, system maintenance
• Maintenance Section 2 — Scheduled maintenance and filling tables
• Maintenance Section 3 — Main structure: main frame, pins
• Maintenance Section 4 — Diesel engine: radiator, fume exhaust system, fuel system
• Maintenance Section 5 — Transmission: automatic transmission
• Maintenance Section 6 — Drive axle: differential axle, cardan shafts
• Maintenance Section 7 — Steering axle: axle structure
• Maintenance Section 8 — Wheels: tyre fitting and removal, rims, periodic maintenance
• Maintenance Section 9 — Lifting unit: thrust shoes, lifting chain, wear checks on forks
• Maintenance Section 10 — Equipment: spreader, technical specifications, twistlock replacement, maintenance
• Maintenance Section 11 — Hydraulic system: sump, pumps, motors, cylinders, accumulators, cooling circuit, distributors
• Maintenance Section 12 — Electrical system: batteries, limit switch, electrical controls
• Maintenance Section 13 — Conditioning system: refrigeration cycle, heating system, evaporator, condenser, compressor, filter, expansion valve, test checks and fault diagnosis
• Maintenance Section 14 — Paintwork and touch-up cycle
• Maintenance Section 15 — Troubleshooting
• Maintenance Section 16 — Technical details: torque wrench settings, conversion charts
• Maintenance Section 17 — Hydraulic graphic symbols and electrical graphic symbols
• Maintenance Section 18 — Hydraulic and electrical schematics
• Spare parts catalogue with component index

Read together, these chapters give a technician a working picture of the whole machine: the safety rules that govern how it may be operated, the daily and periodic checks it needs, the structure and function of each major assembly, and the fault-finding logic to follow when something stops working. The scheduled maintenance and filling tables tell you what fluid goes where and when the job should be done, while the hydraulic and electrical schematics let you trace a circuit instead of guessing.

What the FDC 500 G5 Manual Covers in Practice

The FDC 500 G5 is a heavy front fork-lift truck with tyred wheels, built around a telescopic 20′-40′ spreader for full ISO containers. The manual documents the machine as delivered with a fixed mast, telescopic mast, lifting and hoist cylinders, chains, equipment plate and spreader, and it explains how each of those parts is driven, adjusted and inspected.

• Controls and operation: pedal functions including the brake pedal with neutral-engagement switch, the full dashboard indicator set (blocked oil filter, low motor oil pressure, blocked air filter, battery recharge, parking brake, low transmission oil level, glow plug preheating, neutral gear), control switches for wipers, defrosters, work lights, spreader opening/closing, engine revolution adjustment, cab movement and free rotation lock, ignition key positions, gear change mode selection and joystick functions.
• Load handling sequence: the manual walks through picking up a container and stacking one in step-by-step numbered illustrations, using the twistlock position sensors and the red/amber/green light logic to confirm hook-on and release.
• Scheduled maintenance: inspection intervals recorded against a check register, filling tables for FDC 500 covering engine, transmission, differential hubs, hydraulic system, brake cooling oil, fuel, bearings, chains and anti-freeze, with specified fluid types and quantities.
• Major assemblies: differential axle with oil-cooled multi-plate service brakes in each hub, parking brake on a disc and electrohydraulic caliper, cardan shafts with greasing nipples, steering axle with power-steering cylinder and disc brake inspection criteria.
• Lifting unit: thrust shoe clearance limits, BL-type chain inspection and elongation limits, chain lubrication and tensioning procedure, and dimensional, inclination, shape and straightness checks for forks.

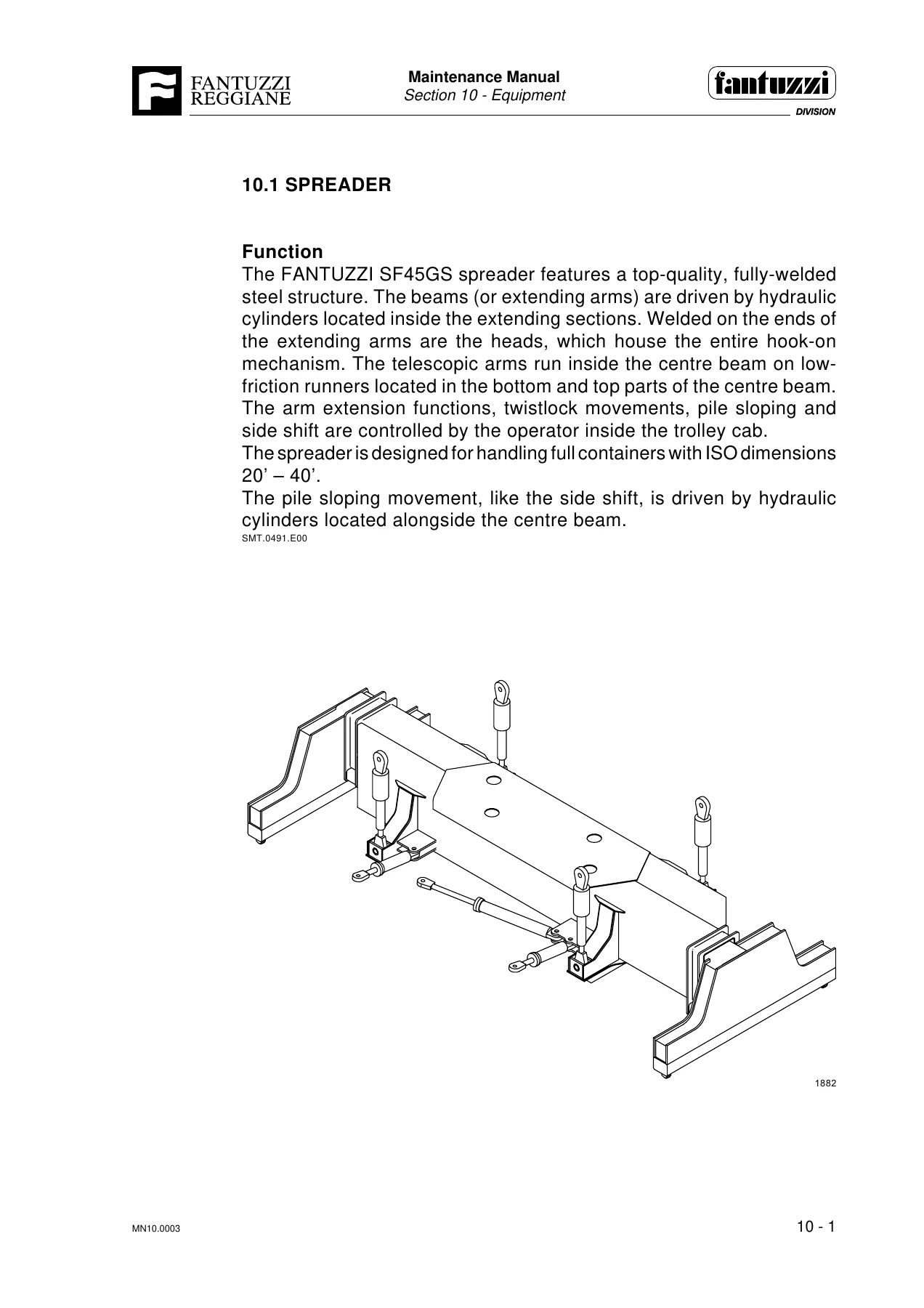

• Spreader: FANTUZZI SF45GS technical specifications, twistlock removal and refitting with axial play tolerances, and the wear limits that decide when a twistlock must be replaced.
• Troubleshooting: diesel engine, hydraulic motors, pumps, maximum pressure valves, check and direction valves, filters, pressure gauges, gearbox and torque converter, steering, overload control system, braking system and inching.

Who This Manual Is For

The FDC 500 G5 Operator and Maintenance Manual suits the machine operator who needs the correct start-up, warm-up, driving and load-handling procedure, the workshop technician servicing a container handler, and the maintenance planner building a scheduled inspection programme from the filling and maintenance tables. The included spare parts catalogue index makes it straightforward to identify a component by drawing and part number before ordering.

Why the Correct Documentation Matters on a Machine This Size

An FDC 500 G5 is not a small lift truck. With an empty weight in the region of 67 tonnes and working speeds of roughly 24-25 km/h, stopping distances, stability and load capacity margins are governed by real physical limits, and the manual states those limits directly — the braking notice explains why the machine cannot be stopped instantly, and the wind operating table sets out the row and speed restrictions at different Beaufort-scale wind speeds. The safety chapter is equally explicit about electrical clearances, groundcrew signalling, working near suspended loads and the conditions under which the machine must not be operated at all. Following those instructions is the difference between a routine lift and an incident.

On the maintenance side, the value is in the exact numbers: thrust shoe clearance below 1.5 mm, chain elongation limited to 2 percent on the most worn segment, fork thickness at least 90 percent of original, fork inclination not over 3 degrees, twistlock replacement when measurement (a) exceeds 10 mm or dimension D falls by over 5 percent, hydraulic hoses replaced within 5000 operating hours, transmission oil filter changed every 500 hours and oil every 1500 hours. Those are the figures a workshop needs to judge whether a part is still serviceable or must be withdrawn.

IMAGES PREVIEW

Instant PDF Delivery

The Fantuzzi Reggiane FDC 500 G5 Operator and Maintenance Manual is supplied as a downloadable PDF. There is no shipping and no waiting for a parcel — the file is available to read, search and print as soon as payment is confirmed. It opens on a laptop, tablet or phone, so it can sit on the workshop bench, be carried in the cab, or be printed and filed with the machine’s service records. Because it is a PDF rather than a physical book, you can print only the pages you need for a particular job, keep a clean copy in the office and a working copy in the workshop, and replace a damaged printout without buying the manual again.

If you operate, service or maintain an FDC 500 G5, this is the reference that tells you how the machine is meant to be run, what it needs and when, and how to diagnose it when something is wrong.
