Fendt – XYLON 524 Parts Manual – PDF DOWNLOAD
Original price was: $89.00.$21.95Current price is: $21.95.
Fendt – XYLON 524 Parts Manual – PDF DOWNLOAD
Description
Fendt – XYLON 524 Parts Manual – PDF DOWNLOAD
DESCRIPTION:
Fendt – XYLON 524 Parts Manual – PDF DOWNLOAD
Language :ENGLISH
Pages :60
Downloadable : Yes
File Type : PDF
Size:1.22 MB
TABLE OF CONTENTS:
Fendt – XYLON 524 Parts Manual – PDF DOWNLOAD
CONNECTION PLATE 1
2 X564452300000 PROTECTIVE PLUG 1
3 X499504400000 LOCKING PLUG 1
4 X499501100000 LOCKING PLUG 2
6 X483902401000 LOCK SCREW 2
7 G816960020100 PRESS. RELIEF VALVE 1
8 X548869467000 O-RING 1
9 X483800000000 LOCK SCREW 1
10 X540002478000 SEALING RING 1
11 X566005600000 USIT RING 1
12 X494203400000 LOCK SCREW 1
13 G816960020110 VALVE 1
14 X548854466000 O-RING 1
15 X548860601000 O-RING 2
20 …
25 816960020300 COVER PLATE 1
26 X487528141000 HEXAGON SCREW 3
27 X548860601000 O-RING

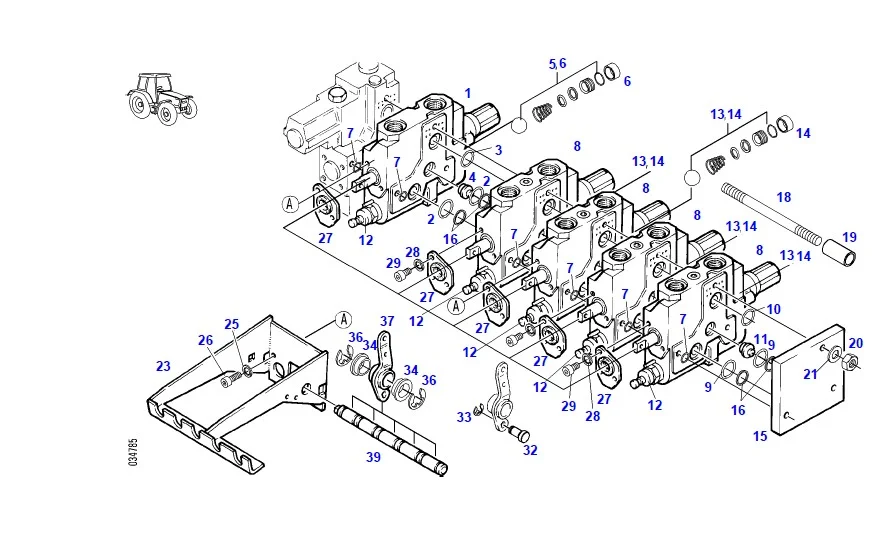

1 G816960020012 DIRECTIONAL C. VALVE 1
F117961022010 SET OF GASKETS 1
F816960020060 KIT 1
2 F816860100020 O-RING 2
3 F268600120040 O-RING 1
4 G816960020110 VALVE 1
5 F916961022040 KIT 1
6 F816960020070 PROTECTING CAP 1
7 F816960020020 DISC 6
8 G816960021012 DIRECTIONAL C. VALVE 4
F117961022010 SET OF GASKETS 4
F816960020060 KIT 4
9 F816860100020 O-RING 8
10 F268600120040 O-RING 4
11 G816960020110 VALVE 4
12 F816960020050 VOLUME CONTROL VALVE 5
13 F916961022040 KIT 4
14 F816960020070 PROTECTING CAP 4
15 H411961020011 END PLATE 1
16 F916961022130 SUPPORTING RING 10
18 X489126206000 THREADED PIN 3
X489130302000 THREADED PIN 3
X489130305000 THREADED PIN 3
X489130309000 THREADED PIN 3
19 816960700080 BUSH N.B.
20 X428202405000 HEXAGON NUT 3
21 X450006308000 DISC N.B.
23 H524960720071 SUPPORT 1
25 X520803001000 SPRING RING 4
26 X485004405000 CYLIND. HEAD SCREW 4
27 G816960700020 COVER PLATE 5
28 X520803001000 SPRING RING 6
29 X461722203000 CYLIND. HEAD SCREW 6
32 524960720120 BOLT 5
33 X523303446000 LOCKING WASHER 1
34 178960900080 BRACKET 10
36 X523306447000 LOCKING WASHER 10
37 H524960720060 REVERSING LEVER 5
39 524960720100 SHAFT 1
Π‘ΡΡΠ»ΠΊΠ°

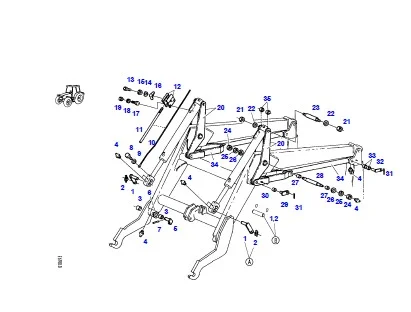

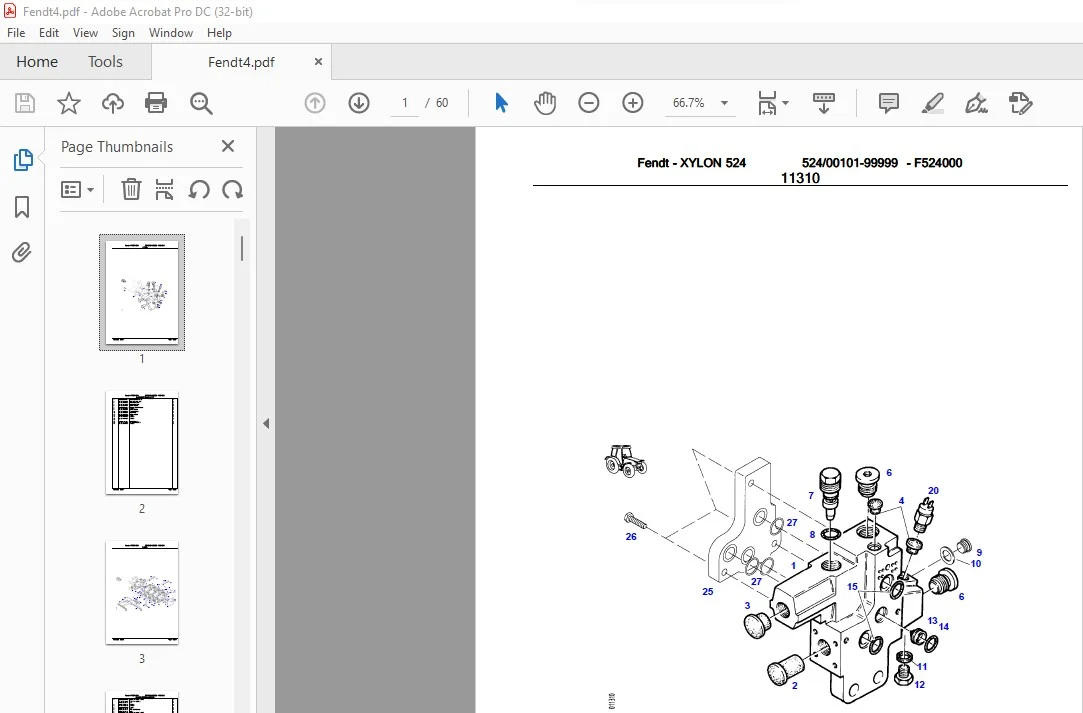

IMAGES PREVIEW OF THE MANUAL:
FENDT – XYLON 524 PARTS MANUAL – PDF DOWNLOAD:
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contactΒ [email protected]
S.M
