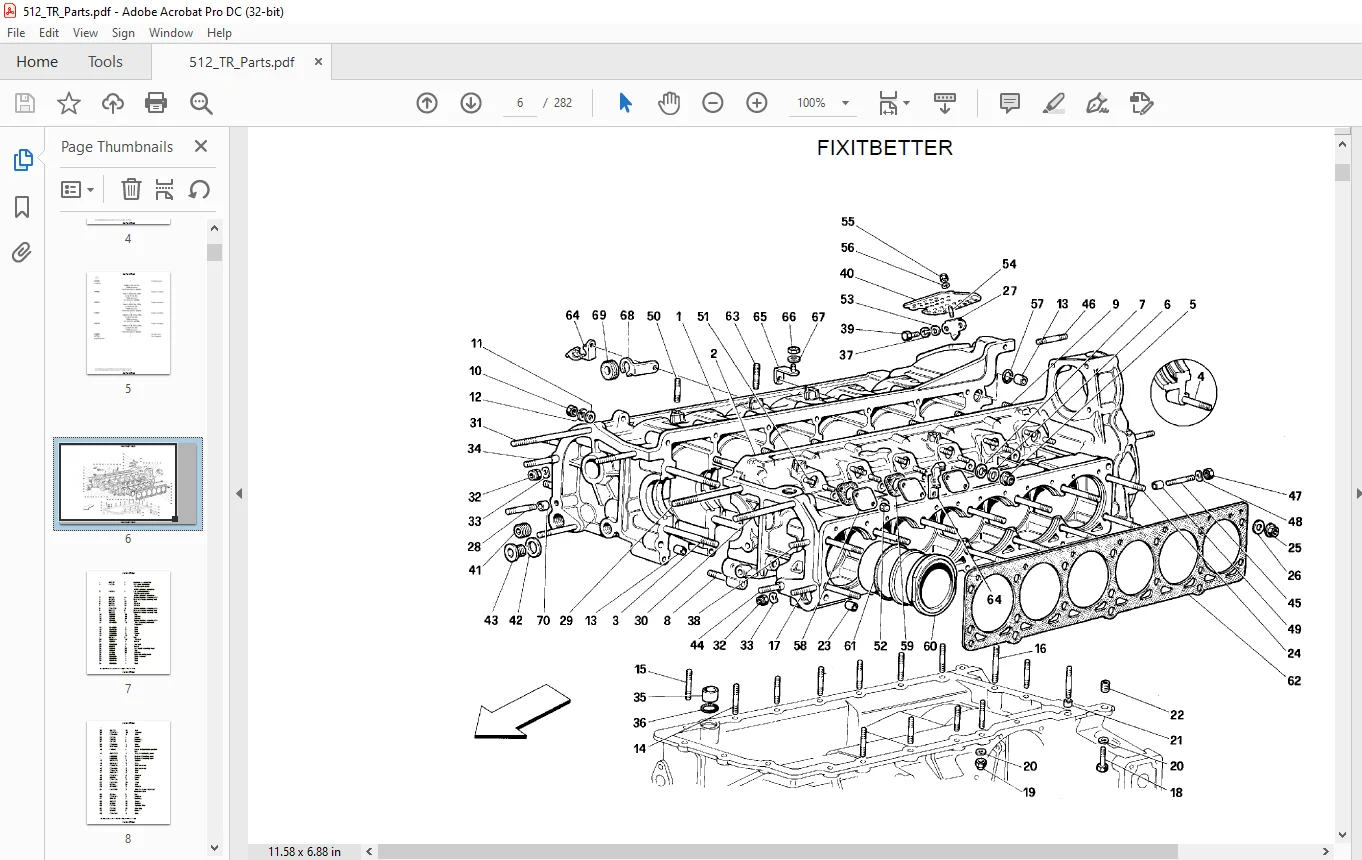

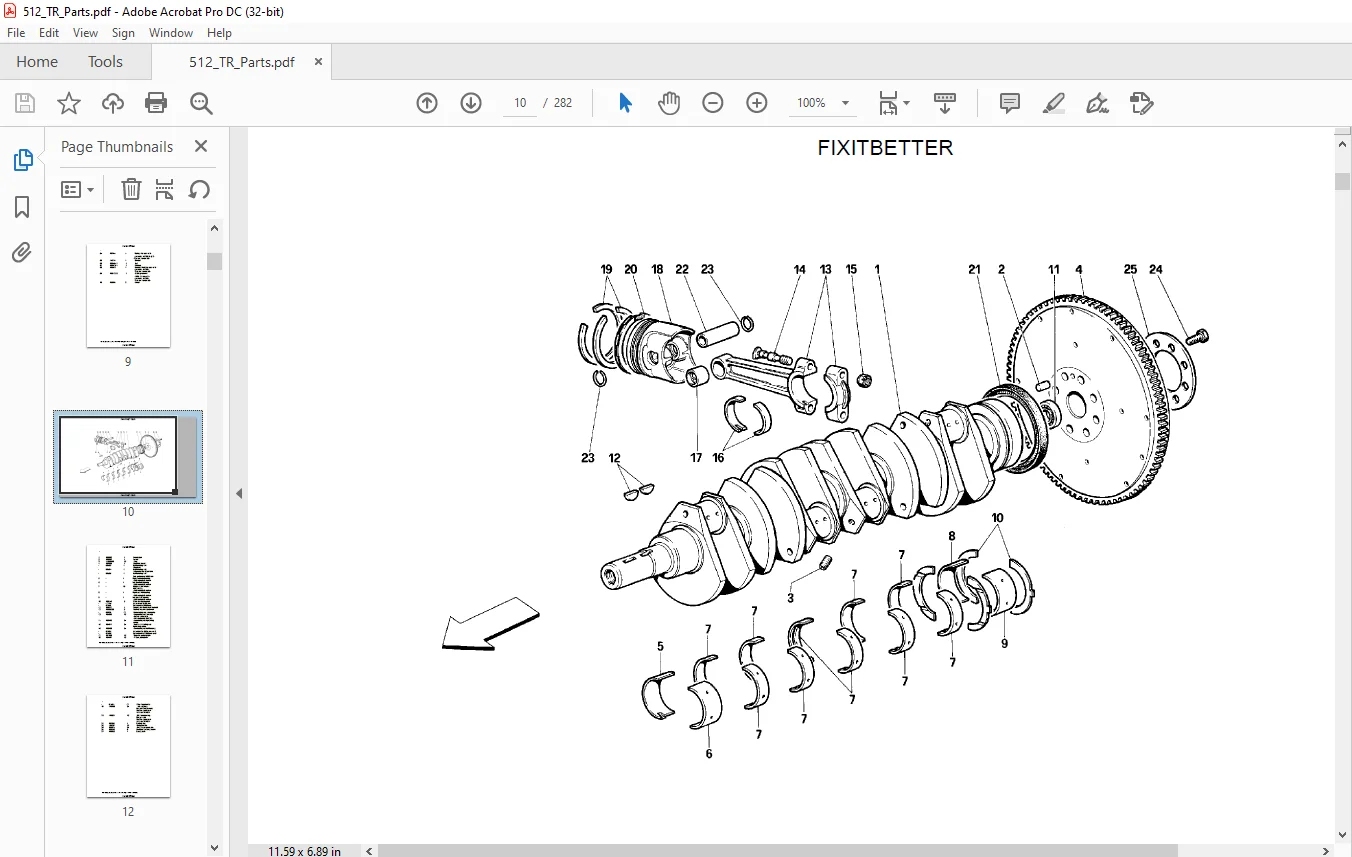

Crankcase, complete
1 141384 1 R.H. semi-crankcase
-Not as spare parts-
-With crankcase complete-
2 143849 1 L.H. semi-crankcase
-Not as spare parts-
-With crankcase complete-
3 102687 14 Semi-crankcase securing stud
4 109539 1 Semi-crankcase securing stud
5 102693 15 Nut
6 102694 15 Washer
7 106855 15 Washer
8 13546635 3 Semi-crankcase securing stud
9 102689 9 Semi-crankcase securing stud
– 102690 1 Semi-crankcase securing stud
10 133988 13 Nut
11 102695 13 Washer
12 127497 13 Washer
13 102692 2 Semi-crankcase securing stud
14 13449624 12 Stud securing crankcase
to gearbox
15 13449824 1 Stud
16 13450124 2 Stud
17 13543821 1 Stud
18 11306934 2 Screw
19 12575625 13 Nut
– 107314 2 Nut
20 12601474 18 Washer
21 100052 1 Dowel
22 13526070 3 Heli-coil
23 152327 4 Dowel
24 130646 28 Cyl. heads securing studs
25 126646 28 Nut
26 141064 28 Washer
27 124676 1 Plate with timing mark
28 13543624 1 Stud on dowel
29 13970924 1 Stud
30 13970424 1 Stud
31 13970524 1 Stud
32 101139 10 Nut
33 12601374 10 Washer
34 13544324 3 Stud
35 121201 1 Dowel
36 123263 1 Seal ring
37 127493 2 Washer
38 13543424 1 Stud
39 10977624 2 Screw
40 147816 1 Cover for flywheel inspection
slot
41 10269850 1 Plug for lubricating ports
– 14326050 2 Plug for lubricating ports
– 14326150 1 Plug for lubricating ports
42 10264560 2 Gasket
43 10304611 2 Plug
44 13543724 1 Stud on dowel
45 13544224 2 Stud on dowel
46 13544124 3 Stud
47 16100811 5 Nut
48 12601374 5 Washer
49 102704 2 Dowel
50 13541124 2 Stud
51 11500021 24 Stud
52 100044 24 Nut
53 10519377 2 Washer
54 11500024 2 Stud for cover of flywheel
inspection slot
55 100044 2 Nut
56 12601274 2 Washer
57 102743 1 Seal ring
58 102698 12 Cover
59 150191 12 Gasket
60 138519 12 Cylinder liner
61 136902 12 Seal ring
62 151532 2 Gasket
63 13541321 2 Stud
generator 147220 Q.ty 2-
-See ref. 1 draw. 52-
65 149694 1 Bracket
66 12575411 1 Nut
67 12601274 1 Washer
68 124220 1 Bracket -Valid for cars with
generator 147220-
-See ref. 1 draw. 52-
69 10396580 1 Cable grommet
-Valid for cars with
generator 147220-
-See ref. 1 draw. 52-
70 102704 2 Dowel
