FPT F1CE3481 S Series Euro V Technical and Repair Manual – PDF Download

Description

FPT F1CE3481 S Series Euro V Technical and Repair Manual

This FPT F1CE3481 S Series Euro V Technical and Repair Manual is the complete workshop reference published by FIAT Powertrain Technologies for the 2.998 litre four-cylinder Euro V diesel engine in the S Series range. Issued under document number PID32S015 E as the 1st Edition of October 2011, it documents the procedures, specifications, measurements and diagnostic tables a qualified technician needs to service, test and overhaul an F1CE3481 engine to manufacturer tolerance.

The F1CE3481 runs a common-rail, turbocharged and intercooled layout across several duty-specific variants. Outputs documented in the manual range from 80 kW (108 CV) and 90 kW (122 CV) through 107 kW (145 CV) up to 125 kW (170 CV), with peak torque values of 370 Nm and 400 Nm depending on calibration. Coverage spans the F1CE3481A/R family and the F1CE3481CC124 variant.

File Details

• Manual type: Technical and Repair Manual (workshop service manual)
• Publisher: FIAT Powertrain Technologies (FPT)
• Engine family: F1CE3481, S Series Euro V
• Document number: PID32S015 E / P1D32S015 E
• Edition: 1st Edition, October 2011
• Language: English
• Page count: approximately 434 pages
• File format: PDF

Chapters Covered

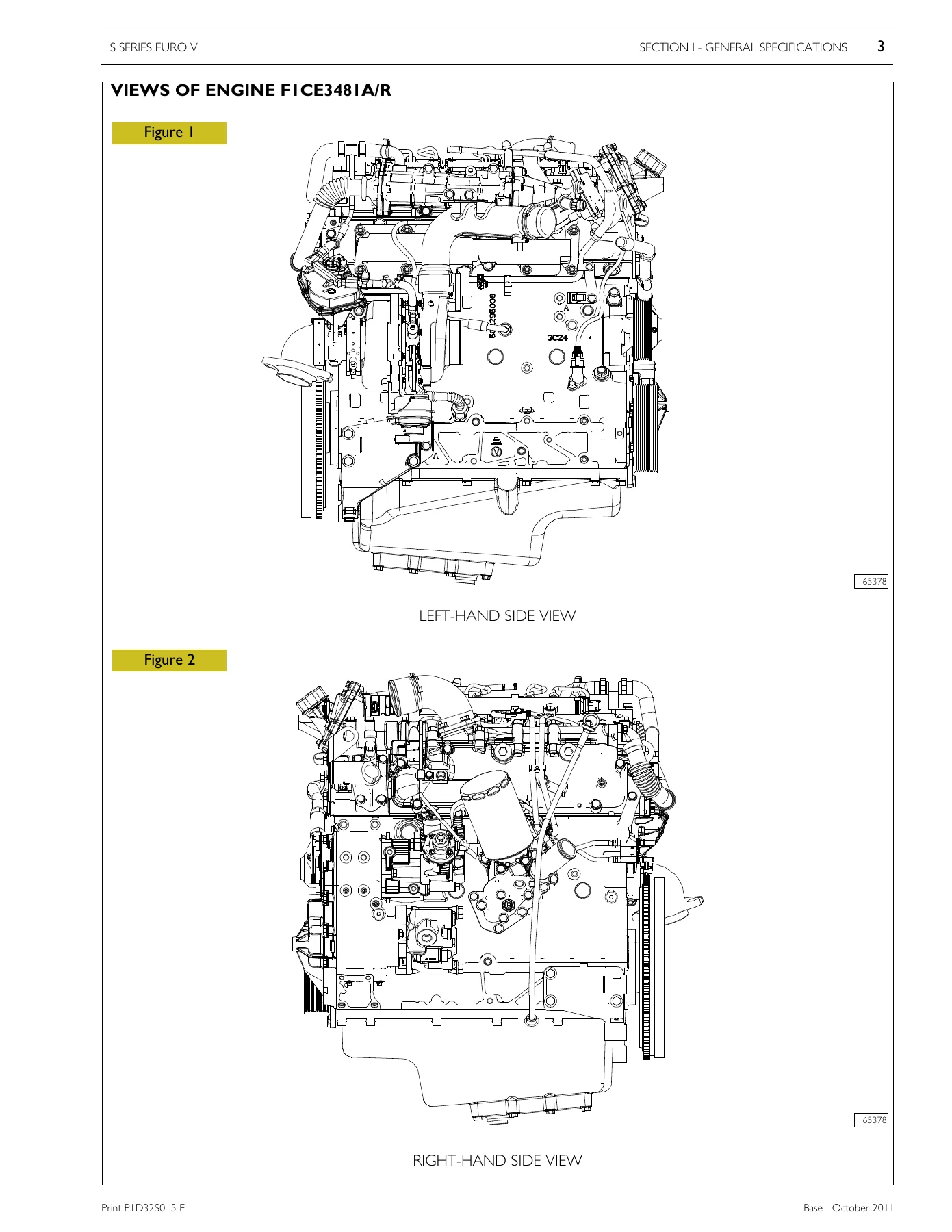

• Section 1 — General specifications: engine views, general characteristics, model and output tables
• Section 2 — Operational diagrams:

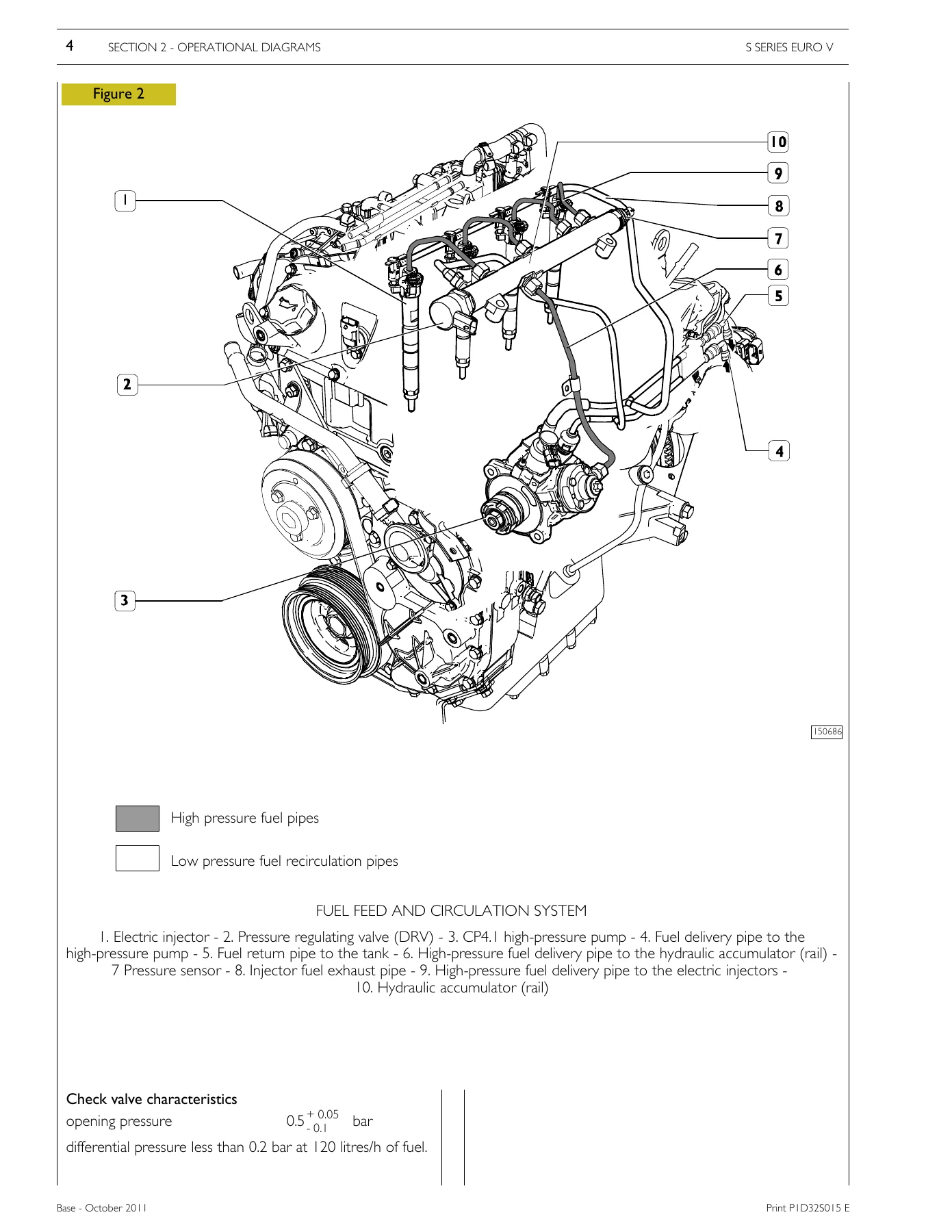

  • Hydraulic (fuel) system, CP4.1 high-pressure pump, pressure control valve, hydraulic accumulator (rail), electro-injectors
  • Electric/electronic components — EDC 17 control unit, glow plug control unit, engine speed and camshaft timing sensors
  • Lubrication — oil pump/depressor unit (GPOD), oil pressure adjusting valve, oil filter, heat exchanger, oil vapour recirculation (blow-by)

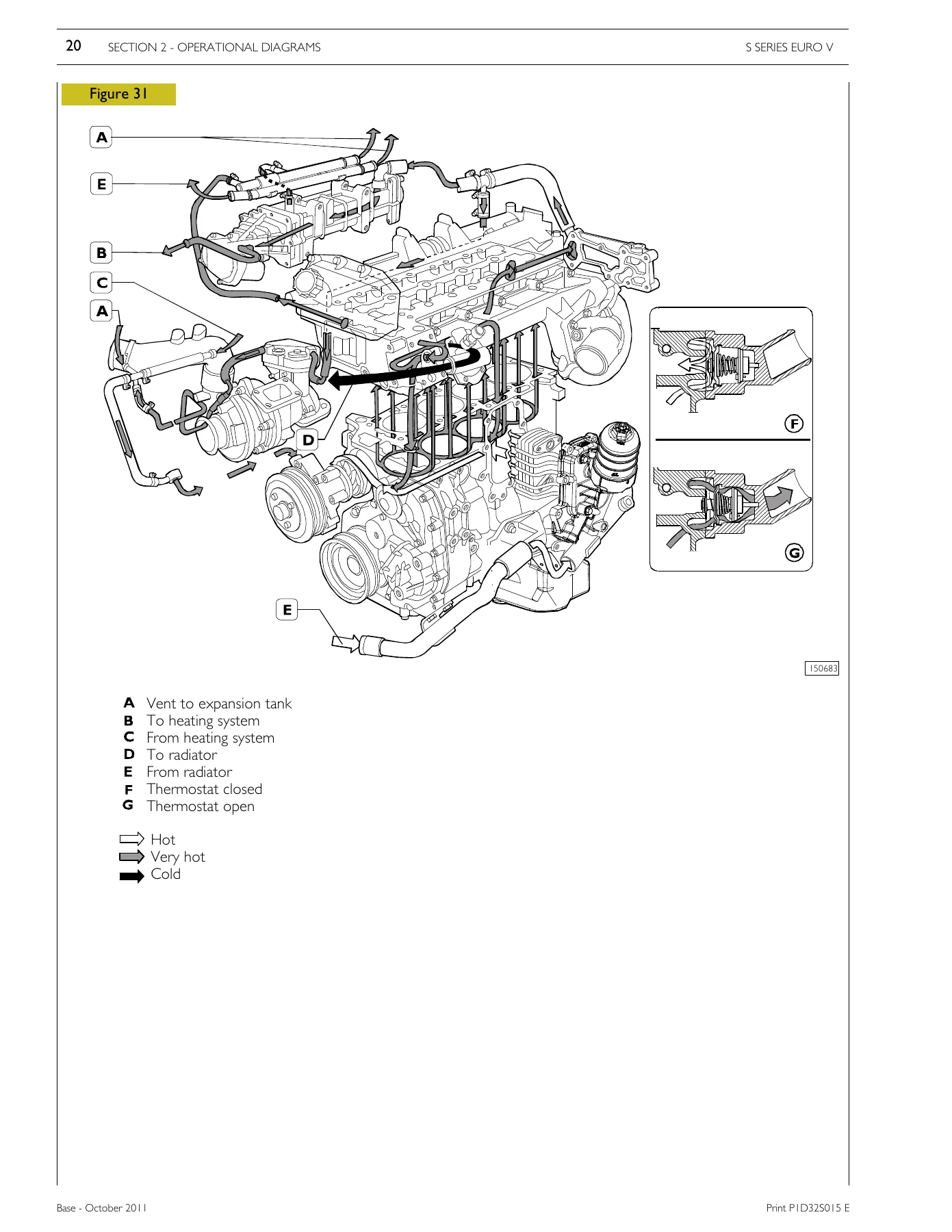

  • Cooling — water pump, thermostat, coolant circuit
  • Turbocharging — variable geometry and two-stage systems, actuator, proportional solenoid valve
  • Exhaust gas recirculation (EGR) and throttle valve assembly
• Section 3 — Electrical equipment: EDC 17 electronic control unit, F1C engine harness, injection cable, system operation, sensor and actuator detail, alternator, starter motor
• Section 4 — Maintenance schedule: inspection intervals, engine oil and filter changes, fuel filter, auxiliary drive belts, glow plugs, rear axle oil, timed extra-plan operations
• Section 5 — Diagnostics: PT-BOX hardware and software installation, ECU diagnosis, programming, active diagnosis, full DTC tables, diagnosis per symptoms
• Section 6 — Removal and refitting of main components: air conditioning and water pump/alternator belts, high-pressure pump, crankshaft front and rear seal rings, GPOD unit, injectors
• Section 7 — General mechanical overhauling: engine removal, cylinder block, crankshaft, connecting rod and piston assembly, cylinder head, valves, timing system, flywheel, turbocharger repairs
• Section 8 — Technical specifications: general specifications, assembly data and clearances, tightening torques
• Section 9 — Tools: full FPT special tool list with part numbers
• Appendix — Safety prescriptions: general safety rules for workshop and electrical work

The FPT F1CE3481 S Series Euro V Technical and Repair Manual is structured so a technician can move from a customer complaint to a verified repair without guesswork. The operational diagrams section walks through every fluid and gas circuit on the engine — how the CP4.1 high-pressure pump is governed, how fuel pressure is modulated by the pressure control valve and rail, how the EDC 17 ECU drives the piezoelectric injectors, how oil is routed through the heat exchanger and double-filtration filter, how the variable geometry turbo actuator is controlled by a proportional solenoid valve, and how exhaust gas is cooled and metered through the EGR valve. Each circuit is presented with component-level illustrations and connector references.

The electrical section is built around the EDC 17 control unit, its 60-pin engine connector (A) and 94-pin vehicle connector (K), and the F1C wiring harness layout. Sensor-by-sensor descriptions — rail pressure, boost pressure and temperature, coolant temperature, engine speed, camshaft timing, airflow gauge — include connector pin references and resistance-versus-temperature curves where applicable. The section closes with functional descriptions of the control strategies the ECU runs, from cold start pre-heating to cylinder balancing, de-rating and fuel cut-off on overrun.

Diagnostics occupy the largest single block. The PT-BOX tool, its installation, registration, activation and software interface are documented step by step, followed by the diagnosis, test, programming and specific-function menus available for the F1CE3481. Fault memory reading, environmental conditions, repair-guide lookups, parameter groups and parameter acquisition are all covered. The DTC library runs to hundreds of codes with description, DFP name, MIL status, OBD system, long-term failure flag, reason of failure and possible correction for each entry. A separate diagnosis-per-symptoms section handles real-world complaints — flat batteries, clogged filters, injector seizure, rocker arm issues, air in the fuel supply — and points to the recommended test or measure.

Mechanical overhauling instructions cover the engine from the cylinder block up. Cylinder liner ovalization, taper and wear measurement; crankshaft main journal and crankpin measurement; undersize classes; main bearing assembly and crankshaft end float; connecting rod and piston assembly with piston ring clearance checks; cylinder head disassembly, valve and valve guide measurement, seat regrinding and valve recessing; camshaft alignment and cam lift checks; and the timing system, including both chains, tensioners and fixed and mobile skids. Tightening torques and angular values are supplied throughout, and Section 8 gathers assembly data, clearances and torque tables in one place.

Systems and Assemblies Documented

Beyond the major sections, the manual includes dedicated coverage of the high-pressure pump CP4.1 (with the note that it cannot be overhauled and only its drive gear and pressure regulator may be replaced), the electro-injector IMA code read-and-reprogramming procedure for EDC 17, the oil pressure adjusting valve spring data, the heat exchanger five-element stack and gasket layout, the variable geometry turbocharger blade operation at low and high engine speeds, the two-stage Borg Warner turbo with waste-gate, the EGR cooler and flow regulation valve, and the throttle valve assembly with its PWM-controlled electric actuator. Sensor connector pin-outs, resistance and voltage curves, and the glow plug control values are all supplied.

What This Manual Lets You Do

With this FPT F1CE3481 S Series Euro V Technical and Repair Manual on the bench, you can carry out the full range of workshop operations the engine requires: pressure-test and diagnose the common-rail fuel system; replace the high-pressure pump and re-time the drive gear; pull the cylinder head and recondition valves, seats and guides to measured clearances; measure cylinder liners and crankshaft journals against wear limits and undersize classes; assemble pistons, rings and connecting rods with the correct clearances; set the twin-chain timing system; replace injectors and reprogram the EDC 17 ECU with the correct IMA codes; read and clear fault memory; work through the manufacturer’s DTC tables to the root cause; and torque every fastener to the specified figure and angle.

Having the exact procedure and specification matters because the F1CE3481 is a high-pressure, electronically governed common-rail engine. Approximate torque values, guessed clearances or incorrect IMA coding produce immediate performance and emission faults, and on the mechanical side can cause injector, cam or bearing damage that costs far more than the manual itself. This document is the source of those exact values.

IMAGES PREVIEW

Delivery is instant. The PDF is available to download immediately after payment — no shipping, no waiting. It opens on any computer, tablet or smartphone and prints cleanly for workshop use, so you can keep a paper copy at the bench and a digital copy on the laptop or diagnostic tool.
