Genie GTH-844 Service Manual 218230 Rev A – GTH844A GTH844B Telehandler Workshop Manual PDF

Description

Genie GTH-844 Service Manual – Full Workshop Reference for the GTH844 Telehandler

This is the complete Genie GTH-844 Service Manual, published under Genie part number 218230, Revision A, dated November 2012 (Second Edition, First Printing). It is the workshop document Genie supplies for the GTH-844 telehandler and covers both the GTH-844A and GTH-844B variants. Inside you will find the machine specifications, scheduled maintenance checklists, boom and hydraulic repair procedures, engine fault-code tables and full electrical and hydraulic schematics needed to keep a GTH-844 running to factory tolerances.

This Genie GTH844 service manual is written for the trained technician, the fleet maintenance department and the owner-operator who wants more than a parts list. Every section follows the original Genie workshop structure – introduction, safety, specifications, scheduled maintenance, repair, fault codes and schematics – so the information you need is where a professional expects to find it.

File Details

• Manual Type: Service Manual
• Brand: Genie (A Terex Brand)
• Model: GTH-844
• Covered Variants: GTH-844A, GTH-844B
• Document Number: 218230
• Edition / Revision: Revision A – November 2012, Second Edition, First Printing
• Language: English
• Page Count: 134
• File Format: PDF

Serial Number Coverage

The manual lists two GTH-844 service-manual variants, both referencing Genie part number 97487 on the original printed editions:

• GTH-844A – serial number 8418 to 16605
• GTH-844B – serial number 6946 to 16605

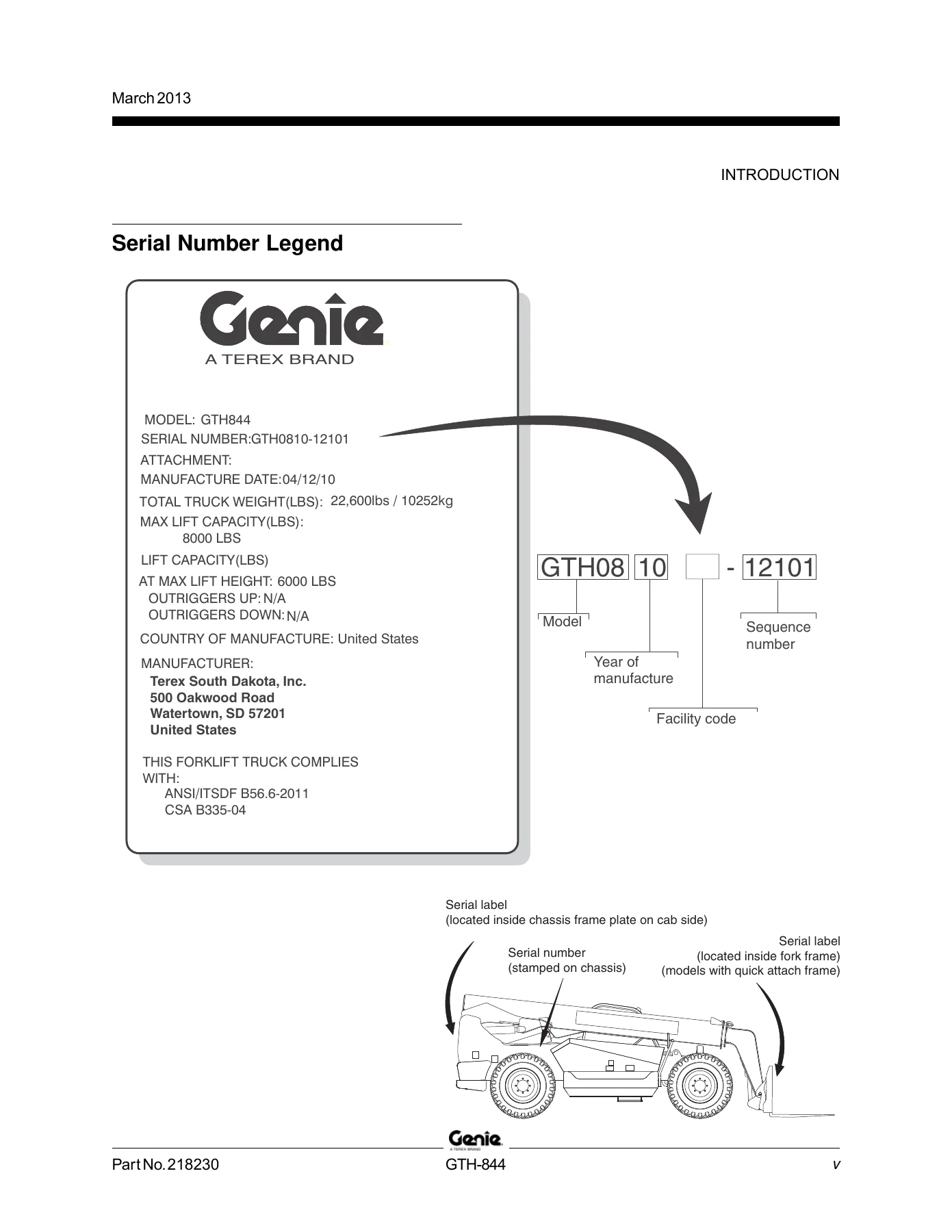

The Introduction chapter includes a serial number legend that decodes the GTH-844 serial plate (model prefix, year of manufacture, facility code and sequence number) and shows the plate locations on the chassis frame and fork frame.

Chapters Covered

• Introduction (including serial number legend)
• Section 1 – Safety Rules
• Section 2 – Specifications
• Section 3 – Scheduled Maintenance Procedures
• Section 4 – Repair Procedures
• Section 5 – Fault Codes
• Section 6 – Schematics

Safety Rules

Section 1 sets out the safety framework for working on the GTH-844: required training and qualification for maintenance personnel, personal protective equipment, fire and fuel handling precautions, crushing and electrocution hazards, and the signal-word definitions (Danger, Warning, Caution, Notice) used consistently throughout the manual. It also covers workplace requirements such as tool condition, lifting-device capacity, one-time-use fasteners and fluid disposal.

Specifications

Section 2 is the data backbone of this Genie GTH-844 service manual. It includes machine fluid capacities (35 gal / 132.5 L fuel tank, 40 gal / 151.4 L hydraulic tank, 55 gal / 208.2 L total hydraulic system), tire and wheel data (13.00 x 24, 12-ply, 62 psi / 4.3 bar for air-filled tires, 295 ft-lbs / 400 Nm lug nut torque), boom function speeds, hydraulic oil type and cleanliness requirements, function pump and manifold relief pressures, and complete engine specifications for the Deutz TCD3.6 L4, Perkins 1104D-E44TA and Perkins 854E-E34TA power plants. Transmission data for the Dana VDT12000 and axle data for the Carraro 26.27M are also included, along with hydraulic hose and Seal-Lok fitting torque tables and SAE/metric fastener torque charts.

Scheduled Maintenance Procedures

Section 3 organises all scheduled maintenance into Checklists A through E, matched to Genie service intervals – daily or every 8 hours (A), quarterly or every 250 hours (A+B), semi-annually or every 500 hours (A+B+C), annually or every 1000 hours (A+B+C+D), and two-year or every 2000 hours (A+B+C+D+E). Procedures cover manual and decal inspection, pre-operation inspection, function tests, boom lubrication, engine maintenance for all three engine families, transmission and axle service, battery and electrical wiring inspection, exhaust system and engine air filter checks, tire and lug nut torque, hydraulic oil analysis, fuel and hydraulic tank cap venting, boom wear-pad inspection, sequencing chain inspection and adjustment, hydraulic tank return filter replacement, and hydraulic oil testing or replacement. A pre-delivery preparation report and maintenance inspection report templates are included.

Repair Procedures

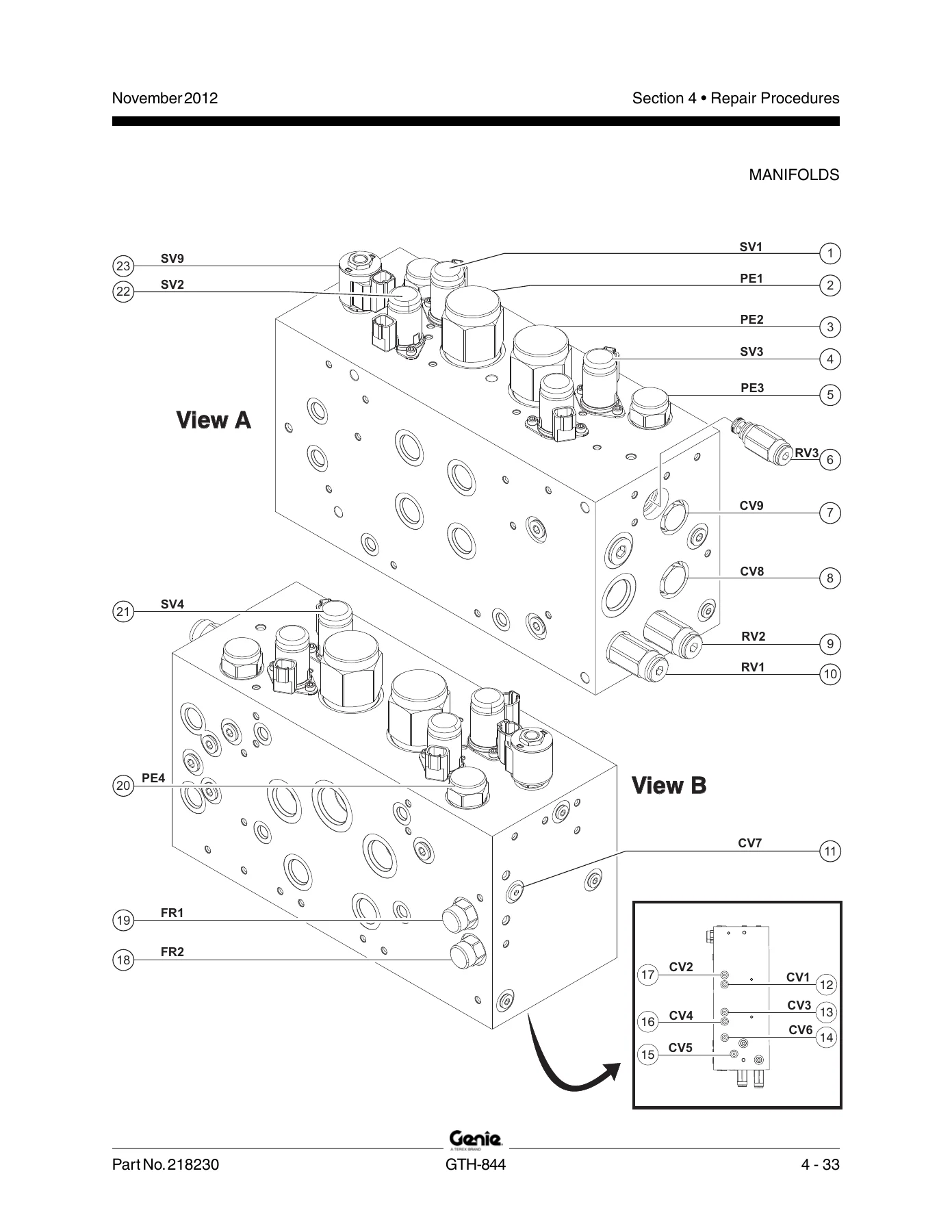

Section 4 provides step-by-step removal, disassembly and installation procedures for the boom (proximity switches, wear pads, retraction chains, extension chains, lift cylinder, extension cylinder, fork level cylinder), the operator’s compartment, machine controls (steering column, steering wheel, steer orbital, single and dual joysticks, brake pedal, gauge cluster), fuel and hydraulic tank assembly, engines, transmission, function pump, primary function manifold (single-joystick and dual-joystick variants), secondary function manifold, auxiliary manifold and brake manifold, valve coils, and axles. Each procedure is written for a properly equipped workshop and calls out torque values, lifting requirements and safety hazards at the point of use.

Fault Codes

Section 5 covers how the engine Electronic Control Module (ECM) stores and displays fault codes, how to read active versus stored codes on the gauge cluster, and how to decode the Suspect Parameter Number (SPN) and Failure Mode Identifier (FMI) pairs. Separate SPN/FMI tables are given for the Deutz engine family and the Perkins 1104D engine, covering everything from throttle and oil-pressure sensor errors to injector, CAN-Bus and SCR/DPF after-treatment faults.

Schematics

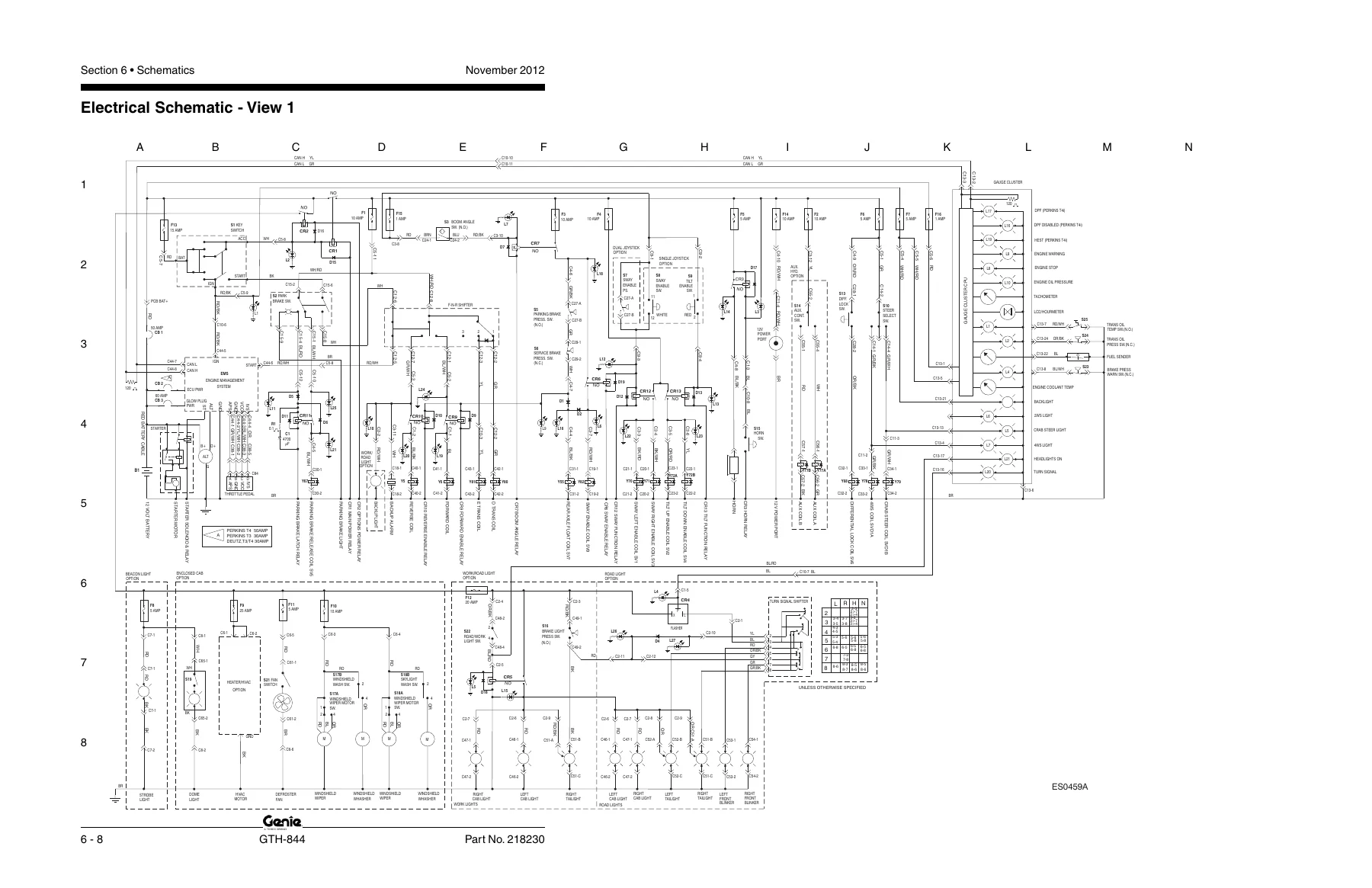

Section 6 contains the full electrical and hydraulic schematic set: fuse panel layout, electrical component and wire colour legends, electrical and hydraulic symbol legends, electrical schematics (View 1 and View 2), and complete hydraulic schematics for both single-joystick and dual-joystick GTH-844 models. HVAC option details and the full harness diagram are included.

Engines, Transmission and Axle Coverage in Detail

Because a telehandler is only as good as its driveline, this Genie GTH844 service manual goes deep on the three engine options used across the GTH-844A and GTH-844B: the Deutz TCD3.6 L4 (3.62 L, 99 hp @ 2300 rpm, 288 lb-ft peak torque), the Perkins 1104D-E44TA (4.4 L, 99 hp @ 2200 rpm, 310 lb-ft peak torque) and the Perkins 854E-E34TA (3.4 L, 99 hp @ 2500 rpm, 288 lb-ft peak torque). Fluid capacities, oil viscosity requirements, battery and alternator ratings, glow-plug loads and injection pressures are all listed for each engine. The Dana VDT12000 three-speed powershift transmission and the Carraro 26.27M drive axle (front and rear differential and planetary end capacities) are also covered, along with their own maintenance intervals and oil specifications.

What This Genie GTH-844 Service Manual Enables You To Do

With this PDF on hand you can run a full scheduled maintenance programme on a GTH-844 telehandler, diagnose engine faults from the gauge cluster display, remove and refit the boom and its cylinders, service the manifolds and valve coils, rebuild the transmission and axle assemblies, and trace electrical or hydraulic faults against the factory schematics. Correct torque values, oil capacities, relief pressures and adjustment procedures are given on the page where you need them – not buried in a separate appendix – so the job gets done right the first time and to the specification the machine was built to.
