GRAMMER MSG 95A(L) Seat Suspension Repair Manual 2007 – Instant PDF Download

Description

GRAMMER MSG 95A(L) Seat Suspension Repair Manual

This is the complete GRAMMER repair manual for the MSG 95A(L) seat suspension system, published in 2007. It provides the diagnostic procedures, repair instructions, and adjustment specifications needed to service the pneumatic seat suspension unit, covering everything from the compressor and height level control to the pneumatic spring, air tank, shock absorbers, and structural components. Whether you are troubleshooting a seat that will not hold height, replacing a worn pneumatic spring, or rebuilding the swinging structure, this MSG 95A(L) repair manual provides the step-by-step procedures and technical values to get the job done correctly.

File Details

• Manual Type: Repair Manual
• Brand: GRAMMER
• Model: MSG 95A(L)
• Document Number: 140 534
• Year: 2007
• Language: English
• Page Count: 143
• File Format: PDF

Chapters Covered

• 1 Description
• 2 Diagnosis
• 3 Repair Work

Chapter 1: Description

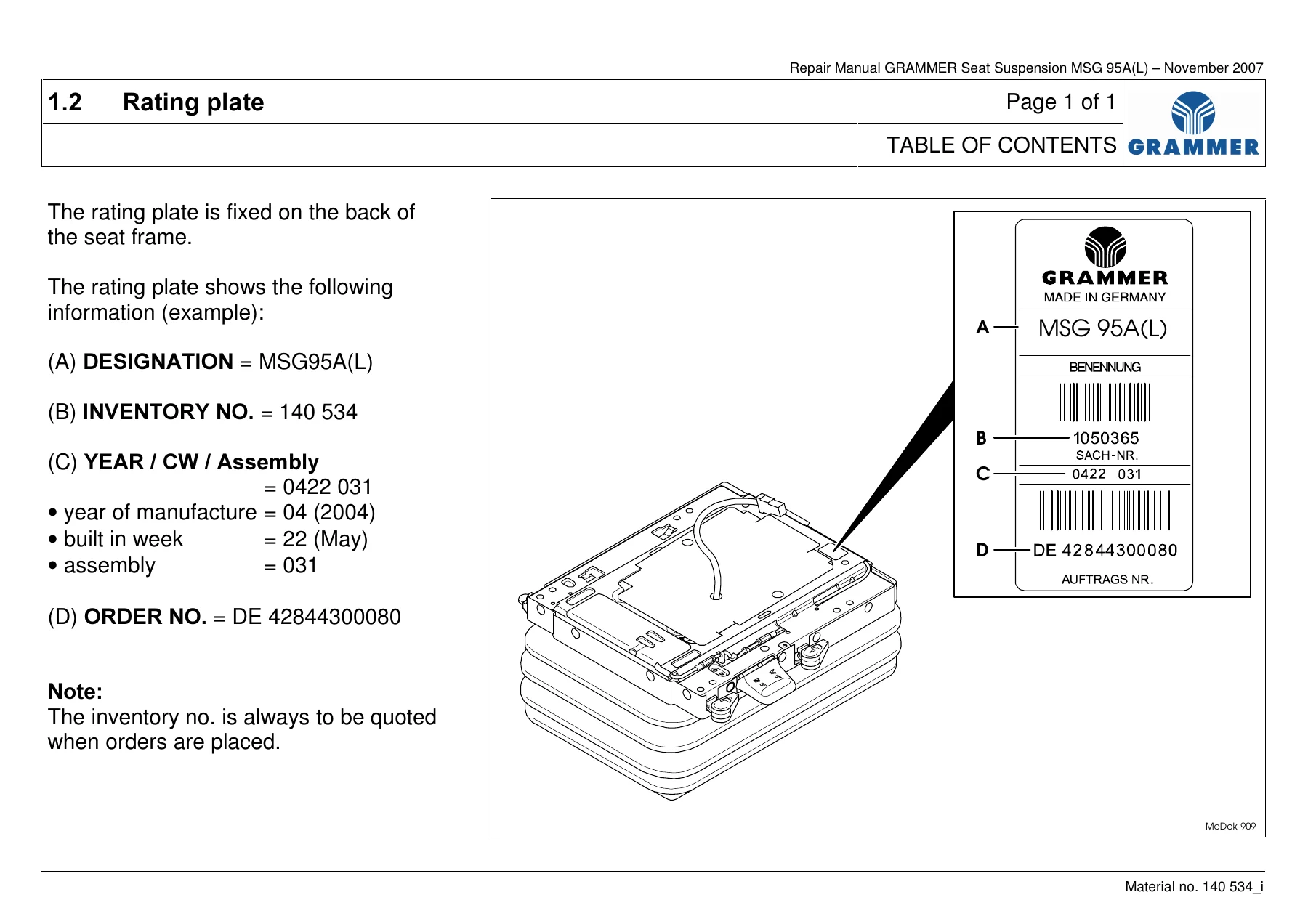

This chapter establishes the foundation for all repair work on the MSG 95A(L) suspension. It begins with safety notes that must be observed before any inspection, test, or repair procedure including the requirement to disconnect the battery and move the seat to its lowest position before starting work. The rating plate section explains how to locate and read the identification plate fixed to the back of the seat frame, which shows the designation, inventory number, year of manufacture, build week, assembly number, and order number. The inventory number is required for all spare part orders.

Chapter 2: Diagnosis

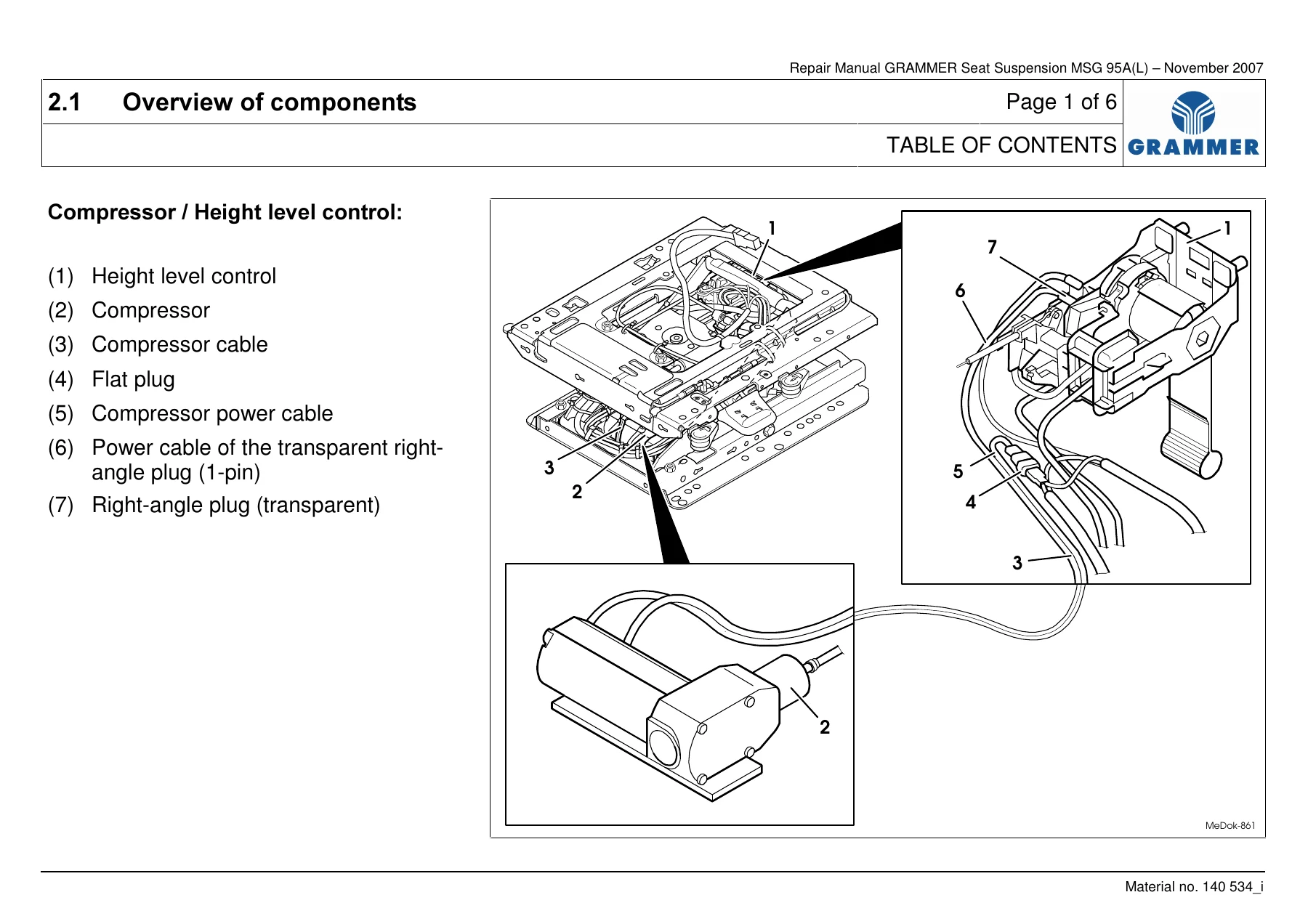

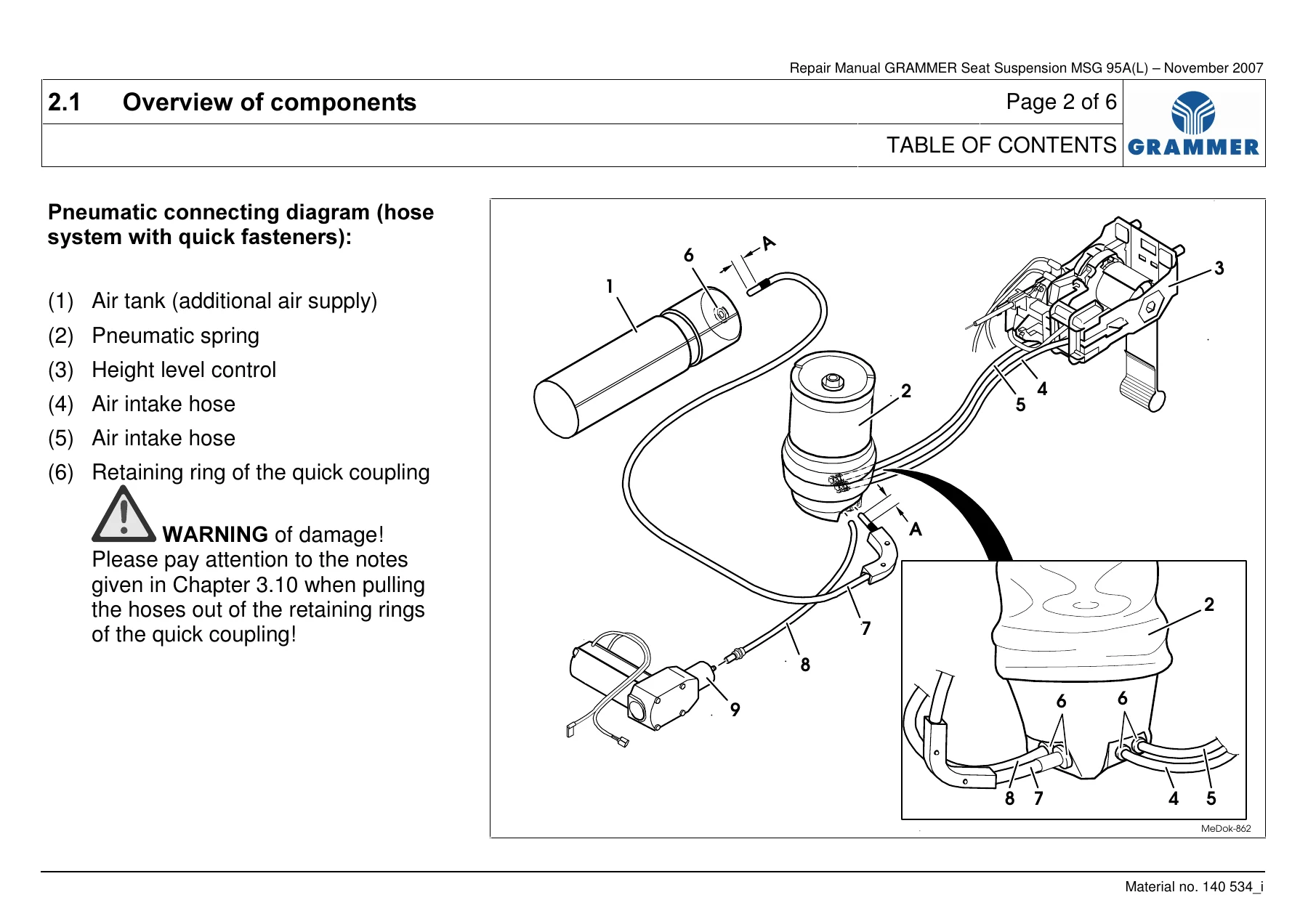

The diagnosis chapter is structured to help you systematically identify and locate faults in the seat suspension system. It opens with an overview of components, including illustrated pneumatic connecting diagrams for both the hose system with quick fasteners and the system with hose clamps. These diagrams identify the air tank, pneumatic spring, height level control, air intake hoses, compressor, and all connecting elements. A vehicle power supply cable and connecting cable overview is also included.

The functional test section provides a step-by-step procedure for verifying the specified status of all seat functions before and after repair work. It covers weight adjustment, height adjustment upwards and downwards, and the expected results at each step. The overview of faults chapter lists possible faults with their likely causes and the corresponding troubleshooting actions from a seat that does not respond to height adjustment to a compressor that runs continuously or a seat that vents while driving. The fault diagnosis chapter then walks through checking the compressor, the height level control, the pneumatic spring, and the vehicle power connector with specific inspection steps and resistance measurements.

Chapter 3: Repair Work

This is the largest section of the GRAMMER MSG 95A(L) repair manual, covering the removal, installation, disassembly, and reassembly of every major component in the suspension system. Each procedure is written for a disassembled seat but notes that some work may be possible with the seat installed, depending on the installation position.

Procedures include cover and bellows removal and installation, Bowden pull wire and handle service for both vertical shock absorber adjustment and height adjustment, vertical and horizontal shock absorber removal, linkage rods and locking device service, and complete horizontal suspension unit removal. The compressor section covers both cable tie and bracket mounting configurations, with hose system variations for quick fasteners and clamps. Height level control system work includes adjustment of the micro-switch and outlet valve with specified clearances, plus complete removal and installation with the height limit stop. Compressed-air hose procedures cover both fixation methods, including cutting, connecting, and conversion between quick fastener and hose clamp systems. The manual also covers pneumatic spring removal, air tank service, cable harness replacement, upper and lower suspension part removal, and complete disassembly and reassembly of the swinging structure with roller clearance specifications.

Technical Depth and Practical Value

The MSG 95A(L) workshop manual includes the specific values you need to do the job right: torque specifications for critical fasteners, clearance values for micro-switch and outlet valve adjustment, hose insertion lengths, resistance measurements for electrical diagnostics, and roller clearance limits for the swinging structure. Installation notes throughout the procedures call out lubricant requirements, marking positions, and the correct order of operations to avoid damage.

This repair manual is intended for professionally trained technicians with product knowledge. It provides the technical foundation for correct repair, but it assumes the reader has the hands-on skills to safely perform the work. Safety notes are highlighted throughout, with warnings for crushing risks when working under the suspension and attention notes for preventing damage to hoses, seals, and machined surfaces.

Why This Manual Matters

The MSG 95A(L) is a precision pneumatic suspension system. Incorrect adjustment of the height level control or improper hose connections can lead to leaks, poor ride quality, or complete failure of the height adjustment function. The diagnostic flowcharts and fault tables in this manual help you avoid guesswork and parts swapping. The repair procedures ensure you reassemble components with the correct clearances, torque values, and lubricants. For any technician servicing GRAMMER seat suspensions in commercial vehicles, construction equipment, or agricultural machinery, this manual is the reference that keeps the work accurate and efficient.
