Grimme GF 400 Rotary Hiller Spare Parts List – SPL02242, 2017

This is the full illustrated spare parts catalogue for the Grimme GF 400 rotary hiller, published under document number SPL02242 with the 2017 edition date. It is the parts counter reference for the 4-row machine: every assembly is broken down into its individual components, and each line carries a position number that ties directly to the exploded drawing on the facing page. If you are ordering a replacement shaft, a shaping board, a gearbox, a support wheel or a single bolt for a GF 400, this is the document that gives you the correct Grimme part number and quantity.

File Details

• Manual type: Spare Parts List
• Brand: Grimme
• Model: GF 400 Rotary Hiller
• Document number: SPL02242
• Edition / year: 2017
• Language: English
• Page count: 351
• File format: PDF

Chapters Covered

• 001 – Main Frame Body 4 Row
• 050 – Tractor Attachment and Support
• 066 – Support Wheel
• 180 – Drive Mechanic
• 440 – Lights
• 635 – Loosening Tines
• 640 – Spraying Track Switch-Off
• 655 – Lane Marker
• 680 – Covering Unit
• 690 – End Tow Kit
• 700 – Soil Retention Plate, Carriage Roller, Clamps and Tines, Guide Discs, Ridge Pressure Roller, Dyker, Lifting Frame

Main Frame Body 4 Row (001)

The structural core of the machine. Four variants are catalogued here: the standard spring-loaded 4-row body (SPI.35263), the spring-loaded 4-row body VA (SPI.35308), the body spring-loaded 4-row 030-02 (SPI.35267) and the balancing plates body GF (SPI.26978). The pages list casings (RW75, RW76.2, RW80, RW85, RW90, RW 4-in-line), shutters left and right, covering flaps, case lids, centre cover plates, three-point supports, gearbox mountings, locking levers, welded bolts, hinges, pressure and tension springs, eye bolts, U-stirrups, chain links, S-hooks and the full fastener schedule – coach bolts, hex bolts, serrated lock washers, nyloc nuts, half nuts and set screws – each with its thread size and DIN standard.

Tractor Attachment and Support (050)

The complete three-point linkage range for the GF 400, including the slotted-hole version (SPI.24654), the series short (SPI.27024) and series long (SPI.27028) linkages, the quick hitch Category 3 (SPI.20925), the CAT3 narrow quick hitch (SPI.20927), the loosening tine attachment (SPI.35391), the ATM side control 1 TRL (SPI.35412), ATM side control 2 TRL (SPI.35420), the hydraulic circuit ATM side control (SPI.44318) and the automatic side control unit (SPI.20976). Contents include three-point flanges left and right, clamping plates, lower guide bolts, spacer tubes, bottom link pins, linch pins, top link pins, chain and S-hook assemblies, double-acting cylinders and seal sets.

Support Wheels (066)

Eight support wheel assemblies are covered: single (SPI.20140), single with rib (SPI.21237), single air (SPI.44300), single wide (SPI.20160), double (SPI.20601), double air (SPI.44304), the 5-in-1 support wheel (SPI.44313) and the rear SHB support wheel. Each is broken down to crank handle, spindle, guide tube, wear and tear plate, steel wheel, ball and deep groove bearings, lamella seal, spacer tubes, U-bolts and the complete fixing kit.

Drive Mechanic (180)

The largest section. It covers the one-sided drive 4-row (SPI.35613), the DSD and SSD rotor variants, rotor shafts in RW75, RW76.2, RW80, RW85 and RW90, ROS tine versions, spikes, stone tines, and the 45×10 tine sets with their blade bolts, tension discs and hex nuts. The gearbox listings include the 165PS ROS 350 add-on gearbox, the 214PS ROSS 250, the 325PS ROSS 350 / ROSS 425, the ROSS 350/400/500 and the 500PS foldable unit. Drive shaft assemblies – DRIS FRI CL P500 710, P600 710, DRIS CTCOC P500 and P600 in 1 3/8 (6) and 8X32X38 versions – are listed with cross and bearing kits, guard halves, profile tubes, yokes and quick-disconnect components. Spur gear drive i=2.11, side panel bearings, bearing housings and complete gearbox exploded views appear throughout.

Lights and Warning Boards (440)

Warning board assemblies, warning board lighting, the DTAR lighting set, French warning board and French warning board with lighting, plus extension lights for Germany. Rear lights 12V left and right, LED side marker lamps, rear reflectors in both round and 94X44 self-adhesive form, plastic guards, lighting brackets, mounting plates and the wiring harness references are all itemised.

Loosening Tines, Spraying Track and Lane Marker (635, 640, 655)

The 2-tine loosening set, 4-tine loosening for ROH at ROH height adjustment, loosening for rotary hiller at ROH, and the full-field loosening tine versions are covered with eye bolts, share points, clamping plates, planet screws and tines. The spraying track switch-off section lists the STL hand shaping board, the add-on hydraulic ripper plate and the hydraulic GF variant. Lane marker content spans the series, hydraulic, change-over valve, tine and disc versions, including hollow discs, disc hubs, track indicator tines and the hydraulic ram and hose routing.

Covering Unit (680)

The shaping board programme is extensive: SHB spacer plates and support for emerged potatoes in 4-row, the SHB emerged potato RW80 100 80 4-row unit, SHB shaper series standard 4-row, SHB shaper high standard 4-row, SHB shaper trapezoid high 4-row, SHB high roof plate VA 4-row, SHB emerged potatoes 4-row, SHB speed plate high emerged potato, SHB SPP XL bulbous 4-row, SHB SPP RW50 6-row / RW60 5-row, water groove shapers, loosening tines, loosening tines for stony soil, pressure adjustment shaping board spring, pressure adjustment SHB hydraulic, levelling adjustment SHB mechanical parallel and hydraulic. Formers, wear plates, speedformers, ridge plates, first plates, share left and right, bellied plates and the complete hydraulic kits with glycerine manometer, accumulator and flow restrictors are listed.

End Tow Kit (690) and 700-Series Attachments

End tow kit 4-row, front and rear versions with cross tubes, drawbar, brackets, Ackerschiene, safety chains, wheel rods, wheel mountings, tyres and rims, plus 2-row shaper standard and VA units and the 4-row roof plate for emerged potatoes PE/VA. The 700 series covers the soil retention plate, support and carriage roller, clamps and tines for full width operations including HMT, HTU, stone tine, spike and 45X10 tine versions, crowned guide disc, guide discs front and rear of the shaping board in fixed, electric and hydraulic operation, two-disc rear SHB units, hydraulic ridge pressure roller right and left with brush scrapers, remote control, the dyker with saw blades and impellers, mounting kit dyker, the three-point linkage MK 5 in 1 for the potato machine, and the lifting frame for seeder.

How the Pages Are Organised

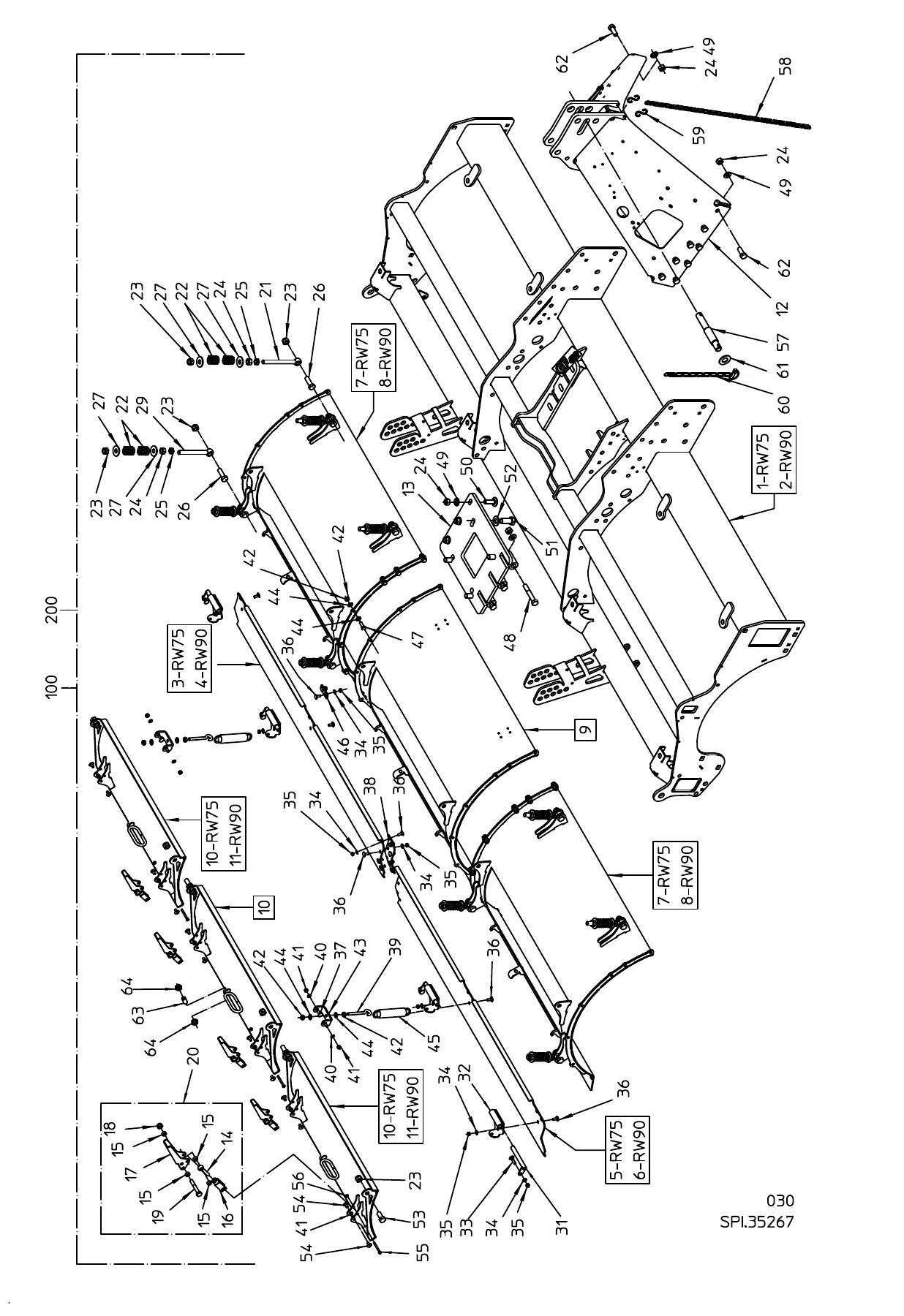

Each component group follows the same pattern: a full-page exploded illustration with numbered callouts, followed by a table giving line item number, quantity, item name and dimensions or thread size. Because the illustration and the table share the same position numbers, you can identify a part visually and read its order number without ambiguity. Rotor and tine pages include mounting diagrams showing the correct sequence and orientation of tines on the shaft for RW75/76.2, RW80/81.3, RW85/86.3, RW90/91.4 and the 45×10 RW75 and RW90 configurations.

Why This Grimme GF 400 Parts List Belongs in Your Workshop

Ordering the wrong part for a rotary hiller is expensive and slow. A rotor shaft, a spur gear drive or a shaping board that does not match the row width on your machine means a second order, a second delivery and another day of downtime in the middle of the season. This Grimme GF 400 spare parts list removes that risk by giving you the exact Grimme part number, the exact quantity and the exact dimension for every item on the machine – so the part you order is the part that fits.

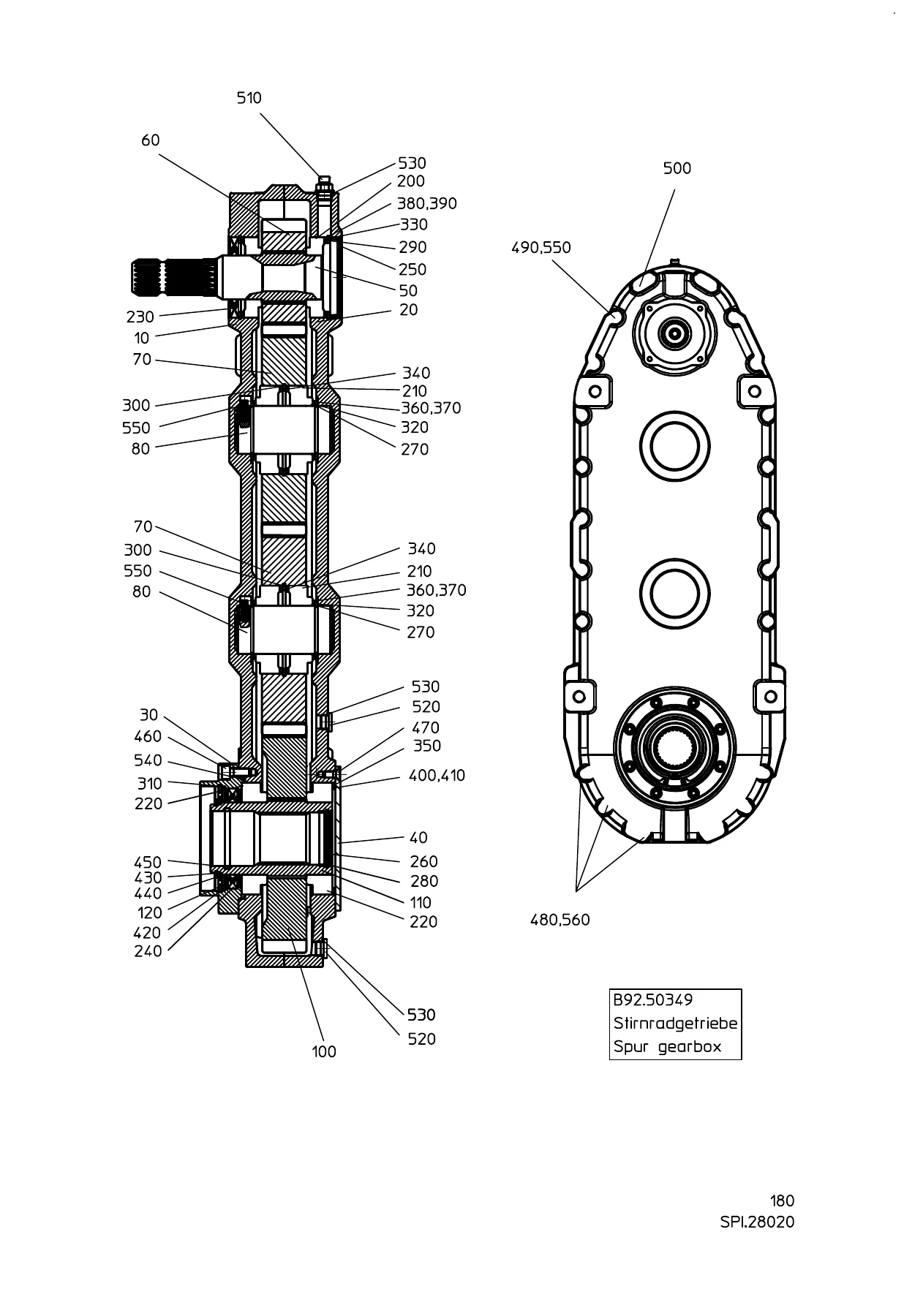

It is equally useful as a workshop reference during a rebuild. When you strip a support wheel, a guide disc hub or a PTO drive shaft, the exploded views show how the assembly goes back together and which washers, retaining rings, seals and spacers sit between the major components. The gearbox cutaways identify bearings, shafts and gears individually. The tine mounting diagrams prevent the most common reassembly error on a hiller – fitting rotor tines in the wrong order or orientation.
