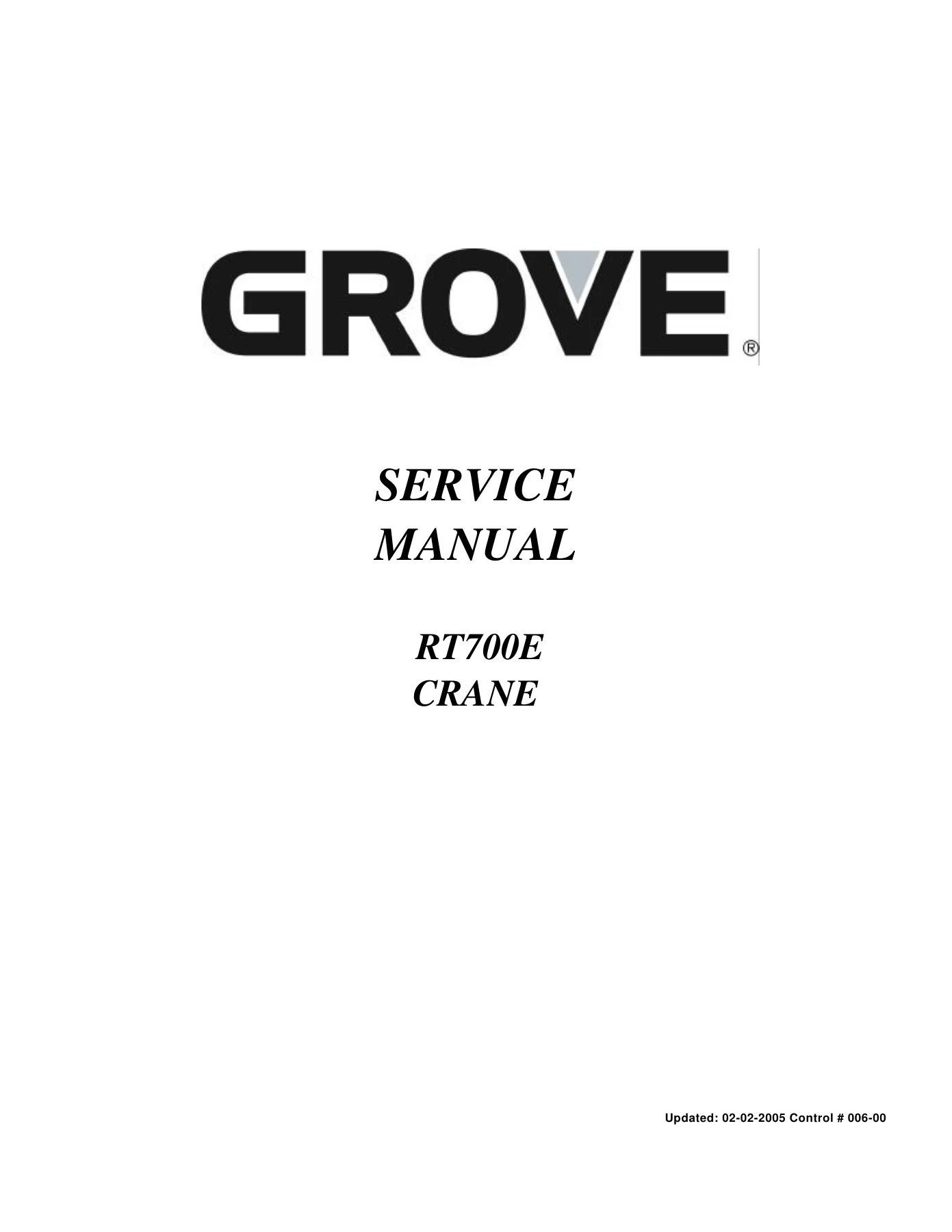

Grove RT700E Crane Service Manual – 2005 Edition

This Grove RT700E Crane Service Manual is a comprehensive workshop guide for maintaining and repairing the RT700E rough terrain crane. Whether you are a professional crane technician, fleet maintenance manager, or owner-operator, this manual gives you the detailed procedures, specifications, and system descriptions needed to keep the machine running safely and efficiently. It covers everything from general maintenance routines to complete component overhaul, with clear instructions for every major system on the crane.

The manual is organized into three chapters, with Chapter Two subdivided into sixteen detailed sections. Page numbering follows a chapter-section-page format, making it easy to navigate and reference specific topics during service work. This structure allows you to quickly locate the information you need, whether you are troubleshooting a hydraulic fault, adjusting a brake, or rebuilding a telescope cylinder.

File Details

• Manual Type: Service Manual
• Brand: Grove
• Model: RT700E
• Language: English
• File Format: PDF
• Page Count: 382 pages
• Publication Date: 2005

Chapters Covered

The manual is divided into three main chapters with detailed subsections as follows:

• Chapter One – General Description and Maintenance

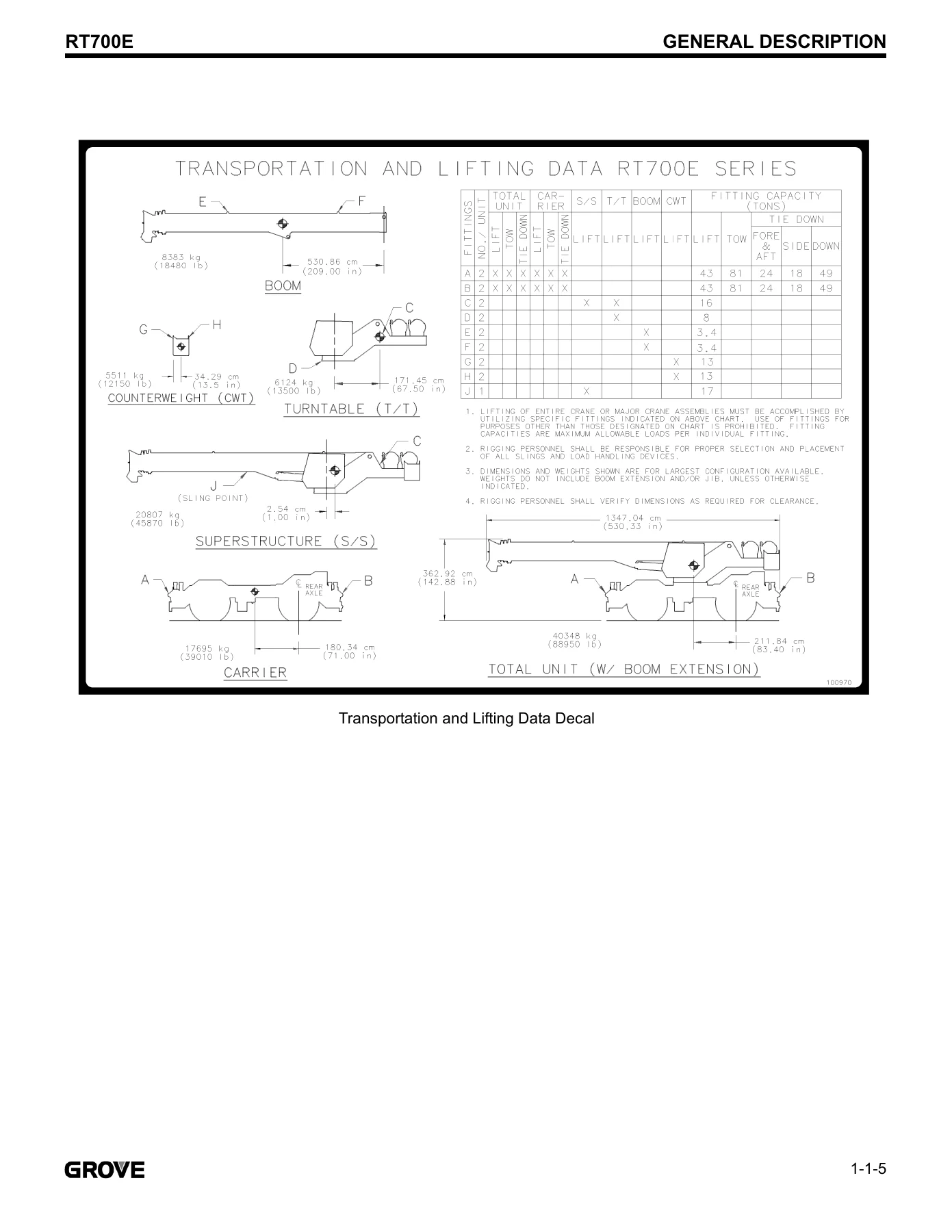

  • Section 1 – General Description (specifications, dimensions, capacities, engine, axles, boom, hydraulic pumps, hoists)
  • Section 2 – General Maintenance (cleanliness, removal and installation, bearings, gaskets, batteries, hydraulic systems, torque values, wire rope inspection and lubrication)
• Chapter Two – Detailed Description, Operation, and Maintenance
  • Section 1 – Cab (controls, indicators, switches, gauges, LMI panel)
  • Section 2 – Engine (Cummins QSB5.9, electronic control system, fuel system, air intake, water cooling)
  • Section 3 – Drive Train (transmission/torque converter, drive lines)
  • Section 4 – Axles (removal, installation, wheel alignment, wheels and tires)
  • Section 5 – Steering Systems (front and rear steering, hydraulic pumps, control valves, steer cylinders)
  • Section 6 – Rear Axle Oscillation Lockout System (cylinders, valve, theory of operation)
  • Section 7 – Brake System (service brakes, parking brake, bleeding, wedge assembly, plungers, calipers)
  • Section 8 – Hydraulic System (supply and return, oil cooler, pumps, directional control valves, remote control valves, holding valves, swing brake, accumulators, cylinders)
  • Section 9 – Pressure Setting Procedures (main relief, pilot supply, swing brake, service brake, accumulator charge)
  • Section 10 – Swing System (swing motor, gearbox and brake, swing bearing)
  • Section 11 – Boom (extension/retraction, telescope circuit, lift circuit, swingaway extension, hookblock)
  • Section 12 – Hoists (hoist to boom alignment, vane motors, idler drum, rotation indicator, control valves, counterweight, third wrap indicator)
  • Section 13 – Outriggers (circuit, beam, extension cylinder, stabilizer cylinder, control valves)
  • Section 14 – Swivels (hydraulic swivel, 2 port water swivel, electrical swivel)
  • Section 15 – Electrical System (alternator, battery, relay panel, troubleshooting, switches, wipers)
  • Section 16 – Lubrication (lubrication points, intervals, lubricant specifications, wire rope lubrication)
• Chapter Three – Optional Equipment
  • Section 1 – Optional Equipment (pintle hook, strobe light, spotlight, floodlights, engine block heater, mirrors, third wrap indicator, air conditioner, hydraulic pump disconnect)

What This Manual Gives You

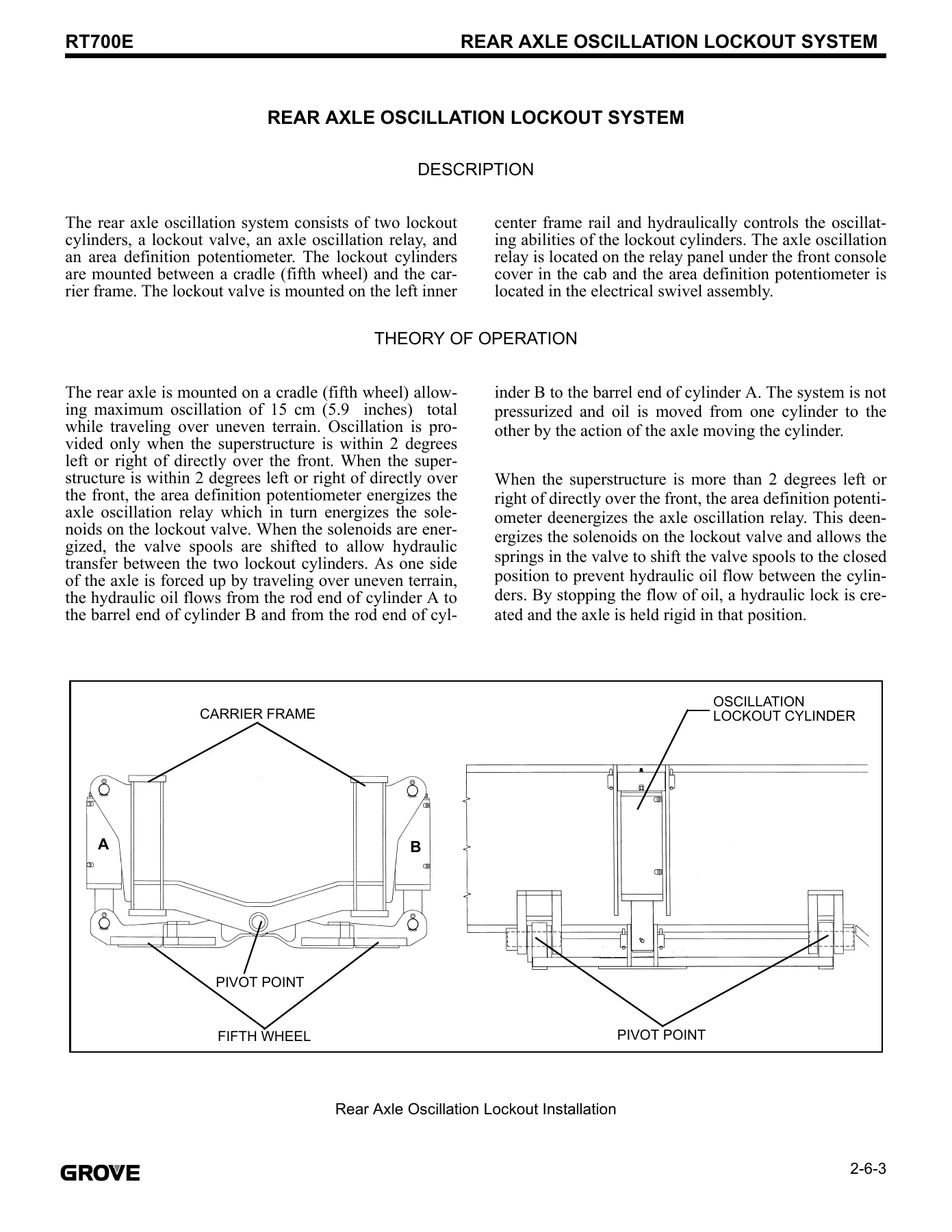

This Grove RT700E service manual is far more than a basic owner’s guide. It is a full workshop reference that walks you through the removal, disassembly, inspection, assembly, and installation of every major component on the crane. Each section includes theory of operation, maintenance procedures, troubleshooting tables, and detailed specifications. For example, the hydraulic system section covers all valves, pumps, cylinders, and accumulators with pressure setting procedures and temperature effects. The boom section explains the extension and retraction cable system, telescope circuit, and lift circuit in detail, including cam operated check valve adjustment and guide block adjustment. The hoist section provides alignment procedures, motor service, and rotation indicator troubleshooting. The brake section covers both early wedge-type and later disc-type service brakes, with complete step-by-step rebuild instructions.

Throughout the manual, you will find warnings, cautions, and notes that highlight critical safety and procedural information. Torque values, wear limits, clearances, and adjustment specifications are provided in tables and inline text. The electrical system section includes troubleshooting for starting, charging, accessories, lights, gauges, and swivel-caused problems. The lubrication section provides a complete chart with lubricant types, intervals, and application methods for every grease fitting and fluid reservoir on the machine.

Because this manual covers the RT700E specifically, the specifications, capacities, and procedures are tailored to that model. The engine is the Cummins QSB5.9, and the manual includes maintenance for the fuel system, air intake system, and water cooling system, while directing you to the engine manufacturer’s manual for complete engine overhaul details.

Who This Manual Is For

This Grove RT700E crane service manual is intended for professional crane technicians, maintenance supervisors, fleet managers, and experienced owner-operators who need to perform repairs, diagnostics, and scheduled maintenance. It is also useful for those who want to understand the machine’s systems in depth for troubleshooting or training purposes. The procedures assume a working knowledge of hydraulic and electrical systems and safe crane operation practices.

Why It Matters

Having the correct service manual for your RT700E means you can perform repairs and adjustments to the manufacturer’s specifications, reducing the risk of damage to expensive components and improving safety. The troubleshooting guides help you diagnose faults quickly, avoiding unnecessary parts replacement. The torque values, pressure settings, and wear limits ensure that your crane operates reliably and remains within safe working tolerances. Without the proper manual, you risk using incorrect procedures or specifications that could lead to equipment failure or hazardous conditions.
