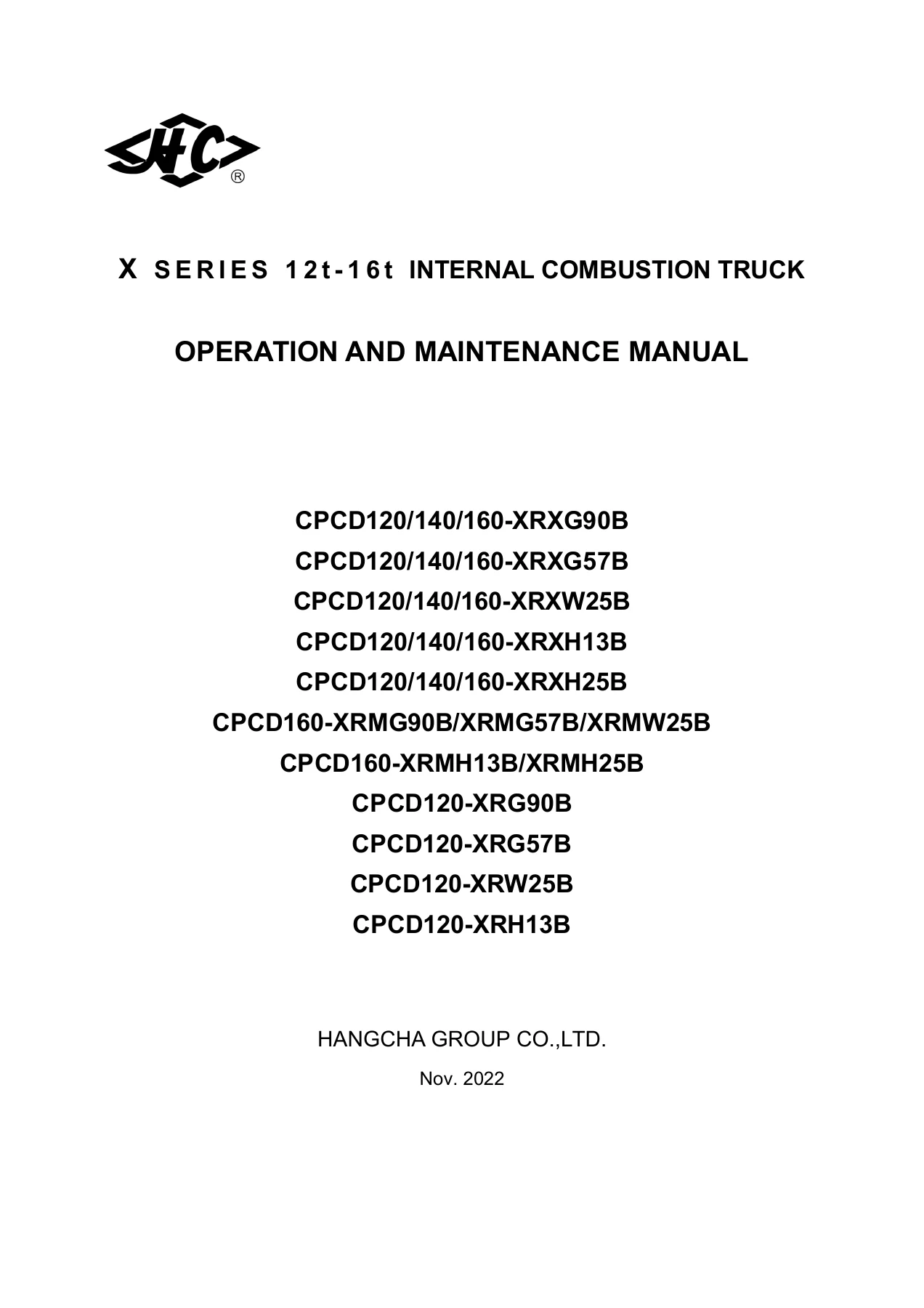

Hangcha X Series 12t-16t Internal Combustion Forklift Operation & Maintenance Manual

Description

The Hangcha X Series 12t-16t Internal Combustion Forklift Operation & Maintenance Manual is the complete English-language operator and service guide for the CPCD120, CPCD140 and CPCD160 X Series internal combustion counterbalance trucks. Published by Hangcha Group Co., Ltd. in November 2022, this manual covers the full 12, 14 and 16 tonne capacity range across Yuchai YCA07160-T400, Yuchai YC6J160-T300, Cummins QSB6.7 and Cummins B6.7 powered variants, together with the load-centre 600 mm, 750 mm and 900 mm configurations.

File Details

• Manual type: Operation and Maintenance Manual
• Manufacturer: Hangcha Group Co., Ltd.
• Series: X Series 12t-16t internal combustion truck
• Publication date: November 2022
• Language: English
• Page count: 105 pages
• File format: PDF

Chapters Covered

• General Rules for Manipulating
  • Operator qualification, load limits, slope and travel rules
  • Fuel, flame and battery safety precautions
  • Modification and alteration policy
• Framework and Names of Main Parts

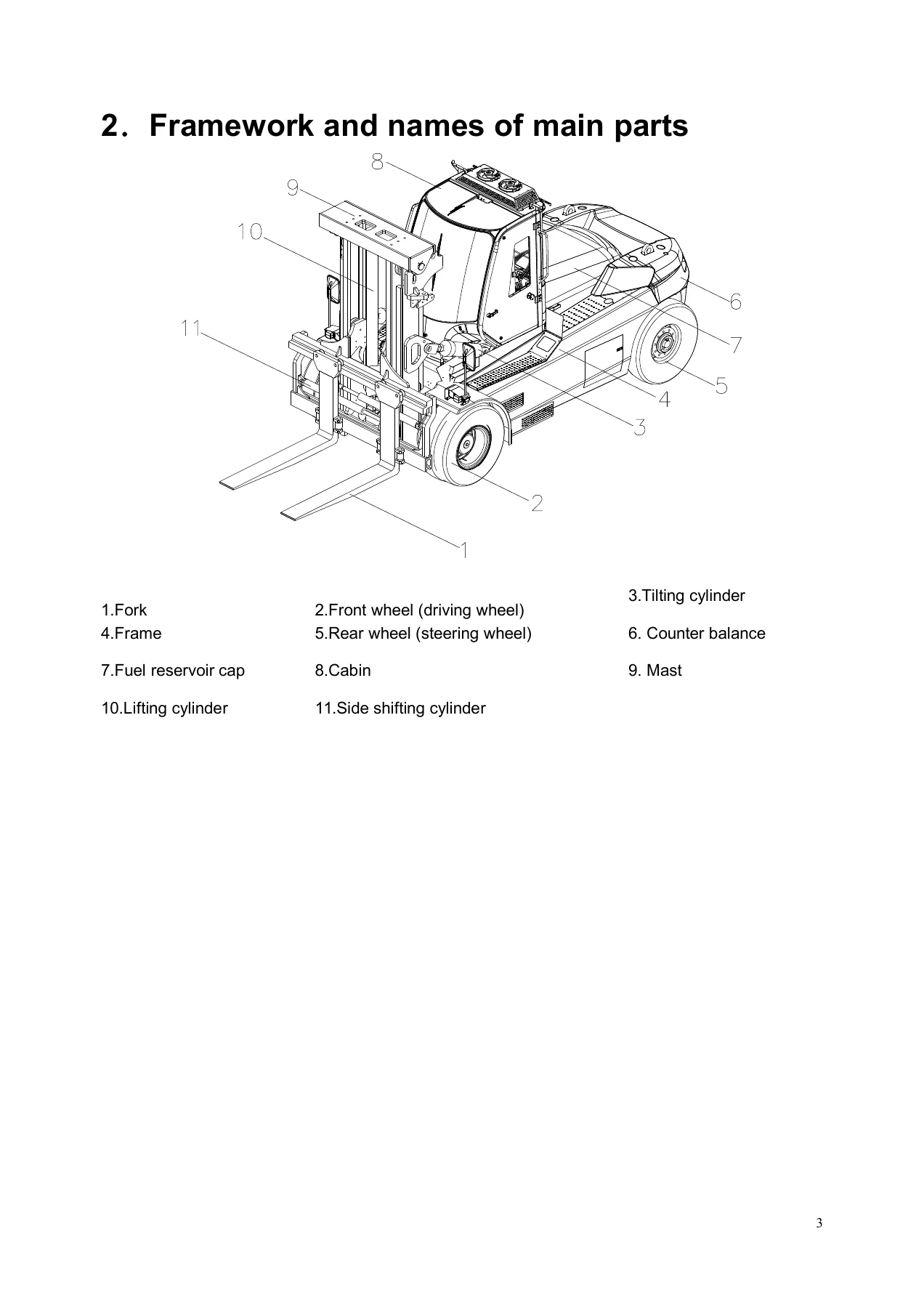

  • Mast, carriage, forks, lifting and tilting cylinders
  • Bus instrument, engine parameter display, gearbox parameter display
  • Engine fault display, gearbox fault display, I/O status display
  • Administrator password, working oil wear display, maintenance and system parameter settings

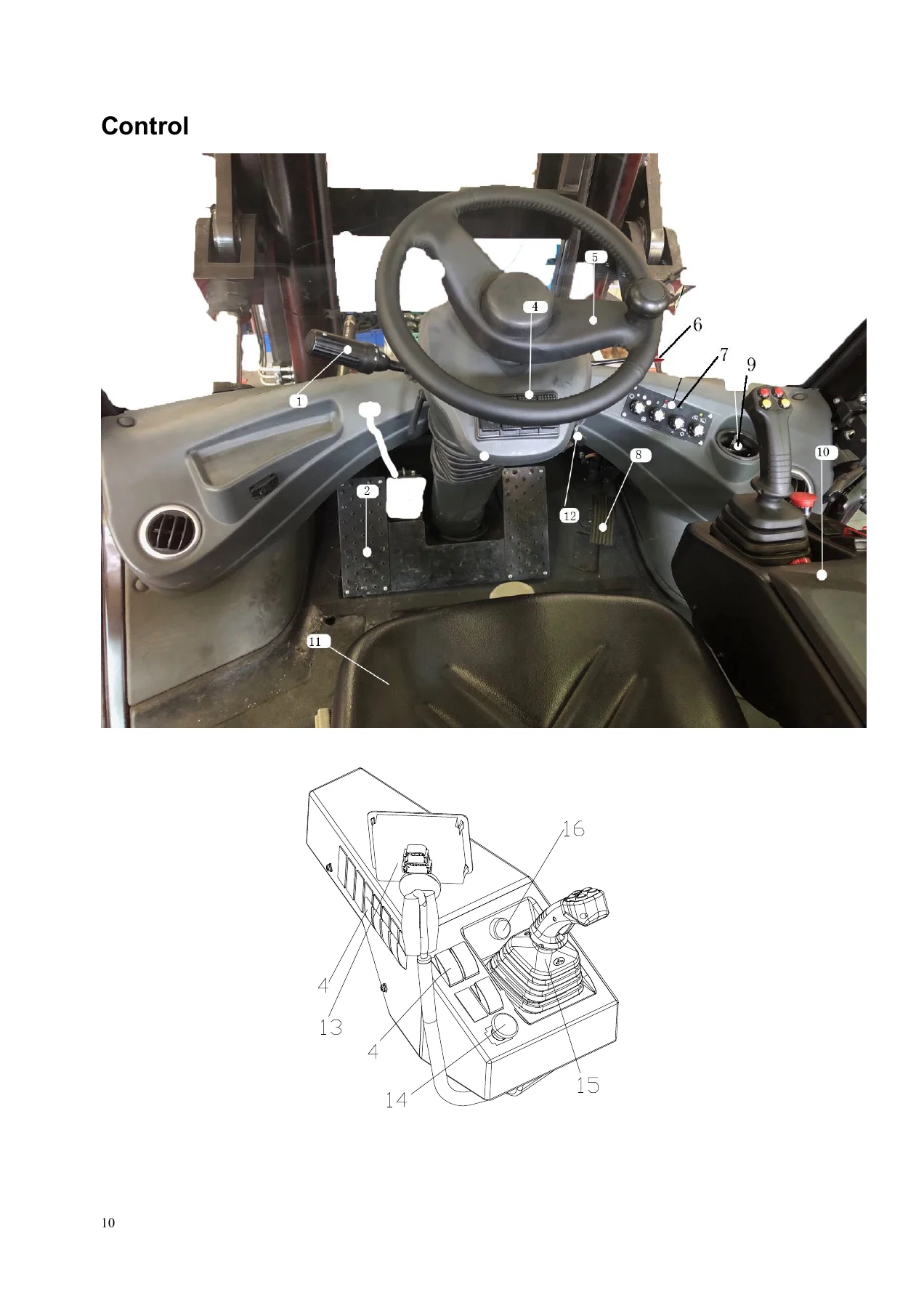

  • Steering wheel, key switch, gear shift switch, pedals, pilot handle, tight stop button
  • Seat adjustment, safety belt, overhead guard, hood, oil and fuel reservoir caps
• Safety Instruction
  • Inspection intervals, leak checks, hot-surface and exhaust-gas warnings
  • Parking, travelling, load handling and incline rules
  • Ambient temperature, altitude, vibration and noise limits
• Maintenance
  • Daily maintenance (8 hours)
  • Weekly maintenance (40 hours)
  • One and a half months maintenance (250 hours)
  • Semiannually maintenance (1000 hours)
  • Yearly maintenance (2000 hours)
  • Two years maintenance (4000 hours)
• Breaking-in Period for the New Truck
• Structure and Stability of Truck
  • Load centre, combined centre of gravity, stability zone
  • Load capability chart, speed and acceleration behaviour
• Operations
  • Star-up and running procedures
  • Load, stacking load and remove load
  • Measures against cold and hot weathers
• Deposit
  • Short-term and long-term storage procedures
  • Running after deposit for a long time
• Maintenance Schedules and Reference Data
  • Periodic maintenance schedule (engine, drive system, tyres, steering, brake, hydraulic, electrical, lifting)
  • Brake system service data
  • Key safe parts replacement terms
  • Bolt tightening moment table
  • Table for the oil used in the truck
  • Nameplate and carriage serial number positions
• Truck Convey, Lifting and Towing
• Technical Parameters Table
  • Operation rules for overturning the cab
  • Engine malfunction codes
• Operational Method of Lead Acid Battery
• Repair and Maintenance Record

Inside the manual, every maintenance interval is broken into concrete tasks with the tools and torque values called out. The weekly section alone walks through air filter element service, transmission oil level checks against the COLD and HOT marks on the dipstick, mast and fork inspection, chain tension adjustment with the three-nut procedure, mast guide rail lubrication, tyre nut torque (740-880 N.m front, 952-1269 N.m rear), fan belt tension check and the greasing points on the tilt cylinder pins, sideshift cylinder pins and steering linkage. Further along, the one and a half month schedule covers engine oil and filter change with the 29-39 N.m drain plug torque, driving axle gear oil, transmission oil filter, hydraulic transmission oil, fuel system bleeding and the oil-water separator drain procedure. The yearly section handles hydraulic oil replacement, front and rear wheel bearing grease, drive axle gear oil, turbocharger inspection and coolant replacement.

The electrical reference material is genuinely useful on the shop floor: the engine post-processing unit electric loop schematic, the power main switch and battery cover switch locations, and the engine fault code list indexed by SPN-FMI codes with descriptions covering discharge air pressure and temperature sensors, intake air pressure, accelerator pedal position sensors, oil pressure, cylinder injector solenoid drivers, EGR valve position, VGT actuator and turbocharger speed faults.

The technical parameters table gives the working figures for each of the twelve model designations, so a technician can confirm rated capacity, load centre, maximum lifting height, lifting speed, tilting angle, travelling speed, minimum ground clearance, turning radius, grade ability, wheelbase, wheel track, service weight, overall dimensions and tyre configuration before starting a job. Table for the oil used in the truck lists the diesel grade, engine oil viscosity, hydraulic oil, hydrodynamic power transmission oil, gear oil, anti-rust antifreeze and lubrication grease with capacities in litres.

What This Hangcha X Series Forklift Manual Enables You to Do

Use the Hangcha X Series 12t-16t internal combustion forklift operation and maintenance manual to run and service the CPCD120-XRXG90B, CPCD140-XRXG90B, CPCD160-XRXG90B, CPCD120/140/160-XRXG57B, CPCD120/140/160-XRXW25B, CPCD120/140/160-XRH13B, CPCD120/140/160-XRH25B, CPCD160-XRMG90B/XRMG57B/XRMW25B, CPCD160-XRMH13B/XRMH25B, CPCD120-XRG90B, CPCD120-XRG57B, CPCD120-XRW25B and CPCD120-XRH13B trucks through their scheduled service life. Diagnose an illuminated engine fault through the SPN-FMI code table, set the maintenance reminder interval from the bus instrument, adjust chain tension correctly, torque the wheel nuts to the right figure, change transmission oil and filter at the proper interval, and follow the cab overturning procedure safely when access to the powertrain is required.

Correct procedures and correct tightening torques are what separate a truck that reaches its next service interval from one that fails early. A wrong hydraulic oil grade, an over-tightened drain valve thread, a chain with unequal tension or a battery charged without the right electrolyte level will all create a second failure further down the line. Having the manufacturer’s own figures in front of you removes the guesswork.

IMAGES PREVIEW

Delivery is instant: your Hangcha X Series 12t-16t forklift operation and maintenance manual PDF is available for download immediately after checkout, with no shipping and no waiting. Read it on a laptop in the office, open it on a tablet at the truck, or print the torque tables and lubrication diagrams for the workshop wall. It applies to trucks with attachments as well, and the same file remains yours to keep and reprint.
