US Army MHE-270 MHE-271 4000 lb Rough Terrain Forklift Repair Parts and Special Tools List TM 10-3930-664-24P

Description

US Army MHE-270 MHE-271 Rough Terrain Forklift Repair Parts and Special Tools List — TM 10-3930-664-24P

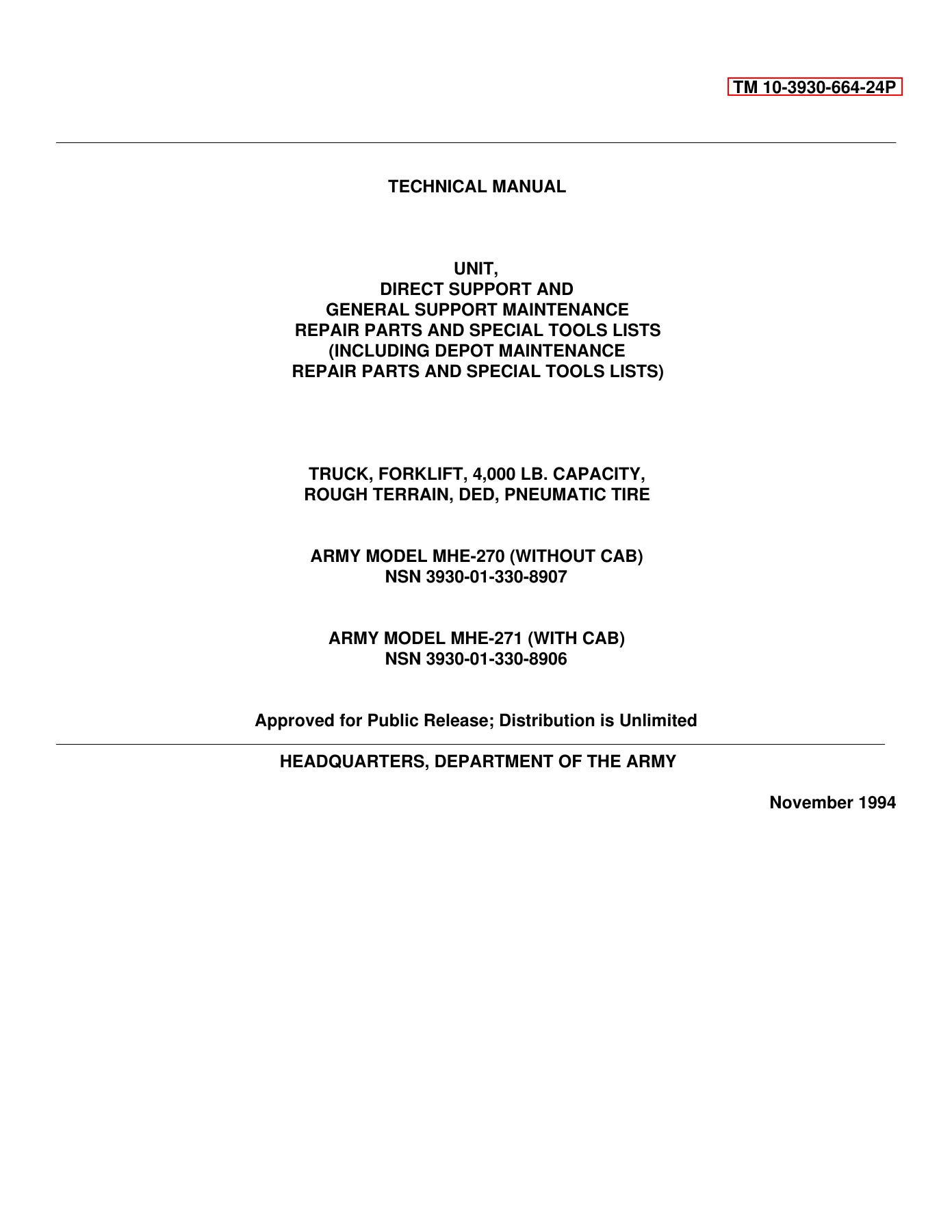

This is the complete US Army Technical Manual TM 10-3930-664-24P, the authoritative Repair Parts and Special Tools List (RPSTL) for the Truck, Forklift, 4,000 lb. Capacity, Rough Terrain, DED, Pneumatic Tire — Army Model MHE-270 (without cab) and Army Model MHE-271 (with cab). Published by Headquarters, Department of the Army on 10 November 1994 and approved for public release with unlimited distribution, this 503-page document is the supply-and-maintenance reference that Army technicians at Unit, Direct Support, General Support, and Depot levels rely on to identify, requisition, and manage every authorized spare part, repair part, kit, bulk material, and special tool for these rough-terrain forklifts.

File Details

• Manual Type: Repair Parts and Special Tools List (RPSTL)
• Document Number: TM 10-3930-664-24P
• Models Covered: Army Model MHE-270 (NSN 3930-01-330-8907) and Army Model MHE-271 (NSN 3930-01-330-8906)
• Publisher: Headquarters, Department of the Army, Washington D.C.
• Publication Date: 10 November 1994
• Language: English
• Pages: 503
• File Format: PDF

How This Manual Is Organized

The TM 10-3930-664-24P is divided into four sections that work together as a complete parts-identification and requisitioning system:

• Section I — Introduction: Scope, explanation of all column headings (SMR codes, FSCM, Part Number, Description/UOC, Qty), source codes, maintenance codes, recoverability codes, usable-on codes (JPL = MHE-270, MRF = MHE-271), and step-by-step instructions for locating repair parts both when and when not the NSN is known
• Section II — Repair Parts List: All authorized spares and repair parts organized by functional group in ascending alphanumeric sequence, each tied to an exploded-view illustration figure. Includes bulk material and kit line items within their own functional groups. A total of 158 illustration figures cover the functional groups listed below.
• Section III — Special Tools List: Special tools, special TMDE, and other special support equipment authorized for maintenance of the MHE-270 and MHE-271, with Basis of Issue (BOI) data for each item
• Section IV — Cross-Reference Indexes: National Stock Number (NSN/NIIN) index, Part Number index (alphanumeric), and Figure and Item Number index — all three cross-referenced to each other, enabling rapid lookup in any direction

Functional Groups and Systems Covered

The Repair Parts List in Section II spans every major system of the MHE-270 and MHE-271 rough terrain forklift, organized into the following groups:

• Group 01 — Engine: Engine assembly and mounting; crankcase, cylinder block, and cylinder head; crankshaft and bearings; flywheel and housing; pistons and connecting rods; valves, camshafts, and timing system; rocker arms; push rod cover; front gear cover and timing pin; camshaft; engine lubrication system (oil pump, oil pan, oil cooler, dipstick, oil sampling valve); exhaust and intake manifolds
• Group 03 — Fuel System: Fuel injectors; fuel injection pump mounting, gear, governor, hydraulic head, housing, body assembly, and lines; fuel transfer pump and lines; air cleaner assembly and mount; fuel tank assembly and lines; fuel filters; fuel/water separator; ether injector assembly; throttle control cylinder and mounting; accelerator actuator assembly; throttle control reservoir
• Group 04 — Exhaust System: Muffler and pipes
• Group 05 — Cooling System: Radiator assembly and mounting; radiator baffles and shroud; thermostat and housing; water inlet connection; water pump; fan assembly and guard
• Group 06 — Electrical System: Alternator and mounting; starting motor; instrument panel; miscellaneous items; slave receptacle; STE/ICE components; floodlights; headlights; blackout headlight and mounting; front and rear composite lights; sending units and warning switches; horn, horn button, and backup alarm; batteries and mounting; chassis, dash, main, engine, STE/ICE, and cab wiring harnesses
• Group 07 — Transmission: Transmission shifter mounting and shifter; transmission assembly; axle disconnect linkage; torque converter and housing; transmission case and plate assembly; pump drive; output shaft and disconnect assembly; intermediate clutch; forward and reverse clutch assembly; first and second clutch; third clutch; servo units; modulator valve and inching valve; transmission control valves; charge pump and filter assembly; transmission oil cooler, lines, and oil sampling valve; reverse idler gear assembly
• Group 09 — Propeller Shafts: Front and rear drive shaft assemblies
• Group 10 — Front Axle: Front axle assembly mounting and lines; front axle assembly; front differential; front planetary drive; front axle steering mechanism
• Group 11 — Rear Axle: Rear axle assembly mounting, vent line, and axle alignment; rear axle assembly; rear axle differential; rear axle planetary drive; rear axle steering mechanism
• Group 12 — Brakes: Front and rear brake assemblies; hydraulic brake system; master cylinders and service brake lines; park brake cylinder mounting and control line; park brake cylinder; service brake and inching pedal
• Group 13 — Wheels: Wheel assembly; tires
• Group 14 — Steering: Mechanical steering gear assembly; steering column; power steering gear assembly; orbital steering valve; steering hoses, lines, and fittings; priority valve; steering selector valve
• Group 15 — Frame and Towing Attachments: Chassis; counterweight; tow bar, pintle hook, and chains
• Group 18 — Body, Cab, Hood and Hull: ROPS/FOPS assembly for MHE-270 and MHE-271; cab front cover; cab right and left side panel; cab door; hood and hood support; hood latch; transmission covers; front and rear fenders; cab windshield and windows; floor plate, valve bracket, and floor mat; seat assembly and seat belts; tool box, liquid container bracket, and fire extinguisher bracket
• Group 22 — Body, Chassis and Hull Accessory Items: Mirror assembly; defroster fan assembly; heater assembly; windshield wiper and mounting; data plates (instrument panel, directional control valve, hood, transmission side covers, fenders, engine, priority valve)
• Group 24 — Hydraulic and Fluid Systems: Hydraulic pump and pump drive; diverter valve; sequence valve; directional control valve and mounting; directional control valve end housings and anti-void assembly; relief valve; rotate section; lift section; tilt section; sideshift section; park brake and differential lock solenoid valve; directional control valve levers and linkage; tilt cylinder assembly and mounting; mast column outer and inner rail assemblies; main lift cylinder; intermediate rail assembly; drive chain assembly; freelift chain assembly; freelift cylinder; sideshift carrier (front and rear views); spine assembly; sideshift cylinder; rotate carriage assembly; rotate cylinder; hydraulic hoses and fittings (pump supply, mast control, carrier assembly); hydraulic filter assembly, fittings, lines, and mounting; hydraulic tank and mounting
• Group 47 — Gauges and Measuring Devices: Mechanical tachometer drive; inclination gauge and hydraulic tank sight gauge
• Group 94 — Kits: Kits and related parts
• Group 95 — General Use Standardized Parts: Bulk materials
• Section III — Special Tools List: Group 26 — Special tools and test equipment

IMAGES PREVIEW

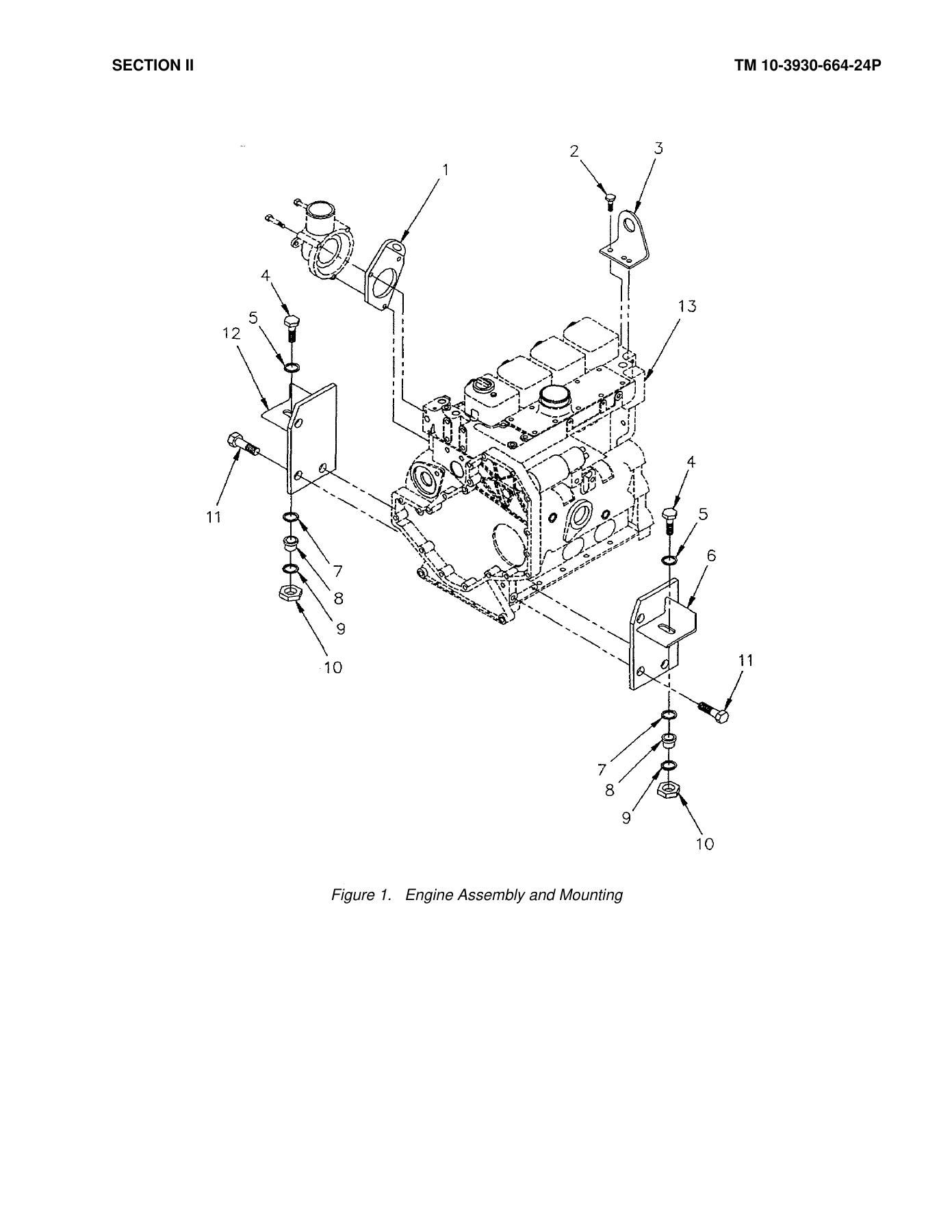

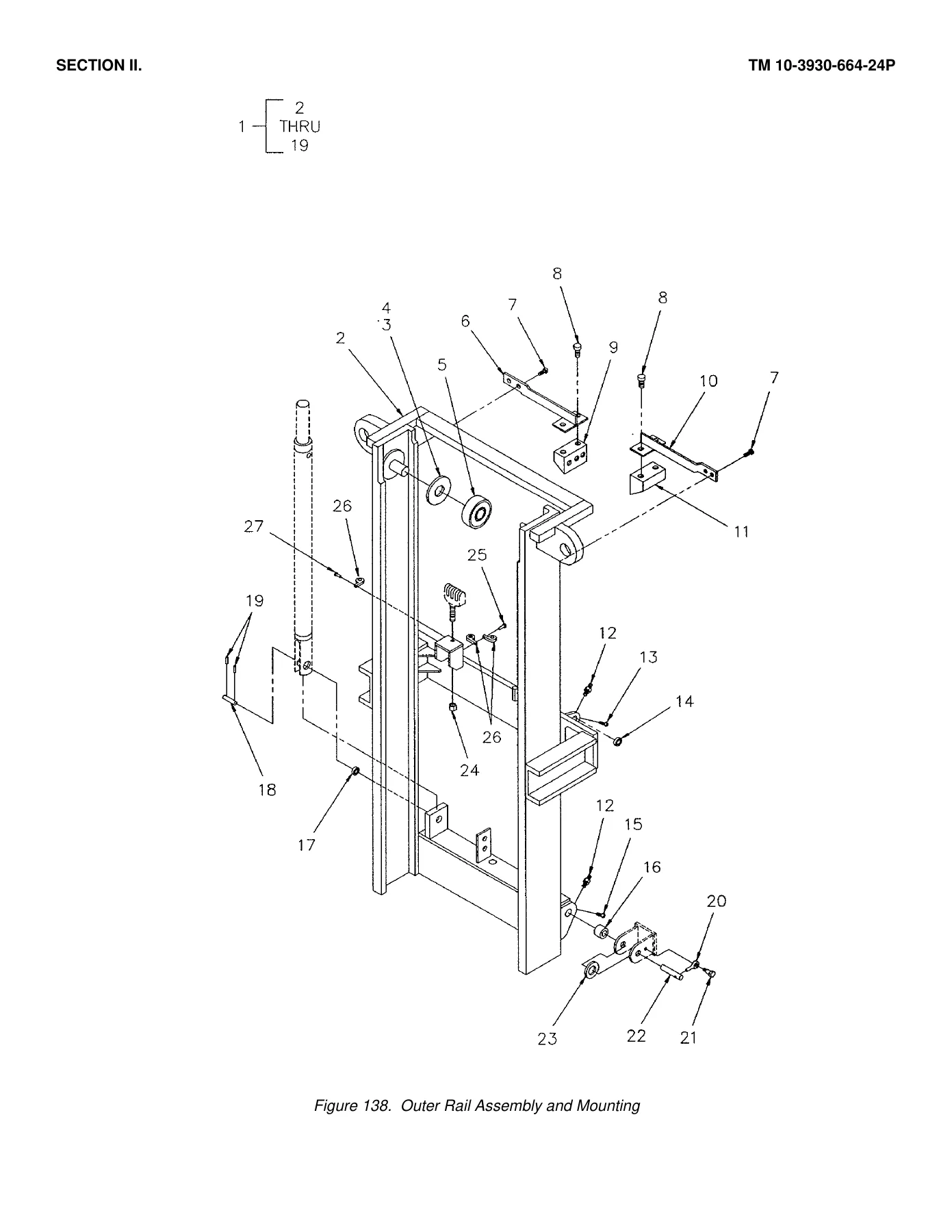

Each functional group entry pairs an exploded-view illustration (158 figures total) with a tabular parts list showing Item Number, SMR Code, FSCM, Part Number, Description and Usable On Code, and Quantity. Where a part applies only to MHE-270 or MHE-271, the usable-on code (JPL or MRF) is shown, so the technician pulls only the part that fits their specific model variant.

Who Needs This Manual and What It Enables

The US Army MHE-270 MHE-271 Forklift Repair Parts and Special Tools List TM 10-3930-664-24P is the primary supply reference for any maintainer, parts clerk, or equipment manager working on these 4,000 lb rough-terrain diesel forklifts. With this document you can identify the exact National Stock Number for any authorized spare from a crankshaft bearing to a hydraulic tilt-cylinder seal; determine the correct maintenance level authorized to remove, replace, or fully repair each part using the SMR code; requisition through standard Army supply channels with confidence; identify which parts apply exclusively to the cab-equipped MHE-271 versus the open MHE-270; cross-reference part numbers from the field to find the corresponding NSN and figure location; and identify every special tool and test/measurement/diagnostic piece of equipment authorized for the job.

Working from rough-terrain forklift illustrations without the corresponding Army-authorized parts list means guessing at part numbers, risking wrong-item requisitions, and ordering unauthorized replacements that may not survive Army recoverability review. The TM 10-3930-664-24P eliminates all of that uncertainty by supplying the complete, cross-referenced authority list exactly as issued.

Download is instant — your PDF is available immediately after purchase, no shipping, no waiting. Works on any device: laptop, tablet, or desktop. Print any section you need at the workbench. One purchase covers both the MHE-270 and MHE-271 variant parts data in a single comprehensive document.
