Hino N04C Diesel Engine Workshop Manual – Full Repair & Overhaul Guide

Description

Hino N04C Diesel Engine Workshop Manual – Full Repair & Overhaul Guide

This Hino N04C Diesel Engine Workshop Manual – Full Repair & Overhaul Guide is a complete factory-style technical reference for the N04C, a 4.0-liter (4009 cm³) in-line 4-cylinder, direct-injection diesel engine with an OHV gear-drive valve mechanism. Delivered as an instant-download PDF, it walks a technician through diagnosis, teardown, measurement, and reassembly of the entire engine and its supporting systems using the manufacturer’s own procedures, standard values, and tightening torques.

File Details

• Manual type: Workshop / Repair Manual
• Engine covered: Hino N04C (4-cycle, in-line 4-cylinder, direct injection diesel)
• Language: English
• Page count: 147 pages
• File format: Instant-download PDF

IMAGES PREVIEW

Chapters Covered

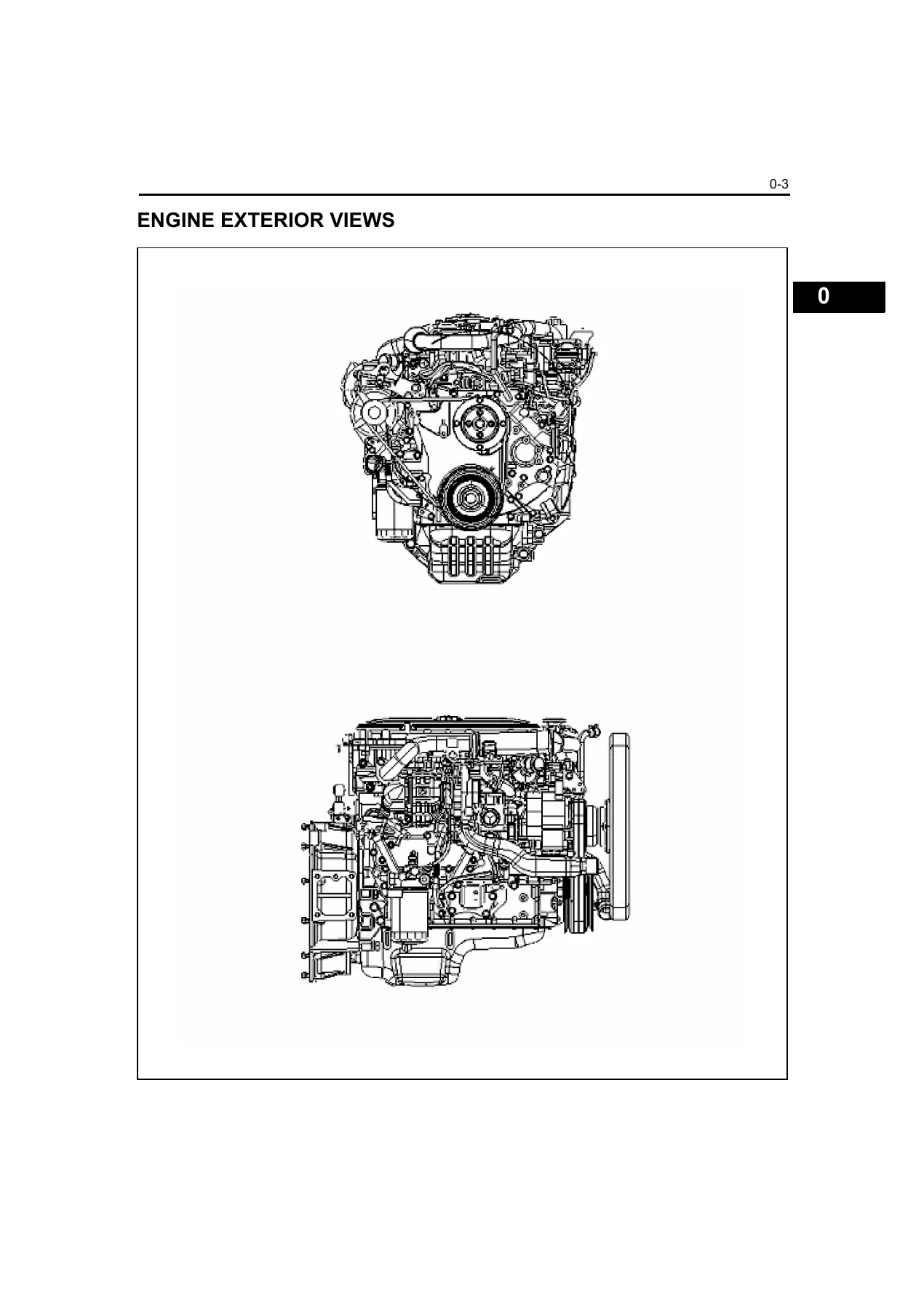

• General – engine specifications, exterior views, performance curves, how to use the manual, terminology, abbreviations, operating tips, electrical parts inspection, bolt & nut tightening torque identification, precoated bolts, SI units, FIPG liquid gasket handling
• Troubleshooting – engine mechanical faults (overheating, oil consumption, piston burning, power shortage, hard starting, gas leakage), alternator faults, starter faults, turbocharger faults

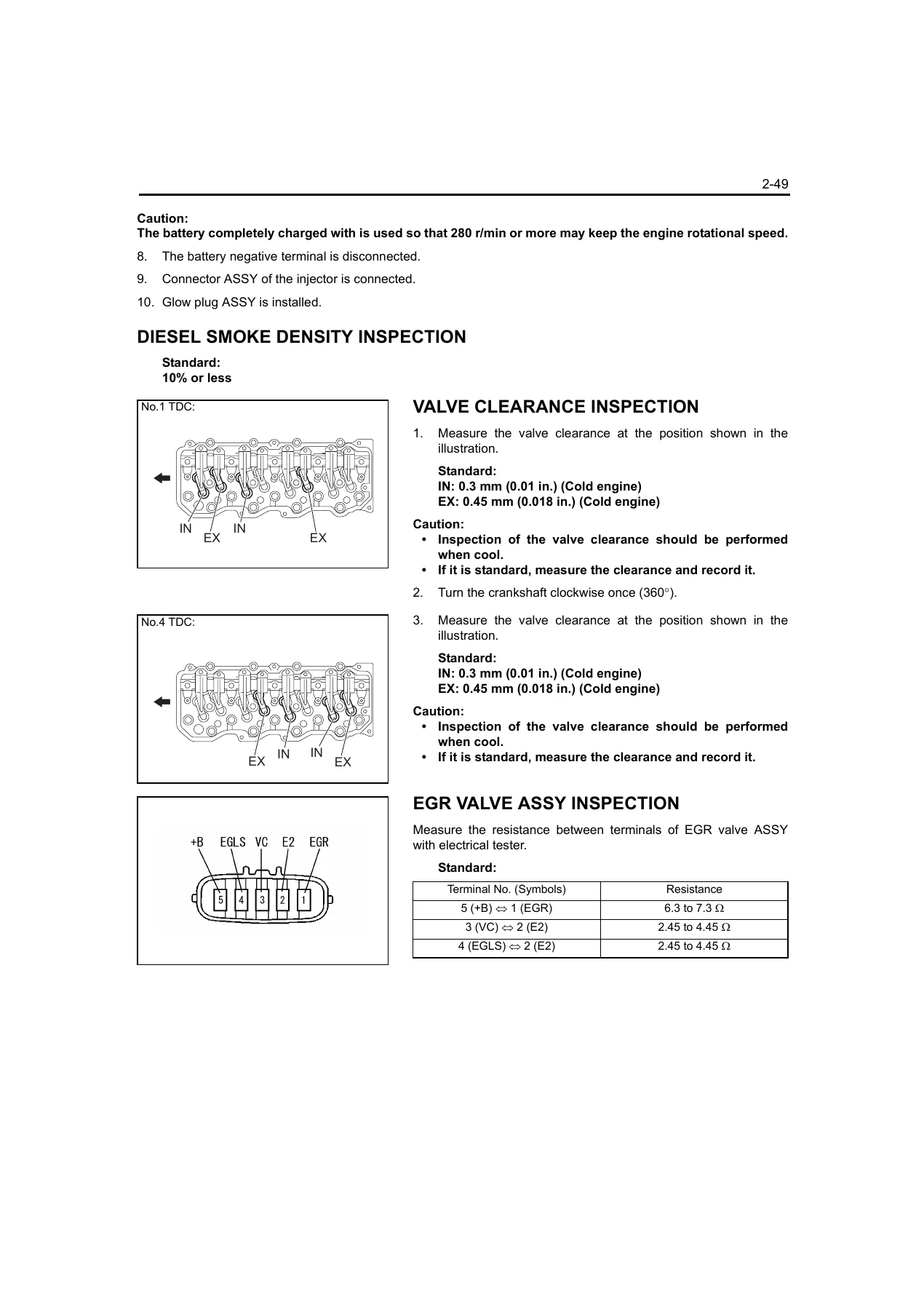

• Engine Overhaul – used SSTs, engine accessories removal and installation, cylinder head disassembly/inspection/reassembly, timing gear service, cylinder block service, engine turn-up checks (coolant, oil, battery electrolyte, V-belt, idle speed, no-load maximum governed speed, compression pressure, diesel smoke density, valve clearance, EGR valve ASSY)
• Fuel System – precautions, fuel filter, injection (supply) pump, common rail, fuel injector, venturi ASSY
• Cooling System – function inspection, coolant replacement, water pump ASSY, thermostat
• Lubrication System – used SSTs, function inspection, oil pump replacement, oil filter replacement, oil cooler ASSY replacement
• Starting System – starter motor ASSY
• Charging System – function inspection, alternator ASSY removal and installation
• Turbocharger System – turbocharger ASSY removal and installation
• Appendix – SST list, service standards, tightening torque for each part

Taken together, this Hino N04C engine repair manual gives a technician everything needed to move from an owner’s complaint to a finished repair: the diagnostic tables in the Troubleshooting section point toward a likely cause, the Engine Overhaul chapter carries that through full disassembly, measurement against service standards, and reassembly, and the individual system chapters (fuel, cooling, lubrication, starting, charging, turbocharger) cover the surrounding components that keep the N04C running.

Key Specifications

• Type: Diesel, 4-cycle, in-line 4-cylinder, longitudinally mounted
• Combustion chamber: Direct injection
• Valve mechanism: OHV gear drive
• Bore x stroke: 104.0 x 118.0 mm (4.09 x 4.65 in.)
• Total displacement: 4009 cm³ (244.6 in³)
• Compression ratio: 18.0
• No-load maximum speed: 2290 to 2390 rpm
• Idle speed: 800 to 850 rpm

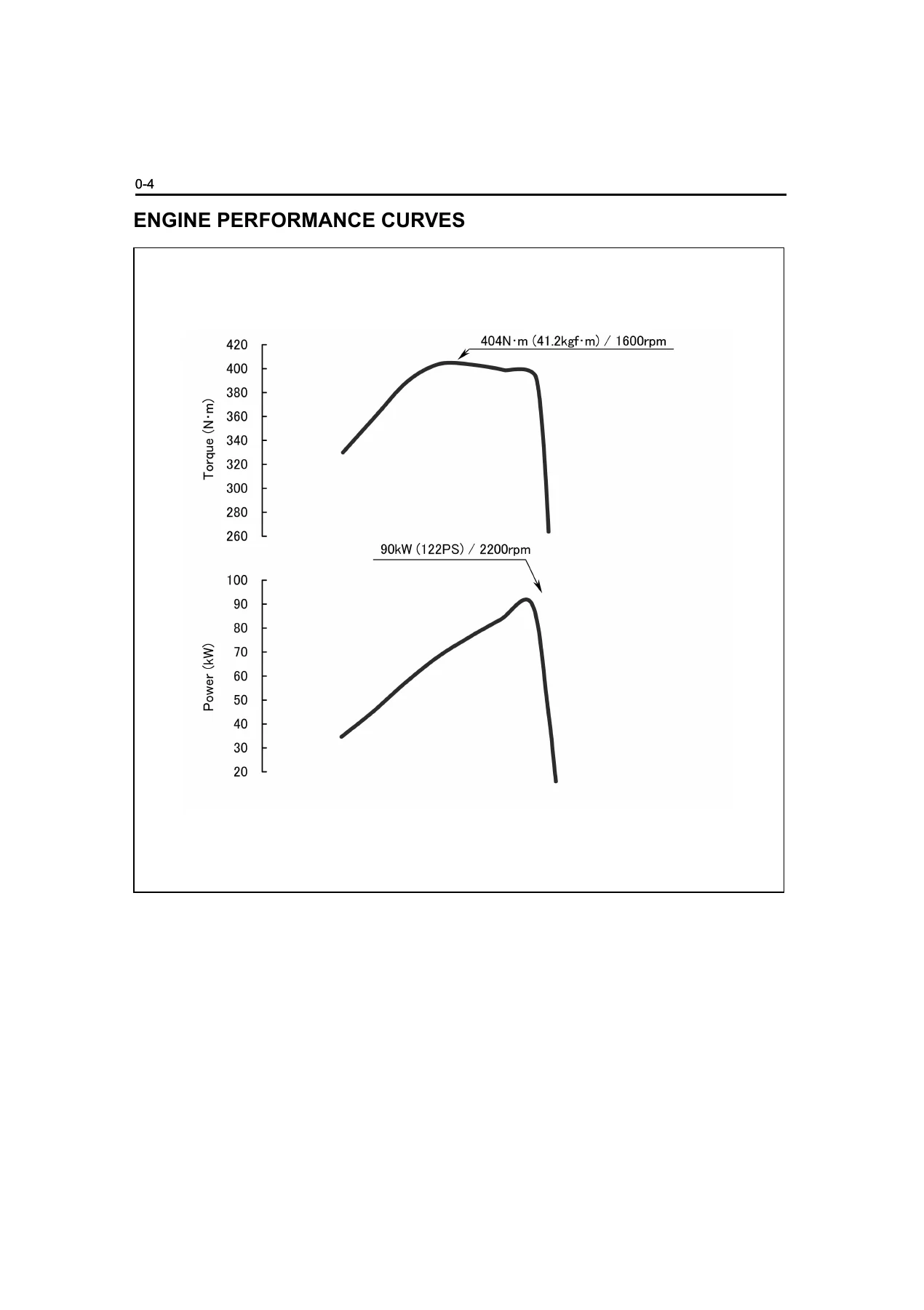

• Rated output: 90 kW (122 PS) / 2200 rpm, peak torque 404 N·m (41.2 kgf·m) / 1600 rpm
• Weight (oil included): 396 kg (873 lb)

What This Hino N04C Workshop Manual Lets You Do

With this manual open next to the engine, a technician can chase down overheating, oil-consumption, hard-starting, and power-loss complaints using the manufacturer’s own condition-versus-cause tables, then carry out a full cylinder head, timing gear, and cylinder block overhaul using the exact bolt patterns, tightening torques (given in N·m, kgf·cm, and ft-lbf), and service-standard clearances the factory specifies – down to camshaft cam height, cylinder bore limits, piston ring gap, and crankshaft journal wear limits. Fuel system work is covered from the fuel filter and injection pump through to the common rail, injectors, and venturi ASSY, while separate chapters guide replacement of the water pump, thermostat, oil pump, oil filter, oil cooler, starter motor, alternator, and turbocharger.

Working from the correct procedures and specifications matters on a diesel of this type: bore, stroke, and compression ratio are tightly toleranced, fuel system components run at high pressure, and reassembly torques on parts like the crankshaft pulley (519 N·m) and idle gear shaft (137 N·m) are critical to engine longevity. Getting them right the first time avoids repeat teardowns, leaks, and premature wear.

This Hino N04C Diesel Engine Workshop Manual – Full Repair & Overhaul Guide downloads instantly as a PDF after checkout – there is no shipping, no waiting, and no physical copy to lose. It opens on a laptop, tablet, or phone in the shop or at home, and can be printed in full or by the page whenever a paper copy is more convenient for the job at hand.
