John Deere PowerTech 8.1L Level 9 Denso HPCR Fuel System Technical Manual CTM255
John Deere PowerTech 8.1L Level 9 Denso HPCR Fuel System Technical Manual CTM255 - Image 2
John Deere PowerTech 8.1L Level 9 Denso HPCR Fuel System Technical Manual CTM255 - Image 3

John Deere PowerTech 8.1L Level 9 Denso HPCR Fuel System Technical Manual CTM255

Original price was: $29.95.Current price is: $17.95.

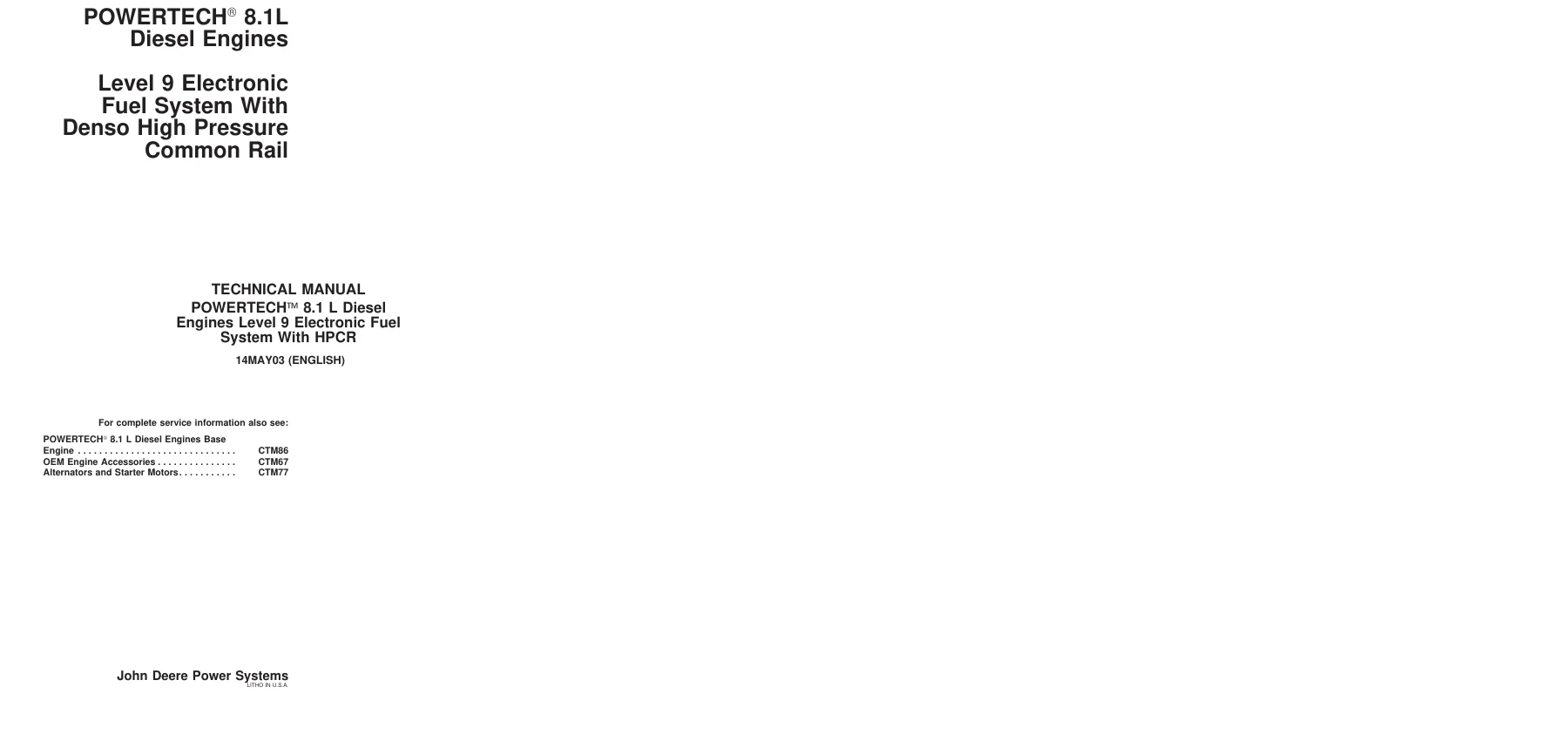

Official John Deere CTM255 technical manual covering the PowerTech 8.1L Level 9 electronic fuel system with Denso high-pressure common rail (HPCR) — full repair, diagnostics, and specifications in instant PDF download.

SKU: HD-CTM255-JD-PT81-HD Category: Tags: , , , Vendor: Electrics Manuals
⚡
Instant PDF Download
Available immediately
💾
Save to Your Device
Download & keep forever
🛡️
Antivirus Scanned
100% virus-free
🌍
Trusted Worldwide
175,000+ customers

Description

John Deere PowerTech 8.1L Level 9 Denso HPCR Fuel System Technical Manual CTM255

This is the complete CTM255 Technical Manual for the John Deere PowerTech 8.1L diesel engine family equipped with the Level 9 Electronic Fuel System using the Denso High Pressure Common Rail (HPCR) injection system. Dated 14MAY03, this John Deere PowerTech 8.1L Level 9 Denso HPCR manual is dedicated specifically to the Denso ECD-U2 high-pressure in-line fuel pump, high pressure common rail, and electronic injectors used on the 6081H series engine, and is written for the experienced technician who needs correct, factory-based procedures rather than generic troubleshooting guesses.

  • Manual type: Technical/Component Technical Manual (CTM)
  • Brand/Engine family: John Deere PowerTech 6081H 8.1L diesel
  • Document number: CTM255
  • Publication date: 14MAY03
  • Language: English
  • Page count: 760 pages
  • File format: PDF

Chapters Covered

  • Section 01 – General: Safety, Engine Identification (model designation, serial number plate, option code label, full engine application chart), Fuels/Lubricants/Coolant (Tier 1 & Tier 2 diesel fuel, bio-diesel, fuel lubricity)
  • Section 02 – Repair and Adjustments: Electronic Fuel System Repair (fuel filters, water separator, high pressure fuel pump removal/installation, high pressure common rail, flow limiters, pressure limiter, electronic injectors); Electronic Engine Control Repair and Adjustment (ECU, sensors, connector repair for METRI-PACK, DEUTSCH, AMP, SUMITOMO, and YAZAKI connectors)
  • Section 03 – Theory Of Operation: Electronic Fuel System Operation, Electronic Control System Operation
  • Section 04 – Diagnostics: Observable Diagnostics and Tests (hard starting, low power, misfiring, exhaust smoke, engine won’t crank, abnormal noise), Trouble Code Diagnostics and Tests (extensive DTC listing with SPN/FMI-based diagnostic procedures for throttle, fuel rail pressure, water-in-fuel, manifold air pressure/temperature, and more)
  • Section 05 – Tools: Electronic Fuel/Control System Repair Tools, Diagnostic Service Tools
  • Section 06 – Specifications: Repair Specifications (torque values, general OEM engine specifications), Diagnostic Specifications (application-specific sensor specifications and ECU terminal identification by machine type)

Complete PDF Bookmark Tree

Complete Bookmarks

The complete bookmarks in the “John Deere PowerTech 8.1L Level 9 Denso HPCR Fuel System Technical Manual CTM255” are as follows:

Contentsp. 3
Generalp. 5
Safety[scSafety[ecp. 7
Handle Fluids Safely—Avoid Firesp. 7
Handle Starting Fluid Safelyp. 7
Service Cooling System Safelyp. 7
Prevent Battery Explosionsp. 8
Prepare for Emergenciesp. 8
Handling Batteries Safelyp. 9
Avoid High-Pressure Fluidsp. 10
Wear Protective Clothingp. 10
Service Machines Safelyp. 11
Work In Ventilated Areap. 11
Work in Clean Areap. 11
Remove Paint Before Welding or Heatingp. 12
Avoid Heating Near Pressurized Fluid Linesp. 12
Illuminate Work Area Safelyp. 12
Use Proper Lifting Equipmentp. 13
Construct Dealer-Made Tools Safelyp. 13
Practice Safe Maintenancep. 14
Use Proper Toolsp. 14
Dispose of Waste Properlyp. 15
Live With Safetyp. 15
Engine Identificationp. 17
Engine Model Designationp. 17
Engine Serial Number Plate Informationp. 18
Engine Option Code Labelp. 19
Engine Application Chartp. 20
Fuels, Lubricants, and Coolantp. 23
Lubricants and Coolantp. 23
Diesel Fuel – Tier 1p. 23
Diesel Fuel – Tier 2p. 24
Bio-Diesel Fuelp. 25
Dieselscan Fuel Analysisp. 25
Lubricity of Diesel Fuelp. 26
Repair and Adjustmentsp. 27
Electronic Fuel System Repair and Adjustmentsp. 29
Fuel System – General Informationp. 29
Relieve Fuel System Pressurep. 29
Clean Primary Fuel Filterp. 30
Remove and Install Final Fuel Filter/Water Separator Basep. 31

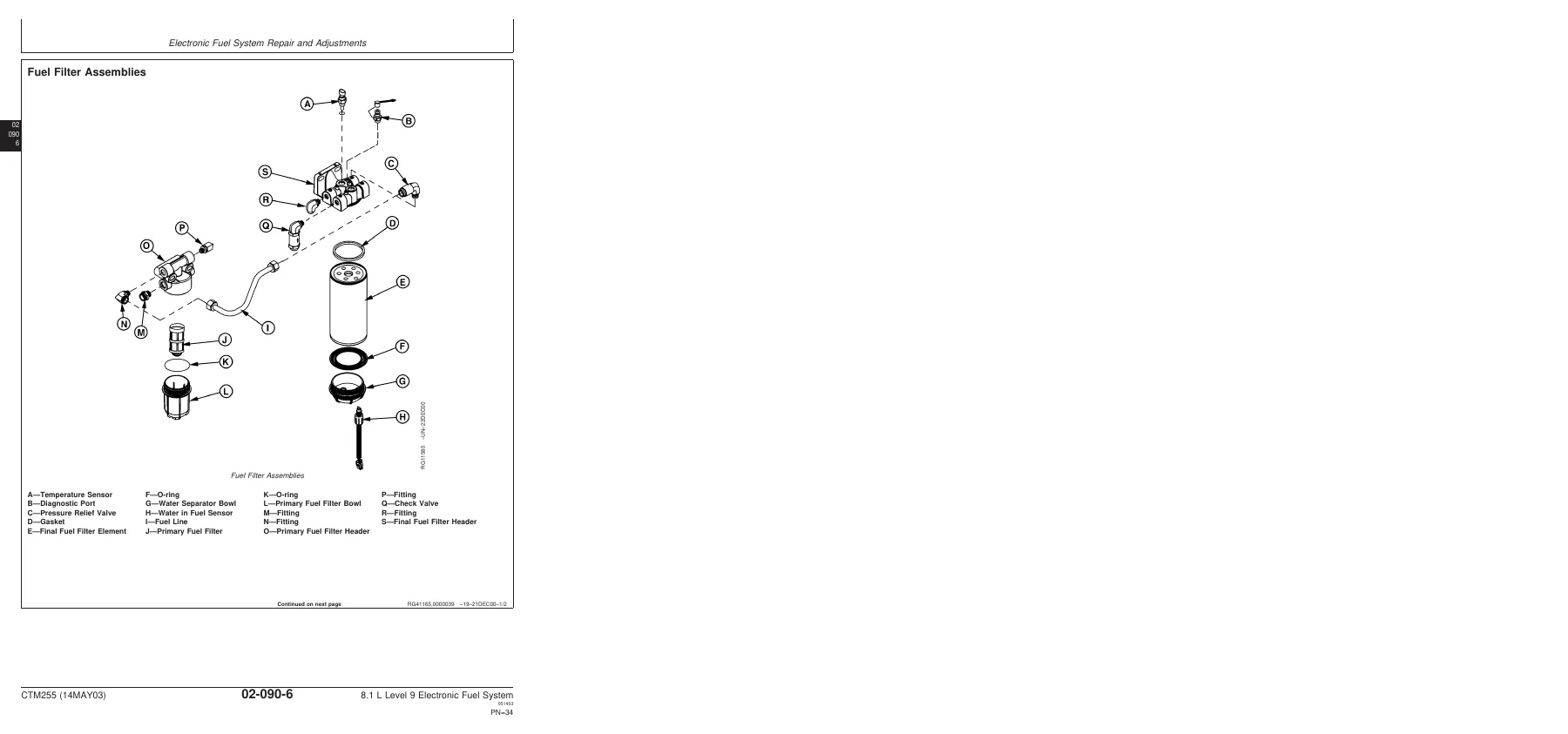

Fuel Filter Assembliesp. 34
Replace Final Fuel Filter Elementp. 36
Remove and Install High Pressure Fuel Pump Overflow Valvep. 38

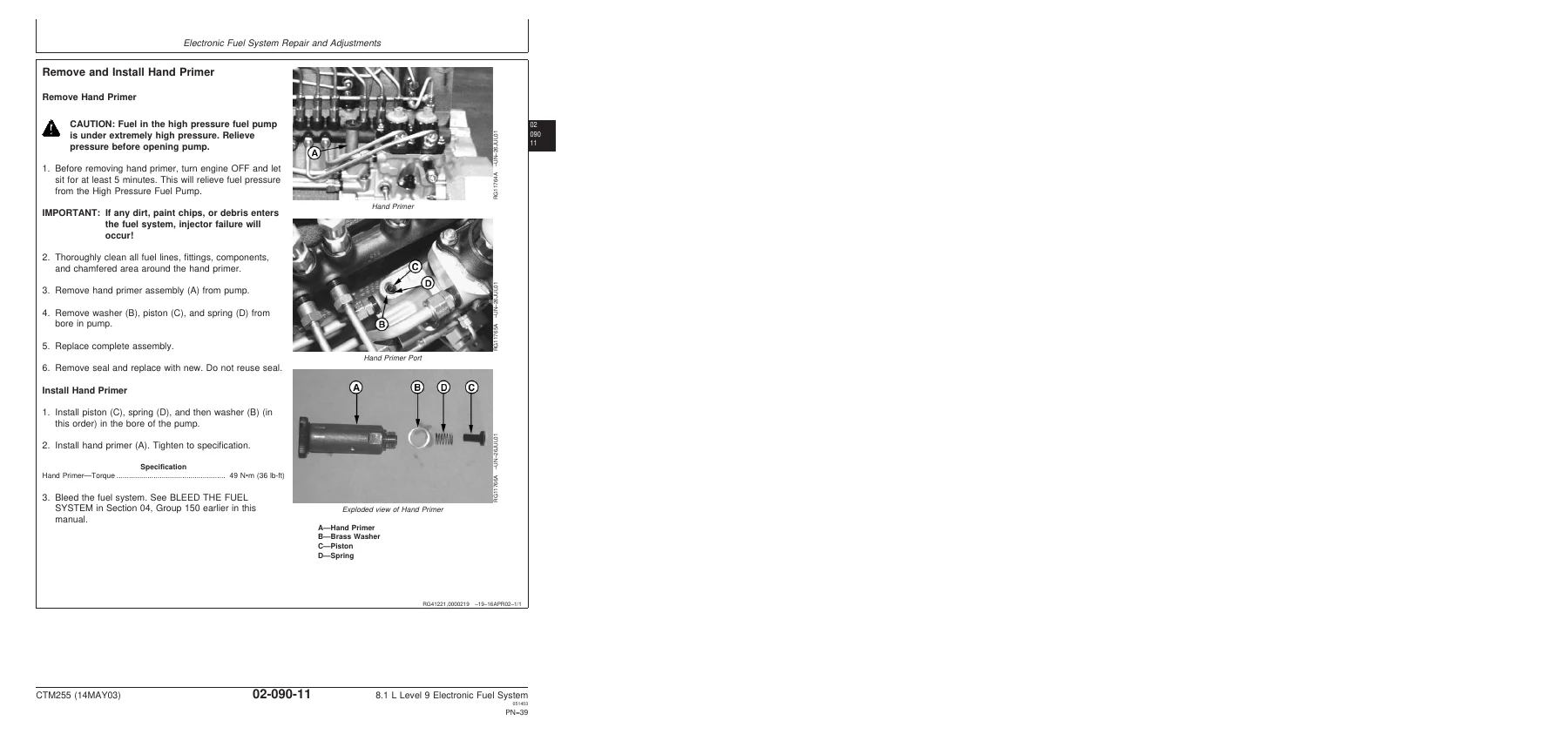

Remove and Install Hand Primerp. 39
Remove High Pressure Fuel Pumpp. 40
Remove and Install High Pressure Common Railp. 42
Remove and Install Flow Limitersp. 44
Remove and Install Pressure Limiterp. 47
Install High Pressure Fuel Pumpp. 49
Remove Electronic Injectorsp. 52
Clean Electronic Injector Borep. 54
Clean Electronic Injector Orificep. 54
Clean Electronic Injector Bodyp. 54
Inspect Electronic Injector Bodyp. 54
Install Electronic Injectorsp. 55
Electronic Engine Control Repair and Adjustmentp. 59
Engine Control Unit (ECU)p. 59
Electronic Engine Control System and Sensorsp. 60
Fuel System Sensorsp. 61
Remove and Install Engine Coolant Temperature Sensorp. 61
Replace Fuel Temperature Sensorp. 61
Replace Crank Position Sensorp. 62
Replace Manifold Air Temperature (MAT) Sensorp. 62
Replace Water in Fuel Sensorp. 63
Remove and Install Oil Pressure Sensorp. 63
Remove and Install Fuel Rail Pressure Sensorp. 64
Connectorsp. 65
Use Electrical Insulating Compoundp. 65
Using High-Pressure Washerp. 66
Repair WEATHERPACK™ Connectorp. 67
Remove Blade Terminals from Connector Bodyp. 70
Repair (Pull Type) METRI-PACK™ Connectorsp. 71
Repair (Push Type) METRI-PACK™ Connectorsp. 73
Repair DEUTSCH™ Connectorsp. 76
Repair AMP Connectorp. 79
Repair SUMITOMO™ Connectorsp. 81
Repair YAZAKI™ Connectorsp. 83
Theory Of Operationp. 85
Electronic Fuel System Operationp. 87
About This Groupp. 87
Fuel System Operationp. 88
Primary Fuel Filter Operationp. 90
Fuel Transfer Pump Operationp. 91
Final Fuel Filter Operationp. 92
High Pressure Fuel Pump Operationp. 93
High Pressure Common Rail (HPCR) Operationp. 95
Electronic Injector (EI) Operationp. 96
Electronic Control System Operationp. 99
About This Groupp. 99
Electronic Control System Terminologyp. 100
Electronic Control System Operationp. 101
Electronic Control System Overviewp. 102
Monitoring Engine Parametersp. 103
Measuring Temperaturep. 103
Measuring Pressurep. 106
Measuring Throttle Positionp. 108
Measuring Engine Speedp. 112
Water In Fuel (WIF) Sensorp. 113
Pump Control Valves (PCVs)p. 114
Electronic Injector (EI) Wiring Harness Connectorp. 114
Engine Control Unit (ECU)p. 116
Controlled Area Network (CAN)p. 118
Intake Air Heater Operationp. 118
Cruise Control Operationp. 119
Engine Protectionp. 120
Derate Programsp. 120
Multiple Torque Curve Selectionp. 121
Governor Droop Mode Selectionp. 121
Engine Control Unit (ECU) Self-Diagnosisp. 122
Diagnosticsp. 125
Observable Diagnostics and Testsp. 133
About This Groupp. 133
E1 – Engine Cranks/Won't Startp. 134
E1 – Engine Cranks/Won't Start Diagnostic Procedurep. 134
E2 – Engine Misfires/Runs Irregularlyp. 139
E2 – Engine Misfires/Runs Irregularly Diagnostic Procedurep. 139
E3 – Engine Does Not Develop Full Powerp. 143
E3 – Engine Does Not Develop Full Power Diagnostic Procedurep. 143
E4 – Engine Emits Excessive White Exhaust Smokep. 149
E4 – Engine Emits Excessive White Exhaust Smoke Diagnostic Procedurep. 149
E5 – Engine Emits Excessive Black Or Gray Exhaust Smokep. 152
E5 – Engine Emits Excessive Black Or Gray Exhaust Smoke Diagnostic Procedurep. 152
E6 – Engine Will Not Crankp. 154
E7 – Engine Idles Poorlyp. 154
E8 – Abnormal Engine Noisep. 155
E9 – Analog Throttle (A) Does Not Respondp. 157
E10 – Analog Throttle (B) Does Not Respondp. 157
F1 – Fuel Supply System Checkp. 158
F1 – Fuel Supply System Check Diagnostic Procedurep. 158
F2 – Excessive Fuel Consumptionp. 164
F3 – Fuel in Oilp. 164
D1 – ECU Does Not Communicate with DST or SERVICE ADVISORp. 166
D1 – ECU Does Not Communicate With DST or SERVICE ADVISOR™ Diagnostic Procedurep. 167
D2 – Diagnostic Gauge Does Not Communicate With ECUp. 172
D2 – Diagnostic Gauge Does Not Communicate With ECU Diagnostic Procedurep. 173
Check Fuel Supply Qualityp. 177
Test for Air in Fuelp. 179
Check Fuel Supply Pressurep. 181
Check for Restricted Fuel Return Linep. 184
Bleed the Fuel Systemp. 186
Restarting Engine That Has Run Out Of Fuelp. 189
Check and Adjust High Pressure Fuel Pump Static Timingp. 192
Trouble Code Diagnostics and Testsp. 193
About This Groupp. 193
Electrical Conceptsp. 194
Using a Digital Multimeterp. 194
Electrical Circuit Malfunctionsp. 195
Troubleshooting Circuit Malfunctionsp. 198
Connecting to Diagnostic Scan Tool (DST) or SERVICE ADVISOR™p. 202
Engine Configuration Data Parameters on Diagnostic Gaugep. 204
Viewing Active DTCs on Diagnostic Gaugep. 206
Viewing Stored DTCs on Diagnostic Gaugep. 206
Clearing Stored DTCs on Diagnostic Gaugep. 207
Data Parameter Descriptionp. 208
Engine Test Instructions—Cylinder Misfire Testp. 212
Engine Test Instructions—Compression Testp. 214
Engine Test Instructions— Cylinder Cutout Testp. 215
Engine Test Instructions— Tractor Torque Curve Change Testp. 216
Reprogramming Engine Control Unit (ECU)p. 217
Downloading Payload File For DSTp. 218
Reprogramming Engine Control Unit (ECU) With DSTp. 223
Downloading Payload File For SERVICE ADVISOR™p. 228
Reprogramming Engine Control Unit (ECU) With SERVICE ADVISOR™p. 236
Diagnostic Trouble Codes (DTCs)p. 240
Listing of Diagnostic Trouble Codes (DTCs) on ECUp. 242
Diagnostic Procedurep. 248
Intermittent Fault Diagnosticsp. 249
T1 – Multi-state Throttle Input Highp. 250
T1 – Multi-State Throttle Input High Diagnostic Procedurep. 251
T2 – Multi-state Throttle Input Lowp. 254
T2 – Multi-State Throttle Input Low Diagnostic Procedurep. 255
T3 – Analog Throttle (A) Input Highp. 258
T3 – Analog Throttle (A) Input High Diagnostic Procedurep. 259
T4 – Analog Throttle (A) Input Lowp. 262
T4 – Analog Throttle (A) Input Low Diagnostic Procedurep. 263
T5 – Analog Throttle (B) Input Highp. 266
T5 – Analog Throttle (B) Input High Diagnostic Procedurep. 267
T6 – Analog Throttle (B) Input Lowp. 270
T6 – Analog Throttle (B) Input Low Diagnostic Procedurep. 271
T7 – CAN Throttle Invalidp. 274
T7 – Can Throttle Invalid Diagnostic Procedurep. 275
T8 – PWM Throttle Input Highp. 278
T8 – PWM Throttle Input High Diagnostic Procedurep. 279
T9 – PWM Throttle Input Lowp. 282
T9 – PWM Throttle Input Low Diagnostic Procedurep. 283
T10 – PWM Throttle Abnormal Pulse Widthp. 286
T10 – PWM Throttle Abnormal Pulse Width Diagnostic Procedurep. 287
T11 – Excavator Throttle Reference Voltage Highp. 290
T11 – Excavator Throttle Reference Voltage High Diagnostic Procedurep. 291
T12 – Excavator Throttle Reference Voltage Lowp. 294
T12 – Excavator Throttle Reference Voltage Low Diagnostic Procedurep. 295
T13 – Excavator Throttle Ground Voltage Highp. 298
T13 – Excavator Throttle Ground Voltage High Diagnostic Procedurep. 299
T14 – Excavator Throttle Ground Voltage Lowp. 302
T14 – Excavator Throttle Ground Voltage Low Diagnostic Procedurep. 303
T15 – Excavator Throttle Input Voltage Highp. 306
T15 – Excavator Throttle Input Voltage Highp. 307
T15 – Excavator Throttle Input Voltage High Diagnostic Procedurep. 307
T16 – Excavator Throttle Input Voltage Lowp. 310
T16 – Excavator Throttle Input Voltage Low Diagnostic Procedurep. 311
T22 – Analog Throttle (A) Input Voltage Out of Rangep. 314
T23 – Multi-state Throttle Input Voltage Out of Rangep. 315
000028.03 — Throttle Voltage Highp. 316
000028.04 — Throttle Voltage Lowp. 316
000029.03 — Throttle Voltage Highp. 317
000029.04 — Throttle Voltage Lowp. 317
000029.14 — Throttle Voltage Out of Rangep. 318
000084.09 — Vehicle Speed Invalid or Missingp. 319
000091.03 — Throttle Voltage Highp. 320
000091.04 — Throttle Voltage Lowp. 321
000091.08 — PWM Throttle Abnormal Pulse Widthp. 322
000091.09 — Throttle Invalidp. 322
000091.14 — Throttle Voltage Out of Rangep. 323
000094.03 — Fuel Rail Pressure Input Voltage Highp. 324
000094.03 Fuel Rail Pressure Input Voltage High Diagnostic Procedurep. 325
000094.04 — Fuel Rail Pressure Input Voltage Lowp. 328
000094.04 Fuel Rail Pressure Input Voltage Low Diagnostic Procedurep. 329
000094.10 — Fuel Rail Pressure Loss Detectedp. 332
DTC 000094.10 Fuel Rail Pressure Loss Detected Diagnostic Procedurep. 333
000094.13 — Fuel Rail Pressure Higher Than Expectedp. 336
000094.13 Fuel Rail Pressure Higher Than Expected Diagnostic Procedurep. 337
000094.17 — Fuel Rail Pressure Not Developedp. 340
000094.17 Fuel Rail Pressure Not Developed Diagnostic Procedurep. 341
000097.00 — Water in Fuel Continuously Detectedp. 344
000097.00 Water in Fuel Continuously Detected Diagnostic Procedurep. 345
000097.03 — Water in Fuel Signal Voltage Highp. 348
000097.03 Water In Fuel Signal Voltage High Diagnostic Procedurep. 349
000097.04 — Water in Fuel Signal Voltage Lowp. 352
000097.04 Water In Fuel Signal Voltage Low Diagnostic Procedurep. 353
000097.16 — Water in Fuel Detectedp. 356
000097.16 Water In Fuel Detected Diagnostic Procedurep. 357
000097.31 — Water in Fuel Detectedp. 360
000097.31 Water In Fuel Detected Diagnostic Procedurep. 361
000100.01 — Engine Oil Pressure Extremely Lowp. 364
000100.01 Engine Oil Pressure Extremely Low Diagnostic Procedurep. 366
000100.03 — Engine Oil Pressure Input Voltage Highp. 368
000100.03 Engine Oil Pressure Input Voltage High Diagnostic Procedurep. 369
000100.04 — Engine Oil Pressure Input Voltage Lowp. 372
000100.04 Oil Pressure Input Voltage Low Diagnostic Procedurep. 374
000100.18 — Engine Oil Pressure Moderately Lowp. 378
000100.18 Engine Oil Pressure Moderately Low Diagnostic Procedurep. 379
000102.03 — Manifold Air Pressure Input Voltage Highp. 380
000102.03 Manifold Air Pressure Input Voltage High Diagnostic Procedurep. 381
000102.04 — Manifold Air Pressure Input Voltage Lowp. 384
000102.04 Manifold Air Pressure Input Voltage Low Diagnostic Procedurep. 385
000105.03 — Manifold Air Temperature Input Voltage Highp. 388
000105.03 Manifold Air Temperature Input Voltage High Diagnostic Procedurep. 389
000105.04 — Manifold Air Temperature Input Voltage Lowp. 392
000105.04 Manifold Air Temperature Input Voltage Low Diagnostic Procedurep. 393
000105.16 — Manifold Air Temperature Moderately Highp. 396
000105.16 Manifold Air Temperature Moderately High Diagnostic Procedurep. 397
000107.00 — Air Filter Differential Pressurep. 398
000107.00 Air Filter Differential Pressure Diagnostic Procedurep. 399
000110.00 — Engine Coolant Temperature Extremely Highp. 402
000110.00 Engine Coolant Temperature Extremely High Diagnostic Procedurep. 403
000110.03 — Engine Coolant Temperature Input Voltage Highp. 404
000110.03 Engine Coolant Temperature Input Voltage High Diagnostic Procedurep. 405
000110.04 — Engine Coolant Temperature Input Voltage Lowp. 408
000110.04 Engine Coolant Temperature Input Voltage Low Diagnostic Procedurep. 409
000110.15 — Engine Coolant Temperature High Least Severep. 412
000110.15 Engine Coolant Temperature High Least Severe Diagnostic Procedurep. 413
000110.16 — Engine Coolant Temperature Moderately Highp. 414
000110.16 Engine Coolant Temperature Moderately High Diagnostic Procedurep. 415
000110.31 — Engine Coolant Temperature Highp. 416
000110.31 Engine Coolant Temperature High Diagnostic Procedurep. 417
000111.01 — Engine Coolant Level Lowp. 418
000111.01 Engine Coolant Level Low Diagnostic Procedurep. 419
000158.17 — ECU Power Down Errorp. 422
000158.17 ECU Power Down Error Diagnostic Procedurep. 423
000160.02 — Wheel Speed Input Noisep. 426
000160.02 Wheel Speed Input Noise Diagnostic Procedurep. 427
000174.00 — Fuel Temperature High Most Severep. 430
000174.00 Fuel Temperature High Most Severe Diagnostic Procedurep. 431
000174.03 — Fuel Temperature Input Voltage Highp. 434
000174.03 Fuel Temperature Input Voltage High Diagnostic Procedurep. 435
000174.04 — Fuel Temperature Input Voltage Lowp. 438
000174.04 Fuel Temperature Input Voltage Low Diagnostic Procedurep. 439
000174.16 — Fuel Temperature High Moderately Severep. 442
000174.16 Fuel Temperature High Moderately Severe Diagnostic Procedurep. 443
000189.00 — Engine Speed Deratep. 445
000190.00 — Engine Overspeed Extremep. 446
000190.16 — Engine Overspeed Moderatep. 447
000237.02 — Vehicle Identification Number Invalidp. 448
000237.13 — Vehicle Identification Option Code Invalidp. 449
000237.31 — Vehicle Model Number Invalidp. 450
000523.09 — Gear Selection Invalidp. 452
000611.03 — Electronic Injector Wiring Shorted To Power Sourcep. 454
000611.03 Electronic Injector Wiring Shorted To Power Source Diagnostic Procedurep. 455
000611.04 — Electronic Injector Wiring Shorted To Groundp. 458
000611.04 Electronic Injector Wiring Shorted To Ground Diagnostic Procedurep. 459
000620.03 — Sensor Supply 1 Voltage Highp. 462
000620.03 Sensor Supply 1 Voltage High Diagnostic Procedurep. 463
000620.04 — Sensor Supply 1 Voltage Lowp. 466
000620.04 Sensor Supply 1 Voltage Low Diagnostic Procedurep. 467
000627.01 — Electronic Injector Supply Voltage Problemp. 470
000627.01 Electronic Injector Supply Voltage Problem Diagnostic Procedurep. 471
000629.13 — ECU Errorp. 474
000629.13 ECU Error Diagnostic Procedurep. 475
000636.02 — Pump Position Sensor Input Noisep. 476
000636.02 Pump Position Sensor Input Noise Diagnostic Procedurep. 477
000636.08 — Pump Position Sensor Input Missingp. 480
000636.08 Pump Position Sensor Input Missing Diagnostic Procedurep. 481
000636.10 — Pump Position Sensor Input Pattern Errorp. 484
000636.10 Pump Position Sensor Input Pattern Error Diagnostic Procedurep. 485
000637.02 — Crank Position Input Noisep. 488
000637.02 Crank Position Input Noise Diagnostic Procedurep. 489
000637.07 — Crank Position/Pump Position Timing Moderately Out of Syncp. 492
000637.07 Crank Position/Pump Position Timing Moderately Out of Sync Diagnostic Procedurep. 493
000637.08 — Crank Position Input Missingp. 498
000637.08 Crank Position Input Missing Diagnostic Procedurep. 499
000637.10 — Crank Position Input Pattern Errorp. 502
000637.10 Crank Position Input Pattern Error Diagnostic Procedurep. 503
000639.13 — CAN Bus Errorp. 506
000639.13 CAN Bus Error Diagnostic Procedurep. 507
000640.11 — Engine Shutdown – Vehicle Request Invalidp. 510
000640.11 Engine Shutdown – Vehicle Request Invalid Diagnostic Procedurep. 511
000640.31 — Engine Shutdown – Vehicle Requestp. 514
000651.05 — Cylinder #1 EI Circuit Openp. 516
000651.05 Cylinder #1 EI Circuit Open Diagnostic Procedurep. 517
000651.06 — Cylinder #1 EI Circuit Shortedp. 520
000651.06 Cylinder #1 EI Circuit Shorted Diagnostic Procedurep. 521
000651.07 — Cylinder #1 EI Fuel Delivery Failurep. 524
000651.07 Cylinder #1 EI Fuel Delivery Failure Diagnostic Procedurep. 525
000652.05 — Cylinder #2 EI Circuit Openp. 528
000652.05 Cylinder #2 EI Circuit Open Diagnostic Procedurep. 529
000652.06 — Cylinder #2 EI Circuit Shortedp. 532
000652.06 Cylinder #2 EI Circuit Shorted Diagnostic Procedurep. 533
000652.07 — Cylinder #2 EI Fuel Delivery Failurep. 536
000652.07 Cylinder #2 EI Fuel Delivery Failure Diagnostic Procedurep. 537
000653.05 — Cylinder #3 EI Circuit Openp. 540
000653.05 Cylinder #3 EI Circuit Open Diagnostic Procedurep. 541
000653.06 — Cylinder #3 EI Circuit Shortedp. 544
000653.06 Cylinder #3 EI Circuit Shorted Diagnostic Procedurep. 545
000653.07 — Cylinder #3 EI Fuel Delivery Failurep. 548
000653.07 Cylinder #3 EI Fuel Delivery Failure Diagnostic Procedurep. 549
000654.05 — Cylinder #4 EI Circuit Openp. 552
000654.05 Cylinder #4 EI Circuit Open Diagnostic Procedurep. 553
000654.06 — Cylinder #4 EI Circuit Shortedp. 556
000654.06 Cylinder #4 EI Circuit Shorted Diagnostic Procedurep. 557
000654.07 — Cylinder #4 EI Fuel Delivery Failurep. 560
000654.07 Cylinder #4 EI Fuel Delivery Failure Diagnostic Procedurep. 561
000655.05 — Cylinder #5 EI Circuit Openp. 564
000655.05 Cylinder #5 EI Circuit Open Diagnostic Procedurep. 565
000655.06 — Cylinder #5 EI Circuit Shortedp. 568
000655.06 Cylinder #5 EI Circuit Shorted Diagnostic Procedurep. 569
000655.07 — Cylinder #5 EI Fuel Delivery Failurep. 572
000655.07 Cylinder #5 EI Fuel Delivery Failure Diagnostic Procedurep. 573
000656.05 — Cylinder #6 EI Circuit Openp. 576
000656.05 Cylinder #6 EI Circuit Open Diagnostic Procedurep. 577
000656.06 — Cylinder #6 EI Circuit Shortedp. 580
000656.06 Cylinder #6 EI Circuit Shorted Diagnostic Procedurep. 581
000656.07 — Cylinder #6 EI Fuel Delivery Failurep. 584
000656.07 Cylinder #6 EI Fuel Delivery Failure Diagnostic Procedurep. 585
000898.09 — Vehicle Speed or Torque Message Invalidp. 588
000970.31 — Engine Shutdown – Auxiliary Requestp. 590
000971.31 — External Fuel Derate Switch Activep. 591
001069.09 — Tire Size Invalidp. 592
001069.31 — Tire Size Errorp. 593
001079.03 — Sensor Supply 2 Voltage Highp. 594
001079.03 Sensor Supply 2 Voltage High Diagnostic Procedurep. 595
001079.04 — Sensor Supply 2 Voltage Lowp. 598
001079.04 Sensor Supply 2 Voltage Low Diagnostic Procedurep. 599
001080.03 — Fuel Rail Pressure Sensor Supply Voltage Highp. 602
001080.03 Fuel Rail Pressure Sensor Supply Voltage High Diagnostic Procedurep. 603
001080.04 — Fuel Rail Pressure Sensor Supply Voltage Lowp. 606
001080.04 Fuel Rail Pressure Sensor Supply Voltage Low Diagnostic Procedurep. 607
001109.31 — Engine Protection Shutdown Warningp. 610
001110.31 — Engine Protection Shutdownp. 611
001347.05 — Pump Control Valve #1 Errorp. 612
001347.05 Pump Control Valve #1 Error Diagnostic Procedurep. 613
001347.07 — Fuel Rail Pressure Control Errorp. 616
001347.07 Fuel Rail Pressure Control Error Diagnostic Procedurep. 617
001347.10 — Pump Control Valve #1 Fuel Flow Not Detectedp. 622
001347.10 — Pump Control Valve #1 Fuel Flow Not Detectedp. 623
001347.10 Pump Control Valve #1 Fuel Flow Not Detected Diagnostic Procedurep. 623
001348.05 — Pump Control Valve #2 Errorp. 626
001348.05 Pump Control Valve #2 Error Diagnostic Procedurep. 627
001348.10 — Pump Control Valve #2 Fuel Flow Not Detectedp. 630
001348.10 — Pump Control Valve #2 Fuel Flow Not Detectedp. 631
001348.10 Pump Control Valve #2 Fuel Flow Not Detected Diagnostic Procedurep. 631
001568.02 — Torque Curve Selection Invalidp. 634
001568.09 — Torque Curve Selection Missingp. 635
001569.31 — Fuel Deratep. 636
001639.01 — Fan Speed Input Missingp. 638
001639.01 Fan Speed Input Missing Diagnostic Procedurep. 639
001639.02 — Fan Speed Input Erraticp. 642
001639.02 Fan Speed Input Erratic Diagnostic Procedurep. 643
001639.16 — Fan Speed Higher Than Expectedp. 646
001639.16 Fan Speed Higher Than Expected Diagnostic Procedurep. 647
001639.18 — Fan Speed Lower Than Expectedp. 650
001639.18 Fan Speed Lower Than Expected Diagnostic Procedurep. 651
002000.09 — Vehicle ID Missingp. 654
002000.13 — Security Violationp. 655
002005.09 — ACU Signal Missingp. 656
002049.09 — CAB Signal Missingp. 657
002071.09 — CCU Signal Missingp. 658
Toolsp. 659
Electronic Fuel/Control System Repair Tools and Other Materialsp. 661
Group 090 – Electronic Fuel System Repair and Adjustment Essential Toolsp. 661
Fuel System Repair and Adjustment Other Materialsp. 663
Group 110 – Electronic Engine Control Repair Toolsp. 664
Control Repair and Adjustment Other Materialsp. 670
Diagnostic Service Toolsp. 671
Group 150/160 – Electronic Fuel System Diagnostic Toolsp. 671
Specificationsp. 675
Repair Specificationsp. 677
Unified Inch Bolt and Cap Screw Torque Valuesp. 677
Metric Bolt and Cap Screw Torque Valuesp. 678
General OEM Engine Specificationsp. 679
Electronic Fuel System Repair and Adjustment Specificationsp. 681
Electronic Engine Control Repair and Adjustment Specificationsp. 684
Diagnostic Specificationsp. 685
Fuel System Diagnostic Specificationsp. 685
Application Specificationsp. 687
Articulated Dump Trucks – Sensor Specificationsp. 690
Articulated Dump Trucks – Torque Curve Selectionp. 691
Articulated Dump Trucks – Governor Mode Selectionp. 691
Articulated Dump Trucks – ECU Terminal Identificationp. 692
Combines – Sensor Specificationsp. 693
Combines – Torque Curve Selectionp. 694
Combines – Governor Mode Selectionp. 694
Combines – ECU Terminal Identificationp. 695
Excavators – Sensor Specificationsp. 697
Excavators – Torque Curve Selectionp. 698
Excavators – Governor Mode Selectionp. 698
Excavators – ECU Terminal Identificationp. 699
Feller Bunchers – Sensor Specificationsp. 701
Feller Bunchers – Torque Curve Selectionp. 703
Feller Bunchers – Governor Mode Selectionp. 703
Feller Bunchers – ECU Terminal Identificationp. 704
Forwarders – Sensor Specificationsp. 706
Forwarders – Torque Curve Selectionp. 707
Forwarders – Governor Mode Selectionp. 707
Forwarders – ECU Terminal Identificationp. 708
Harvesters – Forestry – Sensor Specificationsp. 709
Harvesters – Forestry – Torque Curve Selectionp. 710
Harvesters – Forestry – Governor Mode Selectionp. 710
Harvesters – Forestry – ECU Terminal Identificationp. 711
Loaders – Sensor Specificationsp. 712
Loaders – Torque Curve Selectionp. 713
Loaders – Governor Mode Selectionp. 713
Loaders – ECU Terminal Identificationp. 714
OEM Engines – Sensor Specificationsp. 715
OEM Engines – Torque Curve Selectionp. 718
OEM Engines – Governor Mode Selection With OC03040 Software or Laterp. 719
OEM Engines – Governor Mode Selection With OC03036 Software or Earlierp. 719
OEM Engines – ECU Terminal Identificationp. 720
OEM Engines – ECU Terminal Identification – Continuedp. 721
Electronic Control System Wiring Diagramp. 722
6081 OEM Application Instrument Panel/Engine Start Components Electrical Wiring Diagramp. 724
6081 OEM Application Instrument Panel/Engine Start Components Electrical Wiring Diagram – Continuedp. 725
Self Propelled Forage Harvester – Sensor Specificationsp. 726
Self Propelled Forage Harvester – Torque Curve Selectionp. 727
Self Propelled Forage Harvester – Governor Mode Selectionp. 727
Self Propelled Forage Harvester – ECU Terminal Identificationp. 728
Skidders – Forestry – Sensor Specificationsp. 729
Skidders – Forestry – Torque Curve Selectionp. 730
Skidders – Forestry – Governor Mode Selectionp. 730
Skidders – Forestry – ECU Terminal Identificationp. 731
Tractors – 7010 Series – Sensor Specificationsp. 732
Tractors – 7010 Series – Torque Curve Selectionp. 733
Tractors – 7010 Series – Governor Mode Selectionp. 734
Tractors – 7010 Series – ECU Terminal Identificationp. 735
Tractors – 7020 Series – Sensor Specificationsp. 736
Tractors – 7020 Series – Torque Curve Selectionp. 738
Tractors – 7020 Series – Governor Mode Selectionp. 739
Tractors – 7020 Series – ECU Terminal Identificationp. 740
Tractors – 8020 Series – Sensor Specificationsp. 742
Tractors – 8020 Series – Torque Curve Selectionp. 743
Tractors – 8020 Series – Governor Mode Selectionp. 743
Tractors – 8020 Series – ECU Terminal Identificationp. 744
Tractors – 9120 Series – Sensor Specificationsp. 745
Tractors – 9120 Series – Torque Curve Selectionp. 746
Tractors – 9120 Series – Governor Mode Selectionp. 746
Tractors – 9120 Series – ECU Terminal Identificationp. 747
Page Numbersp. 3
Section 01p. 5
Group 000p. 7
1p. 7
2p. 8
3p. 9
4p. 10
5p. 11
6p. 12
7p. 13
8p. 14
9p. 15
10p. 16
Group 001p. 17
1p. 17
2p. 18
3p. 19
4p. 20
5p. 21
6p. 22
Group 002p. 23
1p. 23
2p. 24
3p. 25
4p. 26
5p. 27
6p. 28
Section 02p. 27
Group 090p. 29
1p. 29
2p. 30
3p. 31
4p. 32
5p. 33
6p. 34
7p. 35
8p. 36
9p. 37
10p. 38
11p. 39
12p. 40
13p. 41
14p. 42
15p. 43
16p. 44
17p. 45
18p. 46
19p. 47
20p. 48
21p. 49
22p. 50
23p. 51
24p. 52
25p. 53
26p. 54
27p. 55
28p. 56
29p. 57
30p. 58
Group 110p. 59
1p. 59
2p. 60
3p. 61
4p. 62
5p. 63
6p. 64
7p. 65
8p. 66
9p. 67
10p. 68
11p. 69
12p. 70
13p. 71
14p. 72
15p. 73
16p. 74
17p. 75
18p. 76
19p. 77
20p. 78
21p. 79
22p. 80
23p. 81
24p. 82
25p. 83
26p. 84
27p. 85
28p. 86
Section 03p. 85
Group 130p. 87
1p. 87
2p. 88
3p. 89
4p. 90
5p. 91
6p. 92
7p. 93
8p. 94
9p. 95
10p. 96
11p. 97
12p. 98
Group 140p. 99
1p. 99
2p. 100
3p. 101
4p. 102
5p. 103
6p. 104
7p. 105
8p. 106
9p. 107
10p. 108
11p. 109
12p. 110
13p. 111
14p. 112
15p. 113
16p. 114
17p. 115
18p. 116
19p. 117
20p. 118
21p. 119
22p. 120
23p. 121
24p. 122
25p. 123
26p. 124
27p. 125
28p. 126
29p. 127
30p. 128
31p. 129
32p. 130
33p. 131
34p. 132
Section 04p. 125
Group 150p. 133
1p. 133
2p. 134
3p. 135
4p. 136
5p. 137
6p. 138
7p. 139
8p. 140
9p. 141
10p. 142
11p. 143
12p. 144
13p. 145
14p. 146
15p. 147
16p. 148
17p. 149
18p. 150
19p. 151
20p. 152
21p. 153
22p. 154
23p. 155
24p. 156
25p. 157
26p. 158
27p. 159
28p. 160
29p. 161
30p. 162
31p. 163
32p. 164
33p. 165
34p. 166
35p. 167
36p. 168
37p. 169
38p. 170
39p. 171
40p. 172
41p. 173
42p. 174
43p. 175
44p. 176
45p. 177
46p. 178
47p. 179
48p. 180
49p. 181
50p. 182
51p. 183
52p. 184
53p. 185
54p. 186
55p. 187
56p. 188
57p. 189
58p. 190
59p. 191
60p. 192
Group 160p. 193
1p. 193
2p. 194
3p. 195
4p. 196
5p. 197
6p. 198
7p. 199
8p. 200
9p. 201
10p. 202
11p. 203
12p. 204
13p. 205
14p. 206
15p. 207
16p. 208
17p. 209
18p. 210
19p. 211
20p. 212
21p. 213
22p. 214
23p. 215
24p. 216
25p. 217
26p. 218
27p. 219
28p. 220
29p. 221
30p. 222
31p. 223
32p. 224
33p. 225
34p. 226
35p. 227
36p. 228
37p. 229
38p. 230
39p. 231
40p. 232
41p. 233
42p. 234
43p. 235
44p. 236
45p. 237
46p. 238
47p. 239
48p. 240
49p. 241
50p. 242
51p. 243
52p. 244
53p. 245
54p. 246
55p. 247
56p. 248
57p. 249
58p. 250
59p. 251
60p. 252
61p. 253
62p. 254
63p. 255
64p. 256
65p. 257
66p. 258
67p. 259
68p. 260
69p. 261
70p. 262
71p. 263
72p. 264
73p. 265
74p. 266
75p. 267
76p. 268
77p. 269
78p. 270
79p. 271
80p. 272
81p. 273
82p. 274
83p. 275
84p. 276
85p. 277
86p. 278
87p. 279
88p. 280
89p. 281
90p. 282
91p. 283
92p. 284
93p. 285
94p. 286
95p. 287
96p. 288
97p. 289
98p. 290
99p. 291
100p. 292
101p. 293
102p. 294
103p. 295
104p. 296
105p. 297
106p. 298
107p. 299
108p. 300
109p. 301
110p. 302
111p. 303
112p. 304
113p. 305
114p. 306
115p. 307
116p. 308
117p. 309
118p. 310
119p. 311
120p. 312
121p. 313
122p. 314
123p. 315
124p. 316
125p. 317
126p. 318
127p. 319
128p. 320
129p. 321
130p. 322
131p. 323
132p. 324
133p. 325
134p. 326
135p. 327
136p. 328
137p. 329
138p. 330
139p. 331
140p. 332
141p. 333
142p. 334
143p. 335
144p. 336
145p. 337
146p. 338
147p. 339
148p. 340
149p. 341
150p. 342
151p. 343
152p. 344
153p. 345
154p. 346
155p. 347
156p. 348
157p. 349
158p. 350
159p. 351
160p. 352
161p. 353
162p. 354
163p. 355
164p. 356
165p. 357
166p. 358
167p. 359
168p. 360
169p. 361
170p. 362
171p. 363
172p. 364
173p. 365
174p. 366
175p. 367
176p. 368
177p. 369
178p. 370
179p. 371
180p. 372
181p. 373
182p. 374
183p. 375
184p. 376
185p. 377
186p. 378
187p. 379
188p. 380
189p. 381
190p. 382
191p. 383
192p. 384
193p. 385
194p. 386
195p. 387
196p. 388
197p. 389
198p. 390
199p. 391
200p. 392
201p. 393
202p. 394
203p. 395
204p. 396
205p. 397
206p. 398
207p. 399
208p. 400
209p. 401
210p. 402
211p. 403
212p. 404
213p. 405
214p. 406
215p. 407
216p. 408
217p. 409
218p. 410
219p. 411
220p. 412
221p. 413
222p. 414
223p. 415
224p. 416
225p. 417
226p. 418
227p. 419
228p. 420
229p. 421
230p. 422
231p. 423
232p. 424
233p. 425
234p. 426
235p. 427
236p. 428
237p. 429
238p. 430
239p. 431
240p. 432
241p. 433
242p. 434
243p. 435
244p. 436
245p. 437
246p. 438
247p. 439
248p. 440
249p. 441
250p. 442
251p. 443
252p. 444
253p. 445
254p. 446
255p. 447
256p. 448
257p. 449
258p. 450
259p. 451
260p. 452
261p. 453
262p. 454
263p. 455
264p. 456
265p. 457
266p. 458
267p. 459
268p. 460
269p. 461
270p. 462
271p. 463
272p. 464
273p. 465
274p. 466
275p. 467
276p. 468
277p. 469
278p. 470
279p. 471
280p. 472
281p. 473
282p. 474
283p. 475
284p. 476
285p. 477
286p. 478
287p. 479
288p. 480
289p. 481
290p. 482
291p. 483
292p. 484
293p. 485
294p. 486
295p. 487
296p. 488
297p. 489
298p. 490
299p. 491
300p. 492
301p. 493
302p. 494
303p. 495
304p. 496
305p. 497
306p. 498
307p. 499
308p. 500
309p. 501
310p. 502
311p. 503
312p. 504
313p. 505
314p. 506
315p. 507
316p. 508
317p. 509
318p. 510
319p. 511
320p. 512
321p. 513
322p. 514
323p. 515
324p. 516
325p. 517
326p. 518
327p. 519
328p. 520
329p. 521
330p. 522
331p. 523
332p. 524
333p. 525
334p. 526
335p. 527
336p. 528
337p. 529
338p. 530
339p. 531
340p. 532
341p. 533
342p. 534
343p. 535
344p. 536
345p. 537
346p. 538
347p. 539
348p. 540
349p. 541
350p. 542
351p. 543
352p. 544
353p. 545
354p. 546
355p. 547
356p. 548
357p. 549
358p. 550
359p. 551
360p. 552
361p. 553
362p. 554
363p. 555
364p. 556
365p. 557
366p. 558
367p. 559
368p. 560
369p. 561
370p. 562
371p. 563
372p. 564
373p. 565
374p. 566
375p. 567
376p. 568
377p. 569
378p. 570
379p. 571
380p. 572
381p. 573
382p. 574
383p. 575
384p. 576
385p. 577
386p. 578
387p. 579
388p. 580
389p. 581
390p. 582
391p. 583
392p. 584
393p. 585
394p. 586
395p. 587
396p. 588
397p. 589
398p. 590
399p. 591
400p. 592
401p. 593
402p. 594
403p. 595
404p. 596
405p. 597
406p. 598
407p. 599
408p. 600
409p. 601
410p. 602
411p. 603
412p. 604
413p. 605
414p. 606
415p. 607
416p. 608
417p. 609
418p. 610
419p. 611
420p. 612
421p. 613
422p. 614
423p. 615
424p. 616
425p. 617
426p. 618
427p. 619
428p. 620
429p. 621
430p. 622
431p. 623
432p. 624
433p. 625
434p. 626
435p. 627
436p. 628
437p. 629
438p. 630
439p. 631
440p. 632
441p. 633
442p. 634
443p. 635
444p. 636
445p. 637
446p. 638
447p. 639
448p. 640
449p. 641
450p. 642
451p. 643
452p. 644
453p. 645
454p. 646
455p. 647
456p. 648
457p. 649
458p. 650
459p. 651
460p. 652
461p. 653
462p. 654
463p. 655
464p. 656
465p. 657
466p. 658
467p. 659
468p. 660
Section 05p. 659
Group 170p. 661
1p. 661
2p. 662
3p. 663
4p. 664
5p. 665
6p. 666
7p. 667
8p. 668
9p. 669
10p. 670
Group 180p. 671
1p. 671
2p. 672
3p. 673
4p. 674
5p. 675
6p. 676
Section 06p. 675
Group 200p. 677
1p. 677
2p. 678
3p. 679
4p. 680
5p. 681
6p. 682
7p. 683
8p. 684
Group 210p. 685
1p. 685
2p. 686
3p. 687
4p. 688
5p. 689
6p. 690
7p. 691
8p. 692
9p. 693
10p. 694
11p. 695
12p. 696
13p. 697
14p. 698
15p. 699
16p. 700
17p. 701
18p. 702
19p. 703
20p. 704
21p. 705
22p. 706
23p. 707
24p. 708
25p. 709
26p. 710
27p. 711
28p. 712
29p. 713
30p. 714
31p. 715
32p. 716
33p. 717
34p. 718
35p. 719
36p. 720
37p. 721
38p. 722
39p. 723
40p. 724
41p. 725
42p. 726
43p. 727
44p. 728
45p. 729
46p. 730
47p. 731
48p. 732
49p. 733
50p. 734
51p. 735
52p. 736
53p. 737
54p. 738
55p. 739
56p. 740
57p. 741
58p. 742
59p. 743
60p. 744
61p. 745
62p. 746
63p. 747
64p. 748

Taken together, this John Deere CTM255 manual gives a technician everything needed to service the Level 9 HPCR fuel system correctly from end to end — identification, teardown and reassembly procedures, circuit theory, DTC-driven diagnostics, and the exact torque and performance specifications to check the work against.

Engine Coverage

This PowerTech 8.1L Denso HPCR manual documents the 6081H engine family across two application groups shown in the general specifications: 6081HF001 (Engine S.N. —199,999) and 6081HF070 (Engine S.N. 200,000— ), both in-line 6-cylinder, 4-cycle, turbocharged and air-to-air aftercooled diesels with 8.1 L (496 cu in.) displacement, 116 mm bore, 129 mm stroke, and a 15.7:1 compression ratio. The engine application chart lists the specific machines these engines were installed in, including John Deere 7710/7810, 7820, 7920, 8120/8220, 8320, 8420, 8520, and 9120 tractors; 9550/9650/9650 CTS/9750 STS and Zweibrucken 9560–9780 combines; 7200 self-propelled forage harvester; 644H/724H loaders; Hitachi 330CLC/370C excavators; Timberjack/John Deere feller bunchers, forwarders, harvesters, and skidders; the Bell 250D/300D articulated dump truck; and OEM industrial and genset engines rated from 200 to 413 HP.

IMAGES PREVIEW

John Deere PowerTech 8.1L Level 9 Denso HPCR Fuel System Technical Manual CTM255 — PDF page 1 preview
John Deere PowerTech 8.1L Level 9 Denso HPCR Fuel System Technical Manual CTM255 — PDF page 34 preview
John Deere PowerTech 8.1L Level 9 Denso HPCR Fuel System Technical Manual CTM255 — PDF page 39 preview

What This Manual Enables

With the John Deere PowerTech 8.1L Level 9 Denso HPCR Fuel System Technical Manual CTM255, a technician can correctly relieve fuel system pressure, service the primary and final fuel filters and water separator, remove and install the high pressure fuel pump and common rail, replace flow limiters and the pressure limiter, and remove and install the electronic injectors — all using the exact torque values and timing procedures John Deere specifies. The diagnostics sections walk through both observable symptom diagnosis (hard starting, low power, smoke, no-crank, abnormal noise) and full DTC-based diagnostic procedures, so faults can be traced to a specific sensor or circuit instead of guessed at. Because HPCR fuel systems run at extremely high pressure and the electronic injectors cannot be field-serviced, following the correct procedure in this CTM255 manual isn’t optional — it’s what keeps the repair safe and the engine running to factory specification. This is an instant PDF download: there’s no shipping and no waiting, you can access it immediately on a phone, tablet, laptop, or in the shop, and you’re free to print any page you need at the bench.

Reviews

There are no reviews yet.

Be the first to review “John Deere PowerTech 8.1L Level 9 Denso HPCR Fuel System Technical Manual CTM255”

What Our Customers Say

★★★★★ Live reviews from customers
Loading customer reviews...

🌟 Related Products

Discover more professional manuals for your equipment

-40% OFF
Kubota OC60-E2 OC95-E2 Diesel Engine Workshop Manual PDF

Kubota OC60-E2 OC95-E2 Diesel Engine Workshop Manual PDF

★★★★★ (83 reviews)
$24.95 $14.95
DOWNLOAD
-39% OFF
Kubota WG1903-E3 WG2503-E3 Gasoline LPG Natural Gas Engine Workshop Manual
-43% OFF
Ford R2 Diesel Engine Workshop Manual

Ford R2 Diesel Engine Workshop Manual

★★★★★ (188 reviews)
$34.95 $19.95
DOWNLOAD
-39% OFF
DEUTZ TD/TCD 2013 L04 2V Mechanical Injection Workshop Manual
0
    0
    Your Cart
    Your cart is emptyReturn to Shop
    Start Downloading your Manual immediately by proceeding to checkout page
    Continue Shopping
    🛒
    Recently Purchased
    🕒 verified order
