Hitachi ZX130-5G to ZX350LC-5G Hydraulic Excavator Operator Manual 2019 – ENMDCD-LA3-4

Description

Hitachi ZX130-5G to ZX350LC-5G Hydraulic Excavator Operator Manual

This is the full English operator manual for the Hitachi ZX-5G generation of hydraulic excavators, covering eight machine variants across the small, mid-size and large classes. Published in 2019 under document number ENMDCD-LA3-4, it is the reference every operator, foreman and shop technician reaches for when a lever, a warning icon or a maintenance interval needs a definitive answer rather than a guess.

The manual walks the complete machine lifecycle in one volume: climbing aboard and adjusting the operator’s station, reading the multi function monitor, starting and warming the engine in cold or ordinary temperatures, driving and steering with pedals or levers, digging and grading safely, loading onto a trailer, servicing every system on a schedule, and diagnosing faults through the troubleshooting tables. Rather than a handful of scattered tips, it is a structured factory document that supports both day-to-day operation and long-term ownership of the ZX130-5G, ZX160LC-5G, ZX180LC-5G, ZX210-5G, ZX210LC-5G, ZX250LC-5G, ZX290LC-5G and ZX350LC-5G.

File Details

• Manual type: Operator’s Manual (Operation and Maintenance)
• Brand: Hitachi Construction Machinery
• Document number: ENMDCD-LA3-4
• Edition / date: 2019
• Language: English
• Page count: 436 pages
• File format: PDF
• Models covered: ZX130-5G, ZX160LC-5G, ZX180LC-5G, ZX210-5G, ZX210LC-5G, ZX250LC-5G, ZX290LC-5G, ZX350LC-5G

Chapters Covered

• Safety – Safety alert symbols and signal words, protective clothing, seat belt, safe movement and operation, avoiding tipping, power lines, object handling, parking, transporting, safe maintenance, high-pressure fluids, preventing fires, exhaust fumes, welding and grinding, accumulator and gas damper handling, battery safety, chemical handling, waste disposal, ROPS notes, safety signs

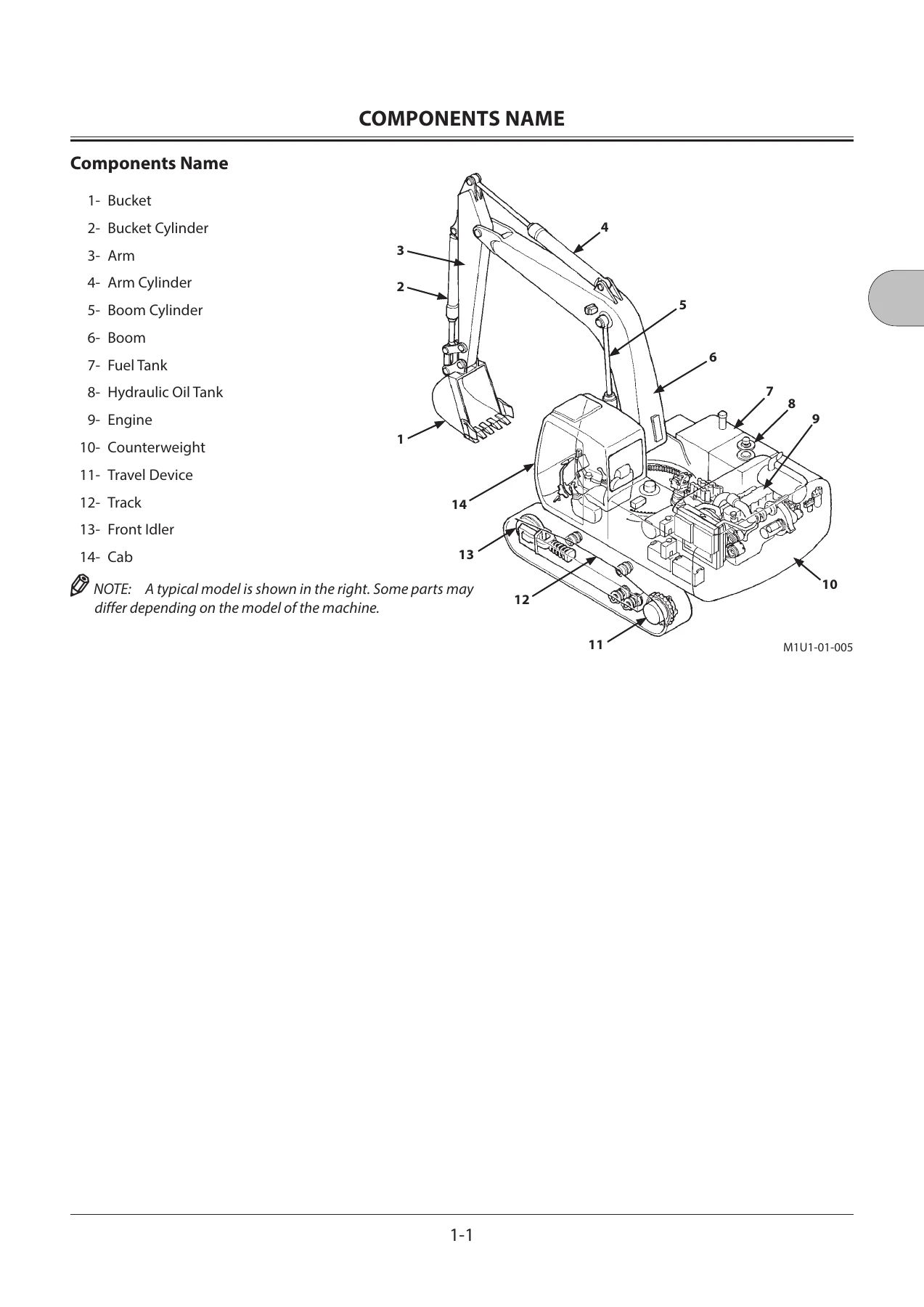

• Components Name
• Getting On/Off the Machine
• Operator’s Station – Cab features, multi function monitor, basic screen, how to use screens, hour meter, clock, fuel gauge, coolant temperature gauge, operating status icon display, security functions (optional), password input, alarm occurrence screen, remedies, main menu, air conditioner, radio, work mode, attachment selection, mail (optional), setting menu, date and time, display mode, attachment adjustment, flow rate adjustment, attachment name input, password change (optional), sub meter
• Operating the Engine – Inspecting machine daily before starting, starting the engine in ordinary and cold temperatures, using booster batteries, stopping the engine
• Driving the Machine – Driving safely, steering with pedals, steering with levers, travel mode switch, travel alarm, operating on soft ground, towing, operating in water or mud, parking the machine

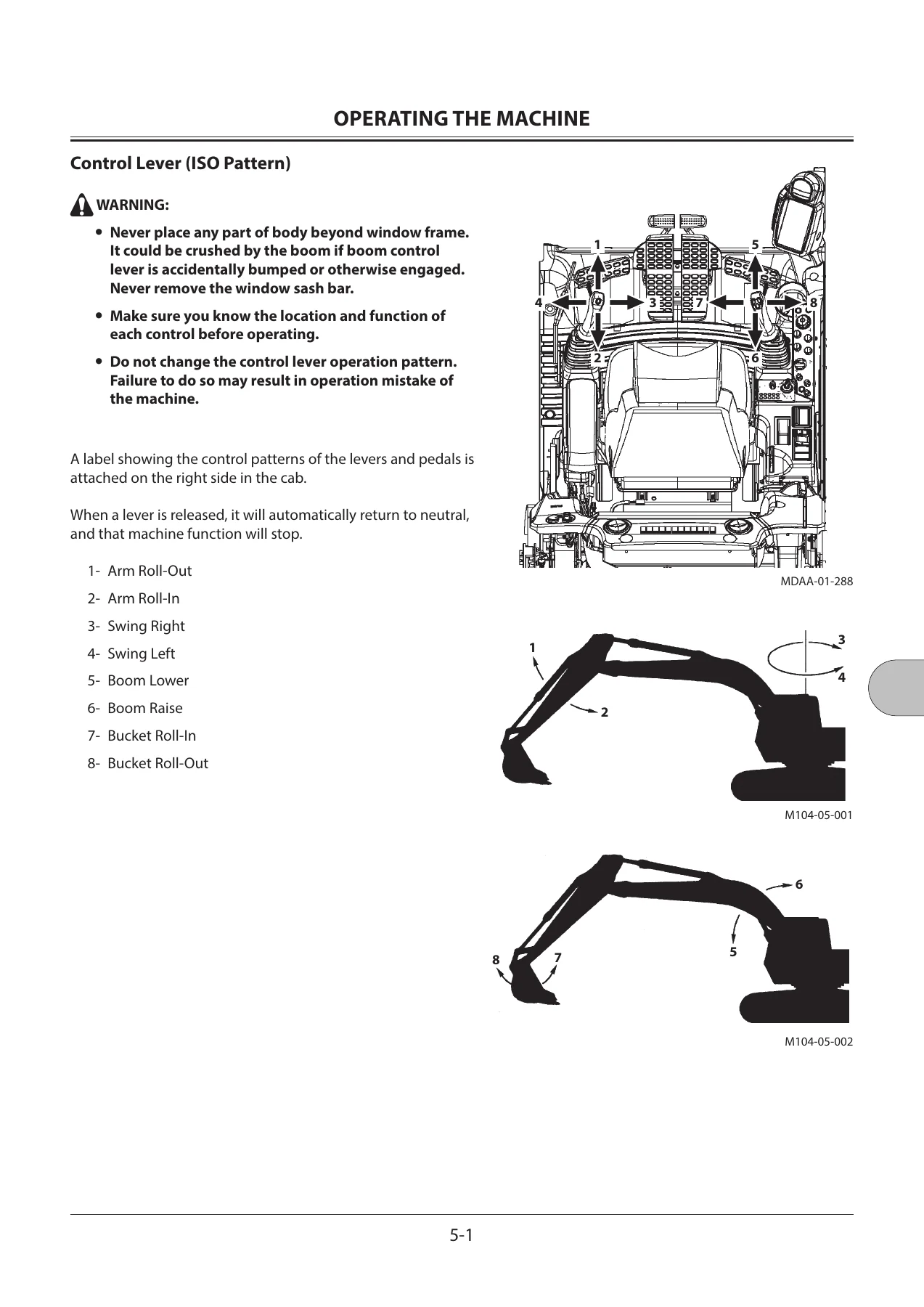

• Operating the Machine – Control lever patterns (ISO and Hitachi), pilot control shut-off lever, warming-up, engine speed control, auto-idle, work mode, attachment selection, power boost switch, power mode, backhoe and shovel operation, grading, abusive operation, hydraulic breaker and crusher operation, attachment weights and limits, attachment connection parts, arm roll-in precautions, shackle hole usage, lowering boom in an emergency, precautions after operations
• Transporting – Transporting by road, loading and unloading on a trailer, fastening the machine, lifting the machine
• Maintenance – Correct maintenance and inspection procedures, maintenance guide table, preparations for inspection and maintenance, hood and access covers, greasing, engine oil and filter, pump transmission, swing device, travel reduction gear, hydraulic system, fuel system, air cleaner, cooling system, electrical system, bucket teeth, bucket change, seat belt, windshield fluid, track sag, air conditioner filter, cab floor, injection nozzle, valve clearance, injection timing, compression pressure, starter and alternator, gas damper, tightening torque tables
• Maintenance Under Special Environmental Conditions – Muddy soil, rain, snow, ocean exposure, dusty atmosphere, rocky ground, falling stones, freezing weather
• Storage – Long-term storage precautions, disconnecting and reconnecting batteries
• Troubleshooting – Engine auxiliaries, starting problems, control lever faults, hydraulic system faults, drive function faults, swing function faults, engine speed and pump control faults
• Specifications – Dimensions, working ranges, shoe types, bucket types and applications for every covered model
• Optional Attachments and Devices – Pad crawler shoes, blade lever, blade maintenance, transport positions, specifications with blade
• Index

Read as a whole, the document gives a technician a single authoritative path from “what does this warning icon mean on the monitor” all the way through to “what is the correct tightening torque for the swing bearing mounting bolts on a ZX350LC-5G.” Every covered machine gets its own specification set, its own working range diagrams, its own shoe and bucket applications, and its own capacity and torque tables, so the manual stays useful across the whole ZX-5G family rather than forcing the reader to interpolate between models.

What You Can Do With It

With the Hitachi ZX130-5G to ZX350LC-5G Hydraulic Excavator Operator Manual open, a competent operator or mechanic can:

• Set up the machine for a new operator – seat height and tilt, fore-aft position, suspension stiffness, armrest angle, console height, mirrors and rear view camera
• Configure the multi function monitor – work mode, attachment selection, flow rate and priority adjustments, language, unit system, brightness, maintenance notice
• Start the engine correctly in ordinary or cold weather, warm up the hydraulic oil to the correct operating range, and shut down without damaging the turbocharger
• Operate safely on slopes, soft ground, near power lines, and when loading a trailer, with the correct travel mode and bucket position
• Interpret every alarm on the monitor – overheat, engine trouble, engine oil pressure, alternator, fuel level, pilot control shut-off lever – and apply the listed remedy
• Perform the full maintenance schedule from 8-hour daily checks through to 5000-hour service, with the correct oil, coolant and grease for each system
• Change engine oil and filter, hydraulic oil, full-flow filter, pilot filter, air breather element, fuel filters, suction filter, gear oils and grease points with the correct capacities and torque values
• Check and adjust track sag within the correct range for each model, using the correct valve and grease procedures
• Read and interpret the tightening torque charts for chassis, hydraulic, undercarriage and cab fasteners
• Troubleshoot a machine that will not start, loses power, has no hydraulic function, will not travel, will not swing, or shows an engine speed or pump control fault
• Install, operate and maintain optional attachments including hydraulic breakers, crushers, quick couplers, pad crawler shoes and blades, respecting the allowable weight limits for each model
• Prepare the machine for long-term storage or for return to service after storage

Why It Matters

A ZX-5G excavator is an expensive, heavy, high-consequence machine. The difference between the right hydraulic oil and the wrong one, the correct track sag and the wrong one, or the correct relief valve pressure and the wrong one is measured in wear, downtime and sometimes injury. The specification pages, the capacity tables and the torque charts in this manual are the values Hitachi published for these specific serial numbers – not generic values that might suit a similar-looking machine of a different generation. Cross-referencing the correct chapter before a repair, rather than after, is what keeps a machine productive and a workforce safe.

IMAGES PREVIEW

Instant PDF Delivery

The manual is delivered as a downloadable PDF immediately after checkout. There is no shipping, no waiting for a printed book, and no restriction on which device you read it on – a laptop in the shop, a tablet in the cab, or a phone next to the machine. Print the pages you need for the job at hand, or search the whole document for the exact specification, alarm name or torque value in seconds.
