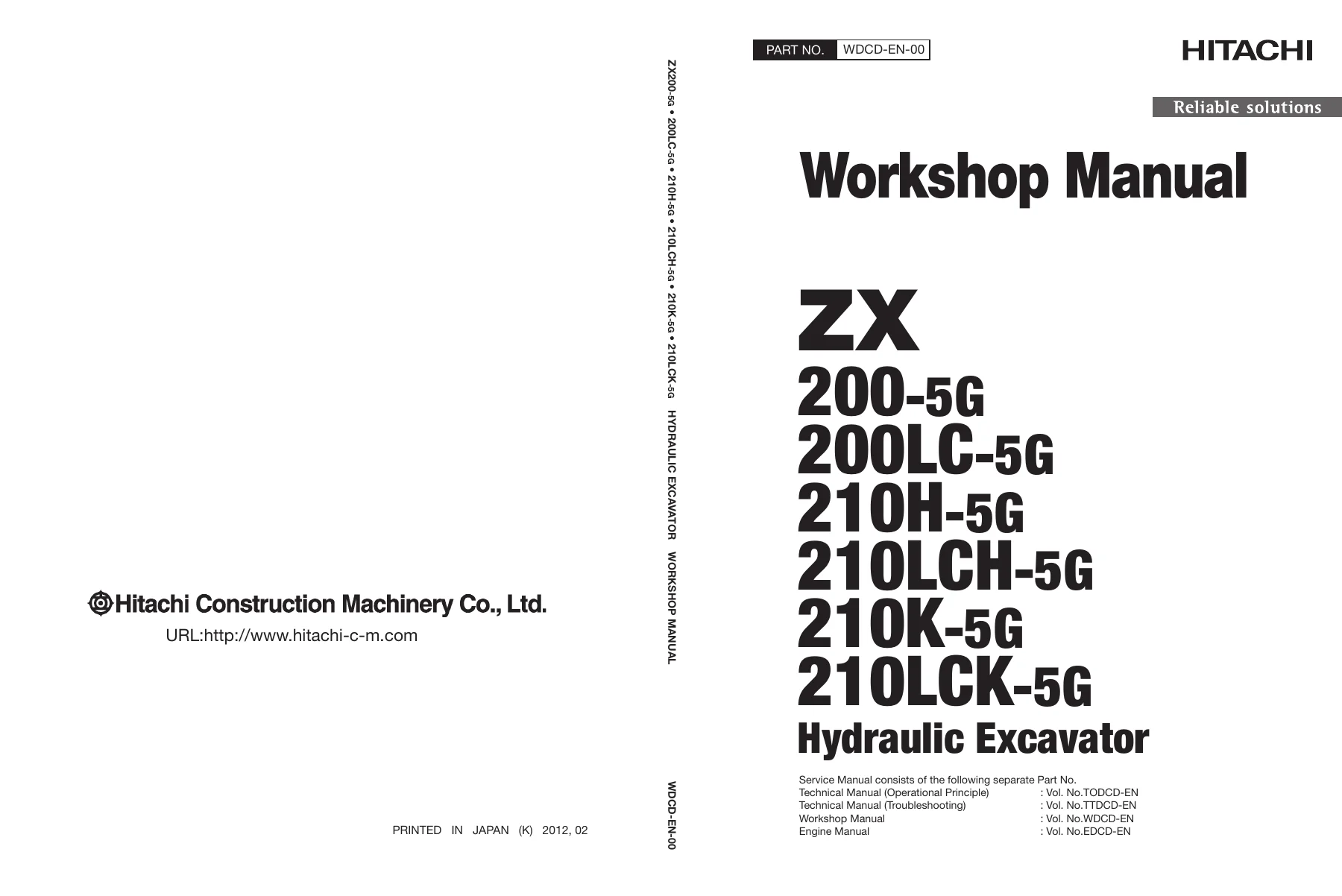

Hitachi ZX200-5G ZX210-5G Excavator Workshop Manual WDCD-EN-00 2012

Description

Hitachi ZX200-5G ZX210-5G Excavator Workshop Manual WDCD-EN-00 2012

This Hitachi ZX200-5G ZX210-5G Excavator Workshop Manual (document number WDCD-EN-00, published 2012) is the complete removal, installation, disassembly, assembly and maintenance-standard reference for the ZX200-5G and ZX210-5G excavator families. It is written for the experienced technician working on the machine in a shop environment, and it pairs with the Technical Manual (Operational Principle) and Technical Manual (Troubleshooting) volumes that Hitachi publishes for the same model range.

File Details

• Manual type: Workshop Manual (Removal and Installation, Disassembly and Assembly)
• Brand: Hitachi Construction Machinery
• Models: ZX200-5G, ZX200LC-5G, ZX210H-5G, ZX210LCH-5G, ZX210K-5G, ZX210LCK-5G
• Document number: WDCD-EN-00
• Date: 2012
• Language: English
• Format: PDF
• Page count: Approximately 502 pages

Chapters Covered

• Section 1 General Information — Precautions for Disassembling and Assembling, Tightening (bolts, nuts, piping joints, split flange, nut and bolt locking, quick coupling, screw-in connections, low-pressure hose clamps), Painting, Bleeding Air (hydraulic oil tank, hydraulic system, fuel system), Pressure Release Procedure, Preparation

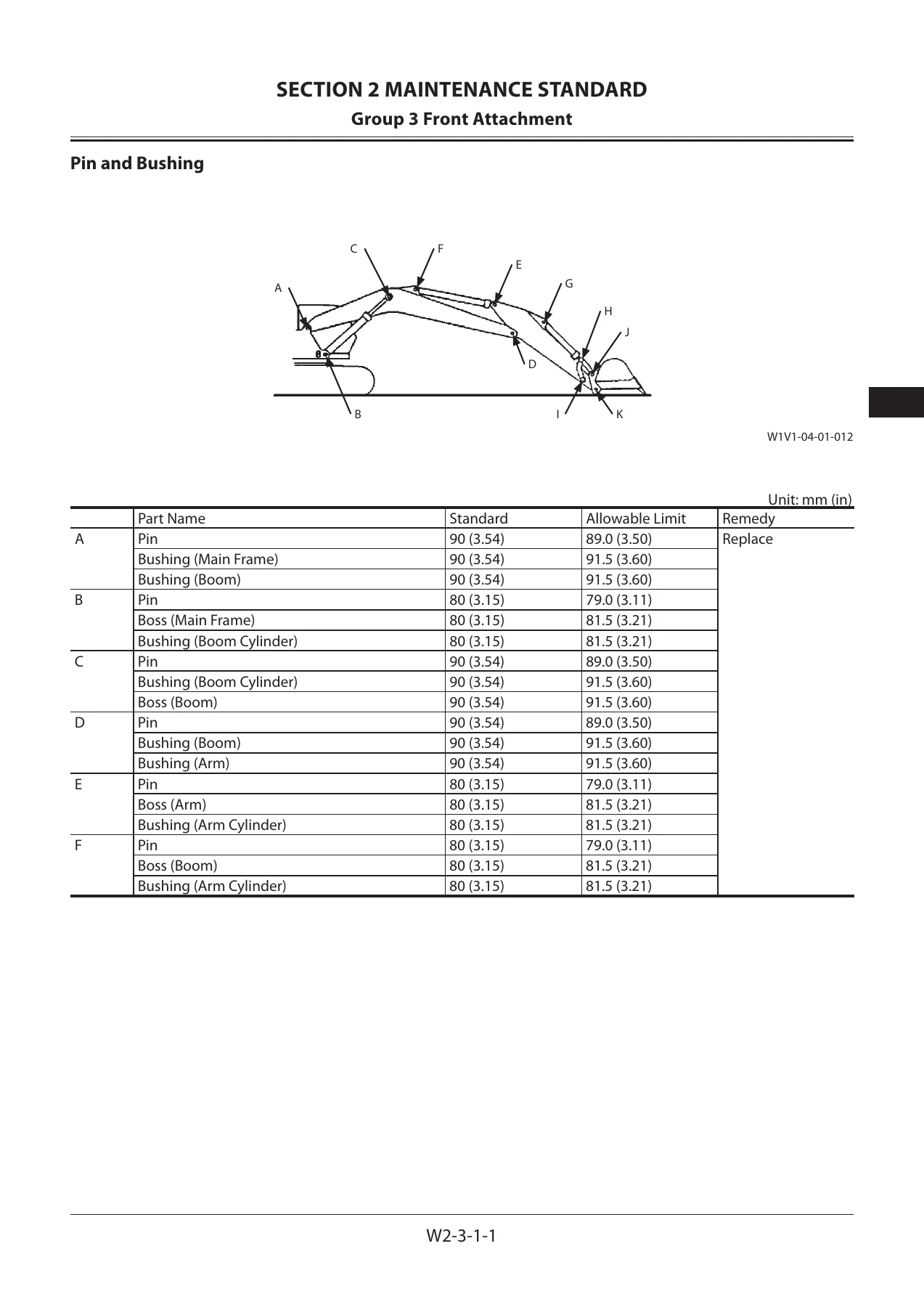

• Section 2 Maintenance Standard — Group 1 Upperstructure (Pump Device, Swing Motor), Group 2 Undercarriage (Travel Motor, Sprocket, Front Idler, Upper Roller, Lower Roller, Track), Group 3 Front Attachment (Pin and Bushing, Side Cutter, Point, standard dimensions for arm/bucket and arm/boom connections, Cylinder)

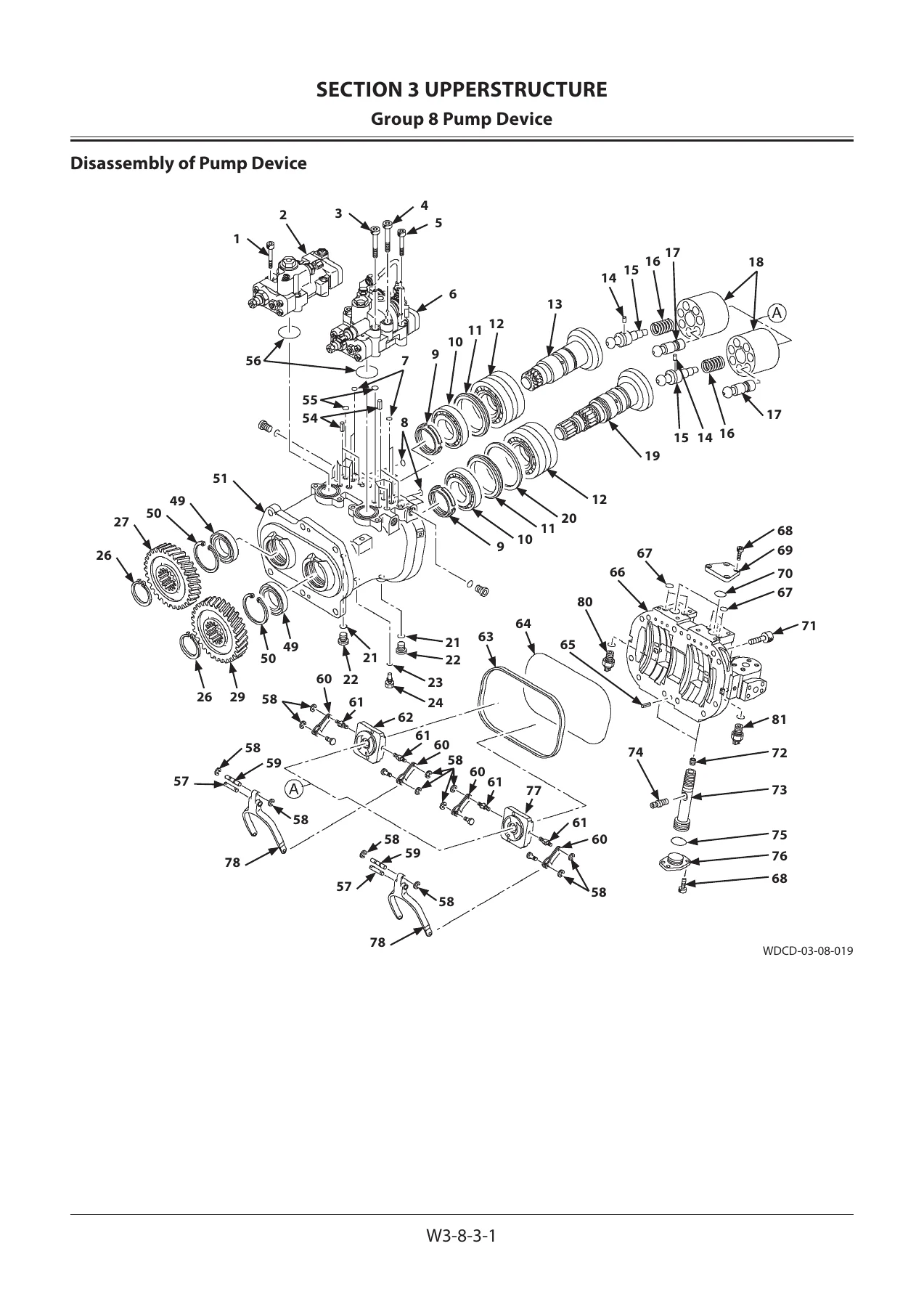

• Section 3 Upperstructure — Cab, Counterweight, Main Frame, Engine, Radiator Assembly, Hydraulic Oil Tank, Fuel Tank, Pump Device (including Regulator and Solenoid Valve), Control Valve (housing, 4-spool and 5-spool sides), Swing Device (including Swing Motor), Pilot Valve (left, right, travel), Solenoid Valve, Signal Control Valve
• Section 4 Undercarriage — Swing Bearing, Travel Device (including Travel Motor and Brake Valve), Center Joint, Track Adjuster, Upper and Lower Rollers, Track
• Section 5 Front Attachment — Front Attachment, Cylinder (Boom, Arm, Bucket)

Beyond the chapter list, this Hitachi ZX200-5G ZX210-5G Workshop Manual provides the tightening torque tables, standard and allowable-limit dimensions, component weights, and disassembly/assembly sequences a technician needs when a major component has to come off the machine. Hydraulic pump and motor internals, control valve spool assemblies, swing and travel reduction gears, the pilot valve, and the front attachment cylinders are all covered with numbered exploded views, matching-mark instructions, seal and O-ring replacement guidance, and re-assembly torque values.

How the Manual Is Organized

Page numbering follows the Hitachi workshop convention (for example W1-2-1-1, where W indicates Workshop Manual, 1 is the section number, 2 the group number, 1 the sub-group number, and 1 the consecutive page for that group). Section 1 opens with the safety and shop-floor discipline material: safety alert symbols, signal words, protective clothing, emergency preparation, and general precautions for working around the machine. From there it moves into the practical reference data — tightening, painting, air bleeding, and pressure release — before arriving at the component-level procedures in Sections 3, 4, and 5.

Working on the Hitachi ZX200-5G and ZX210-5G

The ZX200-5G and ZX210-5G family covers several undercarriage and counterweight configurations: the standard ZX200-5G, the long-undercarriage ZX200LC-5G, the heavier ZX210H-5G and ZX210LCH-5G, and the ZX210K-5G and ZX210LCK-5G. Because component weights and clearances differ between these variants, the manual calls out model-specific values in the procedures — for example the counterweight is listed at 4260 kg for ZX200-5G/200LC-5G and 4670 kg for ZX210H-5G/210LCH-5G, while the main frame weights range from 4620 kg to 4880 kg depending on variant. Component hoisting weights, wrench sizes, and torque values are given in SI units with imperial equivalents in parentheses, so the same procedure reads correctly whether the technician works in metric or US customary units.

What This Hitachi ZX200-5G ZX210-5G Workshop Manual Enables

The depth of this manual makes it usable for full component overhauls, not just routine service. A technician can remove and reinstall the cab, counterweight, main frame, engine, radiator assembly, hydraulic oil tank, fuel tank, pump device, control valve, swing device and swing motor, pilot valves, solenoid valves, signal control valve, swing bearing, travel device and travel motor, center joint, track adjuster, rollers, track, and front attachment. The pump and regulator sections go down to individual plungers, rotors, valve plates, servo pistons, and selector heads, while the control valve sections cover spool disassembly, overload relief valves, boom anti-drift valves, flow combiner valves, and the check valves in the digging and auxiliary circuits. The undercarriage chapters include floating seal handling, bearing preload procedures for the swing device, and bushing replacement techniques that are easy to get wrong without the print.

Correct procedures and correct torque values are what separate a repair that lasts from one that comes back. This manual supplies the tightening order for multi-bolt patterns, the difference between standard and allowable-limit dimensions, the sealing compounds used at specific mating surfaces (THREEBOND, LOCTITE, and similar), and the places where a special tool is required to avoid damaging a surface. For a workshop doing repeat work on ZX200-5G or ZX210-5G machines, that is the difference between a confident overhaul and guesswork.

IMAGES PREVIEW

The file is delivered as an instant PDF download after payment. There is no physical shipment and no waiting on a courier. The workshop manual can be stored on a laptop, tablet, or phone, opened at the bench, and printed for the pages needed on a particular job. Pages can be printed individually or as a set for the component being worked on, which keeps the clean reference in the shop and the printed copy at the machine. For technicians maintaining Hitachi ZX200-5G or ZX210-5G excavators, this is the working document for the job.
