Honda BF75A BF90A Outboard Service Workshop and Repair Manual

Description

Honda BF75A BF90A Outboard Service Workshop and Repair Manual

This Honda BF75A BF90A Outboard Service Workshop and Repair Manual is the complete guide to the construction, function, and servicing procedures of the Honda BF75A and BF90A four-stroke outboard motors. Whether you are performing routine maintenance, diagnosing a hard-starting condition, rebuilding the lower unit, or adjusting valve clearance, this manual provides the procedures, specifications, and illustrations needed to get the job done correctly. The Honda BF75A BF90A service workshop and repair manual covers all major systems across 18 chapters plus two supplements, shop manual news, and service news.

File Details

• Manual type: Service Workshop and Repair Manual
• Brand: Honda
• Models covered: BF75A, BF90A
• Engine type: 4-stroke, O.H.C., 4-cylinder
• Language: English
• Page count: 355
• File format: PDF
• Supplements included: Supplement ’97, Supplement ’02, Shop Manual News, Service News

Chapters Covered

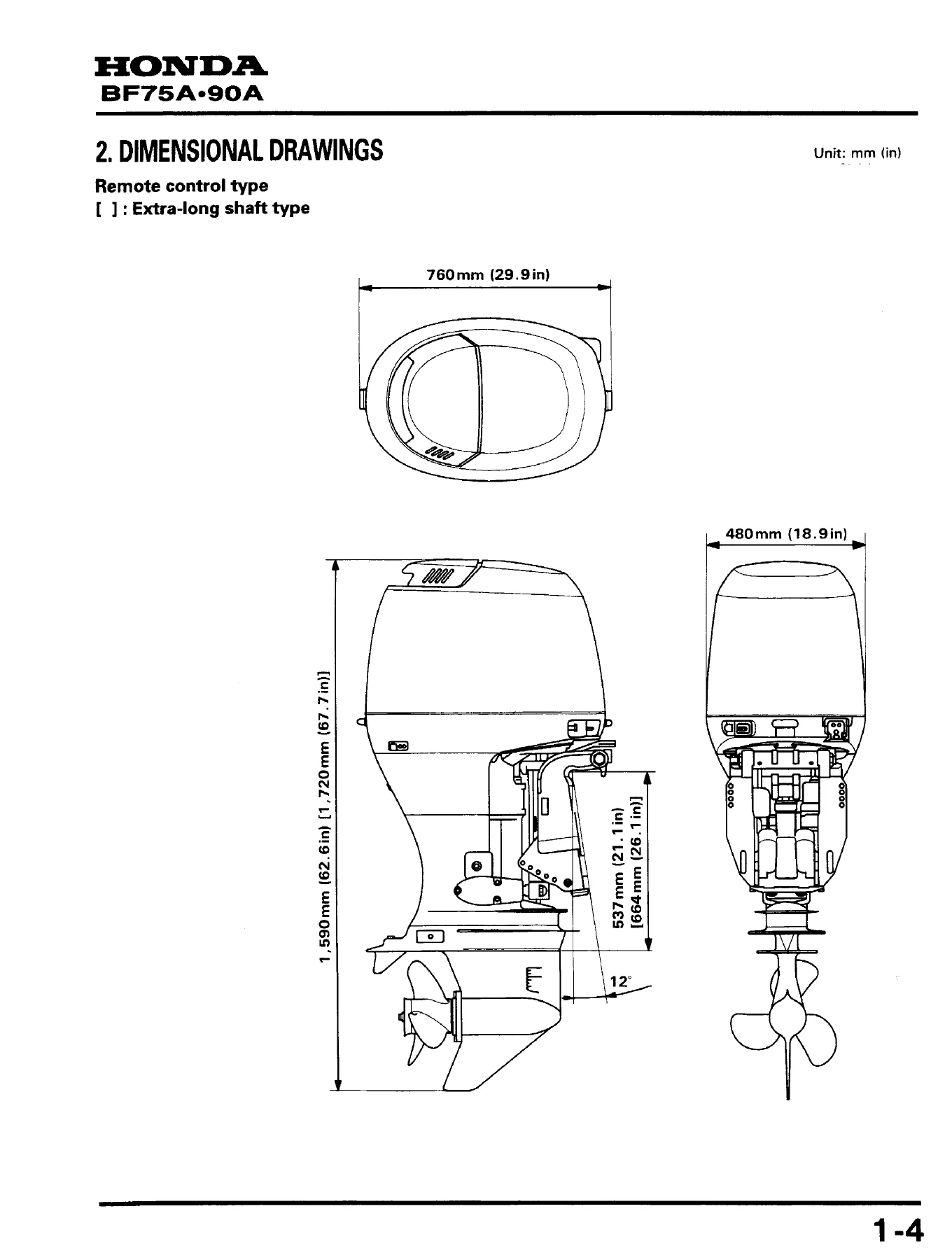

• 1. Specifications — Dimensions and weights, engine data, lower unit data, frame dimensions, dimensional drawings, model type charts
• 2. Service Information — Importance of proper servicing, safety precautions, service rules, serial number locations, maintenance standards, torque values, special tools, troubleshooting (hard starting, ignition, starter motor, engine performance, alert systems, shift lever, assist tilt, power trim/tilt), cable/harness routing, tube routing, lubrication
• 3. Maintenance — Maintenance schedule, engine oil, oil filter, gear oil, spark plugs, valve clearance, fuel filter, fuel tank strainer, carburetor, carburetor synchronization, acceleration device/diaphragm assembly, throttle cable adjustment, shift cable adjustment, choke knob rod adjustment, choke solenoid adjustment, timing belt, crankcase breather, exhaust emission
• 4. Engine Cover / Throttle / Choke — Engine cover disassembly/assembly, throttle cam and throttle cable, choke knob rod
• 5. Fuel System — Carburetor removal/installation, carburetor disassembly/assembly, fuel pump, fuel filter/fuel tube, fuel tank
• 6. Alternator / Timing Belt — Timing belt cover, starter pulley, alternator rotor, timing belt, driven pulley, drive pulley, timing belt lower cover
• 7. Engine Removal / Installation — Complete removal and installation procedures
• 8. Water Jacket Cover / Thermostat / Thermoswitch — Flushing water hose, thermostat, thermoswitch, flush valve, relief valve, water bypass hose, water jacket cover
• 9. Cylinder Head / Valves / Oil Pump — Cylinder head assembly removal/installation, oil pump, cylinder head disassembly/assembly, inspection, valve guide replacement, valve seat reconditioning
• 10. Crankcase / Cylinder Block / Crankshaft / Piston / Flywheel — Crankcase, cylinder block, crankshaft, piston, inspection, bearing selection
• 11. Propeller / Gear Case / Extension Case — Propeller and propeller shaft holder, propeller shaft, gear case assembly, water pump, vertical shaft and bevel gear, shim selection, shim position, backlash adjustment, gear case pressure test, lower rubber motor mount, extension case and under cover
• 12. Oil Pan / Engine Undercase / Mount Case — Oil pan, exhaust pipe, water tube, engine undercase, cover lock lever, mount case, upper rubber mount, shift shaft A and B

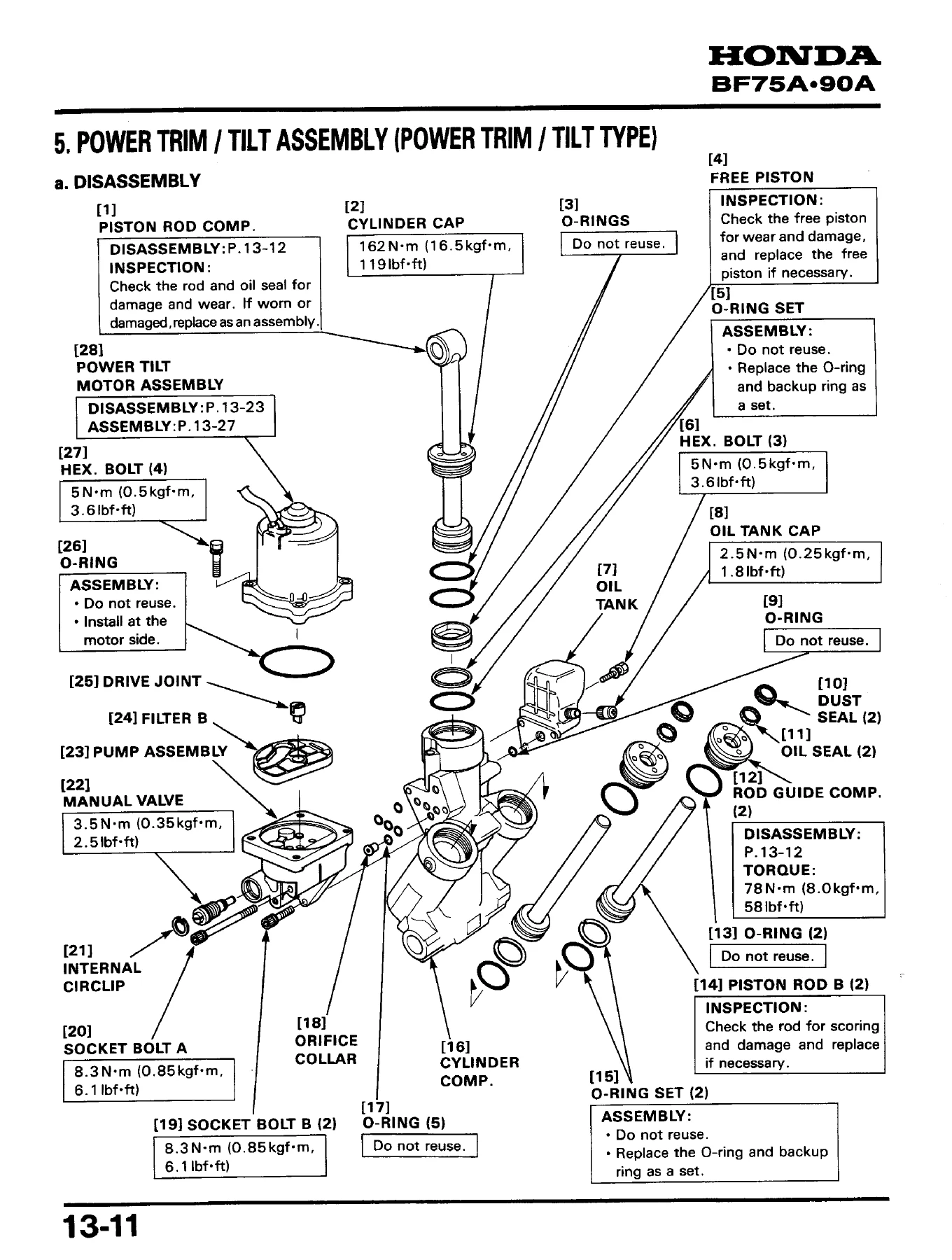

• 13. Swivel Case / Power Trim / Tilt Assembly / Gas Assisted Assembly — Swivel case and stern bracket removal/installation, power trim/tilt assembly, gas assisted damper assembly, swivel case and mount frame, power trim/tilt assembly disassembly, power tilt motor assembly
• 14. Steering Rod / Remote Control Box — Steering rod, remote control box, inner housing, control panel (panel-mount, single top-mount, dual top-mount types)
• 15. Steering Friction Shaft / Tiller Handle — Steering friction shaft, tiller handle
• 16. Cables / Shift Link Bracket / Shift Arm — Shift link bracket, shift arm, link rod, neutral switch
• 17. Electrical Equipment — Component location, starter cable, remote control cable, shift and throttle cables, CDI unit, ignition coil, power tilt relay, regulator/rectifier, starter motor, inspection
• 18. Wiring Diagram — Complete wiring diagrams
• Supplement ’97 — Additional service information and updates
• Supplement ’02 — Additional service information and updates
• Shop Manual News — Technical updates and corrections
• Service News — Service bulletins and technical information

This Honda BF75A BF90A outboard service manual goes far beyond routine maintenance. It documents the construction and function of every major assembly, from the four-cylinder O.H.C. powerhead and its four-carburetor induction system to the spiral bevel gear case and the power trim/tilt hydraulic circuit. The troubleshooting chapter uses flow-chart diagnostics for hard starting, ignition faults, starter motor problems, alert system warnings, shift lever issues, assist tilt load, and power trim/tilt failures. Maintenance standards tables provide the exact service limits for valve guides, pistons, rings, crankshaft journals, camshaft lobes, oil pump rotors, and more. Torque values are listed for engine, gear case, extension, mount, stern bracket, power trim/tilt, and frame/electrical fasteners. The manual also includes cable and harness routing diagrams, tube routing, and a full lubrication guide showing exactly where marine grease should be applied.

What This Manual Enables You to Do

With this Honda BF75A BF90A workshop manual, you can perform a complete engine removal and installation, disassemble and reassemble the cylinder head, replace valve guides and recondition valve seats, rebuild the oil pump, service the crankcase and crankshaft, replace pistons and rings, set bearing clearances using the selection tables, remove and install the gear case, rebuild the water pump, adjust pinion gear shim and forward bevel gear backlash, pressure-test the gear case, service the power trim/tilt assembly, repair the power tilt motor, adjust throttle and shift cables, synchronize the carburetors, set the timing belt, adjust valve clearance, and diagnose electrical faults through the CDI unit, ignition coils, pulser coils, and starter motor. The Honda BF75A BF90A repair manual also provides the maintenance schedule for 20-hour, 100-hour, 200-hour, and 400-hour intervals so you can keep the outboard running reliably season after season.

Why This Manual Matters

Honda BF75A and BF90A outboards are durable four-stroke machines, but they require correct procedures and exact specifications to service safely and reliably. This Honda BF75A BF90A service workshop and repair manual gives you those specifications in one place: cylinder compression, oil pressure, valve clearance, spark plug gap, idle speed, gear oil capacity, engine oil capacity, torque values, service limits, and adjustment values. It also warns of the hazards that matter — gasoline handling, high-pressure gas in the assisted tilt damper, hot exhaust components, and the importance of using genuine Honda parts and metric tools. Without the correct procedures, a simple repair can turn into an expensive mistake. This manual is written for technicians and owners who want to do the job right the first time.
