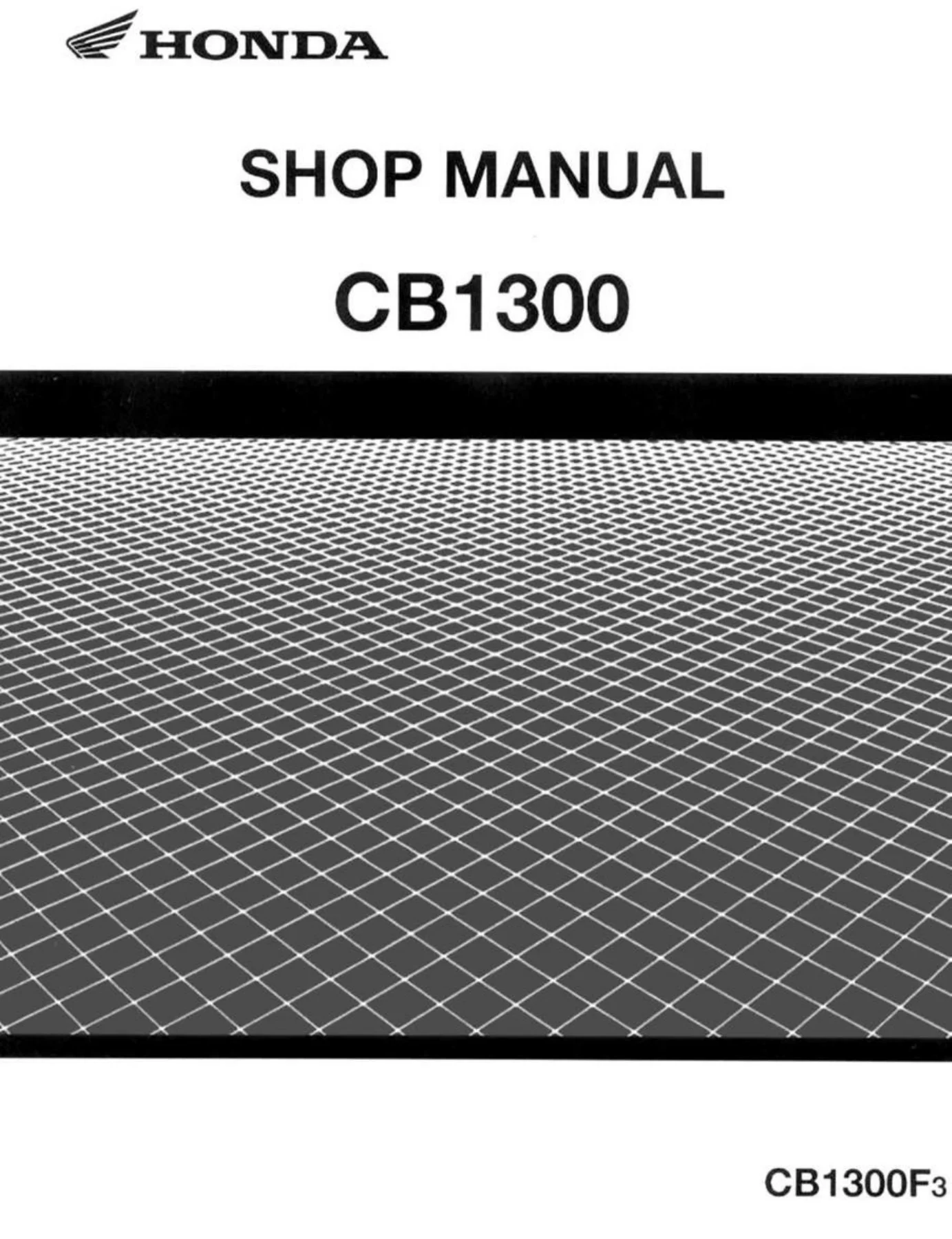

Honda CB1300 Shop Manual PDF Download CB1300F3

Description

File Details

• Manual Type: Shop Manual
• Brand: Honda
• Model: CB1300
• Type Code: CB1300F3
• Language: English
• Page Count: 518
• File Format: PDF

Chapters Covered

• 1 General Information – Service rules, model identification, general specifications, lubrication, fuel, cooling, cylinder head, clutch, alternator, crankshaft, front and rear wheel, brake, battery, ignition, starter, lights, torque values, lubrication and seal points, cable routing, emission control
• 2 Technical Feature
• 3 Frame/Body Panels/Exhaust
• 4 Maintenance
• 5 Lubrication System
• 6 Fuel System (Programmed Fuel Injection)
• 7 Cooling System
• 8 Engine Removal/Installation
• 9 Cylinder Head/Cylinder/Piston
• 10 Clutch/Gearshift Linkage
• 11 Alternator/Starter Clutch
• 12 Crankshaft/Transmission/Balancer
• 13 Front Wheel/Suspension/Steering
• 14 Rear Wheel/Suspension
• 15 Hydraulic Brake
• 16 Battery/Charging System
• 17 Ignition System
• 18 Electric Starter
• 19 Lights/Meters/Switches
• 20 Immobilizer System (HISS)
• 21 Wiring Diagrams
• 22 Troubleshooting
• 23 Index

This Honda shop manual supplies complete service information for the CB1300 including detailed specifications, system descriptions, maintenance procedures, engine overhaul steps, chassis service and electrical diagnosis.

Engine and Chassis Coverage

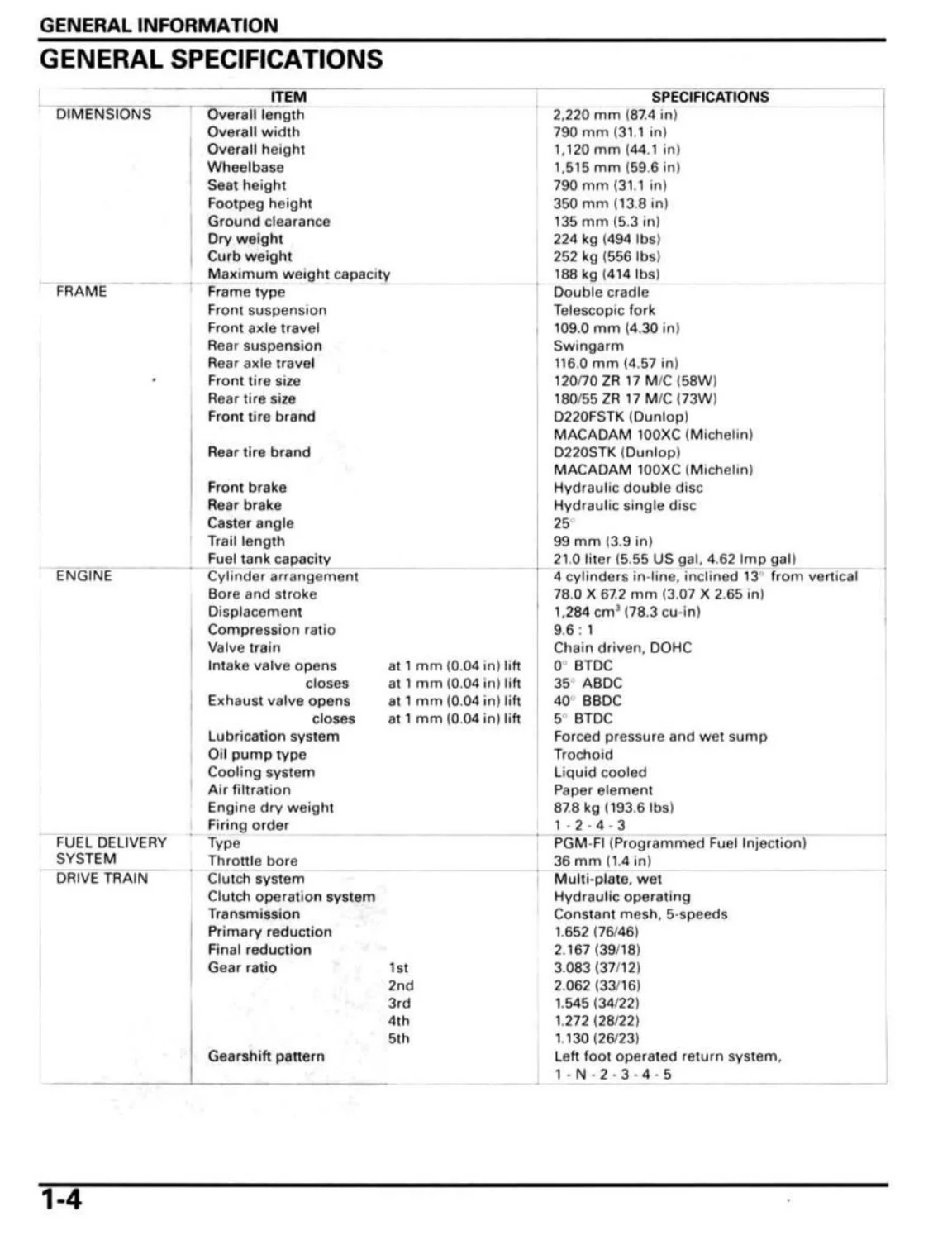

General specifications list overall dimensions, weights, frame type double cradle, suspension travel, tire sizes, brake types, engine as 4-cylinder in-line 1284 cm3 with 9.6:1 compression, DOHC valve train, PGM-FI fuel system, multi-plate wet clutch, 5-speed transmission. Sections detail lubrication, fuel injection, cooling, full engine removal and component service for cylinder head, piston, clutch, transmission, balancer, crankshaft. Chassis covers front and rear suspension, wheels, hydraulic brakes. Electrical includes charging, ignition, starter, lights and immobilizer.

Service Data and Diagrams

Standard torque values, engine and frame torque tables, lubrication and seal points, cable and harness routing diagrams, emission control systems are provided. Troubleshooting section supports diagnosis across systems.

Safety and Service Rules

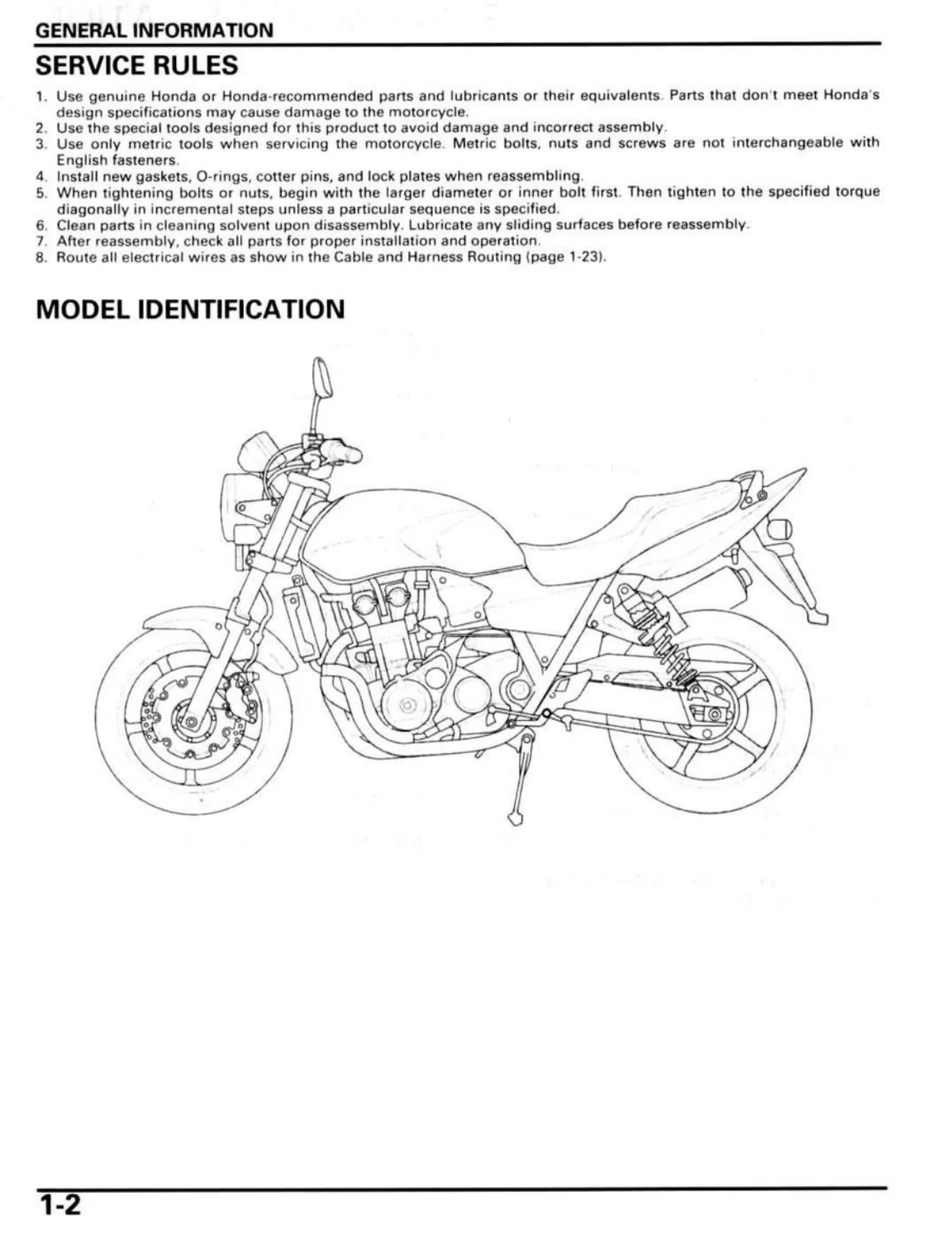

The manual opens with important safety precautions for professional technicians including eye protection, protective wear, secure vehicle support, engine off rules, carbon monoxide and burn hazards, and gasoline/battery explosion risks. Service rules require genuine or equivalent parts, special tools, metric fasteners, new gaskets and lock plates, sequential tightening, solvent cleaning and proper wire routing.

Detailed Specifications

Dimensions include overall length 2220 mm, width 790 mm, height 1120 mm, wheelbase 1515 mm, seat height 790 mm, dry weight 224 kg, curb weight 252 kg. Engine bore and stroke 78.0 x 67.2 mm, displacement 1284 cm3, compression 9.6:1, firing order 1-2-4-3. Transmission gear ratios from 3.083 first to 1.130 fifth. Fuel tank 21.0 liter. Front tire 120/70 ZR17, rear 180/55 ZR17. Caster 25 degrees, trail 99 mm.

System Sections Overview

Lubrication system specifications and service, programmed fuel injection system details, cooling system, cylinder head and piston service with clearances, clutch and gearshift linkage, alternator and starter clutch, crankshaft transmission and balancer, front wheel suspension and steering, rear wheel and suspension, hydraulic brake system, battery and charging, ignition, electric starter, lights meters and switches, immobilizer HISS system. Wiring diagrams and a full troubleshooting section complete the manual.

Order the Manual

Follow the service rules, apply the correct torque values and use the detailed procedures for engine, suspension and electrical work on the CB1300. Accurate data and sequences maintain reliability and performance. Instant PDF download after payment, no shipping, readable on any device and printable for the shop.
