Hyster H1.8CT (A937) Parts Manual – Document 0860446

This illustrated Hyster H1.8CT (A937) parts manual is the component-level reference for the H1.8CT lift truck, issued under Hyster document number 0860446 and dated 10/2012. It is written for unit code A937 in North America and breaks the truck down assembly by assembly, so any serviceable part can be found on a drawing, matched to a part number, and ordered without guesswork. Every breakdown page pairs an exploded or isometric illustration with a parts table giving part number, description, quantity required, key letters and footnotes for variant selection.

File Details

• Manual type: Illustrated Parts Manual
• Brand: Hyster
• Model: H1.8CT (A937)
• Document number: 0860446
• Date: 10/2012
• Language: English
• Page count: 292 pages
• File format: PDF

Chapters Covered

• 1 – Frame: forks (standard and optional), load backrest extension, counterweight, overhead guard, rain top, hood, cowl mount, labels, non-suspension and full suspension seats, floorplates and covers
• 2 – Engine Assembly (LPG): exhaust system with catalytic converter, cooling system, flywheel and housing assembly, engine mounting, assembled engine, cylinder head and cover, cylinder block, crankshaft and pistons, timing gear cover and oil pan, intake manifold, exhaust manifold, engine cooling system, emission control system, oil pump and filter, camshaft and valves
• 3 – Fuel System (LPG): air intake system, air filter assembly, LPG fuel tank and mounting, fuel tank covers, fuel system, fuel system hoses and attaching parts, mixer and throttle body assembly, electronic pressure regulator assembly, electronic pressure regulator kit, throttle pedal assembly
• 4 – Electrical System: electrical arrangement, engine electrical components, engine control module, fuel system sensors, display cluster, battery and cables, lights, powertrain and chassis wire harnesses, wire harness adapter

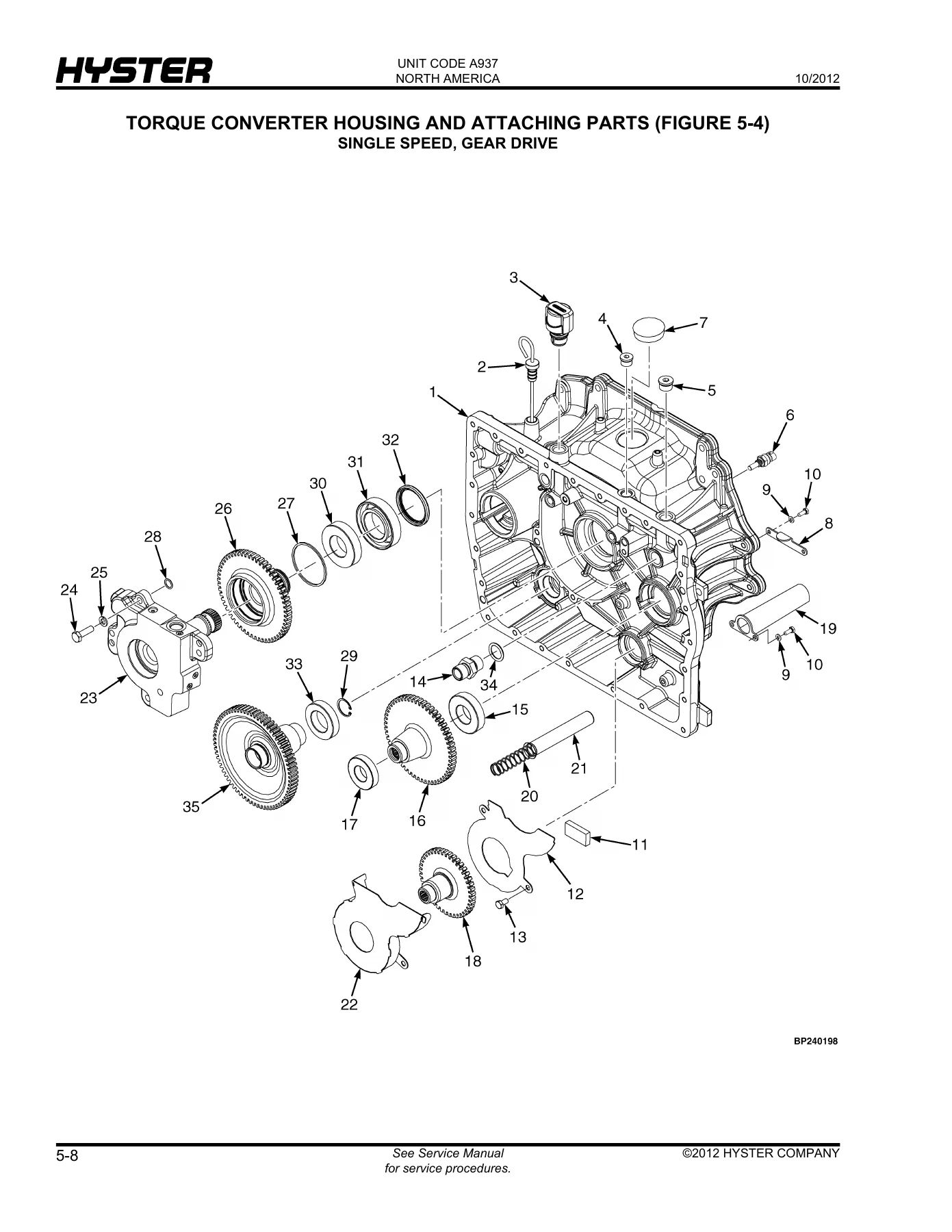

• 5 – Transmission: transmission cooling, transmission mount, torque converter, torque converter housing and attaching parts, transmission housing and assembly, charge pump, stator support housing, input/forward clutch, counter/reverse clutch
• 6 – Drive Axle: drive axle assembly, center section, drive tire and wheel
• 7 – Steering System: steering wheel and column, steering column assembly, steering axle and attaching parts, steer tire and wheel, steering cylinder
• 8 – Brake System: brake assembly, brake pedal linkage, park brake
• 9 – Hydraulic System: hydraulic supply and return, steering hoses, gear pump assembly, hydraulic filter housing, tilt/hoist and auxiliary hoses, tilt cylinder and mast installation, tilt cylinder assembly, hand levers, manual control valves (three and four function), control valve lockout group, lift and tilt valve assembly, auxiliary sections, outlet section, steering control unit
• 10 – Mast (Three Stage Full Free-Lift): outer mast, intermediate mast and main lift, inner mast and free-lift, main lift cylinder assembly, free lift cylinder assembly, header hose and attaching parts, carriage
• 11 – Options: mirrors, audible backup alarm, fire extinguisher, integral side-shift carriage, integral side-shift hydraulic hoses, integral side-shift cylinder
• 12 – Numerical Index: full part number lookup with page and item references

Spread across twelve sections, the Hyster H1.8CT A937 parts manual gives a parts counter or workshop everything needed to build a complete order from a single drawing. Fork assemblies are shown with their latch, spring, pin and roll pin broken out individually, so a worn latch can be replaced without buying a whole fork. The Mazda 2.0L and 2.2L LPG engine sections go down to seals, studs, guides, plugs and gasket sets, while the fuel system pages cover the mixer, throttle body, electronic pressure regulator and its repair kit. Transmission, torque converter, charge pump and clutch pack listings let a driveline overhaul be planned part by part, and the mast section carries the load rollers, chain anchors, sheaves, wear strips and cylinder seal kits for the three stage full free-lift mast in each of its three lift heights.

Identifying the Correct Truck and Attachment

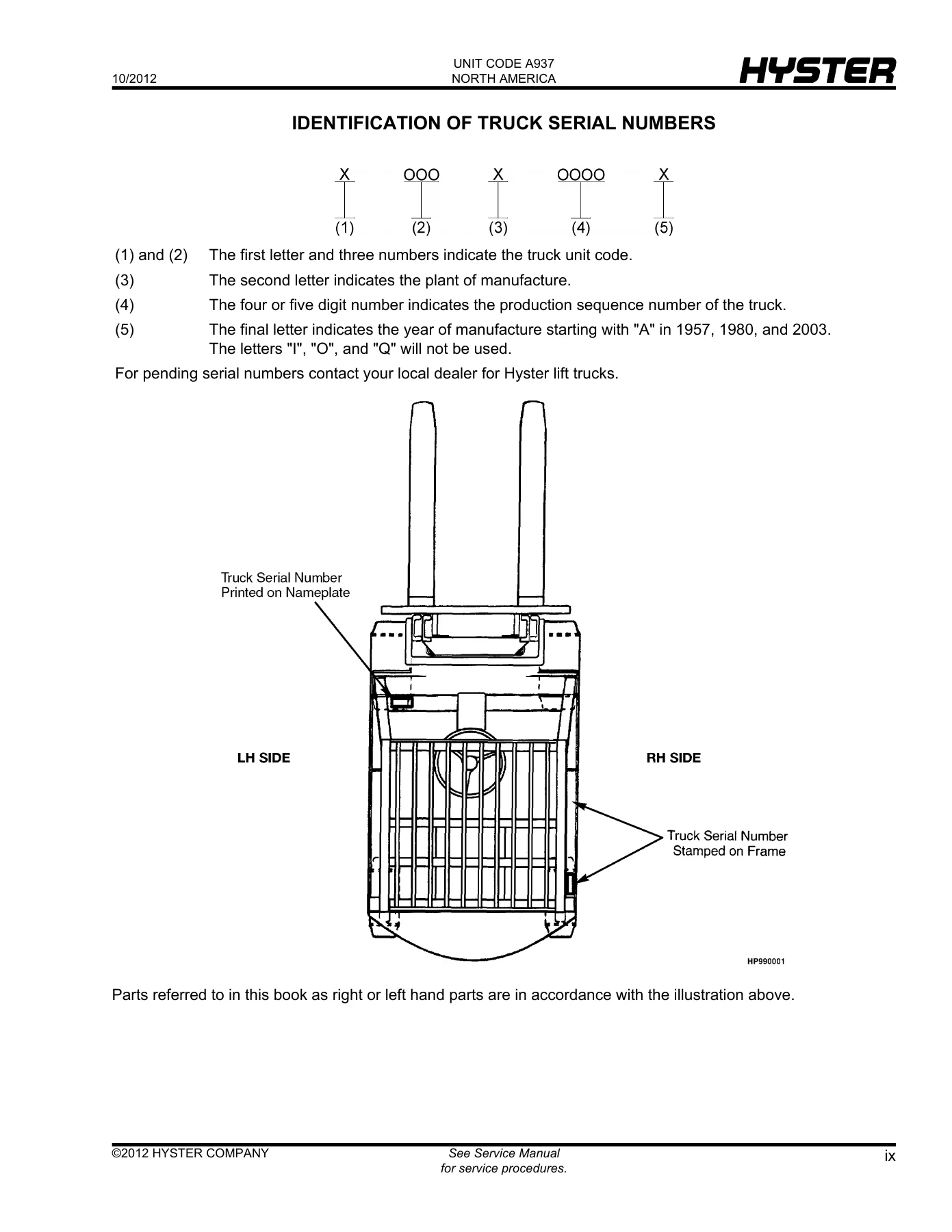

Before ordering, the manual explains where to read the identifying numbers off the machine. The truck serial number is printed on the nameplate and stamped on the frame. Fork part numbers, capacity ratings, plant code letter and date of manufacture are stamped roughly six inches below the top of most forks. The carriage group number is stamped on the right hand side of the top crossmember on pin type carriages, or on the back of the right hand end of the bottom crossmember on hook type carriages, with a two-letter date code in line with or below it. Mast identification is stamped with a unit code, a plant letter and a serial number, with a four digit carriage travel figure in millimetres underneath. Tilt and lift cylinder group numbers are stamped on the cylinder shell. Side-shift carriages and attachments carry their own nameplates, and the serial number from that plate identifies the attachment.

How the Listings Are Organised

Three routes get you to the right number. If the function and location of the part are known, go to the section index and then the assembly breakdown page. If the assembly is known but the part number is not, use the main table of contents to find the assembly, then locate the part on its breakdown page. If the part number is known, the Numerical Index gives the page and item number directly. Keys marked A through B or A through E separate similar assemblies and left hand or right hand parts, with the matching quantity column showing what each variant uses. A row of five periods in the part number column means the part is not serviced separately or that a figure reference applies, and a pointing hand with a figure number directs you to the correct drawing. Serial number breaks, pending serial numbers against an ECN, and date breaks are all noted against the items they affect, and superseded part numbers appear in the parts list in the order they were replaced.

What This Hyster H1.8CT Parts Manual Does For You

Having the correct Hyster H1.8CT (A937) parts manual on hand turns a vague repair into a straightforward job. You can quote a customer accurately from the drawing rather than from a description, confirm whether a seal comes in a kit or must be bought alone, check the quantity of shims, washers or fasteners a rebuild consumes, and avoid ordering a part that looks right but belongs to a different build. It covers the routine wear items that keep a truck in service – brake shoes, adjusters, wheel cylinder repair kits, parking brake cables, steering cylinder seals, load rollers, wear strips, hose assemblies and fittings – as well as the deeper work behind the counterweight, hood, overhead guard and mast. The LPG-specific content, including the fuel tank and mounting, the electronic pressure regulator and the mixer and throttle body assembly, is documented in the same level of detail as the mechanical side, which matters on an engine family that is not always well covered elsewhere.
