Hyster P2.0S Service Manual – Complete Workshop Repair PDF Download

Description

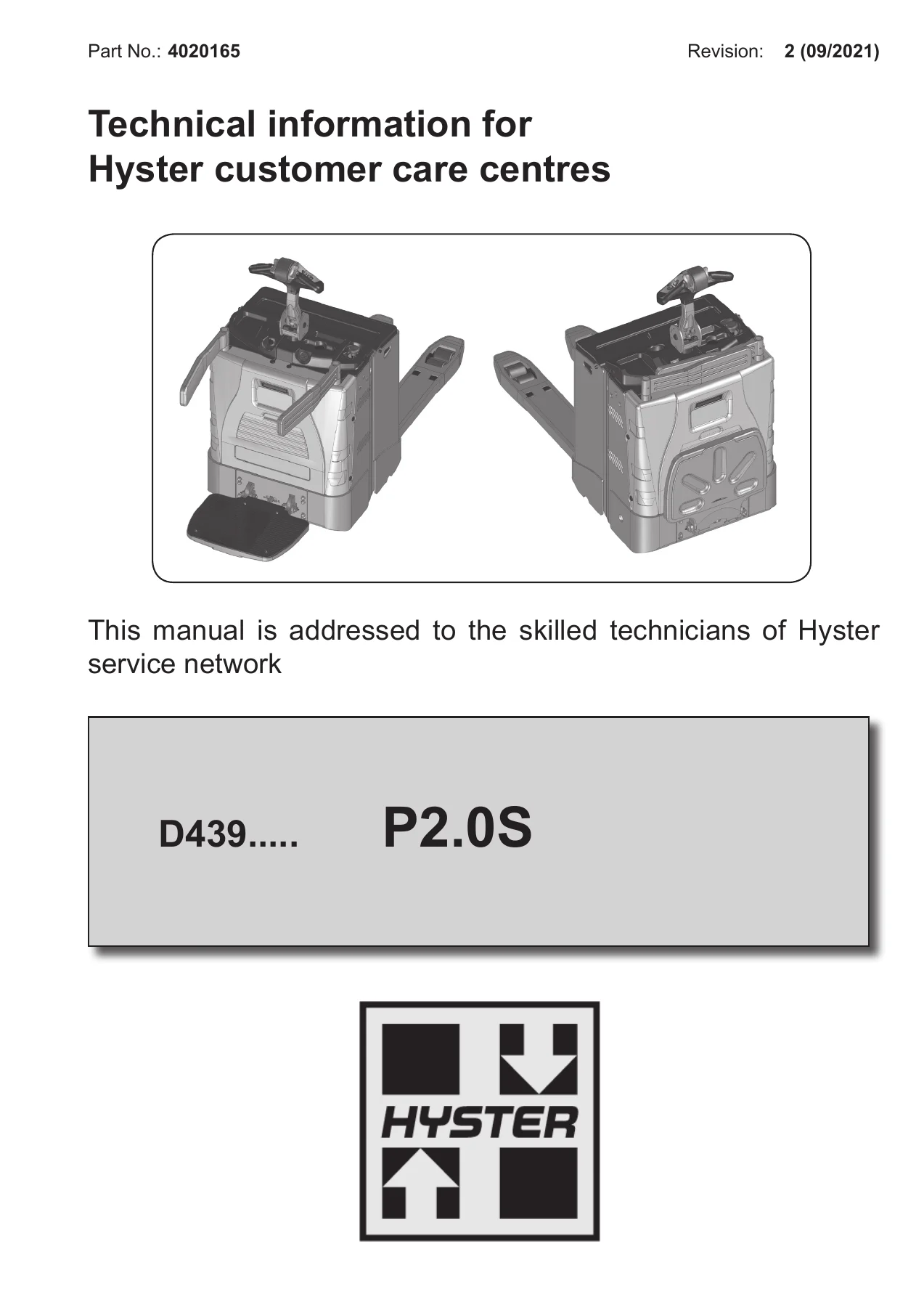

This Hyster P2.0S Service Manual is the complete workshop documentation for the Hyster P2.0S electric pallet truck — a 2.0 tonne capacity machine used for horizontal transport and pallet handling in warehouses, distribution centres and production facilities. Published under document number 4020165 (revision 2, dated 09/2021), this manual is addressed to skilled technicians of the Hyster service network, but it contains everything an independent workshop, fleet maintenance team or owner-operator needs to carry out factory-level maintenance, diagnostics and repairs. The manual covers the complete truck: traction and steering systems, hydraulic lifting circuit, electrical and electronic control modules, reduction gear, electromagnetic brake and routine maintenance schedules.

File Details

• Manual type: Service Manual (workshop / technical information)
• Brand: Hyster
• Model: P2.0S
• Document number: 4020165
• Revision: 2 (09/2021)
• Language: English
• Page count: 271
• File format: PDF

Chapters Covered

• Introduction
• Installation and Settings
• Diagnostics and Measurements
• Electrical System
• Hydraulic System
• Mechanics
• Reduction Gear
• Braking System
• Ordinary Maintenance

Introduction and Installation

The opening sections cover truck and load identification data, the identification data plate location, serial number punching, and general specifications for the P2.0S. The installation and settings chapter walks through unloading the truck, topping up the oil reservoir, battery installation (including lateral removal configurations), connecting cables to the battery, and the full list of settings and adjustments to be carried out before the truck enters service — battery voltage setting and checking the conditions of use.

Diagnostics and Measurements

This is the section technicians will spend most of their diagnostic time in. It documents the controller connectors (traction controller and EPS controller), the PC Service Tool monitor menus, and the full alarm code tables for both controllers. Every alarm entry gives the code number, the likely causes and a step-by-step troubleshooting procedure — from controller overcurrent and precharge failures through to encoder faults, CAN bus errors, tiller handle faults and motor characterization issues. The section also includes electrical component measurements for solenoid valve coils, electromagnetic brake coils and motor insulation testing.

Electrical System

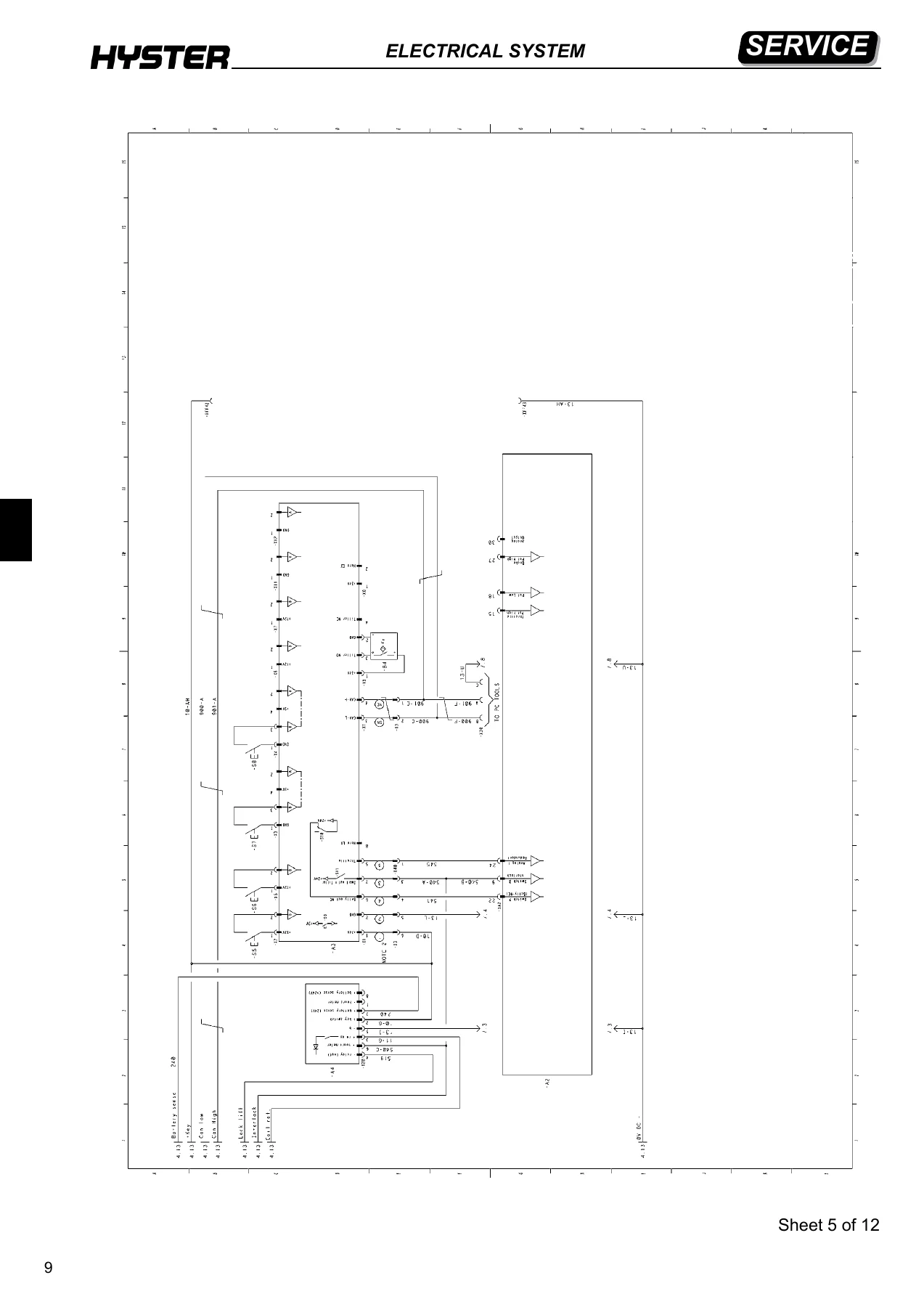

The electrical chapter covers the wiring diagrams, component identification keys, tiller board layout and connectors, display and battery charge indicator, MDI (optional), truck functions (traction, steering, fork lifting/lowering), standard module parameter configurations, description of module parameters for the traction and EPS modules, PC Tool connection, module replacement instructions, and removal/replacement of electrical components including the emergency switch, display, key switch, horn, sensors and tiller board. Tiller board configuration and calibration, steering sensor calibration and traction wheel–tiller alignment procedures are all here.

Hydraulic System

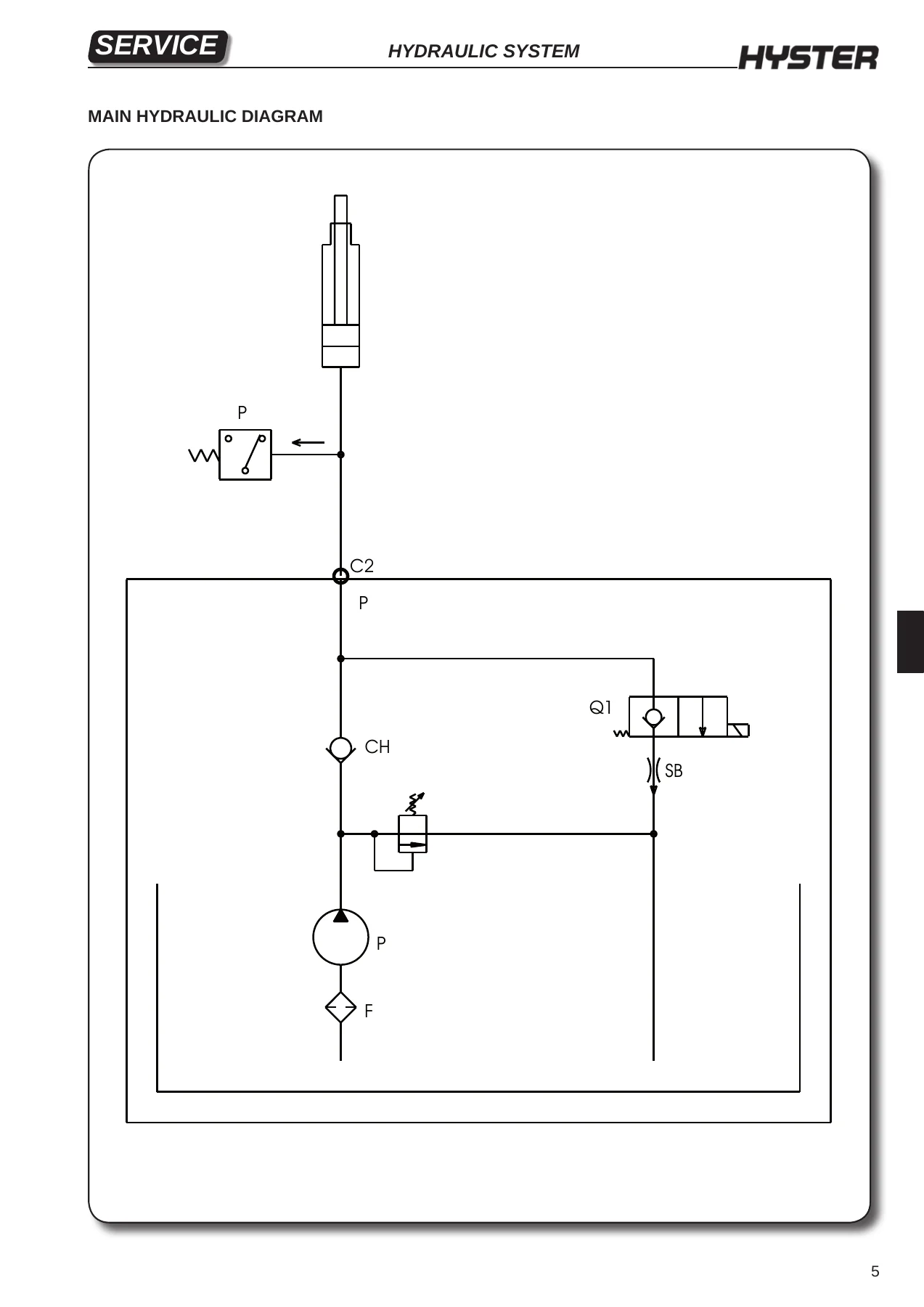

The hydraulic section explains the oil supply circuit, fixed displacement pump operation, pressure control valves, directional valves and pressure switches. It includes the main hydraulic diagram, function-specific diagrams for lifting and lowering, the solenoid valve operation chart, hydraulic component identification, and procedures for disassembling the pressure switch, removing and calibrating the pressure relief valve, servicing the cartridge solenoid valve, and removing and resealing the lifting cylinder. Lift pump removal and replacement, cylinder supply pipe replacement, and the correct method for applying female connectors with torque values are covered.

Mechanics

The mechanics section covers cover removal, drive wheel removal, pivoting wheel assembly, wheel damper assembly, footboard assembly (including gas spring and spring replacement and adjustment), side panels, load wheels, linkage assembly, tiller assembly (including gas spring, buttons, springs and enabling sensor), steering motor and traction motor removal and dismantlement. Torque values are given for the critical fasteners throughout — drive wheel retaining nuts at 200 Nm, pivoting wheel screws at 85 Nm, damper screws at 20 Nm, and motor-to-reduction-unit screws at 24 Nm among others.

Reduction Gear

The reduction gear chapter covers the reduction unit components, removal of the unit, wheel shaft oil seal replacement, traction motor drive shaft oil seal replacement, changing the reduction unit oil, and the reducer torque settings. The oil change procedure specifies SHELL SPIRAX A 80W-90 for standard use and SHELL TRANSAXLE 75W-90 for cold store applications, with a capacity of 1750 cm³ and torque settings for the drain plug (65 Nm) and filler plug (45 Nm).

Braking System

The braking system section explains the electromagnetic brake operation, the four braking systems (release braking, braking on direction reversal, emergency braking and parking brake), removal of the electromagnetic brake, and electromagnetic brake adjustment. The adjustment procedure specifies the friction disc-to-brake plate clearance at 0.35 mm using a feeler gauge.

Ordinary Maintenance

The maintenance chapter lists the oils and lubricants (with standard and cold store specifications), cleaning products, and the full scheduled maintenance table covering intervals of 8 hours, 1000 hours/12 months, 2000 hours/24 months and 3000 hours/36 months. The maintenance table covers the frame, braking system, motors, hydraulic system, reduction unit, wheels and tyres, fork frame, linkages and levers, greasing points, cab, tiller, controls and instrumentation, electronic system, battery, and plates and decals.

Controller Alarm Codes and Diagnostics

A significant portion of this Hyster P2.0S repair manual is dedicated to the traction controller and EPS controller alarm tables. Each alarm is listed with its code, possible causes and a diagnostic procedure. The traction controller alarms cover overcurrent, precharge failure, under/over-temperature, under/overvoltage, encoder faults, CAN message errors, tiller handle faults and many more. The EPS controller alarms cover hardware faults, overcurrent, precharge, temperature, voltage supply, motor over-temperature, encoder faults, CAN bus errors and steering command supervision. The manual explains the two-LED diagnostic system on the modules, where the red and yellow LEDs flash a two-digit error code in sequence.

Key Specifications at a Glance

• Load capacity (rated load Q): 2.0 t
• Load centre of gravity: 600 mm
• Battery voltage: 24 V
• Battery capacities: 210 / 250 / 300 / 400 / 500 Ah (5-hour rating)
• Traction motor: 4 kW (S2 60 min)
• Lifting motor: 1.4 kW (S3 16%)
• Steering motor: 0.3 kW
• Drive control: AC Mosfet
• Service brake: Electromagnetic
• Front wheel size: 254 x 90
• Rear wheel size: 85 x 94
• Fork size (s/e/l): 170 / 55 / 1183 mm
• Height of tiller in driving position: 1220 / 1460 mm
• Fully lowered fork height: 88 mm

Why This Manual Matters

Working on an electric pallet truck without the correct procedures and specifications is a fast route to repeat failures, damaged components and unsafe operation. The Hyster P2.0S service manual gives you the exact torque values, alarm code diagnostics, hydraulic circuit pressures, electrical connector pinouts and calibration procedures the truck was designed around. Whether you are diagnosing an intermittent traction fault, replacing a lifting cylinder seal, adjusting the electromagnetic brake or resetting maintenance timers after servicing, having the manufacturer’s own procedure in front of you saves time and prevents costly mistakes.

IMAGES PREVIEW

Instant PDF Delivery

This Hyster P2.0S workshop manual is delivered as an instant PDF download after payment — no shipping, no waiting for a physical book. Open it on any laptop, tablet or smartphone in the workshop, print the pages you need for the job at hand, and keep the complete manual on file for future reference. With 271 pages covering every system on the truck, this is the reference you will reach for every time a P2.0S comes into the workshop.
