Hyundai R160LC-7 Excavator Service Repair Manual – Full Workshop PDF

Description

Hyundai R160LC-7 Excavator Service Repair Manual

This is the complete Hyundai R160LC-7 crawler excavator service repair manual — a full workshop document prepared for service technicians working on the Robex R160LC-7. At 454 pages, it covers the machine from general safety and specifications through to hydraulic circuits, electrical systems, mechatronics, troubleshooting, maintenance standards, component disassembly and assembly, and every mounting torque value you need. Whether you are diagnosing a hydraulic fault, testing a travel motor, or rebuilding a swing device, this Hyundai R160LC-7 service manual gives you the procedures and specifications the factory used.

File Details

• Manual type: Factory service / workshop manual
• Brand: Hyundai
• Model: R160LC-7 (Robex)
• Language: English
• Page count: 454
• File format: PDF
• Document structure: 9 sections

Chapters Covered

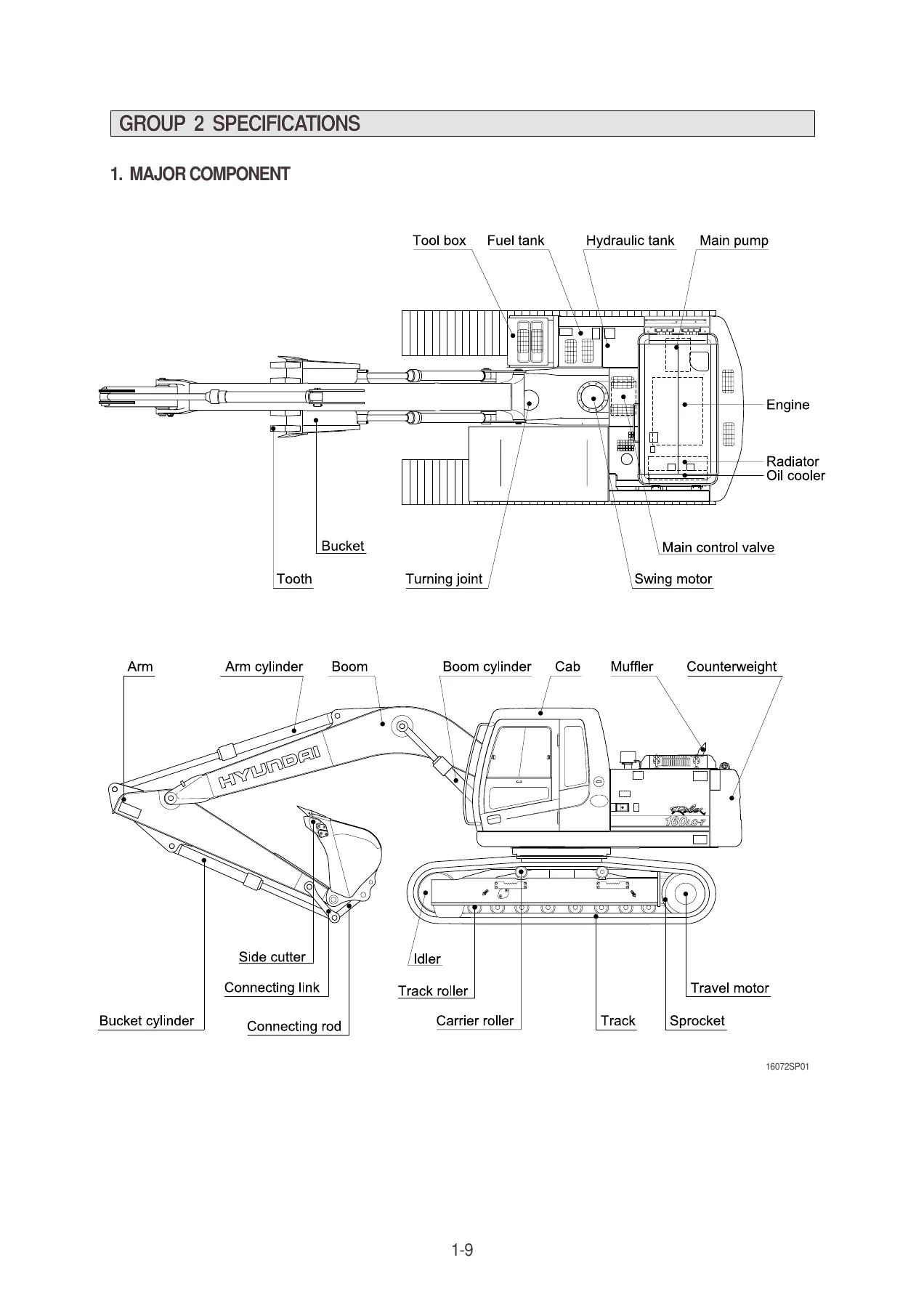

• Section 1 — General: Safety hints, machine specifications, major component specifications, conversion tables
• Section 2 — Structure and Function: Pump device, main control valve, swing device, travel device, RCV lever, RCV pedal

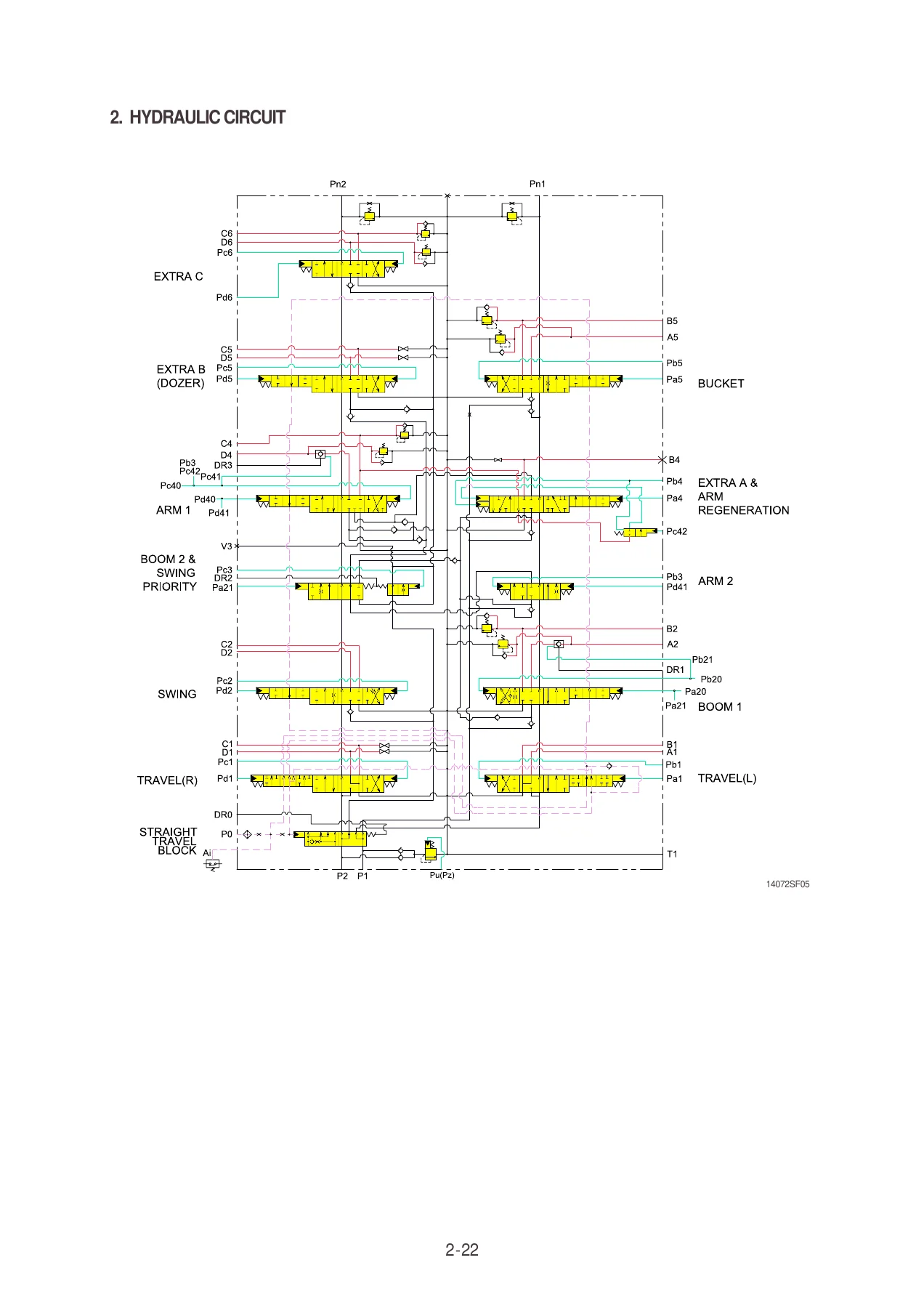

• Section 3 — Hydraulic System: Hydraulic circuit, main circuit, pilot circuit, single operation, combined operation
• Section 4 — Electrical System: Component location, electrical circuit, electrical component specification, connectors
• Section 5 — Mechatronics System: Outline, mode selection system, automatic deceleration system, power boost system, travel speed control system, automatic warming up function, engine overheat prevention function, anti-restart system, self-diagnostic system
• Section 6 — Troubleshooting: Before troubleshooting, hydraulic and mechanical system, electrical system, mechatronics system
• Section 7 — Maintenance Standard: Operational performance test, major components, track and work equipment
• Section 8 — Disassembly and Assembly: Precaution, tightening torque, pump device, main control valve, swing device, travel device, RCV lever, turning joint, boom/arm/bucket cylinder, undercarriage, work equipment
• Section 9 — Component Mounting Torque: Introduction guide, engine system, electric system, hydraulic system, undercarriage, structure, work equipment

This Hyundai R160LC-7 excavator service manual is not a summarized guide. It is the complete workshop document, organized the way Hyundai technicians work: understand the system, test it, diagnose the fault, then repair it to specification. The structure and function section explains how each component works before you touch it. The hydraulic and electrical sections give you the circuits, component locations and connector references. The troubleshooting charts correlate symptoms to causes. The maintenance standard section provides the wear limits and performance test values you need to judge whether a part is serviceable. And the disassembly/assembly section walks through each major component with tightening torques throughout. This is the same flow a dealership technician follows, and it is what makes this Hyundai R160LC-7 repair manual useful long after a fault first appears.

What This Manual Covers in Depth

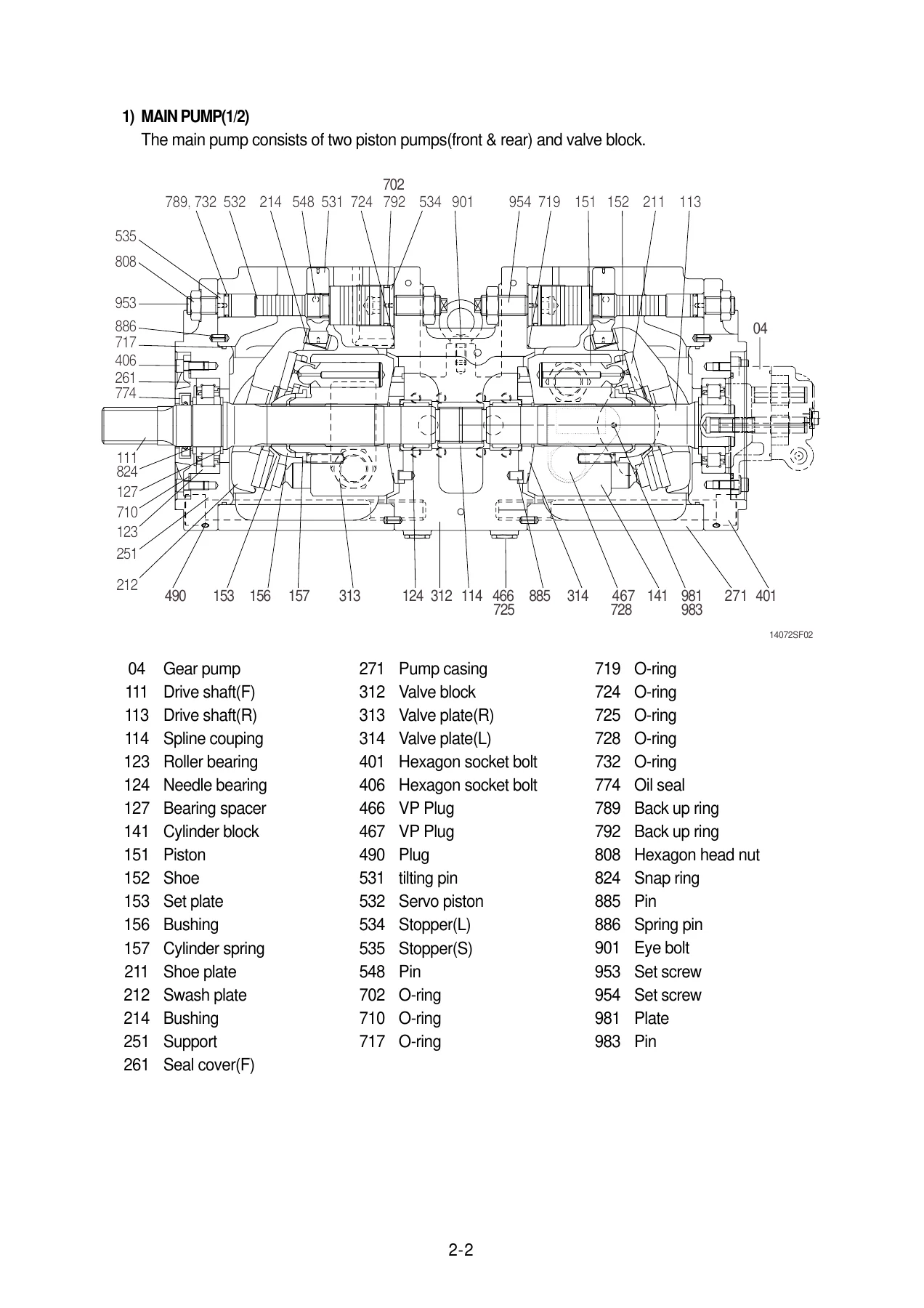

The engine chapter covers the Mitsubishi S6S-DT diesel — 4-cycle, turbocharged, water-cooled, 6-cylinder in-line, 94 × 120 mm bore and stroke, 4,996 cc displacement, 19.5:1 compression ratio, rated at 126 hp at 2,100 rpm with maximum torque of 42.5 kgf·m at 1,500 rpm. The main pump chapter covers the variable displacement tandem axis piston pump — 2 × 80 cc/rev capacity, 330 kgf/cm² maximum pressure (360 kgf/cm² in power boost), 2 × 168 L/min rated flow. The main control valve is an 11-spool mono-block with hydraulic pilot operation, main relief valve set at 330 kgf/cm² (360 kgf/cm² power boost) and overload relief valves at 380 kgf/cm². The swing motor is a two fixed displacement axial piston motor with 117.8 cc/rev capacity and 56 kgf·m braking torque. The travel motor is a variable displacement axial piston motor with 330 kgf/cm² relief pressure and 40.6 kgf·m braking torque. The RCV lever and pedal use a pressure reducing type remote control valve with 6.5 to 26 kgf/cm² operating pressure. All cylinder bore, rod and stroke dimensions are included — boom Ø115 × Ø80 × 1,090 mm, arm Ø120 × Ø85 × 1,340 mm, bucket Ø115 × Ø80 × 950 mm.

The mechatronics section covers the NEW CAPO (Computer Aided Power Optimization) system — the CPU controller, cluster, accel actuator, EPPR valve and the mode selection, auto deceleration, power boost, travel speed control, auto warming up, engine overheat prevention, anti-restart and self-diagnostic systems. Error codes for the self-diagnostic system are included with descriptions, so you can read a fault code and go straight to the cause. This Hyundai R160LC-7 mechatronics troubleshooting material is often missing from generic repair guides but is essential for the R160LC-7 since the CAPO system controls engine and pump power together.

Why This Hyundai R160LC-7 Manual Matters

The R160LC-7 is an older machine, and many of the faults that show up now are the same faults the factory troubleshooting charts were written for — swing drift, travel deviation, low boom speed, oil overheating, hydraulic oil cloudiness, engine stall, EPPR valve issues, sensor faults and solenoid failures. Working from guesswork on these systems leads to parts swapping, comebacks and, in the worst case, damage to the main pump or control valve. The Hyundai R160LC-7 service repair manual gives you the test procedures and specification ranges so you can confirm the fault before you order parts. That is particularly true for the hydraulic and mechatronics systems, where a pressure gauge reading or a resistance measurement is what separates a pump fault from a relief valve fault from a controller fault. This manual also provides the maintenance standard section — operational performance tests for engine speed, travel speed, track revolution speed, travel deviation, swing speed, swing drift, swing bearing play, hydraulic cylinder cycle time, dig function drift, control lever operating force, control lever stroke, pilot primary pressure, travel speed selecting pressure, swing parking brake releasing pressure, main pump delivery pressure and system relief pressure. These are the same tests the dealer uses, and they are how you decide whether a machine is within specification or needs service.

The disassembly and assembly section is written component by component: pump device, main control valve, swing device, travel device, RCV lever, turning joint, boom/arm/bucket cylinder, undercarriage and work equipment. Each procedure includes the tools required, the tightening torques for every fastener, and the assembly precautions that prevent seal damage, incorrect valve plate orientation, wrong gear timing or bearing damage. The torque section at the back of the manual gives you the standard tightening torques for metric coarse and fine thread bolts, pipe and hose fittings, and component mounting torques for the engine system, electric system, hydraulic system, undercarriage, structure and work equipment. Having these in one place means you can service the machine to factory torque instead of relying on generic tables.

Get the Complete Hyundai R160LC-7 Workshop Manual

With this Hyundai R160LC-7 excavator service repair manual, you can diagnose hydraulic and mechanical faults using the factory troubleshooting charts, test electrical and mechatronics systems against the correct specification ranges, rebuild the pump, control valve, swing motor, travel motor, cylinders and undercarriage to factory procedures, and confirm a repair with the operational performance tests in the maintenance standard section. The manual is delivered as a PDF — no shipping, no waiting. Download it after purchase, keep it on a laptop, tablet or phone in the workshop, and print the pages you need for the job at hand. Whether you are a professional technician, a fleet maintenance manager, or an owner-operator who prefers to do the work properly, this Hyundai R160LC-7 service manual gives you the same information the workshop uses.

IMAGES PREVIEW
