Isuzu 4LE2 Tier 4 Stage IIIB Diesel Engine Workshop Manual IDE-2650

Description

Isuzu 4LE2 Tier 4 Stage IIIB Diesel Engine Workshop Manual

This is the complete workshop manual for the Isuzu 4LE2 diesel engine built to Tier 4 / Stage IIIB exhaust emission standards. Publication IDE-2650 covers every major system on the engine — from mechanical teardown and rebuild through to the electronic common rail fuel system, EGR control, and full DTC diagnostics. It is written for the service technician working on the 4LE2 in industrial, agricultural, and off-highway machinery, and it applies to both the 12V and 24V electrical specifications.

File Details

• Manual type: Diesel engine workshop manual
• Brand: Isuzu
• Engine model: 4LE2
• Emission standard: Tier 4 / Stage IIIB
• Publication number: IDE-2650
• Language: English
• Page count: 872 pages
• File format: PDF
• Electrical coverage: 12V and 24V specifications

Chapters Covered

The manual is organised into the following sections, matching the publication’s own table of contents:

• Introduction
• Service Information Guide (plasti-gauge use, recommended liquid gaskets, thread locking agents, standard bolt torque tables, abbreviations)
• Maintenance Information (primary specifications, function/structure/operation, trouble diagnosis introduction)
• Functional Inspection (compression, fuel, air intake, exhaust, EGR, starting, glow, OBD checks)
• Symptom (start failure, stalling, rough idling, white/black smoke, abnormal noise, fuel and oil consumption, insufficient output)
• DTC Information
• Engine Control (DTC diagnosis and resolution for 12V and 24V models)
• Mechanical (cylinder head, cylinder block, crankshaft, piston, camshaft, flywheel, oil seals, rocker arm, valve spring, valve stem oil seal, CMP sensor, CKP sensor, engine speed sensor, intake chamber)
• Fuel System (fuel supply pump, common rail assembly, injector, suction control valve, fuel filter, fuel temperature sensor, pressure limiter, fuel pressure sensor, fuel filter pressure sensor)
• Cooling (water pump assembly, thermostat, cooling fan belt, radiator, engine coolant temperature sensor, coolant)
• Lubrication (oil pan, oil pump assembly, oil cooler assembly, oil pressure sensor, engine oil, oil filter element)
• Induction (turbocharger assembly, intercooler, air cleaner element, IMT sensor, pressure/boost temperature sensor)
• Exhaust (integrated oxidation catalyst silencer)
• Aux. Emission Control Devices (EGR valve)
• Electrical (glow plug, generator, ECM, starter motor)
• Wiring Diagram (engine control wiring, location diagram, connector list, terminal names)

What This Isuzu 4LE2 Workshop Manual Gives You

This is the same service information a workshop uses to strip, inspect, repair and reassemble the 4LE2 engine. Every mechanical procedure has a removal, disassembly, inspection, reassembly and installation path, with torque values, service limits, valve clearances, tightening sequences and measurement methods given at each step. The manual also carries full electronic control coverage: the engine control module, sensors, actuators, the common rail injection system, EGR control and the self-diagnostic DTC tables for both 12V and 24V machines.

The DTC section alone is extensive — it lists fault codes by flash code and SPN-FMI, explains the condition for setting each DTC, and describes the action the ECM takes when the code is stored. From there, each DTC has its own diagnostic procedure with a step-by-step path and a confirmation of resolution test at the end.

Engine Mechanical

Full mechanical rebuilding information for the 4LE2 — cylinder head cover, cylinder head assembly, idle gear, cylinder block, exhaust manifold, crankshaft, piston, camshaft, flywheel, crankshaft front and rear oil seals, rocker arm shaft, valve spring, valve stem oil seal, CMP sensor, CKP sensor, engine speed sensor and intake chamber. Disassembly, inspection, reassembly and installation procedures are given with the torque and wear limits you need at each stage.

Fuel System and Common Rail

Covers the electronic common rail fuel system used on the Tier 4 / Stage IIIB 4LE2. Fuel supply pump, common rail (fuel rail) assembly, injector, suction control valve, fuel filter, fuel temperature sensor, pressure limiter, fuel pressure sensor and fuel filter pressure sensor all have removal and installation procedures with the safety and cleanliness requirements spelled out. Injector ID code programming and the injector replacement workflow are described.

Cooling, Lubrication, Induction and Exhaust

Water pump assembly, thermostat, cooling fan belt, radiator and engine coolant temperature sensor for the cooling system. Oil pan, oil pump assembly, oil cooler assembly, oil pressure sensor and oil filter element for lubrication. Turbocharger assembly, intercooler, air cleaner element, IMT sensor and pressure/boost temperature sensor for induction. The integrated oxidation catalyst silencer for the exhaust path.

EGR and Emission Control

The EGR system coverage includes the EGR valve removal, inspection and installation with the tightening order for the cooler assembly. Inspection intervals for the EGR valve and EGR cooler are given, along with the cleaning procedure for the cooler when carbon deposits build up.

Electrical and Wiring Diagrams

Glow plug, generator, ECM and starter motor removal, inspection and installation for the 12V and 24V configurations. The wiring diagram section includes the engine control wiring diagram, connector location diagram, connector list, and terminal name tables for the ECM and engine harness connectors.

Diagnostics and Troubleshooting

Functional inspection covers compression pressure, fuel system, air intake, exhaust, EGR control, starting system, glow control and the OBD system check. The symptom section gives diagnostics for engine start failure, engine stalling, engine hunching and rough idling, excessive white smoke, excessive black smoke, abnormal noise, large fuel consumption, large oil consumption and insufficient engine output.

Primary Specifications for the 4LE2

• Engine type: Diesel, 4-cycle, water-cooled, inline 4-cylinder, overhead valve
• Combustion chamber: Direct injection
• Bore x stroke: 85 mm × 96 mm
• Displacement: 2.179 L
• Compression ratio: 17.6
• Compression pressure: 3.04 MPa at 250 r/min
• Idling speed: 1000 r/min
• Valve clearance (intake and exhaust): 0.40 mm while cool
• Injection order: 1-3-4-2
• Lubrication oil amount: 10.4 L MAX
• Oil pan capacity: 7.6 L MIN
• Coolant capacity (engine only): 4.1 L
• Thermostat open valve temperature: 82 °C

Who This Manual Is For

Owners and technicians working on Isuzu 4LE2-powered machinery who need the manufacturer’s own procedures, torque figures, service limits and diagnostic logic rather than a general-purpose repair guide. Whether you are doing routine maintenance, diagnosing a DTC, rebuilding a cylinder head, or chasing a fuel system fault, the manual covers the job with the level of detail the engine requires.

Get Instant Access

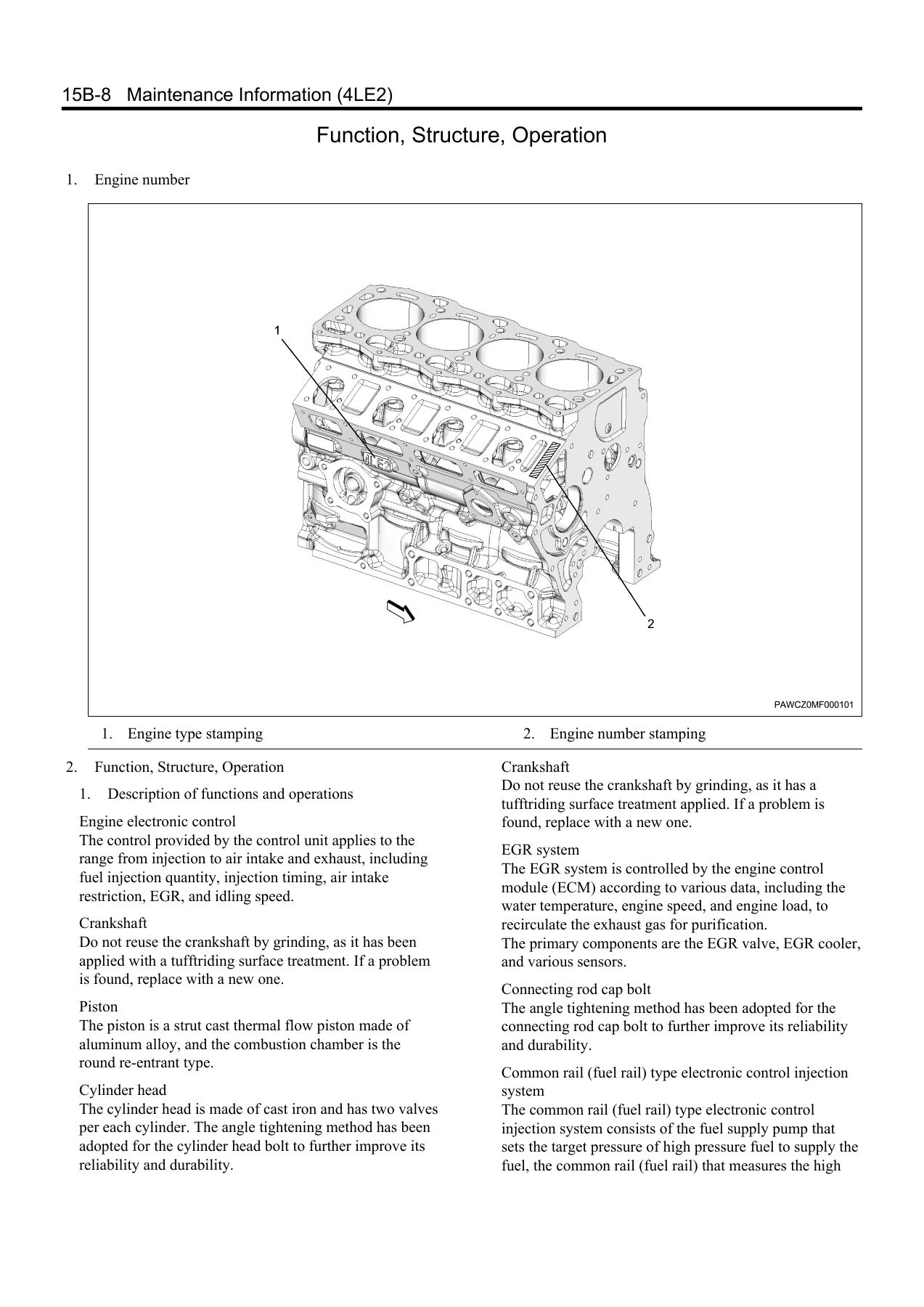

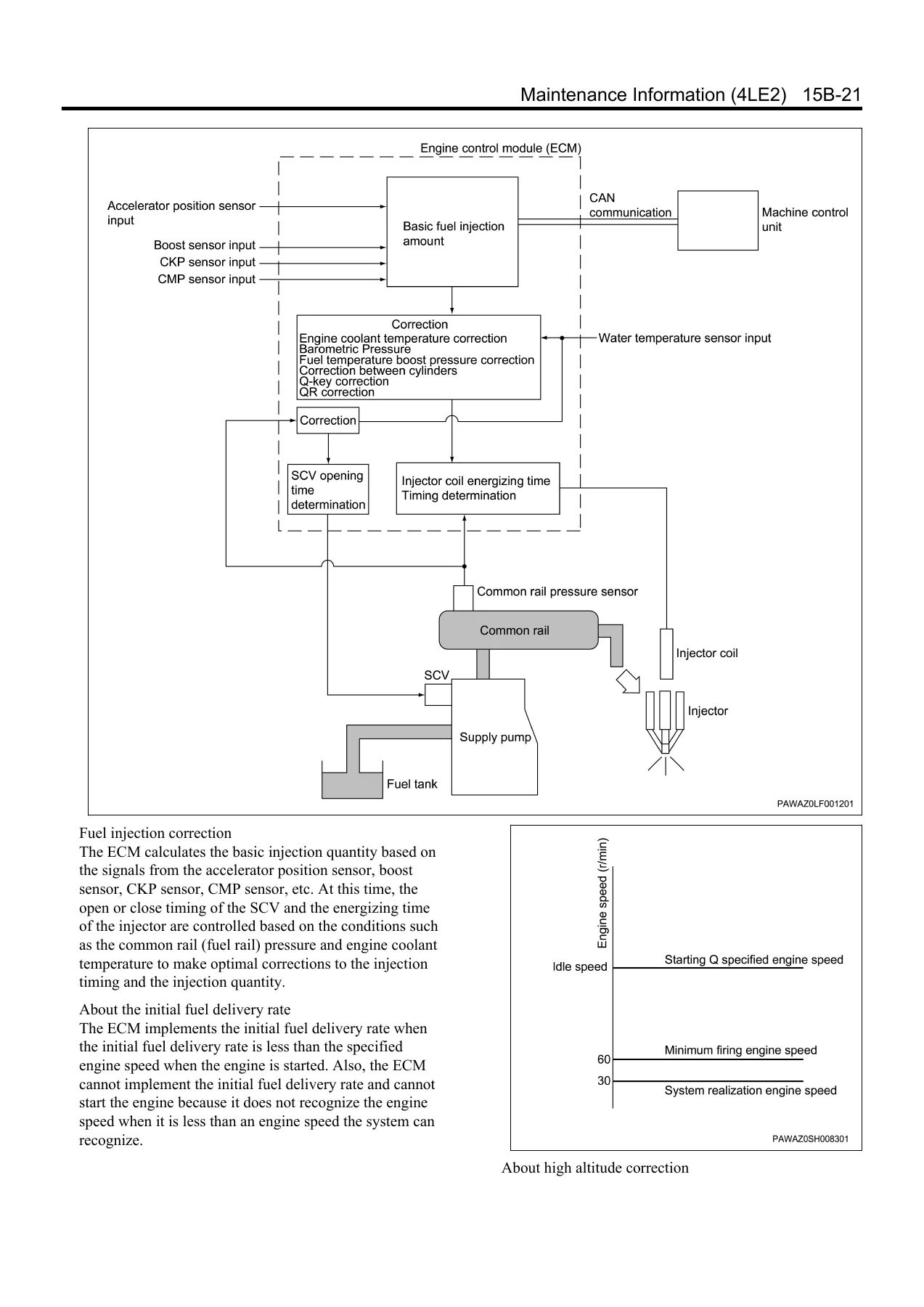

IMAGES PREVIEW

The Isuzu 4LE2 Tier 4 Stage IIIB diesel engine workshop manual (IDE-2650) puts the complete engine service information in your hands the moment you check out. No waiting for shipping, no physical book to store — the PDF downloads instantly and works on any laptop, tablet, or phone. Print the pages you need for the job at hand, or keep the whole manual on the workshop computer for quick reference. With the full mechanical, fuel, cooling, lubrication, induction, exhaust, EGR, electrical and diagnostic sections all in one document, you have everything required to service, repair and troubleshoot the 4LE2 engine correctly.
