Isuzu C&E Series 6WF1-TC Common Rail Engine Workshop Manual 2006

Description

Isuzu C&E Series 6WF1-TC Common Rail Engine Workshop Manual

This is the complete Isuzu workshop manual for the 6WF1-TC common rail diesel engine fitted to C&E Series vehicles from the 2006 model year onward. Issued by Isuzu Motors Limited under document number HG6WFCG2-WE-0661, it is the engine-specific volume of the C&E Series workshop manual set and covers the 6WF1-TC from top to bottom: mechanical, cooling, fuel, electrical, exhaust, lubrication, supercharge, preheating and power take-off systems.

File Details

• Manual type: Engine Workshop Manual (Section 1 of the C&E Series set)
• Brand: Isuzu
• Engine: 6WF1-TC (Common Rail)
• Vehicle series: C&E Series
• Document number: HG6WFCG2-WE-0661
• Edition: First edition, April 2006
• Applicable models: 2006 year model and later vehicles
• Language: English
• Page count: 291 pages
• File format: PDF

Chapters Covered

• 1B — Engine Mechanical (6WF1-TC): engine assembly removal and installation, accessory parts, exterior parts, tightening torque tables, cylinder head, rocker arm, camshaft, timing gears, flywheel and flywheel housing, piston and connecting rod, crankshaft, cylinder block
• 1C — Cooling System: fan belt adjustment, thermostat, water pump, cooling system functional inspection, coolant specification
• 1D — Fuel System: common rail fuel pressure sensor, pressure limiter, fuel filter, pre-fuel filter, supply pump, injector specifications
• 1E — Engine Electrical: starting system including starter overhaul, charge system including generator overhaul, bench testing
• 1G — Exhaust System: exhaust pipe, silencer assembly, exhaust brake valve adjustment
• 1H — Lubrication System: oil filter, partial oil filter, oil pan and oiling jet, oil pump, oil cooler
• 1I — Accelerator Pedal Assembly: component parts, removal, installation
• 1J — Supercharge System: turbocharger inspection, intercooler, air cleaner element
• 1K — Preheating System: QOS II system, glow relay, thermo switch, glow plug inspection
• 1L — Power Take Off: engine rear PTO, idle gear, PTO shaft, bearing case

Every section opens with a trouble-symptom table listing the condition, the possible cause and the correction, then moves into the actual workshop content: removal, disassembly, inspection, assembly and installation, with tightening torque values called out at each fastening step and component part diagrams used throughout. Functional inspection procedures such as compression pressure testing, valve clearance adjustment and drive belt tension measurement are presented with the tooling and gauge values needed to carry them out correctly.

What This Manual Covers in Detail

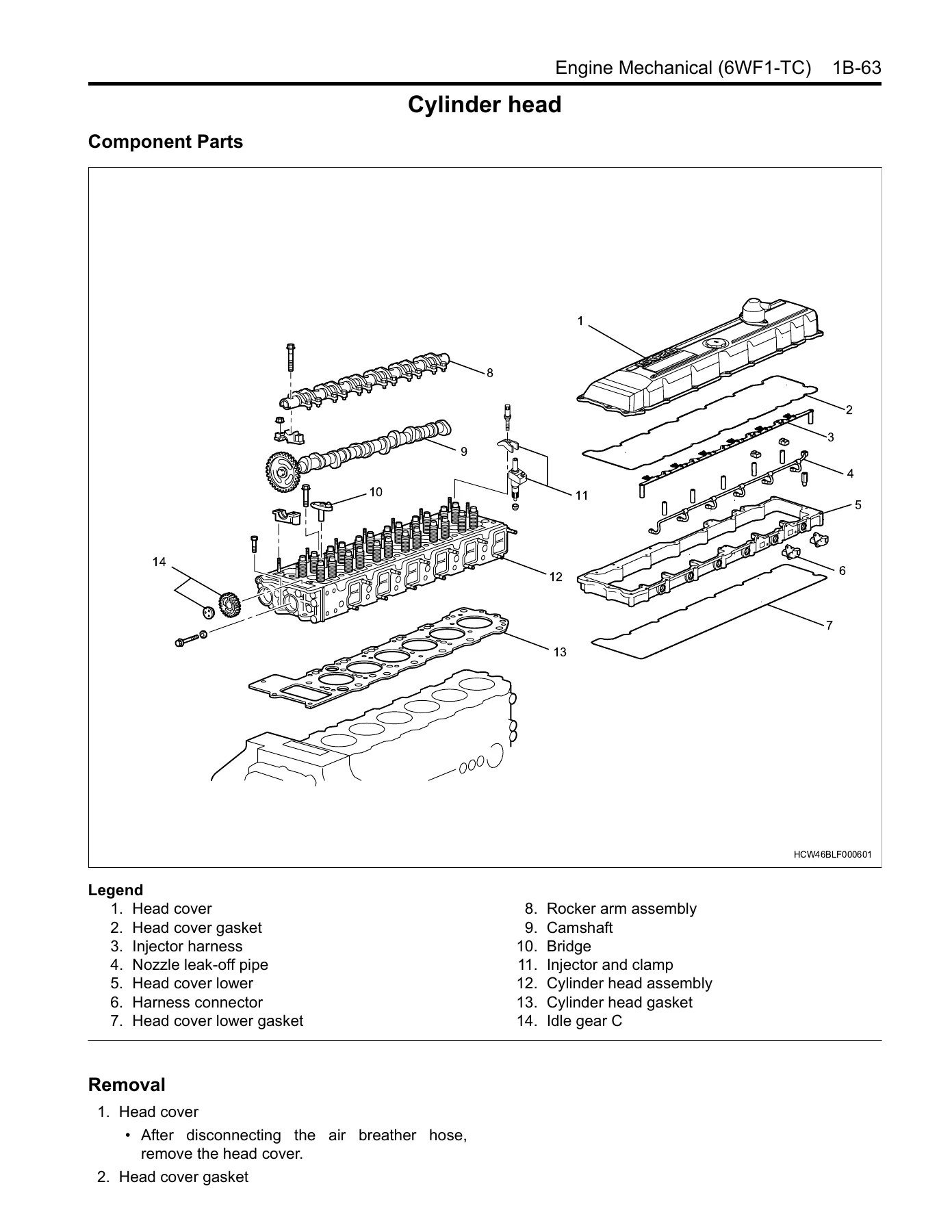

The 1B Engine Mechanical chapter is the largest in the book and is where most major overhaul work is documented. It walks through pulling the complete engine assembly out of the vehicle, separating the accessory and exterior parts, then stripping and rebuilding the cylinder head — valves, valve springs, valve guides, valve seat inserts, nozzle sleeves and bridge guides — followed by the rocker arm assembly, camshaft and timing gears. Flywheel and flywheel housing, piston and connecting rod, crankshaft, main bearings and the cylinder block are all covered with clearances, working limits and torque sequences spelled out. Idle gears A, B and C, the crank pulley assembly and the oil pump that sits in the timing gear case are also included.

IMAGES PREVIEW

On the fuel side (1D), the manual deals with the common rail system directly: fuel pressure sensor and pressure limiter servicing, the fuel filter and pre-fuel filter, the supply pump with its coupling alignment marks, and injection pipe fitting. There is a strong maintenance-precautions section explaining how sensitive the common rail injector passages are to foreign matter, which is essential reading before any fuel system work. Injector removal with the special tools, ID code plate handling and clamp torques are all described.

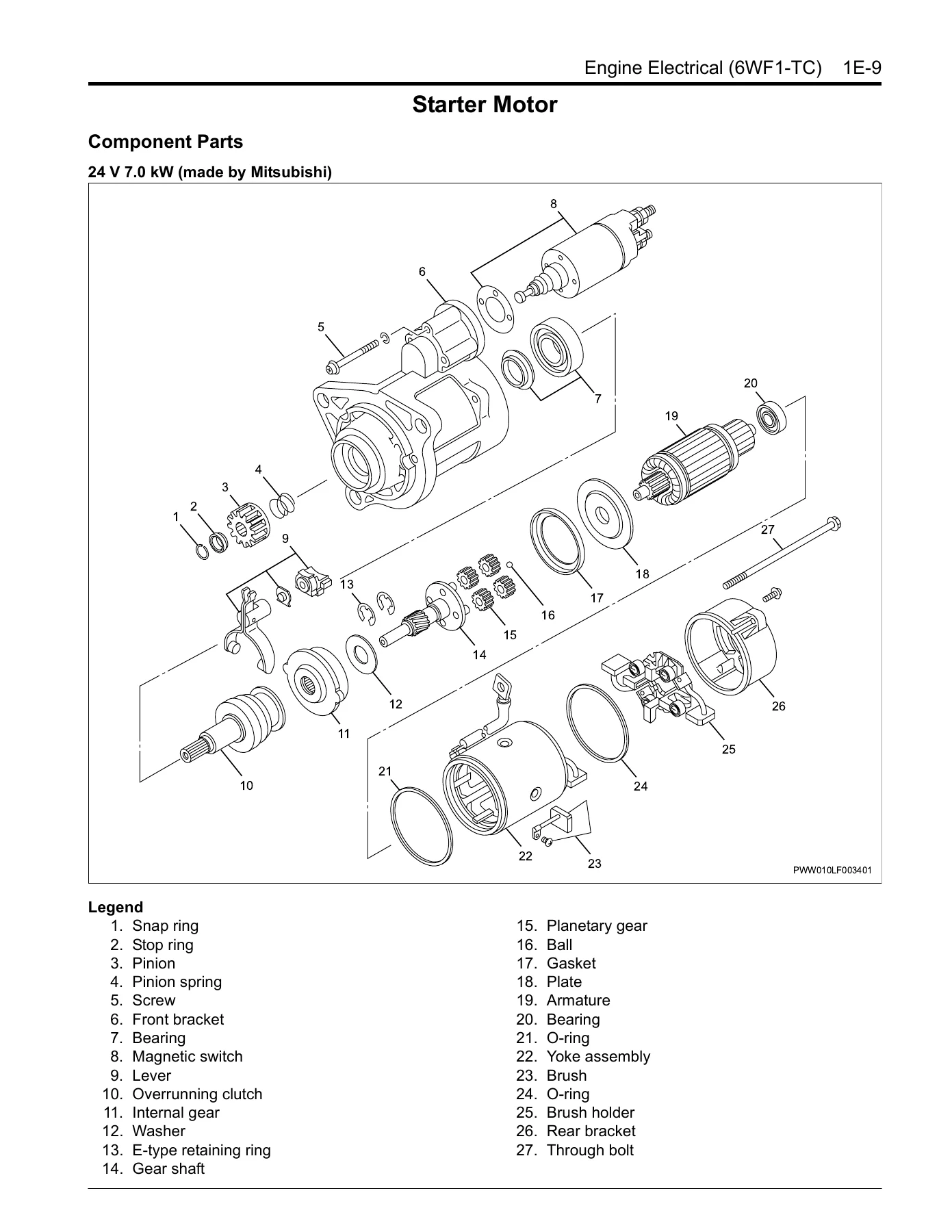

Engine Electrical (1E) covers the 24 V starting system and the charge system in full workshop detail — starter disassembly, armature growler testing, brush and commutator limits, magnetic switch checks, overrunning clutch inspection, pinion protrusion adjustment and no-load testing. The generator chapter documents the brushless alternator, rectifier and diode trio testing, IC regulator diagnosis, coil assembly removal and a full bench test procedure with voltage regulation and output current checks.

Cooling (1C), Lubrication (1H), Supercharge (1J), Preheating (1K) and PTO (1L) are all included. The cooling section documents the water pump overhaul with impeller clearance values and the thermostat opening behaviour. Lubrication covers the oil pump, oil cooler element, oil thermo valve, oil pan with oiling jets and both the main and partial oil filters. Supercharge documents turbocharger inspection and shaft play limits, intercooler and air cleaner element service. Preheating describes the QOS II timer system with glow relay, thermo switch and glow plug test values. Power Take-Off covers the engine rear PTO assembly including idle gear, shaft, bearing case and axial clearance adjustment.

How the Manual Is Organised

The document uses the Isuzu C&E Series section numbering convention — 1B, 1C, 1D, 1E, 1G, 1H, 1I, 1J, 1K and 1L — so cross-referencing from other C&E Series volumes is straightforward. Each subsystem chapter contains its own component parts exploded diagram, its own tightening torque table, and its own special tools list. Where a job needs a manufacturer tool such as the valve spring replacer, valve guide replacer, injector remover, slinger remover, oil seal installation tool, crankshaft gear puller, impeller remover or seal unit setting tool, the tool number is printed beside the step. Nominal dimensions, standard values and working limits are given in mm and inches throughout, along with torque figures in N·m, kgf·m and lb·ft.

Who This Manual Suits

This engine workshop manual is aimed at the technician or workshop carrying out scheduled maintenance, diagnosis, top-end repair or full engine overhaul on a 6WF1-TC common rail unit. It is equally useful for the owner-operator who wants to understand exactly how the engine is put together before authorising or performing a repair. The level of detail — clearance values, angular tightening stages, bolt sequences, liquid gasket application widths — means it can be followed directly on the bench, not just read as background.

Because the 6WF1-TC is a common rail engine, the correct procedure really does matter. Fuel system components operate at very high injection pressure and the injector passages are machined to fine tolerances; the manual is explicit that foreign material entry can cause serious problems. Following the printed torque sequences, especially on the cylinder head bolts and connecting rod bolts where an angle method is used after the initial torque, is what prevents comebacks and premature failure.

Instant PDF Delivery

The Isuzu C&E Series 6WF1-TC Common Rail Engine Workshop Manual is delivered as a PDF download immediately after purchase. There is no shipping, no waiting on a disc, and no software to install. The file opens on any device — workshop PC, laptop, tablet or phone — and can be printed page by page for use at the bench, so you can take the exact procedure you are working on into the bay without risking the whole book. Keep it on file for the life of the vehicle and reach for it the next time a torque figure, valve clearance or trouble symptom table is needed.
