JCB S1530E S1930E S2032E S2046E S2632E S2646E S3246E S4046E S4550E Scissor Lift Service Manual PDF

Description

JCB S1530E, S1930E, S2032E, S2046E, S2632E, S2646E, S3246E, S4046E, S4550E Service Manual – Complete Workshop Reference

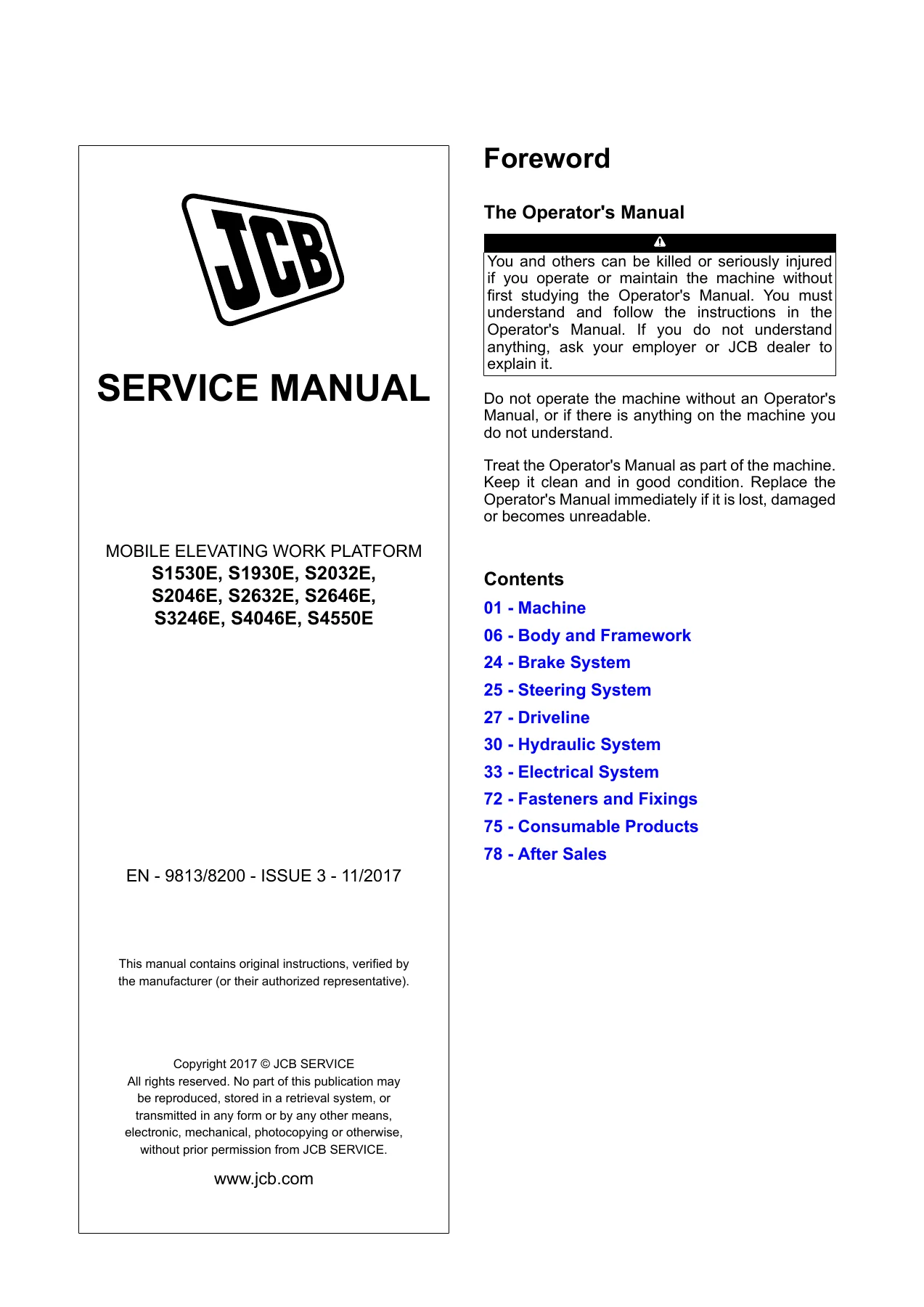

This JCB S1530E S1930E S2032E S2046E S2632E S2646E S3246E S4046E S4550E Scissor Lift Service Manual is the full 566-page factory workshop document (9813/8200-3, Issue 3, 11/2017) covering every mobile elevating work platform in JCB’s S-Series electric scissor lift range, from the compact 4.6m S1530E up to the 13.8m S4550E. Whether you support one of these lifts or maintain the whole line, this JCB S-Series service manual gives you the same reference JCB’s own technicians use.

• Manual type: Factory Service Manual (Volumes 1-3 combined)
• Brand / Models: JCB S1530E, S1930E, S2032E, S2046E, S2632E, S2646E, S3246E, S4046E, S4550E
• Language: English
• Page count: 566 pages
• File format: PDF (instant download)
• Document number: 9813/8200-3, Issue 3, dated 11/2017

Chapters Covered

• 01 – Machine: Safety (yours and others, warnings, general/maintenance/operating/worksite safety, risk assessment, maintenance positions), About this Manual (model & serial number, using the manual), Description (general technical data per model, main component locations, service point locations), Operation, Lifting, Cleaning

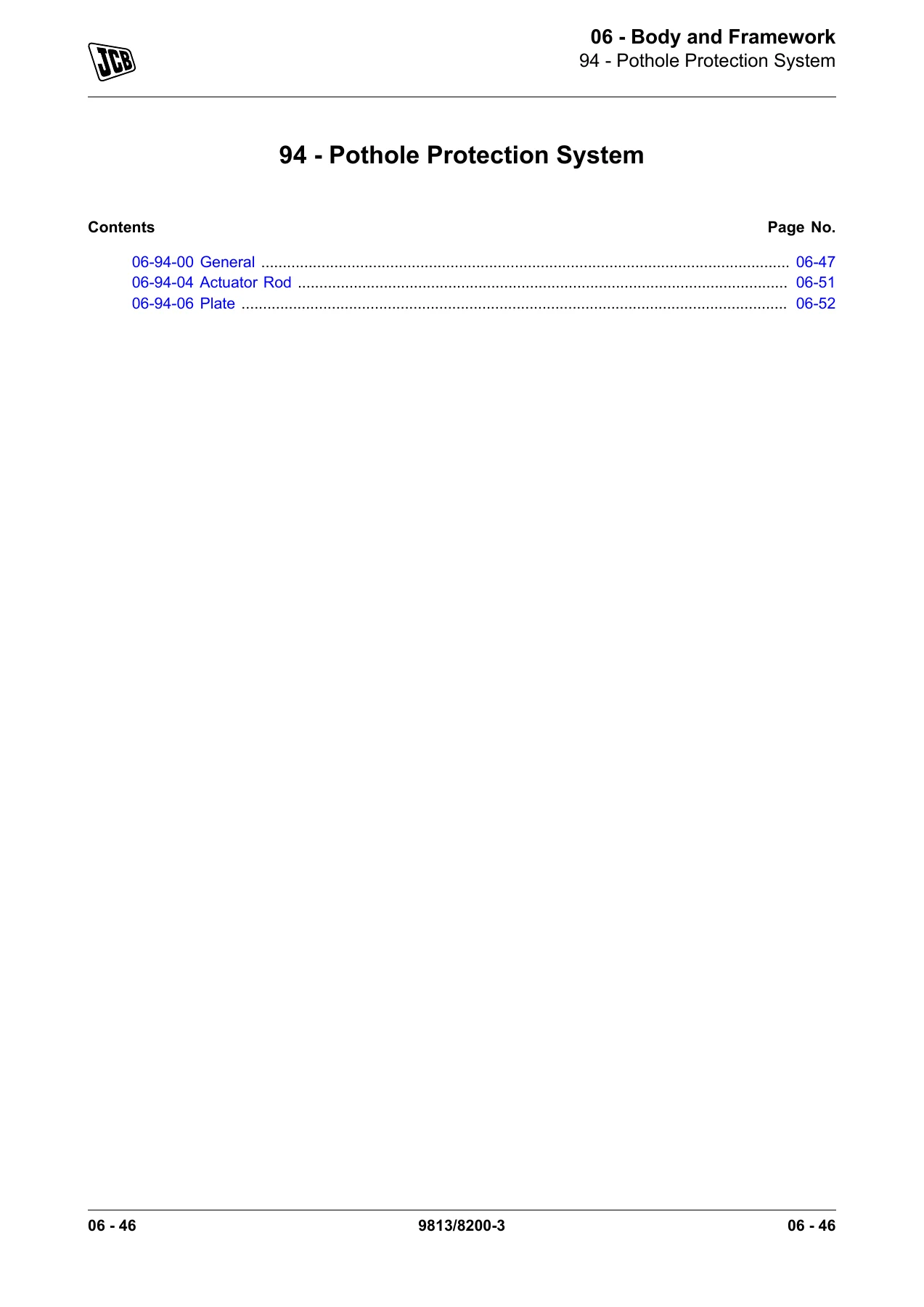

• 06 – Body and Framework: movable panels and covers (battery and hydraulic compartments), scissor arm (slider block, bush), pivot pins, gas strut and pothole protection, ladder, counterweight, identification labels, tools, emergency lower system (cable), pothole protection system (actuator rod, plate), platform (extension, guardrail, gate, gate hinge, extension pedal, wear pads)
• 24 – Brake System
• 25 – Steering System
• 27 – Driveline
• 30 – Hydraulic System
• 33 – Electrical System: control motor and battery technical data (Lead Acid and Lithium Iron Phosphate packs), charging voltages, wiring diagrams by model/battery type
• 72 – Fasteners and Fixings
• 75 – Consumable Products: recommended lubricants, health and safety, technical data
• 78 – After Sales: Maintenance Schedules and maintenance intervals (10h/daily through 2000h/two-yearly)

Together these sections take a technician from a cold read of the safety rules through full technical data for every model, into the scissor arm and body structure, the brake, steering, driveline and hydraulic systems, the complete electrical system including both Lead Acid and Lithium Iron Phosphate battery variants, and finally the fastener specs, approved consumables and the factory maintenance interval schedule that keeps a fleet compliant.

IMAGES PREVIEW

What This Manual Gives You

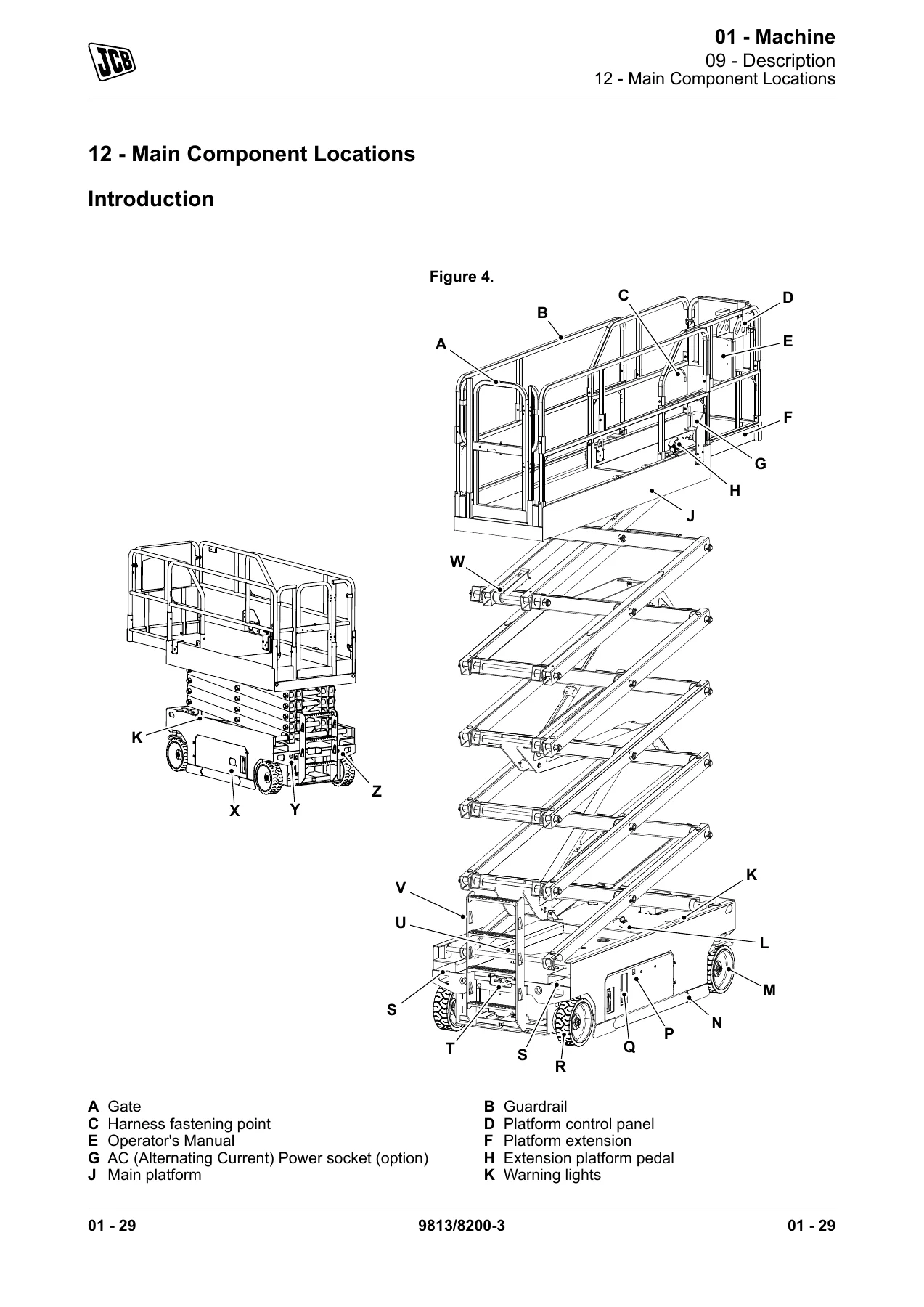

This JCB S1530E S1930E S2032E S2046E S2632E S2646E S3246E S4046E S4550E service manual gives you model-by-model technical data tables (platform height, working height, load capacity, tyre sizes, hydraulic tank and system capacities, hydraulic system pressure, drive speeds, raising/lowering times, gradeability, turning radius, and more) for all nine machines, plus the component location diagrams, battery and control-motor electrical specifications, and the full maintenance interval schedule needed to plan servicing. It supports diagnosis, repair, component replacement, and preventive maintenance work across the entire S-Series scissor lift range covered by this document.

This JCB S-Series service manual downloads instantly as a PDF after purchase – no shipping, no waiting. Open it on a phone, tablet, laptop or shop PC, print any page you need at the bench, and keep it on hand for every S1530E, S1930E, S2032E, S2046E, S2632E, S2646E, S3246E, S4046E or S4550E job that comes through your shop.
