JCB380 QM & JCB380 XTRA Excavator Owners Parts Book 9820/1116A PDF

Description

JCB380 QM & JCB380 XTRA Owners Parts Book – Document 9820/1116A

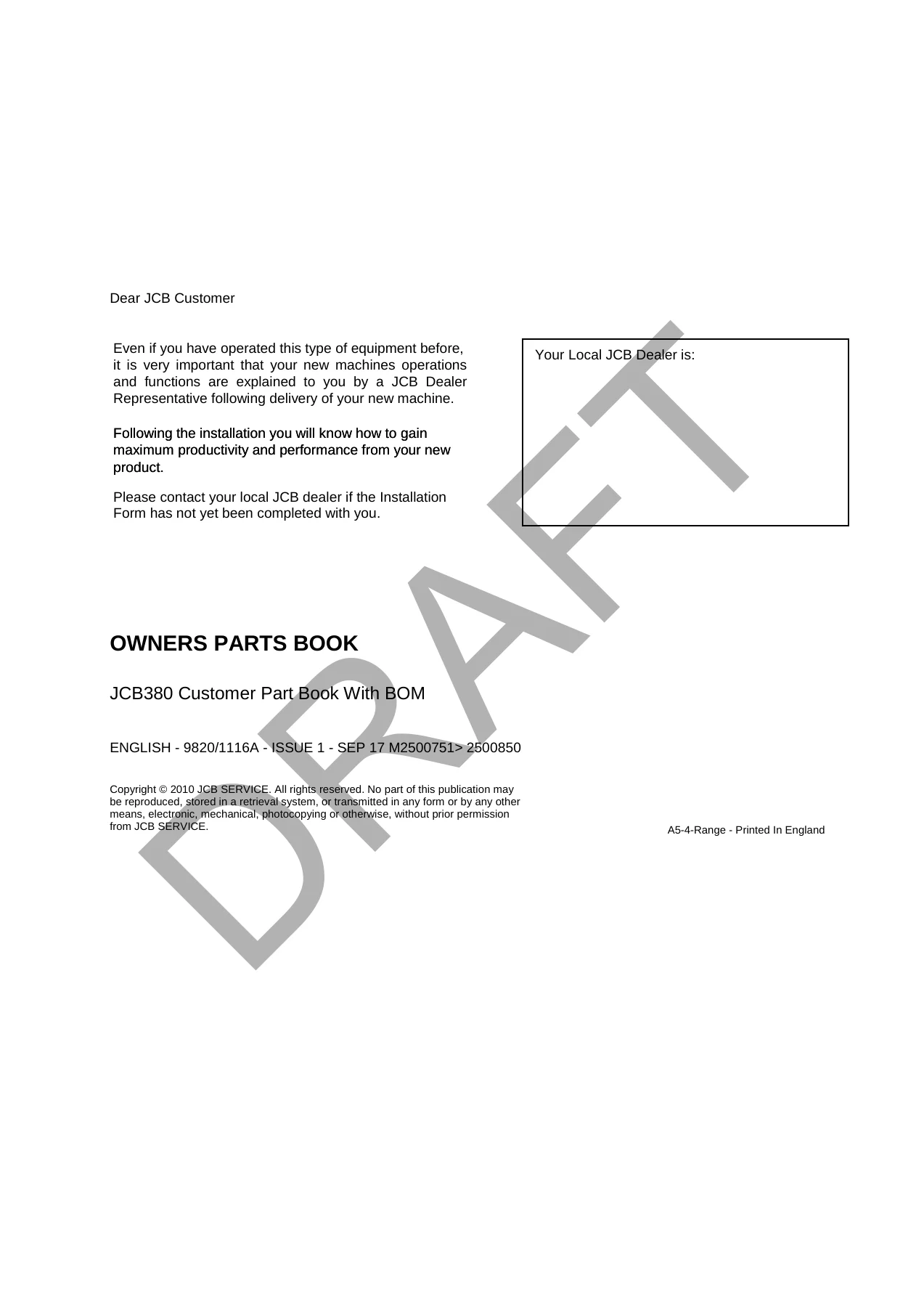

This JCB380 QM & JCB380 XTRA Excavator Owners Parts Book 9820/1116A PDF is the customer-facing Bill-of-Materials parts catalogue for the JCB 380 class excavator. It lists every illustrated assembly with an item number on the drawing, matched to a JCB part number, description and required quantity, so an owner, workshop or parts counter can pin down the exact component before ordering. The publication is written in English and is issued for the machine serial band M2500751 up to 2500850.

Because the JCB380 QM and JCB380 XTRA Excavator Owners Parts Book 9820/1116A PDF is a genuine parts catalogue rather than a repair guide, it does not contain disassembly procedures, torque values or service schedules. What it does contain is the correct part identification data for the complete machine, section by section, from the bucket teeth on the end of the dipper to the battery relay inside the cab panel.

File Details

• Manual type: Owners Parts Book / Customer Part Book with BOM
• Brand: JCB
• Models covered: JCB380 QM, JCB380 XTRA
• Document number: 9820/1116A
• Edition: Issue 0 / Issue 1
• Publication date: SEP 17
• Serial range: M2500751 > 2500850
• Language: English
• Page count: 254
• File format: PDF

Chapters Covered

The JCB380 QM & JCB380 XTRA Excavator Owners Parts Book 9820/1116A PDF is divided into the standard JCB main index groups, each with its own illustrated parts breakdowns:

• A – Attachments
  • A02 Buckets – standard 2.3 CUM, granite/scoop 1.44 CUM, heavy duty 1.8 and 2.1 CUM, heavy duty 1.61 CUM, rock bucket 1.4 Cu.M
  • A03 Hitches – ABI hydraulic hitch installation, hydraulic quickhitch 29-36T, excavator quick hitch 3.1M and 205M arm, base kit
  • A09 Miscellaneous – refuelling pump, strainer, suction, anti-freeze fluid, edging strip
• B – Bodywork
  • B01 Bodywork/Frame – revolving frame, chassis bulkhead, baffles, houseframe kit, fuel tank ABI, hydraulic tank
  • B02 Cab/Canopy – operator enclosure installation, cab shell, roof hatch, roof top liner, doors, sliding window, glass frames, console box, trim
  • B04 Excavator – heavy duty special boom, dipper arms 2.21M / 2.63M / 3.23M HDS, tipping link and bucket link
  • B05 Refurbishments – machine identification decals, label packs, insignia, grease gun
• C – Electrics
  • C01 Electrical – system assembly, revolving frame electrics, harnesses, battery installation, isolator battery, worklamps, horns and alarms, beacons
  • C03 Electrics, Cab – cab installation, switches, heater/air con condenser, ATC control panel, radio, fuses and relays, fuselink box
• D – Controls
  • D01 Control, Mechanical – excavator controls, joystick control and floor plate assembly, foot pedals, T-bar assembly
• E – Hydraulics
  • E00 Hydraulic Circuits – hydraulic installation assembly, system assembly
  • E01 Hydraulic Circuits – drain, pressure line, pilot control line, low flow circuits, hose kit attachments
  • E02 Pump & Motors – main pump installation, ABI main pump, gear pump low flow
  • E03 Valves – main control valve, arm limited valve, solenoid valve, cushion valve, servo control joystick valves, check valve, quickhitch, 8 station solenoid
  • E04 Rams – arm ram installation 3.23M HDS, dipper ram assembly
  • E05 Filter – main hydraulic return filter, drain line filter, hammer return filter LF330
• F – Axles, Wheels & Transmission
  • F04 Track & Swing Gear Box – slew gearbox installation, track gearbox, swing motor, turntable bearing greasing
• J – Undercarriage
  • J01 Undercarriage – installation assembly, traction equipment, recoil and idler, track rollers, track chain and shoe assembly, rotary coupling, track guide, covers
• L – Engine
  • L01 Engine Installation Assemblies – engine assembly complete, dipstick, tread plates
  • L02 Exhaust System – exhaust installation, ABI exhaust, gaskets, clamps
  • L03 Induction System – Powercore cleaner with scavenger, induction filter ABI
  • L06 Cooling System – cooling pack installation, expansion tank, crankcase ventilation, radiator foam seals
  • L07 Fan Installation Assemblies – 5-wire clutch fan, fan hub carrier and pulley, front end auxiliary drive, idler pulley
  • L08 Fuel System – fuel line routing, fuel cooler, 2 micron FM1000 filter, 10 micron FM1000 filter, Donaldson 2 micron left side filter

Across these sections the JCB380 QM & JCB380 XTRA Excavator Owners Parts Book 9820/1116A PDF gives a technician the full exploded-view inventory of the machine. Every bucket variant is shown with its own cutter, tooth tip, locking pin, washer and sleeve set. Each hitch variant is drawn with its frame, hook latching, front lock, rear lock cylinder and ram. The bodywork group covers the bonnet, engine covers, grilles, radiator cover foam kit, counterweight assembly with shim plates and mounting bolts, toolbox, soundproofing panels and track guides. The cab group takes the enclosure down to individual latches, handles, glass panels, wiper motors, gas struts, sun screen and floor mats. Electrical coverage runs from the revolving frame harness through to individual 24V switches, reverse alarms, beacons, fuse mini and maxi ratings and the HECU controller. Hydraulics span the main pump, gear pump, control valves, servo joysticks, cushion and check valves, hose kits, return filters and hammer circuits. Undercarriage is fully itemised – track rollers, idler assembly, recoil spring, track chain with links, bushes, master pins, seals and track shoes. Engine-side coverage reaches into the dipstick, exhaust, induction, cooling pack, fan drive and fuel filtration.

Why This Parts Book Matters

Fitting the wrong tooth tip, hose assembly, shim pack or seal kit on a 380-class excavator is an expensive way to learn a part number. The JCB380 QM & JCB380 XTRA Excavator Owners Parts Book 9820/1116A PDF removes that guesswork by tying the drawing callout to the exact JCB part number for this serial range. Every illustration carries a numbered item table, and each item table carries the part number, change number, description and quantity – so a single part can be ordered in the right quantity for the job rather than in the wrong multiples.

For a workshop holding a JCB380 QM or JCB380 XTRA, this is also the reference that makes the rebuild or refurbishment trail manageable: which shim thickness goes under the counterweight, which O-ring belongs with the rotary coupling, which fuse rating sits in the fuselink box, which bucket bolt specification fits the standard 2.3 CUM bucket. Instead of relying on a dealer phone call or a guess from a photograph, the parts data is on hand in the same exploded format JCB uses in its own catalogues.

IMAGES PREVIEW

Instant PDF Delivery

The JCB380 QM & JCB380 XTRA Excavator Owners Parts Book 9820/1116A PDF is delivered as an instant download after payment. There is no shipping, no waiting for a disc or a printed copy, and no delivery charge. The file opens on any device that reads PDFs – workshop laptop, tablet on the machine, or desktop in the parts office – and pages can be printed for use at the bench when a screen is impractical. Keep a copy on the service vehicle, another at the parts counter, and print only the illustrations needed for the machine in front of you.
