John Deere 2250 2450 2650 2650N 2850 Tractor Technical Repair Manual TM4440

Description

John Deere 2250 2450 2650 2650N 2850 Tractor Technical Repair Manual TM4440

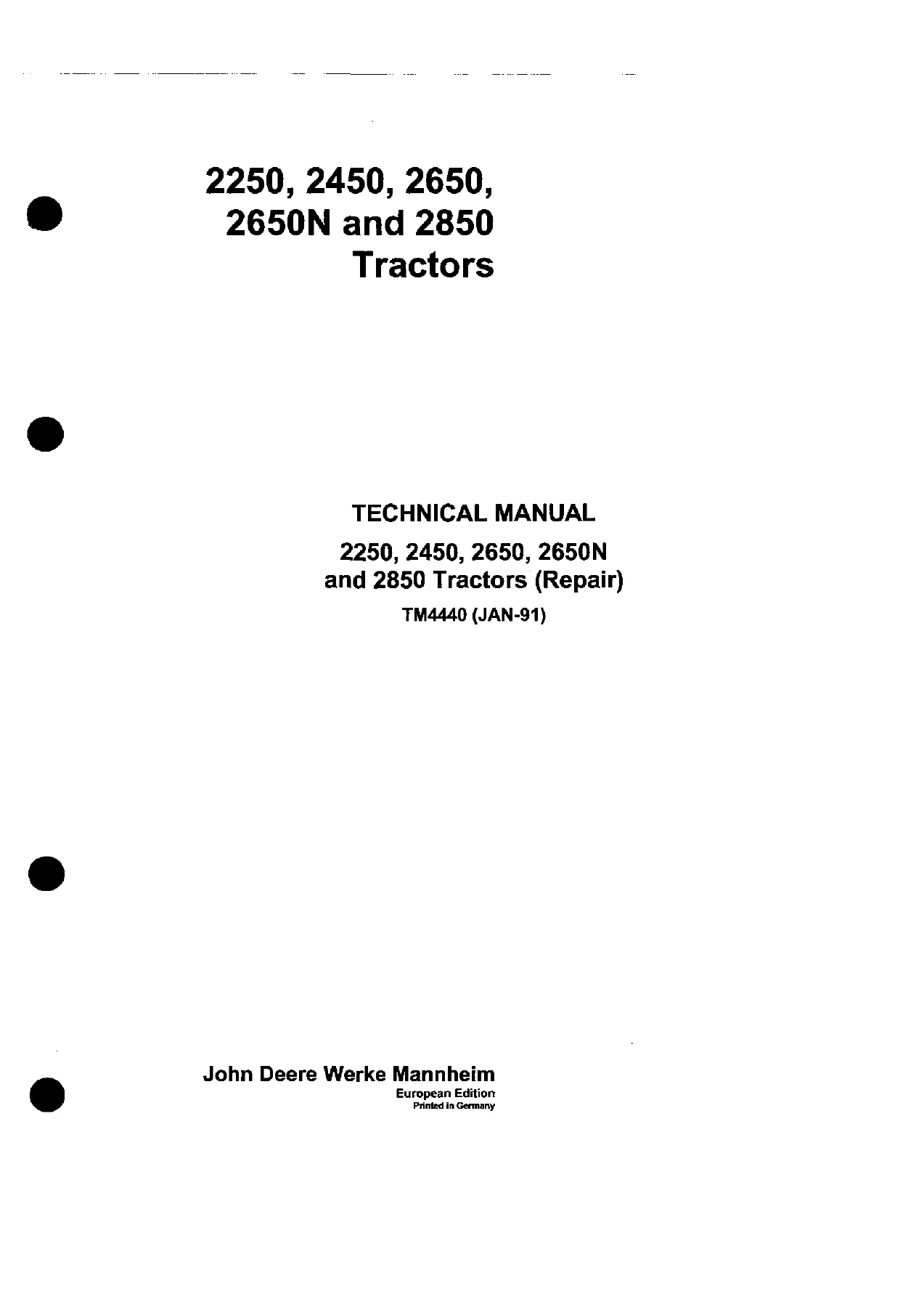

The John Deere 2250 2450 2650 2650N 2850 Tractor Technical Repair Manual TM4440 is a repair and service reference covering the 2250, 2450, 2650, 2650N and 2850 tractor range. The material in this 947-page PDF concentrates on specifications, inspection work, lubrication and servicing, tune-up procedures, special tools and tractor separation work. It includes model-specific applicability markings throughout the service sections so technicians can identify which procedures and specifications apply to each tractor.

The opening specification pages bring many frequently needed service values together in one place. They cover engine measurements and adjustments, clutch settings, transmission data, PTO operating pressures and speeds, front-wheel-drive information, hydraulic pressures, brake settings, steering adjustments, axle data, wheel attachment torques and other workshop values. Later specification pages provide further information on capacities, transmission arrangements, steering and brake systems, hydraulic equipment and standard hardware torque values.

File Details

• Manual type: Technical Manual – Repair
• Brand: John Deere
• Models: 2250, 2450, 2650, 2650N and 2850
• Document number: TM4440
• Revision shown: Jan-91
• Language: English
• Page count: 947 pages
• File format: PDF

Workshop Specifications and Service Data

A major strength of this John Deere 2250 2450 2650 2650N 2850 repair manual is the amount of service data gathered into its early pages. The engine specification material identifies a four-cylinder engine with 106.5 mm bore, 110 mm stroke and 3920 cm3 displacement, together with compression ratio, valve clearances, firing order, idle-speed information and model-dependent maximum torque and rated-speed data. PTO horsepower figures are also provided for the listed tractor models and transmission configurations.

Drivetrain and hydraulic information includes synchronized and collar-shift transmission descriptions, Hi-Lo shift unit information, creeper transmission arrangements, differential and final-drive descriptions, independent and continuous-running PTO data, front PTO information, front-wheel-drive operation, steering types, brake arrangements and hydraulic-system operating pressures. Capacity charts cover the engine crankcase, cooling system, fuel tank, auxiliary tank, transmission/hydraulic system and front-wheel-drive components, with differences identified where tractor configuration changes the required quantity.

IMAGES PREVIEW

Maintenance, Inspection and Tune-Up Content

The inspection sections are useful for both workshop preparation and routine condition checking. Predelivery and after-sales procedures include fuel and coolant checks, idle-speed verification, air-cleaner installation, belt tension, battery inspection, starting safety switch operation, lighting, cab heating and ventilation controls, windshield washer and wiper functions, transmission and hydraulic oil level, brake fluid, clutch pedal free travel, transmission operation, differential lock, PTO operation, Hi-Lo and creeper functions, front-wheel drive, steering, brakes, handbrake, three-point hitch, selective control valves, hydraulic leakage checks, wheel attaching torques and cab or roll-guard installation checks.

The lubrication and service section goes further into fluid selection and routine service work. It provides engine-oil, transmission/hydraulic-oil, front-axle-oil and grease information together with service intervals. Procedures shown in the PDF include checking and changing engine oil, changing the engine oil filter, checking the fuel filter for water and sediment, replacing the fuel filter, replacing coolant, checking transmission/hydraulic oil level, changing transmission/hydraulic oil, replacing hydraulic filters, servicing the hydrostatic steering filter, cleaning the hydraulic pump filter strainer, replacing hydraulic clutch brake fluid, checking front-axle and wheel-hub oil levels and lubricating chassis points.

Tune-up coverage includes preliminary engine testing, air-cleaner checks, intake-system checks, crankcase vent cleaning, radiator and oil-cooler cleaning, condenser cleaning on tractors with air conditioning, radiator-cap checks, radiator leak checks, thermostat checks, fuel-transfer-pump inspection, fuel-filter and fuel-tank contamination checks, fuel-injection-pump adjustment references, slow and fast idle verification, speed-control linkage adjustment, battery checks, belt-tension checks, starting-system checks, lighting checks and a final tractor-operation check.

Chapters Covered

• 05 – Safety
  • General workshop safety and service precautions
• 10 – General
  • Specifications
  • Predelivery, delivery and after-sales inspections
  • Lubrication and service
  • Tune-up
  • Tractor separation
• 20 – Engine
  • Radiator, viscous fan drive and fan listed in the manual section contents
• 30 – Fuel and Air Intake System
  • Fuel tank, auxiliary tank and water trap
  • Cold weather starting aids
  • Speed control linkage
  • Air cleaner
• 40 – Electrical System
  • Wiring harnesses
  • Controls and instruments
  • Starting motor
  • Alternator
• 50 – Power Train
  • Clutch operating systems
  • Single-stage and dual-stage engine clutch
  • Hi-Lo shift unit
  • Creeper and hydrostatic creeper transmission
  • Transmission center and rear transmission sections
  • Synchronized and collar-shift transmission
  • Differential and final drives
  • Independent and continuous-running PTO
  • Front PTO
  • Front-wheel-drive components
• 60 – Steering System and Brakes
  • Hydrostatic, power and manual steering
  • Steering cylinder
  • Brakes
  • Hydraulic trailer brake
• 70 – Hydraulic System
  • Valves
  • Hydraulic pumps
  • Rockshaft
  • Selective control valves
  • ISO breakaway couplers
  • ISO quick couplers
  • Remote cylinder
• 80 – Miscellaneous
  • Front axle
  • Front and rear wheels
  • Axla pickup trailer hitch
  • Height-adjustable trailer hitch
  Complete PDF Bookmark Tree

  Complete Bookmarks

  The complete bookmarks in the “John Deere 2250 2450 2650 2650N 2850 Tractor Technical Repair Manual TM4440” are as follows:

  2250, 2450, 2650, 2650N and 2850 Tractorsp. 1

  05 – SAFETYp. 10

  +10 – GENERALp. 20

  05 – Specificationsp. 25

  10 – Predelivery, delivery and after-sales inspectionsp. 38

  15 – Lubrication and servicep. 93

  20 – Tune-upp. 111

  25 – Tractor separationp. 121

  +20 – ENGINEp. 253

  05 – Radiator, viscous fan drive and fanp. 254

  +30 – FUEL AND AIR INTAKE SYSTEMp. 259

  05 – Fuel tank, auxiliary tank and water trapp. 260

  10 – Cold weather starting aidsp. 263

  15 – Speed control linkagep. 265

  20 – Air cleanerp. 269

  +40 – ELECTRICAL SYSTEMp. 270

  05 – Wiring harnessesp. 275

  10 – Controls and instruments (with SG2 cab)p. 304

  15 – Controls and instruments (without cab)p. 317

  20 – Controls and instruments (with MC1 cab)p. 326

  21 -Adjusting digital speed-hour-meterp. 333

  25 – Lighting systemp. 340

  30 – Starting motorp. 342

  35 – Alternatorp. 351

  +50 – POWER TRAINp. 362

  05 – Clutch operating systemsp. 379

  10 – Single-stage enginep. 397

  15 – Dual-stage engine clutchp. 412

  20 – Hi-Lo shift unitp. 422

  25 – Creeper transmissionp. 434

  26 – Hydrostatic creeper transmissionp. 443

  30 – Transmission – console shiftp. 455

  35 – Transmission – center shiftp. 467

  40 – Synchronized transmission and transmission oil pumpp. 476

  45 – Collar shift transmission and transmission oil pumpp. 501

  50 – Differentialp. 518

  55 – Final drivesp. 523

  60 – Independent PTO shaftsp. 535

  65 – Continuous running PTOp. 561

  70 – Front PTOp. 568

  75- Front wheel drive u.j. drive shaft and disk clutchp. 585

  +60 – STEERING SYSTEM AND BRAKESp. 603

  05 – Hydrostatic steeringp. 610

  10 – Steering cylinder (without front wheel drive)p. 625

  15 – Power steeringp. 637

  20 – Manual steeringp. 650

  25 – Hydraulic brakesp. 660

  30 – Handbrakep. 676

  35 – Hydraulic trailer brakep. 684

  +70 – HYDRAULIC SYSTEMp. 698

  05 – Valvesp. 705

  10 – Hydraulic pumpsp. 710

  15 – Rockshaftp. 735

  20 – Front hitchp. 778

  25 – Selective control valves (spool-type)p. 780

  30 – Selective control valves (poppet-valve type)p. 786

  35 – ISO breakaway couplersp. 798

  40 – ISO quick couplersp. 807

  45 – Remote cylinderp. 808

  +80 – MISCELLANEOUSp. 812

  05 – Front axlep. 814

  10 -Front and rear wheelsp. 824

  15 – "AXLA" pickup trailer hitchp. 832

  20 – Height-adjustable trailer hitchp. 837

  +90 – OPERATOR'S STATIONp. 841

  05 – Safe handling of refrigerantsp. 847

  06 – Servicing air conditioning systemp. 851

  07 – Compressor (up to tractor Serial No. 646 949L)p. 859

  08 – Compressor (from tractor Serial No. 646 950L)p. 874

  09 – Components of air conditioning systemp. 888

  10 – Cab ventilation and heating (SG2 cab)p. 892

  15 – Cab ventilation and heating (SG2 low-profile cab)p. 897

  20 – Cab ventilation and heating (MC1 cab)p. 901

  25 – Operator's seatsp. 905

  30 – SG2 cabp. 913

  35 – MC1 cabp. 931

  40 – 2-post roll guardp. 944

  45 – 4-post roll guardp. 946

• 90 – Operator’s Station
  • Safe handling of refrigerants
  • Air-conditioning servicing
  • Compressors
  • Heating and ventilation
  • Cab removal and installation
  • Operator’s seats
  • SG2 cab and MC1 cab
  • Roll guards

The section-content pages show the wider TM4440 repair structure, while this particular 947-page PDF contains the material visible through the tractor-separation procedures included at the end of the file. The pages supplied here therefore provide the general service foundation, specifications, inspections, lubrication, tune-up and the tractor-separation work contained in this PDF rather than every later repair section named in the manual’s contents.

Tractor Separation and Special Tools

The tractor-separation portion contains illustrated workshop procedures and dedicated tool information. Special-tool pages identify splitting stands, lifting equipment, engine-turning tools, belt-tension equipment and purpose-built supports. Dimensional drawings are included for several shop-fabricated fixtures used with cab removal and tractor splitting.

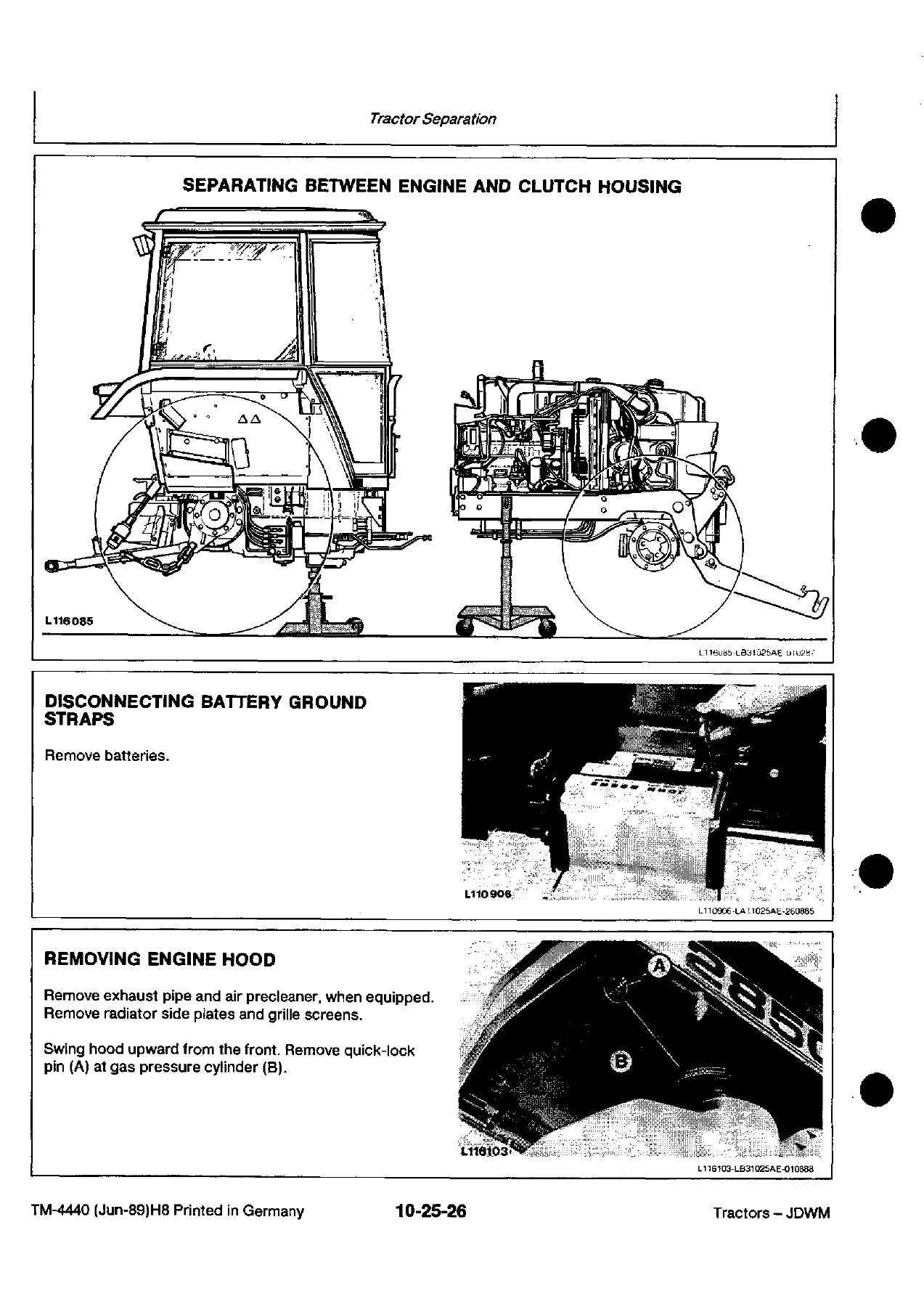

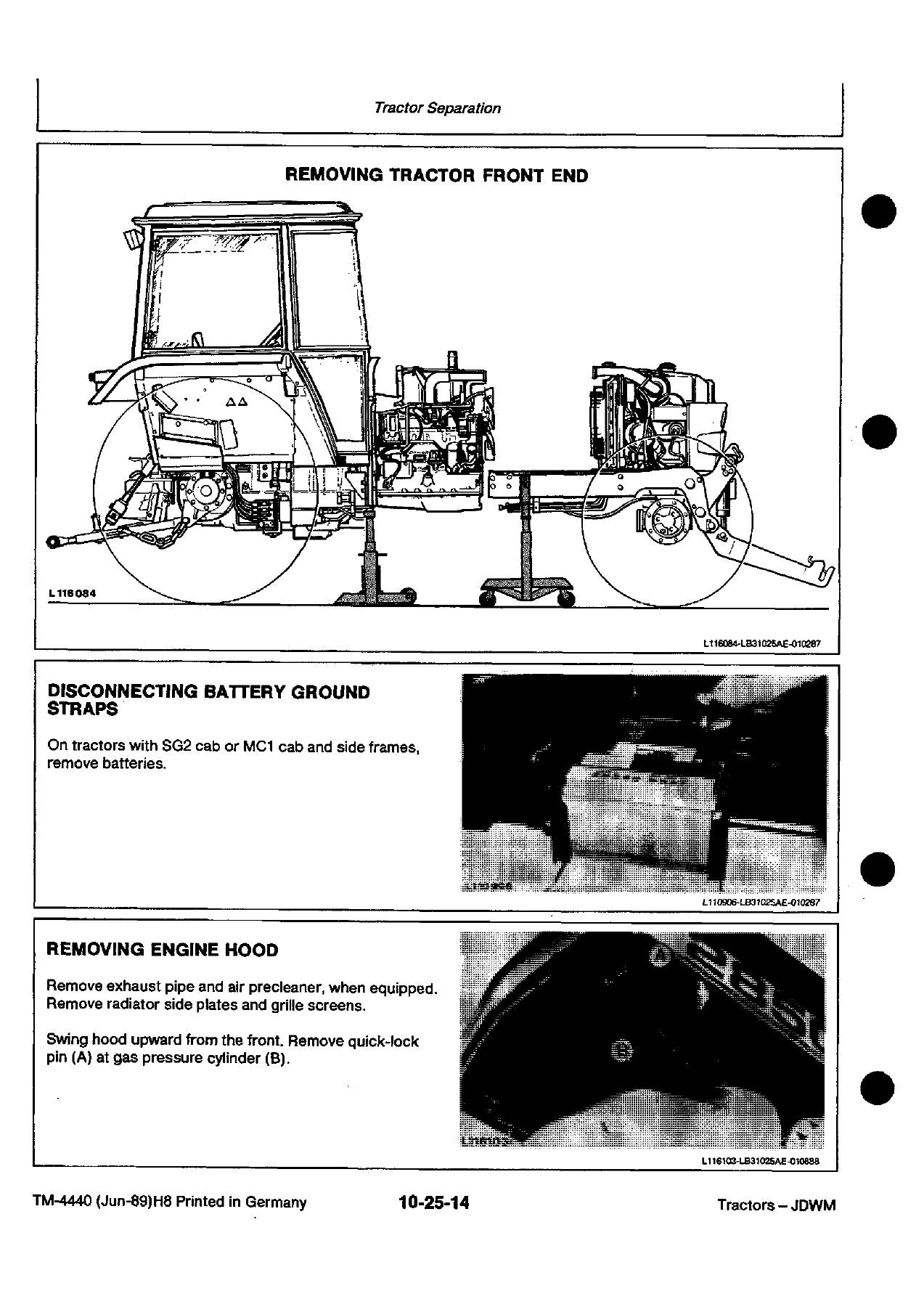

Illustrated procedures then show removal and installation steps associated with the tractor front end and separation between the engine and clutch housing. Tasks shown include disconnecting batteries, removing the engine hood and battery boxes, draining fuel and coolant, disconnecting intake, cooling, electrical and hydraulic connections, removing or disconnecting front-wheel-drive components, supporting the tractor, positioning the splitting stand, separating the front axle carrier, securing the hydraulic-pump drive and reconnecting steering and drivetrain components. Torque values appear alongside a number of reassembly operations.

Repair Reference for the 2250, 2450, 2650, 2650N and 2850

For servicing these tractor models, the John Deere 2250 2450 2650 2650N 2850 Tractor Technical Repair Manual TM4440 gives direct access to the procedures, measurements, capacities, intervals, torque values and adjustment data contained in this part of the technical manual. It can support routine servicing, workshop inspection, tune-up work, drivetrain and hydraulic checks, PTO and front-wheel-drive verification, cab and operator-station checks, and major disassembly preparation such as tractor separation.

Using the correct procedure and specification is especially important when work involves oil capacities, clutch adjustments, hydraulic pressure, wheel and axle fasteners, PTO components, steering, brakes or structural separation of the tractor. This manual provides those workshop references in one PDF for the covered 2250, 2450, 2650, 2650N and 2850 models. After payment, the PDF is available for instant digital delivery with no physical shipping required. It can be viewed on compatible phones, tablets and computers and printed when a paper workshop reference is preferred.
