John Deere 244J 4WD Loader Parts Catalog PC9370 – Complete Illustrated Parts Book

The John Deere 244J 4WD Loader Parts Catalog PC9370 is the illustrated parts book for the 244J four-wheel-drive loader manufactured from 2004. Every assembly on the machine is drawn in exploded view and keyed to a parts list that gives the part number, the quantity required, and – where the machine changed during production – the serial number break that decides which version fits your loader. On an articulated loader, ordering by guesswork gets expensive fast: a boom pin, a hydraulic hose end or a brake disc that looks right in a photograph but carries the wrong breakpoint means a second shipment and another day of downtime. This catalog is what removes that guesswork.

File Details

• Manual type: Illustrated parts catalog (parts book)
• Brand: John Deere
• Model: 244J 4WD Loader
• Document number: PC9370
• Publication date: 16-MAR-06
• Manufacture year referenced: 2004
• Language: English
• Page count: 392 pages
• File format: PDF

Chapters Covered

• Front and Rear Drive Shafts and U-Joints
• Front Axle and Mounting Hardware
• Rear Axle and Mounting Hardware

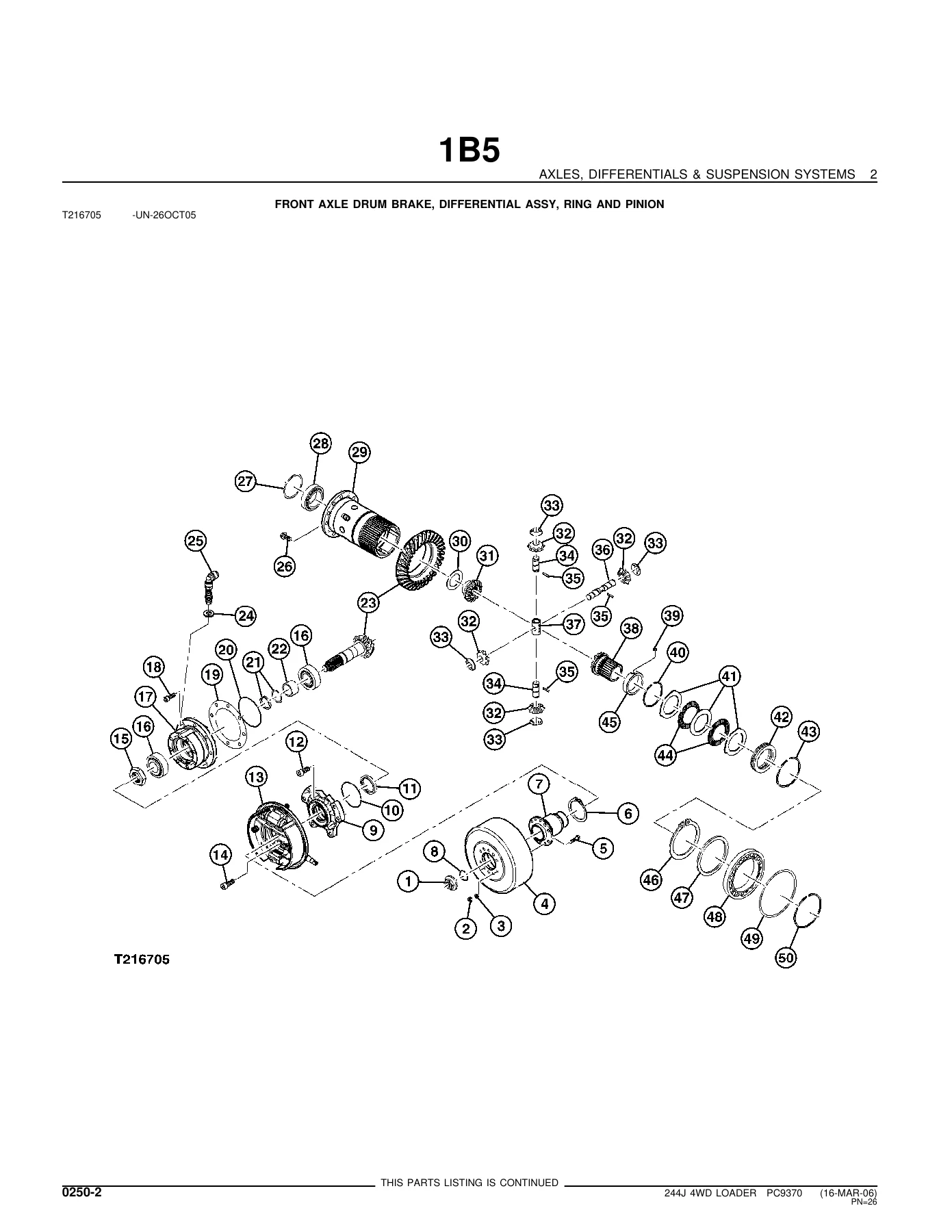

• Front Axle Drum Brake, Differential Assembly, Ring and Pinion
• Front Planetary Gear Drive and Front Axle Housing
• Rear Axle Reduction Gear Box
• Rear Axle Differential Assembly, Ring and Pinion

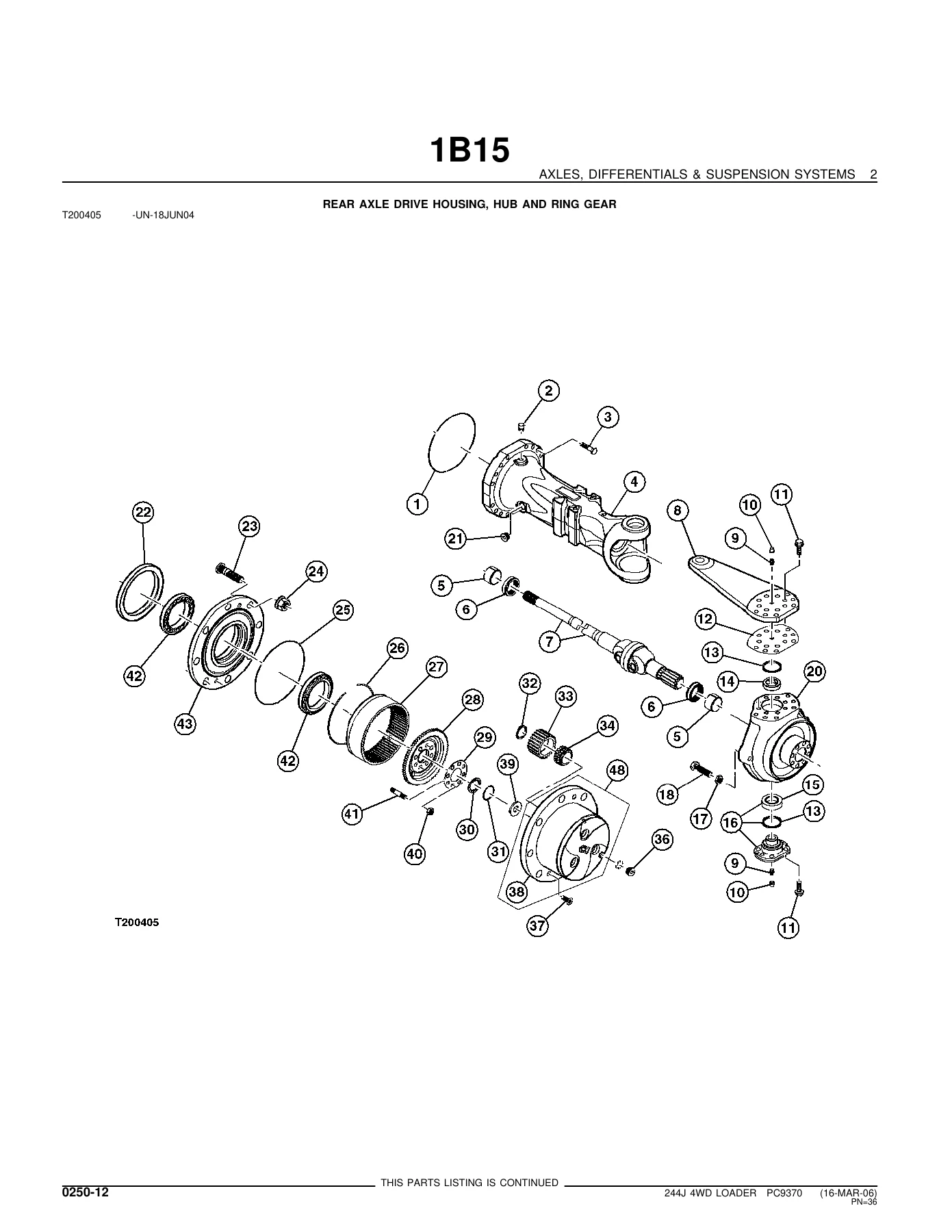

• Rear Axle Drive Housing, Hub and Ring Gear
• Power Take-Off Gears
• Differential Lock Lines, Hoses and Fittings
• Rear Axle Hydraulic Lines
• Hydrostatic Motor and Fittings
• Hydrostatic Motor Regulator Valves and Seals
• Hydrostatic Motor Flushing Valve
• Forward/Reverse Solenoid Valve and Hydraulic Actuated Control Valve
• Cooling System Hoses and Fittings
• Transmission Hydraulic Oil Lines
• Engine and Mounting Brackets and Supports
• Belt Guard, Brackets and Hardware
• Cylinder Block and Camshaft
• Engine Auxiliary Drive
• Rocker Arm Assembly
• Governor
• Oil Pan, Oil Pump Intake and Oiling System
• Engine Oil Cooler
• Cylinder Head and Valves
• Exhaust Manifold
• Fuel Injection Pumps, Control Rack, Aneroid and Lines
• Fuel Filter, Fuel Filter Pre-Heater and Lines
• Fuel Tank, Fuel Sender and Fuel Transfer Pump
• Turbocharger and Turbocharger Oil Lines
• Water Pump and Thermostat
• Starting Motor and Fastenings
• Alternator and Alternator Bracket
• Fan Drive, Fan Belt, Pulley and Tensioner
• Flywheel, Flywheel Housing and Fastenings
• Cold Weather Starting Aid (Glow Plug, Thermostat, Wiring Harness)
• Engine Coolant Heater Kit
• Oil Cooler/Radiator Shroud, Radiator and Hydraulic Oil Cooler
• Expansion Tank Fittings and Hoses
• Engine Cooling Fan Pump and Motor
• Engine Speed Control Cable and Foot Pedal
• Air Cleaner, Air Cleaner Hoses and Air Filter Elements
• Pre-Cleaner
• Muffler and Exhaust System Pipes (including Diesel Oxidation Catalyst)
• Engine Lift Straps
• Sensors – Coolant Temperature, Tachometer Sensor Port Plug and Oil Pressure Switch
• Steering Column Assembly, Steering Wheel and Steering Valve
• Steering Cylinder, Tie Rod and Steering Rod Links
• Brake Pedal and Linkage, Brake Cylinder and Master Brake Cylinder
• Brake Valves, Accumulator, Reservoir and Hoses
• Parking Brake
• Warning Labels, Decals and Trademarks
• Battery, Battery Cables and Hardware
• Lighting – Headlights, Tail Lights, Front and Rear Work Lights
• Wiring Harness, Fuses, Fuse Carrier and Relays
• Relay Module, Fuse Panel and Circuit Board
• Instrument Panel Side Console
• Main Frame, Covers and Fenders
• Frame Articulation Locking Bar, Joint Pins and Bushings
• Loader Frame Hardware
• Rear Counterweight
• Cab Mounting, Cab and Components
• Cab Door Mounting Pins and Brackets
• Cab Front Windshield Guard, Trim Panels and Headliner
• Left Hand and Right Hand Cab Doors and Windows
• Cab Front and Rear Windowpanes
• Windshield Wiper Blades, Tank and Wiper Motor
• Operator Seat, Seat Belt, Seat Track and Seat Suspension
• Steps and Handholds
• Optional Air Conditioning Unit and Heater
• Heater Hoses, Controls, Flap and Bracket
• Air Conditioning Compressor and Mounting Brackets with Pulley and Drive Belt
• Air Conditioning Filter Drier and Pump
• A/C Controls, Hoses and Vents
• Hood, Hood Supports and Hardware
• Hood, Trim and Grille
• Front and Rear Fenders
• Radio Antenna and Speakers
• Backup Alarm and Beacon Light
• Hydrostatic Tandem Pump with Fittings
• Hydrostatic Pump Splined Coupling and Flange
• Charge Pump and Charge Pump Wear Plate
• Neutral Charge Relief Valve
• Pilot Accumulator, Hydraulic Hoses and Fittings
• Main Control Valve Hydraulic Fittings and Main Control Valve Block
• Main Control Valve Block with 4th Function
• Fourth Function and Third Function Z Connector Quick Release
• Hydraulic Oil Reservoir and Hydraulic Filter
• Bucket with Bolt-On Cutting Edge (0.8/1.1 and 1.6/2.0 Cubic Meter)
• Pallet Forks
• Worksite Pro Quick-Tatch Coupler and Quick-Tatch Cylinder
• Third Function Detent Kit and Cylinder Lock
• Loader Boom and Links, Loader Boom Assembly with Bushings
• Loader Boom Link Assembly with Bushings
• Loader Frame and Cover
• Pilot Control Valve Mounting and Assembly
• Pilot Control Valve Coils, Plunger Assembly and Spools
• Auxiliary Pilot Control Valve
• Ride Control Kit
• Loader Boom Hydraulic Lines for Lift Cylinder and Tilt Cylinder
• Loader Boom Hydraulic Link, Lines and Fittings
• Auxiliary Hydraulic Controls
• Boom Lift Cylinder and Bucket Tilt Cylinder
• Return-to-Dig (Automatic Load Leveler)

Altogether the catalog covers the whole machine as it was built, from the cylinder block and governor out through the hydrostatic transmission, the front and rear axles, the planetary drives and the power take-off gears, then on to the service brakes, the parking brake, the steering column and cylinder, and the complete electrical system. The loader end is documented in the same detail, with separate breakdowns for the boom, the links and bushings, the bucket tilt and boom lift cylinders, the pilot control valve and its spools and coils, the auxiliary hydraulic controls, the hydraulic oil reservoir and filter, and the attachment coupler. The operator’s station is covered as well, including the cab shell and mounting, both doors and all glazing, the wiper system, the seat and its suspension and track, the heater, and the optional air conditioning compressor, condenser, filter drier, controls, hoses and vents. Sheet metal and styling, warning labels and decals, the rear counterweight and the frame articulation pins round out the book. Between the illustrated assemblies and the alphabetical and numerical indexes at the back, a part can be located either from the drawing or from the part number itself.

Serial Number Breakpoints Built Into the Catalog

Production changes are shown directly in the parts lists rather than buried in a service bulletin, so several assemblies are listed twice with the serial range printed against each entry. Examples visible in this catalog include the front axle assembly split at serial 11837/11838, the front axle drum brake bearing housing split at 011007/011008, the bevel gear drive split at 011187/011838, the front axle ground speed sensor split at the same 011007/011008 point, the rear hood, trim and grille listings split between units up to XXXXXX and units from XXXXXX onward, and the fuse panel circuit board split at 12009/12010. The catalog also prints the two serial number plate locations on the machine – the product identification number plate on the left-hand side of the front loader frame and the engine serial number plate on the right-hand side of the cylinder block – together with the explanation of the LU344H product identification number format and the engine plate first-line codes covering manufacturer, cylinder count, displacement, air intake system, user factory and serial number. Reading those plates before opening this book is what turns a correct-looking drawing into a correct part number.

What This Catalog Lets You Do

A parts catalog is the one book on the shelf that answers the question a workshop actually asks at the counter: which part, how many, and which serial number. With this John Deere 244J 4WD Loader Parts Catalog PC9370 you can rebuild a parts order for a front axle overhaul, a brake job or a boom cylinder reseal without pulling the machine apart first; you can identify the correct hydraulic hose, fitting, elbow, tee or flange for the main control valve, the pilot accumulator circuit or the auxiliary hydraulic controls; you can match a fuse, relay or circuit board to the machine by serial number before ordering; you can confirm the right filter element for the engine oil, fuel, air cleaner and hydraulic reservoir, and the correct air conditioning receiver-drier, pressure switch or refrigerant hose; you can order cab glazing, door latches, sealing trim, wiper arms and blades, seat cushions, seat suspension springs and shock absorbers; and you can price a complete bucket, bolt-on cutting edge, pallet fork set or Worksite Pro Quick-Tatch coupler with the correct cylinder and hoses. Because the illustrations are exploded rather than assembled, assembly order and hardware – washers, lock washers, cap screws, lock nuts, snap rings, dowel pins, spring pins and shims – are visible in the drawing as well as listed by part number, which is exactly the detail needed when a machine has been apart before and is missing a fastener nobody can identify.
