John Deere 3030 and 3130 Tractor Technical Manual TM4277

The John Deere 3030 and 3130 Tractor Technical Manual TM4277 is the full shop-level service guide for these two Mannheim-built tractors, issued June 1979. It works through every major assembly on the machine in ten numbered sections, from the 6-cylinder diesel engine through the fuel system, electrical system, power train, front axle and steering, hydraulic system and operator’s cab. Each section is broken into numbered groups with removal, disassembly, inspection, repair, assembly and installation procedures, backed by specification tables and torque figures printed at the end of the group they belong to.

File Details

• Manual type: Technical / service manual (on-the-job shop guide)
• Brand: John Deere
• Models covered: 3030 and 3130 tractors
• Document number: TM-4277
• Edition / date: 01JUN79 (June 1979)
• Publisher: John Deere Werke Mannheim, European Office D 68 Mannheim
• Language: English
• File format: PDF
• Page count: 458 pages
• Measurement system: International standardized SI metric, with imperial equivalents quoted alongside

Chapters Covered in This John Deere 3030 3130 Technical Manual

• Section 10 – General: Group 5 Specifications; Group 10 Pre-delivery, delivery and after-sales inspections; Group 15 Lubrication and periodic service; Group 20 Engine and tractor tune-up; Group 25 Tractor separation
• Section 20 – Engine: Group 5 General information and diagnosing malfunctions; Group 10 Cylinder head and camshaft; Group 15 Cylinder block, liners, pistons and connecting rods; Group 20 Crankshaft, main bearings and flywheel; Group 25 Timing gear train; Group 30 Oil pump, oil pressure regulating valve and oil filter; Group 35 Engine cooling system; Group 40 Speed control linkage

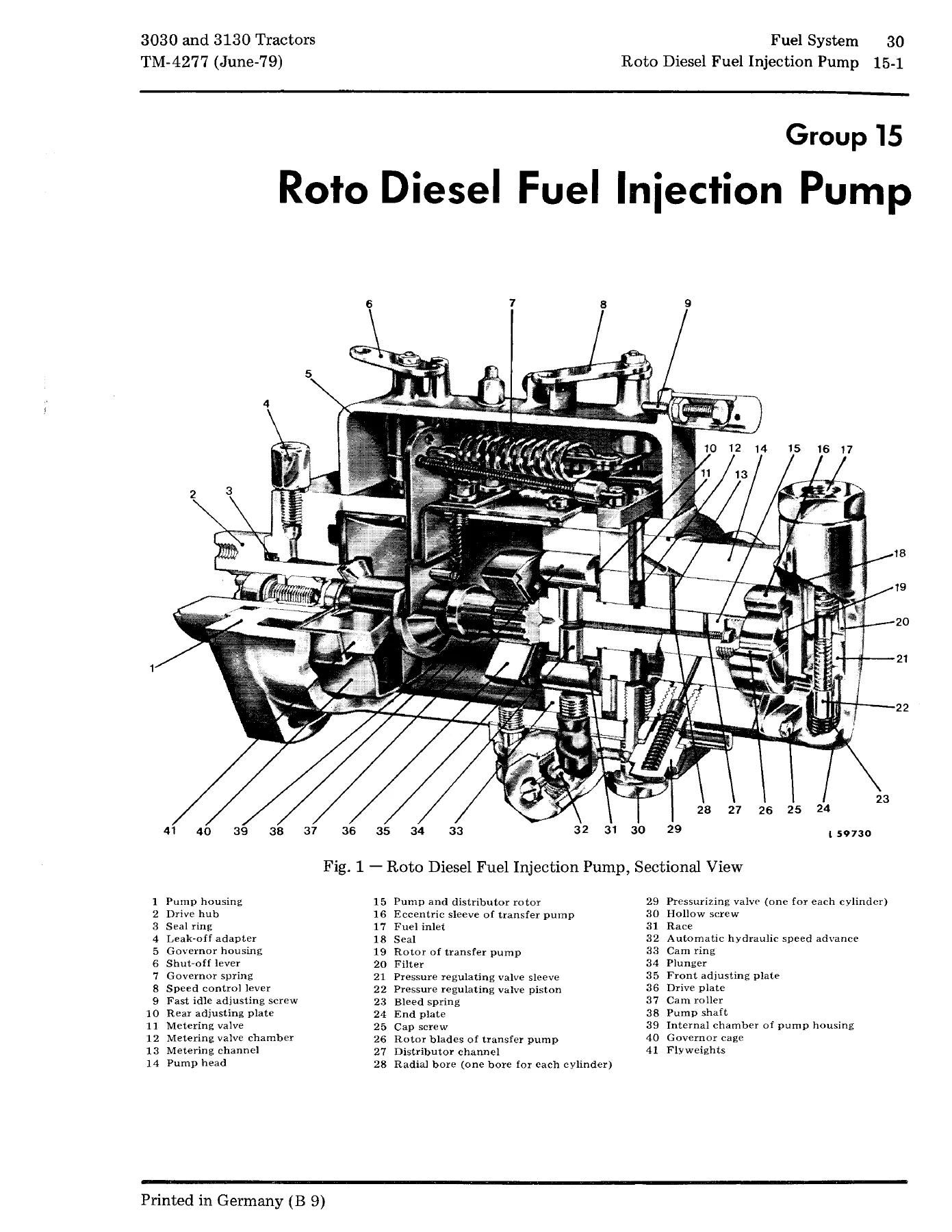

• Section 30 – Fuel System: Group 5 Diagnosing malfunctions; Group 10 Fuel tank, water trap, transfer pump and fuel filter; Group 15 Roto Diesel fuel injection pump; Group 20 Fuel injection nozzles; Group 25 Cold weather starting aids; Group 30 Air intake system

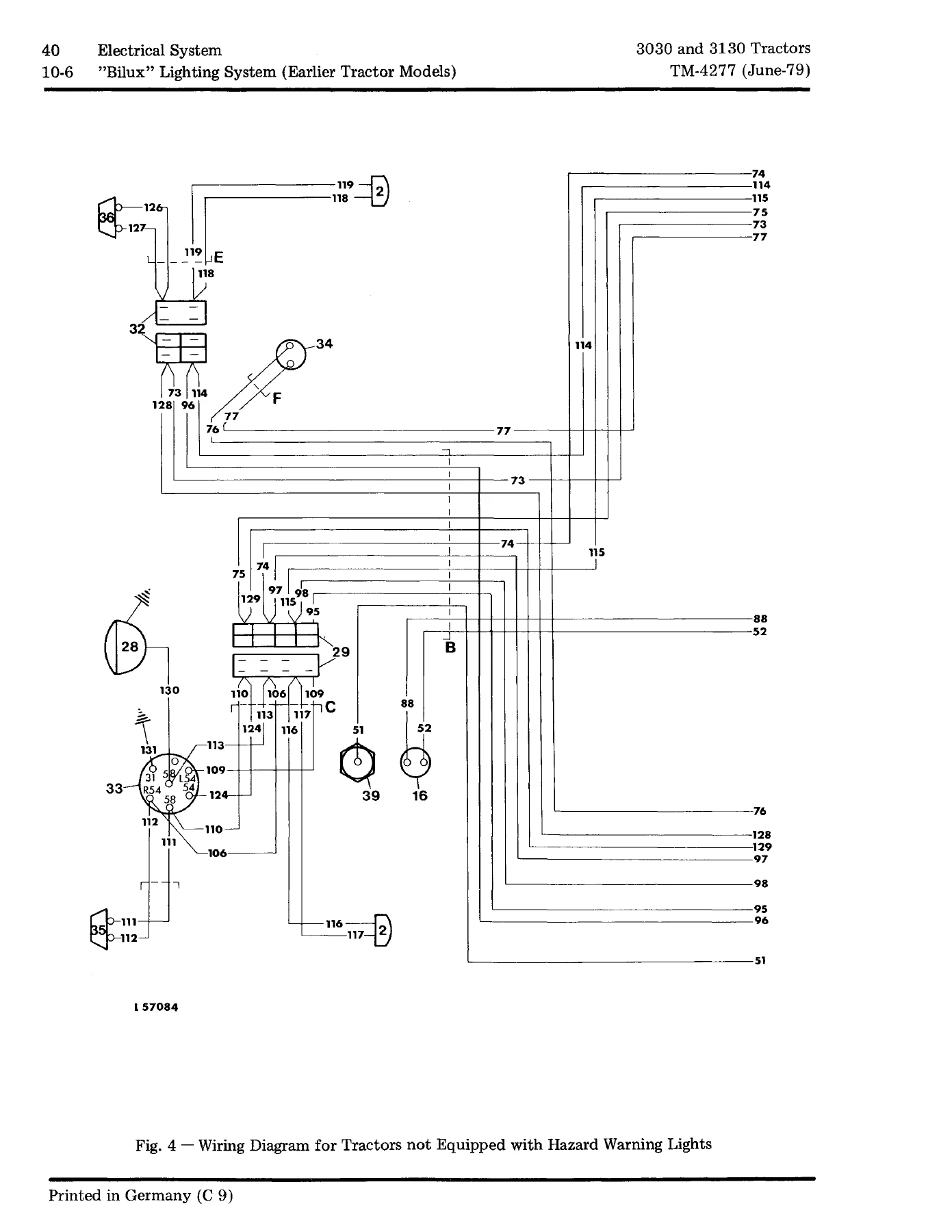

• Section 40 – Electrical System: Group 5 Diagnosing malfunctions; Group 10 “Bilux” lighting system (earlier models); Group 11 “Bilux” lighting system (later models); Group 12 “Bilux” lighting system (tractors with operator’s cab); Group 15 Sealed-beam lighting system (earlier models); Group 16 Sealed-beam lighting system (later models); Group 20 Starting motor; Group 25 Alternator and regulator
• Section 50 – Power Train: Group 5 Engine clutch and clutch linkage; Group 10 High-Low shift unit; Group 15 Collar-shift transmission; Group 20 Differential; Group 25 Final drives; Group 30 PTO and PTO clutch
• Section 60 – Front Axle, Steering System and Brakes: Group 5 Front axle; Group 10 Steering system; Group 15 Hydraulic brakes
• Section 70 – Hydraulic System: Group 5 General information, diagnosing malfunctions and pressure tests; Group 10 Oil reservoir, filter, valves and oil cooler; Group 15 Hydraulic pump and transmission oil pump; Group 20 Rockshaft; Group 25 Selective control valve (spool type); Group 30 Selective control valve (poppet valve type) and breakaway coupler; Group 35 Remote cylinder
• Section 80 – Miscellaneous: Group 5 Belt pulley; Group 10 De Luxe seat; Group 15 Front and rear wheels; Group 20 Roll guard; Group 25 Operator’s cab ventilation and heating; Group 30 Operator’s cab

IMAGES PREVIEW

What separates this manual from a generic tractor book is the depth behind that contents list. Every group is a working procedure, not a description: the cylinder head group walks through valve seat measurement limits and replacement insert installation, the timing gear group explains how to set camshaft and injection pump gear timing with tool JD 254, the fuel group covers the Roto Diesel distributor pump and the pressurizing valves, and the electrical groups are organised around three separate lighting systems so you work from the wiring diagram that matches the tractor in front of you. Serial number break points are flagged in the text wherever a running change affects the repair, so you are not guessing which version of a component you have. The John Deere 3030 3130 technical manual is written for an experienced technician who needs the vital information only, and that is exactly how it reads.

Specifications and Tune-Up Data You Can Work From

The General section opens with a full specification group covering the engine, engine clutch, electrical system, transmission, High-Low shift unit, differential and final drives, differential lock, PTO, hydraulic system, power steering, hydraulic brakes, handbrake, capacities and travel speeds. Because those same figures are repeated at the end of each technical group, you get them where you need them rather than hunting back to a single chart.

Some of the values you will find in this 3030 3130 service manual include the 6-cylinder engine at 102 mm (4.02 in.) bore and 110 mm (4.33 in.) stroke, 5390 cm3 (329 cu. in.) displacement, 16.2:1 compression ratio, firing order 1-5-3-6-2-4, valve clearance of 0.35 mm (0.014 in.) intake and 0.45 mm (0.018 in.) exhaust, fast idle of 2660 rpm and slow idle of 750 rpm. Horsepower is quoted at 2500 rpm according to DIN 70020 and SAE J 816 B for both the 3030 and the 3130, on both flywheel and PTO. Capacities for fuel, cooling system, engine crankcase, transmission-hydraulic system and belt pulley housing are all listed. In the hydraulic section you get system pressure, pump type and rockshaft lift cycle times; in the engine section you get bearing clearances, journal diameters, liner protrusion limits and the engine break-in schedule; and every group closes with a hardware torque chart for the fasteners used in that repair. A standard torque table for UNC and UNF cap screws by head marking is included in Section 10, Group 20.

Model and Serial Number Coverage

The manual treats the 3030 and 3130 together throughout, noting where the two differ. Engine serial number break points appear repeatedly and matter for several jobs, including piston selection when replacing pistons or a cylinder block, the oil seal installation tooling used in the flywheel housing, flywheel-to-crankshaft torque figures, and the position of the fuel injection pump timing mark. Tractor serial number break points are also called out for the coolant temperature gauge arrangement. Reading the serial number notes before ordering parts will save a return.

Who This John Deere 3030 3130 Tractor Manual Is For

This is a technical manual, not an operator’s booklet. It assumes you already know your way around a diesel tractor and gives you the procedures, limits and values to do the job correctly. Delivered as an instant PDF download with no shipping and no waiting, it can be kept on a phone or tablet in the workshop, printed off as individual group pages for the job in hand, or filed in a binder as the permanent shop reference for the machine.
