John Deere 60G Compact Excavator Parts Catalog PC11193 (2013+) PDF Download

Description

John Deere 60G Compact Excavator Parts Catalog PC11193

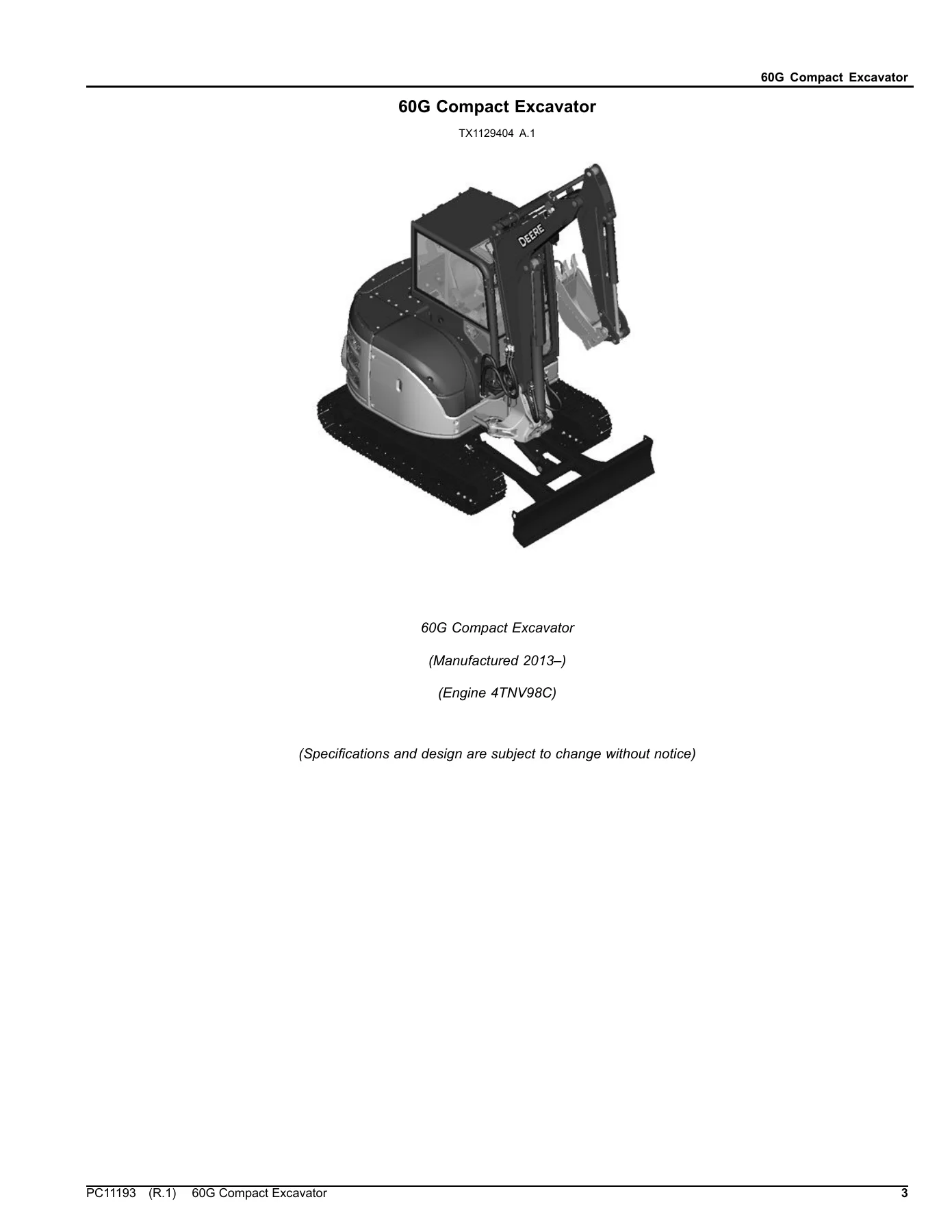

This John Deere 60G Compact Excavator Parts Catalog PC11193 is a detailed PDF parts reference for the 60G compact excavator, covering machine PIN 1FF060GX_J285001- and the 4TNV98C engine. Published as PC11193 in July 2023, the catalog runs to 636 pages and is arranged by major machine systems, with exploded illustrations, keyed part numbers, quantities, serial-number notes and service assembly references. The main catalog is in English and also carries French and Spanish title pages and section headings, printed as Excavateur compact 60G and Excavadora compacta 60G.

File Details

• Manual type: Parts Catalog
• Brand: John Deere
• Model: 60G Compact Excavator
• Engine: 4TNV98C
• Document number: PC11193
• Publication date: July 2023
• Language: English, with French and Spanish title pages and section headings
• Page count: 636 pages
• File format: PDF

Chapters Covered

• 01 Wheels and Tires and Tracks
• 02 Axles, Differentials & Suspension Systems
• 04 Engine
• 05 Engine Auxiliary System
• 13 Miscellaneous Vehicle
• 16 Vehicle Electrical Systems
• 17 Frame Chassis Or Supporting Structure
• 18 Operator’s Station
• 19 Sheet Metal and Styling
• 20 Safety, Convenience and Miscellaneous
• 21 Vehicle Main Hydraulic System
• 33 Backhoe & Excavator
• 43 Swing, Rotation Or Pivoting System

01 Wheels and Tires and Tracks

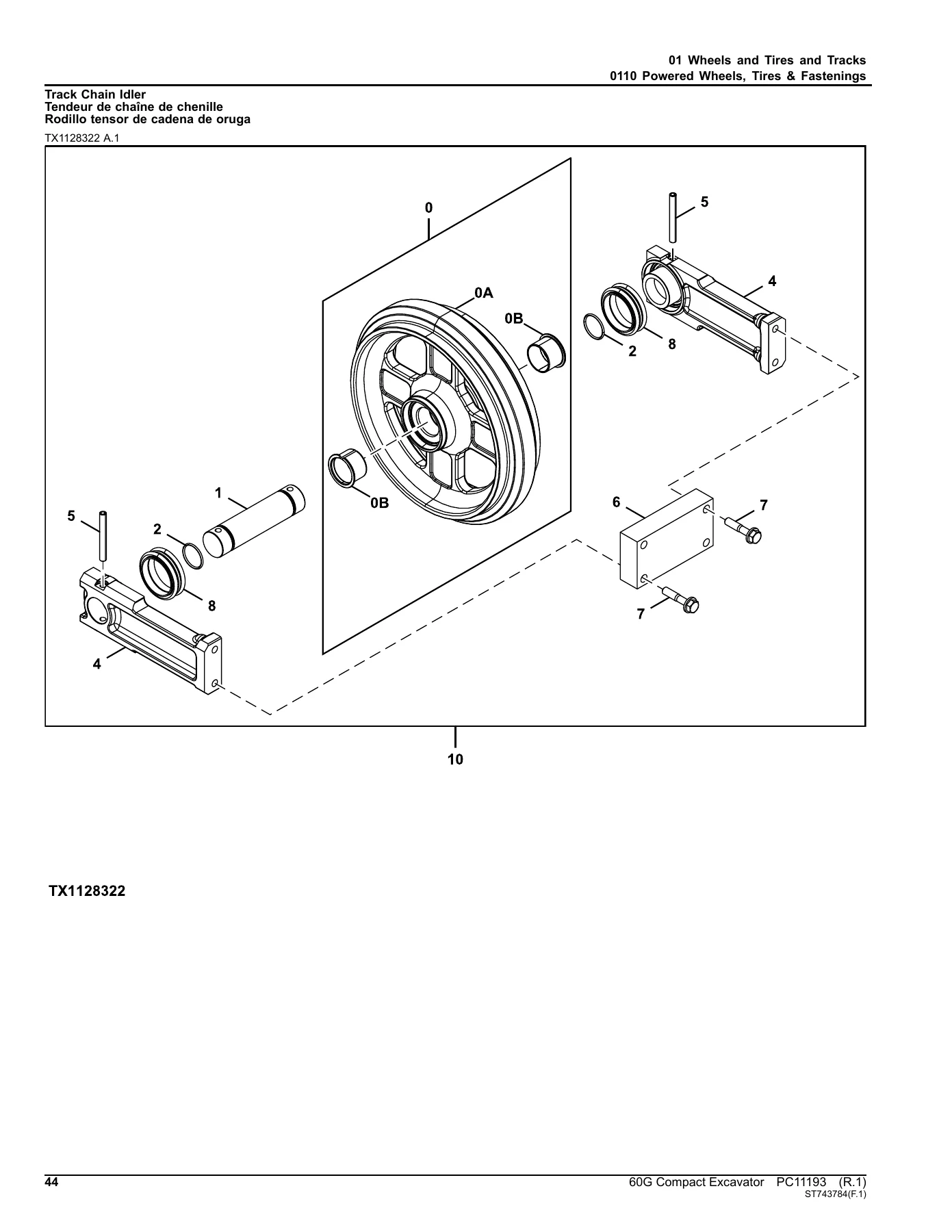

The undercarriage section covers the track frame, track frame guards, front idler and idler components, track adjusters, lower track rollers, carrier rollers, track chain assemblies and shoes. Exploded views break down the idler, yoke, bushings, seals, track tensioner cylinders and springs, and the rubber pad and steel grouser track assemblies. Part numbers are listed against each key number, along with quantities and serial-number application notes where the catalog provides them.

02 Axles, Differentials & Suspension Systems

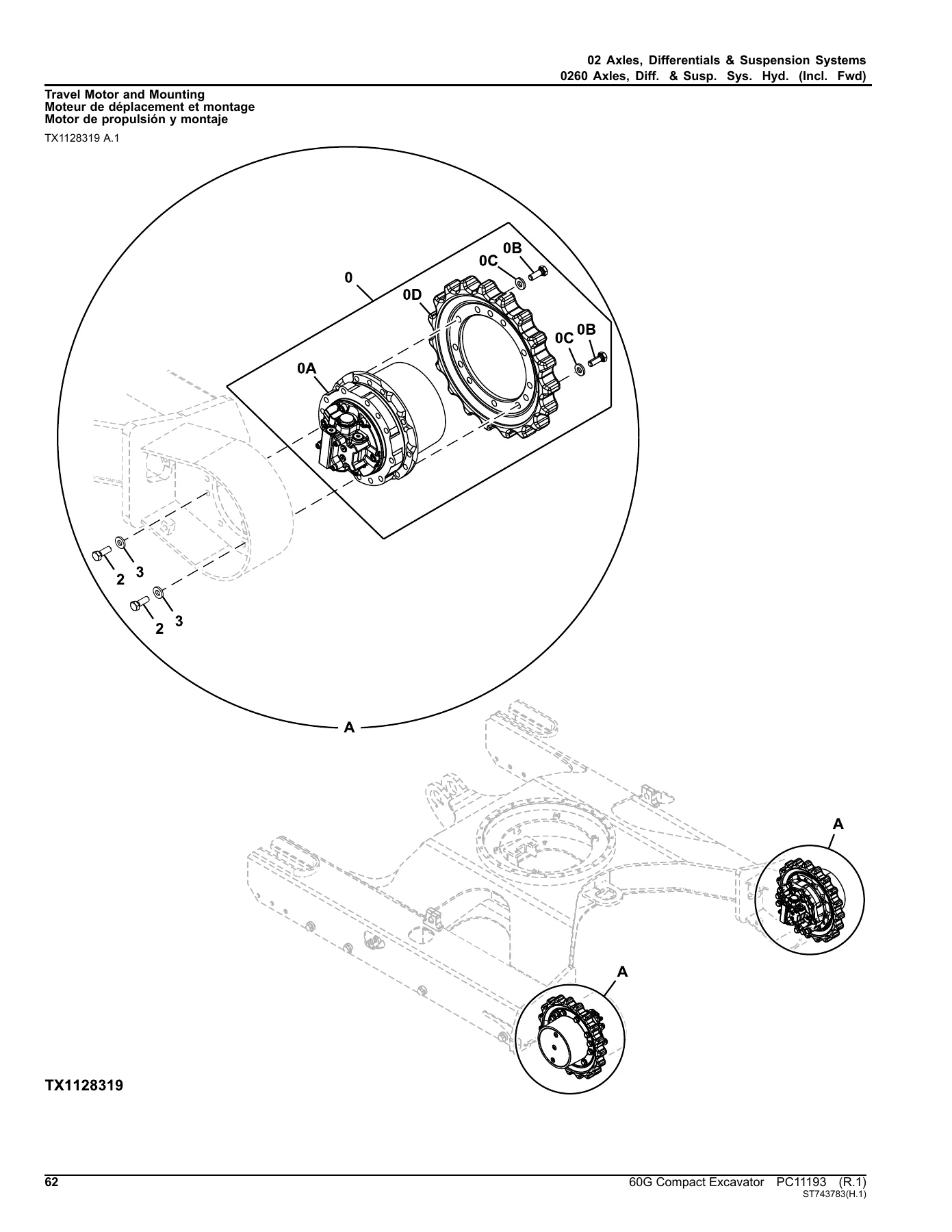

This chapter deals with the travel drive side of the 60G, including the travel motor and mounting, hydraulic motor components, travel motor gear case components and the travel motor hydraulic lines. The exploded motor drawings are useful when identifying internal parts such as pistons, cylinder blocks, bearings, seals, valve plates and retainers. Line routing drawings and hose part numbers are also included for the travel motor circuit.

04 Engine

The engine chapter covers the 4TNV98C engine assembly and its major subassemblies: cylinder block, gear housing, flywheel housing and oil sump, cylinder head and valve cover, intake and exhaust manifolds, exhaust gas recirculation components, diesel particulate filter, camshaft, crankshaft and pistons, oil system, cooling water pump and thermostat, fuel injection pump and injectors, starter motor, alternator, engine controller and gasket kits. Each area is illustrated with exploded views and keyed parts tables, giving part numbers for service replacement and rebuild work.

05 Engine Auxiliary System

Engine auxiliary coverage includes cold-weather starting aids, the cooling package and radiator assembly, cooling package cover, air cleaner and intake ducts, muffler and exhaust pipe, engine mounting and isolators, fuel tank and fuel system hoses. The fuel tank drawings show the filler cap, strainer, drain valve, float, straps and isolators, while the cooling section identifies the radiator, oil cooler, fan, shroud and related brackets.

13 Miscellaneous Vehicle

This section is mainly the labels and trademarks chapter. It lists the machine decals, safety signs, reflectors, lifting position labels, track tension labels, hydraulic oil labels, engine caution labels and other identification plates used on the 60G. The illustrations show where each label is placed on the cab, canopy, engine cover, boom and undercarriage.

16 Vehicle Electrical Systems

Electrical system controls are covered with wiring harness layouts, relays, fuses, battery cables, cab and canopy harnesses, monitor, boom light wiring, power angle blade wiring and auto shut down components. The harness drawings show connector locations, clamps, tie bands and routing across the machine. Component tables list switches, sensors, relays, fuses and harness part numbers.

17 Frame Chassis Or Supporting Structure

The frame chapter covers frame installation, mounting hardware, swing boom post, counterweight, additional counterweight, covers and related brackets. Exploded drawings identify the frame attachment points, isolators, pins, bushings, shims and mounting plates. This section is useful when working on the upper frame structure and counterweight installation.

18 Operator’s Station

Operator station coverage includes the cab and canopy enclosure, doors and windows, glass, seals, locks and hinges, cab floor mounts, floor mats, tilt tool, tilt stopper, arm rest, rear view mirror, seat suspension and retractable seat belt. The heating and air conditioning section identifies the air conditioner assembly, compressor, condenser, ducts, heater hoses, blower motor and related seals. Cab and canopy variants are listed separately where the parts differ.

19 Sheet Metal and Styling

This chapter covers the engine cover, rear cover hinge, door latch components, left and right side covers for cab and canopy, hydraulic reservoir cover, cooling package cover, fuel tank and hydraulic oil reservoir cover, and tool box. The illustrations show the covers, hinges, latches, stops, seals, weatherstrip and isolators that keep the enclosure panels aligned and sealed.

20 Safety, Convenience and Miscellaneous

Safety and convenience items include the radio, travel alarm and related brackets, cushions, isolators and mounting hardware. The travel alarm section shows the alarm, bracket and wiring arrangement for the cab and canopy configurations. These are the smaller bolt-on items that are often needed when replacing damaged or missing safety equipment.

21 Vehicle Main Hydraulic System

The main hydraulic system chapter covers the hydraulic pump and drive, hydraulic pump components, hydraulic pressure valve components, control valve, oil cooler lines and fittings, hydraulic oil reservoir and high precision filter. Exploded pump and valve drawings identify housings, shafts, pistons, swash plates, seals, O-rings, springs and retainers. The reservoir section includes the filler cap, filter element, strainer, level gauge, flow control valve and mounting isolators.

33 Backhoe & Excavator

This is the largest working-equipment section, covering blades and side cutters, bucket with teeth, hydraulic bucket clamp and clamp kits, controls linkage, backhoe and excavator frames, boom, bucket linkage, control and load-holding valves, lines, hoses and fittings, and hydraulic cylinders. It includes standard and long arms, boom pins and bushings, bucket link, quick coupler, pilot control valves and levers, travel control pedals, boom swing pedal, control valve sections, pilot lines, bucket tooth systems and cylinder seal kits. The many exploded views and part-number tables support component-level repair and replacement across the front attachment and control system.

43 Swing, Rotation Or Pivoting System

The swing system chapter covers the swing bearing and mounting, swing motor gearbox, swing motor components and the rotary manifold. Exploded drawings identify the swing bearing, mounting bolts, gearbox gears, bearings, shafts, seals and manifold components. This section supports inspection and repair of the upper-structure swing drive and hydraulic rotary joint.

Who This 60G Parts Catalog Helps

This John Deere 60G parts catalog is aimed at owners, maintenance teams, independent technicians and parts professionals who need to identify the correct component before ordering. Because the catalog is organized by machine system, it is practical for day-to-day parts lookup as well as for deeper work such as undercarriage renewal, hydraulic hose replacement, engine service, cab repairs and front-attachment rebuilds. The exploded illustrations make it easier to see how parts fit together, while the keyed tables connect each item to a part number, quantity and any serial-number note printed in the catalog.

For anyone maintaining a 60G compact excavator, the value is in having the parts breakdown in one PDF rather than chasing individual diagrams. The catalog covers the 4TNV98C engine, travel and swing systems, hydraulic pump and control valve, operator station, sheet metal, electrical controls and the boom, arm, bucket and blade groups. It is a reference for parts identification, not a repair procedure manual, but it gives the technician the assembly context needed to plan a repair and order the right pieces the first time.
