Yanmar ViO50-6B Mini Excavator Parts Catalog CPB44ENMA00100 – Full Illustrated Parts Manual PDF

Description

Yanmar ViO50-6B Mini Excavator Parts Catalog – PDF

This is the full illustrated parts catalog for the Yanmar ViO50-6B mini excavator, published under document number CPB44ENMA00100. Every assembly on the machine is broken down into its individual components with parts numbers, position references, quantities, and interchangeability symbols so you can identify, order, and replace exactly the right item. The catalog is issued for the European market ViO50-6B and is written in English.

Whether you are rebuilding a boom cylinder, replacing a damaged cover panel, chasing a hydraulic hose through the swivel joint, or sourcing a single O-ring for the control valve, this parts catalog gives you the diagram and the number to order it in one pass.

File Details

• Manual type: Illustrated Parts Catalog
• Brand: Yanmar
• Model: ViO50-6B mini excavator
• Document number: CPB44ENMA00100
• Edition: First machine / New edition, 14/06/2017
• Language: English
• Page count: Approx. 317 pages
• File format: PDF

Chapters Covered

The catalog is organised into five top-level divisions, each further subdivided into assemblies:

• 1. Equipments – Arm (short 1450 / long 1700), PTO circuits (1/2, 3rd, 3rd+4th proportional, LA and AM variants), Lifting (bucket links with and without ring), Cabin equipment (front grid, headlights, beacon & rear lights), Safety valves (3-valve setups, without safety valve, adjustable pressure switch), Anti-theft devices (keypad, key ignition, anti-theft key, M’Tech localiser, SComBox GPS, Mtec GPS plotter, Smart Assist Remote SA-R), Document box, Radio, Fabric and PVC seats, Air conditioning & heating, Fuel pump, Additional counterweight, Quick connector (Ycee / Cejn / Gromelle), Quick attachment control lines, Horn displacement, Crawler (rubber and steel), Cabin
• 2. Vehicle – Painting, Labels and decal kit, Silencer & air cleaner, Accelerator, Engine mounting, Radiator & mount, Fuel tank & fuel piping, Battery, Electric parts (wiring, equipment, housing indicator), Work lamp, Sprocket & rollers, Lock lever, Joystick brackets, Travel / blade levers and pedals, Swing pedal, Control valve bracket, Frame & rotation crown, Covers, Dashboard, Seat mount & electronic box, Hydraulic oil pump, Boom / arm / bucket / swing / blade cylinders, Travel motor, Turning motor, Swivel joint, Control valve sections, Joysticks, Hydraulic oil tank, Drain block, Valve PTO, Accumulator, Pressure filter, Hydraulic oil piping (control valve-pump, turning motor, swivel joint, return, PTO-swing, travel-blade, boom, joystick), Greaser, Boom bracket, Boom, Arm, Bucket arm & link, Blade, Accessory
• 3. Engine – Cylinder block, Gear housing, Flywheel housing & oil sump, Cylinder head & bonnet, Suction manifold, Exhaust manifold, Diesel particulate filter (DPF), Camshaft & driving gear, Crankshaft & piston, Lubricant oil system, Cooling water system, Fuel supply pump, Fuel injection valve, Fuel piping, Starting motor, Generator, ECU, Electric parts, Gasket set
• 4. Maintenance Kit – Service kits by hour interval: 50H, 250H, 500H, 1000H
• 5. Documents – User manuals, service manual, parts catalog references

In total the catalog maps out the entire machine assembly by assembly: every exploded diagram is numbered to match a parts table that lists the exact Yanmar part number, the description, the quantity used, and – where applicable – the interchangeability symbol (Q, R, S, W, Z, F, K) so you know whether a superseding part will fit, when a part was introduced, and when it was discontinued. The result is a single reference that lets you trace any component from the drawing straight to the number you order.

How the Parts Data is Presented

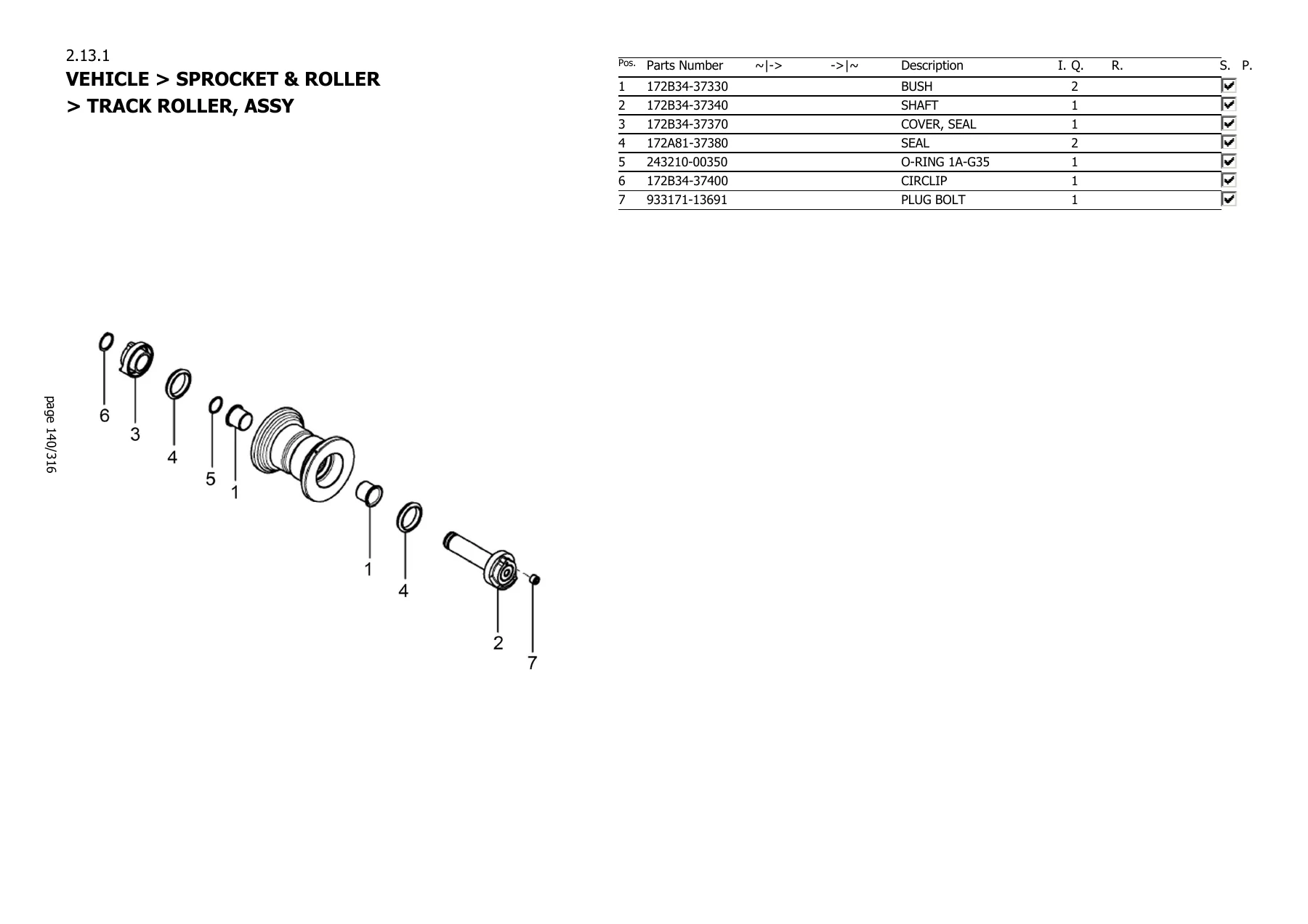

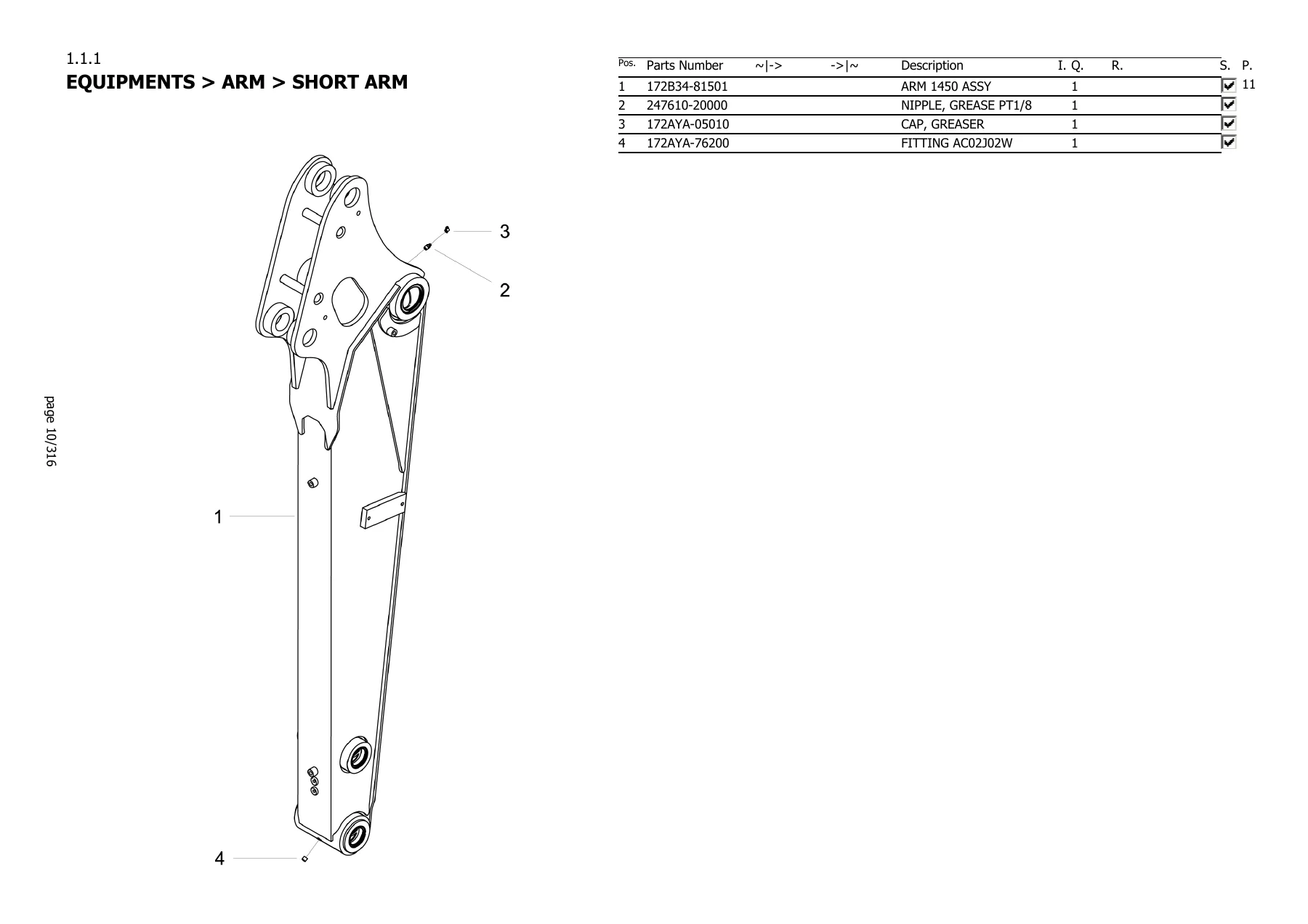

Each illustration is a clean exploded view of a single assembly – the arm and its bushes and dust seals, the control valve sections, the travel motor internals, the DPF and exhaust manifold, and so on. Numbered call-outs on the drawing correspond row-for-row with the accompanying table.

Tables include:

• Position number
• Yanmar parts number
• Description
• Quantity required
• Interchangeability / application symbols
• Page reference for sub-assembly detail

The interchangeability legend (N, Q, R, S, W, Z, F, K) is reproduced at the front of the catalog, so you can immediately see whether an old and new part number can be swapped in either direction, whether a part was newly added or discontinued, and whether a change only affects the quantity used.

What This Parts Catalog Helps You Do

The value of a proper parts catalog is that you stop guessing. Instead of ordering a part that looks close and discovering it does not fit, you identify the item on the exploded view, cross-reference the position number to the table, and order the exact part number Yanmar specifies for this machine. It is the difference between a rebuild that drags on for weeks and one that finishes on schedule.

Typical jobs supported by this catalog include:

• Rebuilding or resealing the boom, arm, bucket, swing or blade cylinders with the correct seal kits, bushes and dust seals
• Servicing the travel motor and turning motor – reduction gear, swash plate, pistons, bearings and seal kits
• Rebuilding the swivel joint with the correct seal kit
• Replacing worn crawler components – idler assemblies, track rollers, support rollers, adjuster tubes, rubber or steel crawler belts
• Ordering correct hydraulic hoses and fittings across the PTO, swing, travel, blade and joystick circuits
• Replacing cabin parts – glass, windshield assemblies, doors, door locks, wiper motor, mirrors, air conditioning and heating modules
• Sourcing electrical and anti-theft components – harnesses, ECUs, relays, sensors, GPS and anti-start modules
• Replacing engine-side items – injectors, fuel pipes, DPF sensors, cooling system, gasket sets
• Servicing by hours interval with the correct 50H, 250H, 500H and 1000H service kit contents

Why Correct Part Numbers Matter

Imitation or incorrectly specified parts on a compact excavator can cause anything from a slow hydraulic weep to a machine defect. This catalog is structured around the parts that Yanmar specifies for the ViO50-6B, including the interchangeability notes that tell you when a part has been superseded and whether the substitute is backwards-compatible. That is exactly the information you need before clicking order.

IMAGES PREVIEW

Instant PDF Delivery

The Yanmar ViO50-6B Parts Catalog CPB44ENMA00100 is delivered as an instant-download PDF – no shipping, no waiting for a parcel. Open it on a workshop laptop, tablet or phone, print the pages you need for the job in front of you, and search every section as you work. Every exploded diagram, parts table and interchangeability note stays right where you need it, whether you are on the bench, in the cab or at the parts counter.
