John Deere JD450 Crawler Tractor & Loader Service Manual Preview – SM-2064 PDF

Description

John Deere JD450 Service Manual Preview – SM-2064 (Feb-74 Revision)

This is a preview edition of the John Deere service manual for the JD450 Crawler Tractor and JD450 Crawler Loader. It preserves the original technical material from John Deere publication SM-2064 (latest revision date Feb-74) and reproduces the sections most useful for evaluating the manual’s coverage before a full purchase.

File Details

• Manual type: Service Manual (Preview Edition)
• Brand: John Deere
• Models covered: JD450 Crawler Tractor, JD450 Crawler Loader, JD450 Crawler Dozer
• Document number: SM-2064
• Latest revision date: Feb-74 (with prior revision lines back to Dec-64)
• Language: English
• File format: PDF
• Length: 105 pages

Chapters Covered in This Preview

• Section 10 – Description and Specifications
  • Group 5 Description (serial number locations and explanations)
  • Group 10 Specifications (engine, transmission, capacities, dimensions, track, loader, winch)
• Section 20 – Tractor Separation
  • Group 5 Engine Removal and Installation
  • Group 10 Clutch Housing Removal and Installation
  • Group 15 Final Drive Removal and Installation
  • Group 20 Steering Clutch Removal and Installation
  • Group 25 Transmission Removal and Installation
  • Group 30 Loader Removal and Installation
• Section 30 – Periodic Lubrication
  • Group 5 Lubrication Timetable (10, 50, 100, 200, 500, 1000-hour and seasonal intervals)
• Section 40 – Engine Tune-Up and Tractor Adjustment
  • Group 5 Purpose of Tune-Up and Adjustment
  • Group 10 Engine Tune-Up (air intake, engine, ignition and electrical, gasoline fuel, diesel fuel, oil pressure, cooling, dynamometer)
  • Group 15 Tractor Adjustment (engine clutch, H-L-R transmission, steering clutch and brake, track system, winches, torques)
  • Group 20 Loader Adjustment
• Section 50 – Basic Engine
  • Group 5 Description and Principles of Operation
  • Group 10 Cylinder Head, Valves, and Related Parts
  • Group 15 Cylinder Block, Cylinder Liners, Pistons, and Connecting Rods (partial)
• Complete Table of Contents for Sections 10 through 220 – listing every section of the full SM-2064 manual

Beyond the section list above, the preview also carries the manual’s full contents index, which maps out Sections 60 (Engine Lubrication System) through 220 (Special Service Tools) – including the governor and linkage, cooling system, fuel systems, electrical system, engine clutch, both transmission types, final drives, steering, tracks, winches, hydraulic system, loader, troubleshooting, and special service tools.

What This Service Manual Covers

The John Deere JD450 Crawler Tractor and Loader service manual is written for the shop technician working on these machines. Section 20 alone walks through full tractor separation – removing the engine, clutch housing, final drives, steering clutches, transmission, and loader assembly – with torque values, attaching-point photos, and step-by-step removal and installation sequences. Section 40 contains the complete tune-up schedule and speed-control adjustment procedures for both diesel and gasoline versions, including valve clearance, compression testing, injection pump timing, fuel system bleeding, and H-L-R transmission linkage adjustment. Section 30 lays out the factory lubrication timetable, listing every service interval and the oils and greases John Deere specified for these machines.

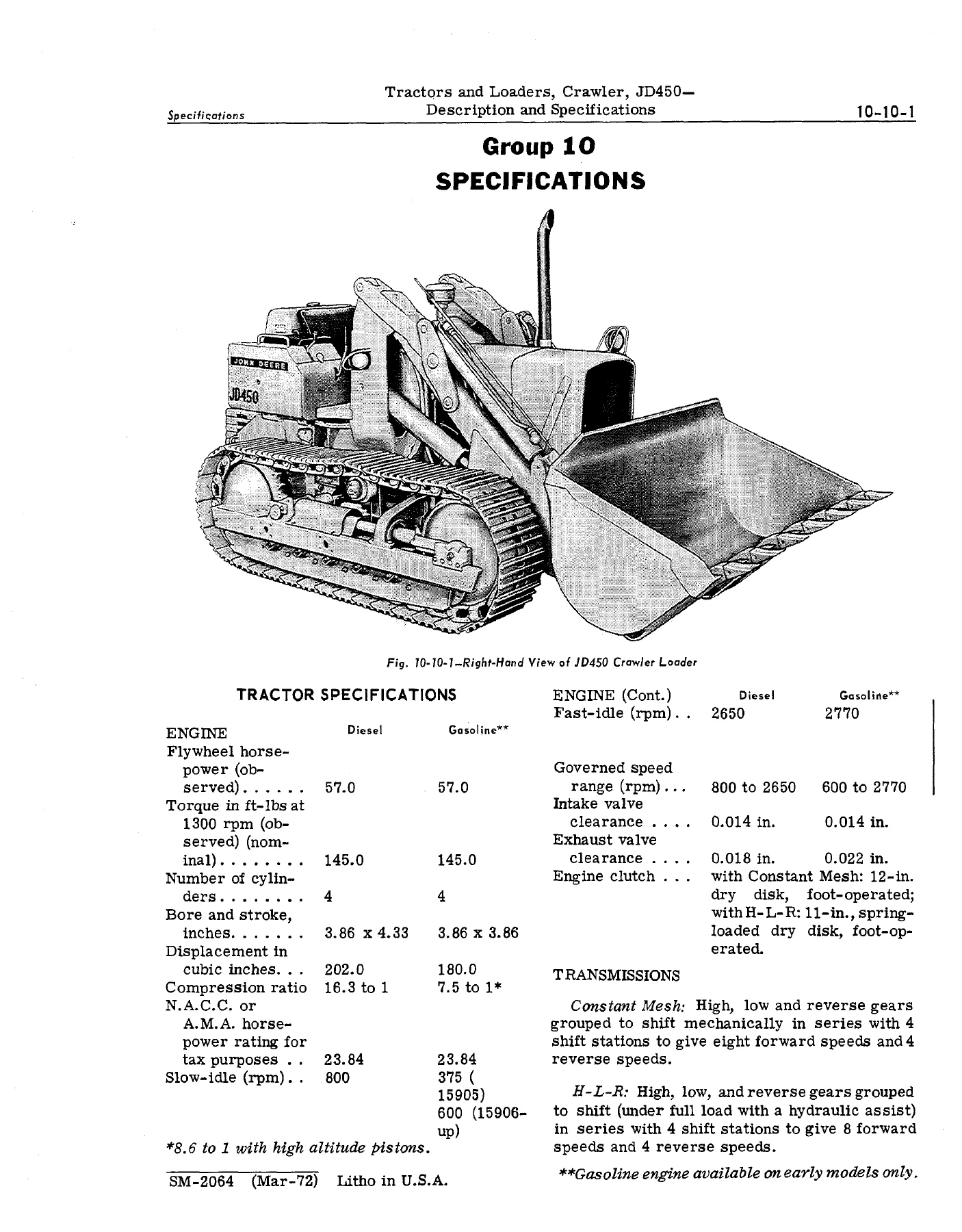

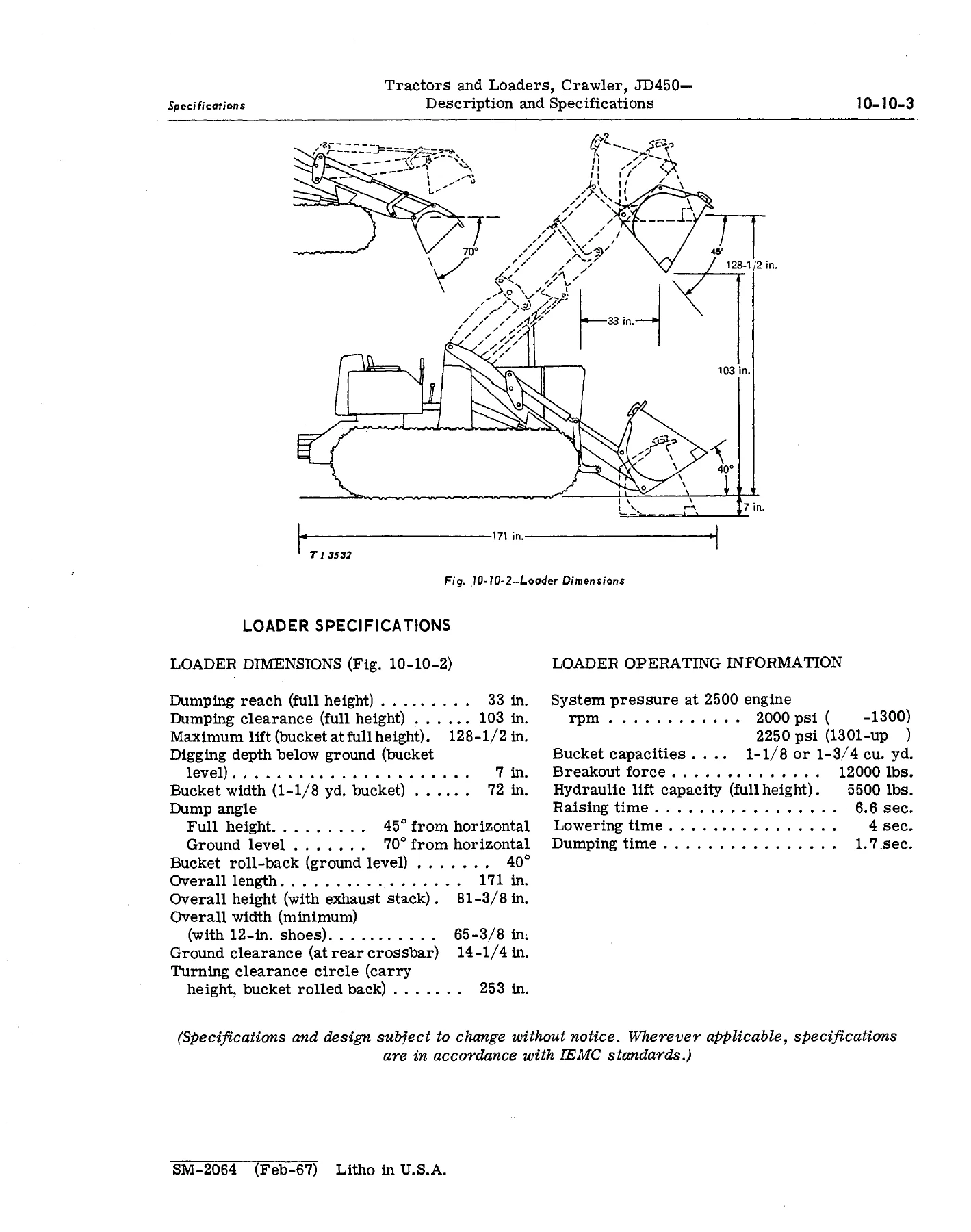

Section 10 identifies the JD450 by serial number, giving the buyer or technician the exact way to read an engine or tractor serial plate – critical when ordering parts. It then reproduces the factory specifications for the diesel (202 cu in, 57.0 HP) and gasoline (180 cu in, 57.0 HP) engines, the H-L-R and Constant Mesh transmissions, travel speeds, capacities, and tractor and loader dimensions.

Section 50 opens the basic engine description for both diesel and gasoline four-cylinder units, showing the cutaway view of the cylinder assembly, the wet-sleeve liner construction, the piston and ring arrangement, and the principles of operation. It then covers removal of the cylinder head, inspection and reconditioning of valves and seats, the torque sequence for the head cap screws, valve clearance adjustment, and disassembly of the cylinder block and piston assemblies.

Because this is a preview, some of the deeper service procedures – full teardown of the transmission internals, hydraulic system diagnosis, winch overhaul, fuel injection pump servicing, electrical system overhaul, and the troubleshooting charts – appear in the contents listing but their detailed sections are not part of this document. It is the ideal reference for confirming that the full SM-2064 manual covers the systems you work on, and for the many routine and mid-level jobs that fall within the sections it does contain.

Why This Manual Matters

Working on a JD450 without the manufacturer’s torque values, clearances, adjustment sequences, and lubrication intervals is guesswork. Section 20, for instance, specifies engine-to-clutch-housing cap screws at 170 ft-lbs (lower) and 250 ft-lbs (upper), clutch housing to transmission case at 300 ft-lbs, and final drive sprocket cap screws at 300 ft-lbs. The steering clutch and brake adjustment in Section 40 has to be done in exact order, starting with steering clutch free travel and ending with a three-detent back-off of the brake band adjusting screw – get the sequence wrong and neither brake grabs evenly. Having the manual on hand means the correct procedure, torque, and clearance is always one page-turn away.

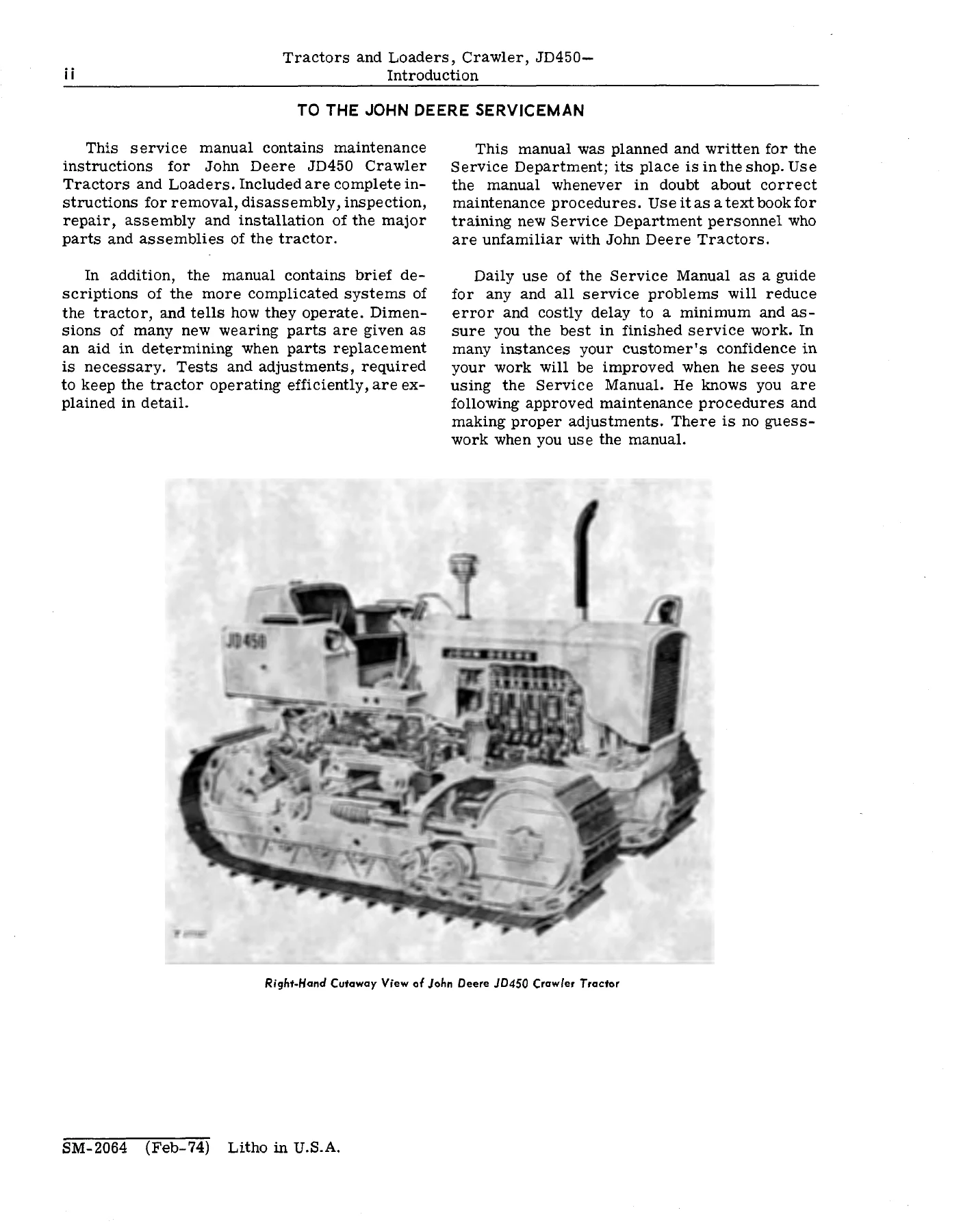

IMAGES PREVIEW

Instant PDF Delivery

The file is delivered as an instant PDF download after checkout – no shipping, no waiting for a physical book. Open it on a phone, tablet, laptop, or shop computer, or print the pages you need for the bench. All 105 pages of the John Deere JD450 Crawler service manual preview are included in a single PDF.
