Jungheinrich EFG 220 MP Forklift Spare Parts Catalogue FN356917 PDF

Description

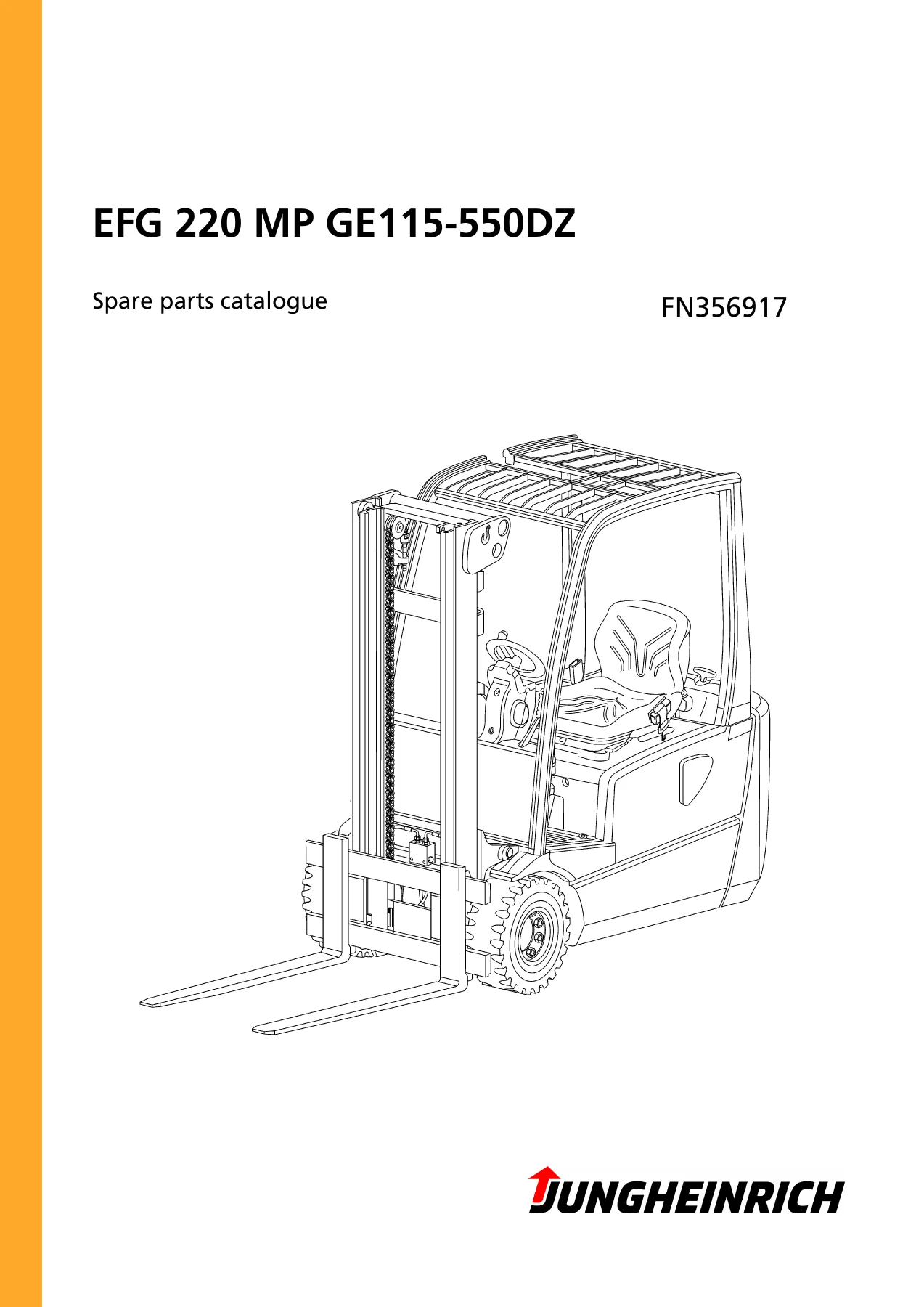

The Jungheinrich EFG 220 MP spare parts catalogue, document number FN356917, is the illustrated parts reference for the EFG 220 MP electric counterbalance forklift (GE115-550DZ). Every assembly is broken down into its individual components with item numbers, order numbers, descriptions and quantities, so a part can be identified from a drawing and ordered without guesswork. The catalogue opens with the truck master data list and then works through the machine in the same logical grouping Jungheinrich uses for practical repairs.

File Details

• Manual type: Illustrated spare parts catalogue
• Brand: Jungheinrich
• Model: EFG 220 MP (GE115-550DZ)
• Document number: FN356917
• Language: English
• Pages: 225
• Format: PDF

Chapters Covered

• Frame and superstructure – counterweight, frame 660Ah, mounting parts, floor plate, overhead guard, covers, mudguards, labels and truck type plates
• Electric drive unit – traction drive 4kW/48V/AC, traction motor, transmission wheel hub, drive mounting parts
• Brake – parking brake, brake pedal, master cylinder, brake pipes and hoses, vent valve
• Wheels / axles – rear wheel 140/55-9 and 200/50-10 assemblies, tyres, rims, wheel nuts
• Steering system – steering components, steering angle limiter, potentiometer, steering axle, hydraulic steering system STD+KH, servo assisted steering 48V, steering column and wheel
• Hoist frame / load lifting device – mast sections, fixed parts for inner, outer and intermediate masts, lift cylinders, free lift cylinders, chains, hose pulleys, sideshift carriage, load guard, FEM fork and locking device
• Attachment – G1 attachment group
• Connection chassis / load lifting device – tilt cylinder, pistons, seals and clevis
• Hydraulic system – oil reservoir, filter, valve control, hydraulic system hoses, hydraulic connection group ZH1, pump motor, hydraulic unit, hydraulic pipes
• Electric system – key switch, indicator and operating unit, electrical equipment AC MP, control unit and contactor rack, cable kits, interface circuit board, multi-function levers, headlamp

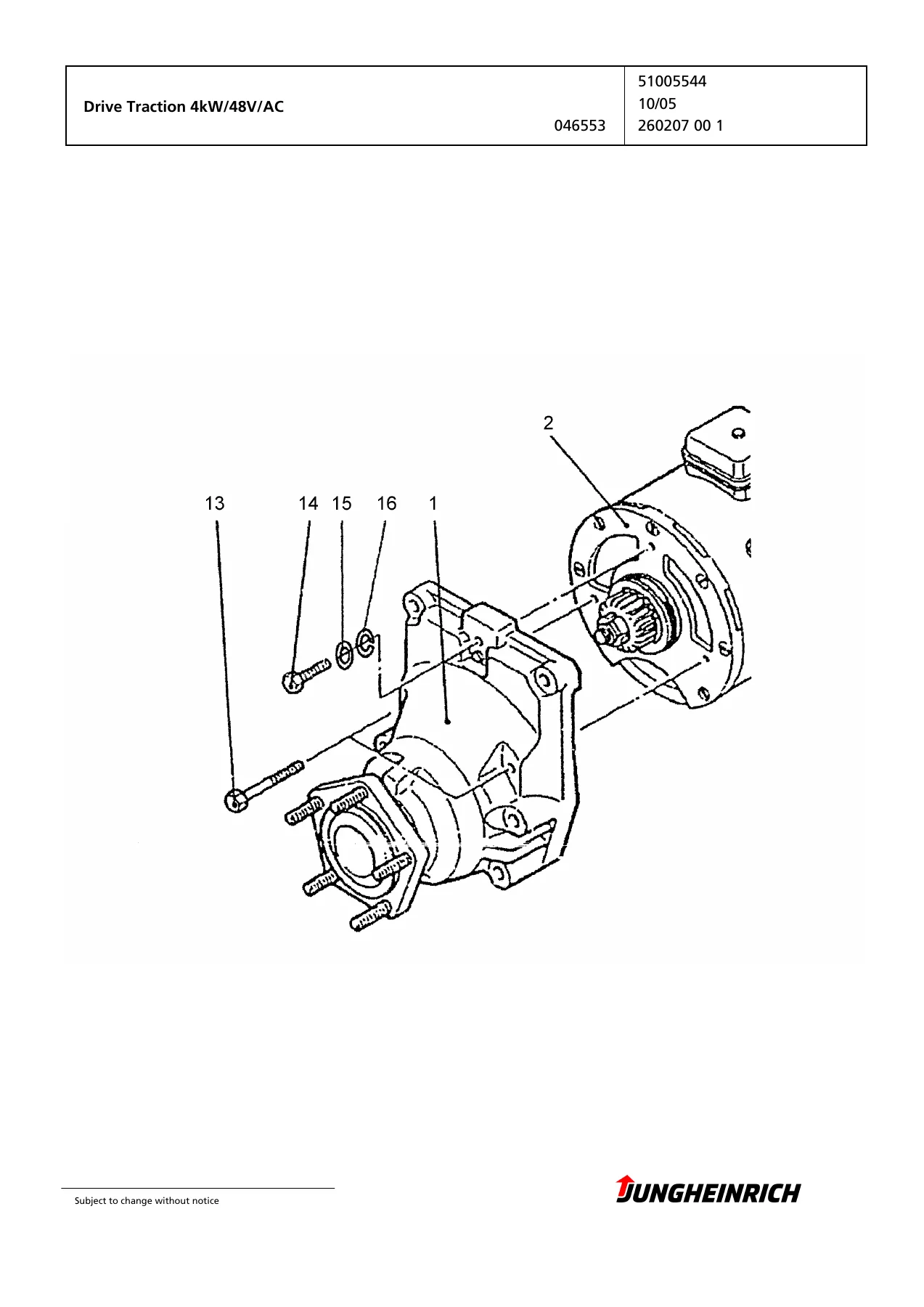

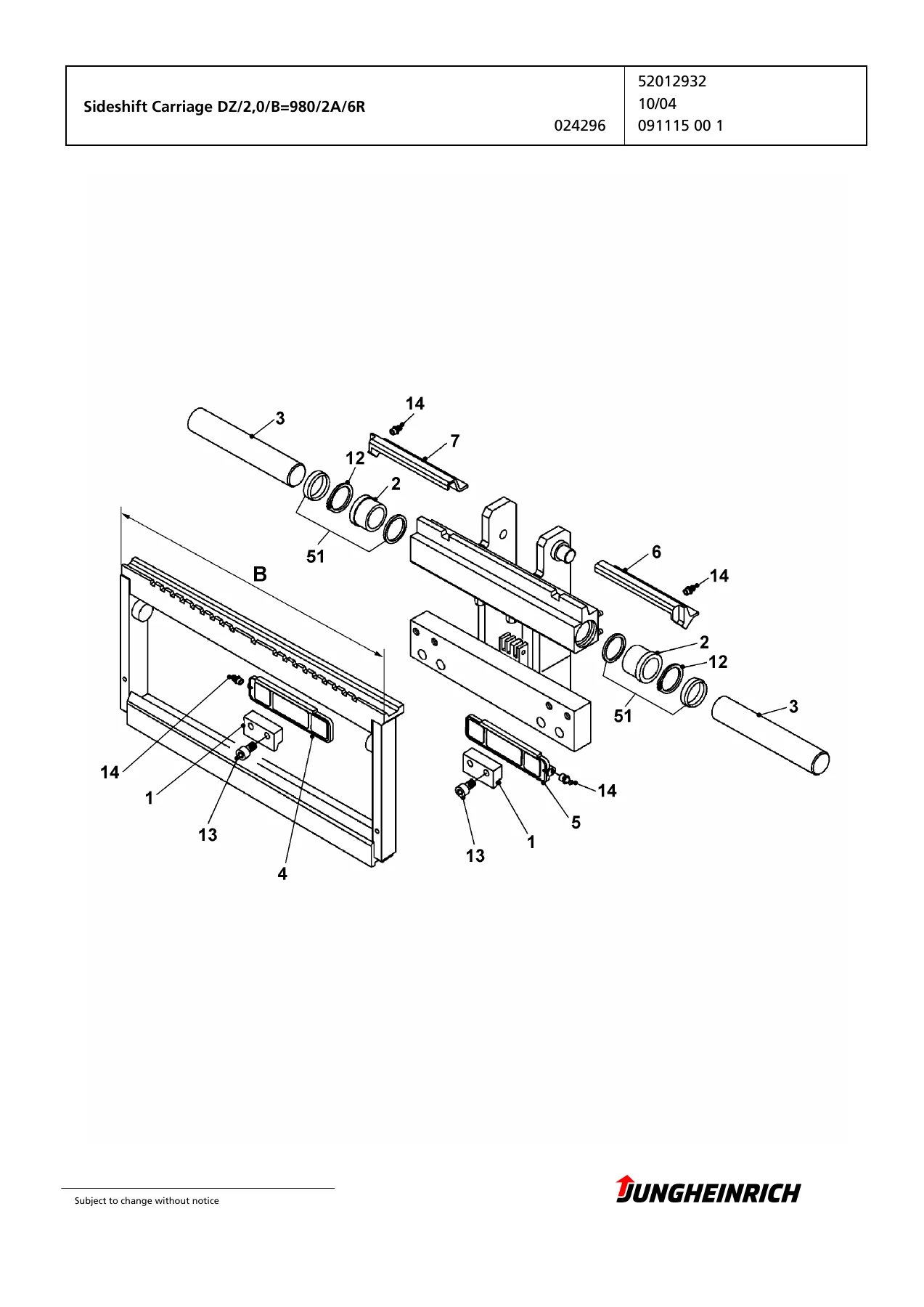

Each section is presented as an exploded illustration followed by an itemised table, so the same number that appears on the drawing appears again in the list beside its order number and description. Assemblies that are supplied as complete units – repair kits and exchange components – are shown within the same lists, with the exchange assembly order numbers printed beneath the new-part numbers. Boldface entries point to separate spare parts lists that are available in their own right, and items that cannot be supplied individually as spare parts are marked accordingly. The catalogue also explains how to read the truck identification plate, why the serial number on the plate must match the truck record card, and which data Jungheinrich needs when a spare parts order is placed.

What This Catalogue Lets You Do

With the EFG 220 MP parts catalogue open, a fitter can trace a component from the exploded drawing to its exact order number, confirm the quantity needed for a repair, and check whether a fastener, seal, bush or bracket is available on its own or only as part of a larger assembly. That matters on a truck used daily: ordering the wrong roller, seal kit or hose because a similar part was assumed to fit costs a second delivery and another day of downtime. Repair kits are grouped so that the assemblies are restored functionally to a virtually new condition, and the exchange component programme gives an economical alternative for assemblies that are beyond economical repair.

The coverage runs across the whole machine rather than one system – mast and carriage, traction drive, brake, steering axle and steering hydraulics, the oil reservoir and valve control, and the electrical control gear with its cables, contactors and multi-function levers. Frame, counterweight, overhead guard, floor plate and mudguard parts are listed alongside the decals and safety labels that keep the truck compliant.

IMAGES PREVIEW

Instant PDF Delivery

The Jungheinrich EFG 220 MP spare parts catalogue FN356917 is supplied as a PDF that is available for download immediately after checkout. There is no shipping, no waiting for a disc, and no courier. Open it on a workshop laptop, a tablet on the shop floor or a phone beside the truck, print the pages you need for the job and keep the file on hand for the next repair. Search the item you need, note the order number, and place your parts request with the details the catalogue tells you to include.
