Jungheinrich ERE 120 Spare Parts Catalogue 98185656 PDF – Complete Parts Manual

Description

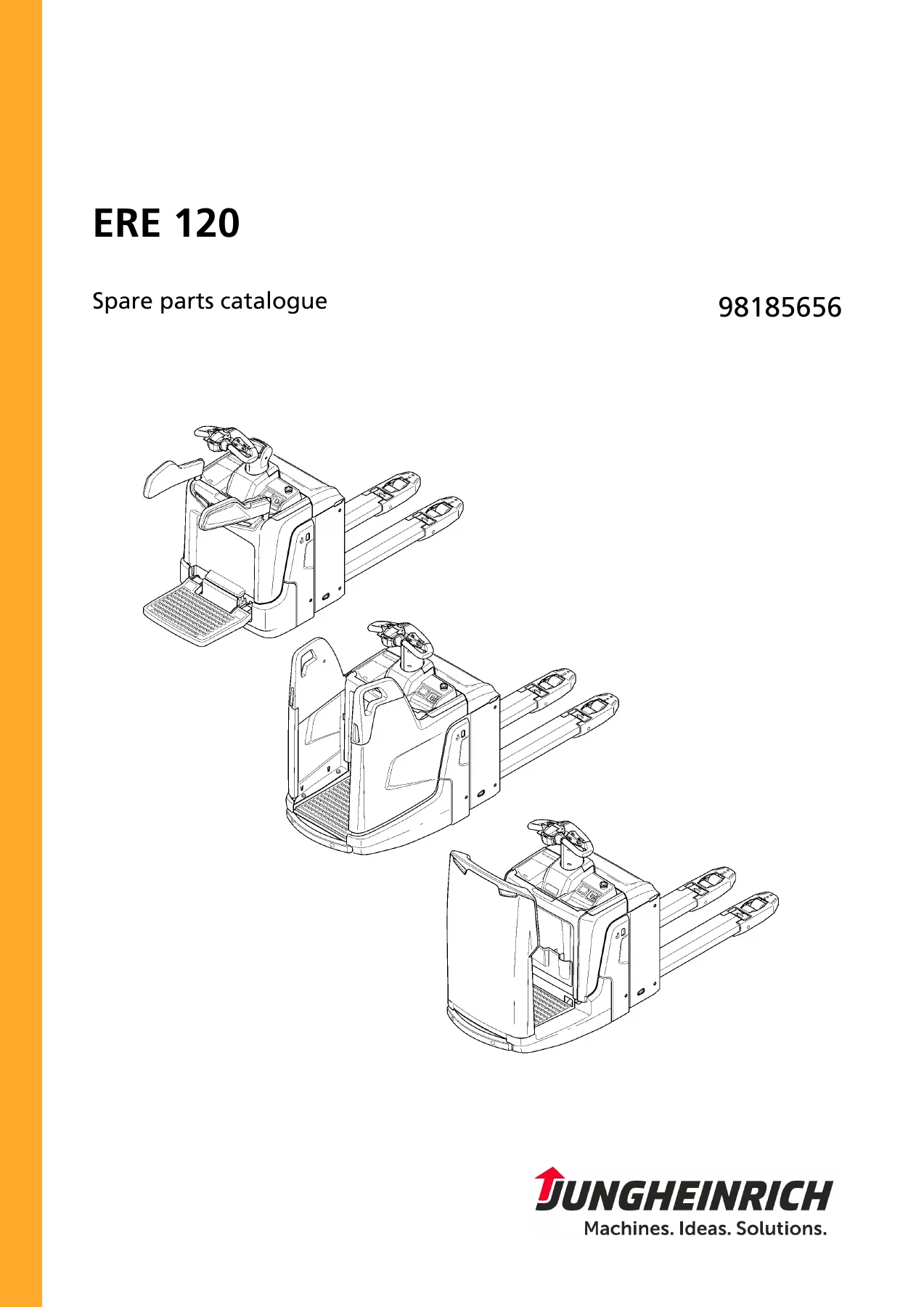

Jungheinrich ERE 120 Spare Parts Catalogue – Document 98185656

This is the complete Jungheinrich ERE 120 spare parts catalogue, published under document number 98185656. It is the illustrated parts list for the ERE 120 truck, built on the same part breakdown Jungheinrich uses in its own spare parts logistics. Every assembly is drawn as an exploded view with item numbers keyed to a table of order numbers, descriptions and quantities, so the correct component can be identified and ordered directly. The catalogue runs 207 pages in English and is supplied as a PDF.

File Details

• Manual type: Spare parts catalogue
• Brand: Jungheinrich
• Model: ERE 120
• Document number: 98185656
• Language: English
• Page count: 207
• File format: PDF

Chapters Covered

• A – Frame and superstructure
• B – Electric drive unit
• D – Brake
• E – Wheels / Axles
• F – Steering system
• Hoist frame / Load lifting device
• Hydraulic system
• Electric system
• Battery / Charger
• Lubes and Fluids

A – Frame and Superstructure

This chapter breaks down the ERE 120 bodywork and platform hardware. Exploded views cover the drive frame, standing platform with JH-YE mat and damping elements, the restraint system with cross member, shaft and sensor, the front hood group, instrument hood, bonnet, battery hood with handle and spring lock, plus mounting parts, reflectors, identification labels and lifting-point safety labels. Order numbers are listed for each item, including the clamping part and the 4 kg auxiliary weight.

B – Electric Drive Unit

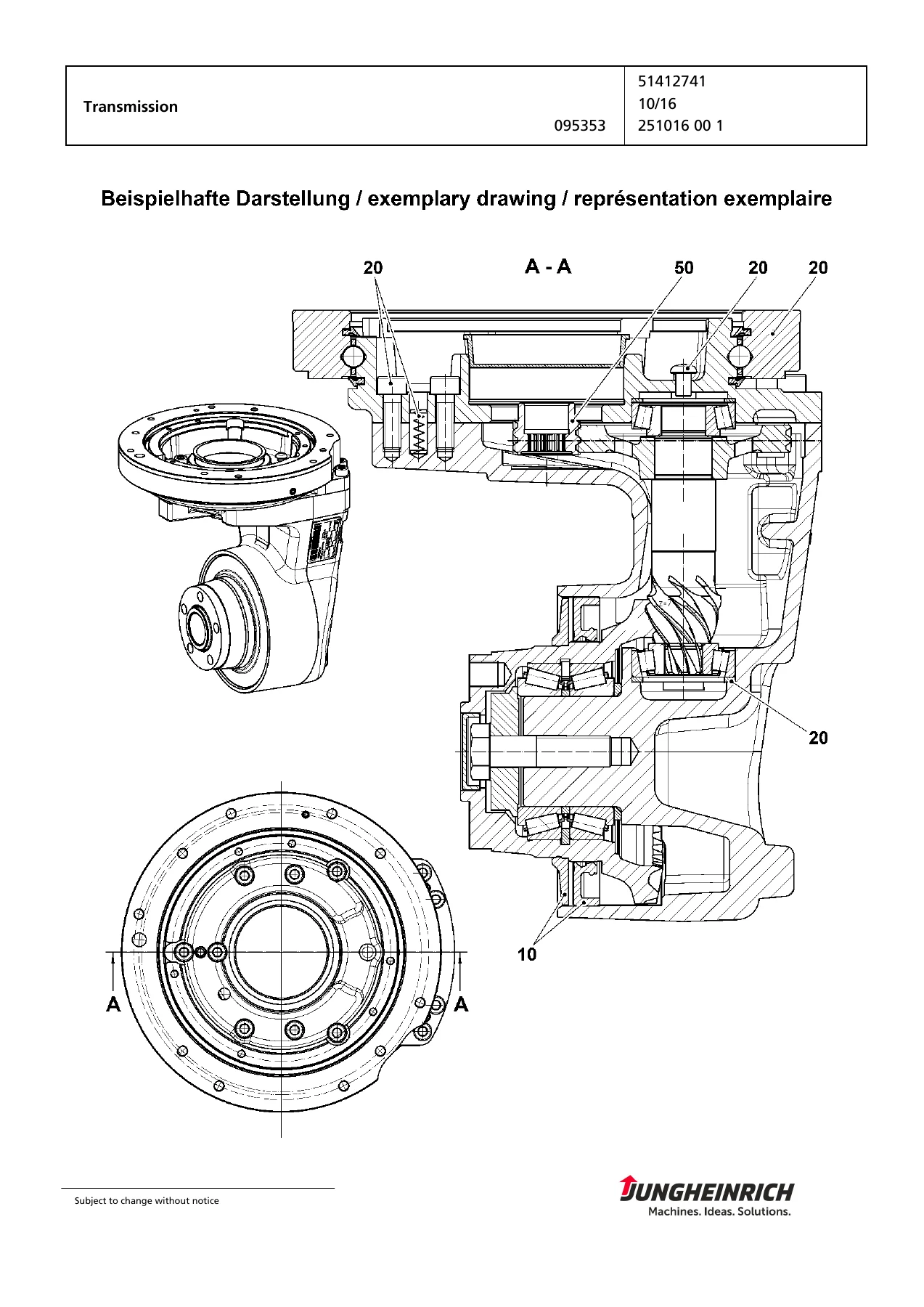

The electric drive unit chapter covers traction and auxiliary drive. It documents the transmission with repair kit and spur pinion, the 14V/2,0KW traction motor with ball bearings, circlips and terminal block, the drive support, the spring pressure brake with housing, magnet and friction plate, and the drive connection group with bolts, springs and shims. The assembled drive traction unit, drive wheel 230×65/EL and wheel bolts are also listed. The auxiliary drive section covers the V-belt, V-belt pulley, shim and mounting screws.

D – Brake

The brake chapter lists the spring pressure brake assembly (51468808) with its housing plus magnet, the additional magnet and the friction plate.

E – Wheels / Axles

The wheels and axles chapter covers the torsion bar group with supporting wheels, ball bearings and circlips, the wheel arm lever with bushes, the tandem load wheel 85×85 group with wheel arm lever, load wheels, screws and bushes, the mechanical spring assembly with shock absorber, spring caps and rings, and the load wheel connection group with axles and tension sockets.

F – Steering System

The steering system chapter documents the tiller arm head, the control head upper part DigiHS/DigiHS+BS 15 with grip sleeves, the tiller arm ERE STD mech. kpl., the steering unit with shaft, bushes, ball bearings, housing, plates and lubricating nipple, and the drawbar connection group with nuts and screws.

Hoist Frame / Load Lifting Device

The hoist frame and load lifting device chapter lists the push rod, load frame, fixed parts with bearing cup and spring, levers with bushes, the load frame connection group, the push rod connection group with bolts and Torx screws, and the auxiliary weight.

Hydraulic System

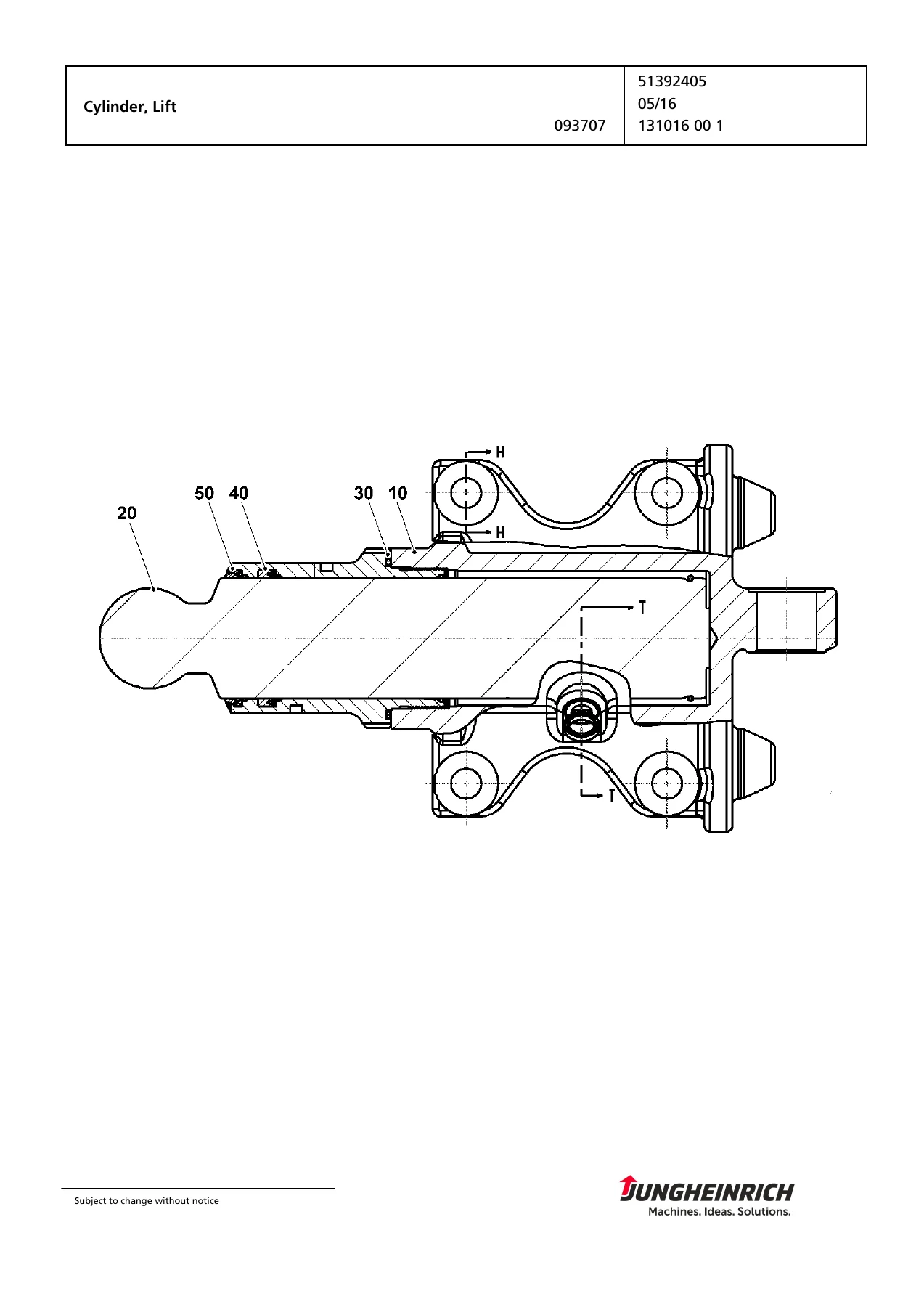

The hydraulic system chapter covers the lift cylinder with housing, piston rod, piston rod guide and seal kit, and the 2,2 kW hydraulic unit with valve block, pressure limiting valve, check valve, solenoid valve, press regulating valve, O-rings, pump motor, hydraulic pump, filter, pipe, mechanical clutch, hydraulic tank, filler cap and screw plug. A second 1,2 kW hydraulic unit with its own valve block, pressure limiting valve, check valve, coupling, pump motor, piping, return pipe, oil filter, hydraulic tank, feed and aeration filter, solenoid valve, coil, throttle valve, clamp and hydraulic pump is also documented.

Electric System

The electric system chapter covers the contactor, horn 24V/335Hz with bracket, key switch 702 with key kit, display unit KD Mini CO 800K Jr., left and right reflectors, control and truck cables, the mounting plate for electrics, connection groups for ESD, instrument, sensor unit and battery, the sensor unit with bracket and sensor, and the conversion group and electric system CUST with buzzer, relay, fuse, diodes and connectors.

Battery / Charger and Lubes and Fluids

The battery and charger chapter lists the battery support with battery holder, screws and nuts. The lubes and fluids section specifies hydraulic oil HVLP 32 and its available pack sizes, with the capacities called out in the catalogue.

Why This ERE 120 Parts Catalogue Matters

Ordering the wrong part for a Jungheinrich ERE 120 wastes time and money. This catalogue removes the guesswork by tying every component to its factory order number and its position in the assembly drawing. Whether you are replacing a spring pressure brake, a tandem load wheel, a tiller arm head, a lift cylinder seal kit or a hydraulic pump, the exploded views show exactly how the parts relate and the tables give the numbers to order. Because the breakdown follows Jungheinrich’s own logistics structure, the part numbers in this PDF are the same ones used for practical, meaningful repairs.

IMAGES PREVIEW

Instant PDF Delivery

The Jungheinrich ERE 120 spare parts catalogue 98185656 is delivered as an instant PDF download after purchase – no shipping, no waiting. It opens on any device, from a workshop tablet to a desktop PC, and pages can be printed for use at the machine. Keep it on hand for every service job and every parts order.
