Jungheinrich TFG 425 GE115-470DZ Forklift Spare Parts Catalogue FN431701

Description

Jungheinrich TFG 425 GE115-470DZ Spare Parts Catalogue — FN431701

This is the complete spare parts catalogue for the Jungheinrich TFG 425 GE115-470DZ LPG-powered forklift truck, published under document number FN431701. The catalogue is organised to match Jungheinrich’s practical repair and logistics breakdown, giving workshops and parts departments a single reference for identifying, ordering, and replacing components across the entire truck.

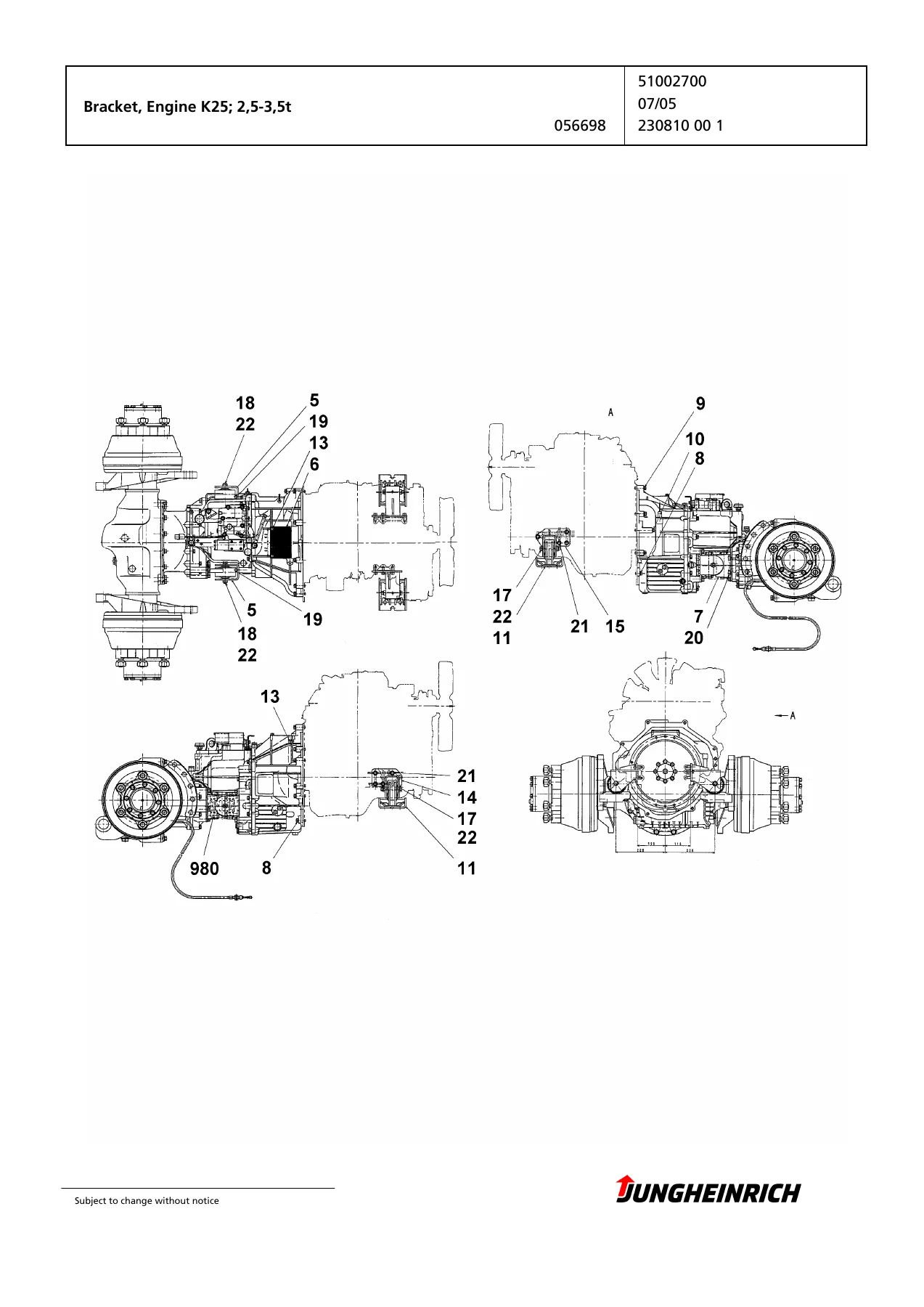

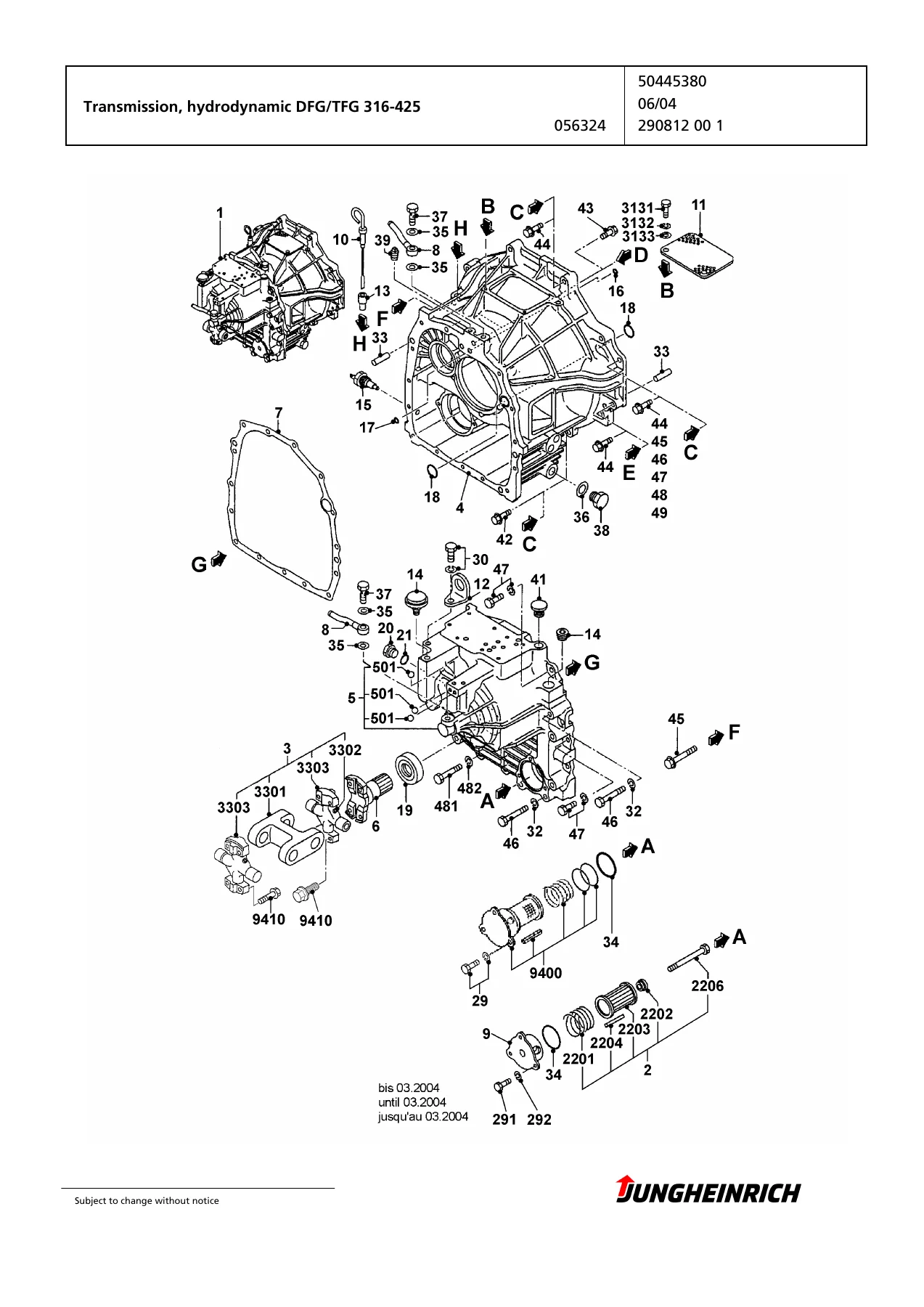

Every section pairs exploded-view illustrations with itemised tables listing order numbers, descriptions, and quantities. Whether you are rebuilding a mast, servicing the braking system, or tracking down a specific hydraulic fitting, the TFG 425 GE115-470DZ parts catalogue is structured to get you the correct part number quickly.

File Details

• Manual type: Spare Parts Catalogue
• Brand: Jungheinrich
• Model: TFG 425 GE115-470DZ
• Document number: FN431701
• Language: English (with multilingual abbreviation glossary)
• Page count: 369
• File format: PDF

Chapters Covered

The Jungheinrich TFG 425 spare parts catalogue is divided into major assembly groups, each with its own illustrated parts breakdown:

• Frame and superstructure — chassis, counterweight, overhead guard, floor plates, seat mounting, covers, labels, and soundproofing
• Drive unit — internal combustion engine — engine brackets, torque converter, hydrodynamic transmission, transmission valve control, LPG K25 engine components, air filter, exhaust system, gas bottle bracket, accelerator pedal, cooling system, drive axle, and LPG system
• Brake system — wheel brake left and right, brake pedal group, pedal group, parking brake
• Wheels and axles — super cushion wheels, front and rear wheel assemblies
• Steering system — steering unit, steering knuckle, steer axle KP740, steer cylinder R7016, steering components
• Hoist frame and load lifting device — roller holders, lift cylinder D75, free lift cylinder, mast outer/intermediate/inner fixed parts, mast DZ h1=2180, sideshift carriage, fork 2A/120x40x1150, load guard, connecting elements, HTU mast
• Connection chassis / load lifting device — tilt cylinder 6/6 Ø77.00
• Hydraulic system — hydraulic pump, hydraulic system TFG 425-435, control lever ZH1, valve-control block, mounting parts, valve-control group, valve-control ZH1, adaptor, truck hydraulic system
• Electric system — working lights, display unit, protective casing, battery, alternator, cable kits, electrical system TFG 425/430/435 SP, relay module, key switch, flashing beacon, reverse driving warning system
• Lubes and fluids — transmission oil, brake fluid, engine oil, hydraulic oil, drive axle oil, antifreeze, grease, chain spray

What This Parts Catalogue Gives You

This Jungheinrich TFG 425 GE115-470DZ spare parts catalogue is built for the people who keep these trucks running. Each assembly is broken down into its individual components with clear exploded-view drawings, so you can see exactly how parts fit together before you order. The itemised tables cross-reference every part to a Jungheinrich order number — no guessing, no wrong orders, no downtime waiting for the wrong component to arrive.

Because the catalogue follows Jungheinrich’s own logistics breakdown, the part groupings match how the truck is actually assembled and serviced. That means when you need a seal kit for a lift cylinder, a replacement roller for the mast, or a specific hose for the hydraulic system, you can navigate straight to the right section and pull the exact order number.

Who This Manual Is For

This TFG 425 GE115-470DZ parts catalogue is essential for:

• Forklift technicians carrying out repairs and overhauls
• Parts managers ordering components for Jungheinrich TFG 425 trucks
• Workshop supervisors planning maintenance and rebuilds
• Fleet operators maintaining their own LPG forklift equipment
• Anyone who needs to identify a specific Jungheinrich part number without relying on a dealer

How the Catalogue Is Organised

The document uses a clear alpha-numeric section system. Each major assembly is assigned a letter or number, and every part within that assembly has an item number that matches the illustration. The tables list the item number, the quantity required, the Jungheinrich order number, and the description. Boldface items in the lists refer to other separately available spare parts lists — a useful cross-reference when a component is covered in more detail elsewhere.

The catalogue also includes a comprehensive technical abbreviations glossary covering over 200 terms used throughout the parts listings — from AC and hydraulic drive codes to tyre types, mast configurations, and electrical system designations. This makes it straightforward to decode the descriptions even if you are new to Jungheinrich’s naming conventions.

Why the Right Part Number Matters

Forklift trucks are safety-critical machines. Fitting an incorrect component — whether it is a brake shoe, a hydraulic hose, or a mast roller — can compromise the truck’s stability, lifting capacity, and compliance. The Jungheinrich TFG 425 GE115-470DZ spare parts catalogue FN431701 removes that risk by giving you the exact part number for your specific model. Every order number in this catalogue is tied to the TFG 425 GE115-470DZ, so you can order with confidence.

The catalogue also helps you plan ahead. By reviewing the exploded views, you can identify wear items and order them before they fail — reducing unplanned downtime and keeping your TFG 425 productive.

IMAGES PREVIEW

Instant PDF Delivery

This Jungheinrich TFG 425 spare parts catalogue is delivered as an instant PDF download. No shipping, no waiting for a physical book to arrive. Once your order is complete, you can access the file immediately and start using it on any device — desktop, laptop, tablet, or smartphone. Print the pages you need for the workshop, or keep the entire 369-page catalogue on your computer for quick reference. Whether you are in the workshop, the parts department, or out in the yard, the right part number is always at your fingertips.
