Kobelco ED150 Blade Runner Acera SR Tier 3 Excavator Dozer Service Manual PDF

Description

Kobelco ED150 Blade Runner Acera SR Tier 3 Service Manual

This Kobelco ED150 Blade Runner Acera SR Tier 3 Service Manual is the workshop reference for the ED150 Blade Runner Acera SR excavator dozer, published by CNH America LLC in June 2008 as Book/Form Number 5-15190 NA (Source Code No. 87480999). It gathers the specifications, maintenance standards, system descriptions, disassembly guidance and troubleshooting material a technician needs to keep an ED150 Acera SR working to its published tolerances, and it is delivered as an instant PDF download.

File Details

• Manual type: Service Manual (Preview edition)
• Brand: Kobelco / CNH America LLC
• Model: ED150 Blade Runner Acera SR Excavator Dozer
• Engine: Mitsubishi D04FR-KDP2TAAC / D04FR-74kW, water-cooled 4-cycle 4-cylinder direct injection diesel with intercooler turbocharger
• Language: English
• Page count: 176 pages
• File format: PDF
• Book/Form Number: 5-15190 NA
• Edition: First Edition
• Issue date: 06-2008
• Source Code No.: 87480999

Chapters Covered

The manual is organised into six sections, each with its own chapters:

• Section 1 – Safety and General Information
  • Chapter 1: General Precautions for Making Repairs
  • Chapter 2: Specifications
  • Chapter 3: Attachment Dimensions
• Section 2 – Maintenance
  • Chapter 1: Tools (tightening torques, plugs, special tools)
  • Chapter 2: Standard Maintenance Time Table
  • Chapter 3: Maintenance Standard and Test Procedure
• Section 3 – Systems
  • Chapter 1: Mechatro Control System
  • Chapter 2: Hydraulic System
  • Chapter 3: Electric System
  • Chapter 4: Components System
  • Chapter 5: Air Conditioning System
• Section 4 – Disassembly and Assembly
  • Chapter 1: Attachments
  • Chapter 2: Upper Structure
  • Chapter 3: Travel System
• Section 5 – Troubleshooting
  • Chapter 1: Troubleshooting by Error Codes
  • Chapter 2: Troubleshooting by Trouble
  • Chapter 3: Troubleshooting by Diagnosis Mode
• Section 6 – Engine
  • Chapter 1: Engine

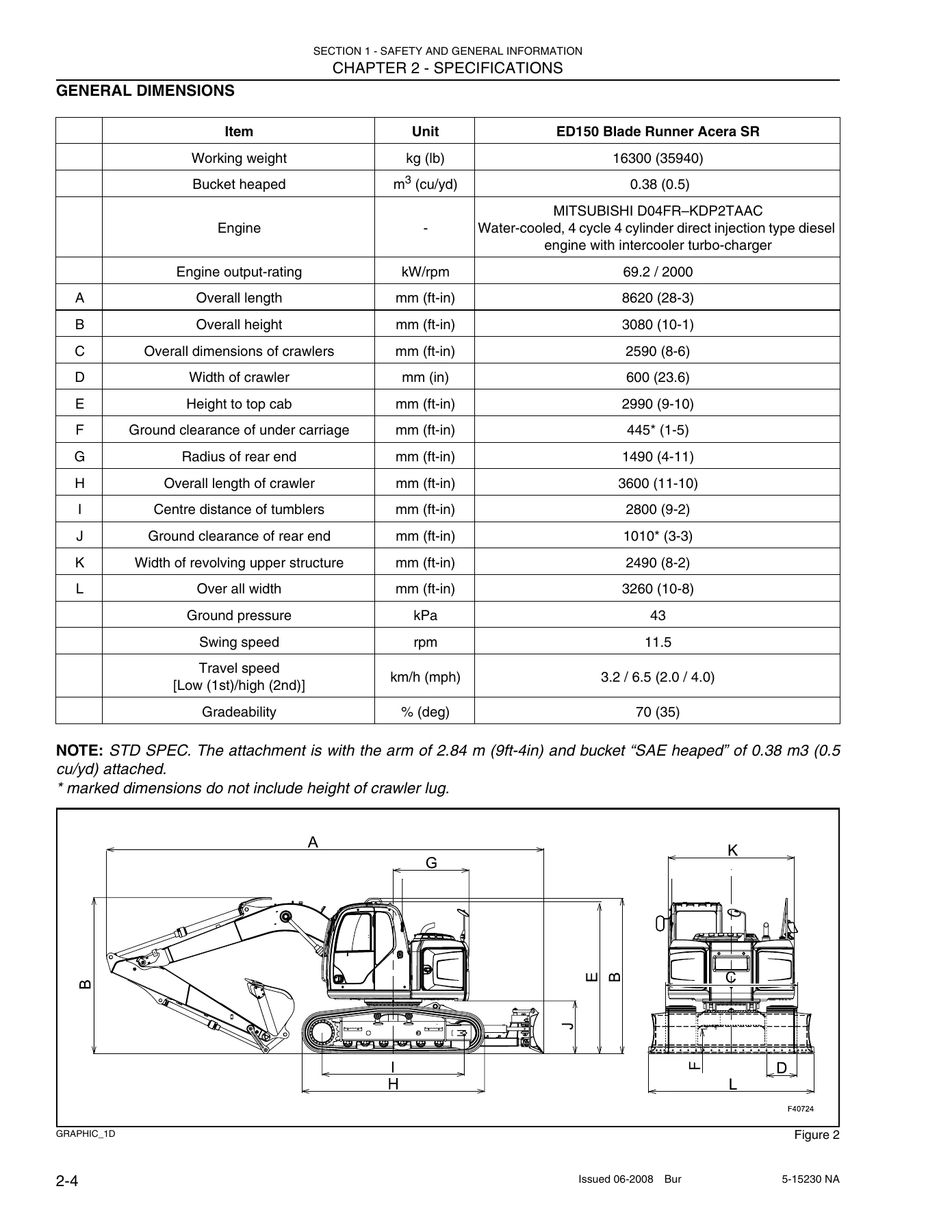

Read together, these sections turn the ED150 Blade Runner Acera SR service manual into a working diagnostic tool rather than a brochure. The safety and general information section sets out the precautions for handling hydraulics and electrical equipment, then supplies the machine’s general dimensions, component weights, transportation and lifting data, crawler and bucket specifications and the Mitsubishi engine specification tables. The maintenance section goes beyond a simple fluid chart: it lists standard maintenance times per job, tightening torques for capscrews, hose fittings and flareless joints, plug and special-tool part numbers, and then a full maintenance standard and test procedure chapter with performance inspection values, hydraulic pressure measurement points, relief valve adjustment, travel and swing performance tests, drain-rate checks, cylinder oil-tightness limits and swing bearing play measurement.

The systems section explains how the ED150 actually behaves — the mechatronic controller and its unload, positive, P-Q, conflux, recirculation and travel-straight control logic; the multi-display and gauge cluster screens; self-diagnosis and service diagnosis displays; the hydraulic circuits; the electric circuit diagrams; component-level hydraulic and electric descriptions; and the HVAC air conditioning system. The disassembly and assembly chapter then covers attachments, upper structure and travel system removal and installation, while the troubleshooting chapters give fault-finding routes by error code, by symptom and through the machine’s own diagnosis mode.

What This Manual Lets You Do

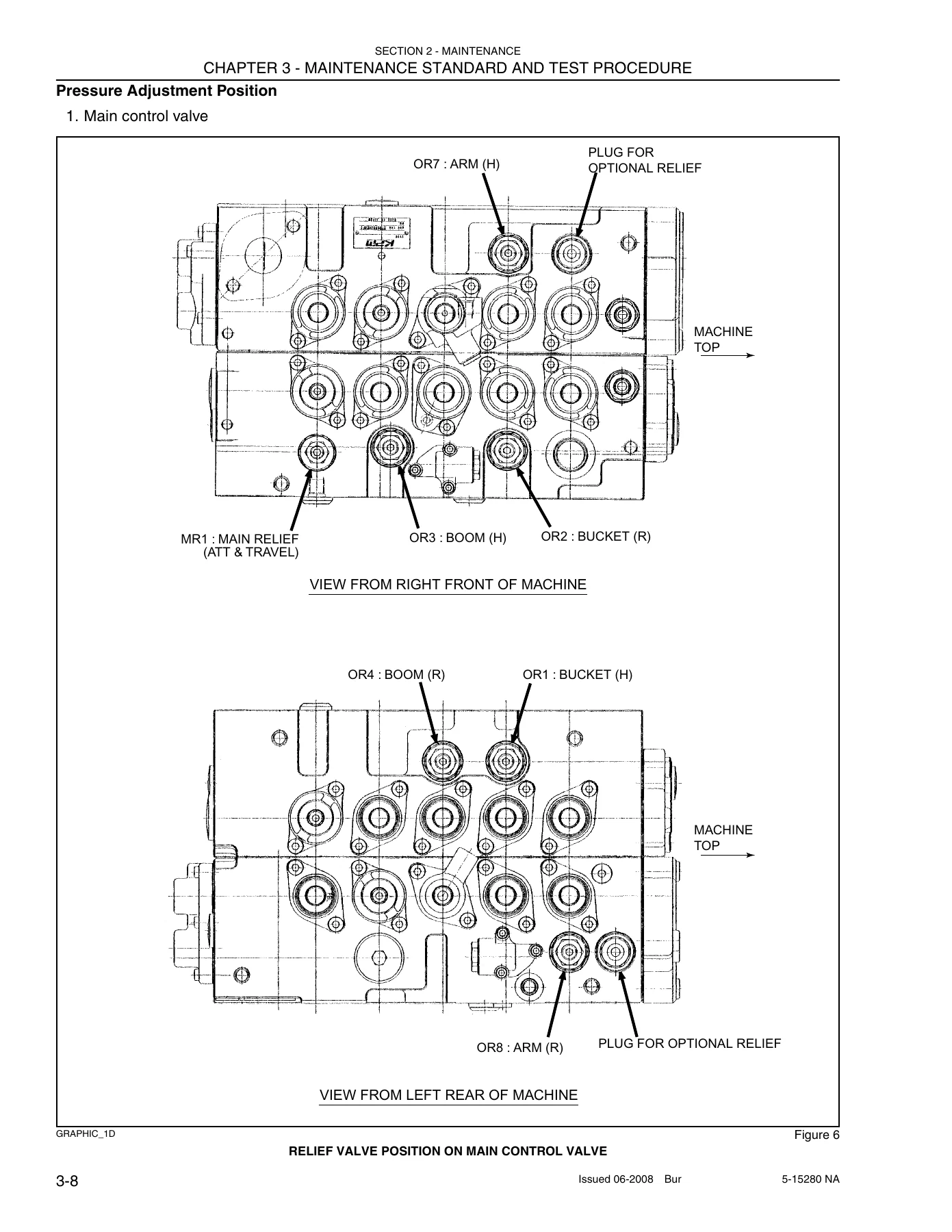

With the Kobelco ED150 Acera SR Tier 3 service manual on hand, a technician can carry out a proper pressure test on the main and pilot circuits, set the main relief, overload relief and pilot relief valves to their published values, measure travel deviation and sprocket speed, check the swing brake and swing parking brake, and confirm cylinder oil tightness against a service limit instead of guessing. It supports routine servicing as well as repair work, from torque values for a split flange or an ORS joint to the correct procedure for pulling a boom mounting pin, lifting an upper frame, setting a track spring or standing an engine on its mounting pedestal.

Correct procedures and specifications matter on a machine of this size. Reading the wrong relief pressure or skipping an air-bleed step on the hydraulic pump, swing motor, travel motor or cylinders can damage components or create a safety risk. The Kobelco ED150 service manual gives the values, the order of work and the adjustment method so the job is done once and done correctly.

IMAGES PREVIEW

Instant PDF Delivery

The manual is supplied as a PDF that is available immediately after payment — no shipping, no waiting for a printed book. Open it on a laptop, tablet or phone in the workshop, search or scroll straight to the chapter you need, and print only the pages you want to take under the machine. Whether you are setting up a service schedule, rebuilding an attachment, chasing an error code on the gauge cluster or measuring swing bearing play, the Kobelco ED150 Blade Runner Acera SR Tier 3 service manual PDF keeps the specification and the procedure in the same place.
