Komatsu D61EX-23 D61PX-23 Bulldozer Shop Manual SEN06010-02 – PDF Workshop Repair Guide

Original price was: $39.95.Current price is: $24.95.

Complete Komatsu shop manual for D61EX-23 and D61PX-23 bulldozers (serial 30001 and up) covering the SAA6D107E-2 engine, HST power train, hydraulics, undercarriage, electrical systems, testing and adjusting, troubleshooting and full disassembly procedures.

⚑
Instant PDF Download
Available immediately
πŸ’Ύ
Save to Your Device
Download & keep forever
πŸ›‘οΈ
Antivirus Scanned
100% virus-free
🌍
Trusted Worldwide
175,000+ customers

Description

Komatsu D61EX-23 and D61PX-23 Bulldozer Shop Manual

This is the Komatsu shop manual for the D61EX-23 and D61PX-23 bulldozers, published under form number SEN06010-02. It covers machines from serial number D61EX-30001 and up and D61PX-30001 and up, and it is the same body of technical information a workshop needs to service, test, diagnose and rebuild these dozers. The manual spans ten chapters, moving from general specifications and safety through system theory, standard values, testing and adjusting, troubleshooting by failure code, full disassembly and assembly procedures, maintenance standards and the hydraulic and electrical circuit diagrams.

File Details

  • Manual type: Shop Manual (Workshop / Service Manual)
  • Brand: Komatsu
  • Models covered: D61EX-23, D61PX-23 bulldozers
  • Engine covered: Komatsu SAA6D107E-2 diesel engine
  • Serial numbers: D61EX-30001 and up, D61PX-30001 and up
  • Language: English
  • File format: PDF
  • Document number: SEN06010-02
  • Page count: 1,724 pages

Chapters Covered

  • 00 Index and foreword – index, foreword, safety and general information, important safety notice, how to read the shop manual, explanation of terms for maintenance standard, handling equipment of fuel system devices, handling of intake system parts, handling of hydraulic equipment, method of disconnecting and connecting push-pull type coupler, handling of electrical equipment, how to read electric wire code, precautions when performing operation, practical use of KOMTRAX, standard tightening torque table, list of abbreviation, conversion table
  • 01 Specification – specification drawing, specifications, weight table, table of fuel, coolant and lubricants
  • 10 Structure and function – engine and cooling system, engine related parts, KVGT, EGR system piping drawing, EGR system circuit diagram, EGR valve, EGR cooler, KCCV layout drawing, KCCV ventilator, KDPF, cooling system, cooling fan motor, oil cooler bypass and HST charge safety valve, power train, damper, hydraulic component layout of HST, steering and brake control, HST pump, HST motor, charge pump, solenoid valve, final drive, undercarriage and frame, main frame, suspension, track frame and idler cushion, hydraulic system, work equipment control system, hydraulic tank, CLSS, work equipment and cooling fan pump, control valve, ripper PPC valve, quick drop valve, angle control EPC valve, accumulator, work equipment, blade, ripper, piston valve, cab and its attachments, ROPS cab, cab mount, electrical system, engine control system, cooling system control system, HST control system, parking brake control system, system operating lamp function, battery disconnect switch function, machine monitor system, KOMTRAX system, system component parts, sensor
  • 20 Standard value tables – standard service value table, standard value table for engine, standard value table for machine, standard value table for electrical system
  • 30 Testing and adjusting – engine and cooling system testing, power train testing and adjusting, undercarriage and frame, hydraulic system, work equipment, electrical system, special functions of machine monitor, adjustment methods after controller replacement, Pm Clinic
  • 40 Troubleshooting – troubleshooting by failure code, electrical system troubleshooting (E-mode), hydraulic and mechanical system troubleshooting (H-mode), engine troubleshooting (S-mode)
  • 50 Disassembly and assembly – engine and cooling system, power train, undercarriage and frame, hydraulic system, work equipment, cab and its attachments, electrical system
  • 60 Maintenance standard – engine and cooling system, power train, undercarriage and frame, hydraulic system, work equipment, cab and its attachments, electrical system
  • 80 Appendix – air conditioner components, refrigeration cycle, testing and troubleshooting, electrical circuit diagram, system diagram, troubleshooting charts
  • 90 Diagrams and drawings – hydraulic circuit diagram, symbols in hydraulic circuit diagram, electric circuit diagram, symbols in electric circuit diagram

What makes this manual useful is the way the ten chapters work together as one continuous service reference. The specification chapter establishes the baseline, the structure and function chapter explains how each system on the D61EX-23 and D61PX-23 actually works, and the standard value tables give the measurements a technician compares against. From there, the testing and adjusting chapter tells you how to take those measurements with the correct tools and conditions, the troubleshooting chapter tells you what a given failure code or symptom points to, and the disassembly and assembly chapter walks the component apart and back together with tightening torques and coating materials. The maintenance standard chapter supplies the wear limits and repair limits to judge whether a part goes back in service, and the hydraulic and electrical circuit diagrams close the loop. Everything is tied to the D61EX-23 and D61PX-23 specifically, including the SAA6D107E-2 engine, the HST drive system, the CLSS work equipment hydraulics and the KDPF exhaust aftertreatment.

What This Shop Manual Lets You Do

With the Komatsu D61EX-23 / D61PX-23 shop manual in hand, the job range is wide. You can set valve clearance, measure compression pressure, check blowby pressure, verify engine oil pressure, test boost pressure and read exhaust gas color. On the power train side, you can test and adjust HST oil pressure, verify solenoid valve output pressures, check that the machine travels straight and run a simple brake performance test. The hydraulic chapter supports work equipment oil pressure testing, control circuit source pressure checks, work equipment and fan EPC valve output pressure testing, hydraulic drift isolation and internal cylinder leakage measurement. Undercarriage work is covered too, from idler clearance adjustment and sprocket wear checking to track tension setting. In the electrical chapter, the machine monitor service mode gives access to monitoring, abnormality records, maintenance settings, diagnostic tests, regeneration for service and the full adjustment menu used for calibration after components are replaced.

Repair and Rebuild Coverage

The disassembly and assembly chapter is the practical heart of the manual for anyone pulling a D61EX-23 or D61PX-23 apart. It covers the supply pump, fuel injectors, cylinder head, radiator, aftercooler, hydraulic oil cooler, cooling fan drive and motor, engine assembly, damper, engine front and rear oil seals, engine hood, fuel tank, KDPF, KCCV, KVGT, EGR cooler and EGR valve. It continues into the HST pump, HST motor and final drive, the full track frame and undercarriage group including idler, recoil spring, track roller, carrier roller, segment teeth and the track shoe assembly both in the standard and PLUS types. Hydraulic tank, control valve and hydraulic cylinder disassembly are included, as are work equipment, blade, U-frame, ROPS cab, operator’s cab glass, seat, seat belt, foot heater, air conditioner unit and compressor, machine monitor, engine controller, HST controller, mass air flow and temperature sensor, and the KOMTRAX terminal. Tightening torques, special tools and coating materials are given at each procedure.

Complete PDF Bookmark Tree

Complete Bookmarks

The complete bookmarks in the β€œKomatsu D61EX-23 D61PX-23 Bulldozer Shop Manual SEN06010-02 – PDF Workshop Repair Guide” are as follows:

Coverp. 1
00 Index and forewordp. 3
Indexp. 4
Foreword, safety and general informationp. 17
Important safety noticep. 17
How to read the shop manualp. 24
Explanation of terms for maintenance standardp. 26
Handling equipment of fuel system devicesp. 28
Handling of intake system partsp. 29
Handling of hydraulic equipmentp. 30
Method of disconnecting and connecting of push-pull type couplerp. 32
Handling of electrical equipmentp. 35
How to read electric wire codep. 43
Precautions when performing operationp. 46
Practical use of KOMTRAXp. 51
Standard tightening torque tablep. 52
List of abbreviationp. 58
Conversion tablep. 63
01 Specificationp. 69
Table of contentsp. 70
Specificationsp. 71
Specification drawingp. 71
Specificationsp. 73
Weight tablep. 85
Table of fuel, coolant, and lubricantsp. 89
10 Structure and functionp. 91
Table of contentsp. 92
Engine and cooling systemp. 93
Engine related partsp. 93
KVGTp. 95
EGR system piping drawingp. 102
EGR system circuit diagramp. 104

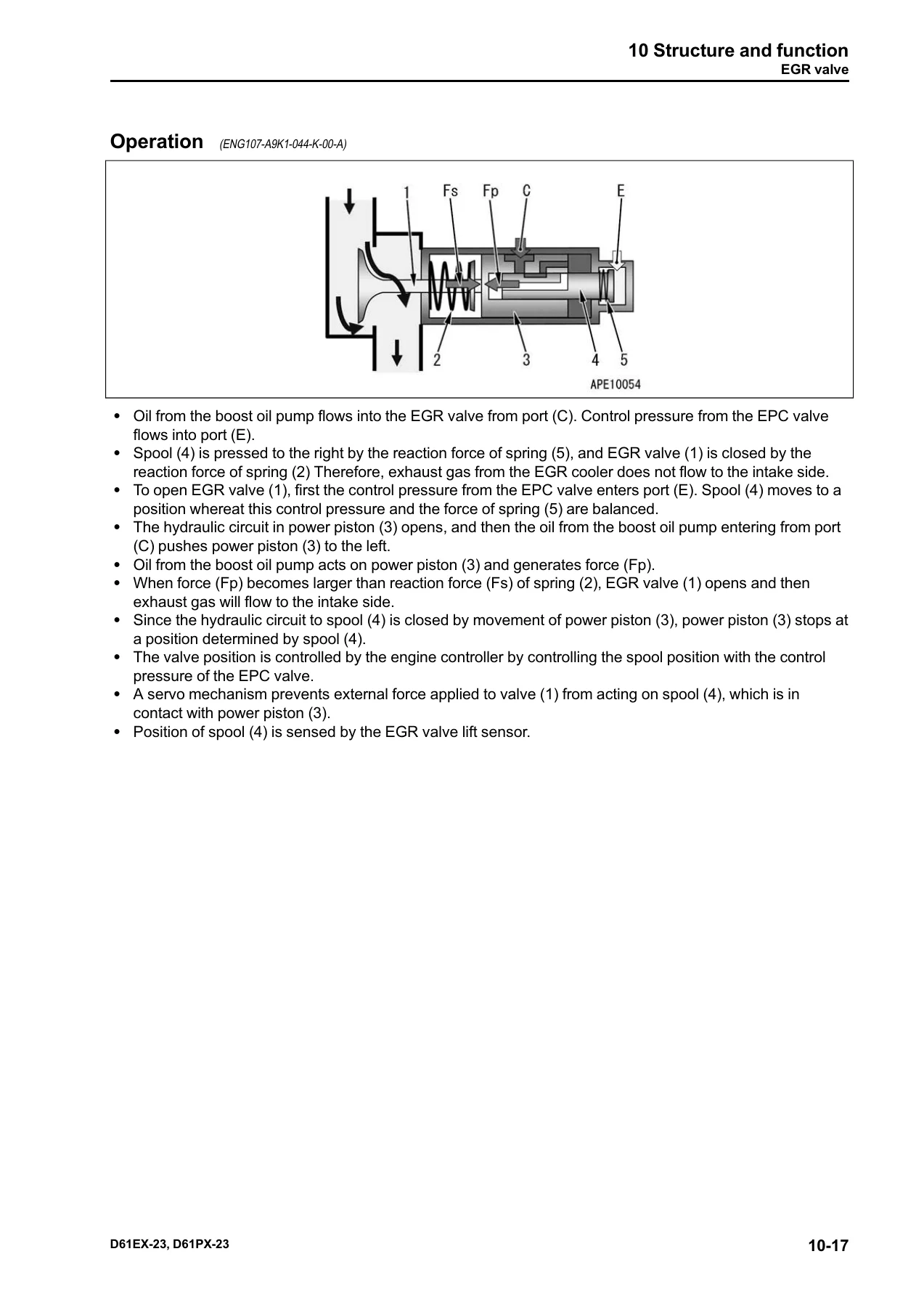

EGR valvep. 106
EGR coolerp. 108
KCCV layout drawingp. 109
KCCV ventilatorp. 111
KDPFp. 113
Cooling systemp. 117
Cooling fan motorp. 119
Oil cooler bypass and HST charge safety valvep. 125
Power trainp. 131
Power train systemp. 131
Damperp. 134
Hydraulic component layout of HSTp. 135
Steering and brake controlp. 136
HST pumpp. 138
HST motorp. 153
Charge pumpp. 168
Solenoid valvep. 169
Final drivep. 178
Undercarriage and framep. 182
Main framep. 182
Suspensionp. 183
Track frame and idler cushionp. 185
Hydraulic systemp. 188
Hydraulic component layout of work equipmentp. 188
Work equipment control systemp. 190
Hydraulic tankp. 192
CLSSp. 194
Work equipment and cooling fan pumpp. 197
Control valvep. 208
Ripper PPC valvep. 230
Quick drop valvep. 235
Angle control EPC valvep. 238
Accumulatorp. 243
Work equipmentp. 245
Bladep. 245
Ripperp. 246
Piston valvep. 247
Cab and its attachmentsp. 248
ROPS cabp. 248
Cab mountp. 250
Electrical systemp. 251
Engine control systemp. 251
Cooling system control systemp. 254
HST control systemp. 256
Parking brake control systemp. 269
System operating lamp functionp. 271
Battery disconnect switch functionp. 272
Machine monitor systemp. 274
KOMTRAX systemp. 297
System component partsp. 300
Sensorp. 317
20 Standard value tablesp. 335
Table of contentsp. 336
Standard service value tablep. 337
Standard value table for enginep. 337
Standard value table for machinep. 338
Standard value table for electrical systemp. 351
30 Testing and adjustingp. 361
Table of contentsp. 362
Related information on testing and adjustingp. 364
Tools for testing and adjustingp. 364
Sketch of tools for testing and adjustingp. 367
Engine and cooling systemp. 369
Testing engine speedp. 369
Testing boost pressurep. 371
Testing exhaust gas colorp. 373
Testing and adjusting valve clearancep. 375
Testing compression pressurep. 378
Testing blowby pressurep. 382
Testing engine oil pressurep. 384
Testing EGR valve and KVGT oil pressuresp. 385
Testing fuel pressurep. 386
Testing fuel discharge, return and leakagep. 391
Bleeding air from fuel systemp. 396
Testing fuel circuit for leakagep. 398
Handling cylinder cutout mode operationp. 399
Handling no-injection cranking operationp. 400
Testing of KDPF and muffler stack for looseness and damagep. 401
Testing of installed condition of cylinder heads and manifoldsp. 402
Testing engine piping for damage and loosenessp. 403
Replacing alternator beltp. 404
Power trainp. 405
Testing and adjusting HST oil pressurep. 405
Testing output pressure of solenoid valvep. 410
Testing if machine travels straightp. 414
Simple test procedure for brake performancep. 415
Adjusting deceleration/brake pedalp. 416
Adjusting parking brake leverp. 419
Move disabled machine urgentlyp. 421
Undercarriage and framep. 424
Adjusting idler clearancep. 424
Checking sprocket wearp. 425
Testing and adjusting track tensionp. 426
Hydraulic systemp. 427
Releasing remaining pressure in work equipment cylinderp. 427
Testing and adjusting work equipment oil pressurep. 428
Testing source pressure of control circuitp. 430
Testing outlet pressure of work equipment EPC valve and fan EPC valvep. 431
Isolating the parts causing hydraulic drift in blade and ripperp. 433
Testing internal oil leakage of work equipment cylinderp. 434
Testing fan speedp. 436
Testing fan circuit oil pressurep. 437
Bleeding air from hydraulic circuitp. 438
Work equipmentp. 439
Adjusting work equipment lock leverp. 439
Adjusting play of blade center ballp. 441
Electrical systemp. 442
Special functions of machine monitorp. 442
Adjustment method when HST controller has been replacedp. 521
Adjustment method when electric or hydraulic device has been replacedp. 524
Adjusting rearview camera anglep. 525
Handling voltage circuit of engine controllerp. 526
Handling battery disconnect switchp. 527
Testing diodesp. 528
Pm clinicp. 529
Pm Clinic servicep. 529
Pm Clinic check sheetp. 531
40 Troubleshootingp. 537
Table of contentsp. 538
Related information on troubleshootingp. 545
Troubleshooting pointsp. 545
Sequence of events in troubleshootingp. 547
Checks before troubleshootingp. 549
Inspection procedure before troubleshootingp. 551
Preparation for troubleshooting of electrical systemp. 568
Classification and procedures for troubleshootingp. 572
Symptom and troubleshooting numbersp. 574
Information in troubleshooting tablep. 577
Procedure for troubleshooting wiring harness of pressure sensor system for open circuitp. 579
Connector list and layoutp. 582
Connector contact identificationp. 594
T-branch box and T-branch adapter tablep. 632
Fuse location tablep. 637
Precautions for KDPF (KCSF and KDOC) Cleaning and Replacementp. 642
Preparation of dummy temperature sensor (for KDOC and KDPF temperature sensors)p. 645
Preparation of short circuit electrical connector (for failure codes [CA1883] and [CA3135])p. 646
Failure codes tablep. 647
Troubleshooting by failure code (Display of code)p. 658
Failure code [6091NX] HST Oil Filter Cloggingp. 658
Failure code [989L00] Engine Controller Lock Caution 1p. 660
Failure code [989M00] Engine Controller Lock Caution 2p. 661
Failure code [989N00] Engine Controller Lock Caution 3p. 662
Failure code [A1U0N3] HC Desorb Request 1p. 663
Failure code [A1U0N4] HC Desorb Request 2p. 665
Failure code [AA10NX] Air Cleaner Cloggingp. 667
Failure code [AB00KE] Charge Voltage Lowp. 669
Failure code [B@BAZG] Eng Oil Press Lowp. 671
Failure code [B@BCNS] Eng Water Overheatp. 672
Failure code [B@CRNS] HST Oil Overheatp. 673
Failure code [B@CRZG] HST Charge Press Lowp. 674
Failure code [CA115] Eng Ne and Bkup Speed Sens Errorp. 675
Failure code [CA122] Chg Air Press Sensor High Errorp. 676
Failure code [CA123] Chg Air Press Sensor Low Errorp. 678
Failure code [CA131] Throttle Sensor High Errorp. 680
Failure code [CA132] Throttle Sensor Low Errorp. 682
Failure code [CA144] Coolant Temp Sens High Errorp. 684
Failure code [CA145] Coolant Temp Sens Low Errorp. 686
Failure code [CA153] Chg Air Temp Sensor High Errorp. 688
Failure code [CA154] Chg Air Temp Sensor Low Errorp. 690
Failure code [CA187] Sensor 2 Supply Volt Low Errorp. 692
Failure code [CA234] Eng Overspeedp. 694
Failure code [CA221] Ambient Press Sensor High Errorp. 695
Failure code [CA222] Ambient Press Sensor Low Errorp. 697
Failure code [CA227] Sensor 2 Supply Volt High Errorp. 699
Failure code [CA238] Ne Speed Sensor Supply Volt Errorp. 700
Failure code [CA239] Ne Speed Sens Supply Volt High Errorp. 701
Failure code [CA271] IMV/PCV1 Short Errorp. 702
Failure code [CA272] IMV/PCV1 Open Errorp. 704
Failure code [CA295] Ambient Pressure Sensor In Range Errorp. 706
Failure code [CA322] Inj #1(L#1) Open/Short Errorp. 707
Failure code [CA323] Inj #5(L#5) Open/Short Errorp. 709
Failure code [CA324] Inj #3(L#3) Open/Short Errorp. 711
Failure code [CA325] Inj #6(L#6) Open/Short Errorp. 713
Failure code [CA331] Inj #2(L#2) Open/Short Errorp. 715
Failure code [CA332] Inj #4(L#4) Open/Short Errorp. 717
Failure code [CA343] ECM Critical Internal Failurep. 719
Failure code [CA351] Injectors Drive Circuit Errorp. 720
Failure code [CA352] Sensor 1 Supply Volt Low Errorp. 721
Failure code [CA356] Mass Air Flow Sensor High Errorp. 723
Failure code [CA357] Mass Air Flow Sensor Low Errorp. 725
Failure code [CA386] Sensor 1 Supply Volt High Errorp. 727
Failure code [CA428] Water in Fuel Sensor High Errorp. 728
Failure code [CA429] Water in Fuel Sensor Low Errorp. 730
Failure code [CA435] Eng Oil Press Sw Errorp. 732
Failure code [CA441] Battery Voltage Low Errorp. 733
Failure code [CA442] Battery Voltage High Errorp. 735
Failure code [CA449] Rail Press Very High Errorp. 736
Failure code [CA451] Rail Press Sensor High Errorp. 737
Failure code [CA452] Rail Press Sensor Low Errorp. 739
Failure code [CA488] Chg Air Temp High Torque Deratep. 741
Failure code [CA515] Rail Press Sens Sup Volt High Errorp. 742
Failure code [CA516] Rail Press Sens Sup Volt Low Errorp. 744
Failure code [CA553] Rail Press High Errorp. 746
Failure code [CA555] Crankcase Press High Error 2p. 747
Failure code [CA556] Crankcase Press High Error 2p. 748
Failure code [CA559] Rail Press Low Errorp. 749
Failure code [CA595] Turbo Speed High Error 2p. 751
Failure code [CA687] Turbo Speed Low Errorp. 752
Failure code [CA689] Eng Ne Speed Sensor Errorp. 754
Failure code [CA691] Intake Air Temp Sens High Errorp. 756
Failure code [CA692] Intake Air Temp Sens Low Errorp. 758
Failure code [CA697] ECM Internal Temp Sensor High Errorp. 760
Failure code [CA698] ECM Int Temp Sensor Low Errorp. 761
Failure code [CA731] Eng Bkup Speed Sens Phase Errorp. 762
Failure code [CA778] Eng Bkup Speed Sensor Errorp. 764
Failure code [CA1117] Persistent Data Lost Errorp. 769
Failure code [CA1664] KDOC Malfunctionp. 770
Failure code [CA1691] Regeneration Ineffectivep. 773
Failure code [CA1695] Sens 5 Supply Volt High Errorp. 776
Failure code [CA1696] Sens 5 Supply Volt Low Errorp. 777
Failure code [CA1843] Crankcase Press Sens High Errorp. 779
Failure code [CA1844] Crankcase Press Sens Low Errorp. 781
Failure code [CA1879] KDPF Delta P Sensor High Errorp. 783
Failure code [CA1881] KDPF Delta P Sensor Low Errorp. 785
Failure code [CA1883] KDPF Delta P Sens In Range Errorp. 787
Failure code [CA1921] KDPF Soot Load High Error 1p. 791
Failure code [CA1922] KDPF Soot Load High Error 2p. 794
Failure code [CA1942] Crankcase Press Sens In Range Errorp. 799
Failure code [CA1993] KDPF Delta Pressure Low Errorp. 800
Failure code [CA2185] Throt Sensor Sup Volt High Errorp. 803
Failure code [CA2186] Throt Sensor Sup Volt Low Errorp. 804
Failure code [CA2249] Rail Press Very Low Errorp. 805
Failure code [CA2271] EGR Valve Pos Sens High Errorp. 806
Failure code [CA2272] EGR Valve Pos Sens Low Errorp. 808
Failure code [CA2288] Turbo Speed High Error 1p. 811
Failure code [CA2311] IMV Solenoid Errorp. 812
Failure code [CA2349] EGR Valve Solenoid Open Errorp. 813
Failure code [CA2353] EGR Valve Solenoid Short Errorp. 815
Failure code [CA2357] EGR Valve Servo Errorp. 817
Failure code [CA2373] Exhaust Manifold Press Sens High errorp. 818
Failure code [CA2374] Exhaust Manifold Press Sens Low errorp. 820
Failure code [CA2375] EGR Orifice Temp Sens High Errorp. 822
Failure code [CA2376] EGR Orifice Temp Sens Low Errorp. 824
Failure code [CA2381] KVGT Pos Sens High Errorp. 826
Failure code [CA2382] KVGT Pos Sens Low Errorp. 828
Failure code [CA2383] KVGT Solenoid Open Errorp. 831
Failure code [CA2386] KVGT Solenoid Short Errorp. 833
Failure code [CA2387] KVGT Servo Errorp. 835
Failure code [CA2554] Exh Manifold Press Sens In Range Errorp. 836
Failure code [CA2555] Grid Htr Relay Volt Low Errorp. 837
Failure code [CA2556] Grid Htr Relay Volt High Errorp. 839
Failure code [CA2637] KDOC Face Pluggingp. 841
Failure code [CA2639] Manual Stationary Regeneration Requestp. 843
Failure code [CA2961] EGR Orifice Temp High Error 1p. 846
Failure code [CA2973] Chg Air Press Sensor In Range Errorp. 847
Failure code [CA3133] KDPF Outlet Press Sens High Errorp. 848
Failure code [CA3134] KDPF Outlet Press Sens Low Errorp. 850
Failure code [CA3135] KDPF Outlet Press Sens In Range Errorp. 852
Failure code [CA3251] KDOC Inlet Temp High Errorp. 856
Failure code [CA3253] KDOC Temp Error – Non Regenerationp. 859
Failure code [CA3254] KDOC Outlet Temp High Error 1p. 862
Failure code [CA3255] KDPF Temp Error – Non Regenerationp. 865
Failure code [CA3256] KDPF Outlet Temp High Error 1p. 869
Failure code [CA3311] KDOC Outlet Temp High Error 2p. 872
Failure code [CA3312] KDPF Outlet Temp High Error 2p. 875
Failure code [CA3313] KDOC Inlet Temp Sensor Low Errorp. 878
Failure code [CA3314] KDOC Inlet Temp Sens High Errorp. 881
Failure code [CA3315] KDOC Inlet Temp Sens In Range Errorp. 885
Failure code [CA3316] KDOC Outlet Temp Sens Low Errorp. 889
Failure code [CA3317] KDOC Outlet Temp Sens High Errorp. 892
Failure code [CA3318] KDOC Outlet Temp Sens In Range Errorp. 896
Failure code [CA3319] KDPF Outlet Temp Sens High Errorp. 900
Failure code [CA3321] KDPF Outlet Temp Sens Low Errorp. 904
Failure code [CA3322] KDPF Outlet Temp Sens In Range Errorp. 907
Failure code [CA3419] Mass Air Flow Sensor Sup Volt High Errorp. 911
Failure code [CA3421] Mass Air Flow Sensor Sup Volt Low Errorp. 913
Failure code [CA3741] Rail Press Valve Trip Errorp. 915
Failure code [D130KA] Neutral relay Openp. 916
Failure code [D130KB] Neutral relay Short circuitp. 918
Failure code [D130KY] Neutral relay: Hot Shortp. 920
Failure code [D19JKZ] Personal Code Relay Abnormalityp. 922
Failure code [D811MC] KOMTRAX Errorp. 925
Failure code [D862KA] GPS Antenna Open Circuitp. 926
Failure code [D8ALKA] Operating Lamp Open Circuit (KOMTRAX)p. 927
Failure code [D8ALKB] Operating Lamp Short Circuit (KOMTRAX)p. 929
Failure code [D8AQKR] CAN2 Discon (KOMTRAX)p. 930
Failure code [DAF0MB] Monitor ROM Abnormalityp. 931
Failure code [DAF0MC] Monitor Errorp. 932
Failure code [DAF8KB] Camera Power Supply Short Circuitp. 933
Failure code [DAF9KQ] Model Selection Abnormalityp. 934
Failure code [DAFGMC] GPS Module Errorp. 935
Failure code [DAFLKA] Operating Lamp Open Circuit (Monitor)p. 936
Failure code [DAFLKB] Operating Lamp Short Circuit (Monitor)p. 938
Failure code [DAFQKR] CAN2 Discon (Monitor)p. 939
Failure code [DAJ000] HST controller: Abnormality in controllerp. 940
Failure code [DAJ0KQ] HST controller: Type select signalp. 941
Failure code [DAJ0KT] HST controller: Abnormality in controllerp. 942
Failure code [DAJ0MC] HST Con Errorp. 943
Failure code [DAJ1KK] HST controller: Source voltage lowp. 944
Failure code [DAJ2KK] HST controller: Output voltage lowp. 946
Failure code [DAJ5KK] HST: Sensor volt 5V (0) Out of normal rangep. 948
Failure code [DAJ6KK] HST: Sensor volt 5V (1) Out of normal rangep. 950
Failure code [DAJLKA] Operating Lamp Open Circuit (HST Con)p. 952
Failure code [DAJLKB] Operating Lamp Short Circuit (HST Con)p. 954
Failure code [DAJPMA] Inconsistency of Option Selection (HST)p. 955
Failure code [DAJQKR] CAN2 Discon (HST Con)p. 956
Failure code [DAJRKR] CAN1 Discon (HST Con)p. 957
Failure code [DB2QKR] CAN2 Discon (Engine Con)p. 958
Failure code [DB2RKR] CAN1 Discon (Engine Con)p. 962
Failure code [DD12KA] Shift up SW: Openp. 966
Failure code [DD12KB] Shift up SW: Short Circuitp. 968
Failure code [DD13KA] Shift down SW: Openp. 970
Failure code [DD13KB] Shift down SW: Short Circuitp. 972
Failure code [DD14KA] Parking lever SW: Openp. 974
Failure code [DD14KB] Parking lever SW: Short circuitp. 976
Failure code [DDKAKA] Blade float Sw: Openp. 978
Failure code [DDKAKB] Blade float Sw: Short circuitp. 980
Failure code [DDKFL4] Left Angle Sw: Signal mismatchp. 982
Failure code [DDKGL4] Right Angle Sw: Signal mismatchp. 984
Failure code [DDKHKA] iB Sw: Openp. 986
Failure code [DDKHKB] iB Sw: Short circuitp. 988
Failure code [DDNLKA] Weq lock Sw: Openp. 990
Failure code [DDNLKB] Weq lock Sw: Short circuitp. 992
Failure code [DDP6KA] Brake Pressure Sensor: Openp. 994
Failure code [DDP6KB] Brake Pressure Sensor: Hot Shortp. 996
Failure code [DDP6MA] Brake pressure sensor: Malfunctionp. 998
Failure code [DDU1FS] Parking lever Switch 2: Signal mismatchp. 1000
Failure code [DDU1KA] Parking lever Sw2: Openp. 1002
Failure code [DDU1KY] Parking lever Sw2: Hot Shortp. 1004
Failure code [DFA4KX] Blade lift lever: Main and Sub Errorp. 1006
Failure code [DFA4KZ] Blade lift lever: Main and Sub Errorp. 1007
Failure code [DFA4L8] Blade lift lever: Signal mismatchp. 1008
Failure code [DFA5KA] Blade lift lever1: Openp. 1009
Failure code [DFA5KB] Blade lift lever1: Hot Shortp. 1012
Failure code [DFA6KA] Blade lift lever2: Openp. 1014
Failure code [DFA6KB] Blade lift lever2: Hot Shortp. 1016
Failure code [DFA7KX] Blade tilt lever: Main and Sub Errorp. 1018
Failure code [DFA7KZ] Blade tilt lever: Main and Sub Errorp. 1019
Failure code [DFA7L8] Blade tilt lever: Signal mismatchp. 1020
Failure code [DFA8KA] Blade tilt lever1: Openp. 1021
Failure code [DFA8KB] Blade tilt lever1: Hot Shortp. 1024
Failure code [DFA9KA] Blade tilt lever2: Openp. 1026
Failure code [DFA9KB] Blade tilt lever2: Hot Shortp. 1029
Failure code [DGS1KA] HST oil temp sensor: Openp. 1031
Failure code [DGS1KX] HST oil temp sensor: Out of normal rangep. 1033
Failure code [DH21KA] Weq pressure sensor: Openp. 1034
Failure code [DH21KB] Weq pressure sensor: Hot Shortp. 1036
Failure code [DHA4KA] Air Cleaner Clog Sensor Open Circuitp. 1038
Failure code [DHH7KA] LF HST Pressure Sensor: Openp. 1040
Failure code [DHH7KB] LF HST Pressure Sensor: Hot Shortp. 1042
Failure code [DHH8KA] RF HST Pressure Sensor: Openp. 1044
Failure code [DHH8KB] RF HST Pressure Sensor: Hot Shortp. 1046
Failure code [DHH9KA] LR HST Pressure Sensor: Openp. 1048
Failure code [DHH9KB] LR HST Pressure Sensor: Hot Shortp. 1050
Failure code [DHHAKA] RR HST Pressure Sensor: Openp. 1052
Failure code [DHHAKB] RR HST Pressure Sensor: Hot Shortp. 1054
Failure code [DK30KA] ST lever1: Openp. 1056
Failure code [DK30KB] ST lever1: Hot Shortp. 1058
Failure code [DK30KX] ST lever: Main and Sub Errorp. 1060
Failure code [DK30KZ] ST lever: Main and Sub Errorp. 1061
Failure code [DK30L8] ST lever: Signal mismatchp. 1062
Failure code [DK31KA] ST lever2: Openp. 1063
Failure code [DK31KB] ST lever2: Hot Shortp. 1065
Failure code [DK40KA] Decel/Brake potentiometer: Openp. 1067
Failure code [DK40KB] Decel/Brake potentiometer: Hot Shortp. 1070
Failure code [DK55KX] FR lever: Main and Sub Errorp. 1072
Failure code [DK55KZ] FR lever: Main and Sub Errorp. 1073
Failure code [DK55L8] FR lever: Signal mismatchp. 1074
Failure code [DK56KA] FR lever1: Openp. 1075
Failure code [DK56KB] FR lever1: Hot Shortp. 1077
Failure code [DK57KA] FR lever2: Openp. 1079
Failure code [DK57KB] FR lever2: Hot Shortp. 1081
Failure code [DLM0KX] HST Motor Speed Sensor: Left/Right Errorp. 1083
Failure code [DLM1KA] Left HST motor speed sensor: Openp. 1084
Failure code [DLM1KB] Left HST motor speed sensor: Short circuitp. 1086
Failure code [DLM1MA] Left HST motor speed sensor: Malfunctionp. 1088
Failure code [DLM2KA] Right HST motor speed sensor: Openp. 1089
Failure code [DLM2KB] Right HST motor speed sensor: Short circuitp. 1091
Failure code [DLM2MA] Right HST motor speed sensor: Malfunctionp. 1093
Failure code [DLM3KA] Fan rev. sensor: Openp. 1094
Failure code [DLM3KB] Fan rev. sensor: Short circuitp. 1096
Failure code [DLM3MB] Fan control: Mismatchp. 1098
Failure code [DN21FS] Decel/Brake pedal SW: Signal mismatchp. 1099
Failure code [DR21KX] Camera 2 Picture Rev. Drive Abnormalityp. 1101
Failure code [DR31KX] Camera 3 Picture Rev. Drive Abnormalityp. 1102
Failure code [DV20KB] Back-up alarm: Short circuitp. 1103
Failure code [DW4BKA] Parking brake solenoid: Openp. 1105
Failure code [DW4BKB] Parking brake solenoid: Short circuitp. 1107
Failure code [DW4BKY] Parking brake solenoid: Hot Shortp. 1109
Failure code [DW7BKA] Fan reverse solenoid: Openp. 1111
Failure code [DW7BKB] Fan reverse solenoid: Short circuitp. 1113
Failure code [DW7EKA] Slow brake solenoid: Openp. 1114
Failure code [DW7EKB] Slow brake solenoid: Short circuitp. 1116
Failure code [DW7EKY] Slow brake solenoid: Hot Shortp. 1118
Failure code [DWN5KA] Fan EPC: Openp. 1120
Failure code [DWN5KB] Fan EPC: Short circuitp. 1122
Failure code [DWN5KY] Fan EPC: Hot Shortp. 1123
Failure code [DXA4KA] LF HST pump EPC: Openp. 1125
Failure code [DXA4KB] LF HST pump EPC: Short circuitp. 1127
Failure code [DXA4KY] LF HST pump EPC: Hot Shortp. 1128
Failure code [DXA5KA] LR HST pump EPC: Openp. 1130
Failure code [DXA5KB] LR HST pump EPC: Short circuitp. 1132
Failure code [DXA5KY] LR HST pump EPC: Hot Shortp. 1134
Failure code [DXA6KA] RF HST pump EPC: Openp. 1136
Failure code [DXA6KB] RF HST pump EPC: Short circuitp. 1138
Failure code [DXA6KY] RF HST pump EPC: Hot Shortp. 1139
Failure code [DXA7KA] RR HST pump EPC: Openp. 1141
Failure code [DXA7KB] RR HST pump EPC: Short circuitp. 1143
Failure code [DXA7KY] RR HST pump EPC: Hot Shortp. 1144
Failure code [DXHRKA] Blade lift up EPC: Openp. 1146
Failure code [DXHRKB] Blade lift up EPC: Short circuitp. 1148
Failure code [DXHRKY] Blade lift up EPC: Hot shortp. 1149
Failure code [DXHSKA] Blade lift down EPC: Openp. 1151
Failure code [DXHSKB] Blade lift down EPC: Short circuitp. 1153
Failure code [DXHSKY] Blade lift down EPC: Hot shortp. 1154
Failure code [DXHTKA] Blade tilt left EPC: Openp. 1156
Failure code [DXHTKB] Blade tilt left EPC: Short circuitp. 1158
Failure code [DXHTKY] Blade tilt left EPC: Hot shortp. 1159
Failure code [DXHUKA] Blade tilt right EPC: Openp. 1161
Failure code [DXHUKB] Blade tilt right EPC: Short circuitp. 1163
Failure code [DXHUKY] Blade tilt right EPC: Hot shortp. 1164
Failure code [DXJ4KA] Weq lock Sol.: Openp. 1166
Failure code [DXJ4KB] Weq lock Sol.: Short circuitp. 1168
Failure code [DXJCKA] Blade angle left EPC: Openp. 1170
Failure code [DXJCKB] Blade angle left EPC: Short circuitp. 1171
Failure code [DXJCKY] Blade angle left EPC: Hot shortp. 1172
Failure code [DXJDKA] Blade angle right EPC: Openp. 1174
Failure code [DXJDKB] Blade angle right EPC: Short circuitp. 1175
Failure code [DXJDKY] Blade angle right EPC: Hot shortp. 1176
Failure code [DXK1KA] Left HST motor EPC: Openp. 1178
Failure code [DXK1KB] Left HST motor EPC: Short circuitp. 1180
Failure code [DXK1KY] Left HST motor EPC: Hot Shortp. 1181
Failure code [DXK2KA] Right HST motor EPC: Openp. 1183
Failure code [DXK2KB] Right HST motor EPC: Short circuitp. 1185
Failure code [DXK2KY] Right HST motor EPC: Hot Shortp. 1186
Troubleshooting of electrical system (E-mode)p. 1188
E-1 Engine does not start (Engine does not crank)p. 1188
E-2 Manual preheating system does not workp. 1194
E-3 Automatic preheating system does not workp. 1197
E-4 While preheating is working, preheating monitor does not light upp. 1199
E-5 When starting switch is turned to ON position, machine monitor displays nothingp. 1201
E-6 When starting switch is turned to ON position (with engine stopped), basic check monitor lights upp. 1204
E-7 Air cleaner clogging monitor lights up in yellow while engine is runningp. 1205
E-8 Charge level monitor lights up in red while engine is runningp. 1206
E-9 Engine coolant temperature monitor lights up in red while engine is runningp. 1207
E-10 Engine oil pressure monitor lights up in red while engine is runningp. 1208
E-11 HST charge pressure monitor lights up in red while engine is runningp. 1209
E-12 Hydraulic oil temperature monitor lights up in red while engine is runningp. 1210
E-13 HST oil filter clogging monitor lights up in red while engine is runningp. 1211
E-14 Fuel level gauge does not indicate correct levelp. 1212
E-15 Engine coolant temperature gauge does not indicate correct temperaturep. 1215
E-16 Hydraulic oil temperature gauge does not indicate correct temperaturep. 1216
E-17 Operation mode does not changep. 1217
E-18 Service mode cannot be selectedp. 1218
E-19 Operating customize switch does not display customize screenp. 1219
E-20 Modifying setting on customize screen does not change setting of machinep. 1220
E-21 Service meter is not displayed, while starting switch is in OFF positionp. 1221
E-22 Work equipment does not operatep. 1222
E-23 Foot heater does not operatep. 1224
E-24 Horn does not soundp. 1229
E-25 Horn does not stop soundingp. 1231
E-26 Backup alarm does not soundp. 1232
E-27 Backup alarm does not stop soundingp. 1233
E-28 Headlamp does not light upp. 1234
E-29 Rear lamp does not light upp. 1237
E-30 No wiper operates continuously or intermittentlyp. 1240
E-31 Front wiper does not operatep. 1242
E-32 Rear wiper does not operatep. 1244
E-33 Left door wiper does not operate (failed in both continuous and intermittent operations)p. 1246
E-34 Right door wiper does not operate (failed in both continuous and intermittent operations)p. 1250
E-35 Front washer does not operatep. 1254
E-36 Rear washer does not operatep. 1256
E-37 Left door washer does not operatep. 1258
E-38 Right door washer does not operatep. 1260
E-39 KOMTRAX system does not operate normallyp. 1262
Troubleshooting of hydraulic and mechanical system (H-mode)p. 1264
Information described in troubleshooting table (H-mode)p. 1264
System chart of hydraulic and mechanical systemsp. 1265
Failure mode and cause tablep. 1267
H-1 Neither RH nor LH of tracks does not travel forward nor reverse (None of the travel system operates)p. 1271
H-2 Either RH or LH of track does not travel forward nor reverse (Only RH or LH of travel system operates)p. 1273
H-3 Either RH or LH of track travel only forward or reverse (Only forward or reverse of RH or LH of travel system does not operate)p. 1274
H-4 Travel speed or power is lowp. 1276
H-5 Travel speed range does not changep. 1277
H-6 Shock is large when machine starts or stopsp. 1278
H-7 Machine deviates largelyp. 1279
H-8 Machine drift on a slope is largep. 1281
H-9 Engine stalls during travel or engine speed drops significantlyp. 1282
H-10 Unusual noise is heard from around HST pump or motorp. 1283
H-11 All work equipment do not operatep. 1284
H-12 All work equipment operates slowly or lacks powerp. 1286
H-13 Blade lift speed or power is lowp. 1287
H-14 Blade tilt speed or power is lowp. 1288
H-15 Blade angle speed or power is lowp. 1289
H-16 Time lag of blade lift is largep. 1290
H-17 Hydraulic drift of lifted blade is largep. 1291
H-18 Hydraulic drift of tilted blade is largep. 1292
H-19 Unusual noise is heard from around work equipment pump or control valvep. 1293
H-20 HST oil temperature (hydraulic oil temperature) rises too highp. 1294
H-21 Fans speed is abnormal (high, low, or no rotation)p. 1296
H-22 Unusual noise is heard from around fanp. 1298
Troubleshooting of engine (S-mode)p. 1299
Information described in troubleshooting table (S mode)p. 1299
S-1 Engine does not crank when starting switch is turned to START positionp. 1300
S-2 Engine cranks but no exhaust smoke comes outp. 1301
S-3 Fuel is being injected but engine does not start (misfiring: engine cranks but does not start)p. 1302
S-4 Engine startability is poorp. 1303
S-5 Engine does not pick up smoothlyp. 1305
S-6 Engine stops during operationp. 1307
S-7 Engine runs rough or is unstablep. 1309
S-8 Engine lacks powerp. 1310
S-9 KDPF gets clogged in a short timep. 1312
S-10 Engine oil consumption is excessivep. 1314
S-11 Engine oil becomes contaminated earlyp. 1315
S-12 Fuel consumption is excessivep. 1316
S-13 Oil is in coolant (or coolant spurts or coolant level goes down)p. 1317
S-14 Oil pressure dropsp. 1318
S-15 Fuel mixes into engine oilp. 1319
S-16 Water mixes into engine oil (milky)p. 1320
S-17 Coolant temperature rises too high (overheating)p. 1321
S-18 Unusual noise is heardp. 1322
S-19 Vibration is excessivep. 1323
S-20 Air cannot be bled from fuel circuitp. 1324
S-21 Active regeneration is executed frequentlyp. 1325
S-22 Active regeneration takes timep. 1326
S-23 White smoke is exhausted during active regenerationp. 1327
50 Disassembly and assemblyp. 1329
Table of contentsp. 1330
Related information on disassembly and assemblyp. 1332
How to read this manualp. 1332
Coating materials listp. 1334
Special tools listp. 1338
Sketches of special toolsp. 1344
Engine and cooling systemp. 1357
Removal and installation of supply pump assemblyp. 1357
Removal and installation of fuel injector assemblyp. 1362
Removal and installation of cylinder head assemblyp. 1370
Removal and installation of radiator assemblyp. 1386
Removal and installation of aftercooler assemblyp. 1390
Removal and installation of hydraulic oil cooler assemblyp. 1393
Removal and installation of cooling fan drive assemblyp. 1396
Removal and installation of cooling fan motor assemblyp. 1399
Removal and installation of engine assemblyp. 1401
Disassembly and assembly of damper assemblyp. 1408
Removal and installation of engine front oil sealp. 1409
Removal and installation of engine rear oil sealp. 1411
Removal and installation of engine hood assemblyp. 1414
Removal and installation of fuel tank assemblyp. 1417
Removal and installation of KDPF assemblyp. 1421
Disassembly and assembly of KDPF assemblyp. 1424
Removal and installation of KCCV assemblyp. 1433
Removal and installation of KVGT assemblyp. 1434
Removal and installation of EGR (Exhaust Gas Recirculation) cooler assemblyp. 1437
Removal and installation of EGR (Exhaust Gas Recirculation) valve assemblyp. 1440
Removal and installation of belt for alternator and air conditioner compressorp. 1441
Removal and installation of air cleaner assemblyp. 1442
Power trainp. 1444
Removal and installation of HST pump assemblyp. 1444
Removal and installation of HST motor and final drive assemblyp. 1446
Disassembly and assembly of final drivep. 1449
Undercarriage and framep. 1459
Removal and installation of track frame assemblyp. 1459
Removal and installation of idler assemblyp. 1463
Disassembly and assembly of idlerp. 1465
Removal and installation of recoil spring assemblyp. 1469
Disassembly and assembly of recoil springp. 1470
Removal and installation of track roller assemblyp. 1474
Disassembly and assembly of track roller assemblyp. 1476
Removal and installation of carrier roller assemblyp. 1479
Disassembly and assembly of carrier roller assemblyp. 1481
Removal and installation of segment teethp. 1483
Separation and connection of track shoe assembly (Standard type track shoe)p. 1484
Separation and connection of track shoe assembly (PLUS type track shoe)p. 1487
Overall disassembly and assembly of track shoe assembly (Standard type track shoe)p. 1488
Overall disassembly and assembly of track shoe assembly (PLUS type track shoe)p. 1504
Disassembly and assembly of one track link assembly in field (Standard type track shoe)p. 1511
Disassembly and assembly of one track link assembly in field (PLUS type track shoe)p. 1517
Removal and installation of pivot shaft assemblyp. 1522
Removal and installation of equalizer bar assemblyp. 1524
Removal and installation of equalizer bar side bushingp. 1526
Hydraulic systemp. 1527
Removal and installation of hydraulic tank assemblyp. 1527
Removal and installation of control valve assemblyp. 1531
Disassembly and assembly of hydraulic cylinder assemblyp. 1534
Work equipmentp. 1538
Removal and installation of work equipment assemblyp. 1538
Removal and installation of blade assemblyp. 1540
Removal and installation of U-frame assemblyp. 1542
Cab and its attachmentsp. 1544
Removal and installation of ROPS cab assemblyp. 1544
Removal and installation of operator's cab glass (adhesion glass)p. 1548
Removal and installation of operator's seatp. 1554
Removal and installation of seat beltp. 1555
Removal and installation of foot heater assemblyp. 1556
Disassembly and assembly of foot heater assemblyp. 1558
Removal and installation of air conditioner unit assemblyp. 1559
Removal and installation of air conditioner compressor assemblyp. 1563
Electrical systemp. 1565
Removal and installation of machine monitor assemblyp. 1565
Removal and installation of engine controller assemblyp. 1566
Removal and installation of HST controller assemblyp. 1568
Removal and installation of mass air flow and temperature sensorp. 1569
Removal and installation of KOMTRAX terminalp. 1570
60 Maintenance standardp. 1571
Table of contentsp. 1572
Engine and cooling systemp. 1573
Engine mountp. 1573
Cooling fan motorp. 1574
Oil cooler bypass and HST charge safety valvep. 1576
Power trainp. 1577
Damperp. 1577
HST pumpp. 1578
HST motorp. 1580
Charge pumpp. 1581
Solenoid valvep. 1582
Final drivep. 1583
Sprocketp. 1584
Full-scale drawing of sprocket tooth profilep. 1585
Undercarriage and framep. 1587
Suspensionp. 1587
Track frame and idler cushionp. 1589
Idlerp. 1591
Track rollerp. 1593
Carrier rollerp. 1597
Track shoep. 1599
Hydraulic systemp. 1605
Hydraulic tankp. 1605
Work equipment and cooling fan pumpp. 1606
Control valvep. 1609
Ripper PPC valvep. 1616
Quick drop valvep. 1618
Angle control EPC valvep. 1620
Work equipmentp. 1621
Bladep. 1621
Cutting edge and end bitp. 1624
Ripperp. 1625
Lift cylinderp. 1627
Tilt cylinderp. 1628
Angle cylinderp. 1629
Ripper cylinderp. 1630
Cab and its attachmentsp. 1631
Cab mountp. 1631
Electrical systemp. 1632
Electric steering leverp. 1632
80 Appendixp. 1633
Table of contentsp. 1634
Air conditioner componentsp. 1635
Precautions for refrigerantp. 1635
Air conditioner componentp. 1636
Configuration and function of refrigeration cyclep. 1639
Outline of refrigeration cyclep. 1640
Air conditioner unitp. 1642
Dual pressure switchp. 1646
Pressure switchp. 1647
Compressorp. 1648
Condenserp. 1649
Receiver drierp. 1651
Procedure for testing and troubleshootingp. 1652
Electrical circuit diagramp. 1655
System diagramp. 1656
Parts and connectors layoutp. 1658
Testing relaysp. 1663
Troubleshooting chart 1p. 1665
Troubleshooting chart 2p. 1666
Information described in troubleshooting tablep. 1668
A-1 Troubleshooting for condenser fanp. 1669
A-2 Troubleshooting for compressor and refrigerant system (Air is not cooled)p. 1672
A-3 Troubleshooting for blower motor system (No air comes out or air flow is abnormal)p. 1676
A-4 Troubleshooting for temperature controlp. 1678
Troubleshooting with gauge pressurep. 1681
Connection of service toolp. 1684
Precautions for disconnecting and connecting hoses and tubes in air conditioner circuitp. 1686
Handling of compressor oilp. 1688
90 Diagrams and drawingsp. 1691
Table of contentsp. 1692
Hydraulic circuit diagramp. 1693
Symbols in hydraulic circuit diagramp. 1693
Hydraulic circuit diagramp. 1697
Electric circuit diagramp. 1698
Symbols in electric circuit diagramp. 1698
Electrical circuit diagramp. 1702
INDEXp. 1713

Why the Correct Specifications Matter

Bulldozers live or die by their adjustments. An HST main circuit pressure outside the 40.2 to 44.1 MPa band, a charge circuit pressure that drifts, a cylinder leaking internally past its limit or a track tensioned wrong all show up as poor performance, premature wear or a machine that will not hold a grade. The standard value tables and maintenance standard chapter in this manual give the numbers and the wear limits so a repair is judged on measurement rather than guesswork, and the troubleshooting chapters give a defined path from symptom to cause instead of part swapping.

IMAGES PREVIEW

Komatsu D61EX-23 D61PX-23 Bulldozer Shop Manual SEN06010-02 - PDF Workshop Repair Guide β€” PDF page 1 preview
Komatsu D61EX-23 D61PX-23 Bulldozer Shop Manual SEN06010-02 - PDF Workshop Repair Guide β€” PDF page 107 preview
Komatsu D61EX-23 D61PX-23 Bulldozer Shop Manual SEN06010-02 - PDF Workshop Repair Guide β€” PDF page 719 preview

Instant PDF Delivery

The manual is delivered as a PDF download immediately after payment. There is no shipping and nothing to wait for. It opens on a laptop, tablet or phone, and any page or procedure can be printed and taken to the machine.

Reviews

There are no reviews yet.

Be the first to review “Komatsu D61EX-23 D61PX-23 Bulldozer Shop Manual SEN06010-02 – PDF Workshop Repair Guide”

What Our Customers Say

β˜…β˜…β˜…β˜…β˜… Live reviews from customers
Loading customer reviews...
0
    0
    Your Cart
    Your cart is emptyReturn to Shop
    πŸ›’
    Recently Purchased
    πŸ•’ verified order
