Komatsu HD785-7 GALEO Dump Truck Parts Book PDF – Serial J20001 & Up

Description

Komatsu HD785-7 GALEO Dump Truck Parts Book — Serial J20001 and Up

This Komatsu HD785-7 GALEO dump truck parts book is the complete parts catalog for machines starting at serial number J20001. Published under document number LEPBH78700, it provides exploded diagrams, part numbers, descriptions, and required quantities for every component group on the truck — from the engine and cooling system through to the body, hydraulics, and operator’s cab. Whether you are ordering a single replacement part or rebuilding a complete assembly, this HD785-7 parts catalog gives you the exact information you need to identify and order the right component the first time.

File Details

• Manual type: Parts Book / Parts Catalog
• Brand: Komatsu
• Model: HD785-7 (GALEO)
• Serial number coverage: J20001 and up
• Document number: LEPBH78700
• Language: English
• Page count: 599
• File format: PDF

Chapters Covered

The Komatsu HD785-7 parts catalog is organised by major assembly groups. Each section contains exploded-view illustrations keyed to a parts list showing reference numbers, Komatsu part numbers, descriptions, and quantities. The major chapters and their sub-sections are:

• Engine Related Parts — Engine Mounting, Exhaust Bracket, Engine Cooling Tube, Damper
• Cooling System — Radiator, Coolant Line, Coolant Level Sensor
• Fuel Tank and Related Parts — Fuel Tank, Fuel Line, Water Separator
• Electrical System — Battery Box, Rear Hood, Brake Line, Electrical System, Rear Lamp, Side Lamp, Fog Lamp, Payload Meter Lamp
• Torque Converter and Transmission — Front Propeller Shaft, Rear Propeller Shaft, Torque Converter, Transmission, Transmission Control Valve, Rear Axle, Front Axle
• Hydraulic System — Hydraulic Tank Assy, Brake Control Valve, Hydraulic Main Pump, Transmission Piping, Steering and Hoist Piping, Brake Cooling Oil Line, Accumulator Box, Brake Piping, Emergency Steering Flow Switch
• Main Frame and Related Parts — Main Frame, Rear Support, Front Support, Engine Fuel Filter, Positioner, Air Intake, Exhaust Piping, Engine Control, Transmission Control, Steering Link, Emergency Steering Control, Lubrication Piping
• Operator’s Compartment and Control System — Operator’s Cab, Floor, Cab Guard, Platform, Coolant Reserve Tank, Side Mirror, Under Mirror
• Guard — Radiator Guard, Hood, Engine Side Cover, Fire Protection, Fender, Engine Under Guard, Transmission Under Guard
• Rim and Tire — Front Wheel Rim, Rear Wheel Rim, Tire
• Body — Body, Body Accessory, Hoist Cylinder, Exhaust Box
• Marks and Plates — Name Plate Unit, Safety Decals
• Tool — Spare Parts, General Tool Unit, Tool Box Unit
• Miscellaneous — Air Conditioner Related Parts, Fire Extinguisher, Propeller Shaft Guards, ABS/ASR Chassis, Vehicle Health Monitoring System
• Service Kit — Torque Converter, Transmission, Control Valve, Hydraulic Pump, Hoist Cylinder, Steering Cylinder, Accumulator, Hoist Valve, Demand Valve, Check Valve

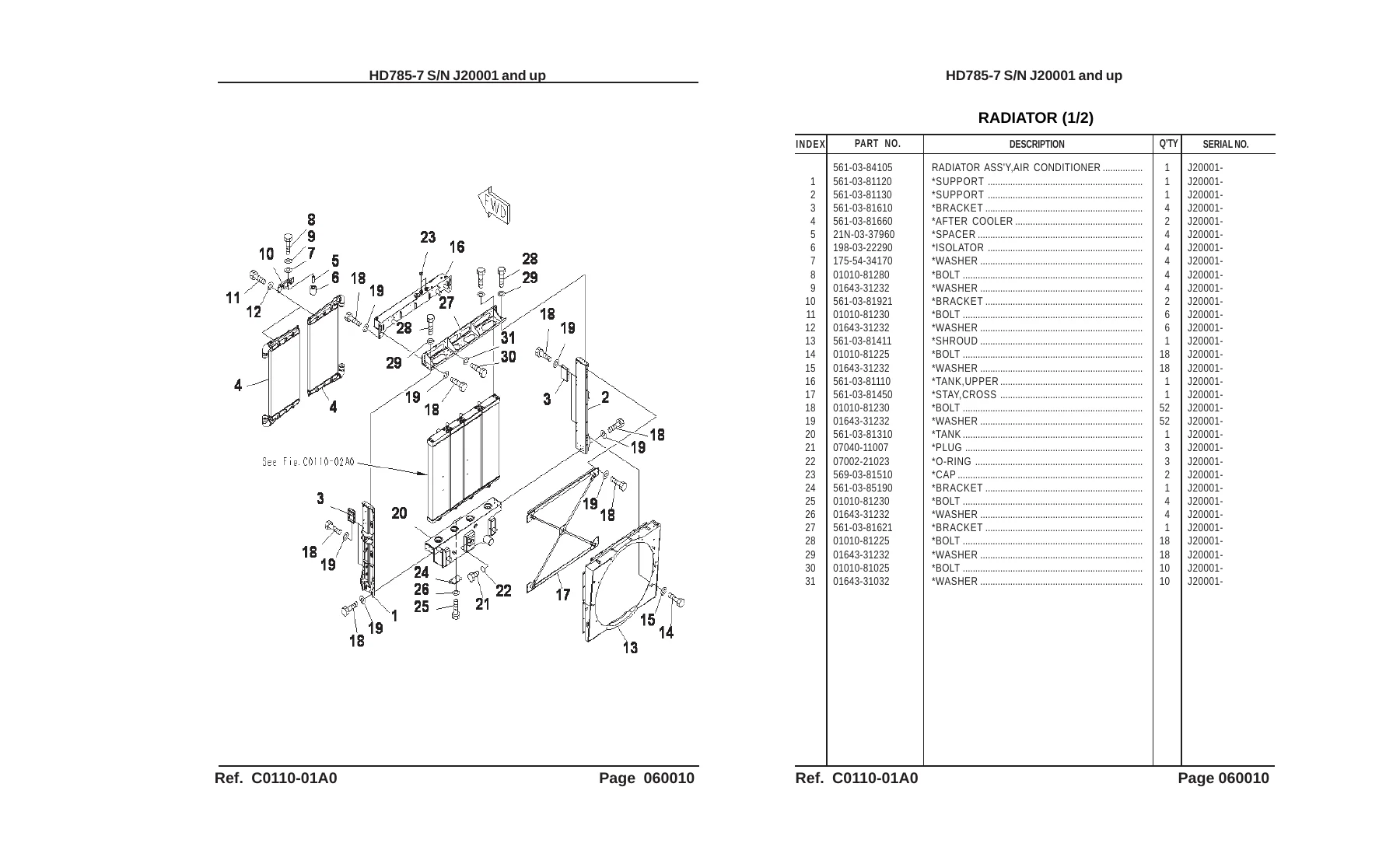

Every page of this HD785-7 GALEO parts book pairs a detailed illustration with a corresponding table of part numbers. The illustrations show the exact arrangement of components so you can visually confirm what you are looking at before you order. Each parts list gives the reference number from the diagram, the Komatsu part number, a description, and the quantity required. This structure makes it possible to identify parts for the engine, transmission, hydraulics, electrical system, frame, cab, body, and every other assembly on the truck without guesswork.

What Each Section Contains

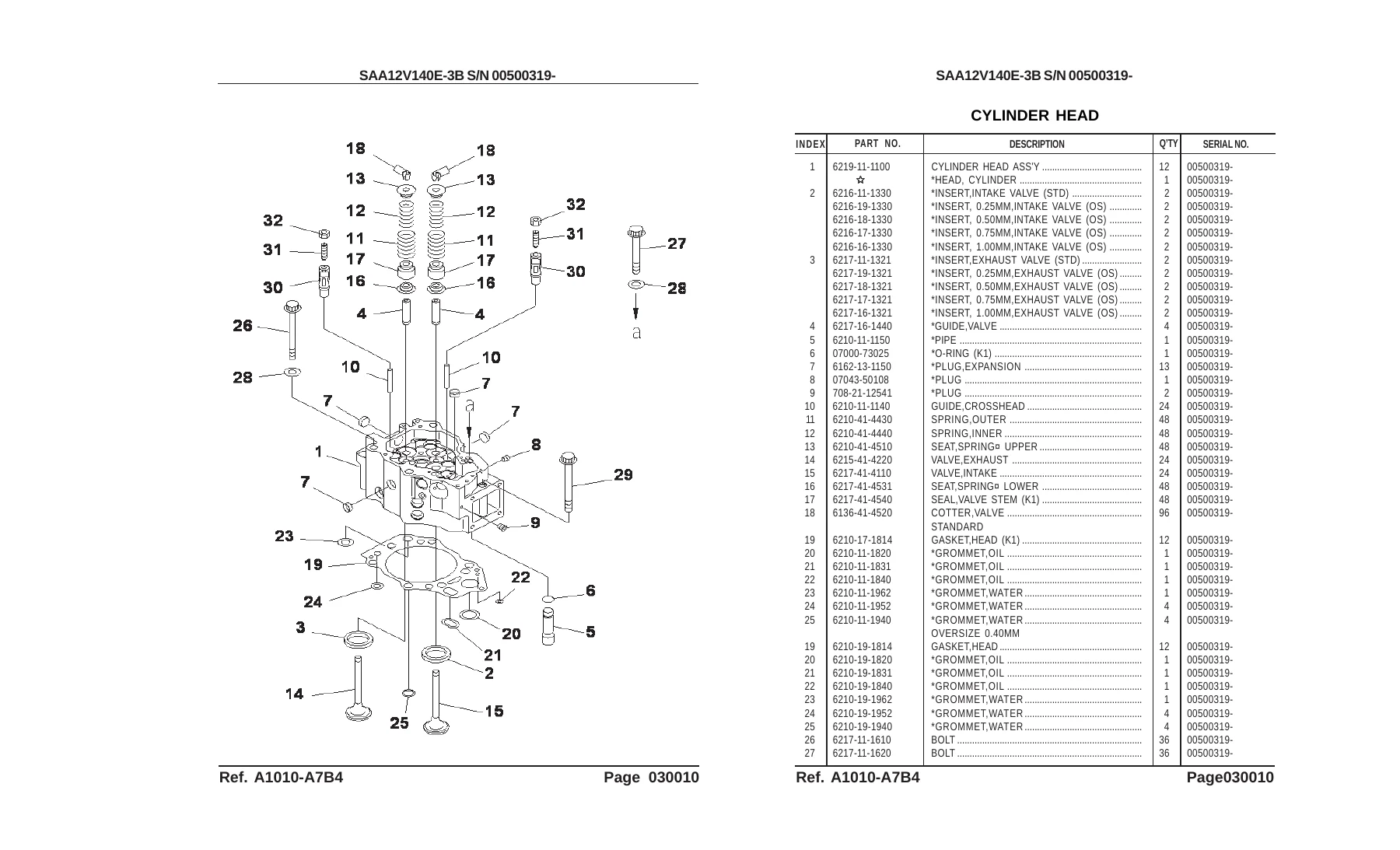

The HD785-7 parts catalog goes far beyond a simple list of numbers. The engine sections break down the cylinder head, cylinder block, air intake manifold, exhaust manifold, turbocharger, oil pump, oil filter, fuel injection pump, fuel piping, water pump, cooling fan, and every associated bracket and gasket. The transmission and torque converter sections cover the propeller shafts, torque converter internals, transmission clutch packs, control valves, lubrication valves, oil pan, and sensors in complete detail.

For the hydraulic system, the parts book documents the hydraulic tank, brake control valve, main pump, transmission piping, steering and hoist piping, brake cooling oil lines, accumulator boxes, and brake piping — all with exploded views and complete parts lists. The electrical section covers battery boxes, rear hood components, brake lines, main harnesses, rear lamps, side lamps, fog lamps, and payload meter lamps.

The main frame and related parts section includes the frame itself, rear and front supports, engine fuel filter assemblies, exhaust piping, engine control harnesses, transmission control, steering link components, and lubrication piping. The operator’s compartment section covers the cab structure, doors, glass, wiper system, dashboard, console box, operator’s seat, floor wiring, air conditioner components, and all interior fittings.

How This Parts Book Helps You

Ordering the wrong part for a haul truck costs time and money. The HD785-7 is a rigid dump truck used in demanding mining and quarry operations, and parts must be identified correctly the first time. This parts book removes the guesswork. Instead of trying to describe a component to a parts counter over the phone, you can point to the exact reference number on the diagram, read the part number from the table, and order with confidence.

The document also reveals how components are assembled — which parts are supplied as assemblies, which are available individually, and where part groups, kits, and semi-finished parts apply. The symbols and codes section at the front of the book explains interchangeability, discontinued parts, and part group markings, so you understand the notes attached to each listing. This is information you simply cannot get from a generic parts website.

Who This Komatsu HD785-7 Parts Book Is For

• Mine maintenance planners and parts managers who need accurate part numbers for HD785-7 trucks
• Heavy equipment mechanics rebuilding or repairing HD785-7 assemblies
• Parts departments at Komatsu distributors verifying part numbers and quantities
• Owners and operators of HD785-7 trucks performing their own maintenance and repairs
• Anyone sourcing replacement components for a GALEO HD785-7 from serial J20001 onward

Service Kits and Part Groups

The parts book includes dedicated service kit tables for major assemblies, including the torque converter, transmission, transmission control valve, hydraulic pump, hoist cylinder, steering cylinder, accumulator, hoist valve, demand valve, check valve, and electric lever. These kits group the seals, O-rings, gaskets, and wear components needed for a complete rebuild, so you can order everything at once rather than tracking down individual pieces.

Get the Complete HD785-7 Parts Catalog

This 599-page Komatsu HD785-7 GALEO parts book covers every major system on trucks from serial J20001 onward, with exploded diagrams and complete parts lists for the engine, transmission, hydraulics, frame, cab, body, and everything in between. It is the reference you need to identify parts correctly, order the right components, and keep your HD785-7 running.
