Komatsu PC400-8R PC400LC-8R PC450-8R PC450LC-8R Shop Manual PDF SEN04239-00

Description

Komatsu PC400-8R PC400LC-8R PC450-8R PC450LC-8R Shop Manual PDF SEN04239-00

This Komatsu PC400-8R PC400LC-8R PC450-8R PC450LC-8R Shop Manual PDF SEN04239-00 provides extensive workshop service information for the four hydraulic excavator models covered from serial number 75001 and up. Its 1002 pages bring together machine specifications, component construction and operating principles, maintenance standards, standard service values, testing and adjustment methods, troubleshooting, removal and installation procedures, disassembly and assembly instructions, and hydraulic and electrical diagrams.

The manual is built around the actual systems of the PC400-8R, PC400LC-8R, PC450-8R and PC450LC-8R. It goes well beyond general maintenance information, covering workshop procedures for the engine and cooling system, power train, undercarriage, hydraulic equipment, work equipment, cab components, electronic controls and electrical system. It also includes dedicated diagnostic sections for failure codes and for electrical, hydraulic, mechanical and engine problems.

File Details

• Manual type: Shop Manual
• Brand: Komatsu
• Models: PC400-8R, PC400LC-8R, PC450-8R, PC450LC-8R
• Serial number coverage: 75001 and up
• Language: English
• Pages: 1002
• File format: PDF
• Shop manual form number: SEN04239-00
• Printed: 01-08 (01)

Specifications and Technical Reference

The specification material gives model-specific dimensions, working ranges, machine weights, engine information, hydraulic data and fluid capacities. All four machines use the SAA6D125E-5 engine, described as a 4-cycle, water-cooled, in-line vertical direct-injection engine with turbocharger and aftercooler. The specification section identifies the engine as a six-cylinder unit with a 125 x 150 mm bore and stroke and 11.045 l {11,045 cc} displacement.

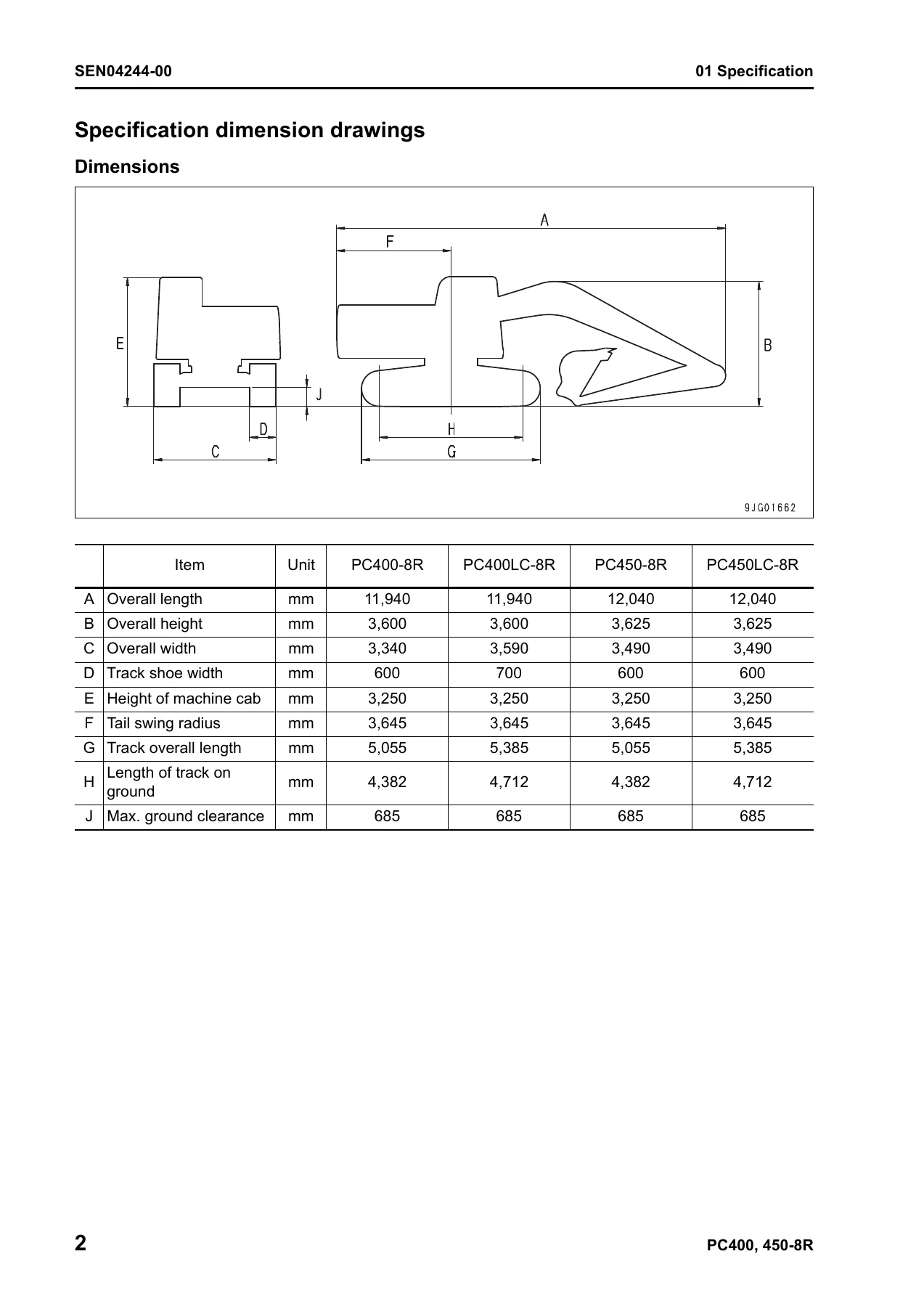

Machine data includes overall dimensions, track dimensions, ground clearances, digging reach, digging depth, digging height, dumping height, travel speed, swing speed and gradeability. The manual also provides component weight tables for workshop handling and transport, together with tables for fuel, coolant and lubricants. Listed reservoir data includes the engine oil pan, swing machinery case, final drive cases, damper case, hydraulic system, fuel tank and cooling system.

The hydraulic specification material identifies the variable-displacement piston pump, control valve, travel motors, swing motor and boom, arm and bucket cylinders. This gives technicians a useful reference before moving into the much more detailed structure, testing and repair sections.

System Construction and Operating Principles

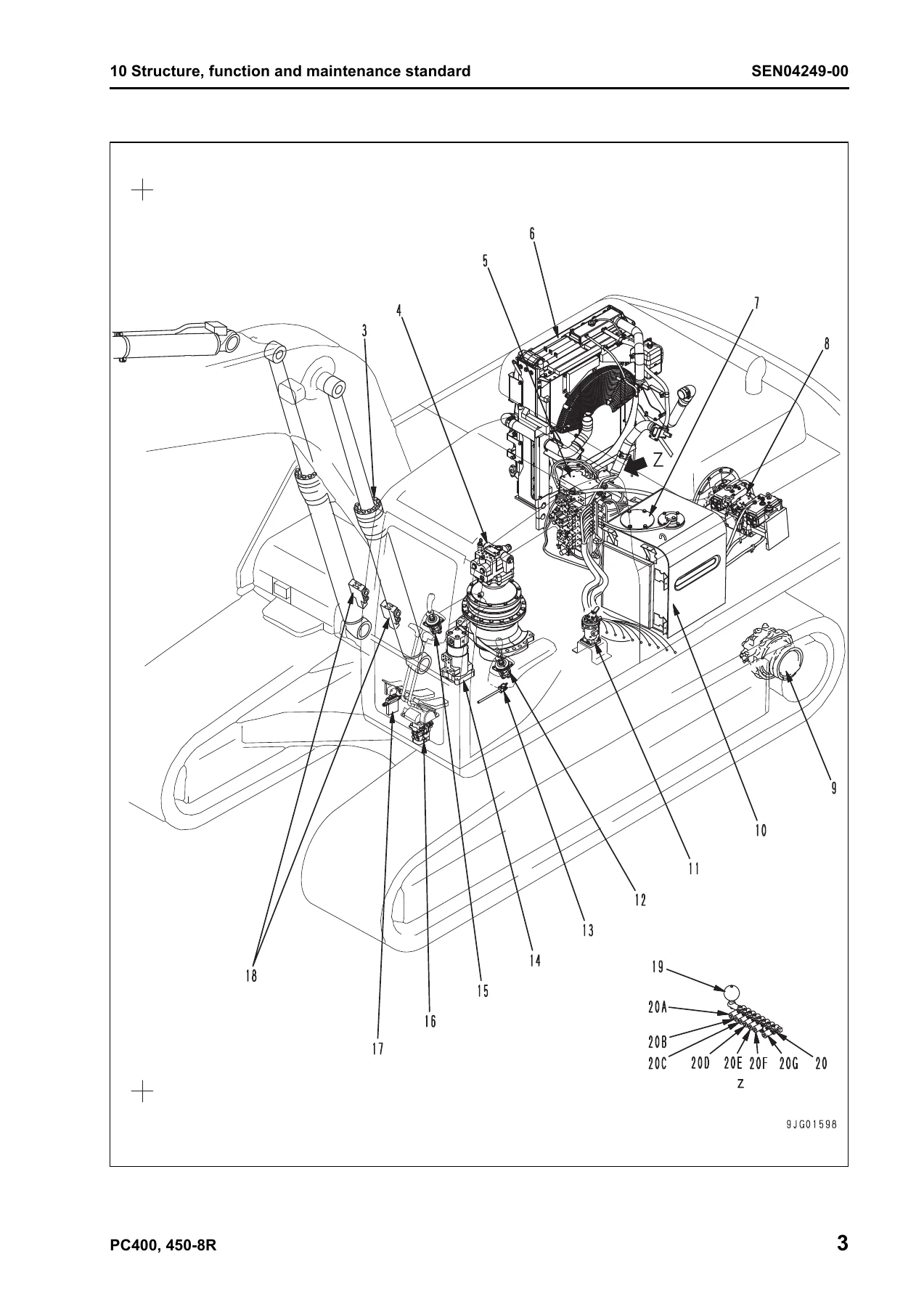

A major portion of this Komatsu PC400-8R PC400LC-8R PC450-8R PC450LC-8R shop manual explains how the machine systems are constructed and how they operate. Power-train information covers the swing circle, swing machinery, final drive and sprocket, with sectional drawings, gear arrangements, reduction data, standard clearances and wear limits. Undercarriage coverage includes the track frame and recoil spring, idler, carrier rollers, track rollers and track shoes, again with dimensional standards and repair limits.

The hydraulic system receives particularly detailed treatment. The manual illustrates the location of hydraulic equipment around the excavator and then examines the hydraulic tank and filter, pump, control valve, Closed center Load Sensing System (CLSS), pressure compensation, pump merge-divider functions, boom and arm regeneration circuits, travel junction functions, drift prevention and related valve operation. Internal sectional drawings and hydraulic schematics show how pressures and flows are controlled through the machine.

Electrical and electronic material covers engine control, the electronic control system, machine monitor functions, sensors, failure-code display and KOMTRAX terminal functions. This system-level information is particularly useful when a fault requires an understanding of how the controller, sensors, solenoids, monitor and hydraulic controls interact rather than simply replacing a component.

Chapters Covered

• 00 Index and foreword
  • Safety notice and general workshop information
  • How to read the shop manual and maintenance-standard terminology
  • Handling electric equipment, hydraulic components and engine connectors
  • Electric wire codes, operation precautions and push-pull couplers
  • Standard tightening torque and conversion tables
• 01 Specification
  • Specification dimension drawings and working ranges
  • Machine and engine specifications
  • Component weight tables
  • Fuel, coolant and lubricant tables
• 10 Structure, function and maintenance standard
  • Engine related parts, radiator, oil cooler and aftercooler
  • Power train, swing circle, swing machinery, final drive and sprocket
  • Track frame, recoil spring, idler, carrier roller, track roller and track shoe
  • Hydraulic equipment layout, hydraulic tank, filter and hydraulic pump
  • Control valve, CLSS and valve functions
  • Attachment circuit selector and holding valves
  • Valve control, solenoid valves and PPC accumulator
  • Return oil filter, center swivel joint, travel motor and swing motor
  • Hydraulic cylinders and work equipment
  • Air conditioner piping
  • Engine control, electronic control and monitor systems
  • Idle stop guidance, user/failure-code display, sensors and KOMTRAX terminal system
• 20 Standard value table
  • Standard values for engine related parts
  • Standard values for chassis related parts
• 30 Testing and adjusting
  • Tools for testing, adjusting and troubleshooting
  • Engine speed, boost pressure, exhaust temperature and exhaust gas color
  • Valve clearance, compression, blow-by and engine oil pressure
  • Fuel pressure, fuel return/leakage and fuel-circuit bleeding
  • Fan, alternator and air-conditioner compressor belt adjustment
  • Swing circle bearing clearance and track shoe tension
  • Work equipment, swing and travel hydraulic pressure tests
  • Pump PC and LS control pressure checks and adjustments
  • Solenoid and PPC valve output pressure
  • Hydraulic drift inspection, oil leakage measurement and air bleeding
  • Machine monitor special functions, electrical troubleshooting preparation and diode testing
  • Pm Clinic service
• 40 Troubleshooting
  • Failure-code table and fuse locations
  • General troubleshooting procedures and connector-pin information
  • Failure-code troubleshooting for engine and machine-control systems
  • Electrical system troubleshooting in E-mode
  • Hydraulic and mechanical troubleshooting in H-mode
  • Engine troubleshooting in S-mode
• 50 Disassembly and assembly
  • General procedures, coating materials and special tools
  • Fuel supply pump, injectors, engine seals and cylinder head
  • Radiator, hydraulic oil cooler, aftercooler and engine/hydraulic pump assembly
  • Final drive, swing motor, swing machinery and swing circle
  • Carrier rollers, track rollers, idler, recoil spring, sprocket and track shoe
  • Revolving frame and counterweight
  • Center swivel joint, hydraulic tank, control valve and hydraulic pump
  • Work equipment and travel PPC valves, hydraulic cylinders and work equipment assembly
  • Operator cab, cab glass, front window and floor frame
  • Air conditioner unit, KOMTRAX modem, monitor, pump controller and engine controller
• 90 Diagrams and drawings
  • Hydraulic circuit diagram
  • Electrical circuit diagram
  • Connector arrangement diagram

Together these chapters provide a connected technical reference from basic specifications and component theory through diagnosis, measurement and complete workshop repair. A technician can compare operating values against the manual’s standards, trace hydraulic or electrical faults, identify relevant components and then move into the specified removal, installation or overhaul procedure.

IMAGES PREVIEW

Testing, Adjustment and Troubleshooting

The testing and adjusting section supports systematic diagnosis instead of relying on symptoms alone. Procedures include measurement of engine speed, air boost pressure, exhaust temperature, compression pressure, blow-by pressure, engine oil pressure and fuel pressure. Hydraulic checks extend to work equipment, swing and travel circuits, control circuit pressure, pump PC and LS control pressure, solenoid valve output and PPC valve output. The manual also covers hydraulic drift, leakage measurement and bleeding air from repaired systems.

Troubleshooting is divided into several practical paths. Failure-code sections provide code-specific checks and related circuit information. E-mode addresses electrical symptoms such as starting problems, monitor faults, preheater problems, sensor indications, wipers, horn, travel alarm and air conditioning. H-mode deals with hydraulic and mechanical complaints including low power, slow work equipment, travel faults, swing faults, excessive hydraulic drift and attachment-circuit problems. S-mode concentrates on engine symptoms including poor starting, lack of output, abnormal exhaust smoke, excessive oil or fuel consumption, low oil pressure, overheating, abnormal noise and vibration.

Workshop Repair Procedures

For major repair work, the disassembly and assembly chapters provide the procedures and supporting information needed to remove, install and overhaul major assemblies. Coverage extends from the fuel supply pump, injectors, cylinder head and cooling components to the final drives, swing machinery, undercarriage, hydraulic pump, control valve, center swivel joint, cylinders, work equipment and cab assemblies. The manual uses tightening torques, coating and lubrication instructions, component weights, safety precautions and installation checks where required by the procedure.

This makes the Komatsu PC400-8R PC400LC-8R PC450-8R PC450LC-8R Shop Manual PDF SEN04239-00 useful for both fault diagnosis and the repair that follows. The hydraulic and electrical circuit drawings at the end complement the troubleshooting sections by providing system-level references for tracing connections, pressure paths and electrical circuits.

Repair and Diagnose with the Correct PC400-8R / PC450-8R Technical Information

With specifications, maintenance standards, test procedures, fault-code diagnosis, hydraulic and electrical troubleshooting, component removal, installation and overhaul procedures collected in one manual, this PDF supports a wide range of workshop jobs on the PC400-8R, PC400LC-8R, PC450-8R and PC450LC-8R. Correct service values, tightening information, circuit diagrams and model-specific procedures help technicians carry out checks and repairs against the information intended for these machines rather than relying on general assumptions.

The Komatsu PC400-8R PC400LC-8R PC450-8R PC450LC-8R Shop Manual PDF SEN04239-00 is delivered as an instant PDF download after purchase. There is no physical book and no shipping delay. You can open the manual on a computer, tablet or phone and print the pages needed for workshop use.
