Komatsu WA600-6 GALEO Wheel Loader Operation and Maintenance Manual – TEN00111-00

Description

This Komatsu WA600-6 GALEO Wheel Loader Operation and Maintenance Manual – document TEN00111-00 – is the complete operation and service reference published by Komatsu for machines with serial numbers WA600-6 60001 and up. Every operating procedure, safety label reference, periodic maintenance interval, torque value, lubricant recommendation, and troubleshooting entry you need to run and service the WA600-6 is contained in this single PDF.

File Details

• Manual type: Operation & Maintenance Manual
• Brand: Komatsu
• Model: WA600-6 GALEO wheel loader
• Serial range: WA600-6 60001 and up
• Document number: TEN00111-00
• Date: Copyright 2005
• Language: English (emissions warranty section also in French)
• Page count: 393 pages
• File format: PDF

Chapters Covered

• Section 1 – Foreword, Safety Information, Introduction: Product warranties, safety signal words, front/rear/left/right conventions, visibility standards (ISO 5006), immediate-area and 12 m radius visibility, PIN and EPA engine number plate locations, service meter position, serial number recording table

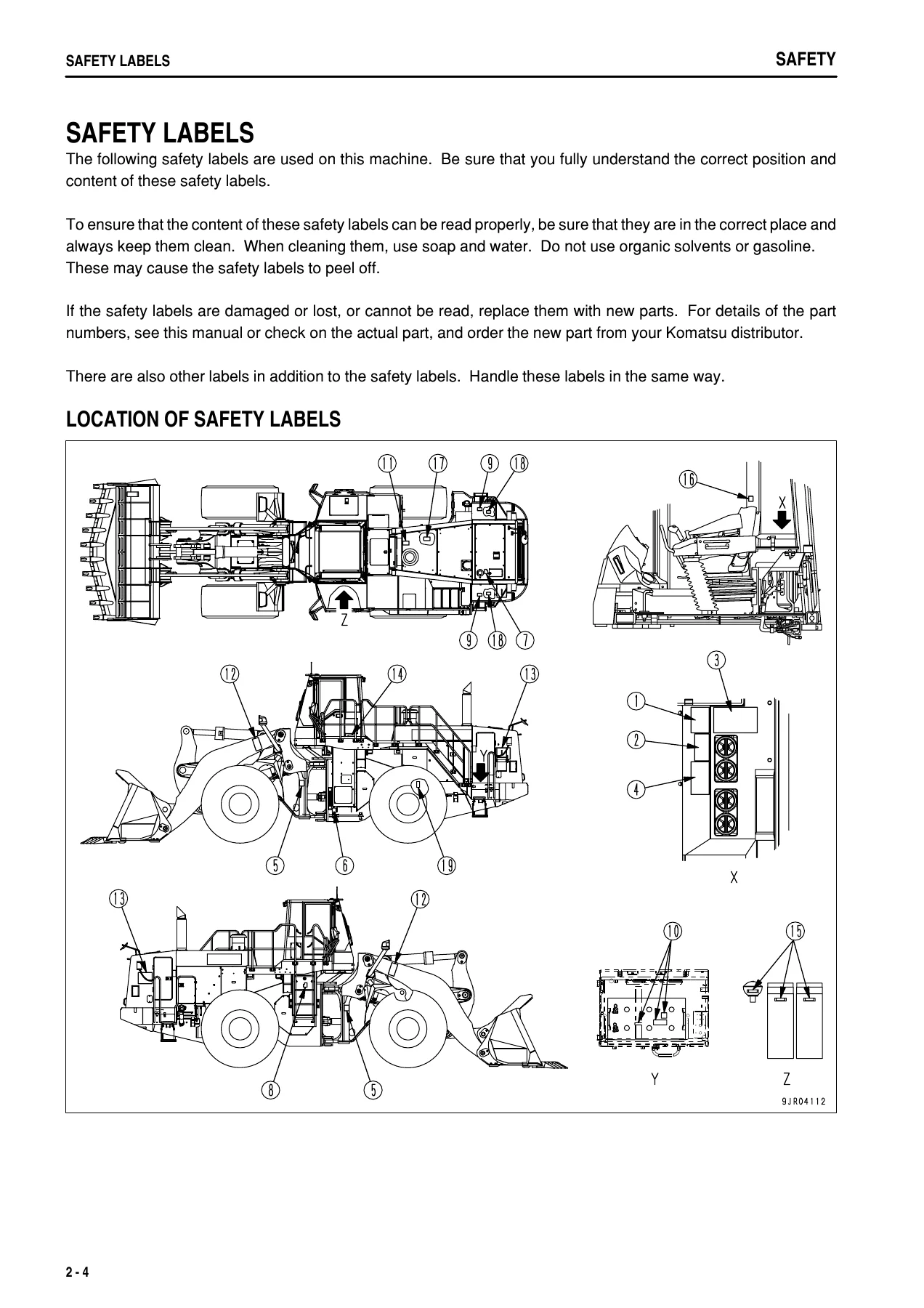

• Section 2 – Safety: Safety label locations and content (18 labels), general precautions, safety rules, clothing and PPE, fire extinguisher and first aid, keeping the machine clean, inside the operator compartment, lock lever use, handrails and steps, mounting and dismounting, articulated portion clearance, prevention of burns, fire prevention, ROPS, worksite safety, high-voltage cable clearances, exhaust gas ventilation, emergency exit, battery hazards, booster cable starting, towing safety

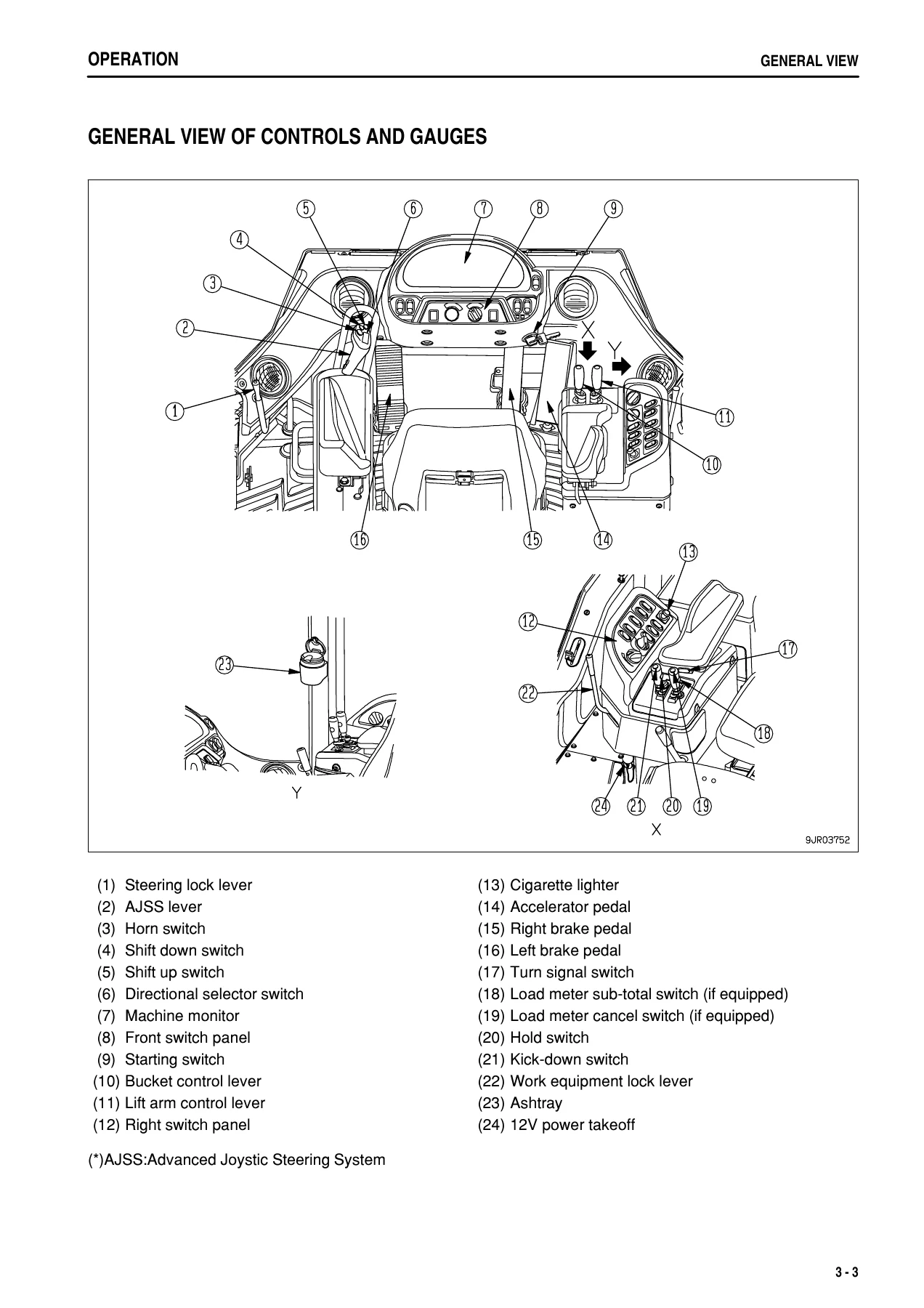

• Section 3 – Operation: General view of machine and controls, machine monitor and warning lamps, central warning lamp, action code display, failure code display, filter and oil replacement time display, engine speed / travel speed display, emergency stop items, caution items, inspection and maintenance items, pilot displays, meters and gauges, starting switch, character display switches, hazard, wiper, dimmer, lamp, parking brake switches, load meter switches, shift up/down, horn, directional selector, room lamp, emergency parking brake cancel, emergency modulation clutch direct connection, kickdown, hold, load meter cancel and subtotal, turn signal, E.C.S.S., remote positioner raise/lower and bucket angle set, RPM set ON/OFF, driving force control dial, auto shift / manual shift selector, torque converter lock-up, engine power mode, semi auto digging, cigarette lighter, auto-greasing, cooling fan reverse rotation, step lamp, rear heated wire glass, rear wiper, side wiper, working lamp, fog lamp, beacon lamp, accelerator and brake pedals, AJSS lever, bucket and lift arm control levers, work equipment lock lever, armrest adjustment, cap with lock, frame lock bar, towing pin, backup alarm, cab window and door, dust indicator, fuse, circuit breaker, slow blow fuse, lunch box tray, tool box, grease pump, power outlet, AM/FM radio-cassette stereo, air conditioner, cool box, pre-start checks, starting engine, operations and checks after starting, stopping engine, moving and stopping the machine, turning, work equipment operation, semi auto digging, remote positioner, work possible using wheel loader, precautions for operation, parking, checks after completion, locking, handling tires, transportation, loading and unloading, securing, lifting, cold weather operation, long-term storage, troubleshooting
• Section 4 – Maintenance: Guides to maintenance, outlines of service, handling oil/fuel/coolant and performing oil clinic (KOWA), outline of electric system, wear parts list, recommended fuel/coolant/lubricant, use of fuel/coolant/lubricants according to ambient temperature, recommended brands and quality for non-Komatsu oils, standard tightening torques for bolts and nuts and hydraulic hoses, periodic replacement of safety critical parts, maintenance schedule chart, service procedures for initial 250 h, when required, every 50/100/250/500/1000/2000/4000/8000 hours
• Section 5 – Specifications: Operating weight, normal load, bucket capacity, engine model and output, overall dimensions, dump angle, minimum turning radius, travel speeds
• Section 6 – Attachments, Options: Selecting bucket and tires, handling load meter (outline, principle, accuracy, calibration, addition mode, subtraction mode, material categories, printout modes), handling battery disconnector switch, handling starting aid connector, handling rear fender
• Section 7 – Index

The Komatsu WA600-6 GALEO manual treats this as the 52-tonne class machine it is, not a generic loader. The operation chapter alone runs dozens of pages covering the machine monitor’s tiered warning system, the AJSS (Advanced Joystick Steering System), semi auto digging in ROCK and LOOSE modes, the remote boom and bucket positioner, torque converter lock-up logic, E.C.S.S. behaviour, and the load and carry method. Action code references E01, E02 and E03 tell the operator what to do and when to shut the machine down, with failure code lookup across MON, TM, ENG and WRK controllers.

What This WA600-6 Manual Lets You Do

The maintenance section follows Komatsu’s own schedule chart from daily walk-around checks up to every 8000 hours. Engine oil and filter changes, fuel pre-filter and fuel filter replacement, transmission oil filter, brake oil filter (if equipped), hydraulic tank oil and element, axle oil change, corrosion resistor cartridge, cooling system flush with the correct supercoolant mix ratio, air cleaner element cleaning and replacement, tire pressure, wheel hub bolt torque, battery electrolyte level, and PPC circuit strainer cleaning are all covered with step-by-step procedures. The recommended fuel, coolant and lubricant chapter gives you the exact Komatsu part numbers – EO15W40DH, TO30, TO10, AXO80, AF-NAC – with their viscosity and ambient temperature ranges and specified/refill capacities for each reservoir.

Safety content is woven through the whole book. You get the location map and content of every safety label on the machine, safe distances from high-voltage cables at each voltage class, correct use of the frame lock bar during transport or lifting, the emergency parking brake release method, the accumulator handling precautions, and the warnings that must be observed before lowering the bucket or tilting the load. The tire chapter covers service limits for wear and damage, inflation pressures by size and operating condition, deflection ratio targets for front tires, and storage precautions for construction equipment tires.

Troubleshooting is covered in its own section with electrical system, chassis, transmission, axle, brake, steering, parking brake, hydraulic system and engine charts that map symptoms to likely causes and the correct remedy. When the engine runs out of fuel, the battery is discharged, the work equipment needs lowering with the engine stopped, or the machine needs towing with the engine off, the manual gives you the exact procedure rather than guesswork.

Correct procedures and the manufacturer’s specified torques, capacities and clearances matter on a machine this size. A wrong wheel hub torque, an incorrect axle oil grade or a missed safety critical part replacement interval costs far more than the manual. Keep this Komatsu WA600-6 GALEO operation and maintenance manual on hand – on the shop computer, the office printer, or the operator’s tablet – and you have Komatsu’s own service data for the entire life of the machine.

IMAGES PREVIEW

Instant PDF download after purchase. No shipping, no waiting. Read it on any phone, tablet, laptop, or desktop, and print the specific pages you need in the workshop. The file is yours permanently.
