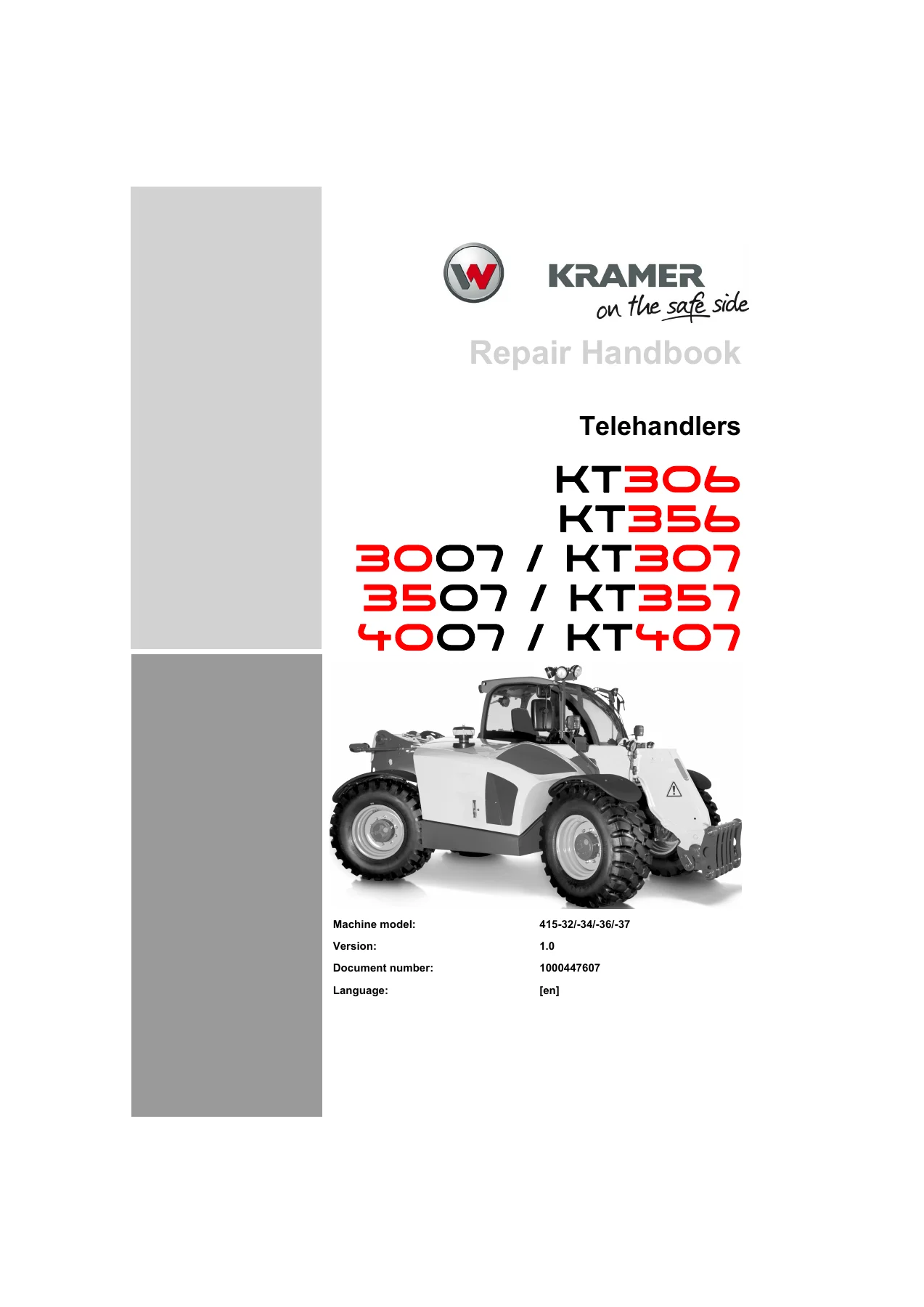

Kramer KT306 KT356 KT307 KT357 KT407 3007 3507 4007 Telehandlers Repair Handbook

Description

Kramer KT306 KT356 KT307 KT357 KT407 3007 3507 4007 Telehandlers Repair Handbook

This is the complete Kramer Repair Handbook for the KT306, KT356, KT307, KT357, KT407, 3007, 3507 and 4007 telehandler family, published under document number 1000447607 (version 1.0, dated 03/2021). The Kramer KT306 KT356 KT307 KT357 KT407 3007 3507 4007 Telehandlers Repair Handbook is the workshop-grade reference for teardown, overhaul, adjustment, testing and preventive maintenance of these machines. It covers every major system from the Deutz TCD 3.6 L4 diesel engine through to the boom hydraulics, axles, wet brakes, steering electronics and cab climate systems, and it is written so a technician can work straight from the page.

What This Kramer Repair Handbook Delivers

Every procedure is laid out as a numbered sequence with figure callouts, so a job can be split into sub-tasks and each step carries the tightening torque, sealing compound, grease or measurement tolerance that applies. Hydraulic screw connections, hose burst valves and high-pressure lines all carry their own torque tables, and the manual opens with the general tightening torques used right across the KT306, KT356, KT307, KT357, KT407, 3007, 3507 and 4007 models. The safety prop, pressure-relief sequence and battery-isolator procedure at the front of the book are the same ones the rest of the manual relies on, so nothing is left to guesswork.

File Details

• Manual type: Repair Handbook (workshop-level repair and maintenance reference)
• Brand: Kramer
• Models covered: KT306, KT356, KT307, KT357, KT407, 3007, 3507, 4007
• Engine covered: Deutz TCD 3.6 L4 diesel
• Document number: 1000447607
• Version / date: 1.0, 03/2021
• Language: English
• Format: PDF
• Length: approximately 800 pages across 15 sections

Chapters Covered

• Introduction – Notes on the repair manual, safety instructions, tightening torques, abbreviations, cable colour codes
• Maintenance – Maintenance plan and intervals, fluids and lubricants, maintenance accesses, cleaning, lubrication points, slide plates, fuel system, exhaust gas treatment and DPF regeneration, engine lube oil system, cooling system, air filter, V-belt, hydraulic system, electrical system, heating and air conditioning, washer system, axles and travelling drive, brake system, pressure accumulator, tyres, attachments, trailer coupling, camera system, vehicle preservation
• Engine – Deutz TCD 3.6 L4 engine removal/installation, starter, alternator, EAT console, DPF with integrated DOC (CSF), intermediate pipe, mixing section, SCR catalytic converter, NOx sensors, exhaust back pressure sensor, temperature sensors, water separator, air filter, Centaflex coupling, fuel tank, tank sensor, discharge module, DEF tank, extraction unit, accelerator pedal
• Cooling – Combined water/oil/charge-air radiator, fan motor, reversing valve, upper fan-speed setting
• Transmission / coupling / cardan shafts – Front and rear cardan shafts (30 km/h and 40 km/h variants), intermediate gearbox, high-speed gearbox 40 km/h, control cover repair, tightening torques
• Axles – Front axle, rear axle, threaded fitting torques, sealing work (drive flange, final drive, axle carrier, double cardan shaft), differential removal and repair, steering angle
• Brakes – Brake calliper sealing, brake lining replacement, brake disk replacement, brake pedal, master brake cylinder, compressed air tank, air compressor
• Steering system – Steering orbitrol, steering mode valve, steering cylinder, steering sensor, synchronisation procedure
• Hydraulics – Hydraulic control unit, hydraulic oil tank, load stabiliser pressure accumulator, hose burst valves, pump unit work hydraulics, tandem pump, variable displacement pump, hydraulic pump, hydraulic motor, quickhitch, telescopic boom, boom outer/inner pipe, lift ram, push-out ram, tilt ram, compensation cylinder, control ram
• Electrical system – Battery isolator relay, telescopic boom wiring harness, circuit board, steering electronics, joystick, left and right instrument panels, rotary angle encoder, travel sensor, inch potentiometer, load sensor, safe load indicator calibration, frame controller, additional controller, cab controller
• Trim – Engine cover, V-belt cover, transmission tunnel cover, underride protection, cab front covering, discharge module trim
• Cabin – Operator seat, seat contact switch
• Heating / air conditioning – Heat exchanger, blower, air conditioning compressor, condenser, evaporator, dehumidifier

Across the KT306, KT356, KT307, KT357, KT407, 3007, 3507 and 4007 platforms the manual treats the full machine, not just the headline systems. A technician working from this handbook can pull the Deutz TCD 3.6 L4, replace the Centaflex coupling, reseal a wet brake calliper, strip the control cover of a 40 km/h high-speed gearbox, re-shim a front or rear differential, bleed and synchronise the four-wheel steering, calibrate the safe load indicator, run a manual DPF regeneration, replace a boom wiring harness, or reseal any of the boom rams. Cross-references inside the text point from one section to another wherever a job depends on work in another chapter, and the maintenance plan at the front tells you what has to be done daily, every 20 operating hours, every 100, 500 and 1500 hours, and once a year. That makes it useful both as a repair handbook and as a working maintenance schedule reference for a fleet of Kramer telehandlers.

Why It Matters

Kramer telehandlers are hydraulically intensive machines, and small mistakes with torque, sealant choice or bleeding sequence can turn into expensive failures – scored boom pad tracks, burned brake linings, blown hose burst valve settings, or a damaged DPF. The manual is specific about the values you must hold to: 400 Nm wheel nuts, the 79 Nm bolt torque used repeatedly in the boom and quickhitch, the 195 Nm gearbox and axle fasteners, the correct Loctite grade for each joint, the exact oil capacities for the engine, gearboxes, axles and hydraulic reservoir, and the two-stage exhaust after-treatment behaviour. Using the correct procedure and the correct numbers the first time is what keeps these machines in service and keeps the total cost of ownership down.

Delivery

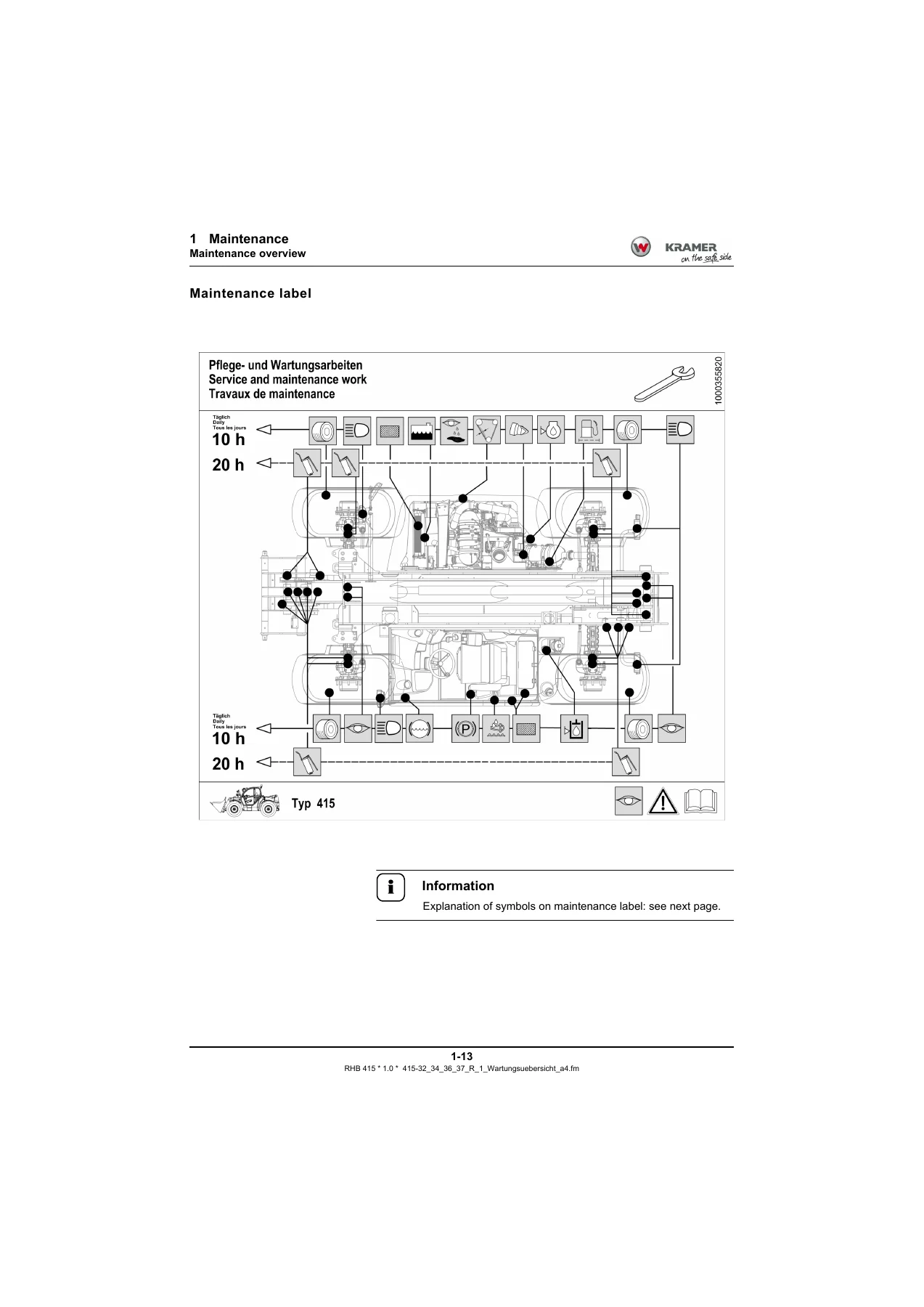

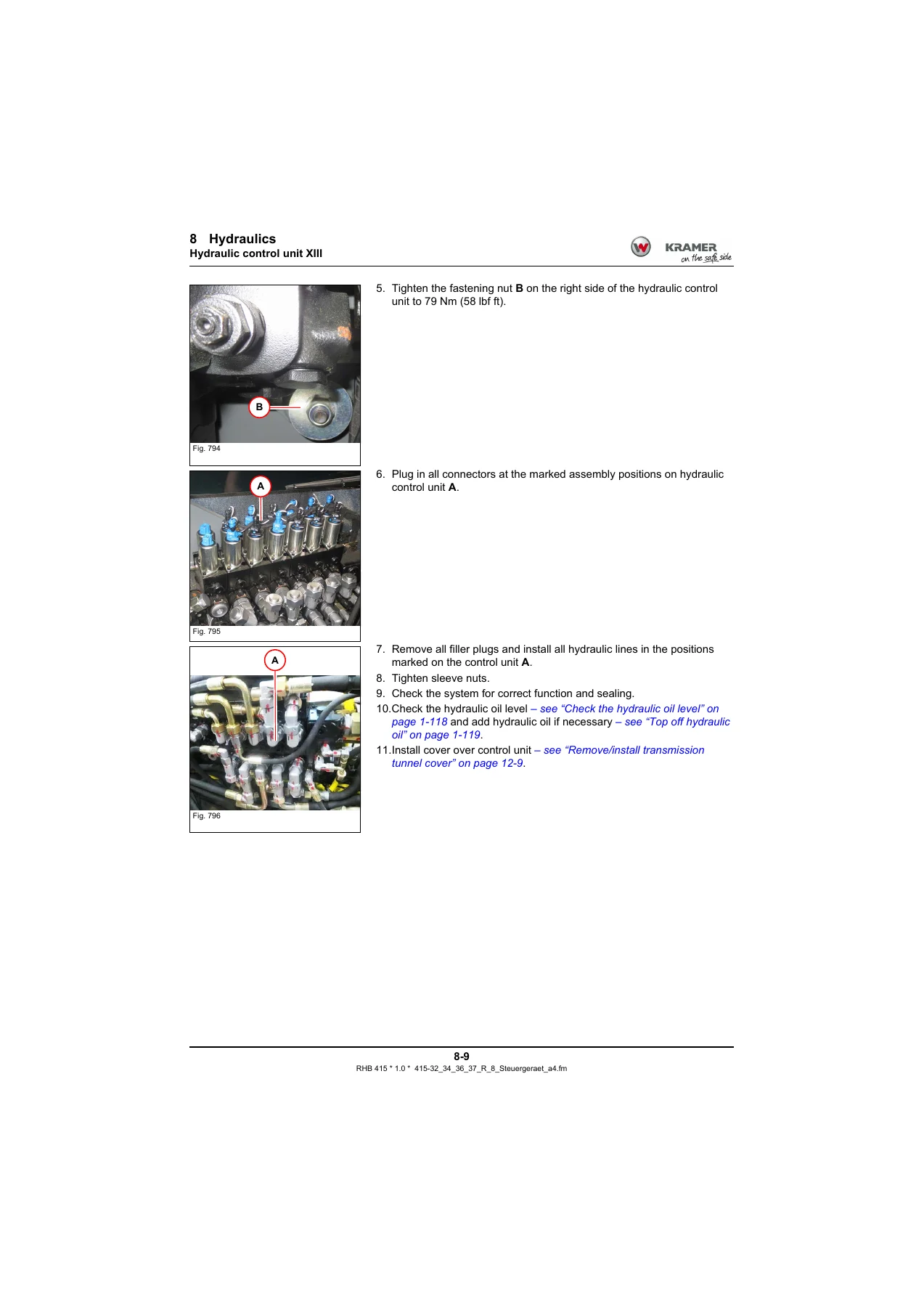

IMAGES PREVIEW

The Kramer KT306 KT356 KT307 KT357 KT407 3007 3507 4007 Telehandlers Repair Handbook is delivered instantly as a downloadable PDF once payment is complete. There is no shipping and no waiting for a physical parcel – the file opens on any laptop, tablet or smartphone, can be printed for the workshop, and can be stored on the shop computer for the next job on the KT306, KT356, KT307, KT357, KT407, 3007, 3507 or 4007.
