Kubota 05 Series & BG Diesel Engines Workshop Manual 981-0517 981-0527

Description

Kubota 05 Series & BG Diesel Engines Workshop Manual 981-0517 981-0527

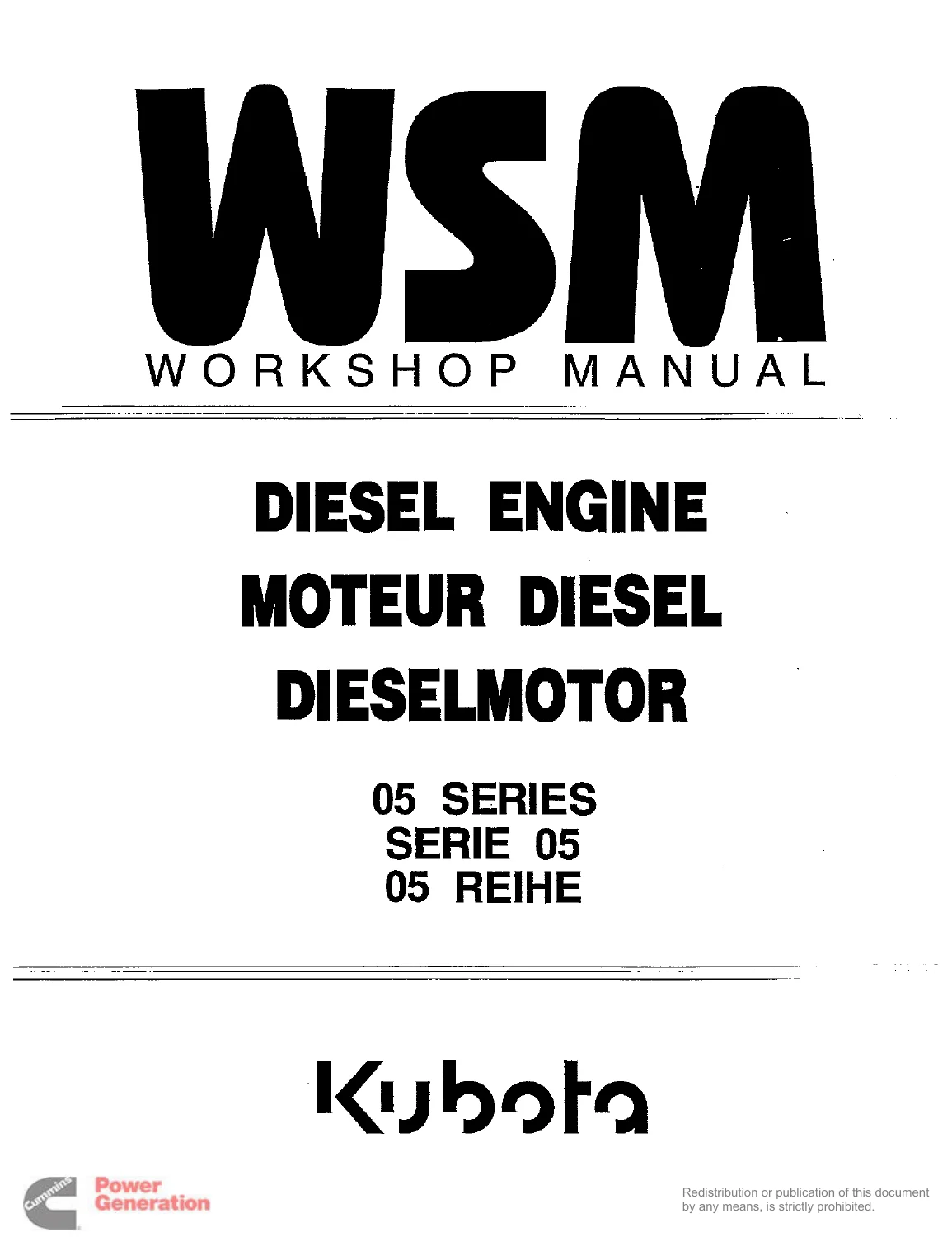

This Kubota 05 Series & BG Diesel Engines Workshop Manual 981-0517 981-0527 is a substantial workshop reference combining service information for the Kubota 05 Series diesel engines with a separate BG Series workshop section developed for generator-oriented versions. The PDF contains both 981-0517 and 981-0527 and provides the construction knowledge, specifications, checks, adjustments and repair procedures needed to work through engine faults and mechanical service in a systematic way.

The main 05 Series material is arranged around two practical areas: mechanism information explaining how the engine systems are constructed and function, followed by disassembling and servicing information covering troubleshooting, service specifications, periodic inspection, checking, adjustment, dismantling, assembly and component servicing. The manual states that the procedures include precautions, factory specifications and allowable limits, making it useful both before a repair begins and while measurements are being compared during inspection.

File Details

• Manual type: Workshop Manual
• Brand: Kubota
• Coverage: 05 Series diesel engines and BG Series diesel engines
• Languages: English, French and German
• Pages: 449
• File format: PDF
• 05 Series publication: Kubota workshop manual family 97897-01640 / 97897-01643
• BG Series publication: Kubota workshop manual family 97897-01443
• 05 Series publication information: Kubota Corporation 1996, May 1996
• BG Series publication information: Kubota Corporation 2000, May 2000

Engine Models Covered

The core 05 Series workshop section covers naturally aspirated and turbocharged B-series versions including D905-B (E), D1005-B (E), V1205-B (E), V1205-T-B (E), V1305-B (E), D1105-B (E), D1105-T-B (E), V1505-B (E) and V1505-T-B (E). The manual includes model-specific servicing data where dimensions, tolerances, timing values or other specifications differ.

The additional BG Series material expands the reference to generator-oriented engines derived from Kubota B-series designs. Models identified in that section include D905-BG, D1005-BG, V1205-BG, V1305-BG, D1105-BG, V1505-BG, D1403-BG, D1703-BG, V1903-BG, V2203-BG, F2803-BG, V2003-T-BG, V3300-BG, V3300-T-BG, D3502-BG and V4702-BG. BG engines are described in 1500 rpm 50 Hz and 1800 rpm 60 Hz speed classes, with SAE-standard flywheel and flywheel-housing arrangements intended to suit generator installations using SAE standards.

Mechanism and System Information

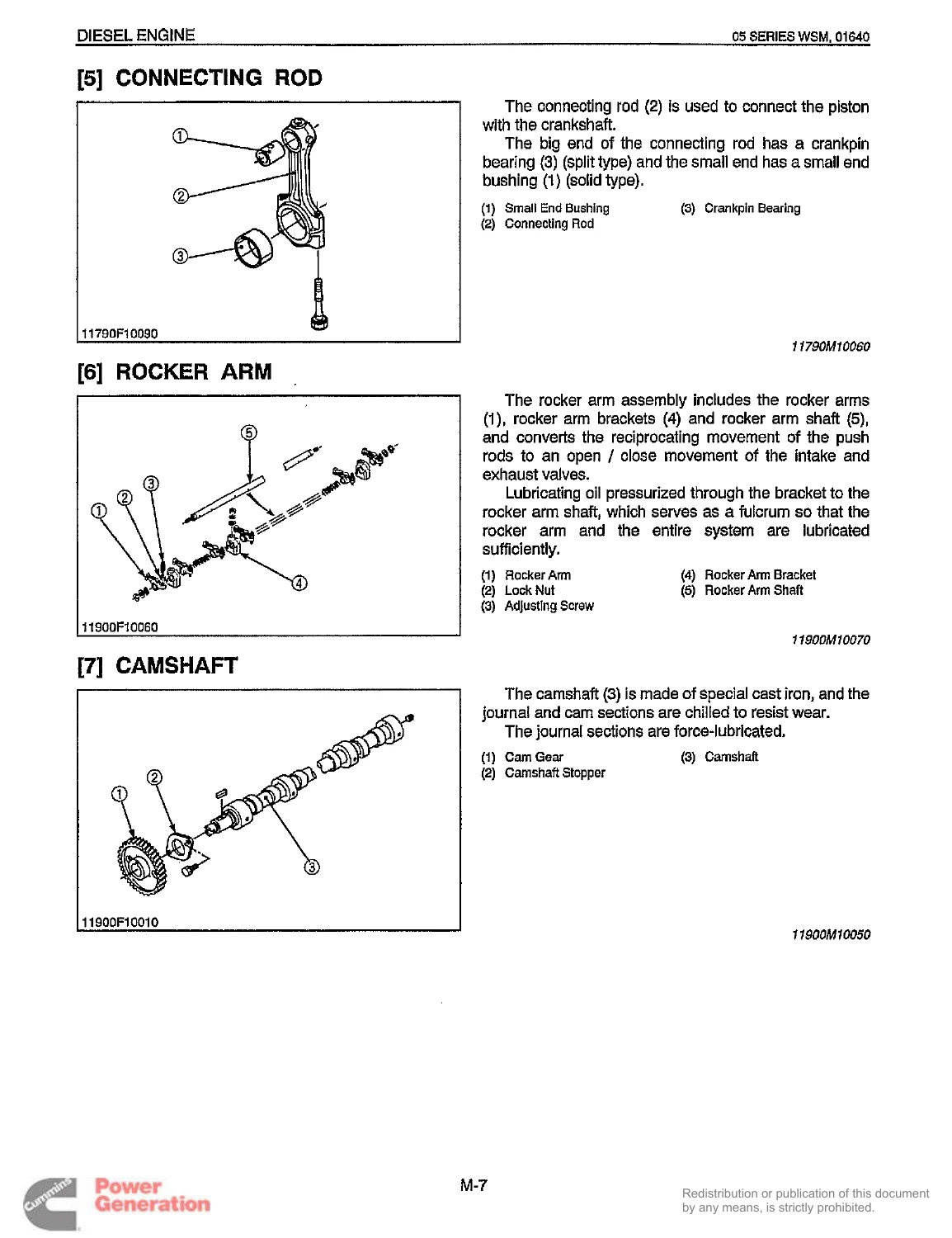

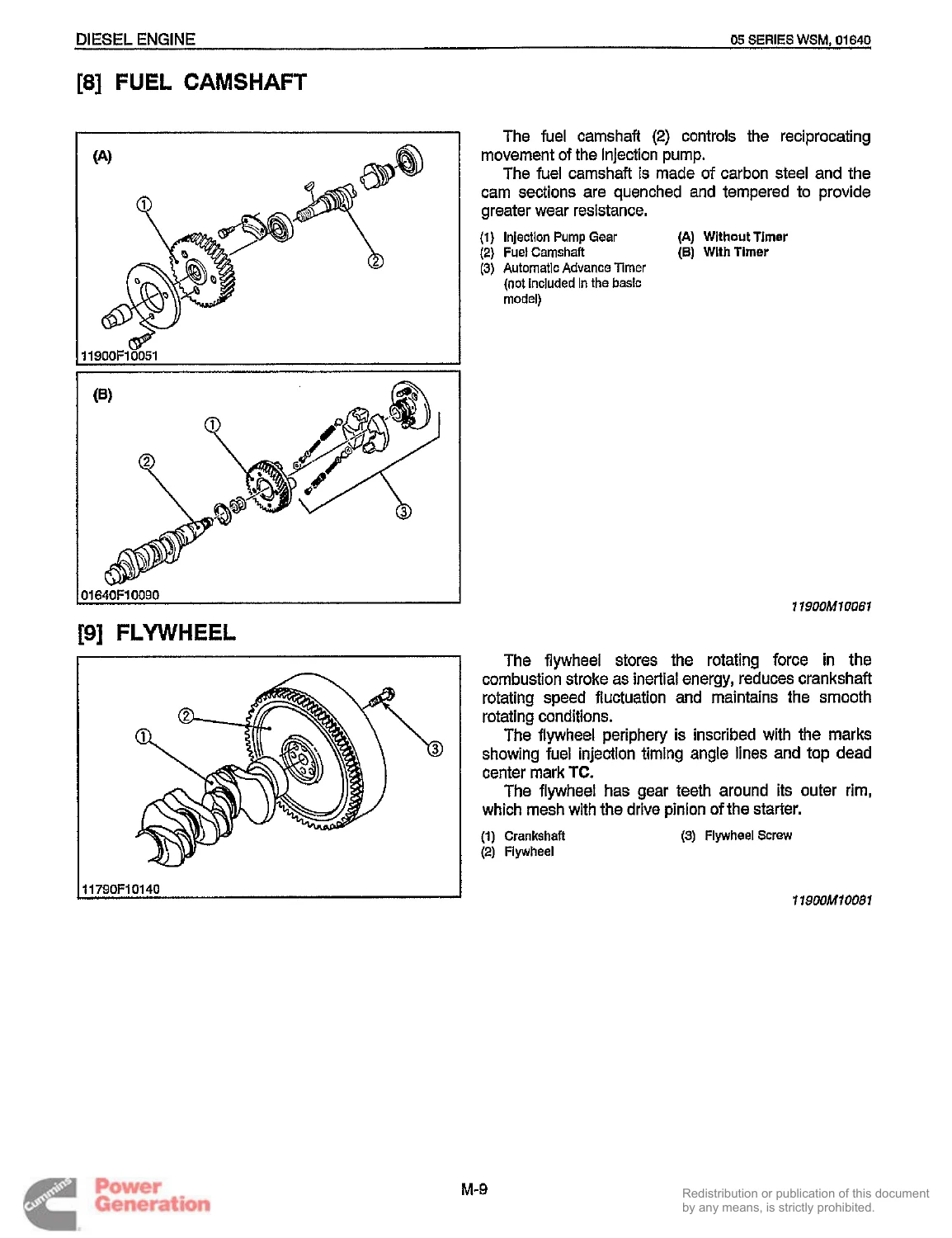

The mechanism portion of this Kubota diesel engine workshop manual explains the construction and operating principles behind the major engine groups before the repair procedures begin. Engine-body coverage includes the cylinder block, cylinder head, crankshaft, pistons and piston rings, connecting rods, rocker-arm arrangement, camshaft, fuel camshaft and flywheel. Illustrated component explanations show how assemblies relate to one another and identify the parts involved.

Lubrication coverage describes the oil pump, relief valve, oil-filter cartridge and oil-pressure switch. Cooling information includes the water pump, thermostat, radiator and radiator cap. The intake and exhaust section addresses the air cleaner and muffler where applicable, while the fuel-system material follows the injection pump, pump element, delivery valve, injection control, injection nozzle, fuel filter, governor and automatic advance timer. Electrical-system material covers the charging system, alternator and IC regulator. Turbocharged engine coverage adds dedicated turbocharger mechanism information for the turbine, compressor, bearing and sealing components.

Workshop Repair and Diagnostic Content

The servicing section goes substantially beyond an overview. It begins with engine identification and cylinder numbering, general precautions and tightening torques for both special-use and general fasteners. Troubleshooting charts are followed by extensive servicing specifications for the engine body, lubrication, cooling, fuel and electrical systems. These specification tables provide the reference values and allowable limits needed when deciding whether a component can remain in service, needs correction or should be replaced.

Maintenance information includes daily checks and scheduled inspection points at hour-based intervals. Special-tool information is also provided, including equipment for measurement, alignment, pressure testing and crack inspection. The repair chapters then move into practical checking, adjustment, disassembly, assembly and servicing operations rather than stopping at maintenance descriptions.

IMAGES PREVIEW

Engine-body procedures address external components, cylinder head and valves, gear case, pistons and connecting rods, flywheel and crankshaft. Servicing data covers items such as cylinder-head condition, timing gears and camshaft, piston and connecting-rod measurements, crankshaft inspection and cylinder dimensions. The manual contains factory dimensions and wear limits for items such as cylinder bores, piston-ring clearances, bearing oil clearances, valve and rocker components and related engine-body measurements.

Fuel-system procedures include checking and adjusting injection timing, injection-pump work and injection-nozzle service. Injection timing instructions show how the flywheel marks are used and how shim thickness is applied to timing correction, with different notes according to engine serial-number break points. Fuel-system service also covers pressure-related checks of pump elements, delivery valves and injection nozzles.

Lubrication-system procedures include engine oil-pressure checking and oil-pump inspection. Cooling-system work covers fan-belt and radiator checks together with water-pump disassembly and assembly. Electrical servicing includes starter, glow-plug and alternator checking, dismantling, assembly and component measurements. Turbocharged versions receive their own checking and turbocharger disassembly and assembly coverage.

BG Series Generator Engine Supplement

The BG portion is important because it is not simply a repetition of the 05 Series workshop information. Kubota explains that the BG engines were developed from its vertical, water-cooled, four-cycle B-series diesel engines and that this section concentrates on the points changed between B and BG versions. Those changes include dimensions, specifications, governor systems and applications.

The BG workshop material includes general application information, direct connection to housings, operating mechanisms, supporting methods and covering arrangements. It also addresses SAE flywheels and flywheel housings for BG engines, servicing specifications for the 05 Series and other stroke families, maintenance intervals, fuel-system governor characteristics and selected engine-body disassembly and assembly procedures. Extensive specification and dimension pages provide model-dependent information for the different BG engine families.

Chapters Covered

• 05 Series Specifications – engine configuration, output data, torque, injection, lubrication, cooling, starting, charging, fuel, oil capacity and dry weight
• Performance Curves – model-specific engine performance information
• Dimensions – engine dimensional drawings and measurements
• Mechanism – Feature
• Engine Body – cylinder block, cylinder head, crankshaft, piston and rings, connecting rod, rocker arm, camshaft, fuel camshaft and flywheel
• Lubricating System – oil pump, relief valve, filter cartridge and oil-pressure switch
• Cooling System – water pump, thermostat, radiator and radiator cap
• Intake / Exhaust System – air cleaner and muffler
• Fuel System – injection pump, pump element, delivery valve, injection control, injection nozzle, fuel filter, governor and automatic advance timer
• Electrical System – charging system, alternator and IC regulator
• Turbo Charger System – mechanism, turbine, compressor, bearing and seals
• General Servicing – engine identification, precautions and cylinder numbering
• Tightening Torques – special-use and general screws, bolts and nuts
• Troubleshooting – fault symptoms, possible causes and corrective references
• Servicing Specifications – engine body, lubrication, cooling, fuel and electrical systems
• Maintenance Check List – daily and hour-based inspection points
• Special Tools – workshop measuring, checking and service equipment
• Engine Body Checking and Adjustment
• Engine Body Disassembly and Assembly – draining, external components, cylinder head and valves, gear case, piston and connecting rod, flywheel and crankshaft
• Engine Body Servicing – cylinder head, timing gear and camshaft, piston and connecting rod, crankshaft and cylinder
• Lubricating System Servicing – oil-pressure checking and oil-pump service
• Cooling System Servicing – fan belt, radiator and cooling-component work
• Fuel System Checking and Adjusting – injection pump and injection nozzle
• Fuel System Disassembly and Assembly – injection pump and nozzle
• Electrical System Checking – starter and glow plug
• Electrical System Disassembly and Assembly – starter and alternator
• Electrical System Servicing – starter and alternator
• Turbocharger Checking, Disassembly and Assembly
• BG Series Features – BG engine characteristics and altered points from B-series models
• BG Fuel System – governor construction, regulation and centrifugal governor
• BG Applications – installation, direct housing connection, operating mechanism, support and covering
• BG SAE Flywheel and Flywheel Housing
• BG Servicing Specifications – 05 Series, 92.4 mm stroke series, V3300/V3300-T and 125 mm stroke series
• BG Maintenance Intervals – engine oil and oil-filter cartridge service
• BG Engine Body Service – applicable disassembly and assembly procedures

Together, these sections make the Kubota 05 Series & BG Diesel Engines Workshop Manual 981-0517 981-0527 useful for both routine service and deeper mechanical work. A technician can move from identification and troubleshooting into the relevant system, compare measurements against factory specifications and allowable limits, follow dismantling and reassembly sequences, adjust fuel-injection components, inspect lubrication and cooling performance, service electrical starting and charging components and work on turbocharged variants where applicable.
