Kubota KX060-5 Illustrated Parts List — Document 97899-12770

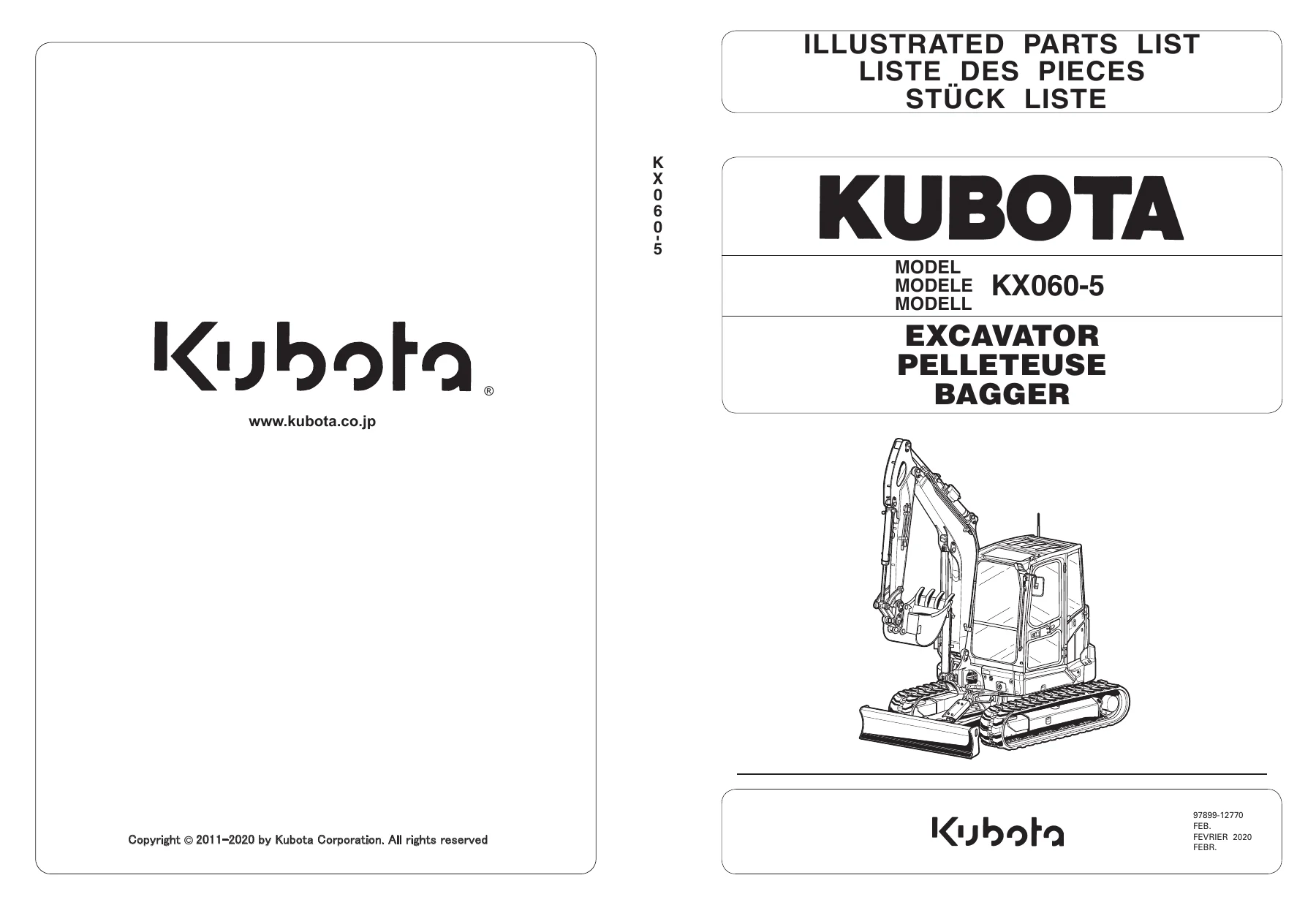

This Kubota KX060-5 Excavator Illustrated Parts List is the exact parts identification guide used to look up component numbers, confirm part names, and order the correct replacement for every assembly on the machine. Published as document 97899-12770 in February 2020, the file runs 285 pages and covers the KX060-5 excavator equipped with the V2607-CR-E5-BH1/BH2 engine. Each group is drawn as an exploded illustration with reference numbers that link straight to a parts table showing the reference number, Kubota part number, part name, designations in three languages, and quantity.

File Details

• Manual type: Illustrated Parts List (IPL)
• Brand: Kubota
• Model: KX060-5 excavator
• Document number: 97899-12770
• Edition/date: February 2020 (FEB. FEVRIER 2020 FEBR.)
• Engine covered: V2607-CR-E5-BH1 / V2607-CR-E5-BH2
• Language: English / French / German (trilingual)
• Format: PDF
• Page count: 285

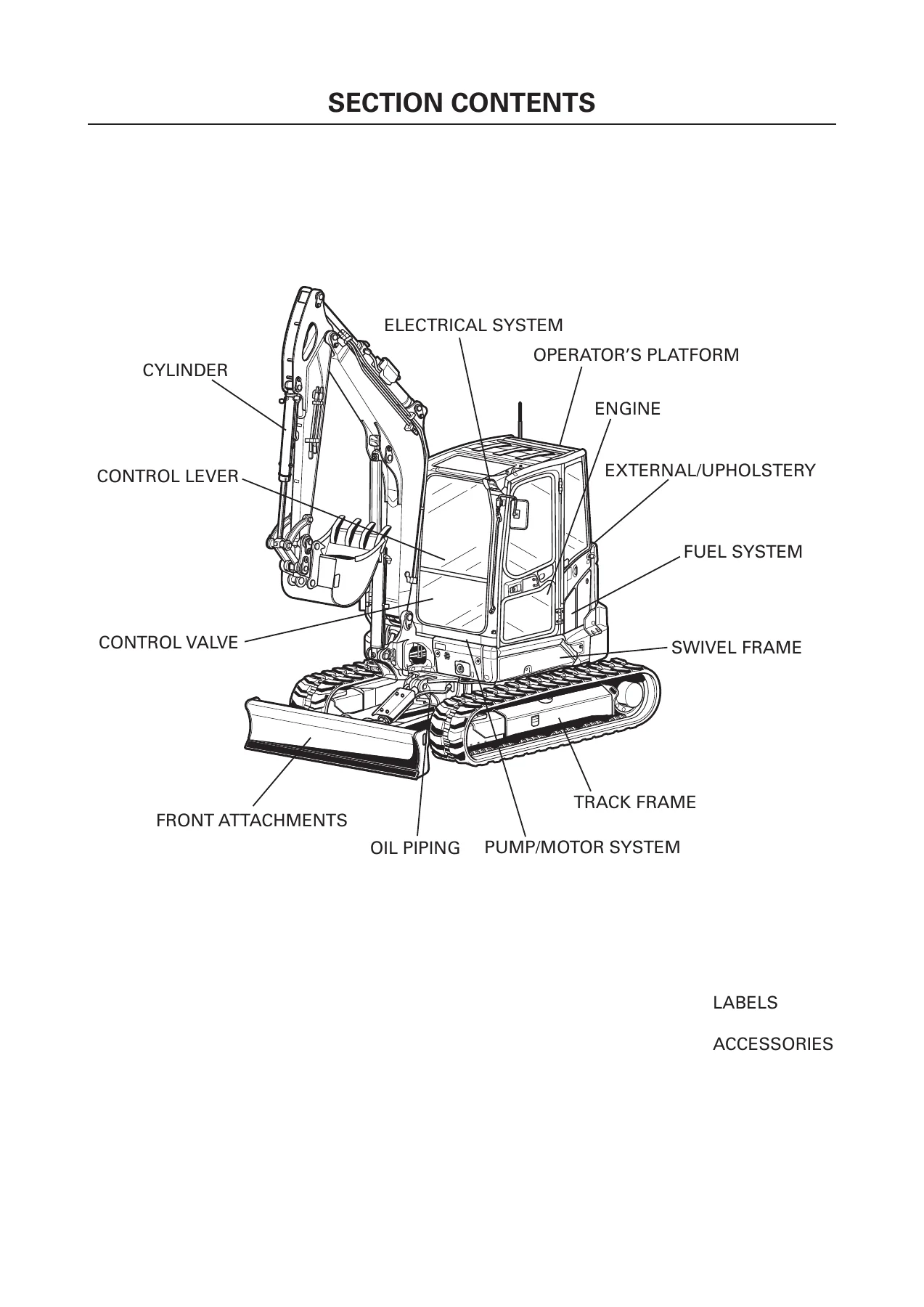

Chapters Covered

• Engine — Crankcase, Oil Pan, Dipstick and Guide, Cylinder Head, Inlet and Exhaust Valve, Rocker Arm Shaft, Head Cover, Front Cover, Piston and Crankshaft, Camshaft and Idle Gear Shaft, Flywheel, Supply Pump, Nozzle Holder and Glow Plug, Injection Pipe, Common Rail, Alternator, Starter, Oil Switch/Thermometer, Water Flange and Thermostat, Water Pump, Water Pipe, Radiator, Reserve Tank, Cooler Fan, Inlet Manifold, Air Cleaner, Exhaust Manifold, EGR Valve, Diesel Particulate Filter Muffler, Oil Separator, Oil Cooler, Engine Bracket, Upper and Lower Gasket Kits
• Fuel System — Fuel Pump and Piping (1) and (2), Separator (Component Parts), Fuel Tank, Fuel Supply Pump
• Electrical System — Battery, Horn, Switch and Meter, Light, Wire Harness (Frame/Cab, Front, Engine, A/C, Meter), Anti-Theft Alarm System
• Pump/Motor System — Housing Pump, Piston Pump, Piston Pump Component Parts, Drive Motor, Swivel Motor, Rotary Joint, Oil Tank (1) and (2), Oil Filter
• Control Valve — Control Valve (1), (2), (3) and Component Parts; Outlet, AX1, Swivel and Bucket sections
• Control Lever — Control Lever LH/RH, Pilot Valve LH/RH, Travel Lever, Travel Pilot Valve, Swing Pedal, Safety Lock Lever, Blade Control Lever and Pilot Valve
• Oil Piping — Suction, Delivery, Return, Oil Cooler, Bucket, Blade, Solenoid, Clamp, S/P1, S/P2, Third Line Hydraulic Return 1 and 2
• Cylinder — Boom Cylinder, Arm Cylinder, Bucket Cylinder, Blade Cylinder, Swing Cylinder
• Front Attachments — Swing Bracket, Boom, Cylinder Cover (Boom), Arm, Bucket Link, Blade
• Track Frame — Track Frame, Idler, Track Roller, Crawler
• Swivel Frame — Swivel Frame, Arch Frame (1) and (2), Swivel Bearing, Seat Support, Step
• External/Upholstery — Cover LH/RH, Bonnet (RH1, RH2, Rear1, Rear2, Center), Sponge (1), (2), (3), Weight, Seat
• Operator’s Platform — Cabin (Body, Door, Window 1, Window 2, Cover and Trim, Lining, Seal Rubber, Rearview Mirror, Wiper Motor, Wire Harness 1 and 2, Heater, Heater Component Parts, Air Conditioner 1, 2, 3)
• Labels — Full decal and warning label set
• Accessories — Grease squeezer, tool bag, filter wrench, fuses, instruction manual bag, parts list

Altogether, this Kubota KX060-5 parts book gives a technician or parts counter the fastest possible path from a broken component to the exact part number: find the system group, match the reference number in the exploded view to the same number in the table, and read off the Kubota part number, description and quantity. The trilingual designations mean a French- or German-speaking operator can confirm the part from the same page, which is why this format is preferred on mixed-language jobsites.

How the Reference Number System Works

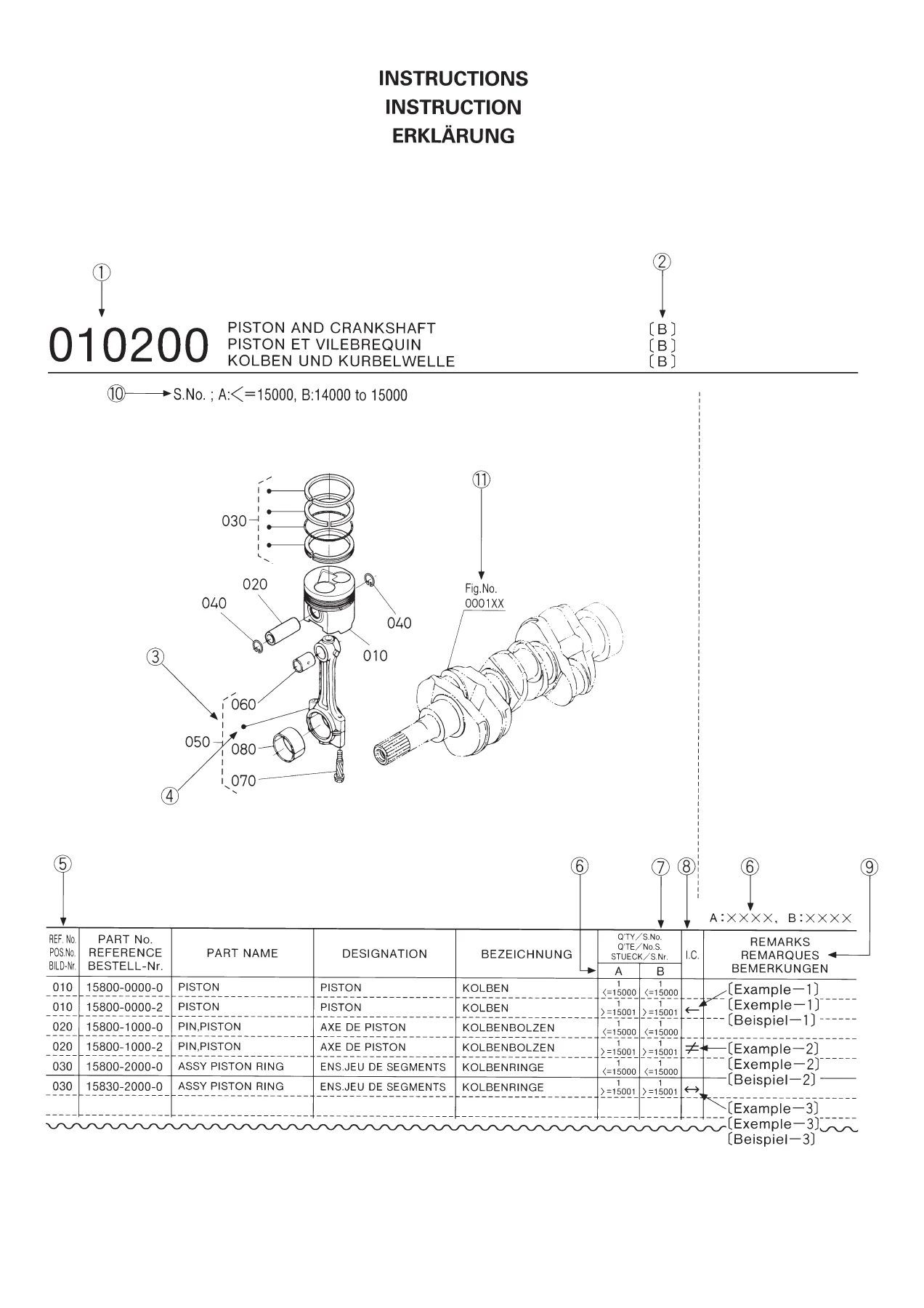

Every group opens with an exploded illustration. Bracketed dotted lines mark the components that make up an assembly; a dotted-line triangle with a single number means the part is not sold separately and the complete assembly must be ordered instead. Reference numbers are assigned to each callout on the drawing, and the same number appears in the parts table below with the part number, name, quantity and any interchangeability note. Serial-number ranges (for example <=15000 or >=15001) and interchangeability codes tell you whether an early or late part is required and whether a newer part supersedes an old one.

Engine and Serial Number Identification

The front of the Kubota KX060-5 PDF explains how to read the engine serial number: four lower digits in numerals or letters (A to Z) and numerals from 0001 to Z999, a fifth digit for the month of manufacture, a sixth digit or letter for the year of manufacture, and a seventh digit for the factory line. This matters when the parts table splits an item across serial ranges, because the same illustration can carry two different part numbers depending on the machine’s build date.

Systems a Technician Can Look Up

• Complete engine internals — piston, crankshaft, cylinder head, valve train, camshaft, flywheel and gasket kits
• Common rail fuel injection — injector, injection pipe, common rail, supply pump, fuel filter and water separator
• Cooling and air path — water pump, thermostat, radiator, reserve tank, air cleaner, EGR valve and DPF muffler
• Hydraulics — piston pump, drive motor, swivel motor, rotary joint, oil tank, filters and the full control valve stack
• Operator controls — pilot valves, travel levers, swing pedal, blade lever and safety lock lever
• All cylinders — boom, arm, bucket, blade and swing, with their seal kits and rod assemblies
• Undercarriage — track frame, idler, track roller, crawler link, top roller and recoil spring assembly
• Cabin and operator platform — glass, seals, wiper, heater, air conditioning components, wiring harnesses and trim

Who This Parts List Is For

This is written for the owner-operator who wants to stop guessing part numbers, the independent mechanic rebuilding a hydraulic cylinder or resealing a final drive, the parts counter that needs the exact Kubota reference for a KX060-5, and the workshop that keeps a KX060-5 on the fleet and wants the whole machine’s fastener-and-seal map on hand. Because the IPL also lists every bolt, O-ring, shim and circlip with its part number, it doubles as a fastener reference for the entire machine.

Get Instant Access to the Kubota KX060-5 Illustrated Parts List
